Product Parameters:
| Model | ZS-KCFC1 |
| Power | 3 Phase, 220/380v, 50/60HZ, 1.2KW |
| Air Consumption | 0.1m³/min |
| Air Supply | ≥0.6Mpa |
| Filling Accuracy | ±0.1g |
| Capacity | 20-40 capsules/minute |
| Filling Weight | 0-20g |
| Weight | About 120kg |

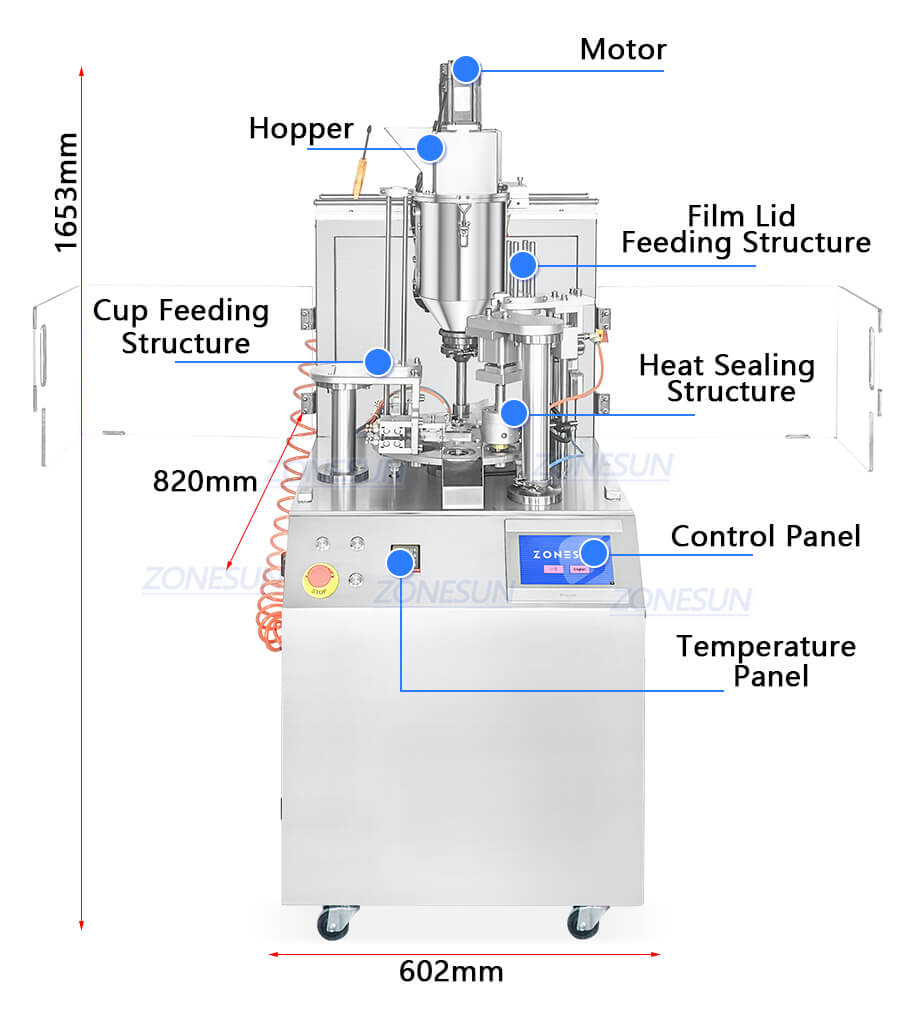

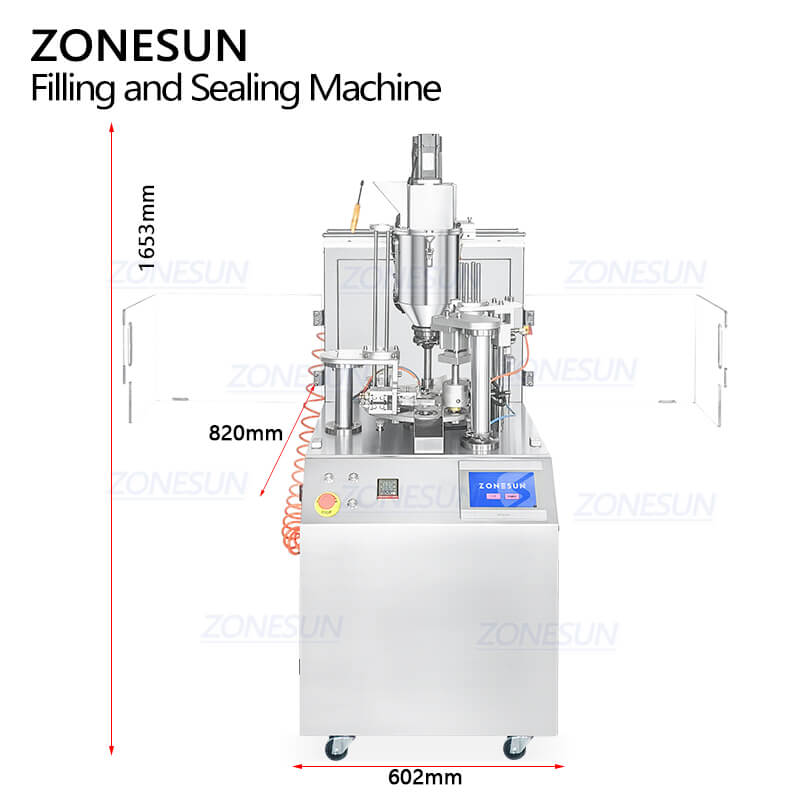

| Dimension | About 602*820*1653mm |
Product Details:

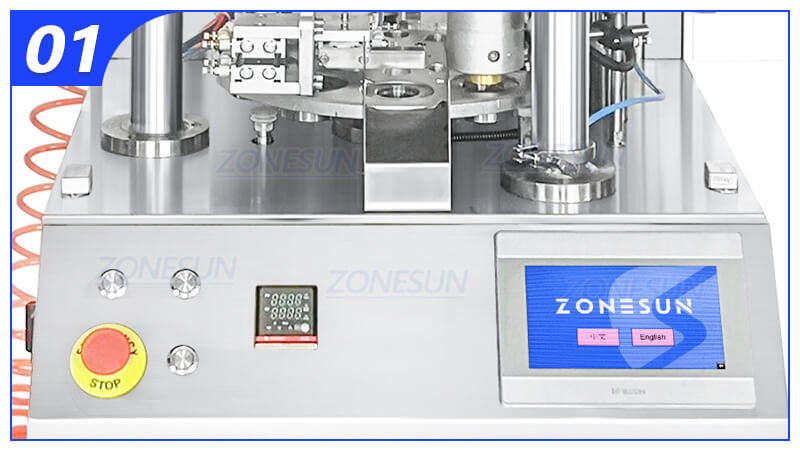

Touch Screen Control Panel
Parameter setting will be more convenient, multi kinds of language are customizable as production needs.

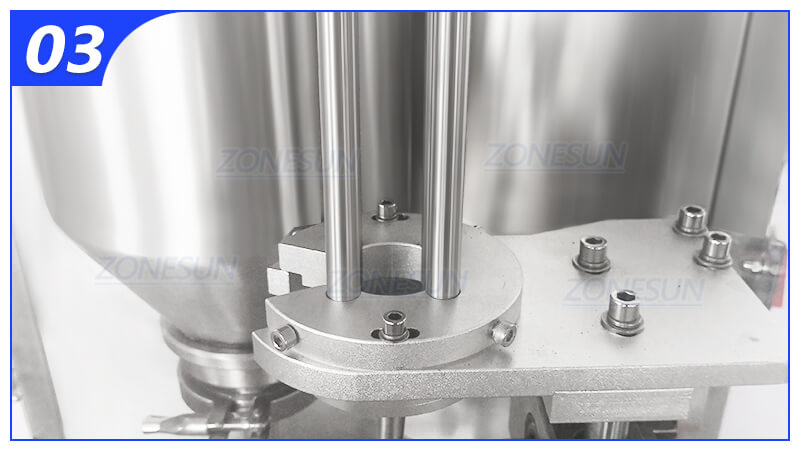

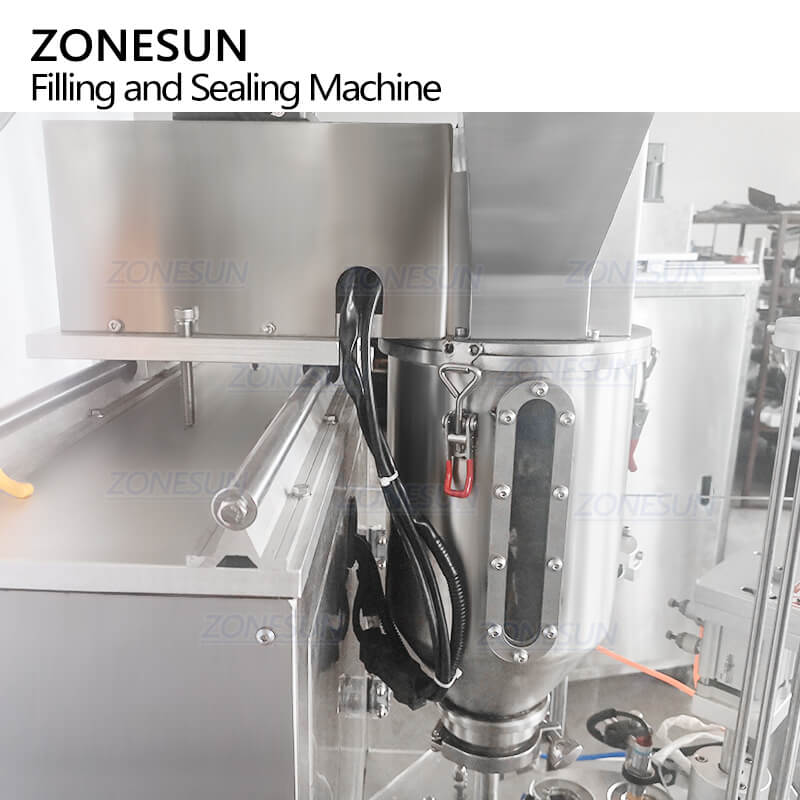

Servo Driven
High-precision metering screw is used for filling, the filling volume is adjustable, and the accuracy is ±0.2g.

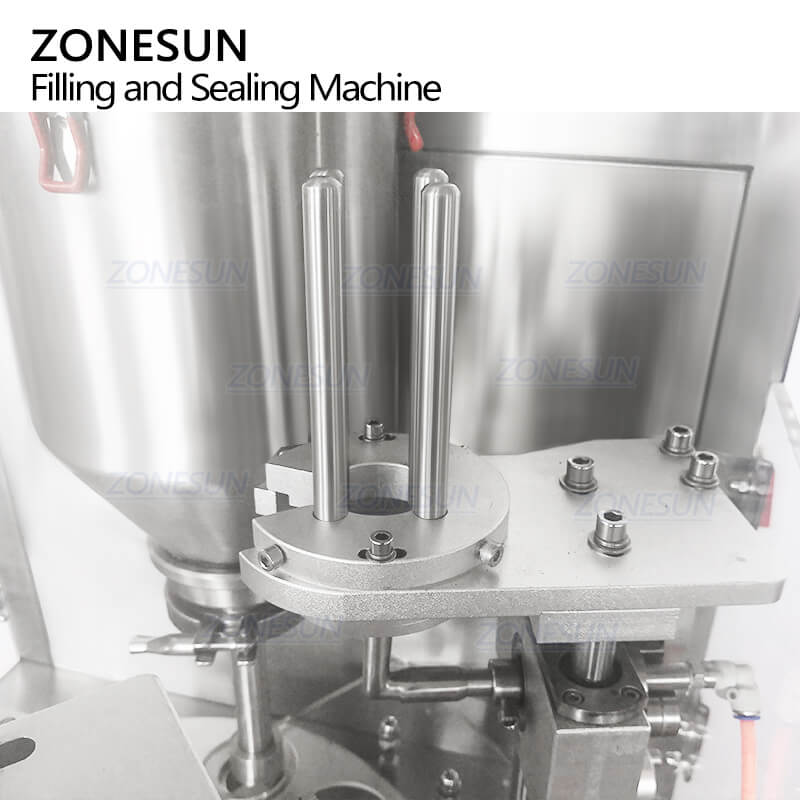

Cup Feeding Structure
The vacuum suction cap positioning device ensures that each cup is capped accurately.

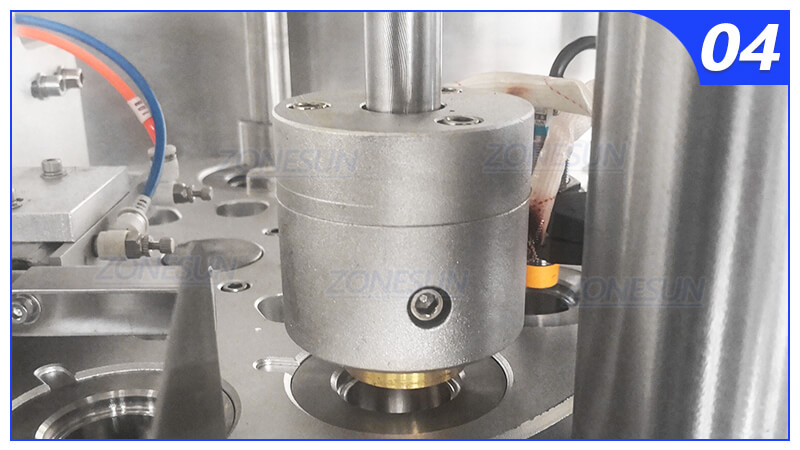

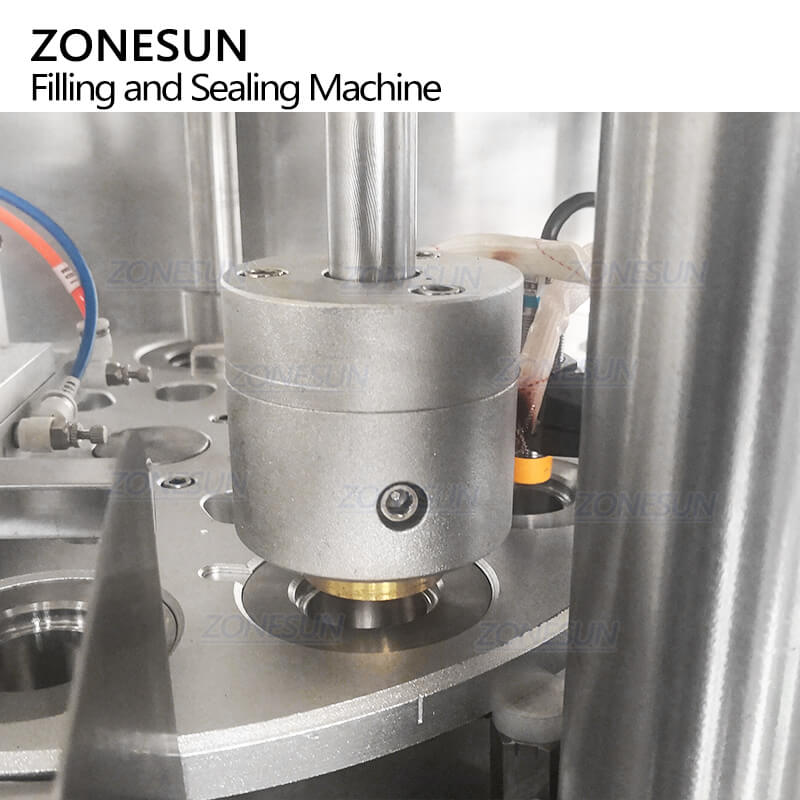

Cup Sealing Structure
The sealing temperature can be adjusted according to production need.

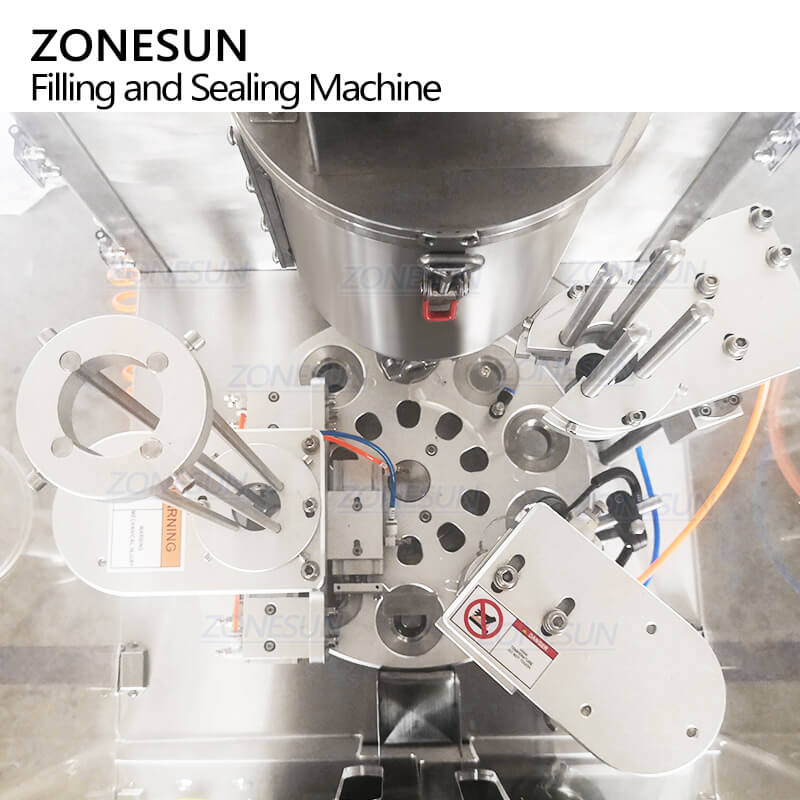

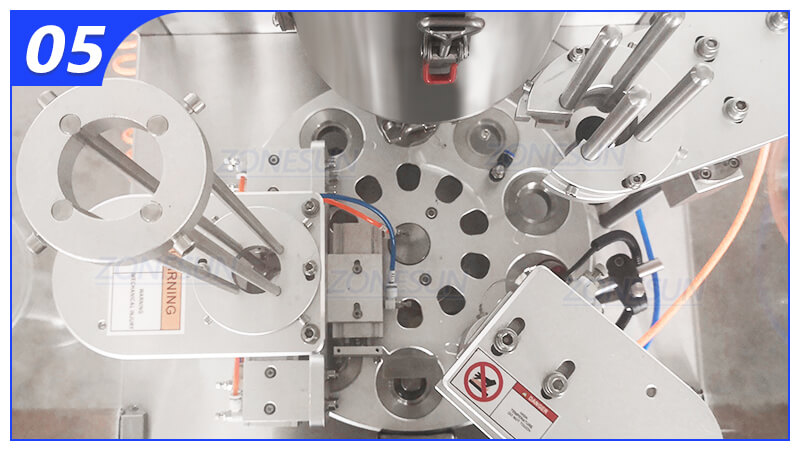

Starwheel
Made of food-grade 304 stainless steel, corrosion-resistant and easy to clean, compliant with food industry standards.
