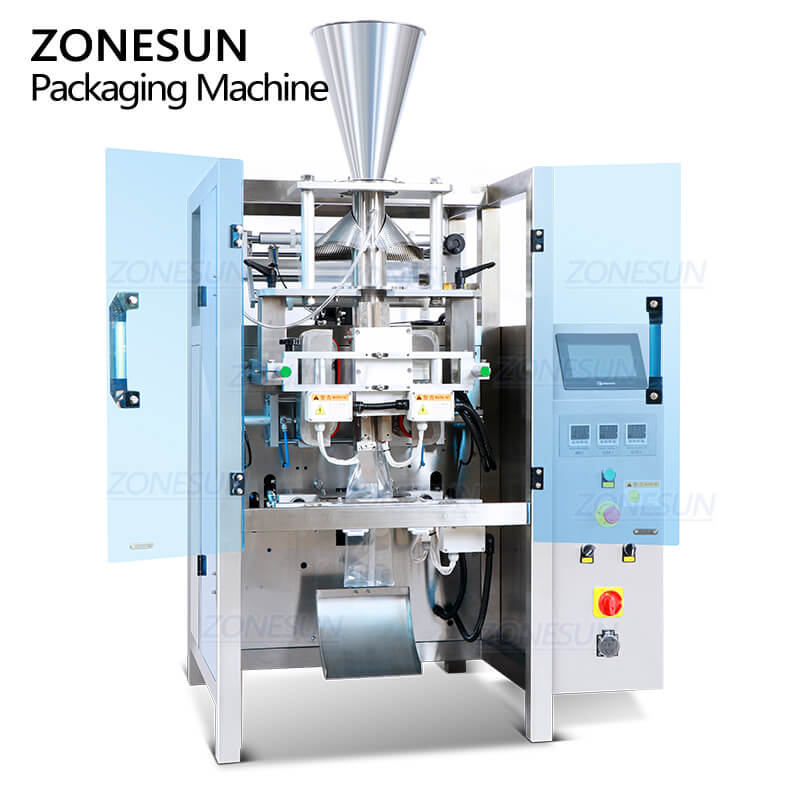

Production Description:

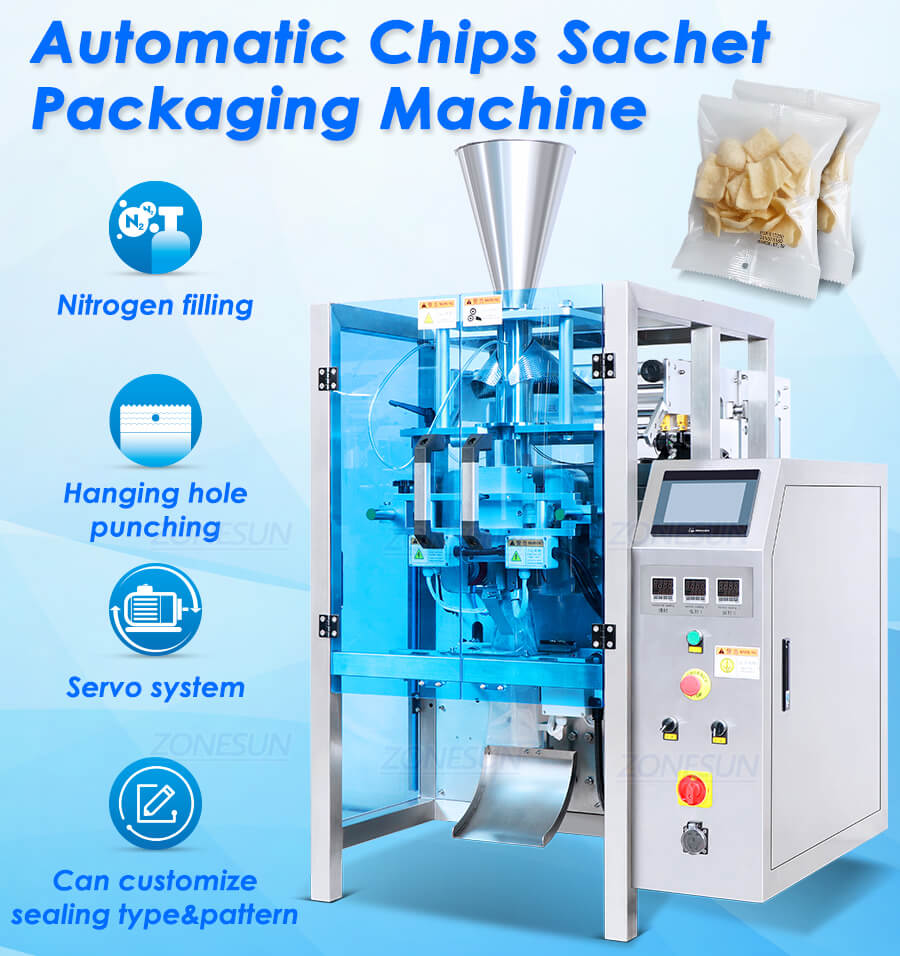

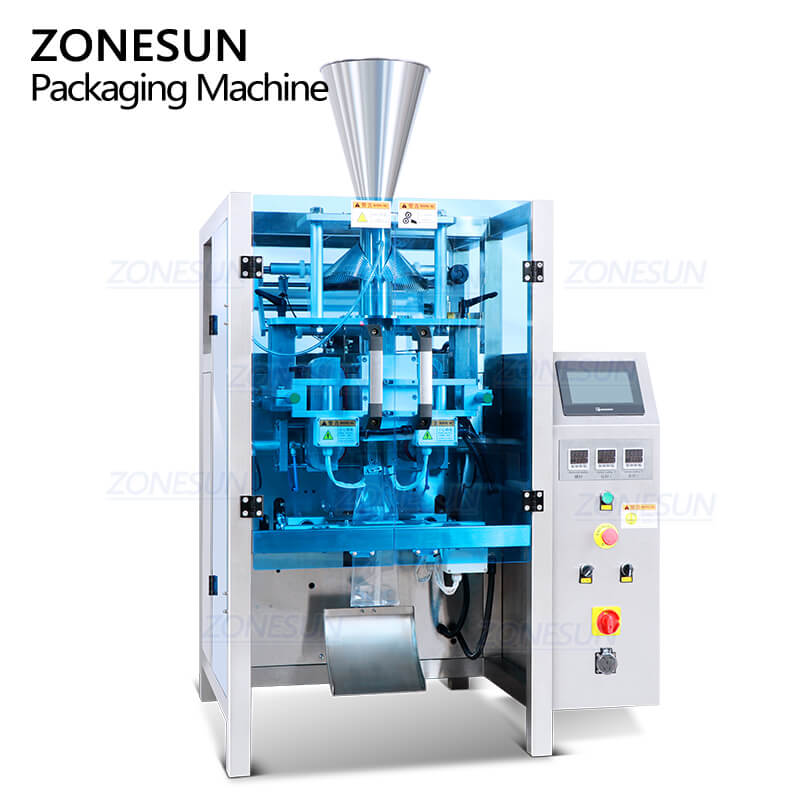

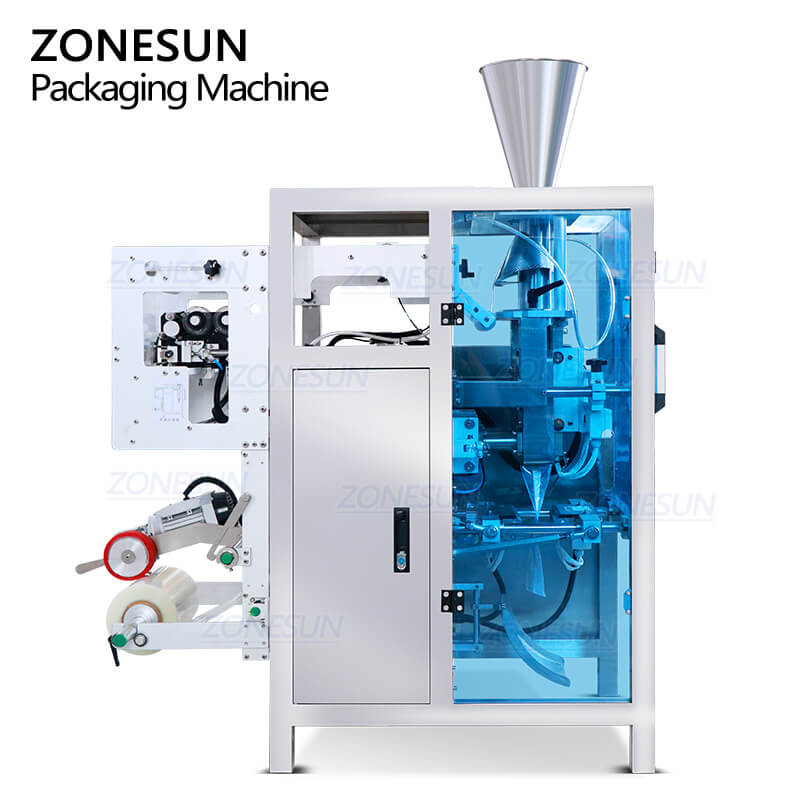

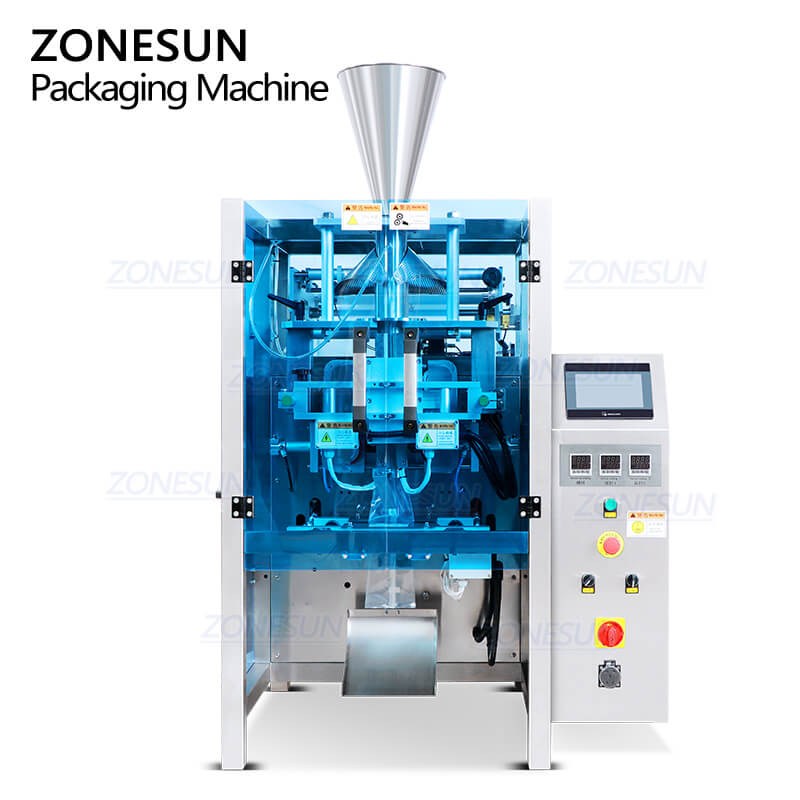

This sachet packaging machine is designed for packaging small chip products like corn chips and rice chips into bags. It operates in conjunction with a feeding machine to facilitate automated production. We can customize different sealing types (back side sealing, three sides sealing, and four sides sealing) based on your production needs.

Product Parameters:

Machine model	ZS-GFKL520
Machine voltage	110/220V 50-60HZ 2.2KW
Sealing type	Back side sealing(can be customized)
Additional function	Nitrogen filling, hanging hole punching, coding
Suitable package film	OPP/CPP, OPP/CE,MST/PE, PET/PE
Working capacity	5-60BPM
Package film thickness	0.04-0.08mm
Package film width	140-420mm
Bag making size	80-300mm*60-200mm(L*W)
Air pressure	0.65MPa
Air consumption	0.4m³/min

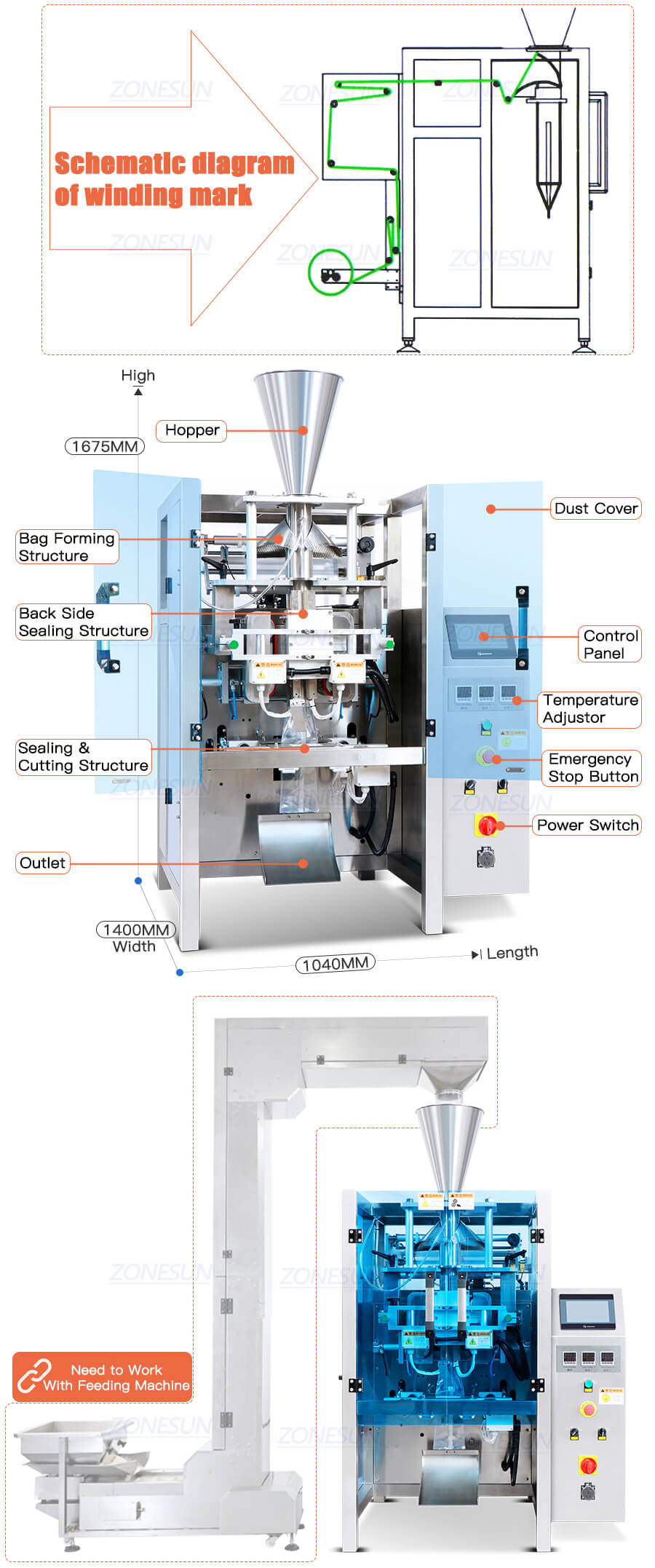

Machine size	About 1040*1400*1675mm(L*W*H)
Package size	About 1400*1170*1480mm(L*W*H)
Package weight	About 406kg

Product Details:

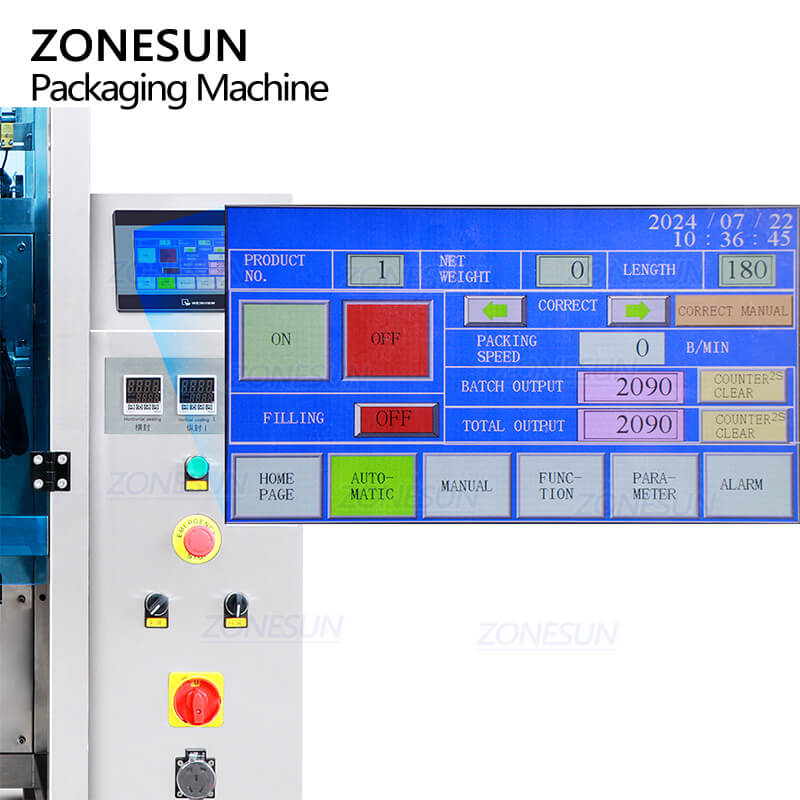

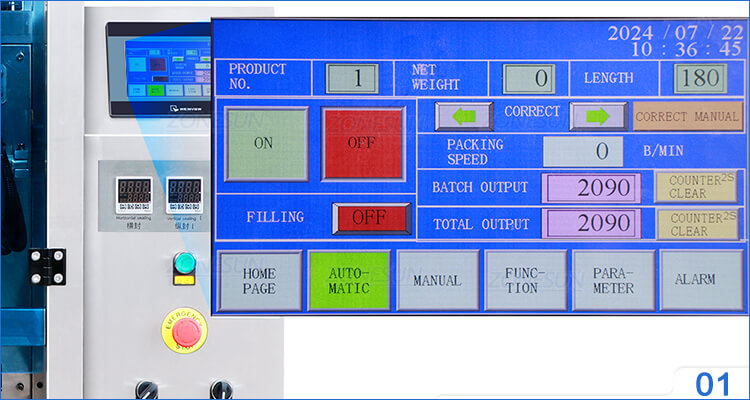

PLC Control Panel
Shows parameter setting intuitively, more convenient to debug and operate machine.

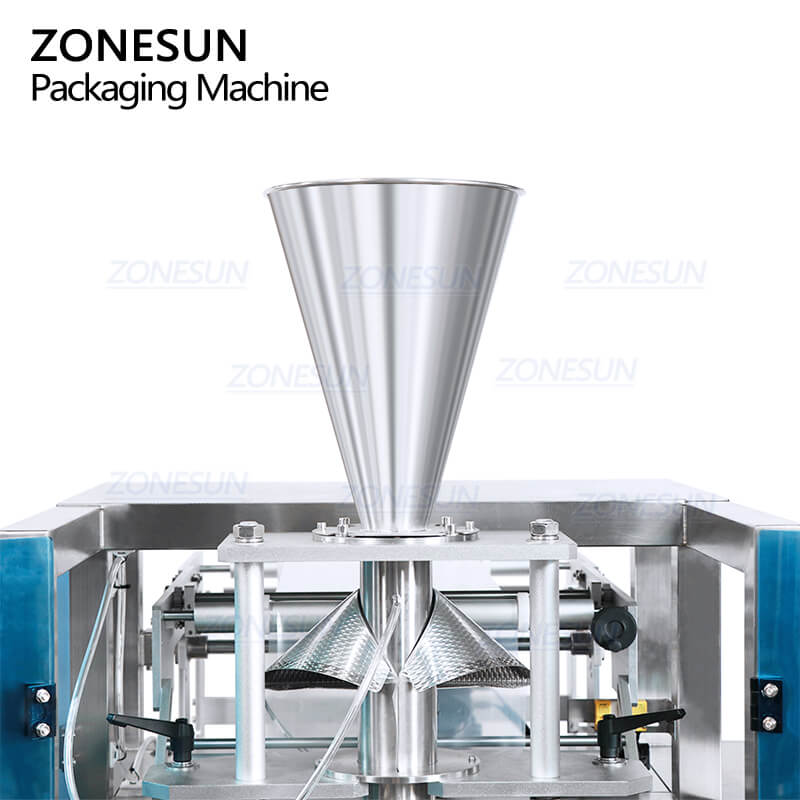

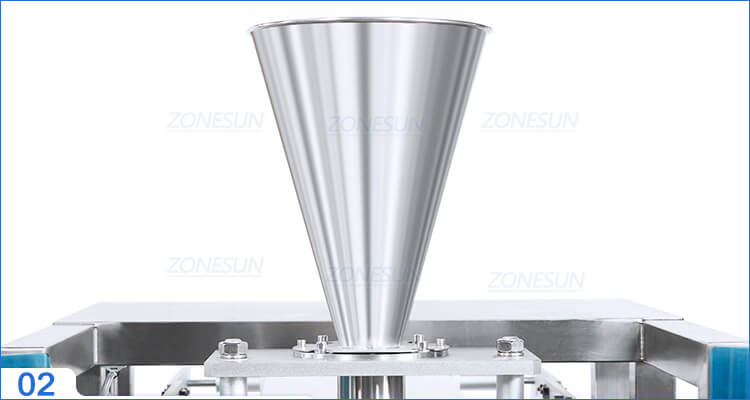

Filling Hopper
Size can be customized based on production need.Usually work with feeding machine to realize automated material supply.

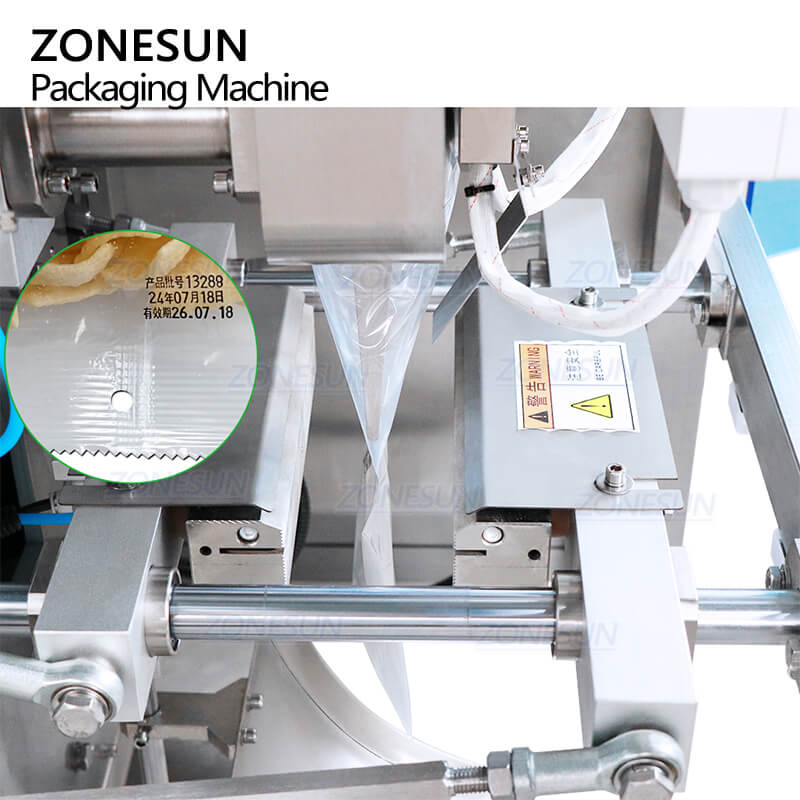

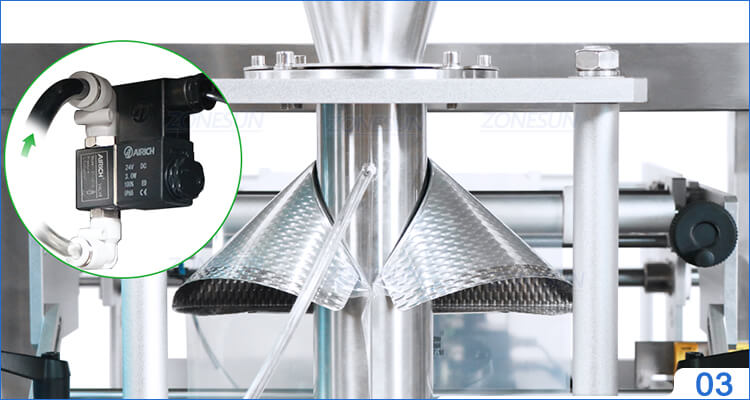

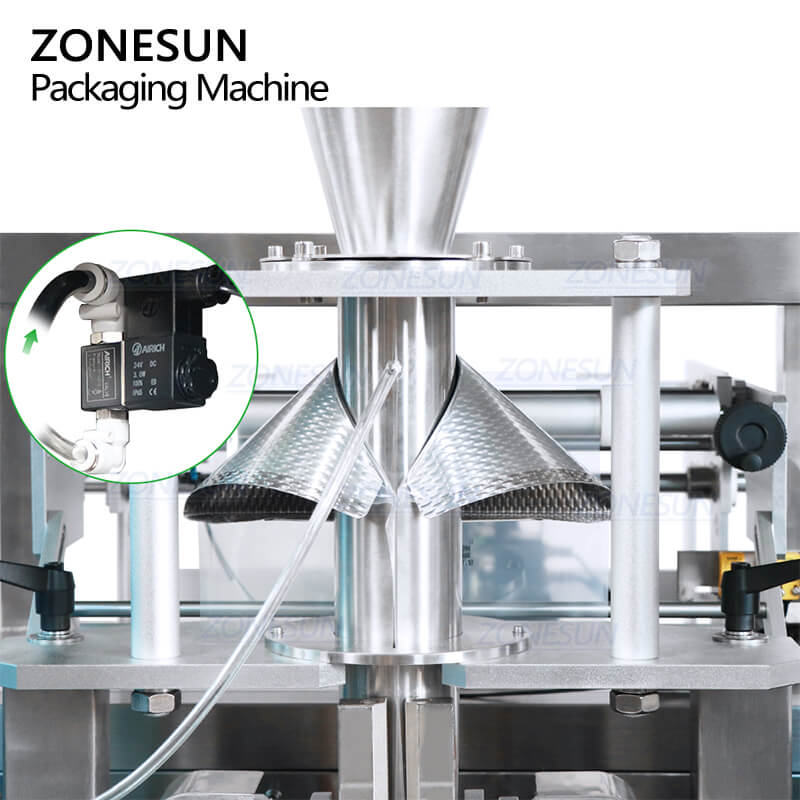

Bag Forming & Nitrogen Filling
Back side, three sides, and four sides sealing can be customized. It can fill nitrogen to ensure packaging quality.

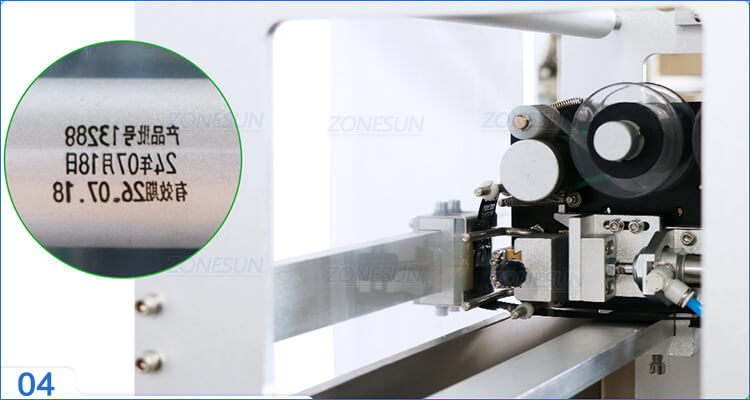

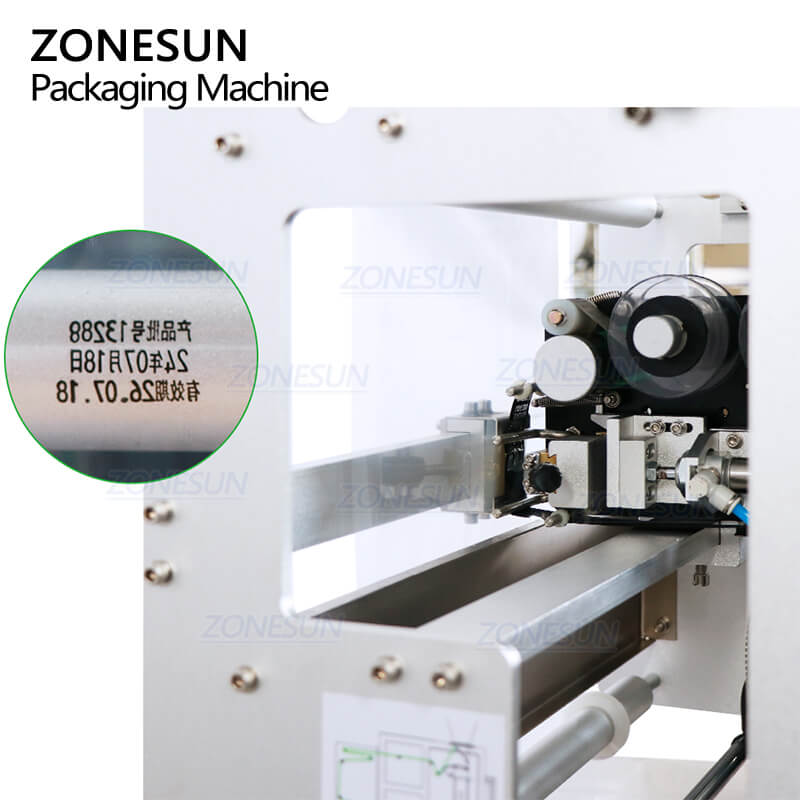

Ribbon Date Coder
Production date and batch number can be coded at the same time. Multi lines information can be coded.

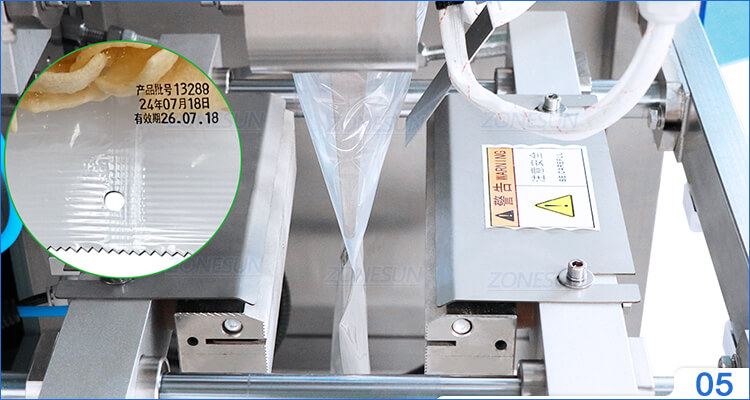

Sealing Cutting & Hole Punching
Sealing temperature can be adjusted easily. Hole punching function can be customized.
