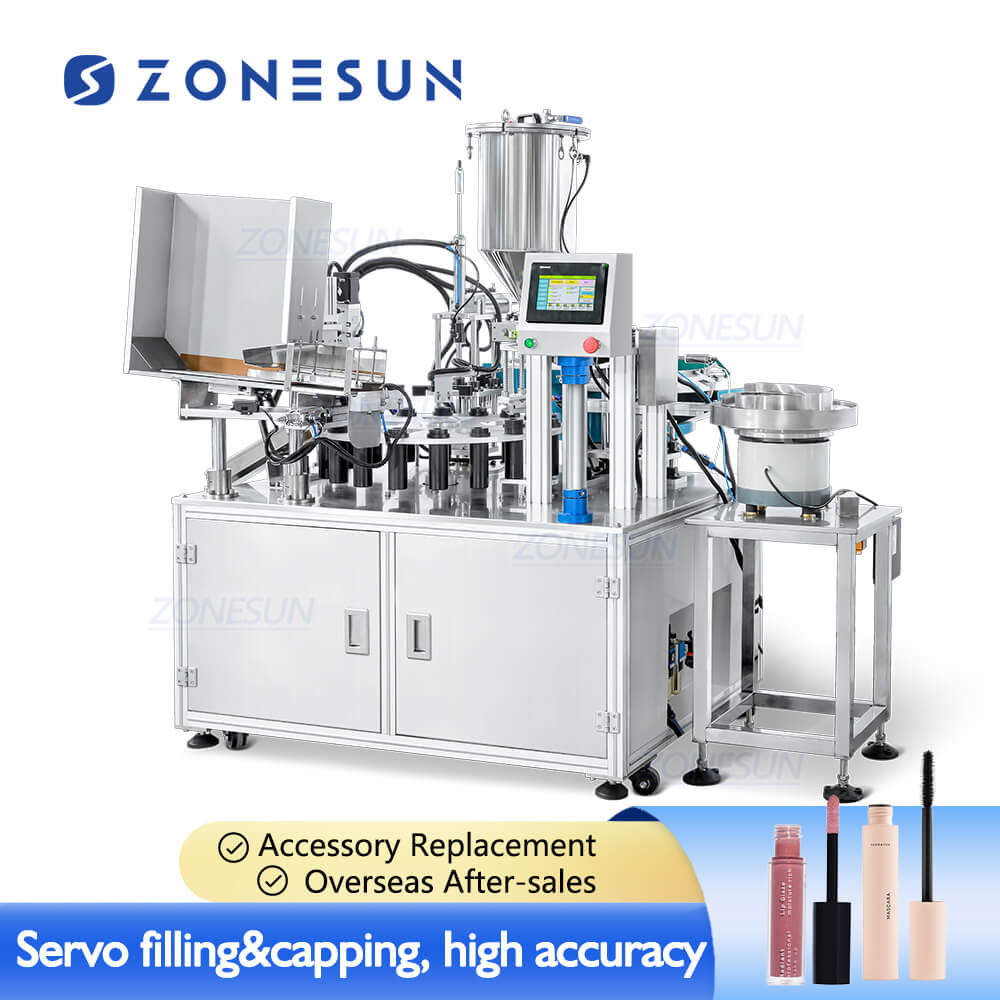

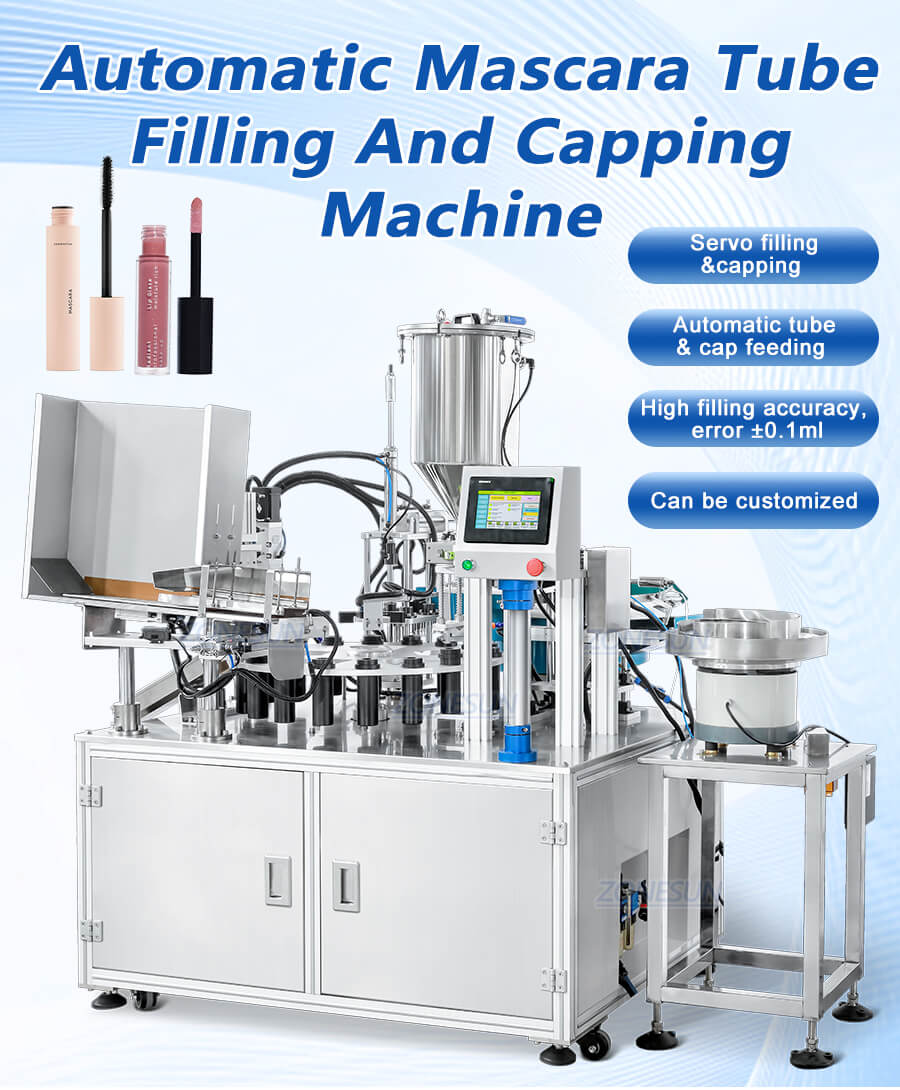

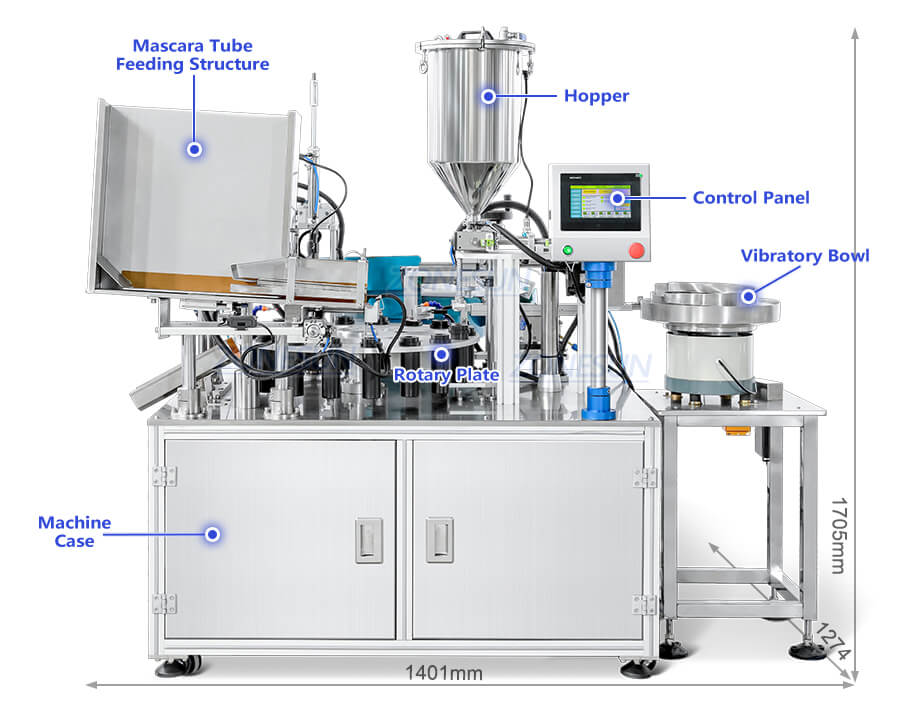

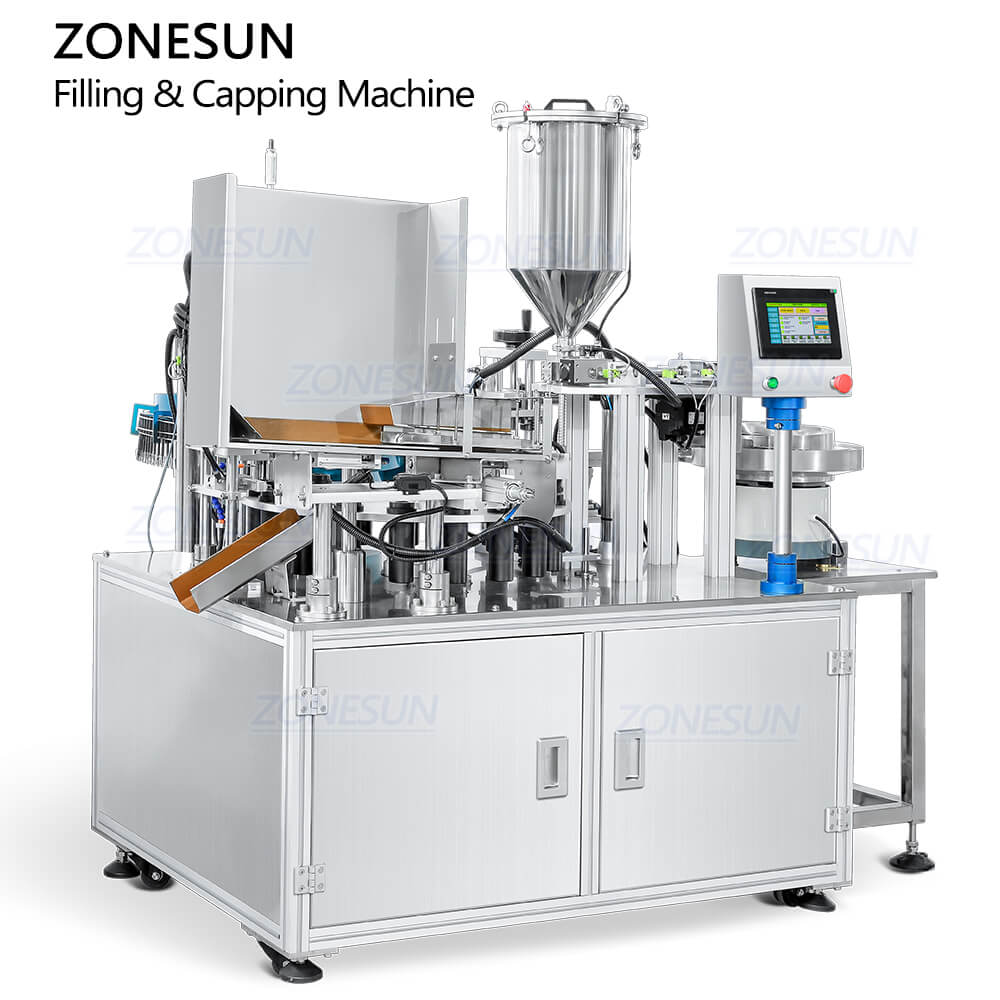

Automatic Mascara Tube Filling Capping Machine

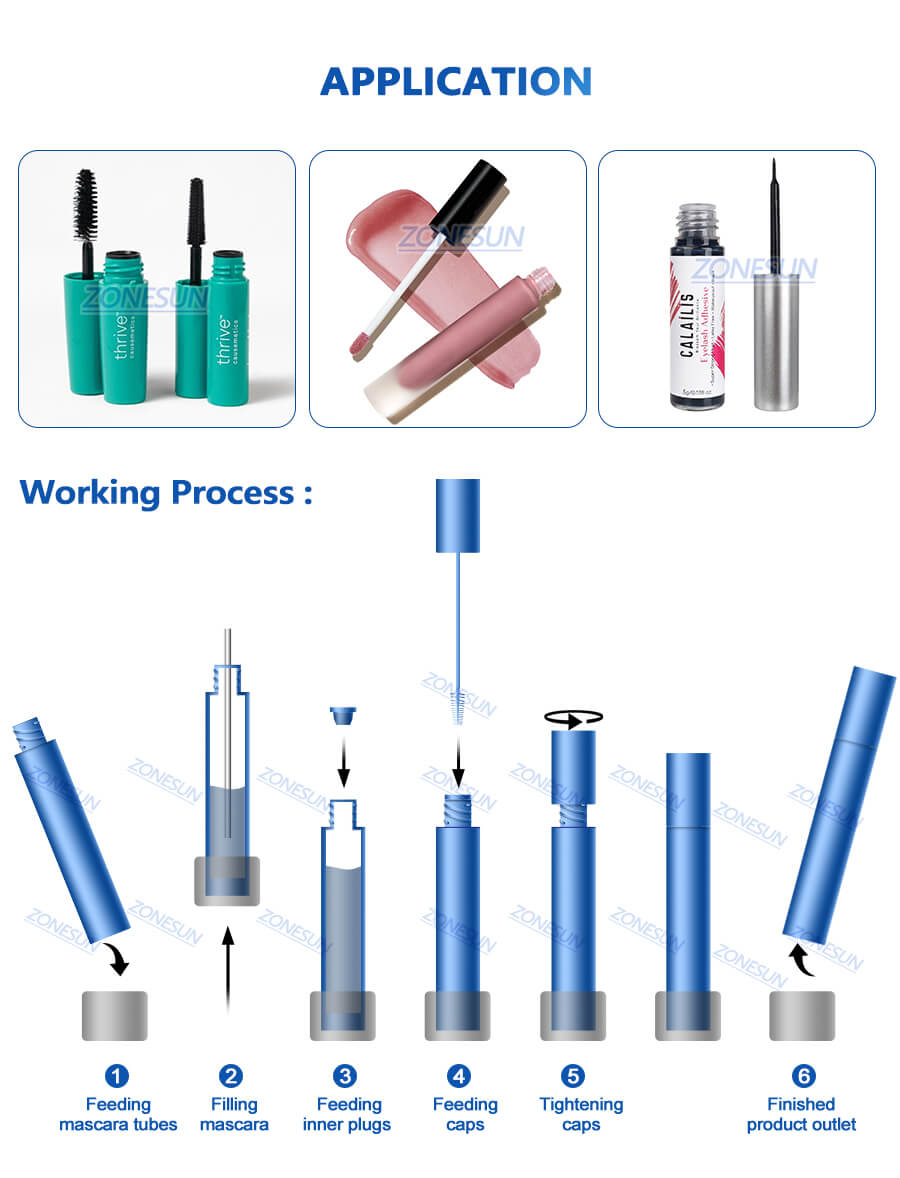

Mascara filling capping Machine is a fully automatic production equipment specially designed for mascara and similar paste cosmetic products. Equipped with PLC + touch screen control, it meets GMP and CE standards, effectively reducing manual contact, ensuring filling consistency and product hygiene. It is one of the core pieces of equipment in modern cosmetic packaging lines.
$21,899.00
Share to
Mascara filling capping Machine is a fully automatic production equipment specially designed for mascara and similar paste cosmetic products. Equipped with PLC + touch screen control, it meets GMP and CE standards, effectively reducing manual contact, ensuring filling consistency and product hygiene. It is one of the core pieces of equipment in modern cosmetic packaging lines.
| Machine Model | ZS-AFC23A |
| Voltage | 220V/110V 50-60Hz |
| Power | 3kW |
| Production Capacity | About 20-30pcs/min (depending on filling materials and product size) |
| Filling Range | 1-20ml (Can be customized) |
| Filling Pump | Servo Piston Pump |
| Filling Error | ±0.1ml |
| Suitable Product Size | Can be customized |
| Hopper Specification | 20L Pressurized Hopper |
| Air Pressure | 0.6-0.8MPa |
| Machine Size | About 1401*1274*1705mm/ About 55.2*50.2*67.1 in |
| Package Size | About 2050*1550*1570mm/ About 80.7*61*61.8 in |
| Package Weight | About 700KG |
Touchscreen Panel
Intuitive panel makes it easier to set parameters like filling volume. The panel language can be customized.

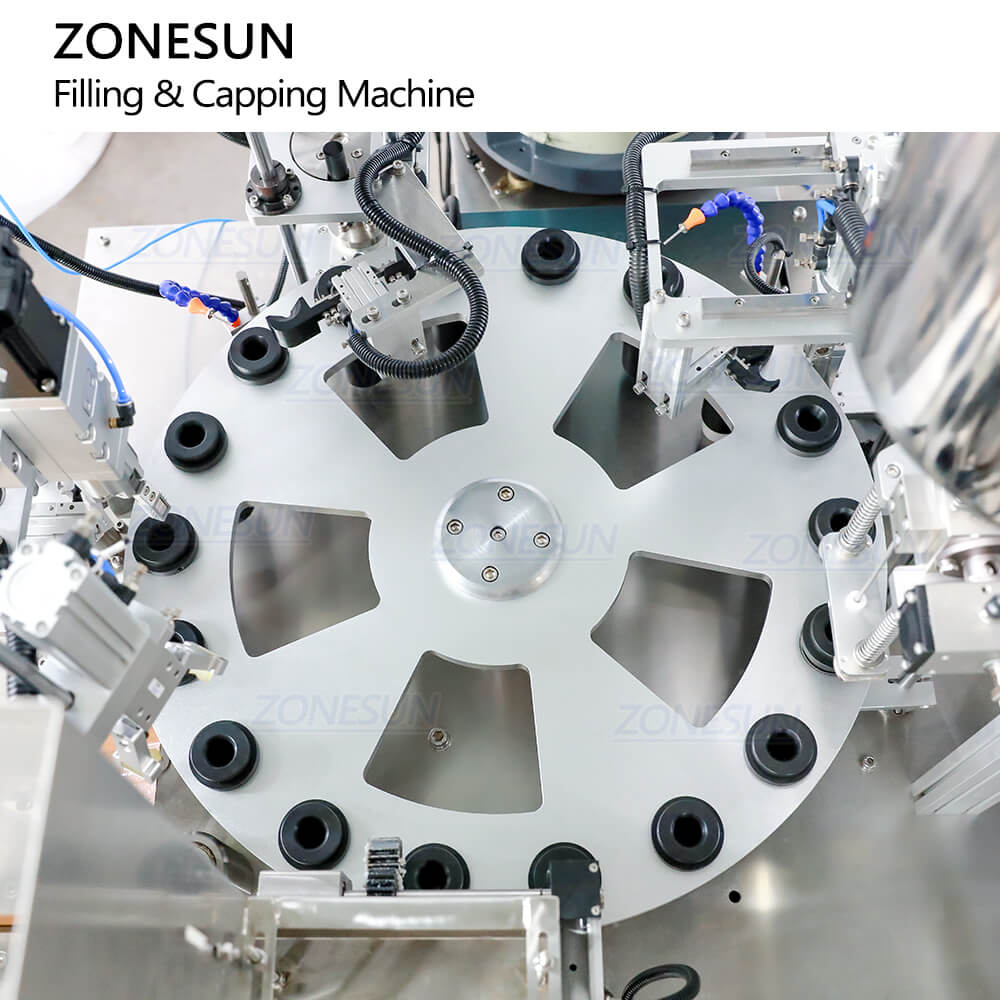

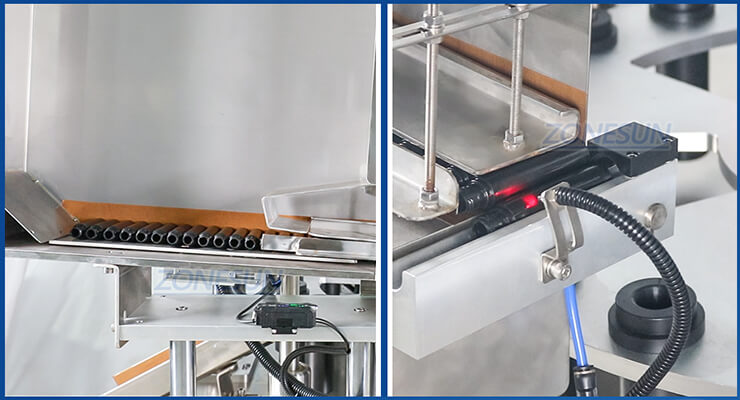

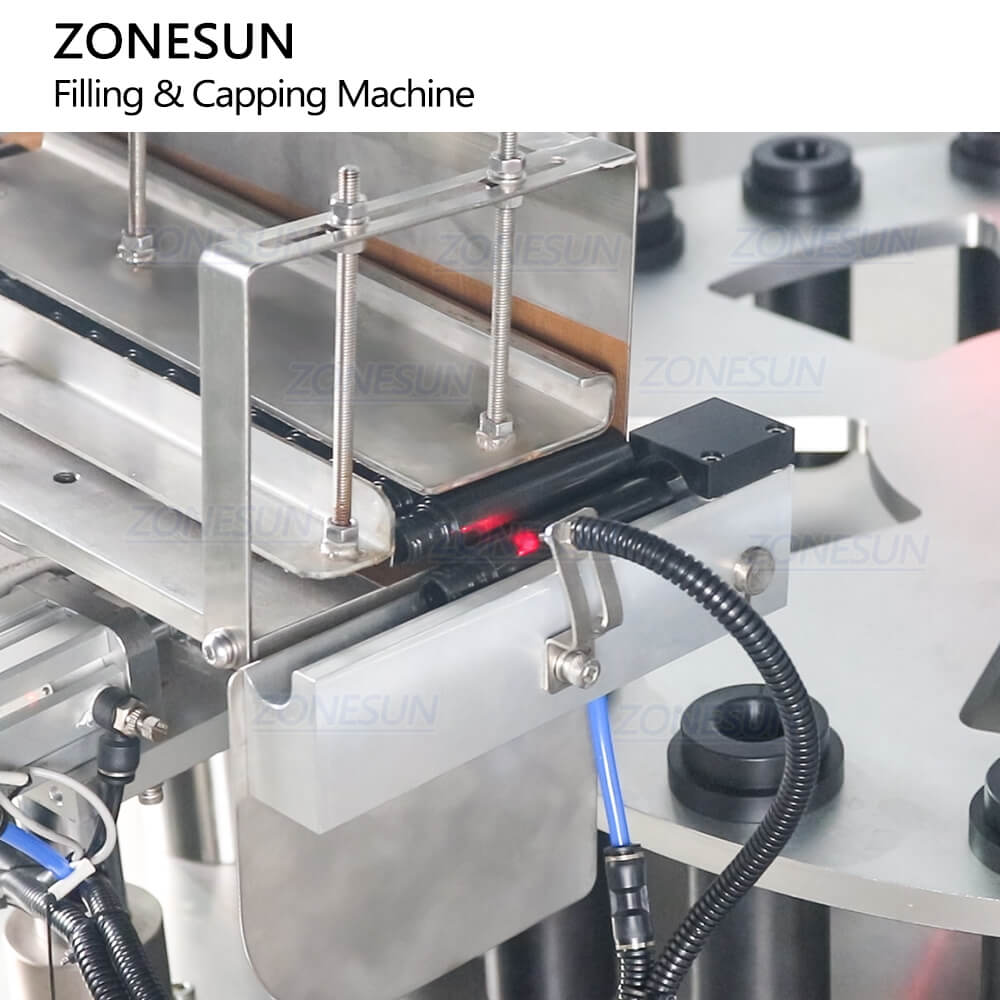

Tube Feeding Structure
Can feed mascara tubes into starwheel automatically. It can be customized as your product size.

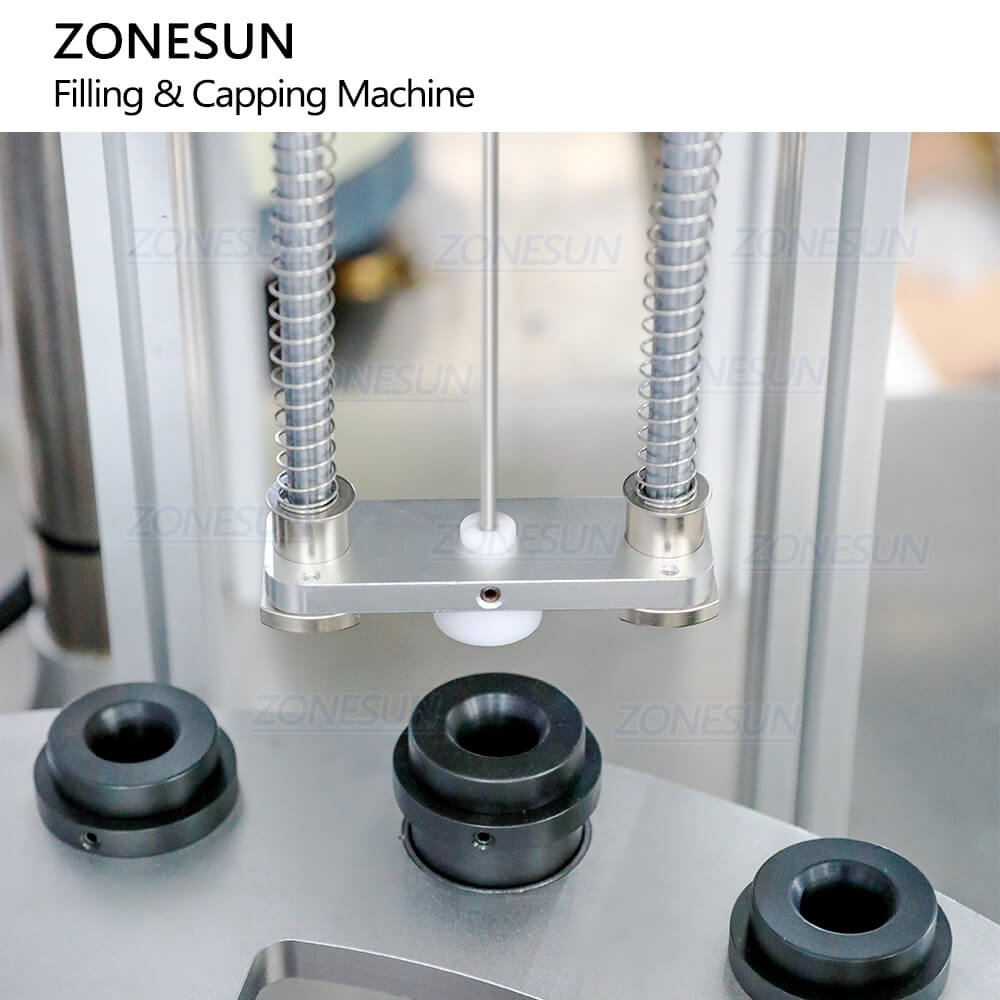

Filling Head
Driven by servo piston pump, it has high filling accuracy. Filling range can be customized.

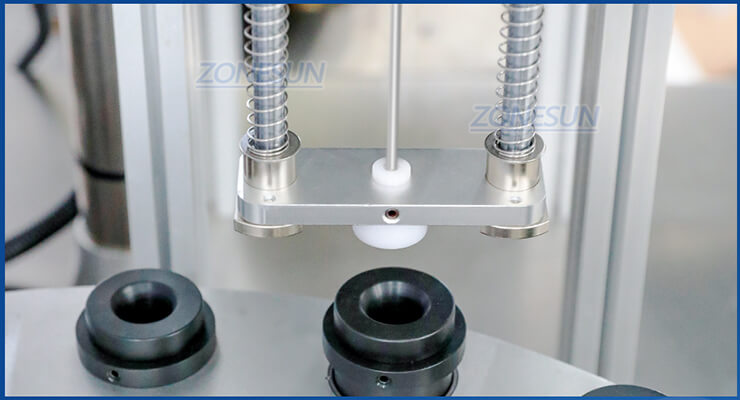

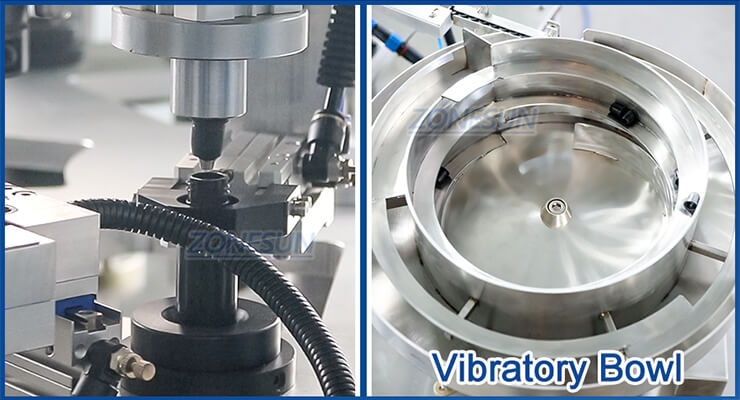

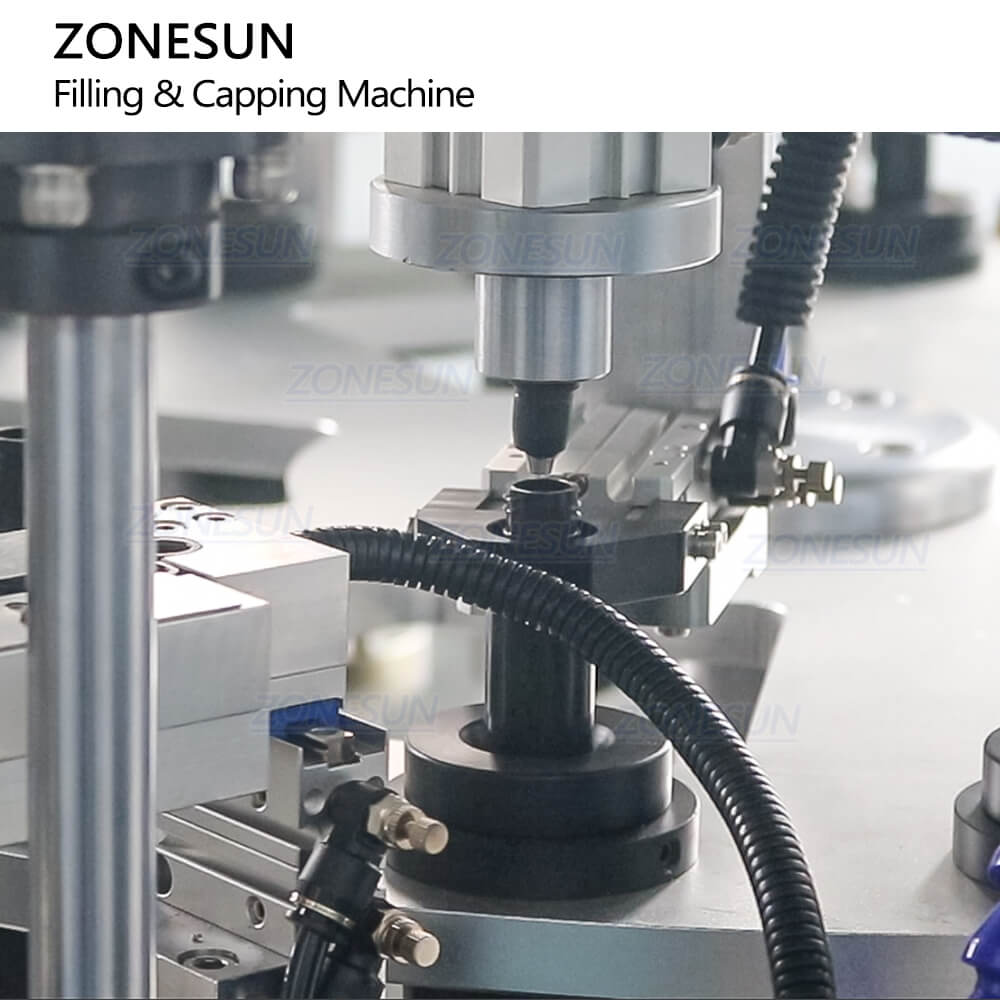

Inner Plug Feeding Structure
Can feed inner plugs to tubes automatically, saving labor cost.

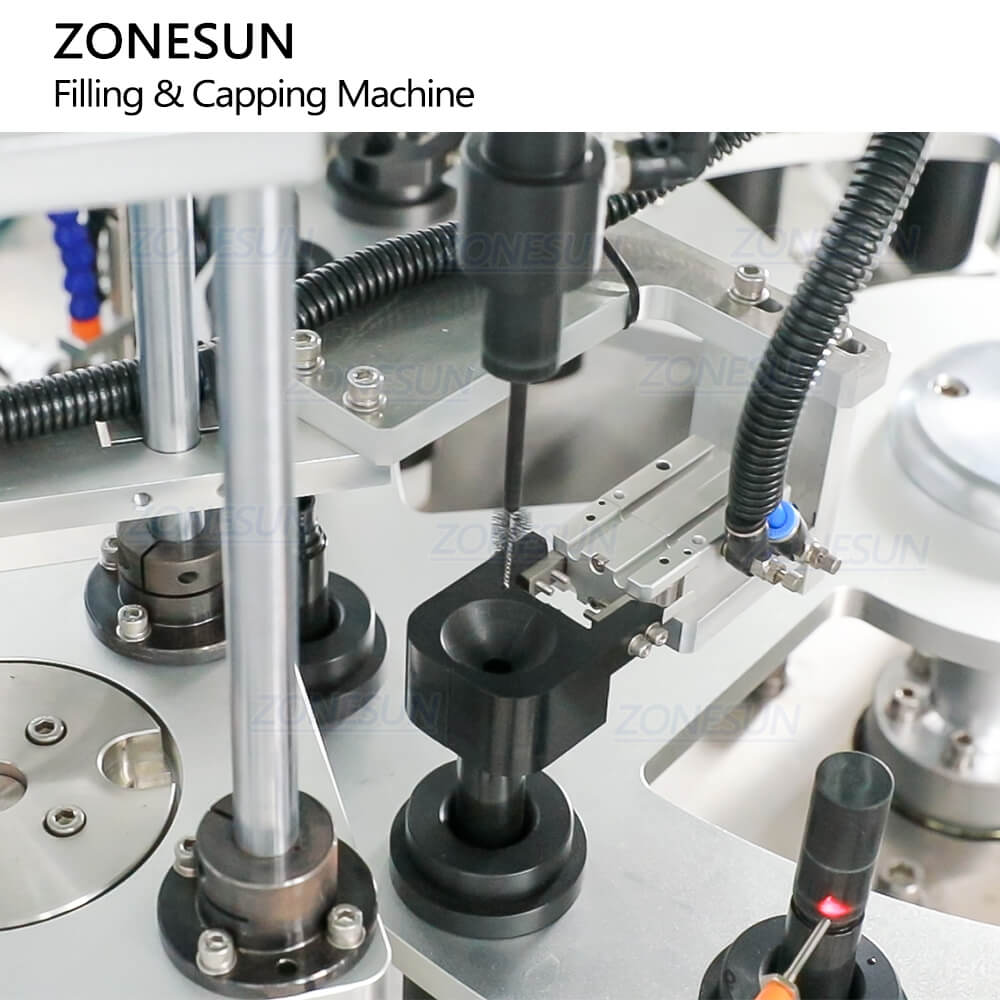

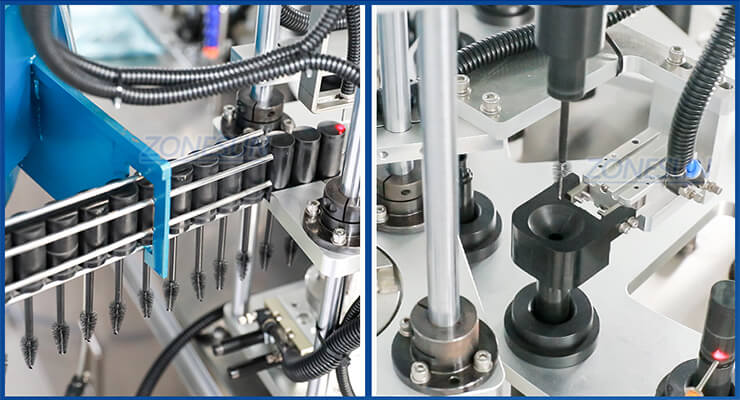

Cap Feeding Structure
Can feed and place eyelash brush cap to tubes automatically. It can be customized as needed.

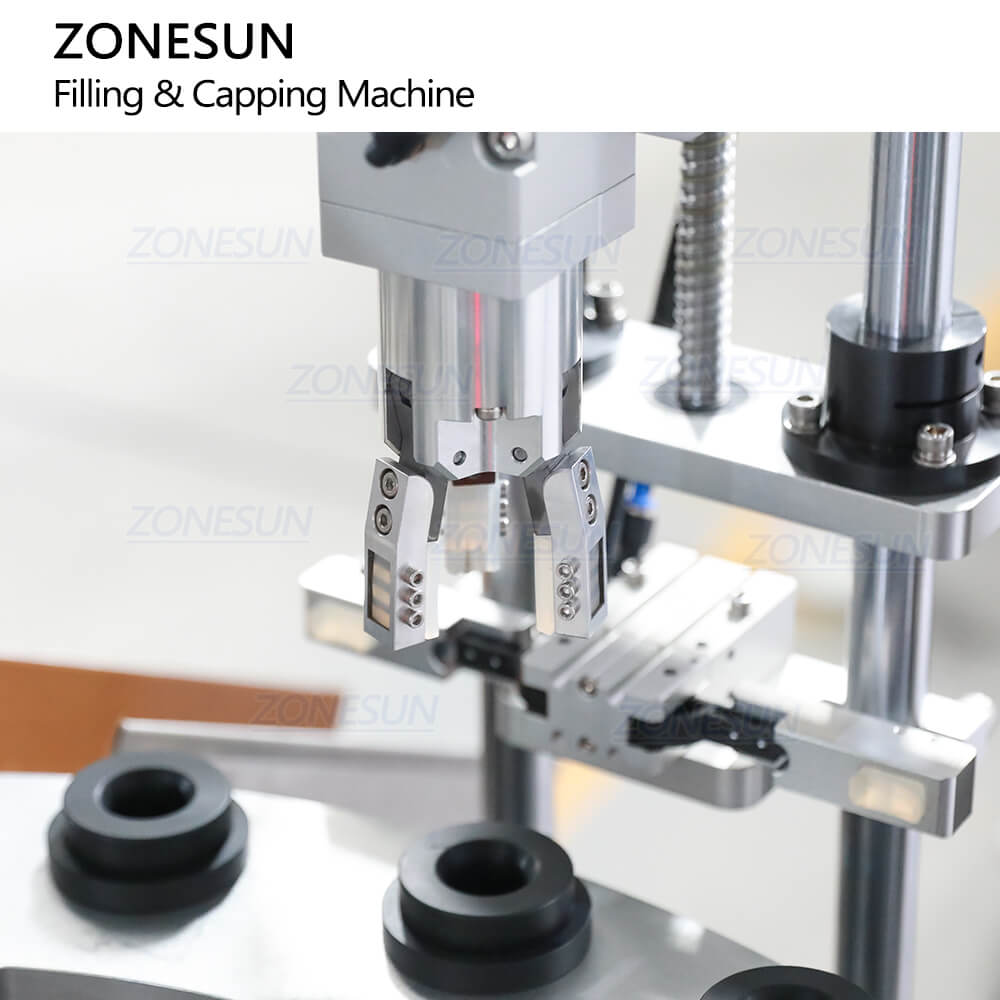

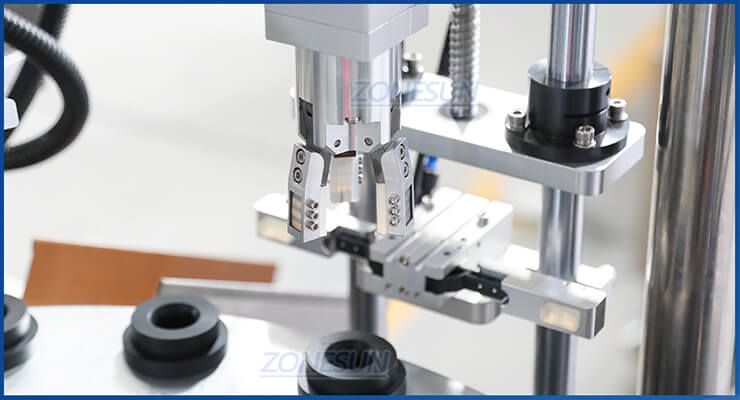

Servo Capping Structure
The capping torque and working height can be adjusted as production need.
