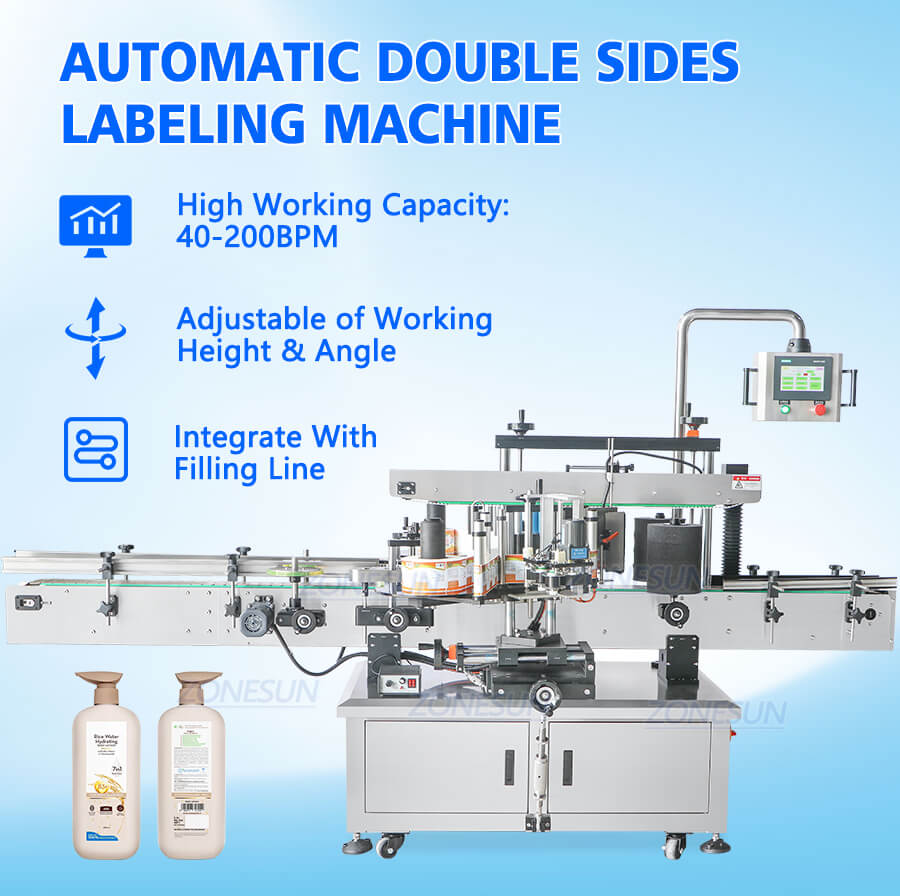

Product Description:
This automatic labeling machine is designed for sticking labels on the double sides of flat bottles like laundry detergent, engine oil, liquid soap etc.Labeling position (working height, angle) can be accurately adjusted as production need.It is suitable for small and medium scale production.

Product Parameters:

Model	ZS-TB600D
Power supply	AC220V 50H-60HZ 2500W
Labeling capacity	40-200 bottles/min(depends on bottle size)
Labeling accuracy	±1.0mm
Suitable Bottle Diameter	Φ12-120mm H 30-300mm
Label size	(W)20-300mm* (H)15-200mm
Roll inside diameter	Φ76mm
Roll outside diameter	Φ350mm
Conveyor Size	112*2000mm(W) (Can be customized)

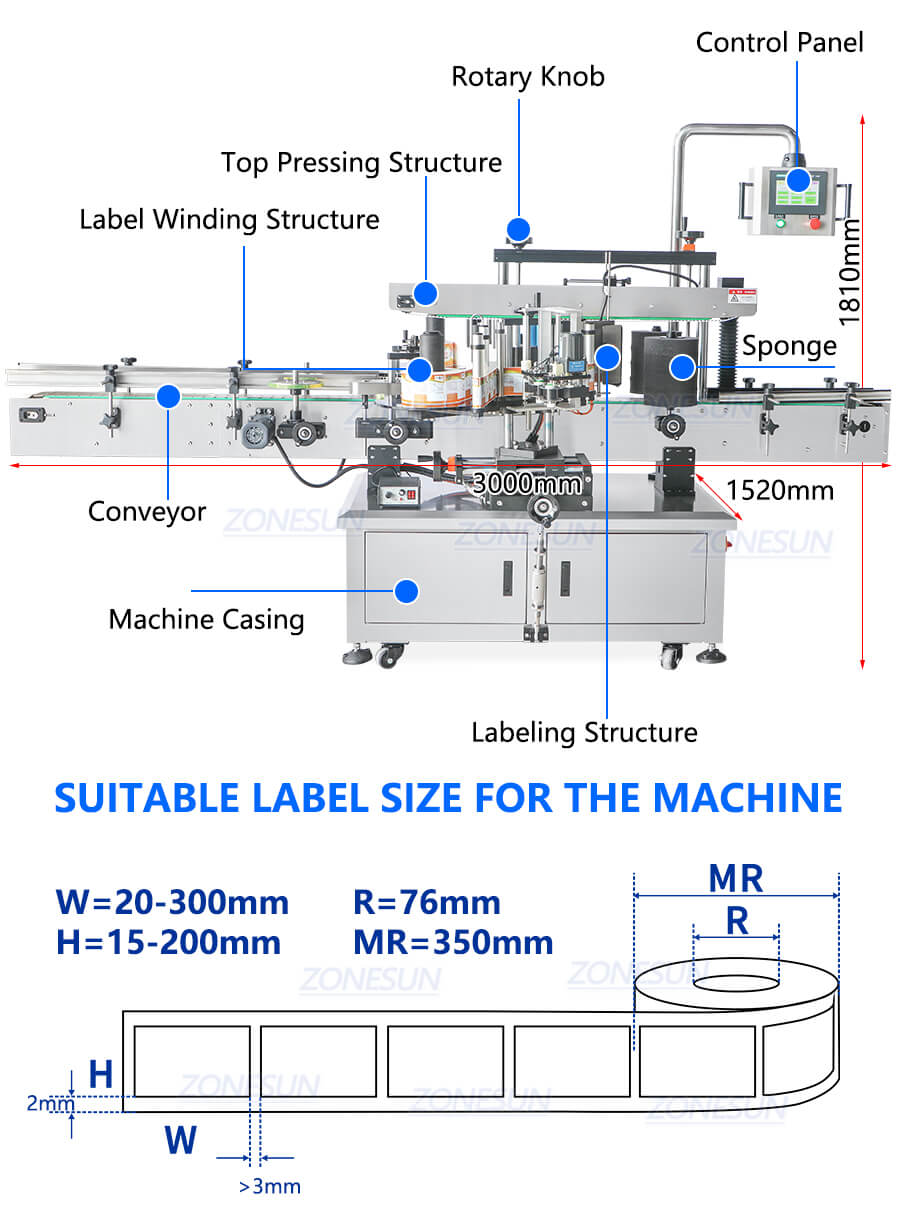

Machine size	About 3000*1520*1810mm(L*W*H)
Package size	About 2360*1310*1700mm(L*W*H)
Package weight	About 552kg

Labeling Machine Configuration
Machine Component	Brand	Origin
PLC	Siemens	Germany
Label Outputting Motor	Panasonic	Japan
Label Outputting Motor Drive	Panasonic	Japan
Touch Screen	Siemens	Germany
Label Detection Photoelectric Sensor	SICK	Germany
Frequency Converter	Leuze	Germany
Conveying Motor	ZD/GPG	China
Power Switch	Delta	China
Air Circuit Breaker	CHINT	China
Emergency Stop Switch	Delixi	China

Product Details:

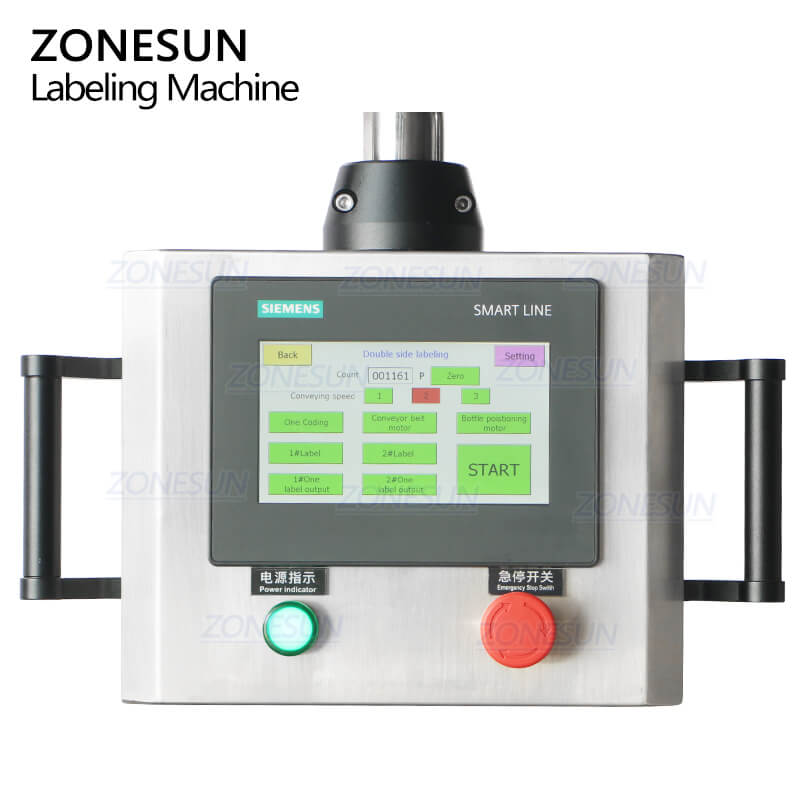

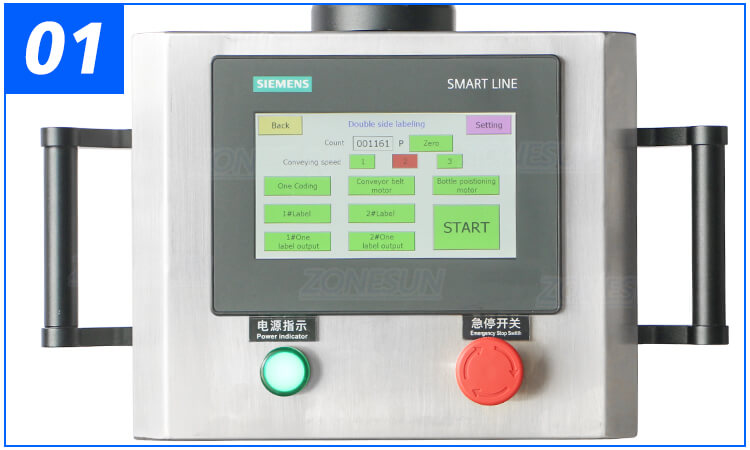

PLC Control Panel
Makes parameter setting intuitively, more convenient to debug and operate machine.

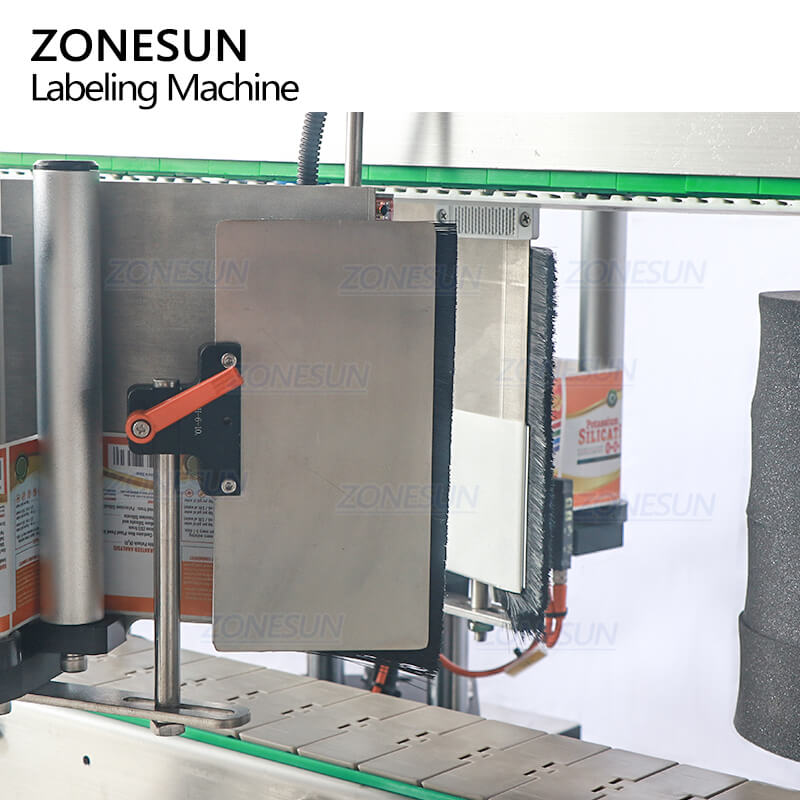

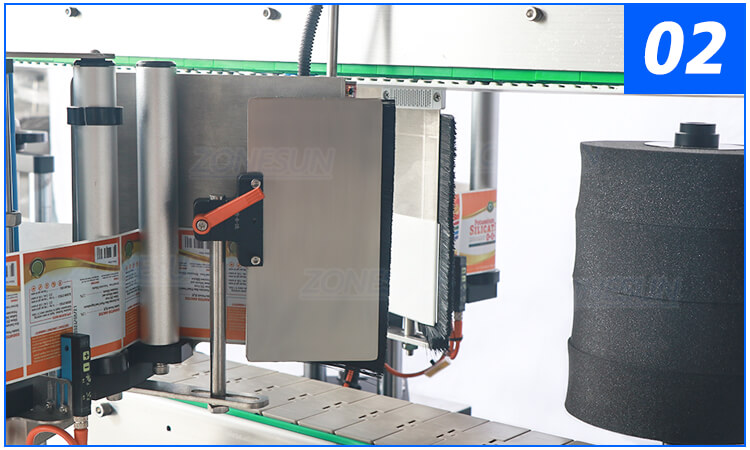

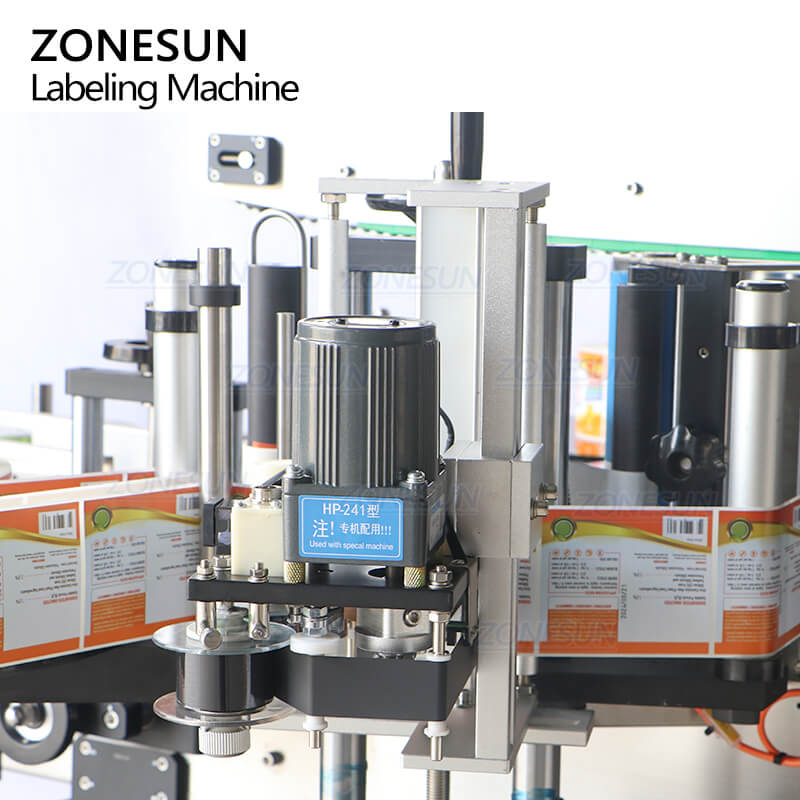

Labeling Structure
Suitable for double sides labeling, working height & angle can be adjusted accurately.

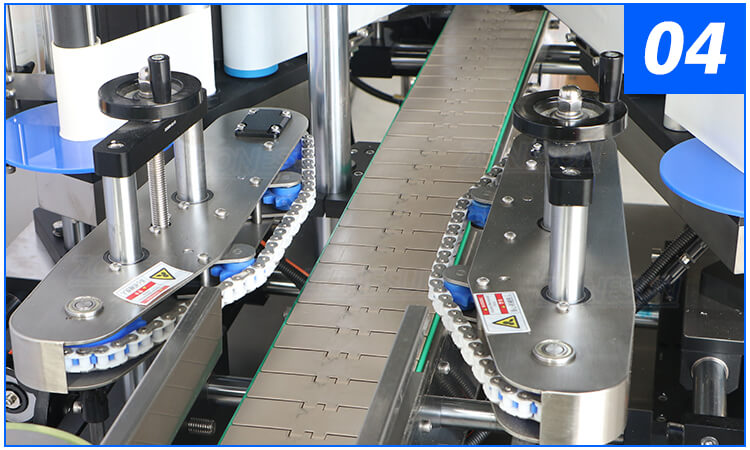

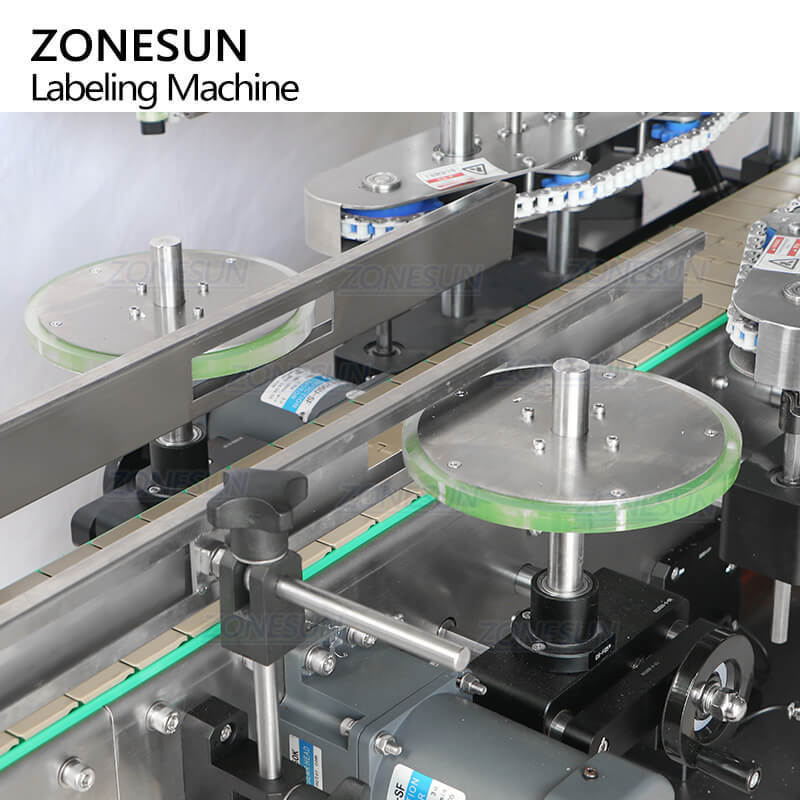

Bottle Separating Wheels
This can create consistent spacing between bottles when conveying, this ensures accurate labeling.

Clamping Conveyor
Can prevent bottle from falling down during labeling work, improves labeling accuracy.

Top Pressing Structure
Reasonable machine design ensures bottles will be conveyed stably labeling.

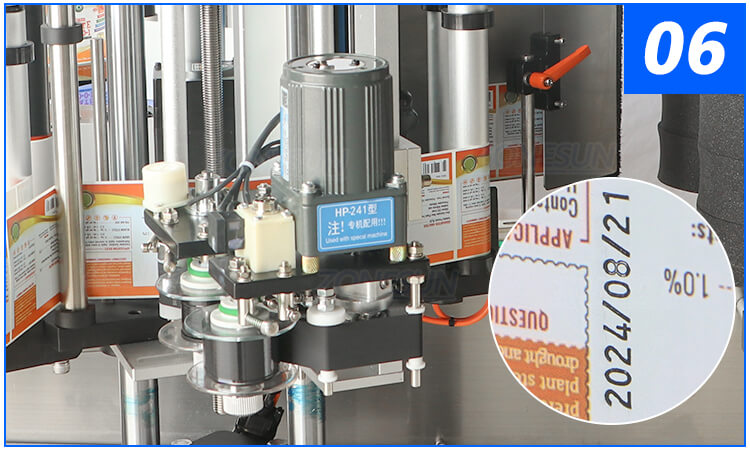

Date Coder
Date coder is optional for printing batch number or production date to simplifies production.

Chain Conveyor
Length and width are customizable based on production need, it has larger weight capacity.
