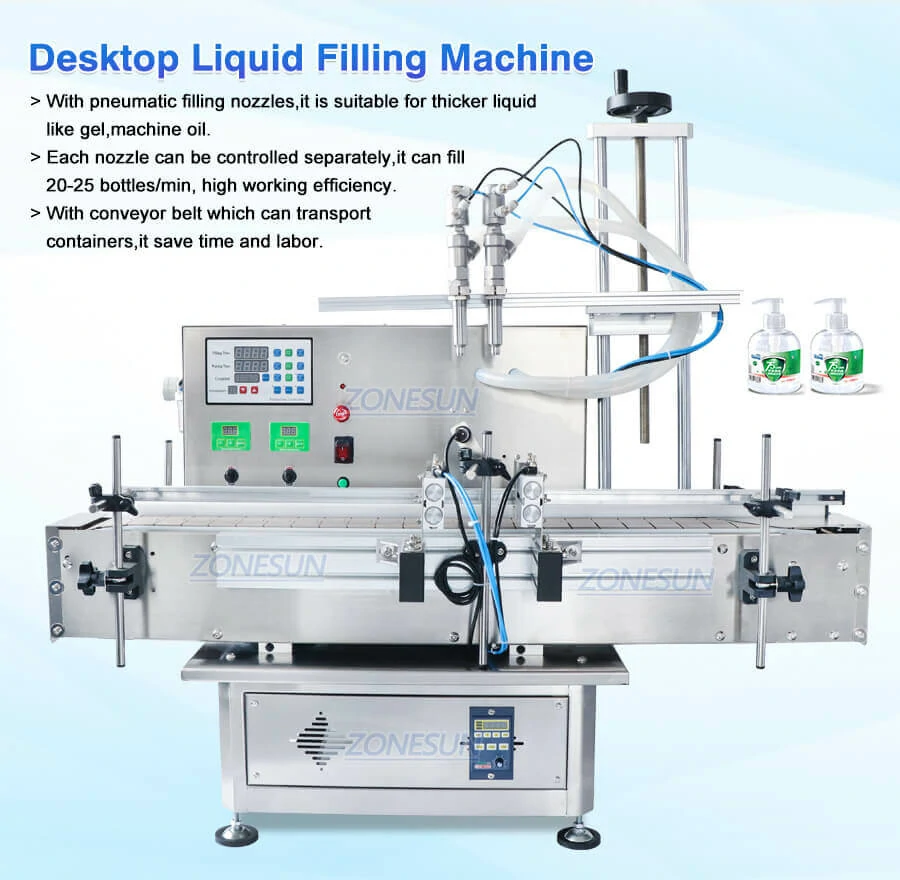

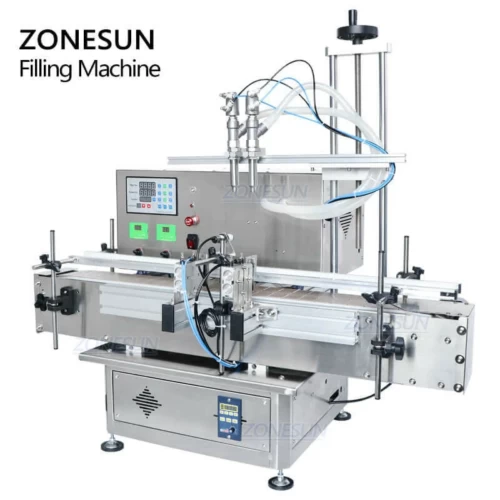

20L Diaphragm Pump Filling Machine
Description:

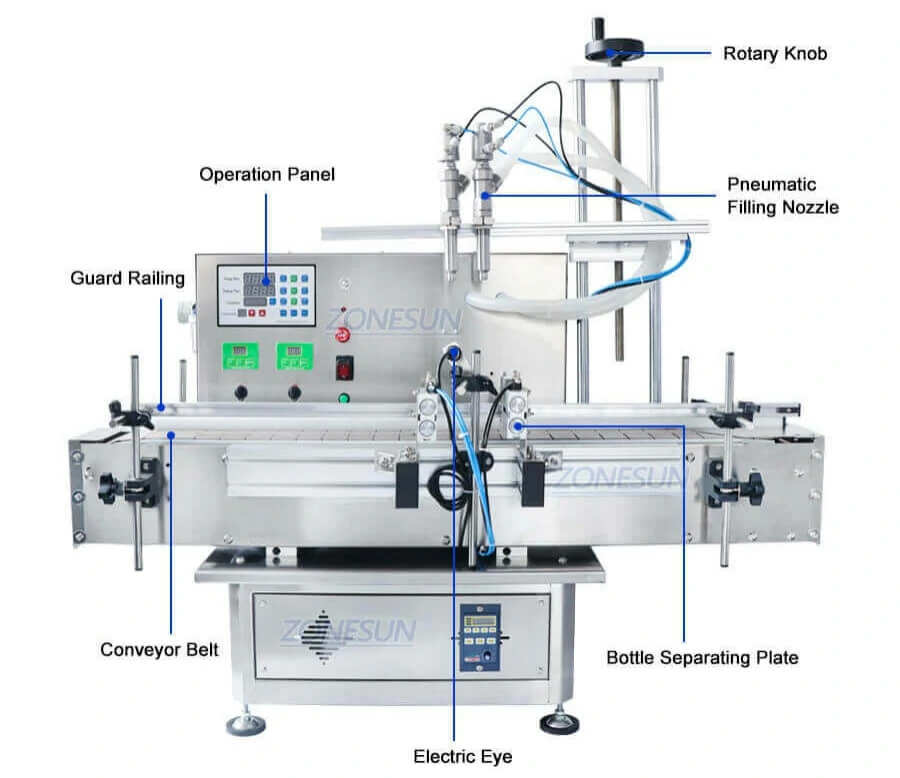

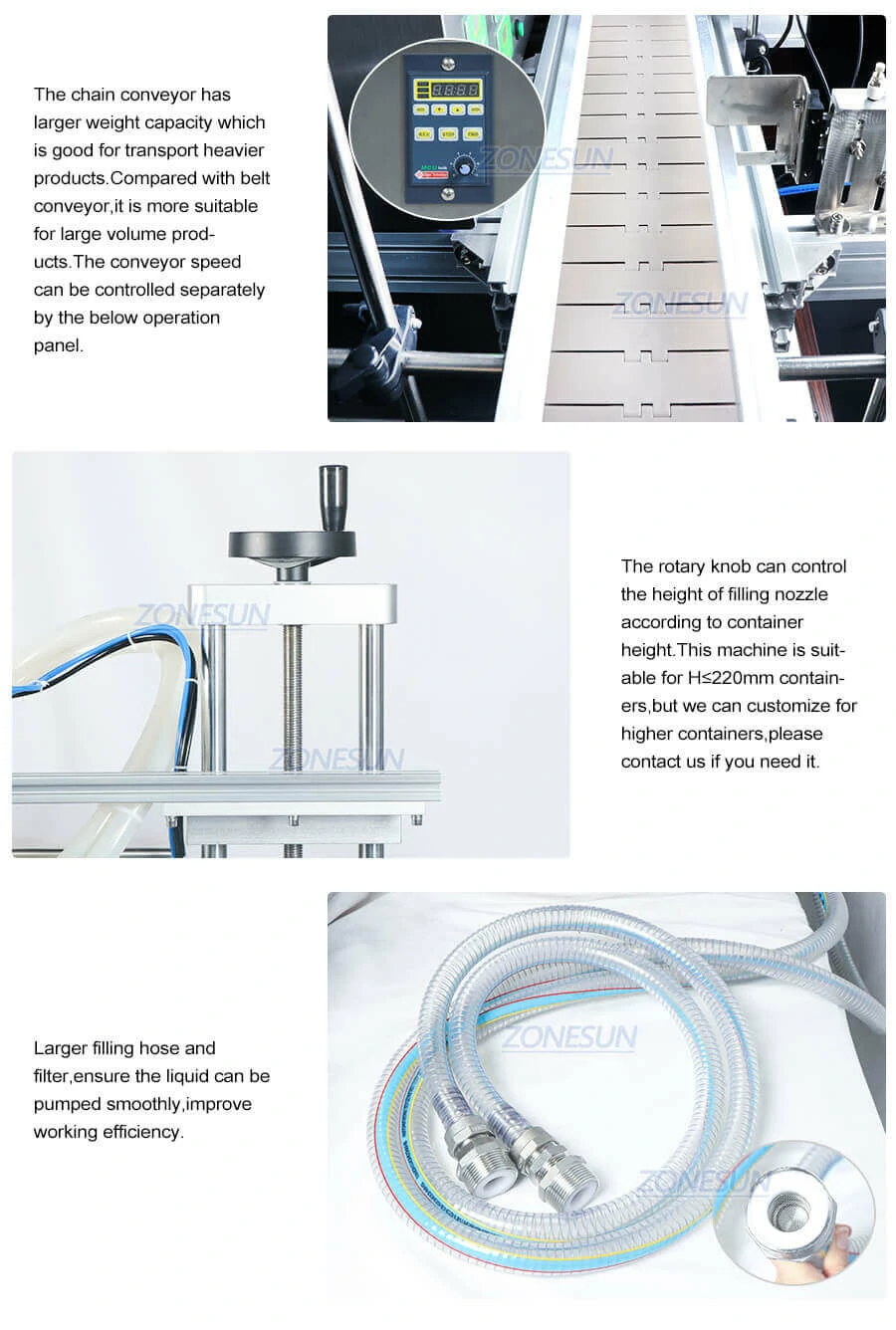

The pump of this desktop liquid filling machine can fill 20L/min,it is more powerful and faster,suitable for filling thicker liquid like gel,liquid soap,machine oil,laundry detergent etc.The conveyor belt can transport containers during filling,saves production time and reduce production error.
Parameter:
| Machine model | ZS-DTDP20-2 |
| Voltage | 110/220V 50-60HZ |
| Power | 500W*2 |
| Maximum flow velocity | 20000ml/min(Each nozzle and base on water) |
| Working speed | 20-25 bottles/min * 2 (depends on bottle size and liquid) |
| Air pressure | 0.3-0.4MPa |
| Filling accuracy | ≤±1% (For water) |
| Bottle height | <220mm(Can be customized,max height 300mm) |

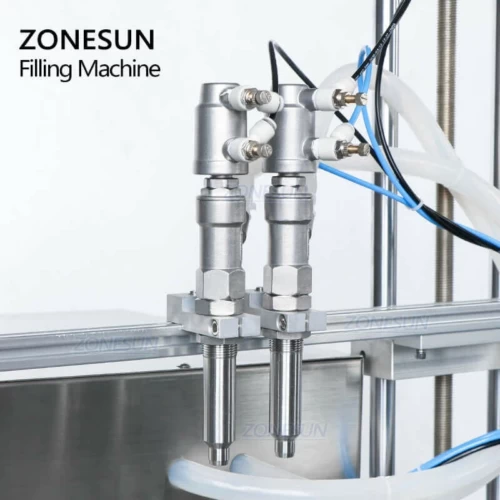

| Diameter of filling nozzle | 10mm |
| Conveyor size | 1130mm*115mm(L*W) |
| Size of air compressor connector | OD 8mm |
| Machine size | About 1130*710*1070mm |
| Package size | About 1150*730*830mm |
| Net weight/Gross weight | About 74kg/103.5kg |
