6 Diving Nozzles Magnetic Pump Filling Machine-ZONESUN TECHNOLOGY LIMITED

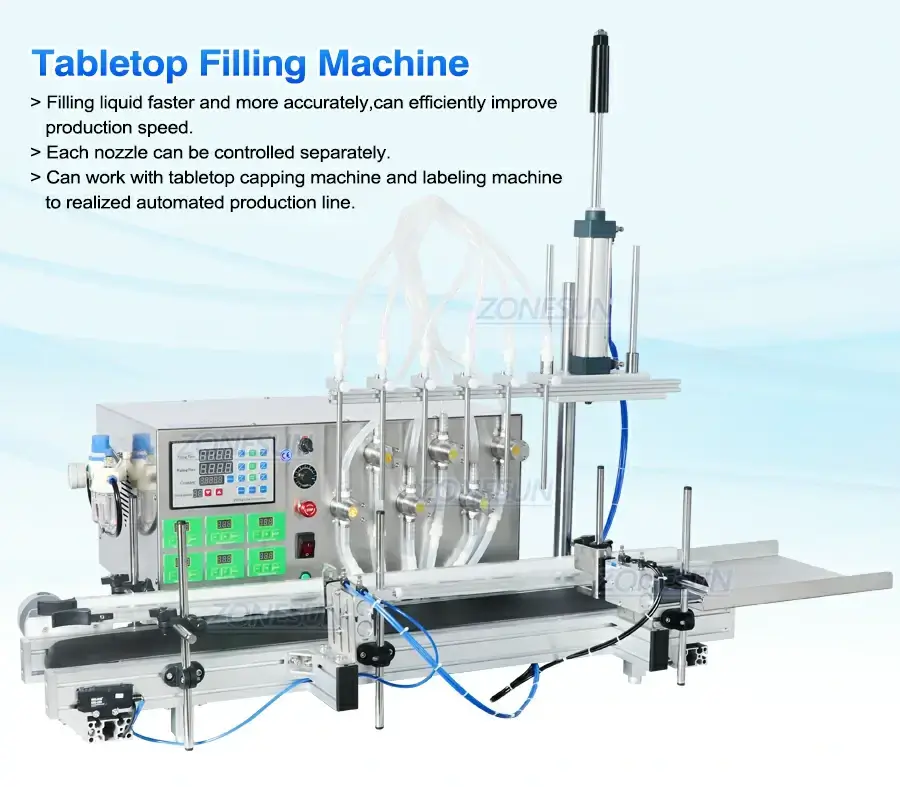

Description:

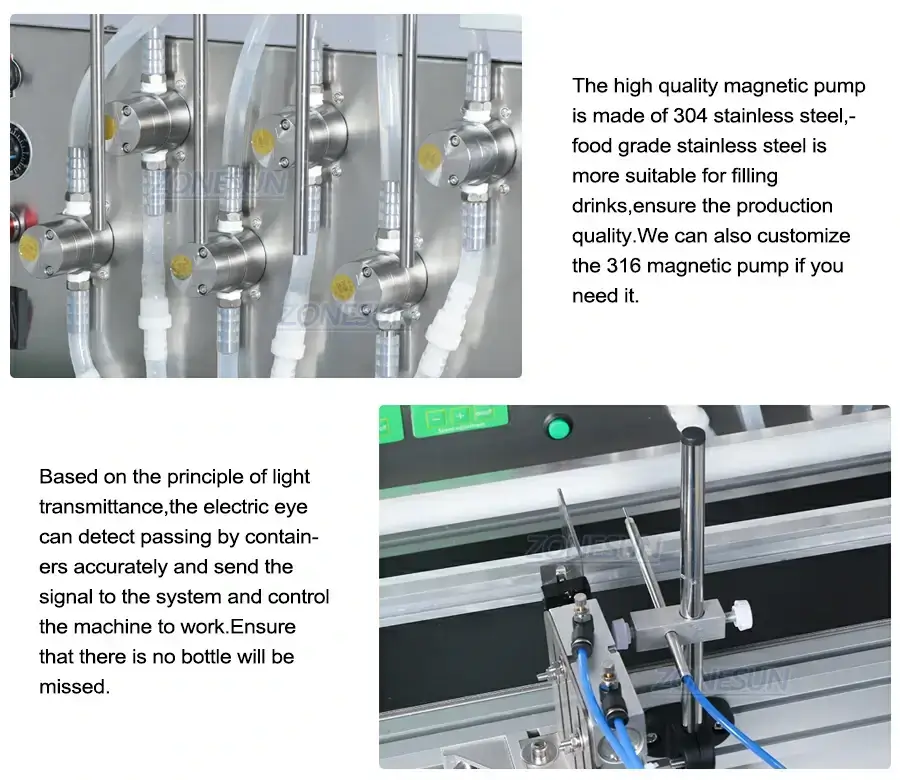

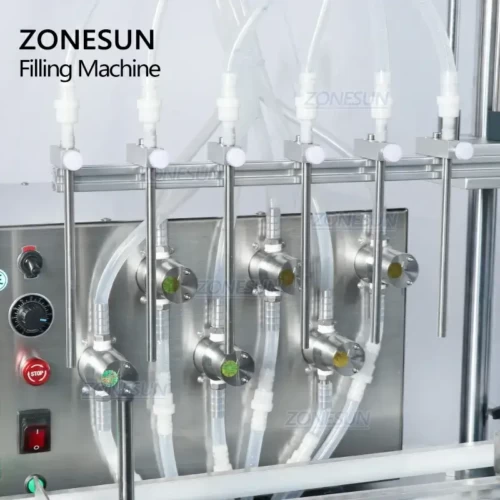

The automatic tabletop filling machine is suitably applied on low viscosity liquid like water,juice,perfume milk,essential oil etc.This machine is equipped with magnetic pump,it is driven by the force of magnets.It does not have the shaft coming out of the pump casing,hence there is no need for shaft sealing devises such as gland packing or mechanical seals.The liquid will not leaking in this situation.As a result,people working on or near the pump are not exposed to dangers from hazardous,corrosive,flammable or explosive fluids,and other toxic chemicals.In addition,expensive liquids are not wasted.

Application:

This filling machine is widely used in food,beverage,chemical,household products,personal care pharmaceutical.biomedical industries.

6 Diving Nozzles Magnetic Pump Filling Machine-ZONESUN TECHNOLOGY LIMITED

Parameter:

Machine modelZS-DTMP6AZS-DTMP6B
Power supply110/220V 50-60HZ
Maximum flow velocity
5500ml/min
(Each nozzle and base on water)
9000ml/min
(Each nozzle and base on water)
Working speed
30-40 bottles/min
(based on 50-1000ml filling volume)
40-55 bottles/min
(based on 50-1000ml filling volume)
Air pressure0.3-0.4MPa
Filling accuracy≤±1% (For water)
Diameter of Flling Nozzle6/8mm
Delay Range0.01-999.9s
Count Range1-99999 Times
Filling Volume3-1000ml(220V)3- 500ml(110V)
Size of air compressor connectorOD8mm
Bottle height<220mm(Can be customized,max height 300mm)
Package SizeAbout 1105*715*435mm
Gross weightAbout 66kgAbout 78kg
