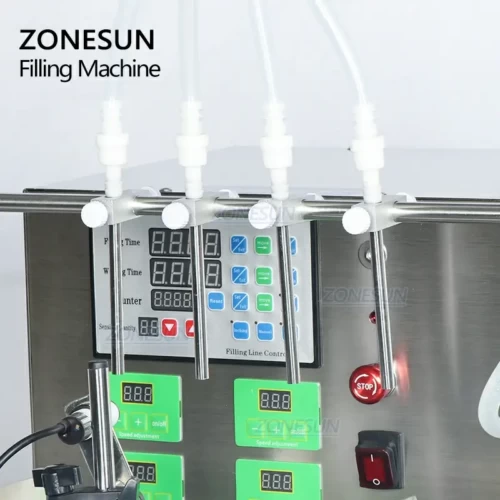

Diaphragm Pump Liquid Filling Machine With Chain Conveyor Belt

Diaphragm Pump Liquid Filling Machine With Chain Conveyor Belt

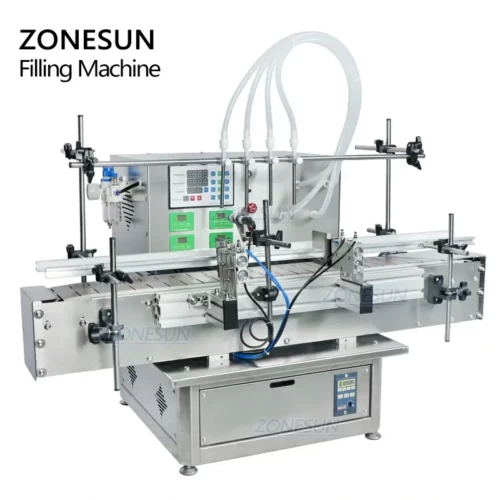

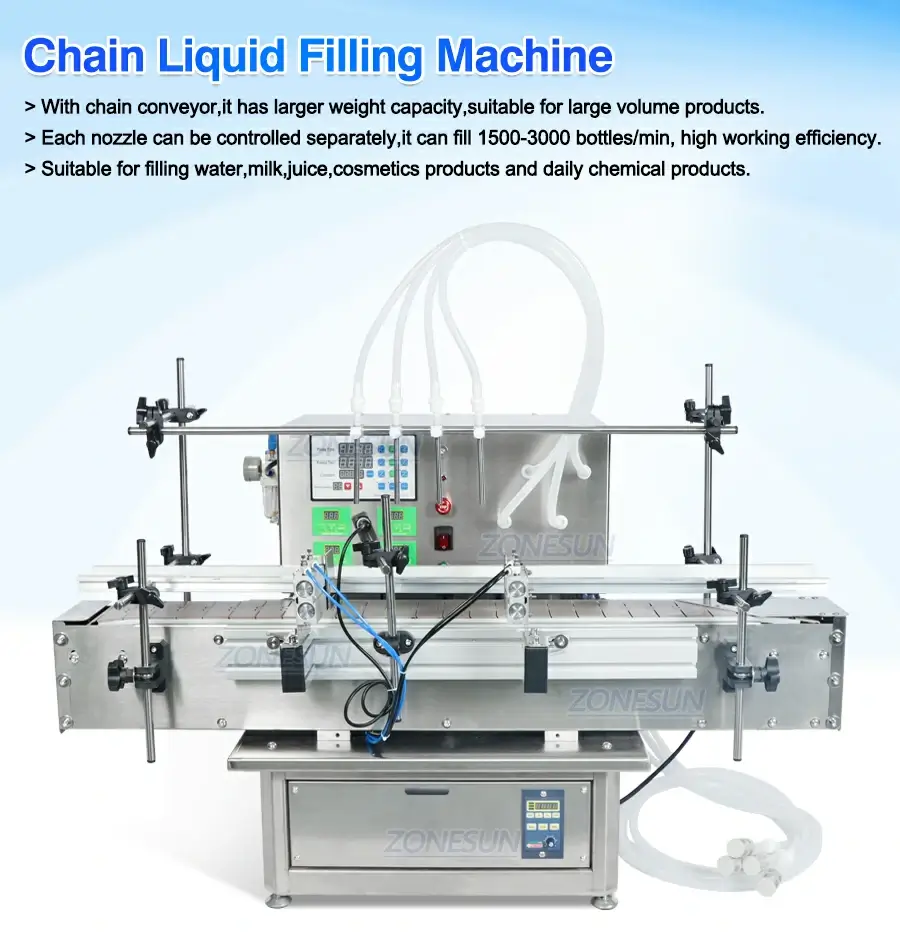

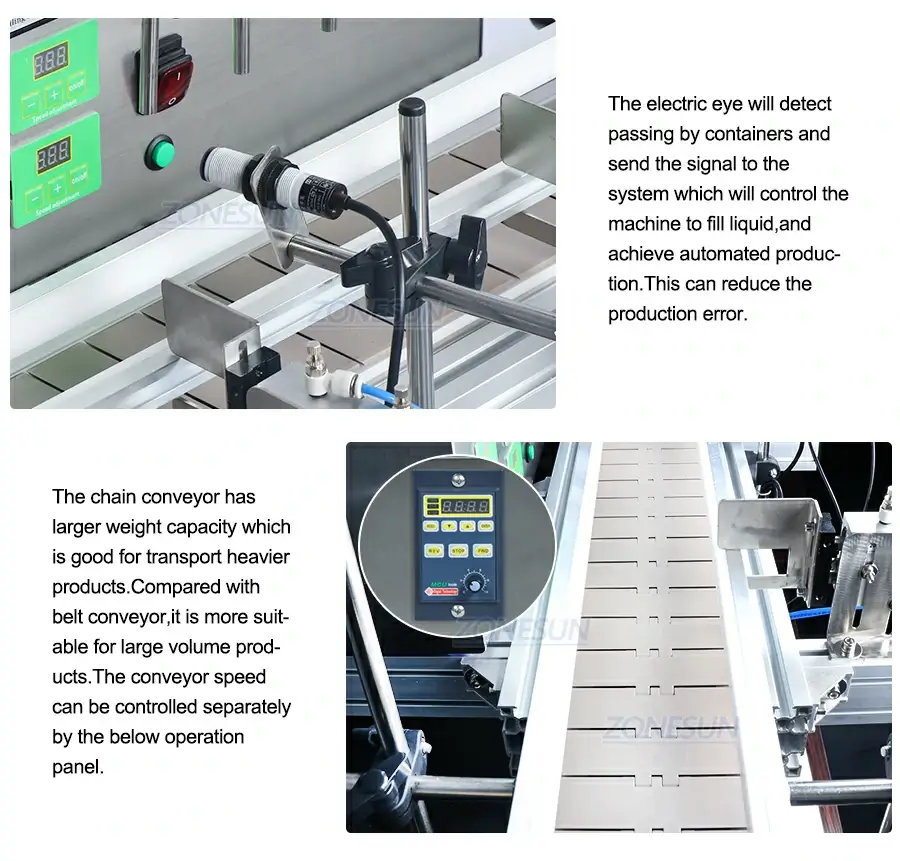

This automatic liquid filling machine is designed with chain conveyor,compared with the belt conveyor,it has larger weight capacity,ensures large volume products can be transported smoothly.This machine is suitable for drinks,cosmetics and daily chemical industries.

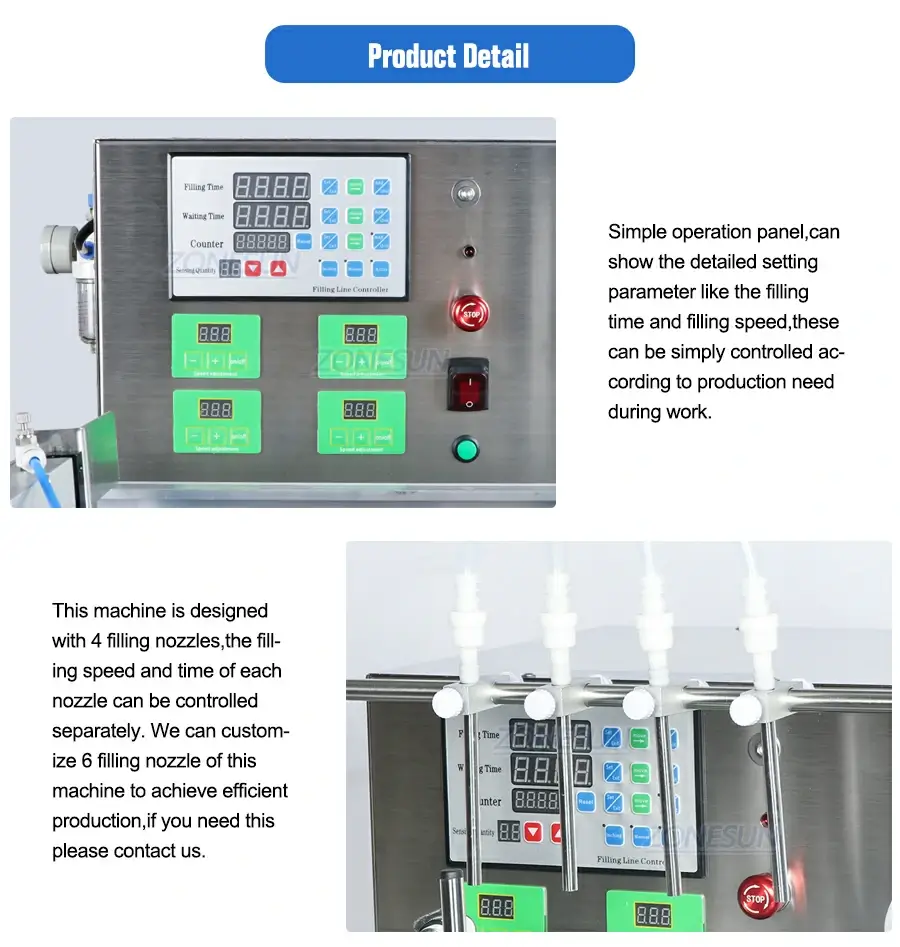

Product Detail

Product Tags

Diaphragm Pump Liquid Filling Machine With Chain Conveyor Belt-ZONESUN TECHNOLOGY LIMITED

Description

This automatic liquid filling machine is designed with chain conveyor,compared with the belt conveyor,it has larger weight capacity,ensures large volume products can be transported smoothly.This machine is suitable for drinks,cosmetics and daily chemical industries.

Diaphragm Pump Liquid Filling Machine With Chain Conveyor Belt-ZONESUN TECHNOLOGY LIMITED

Diaphragm Pump Liquid Filling Machine With Chain Conveyor Belt-ZONESUN TECHNOLOGY LIMITED

Machine modelZS-DTDP-4P
Voltage110/220V 50-60HZ
Power250W
Maximum flow velocity4000ml/min(Each nozzle and base on water)
Working speed1500-3000 bottles/hour(depends on bottle size and liquid)
Air pressure0.3-0.4MPa
Filling accuracy≤+1% (For water)
Bottle height<220mm(Can be customized,max height 300mm)
Diameter of filling nozzle6/8mm
Conveyor size1030*115mm(L*W)
Size of air compressor connectorOD 8mm
Machine size1114*650*765mm
Machine weight52kg
Package size1145*605*795mm
Gross weight78kg
