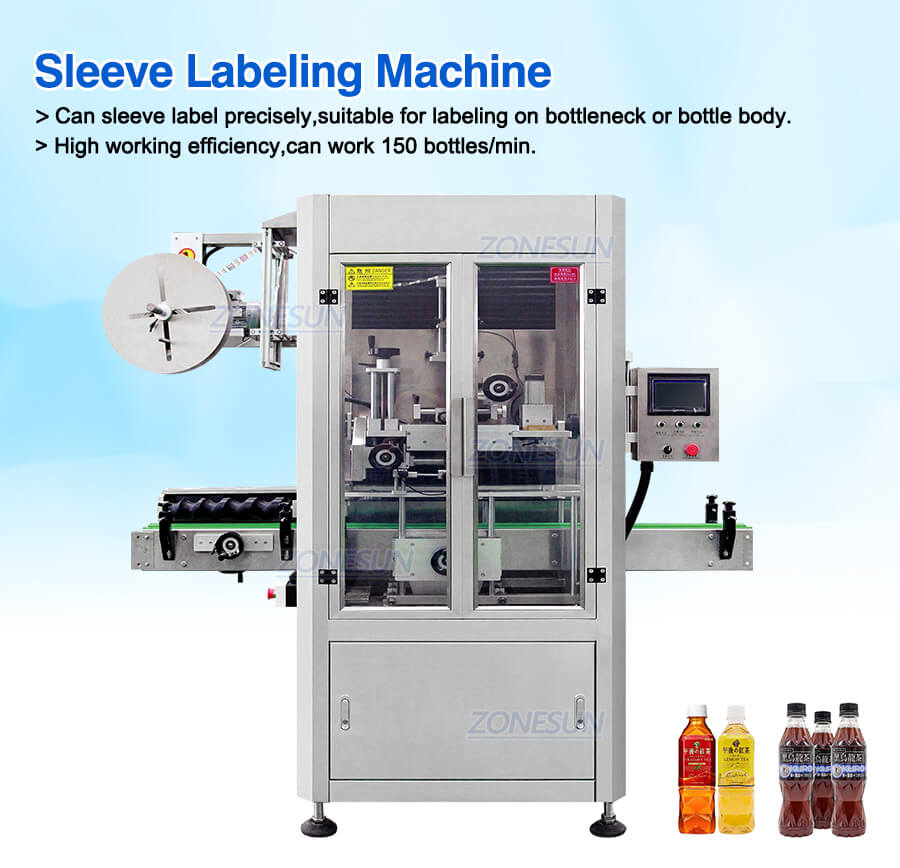

Sleeve Labeling Machine
Description:
The sleeve labeling machine is suitable for packaging various bottle types of juice,tea beverages,dairy products,purified water,condiments,beer,sports drinks,etc.This machine has high accuracy of sleeve label position,and it can highlight the bottle and perfect the bottle shape after shrinking.The whole machine adopts stainless steel protective frame cover and aluminum alloy rigid frame, which is stable and does not rust.Suitable for round bottles,square bottles,oval bottles,etc.
| Machine model | ZS-STB150 |
| Bottle diameter range | φ28mm-φ125mm (can be customized) |
| Bottle height | 30mm ~ 280mm (can be customized) |
| Label length | 30mm~250mm (can be customized) |
| Label thickness | 0.03 mm ~ 0.13 mm (PVC, PET, OPS, materials are all available) |
| Sleeve standard error | +1.5mm |
| Paper tube inner diameter | 5??~10?? (can be adjusted) |
| Machine speed | 150 bottles/min (based on label length) |
| Voltage | 220V |
| Power | 15KW |
| Conveyor belt | standard 2M |
| Host size | About 2100*850*2000 mm(L*W*H) |
| WeightAAb | About 400Kg |
