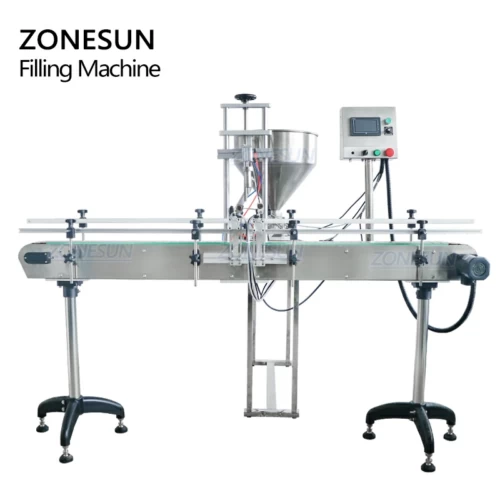

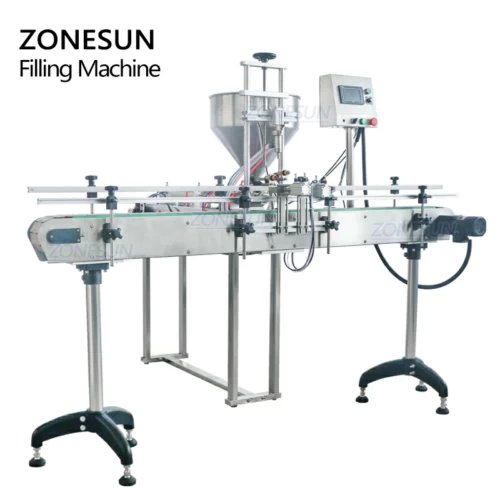

Single-head Paste Filling Machine

Single-head Paste Filling Machine

Compared with the horizontal filling machine,this machine is equipped with the conveyor belt,this makes it can work with automatic capping machine and labeling machine.It is suitable for filling liquid and paste like water,milk,juice,honey,lotion,cream etc.

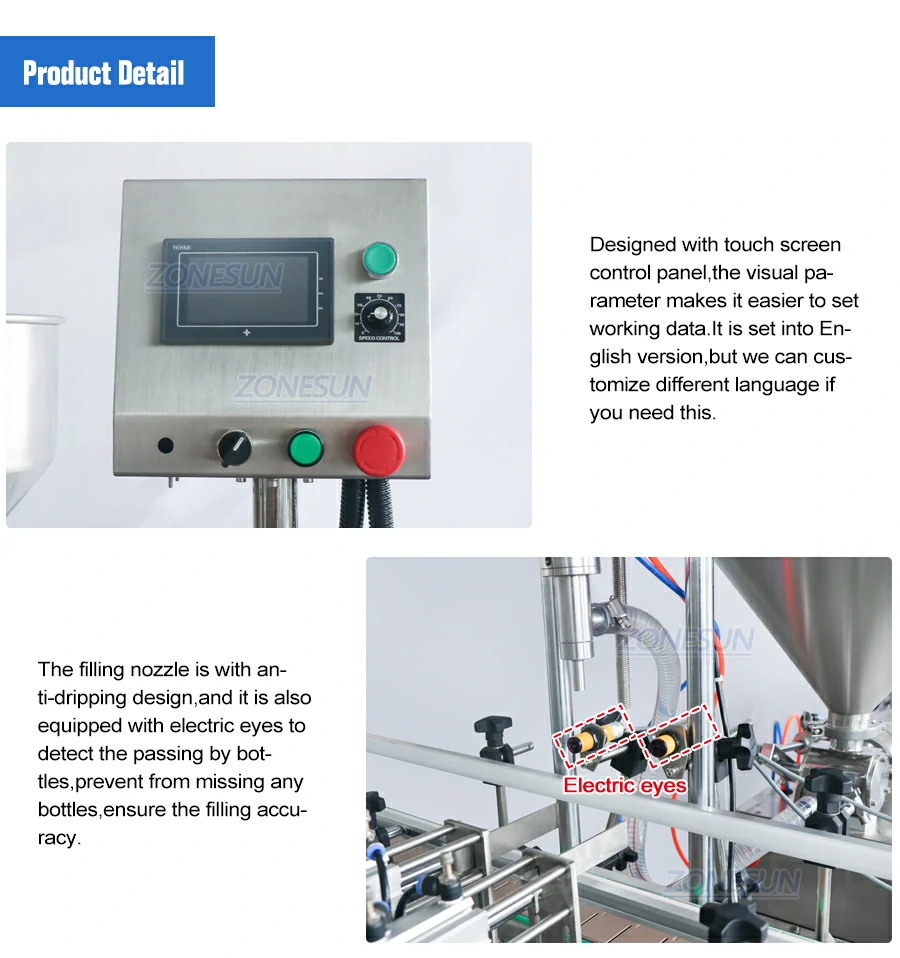

Product Detail

Product Tags

Single-head Paste Filling Machine-ZONESUN TECHNOLOGY LIMITED

Description:

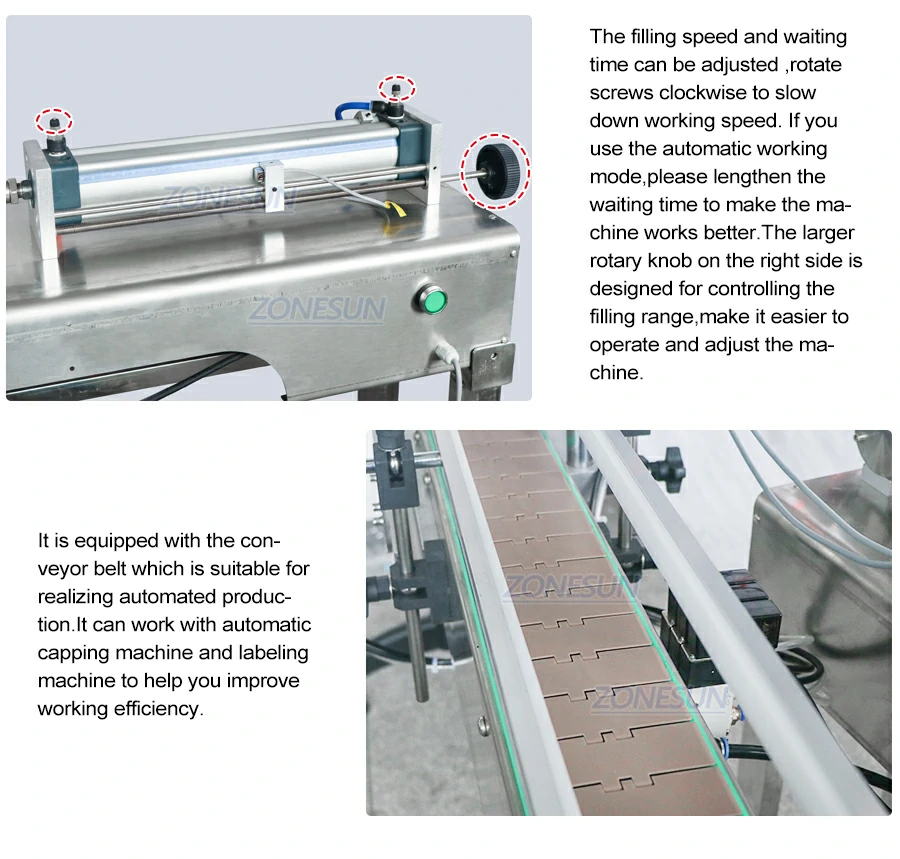

Compared with the horizontal filling machine,this machine is equipped with the conveyor belt,this makes it can work with automatic capping machine and labeling machine.It is suitable for filling liquid and paste like water, milk, juice, honey, lotion, cream etc.

Single-head Paste Filling Machine-ZONESUN TECHNOLOGY LIMITED

Single-head Paste Filling Machine-ZONESUN TECHNOLOGY LIMITED

ModelZS-GY1C
Voltage supply220/110V 50/60Hz
Power130W
Filling accuracy≤ ± 0.5%
Filling speed10-20bottles / min
Filling volume
5-100/10-300/50- 500/100-1000/500-3000/1000-500ML (choose based on your requirement)
Conveyor size2m*10cm(L*W)
Filling nozzle sizeφ10mm
Equipped with air pressure0.4-0 .6 MPa
Size of air compressor connectorOD 8mm
Air consumption≥0.1m³/min
Machine weight24kg(Filling machine)+4kg(Hopper)+61kg(Conveyor belt)
Package weight30kg(Filling machine)+5.5kg(Hopper)+89kg(Conveyor belt)
Package size113*35*30.5cm(Filling machine)+46.5*47*52cm(Hopper)+210*62*53cm(Conveyor belt)

Single-head Paste Filling Machine-ZONESUN TECHNOLOGY LIMITED

Single-head Paste Filling Machine-ZONESUN TECHNOLOGY LIMITEDSingle-head Paste Filling Machine-ZONESUN TECHNOLOGY LIMITED
