4-head Vertical Magnetic Pump Filling Machine

4-head Vertical Magnetic Pump Filling Machine

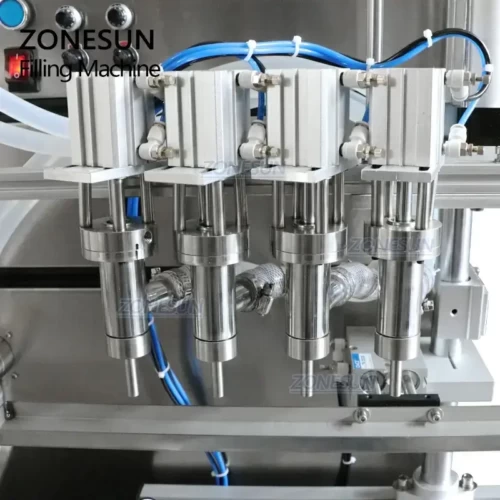

This full automatic filling machine is equipped with pneumatic filling nozzles which is designed for filling thicker liquid like gel,hand sanitizer etc.This powerful magnetic pump makes it can fill material faster,it can realize automated production if work with automatic capping machine and labeling machine.

Product Detail

Product Tags

4-head Vertical Magnetic Pump Filling Machine-ZONESUN TECHNOLOGY LIMITED

Description

This full automatic filling machine is equipped with pneumatic filling nozzles which is designed for filling thicker liquid like gel,hand sanitizer etc.This powerful magnetic pump makes it can fill material faster,it can realize automated production if work with automatic capping machine and labeling machine.

Application

The magnetic pump filling machine is suitable for filling liquid like water,juice,water,essential oil,milk etc.It is widely used in foodstuff,beverage,cosmetics,daily chemical industries.

4-head Vertical Magnetic Pump Filling Machine-ZONESUN TECHNOLOGY LIMITED

4-head Vertical Magnetic Pump Filling Machine-ZONESUN TECHNOLOGY LIMITED

Container size
φ20-160mm H30-300mm
Max flow rate
5500ml/min
7500ml/min
12000ml/min
Material of pump
304/316 stainless steel
Filling accuracy
≤100ml deviationst≤± 1ml
> 100ml deviation≤±1% ( based on water)
Filling speed
20-50pcs/min
40-55pcs/min
25-60pcs/min
(depending on bottles and fling liquid)
Power supply
220V-50HZ/110V-60HZ
The whole machine power
2KW
Packing weight
About 150kg
Packing size
About 2000*820*1580mm
