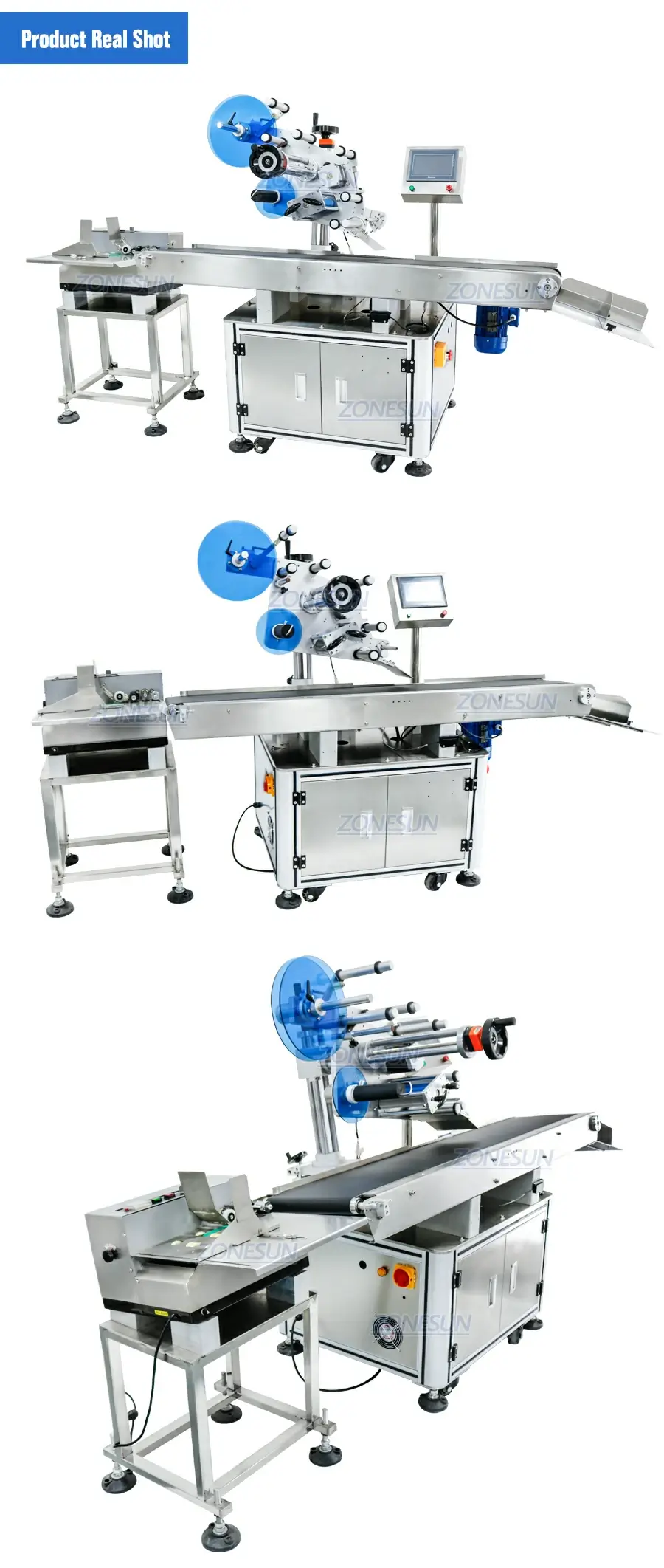

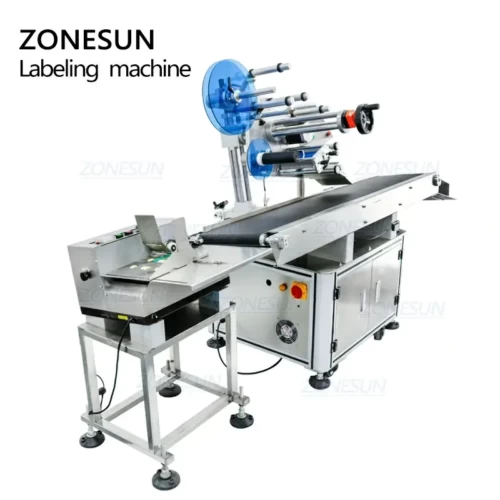

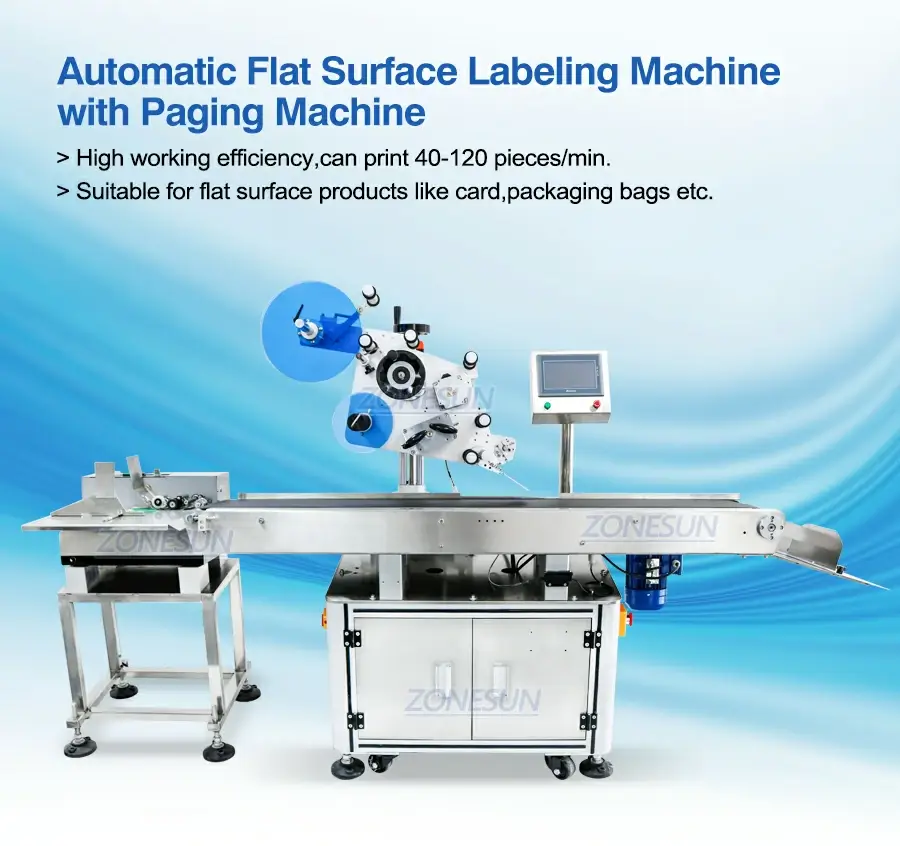

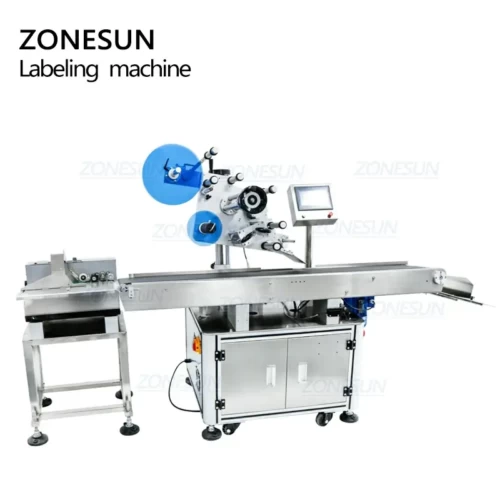

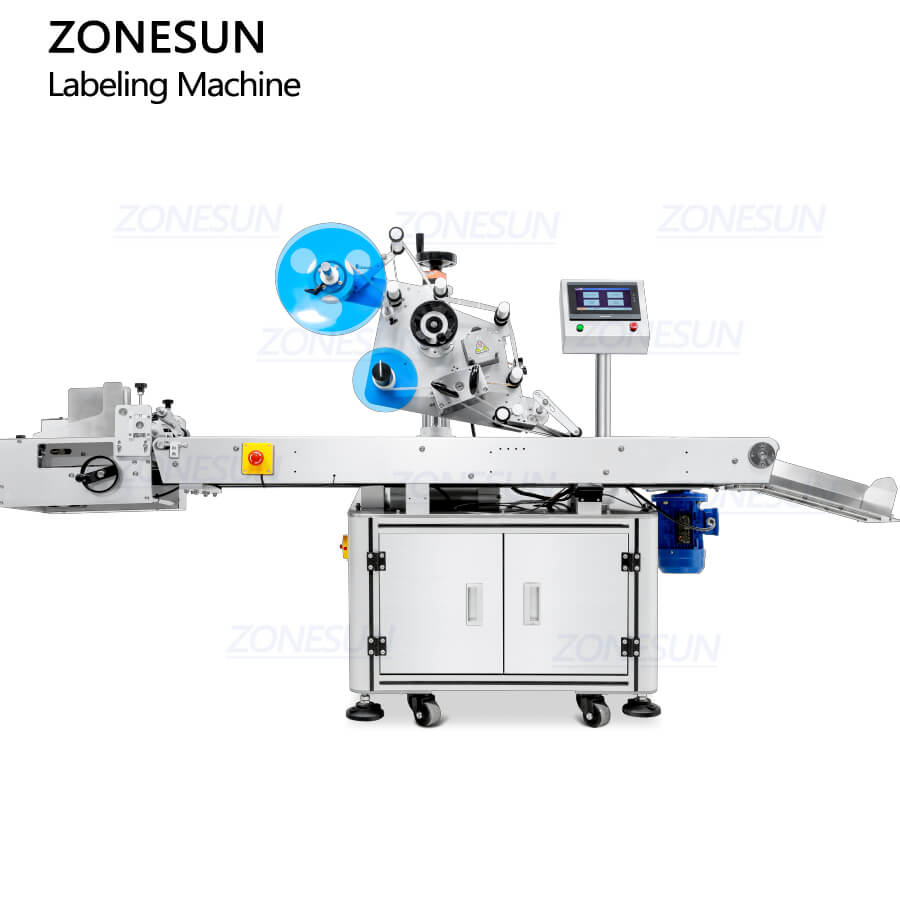

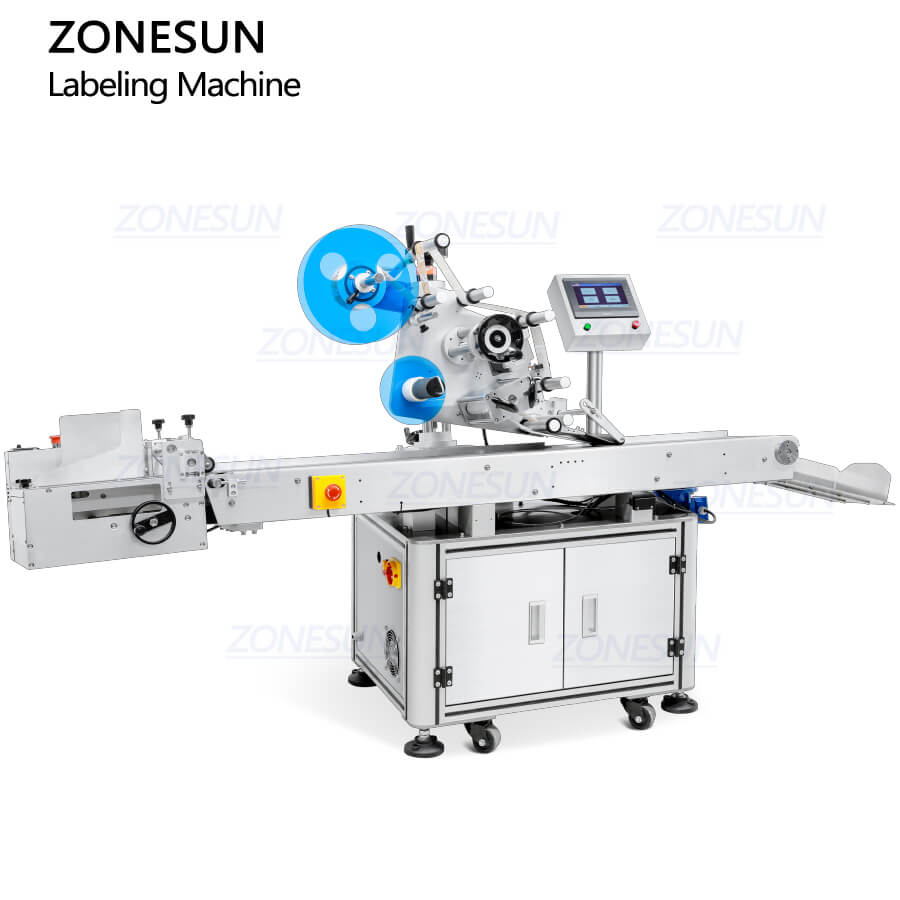

ZONESUN ZS-TB832 Automatic Flat Surface Labeling Machine with Paging Machine

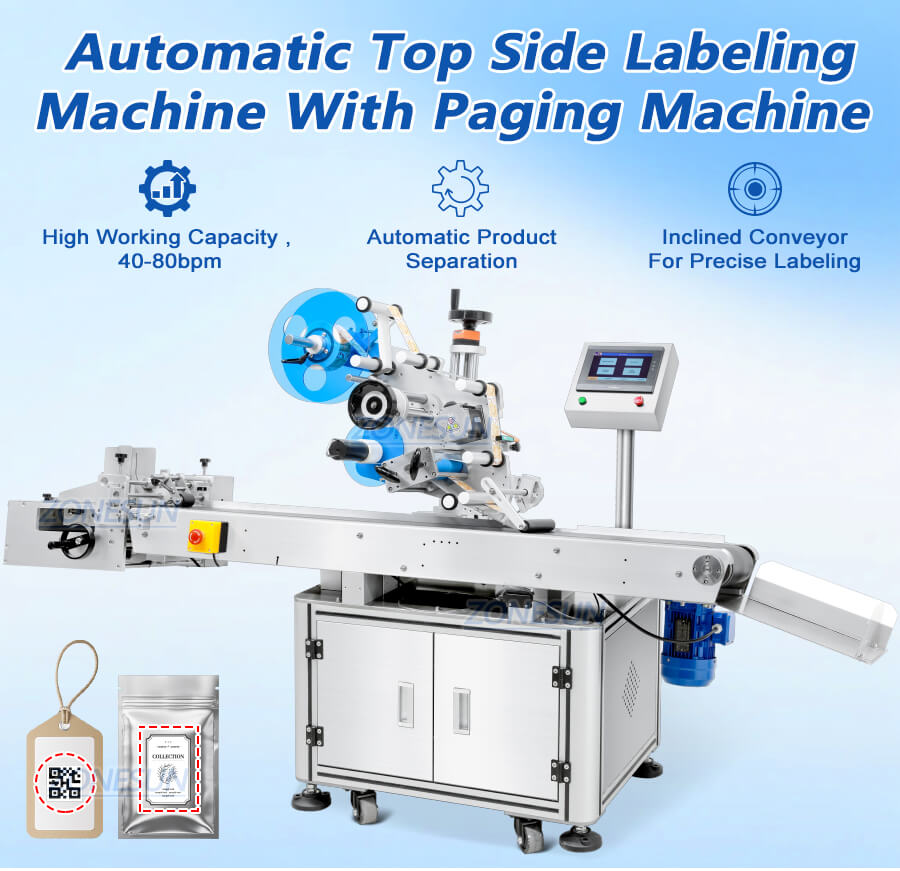

This automatic labeling machine is designed for applying top-side labels on hang tags, pouches, and flat cards at speeds of 40–80 bpm. Equipped with a paging system, it automatically separates stacked products for continuous labeling. The inclined inboard conveyor design uses gravity to guide products inward, ensuring high label placement accuracy.
$5,799.00
Share to
This automatic labeling machine is designed for applying top-side labels on hang tags, pouches, and flat cards at speeds of 40–80 bpm. Equipped with a paging system, it automatically separates stacked products for continuous labeling. The inclined inboard conveyor design uses gravity to guide products inward, ensuring high label placement accuracy.
|
Machine model
|
ZS-TB832
|
|
Power supply
|
110V/220V 50-60HZ 820W
|
|
Labeling accuracy
|
±1.0 mm( based on product and label size )
|
|
Labeling speed
|
40-80 pieces/min ( based on product size )
|
|
Suitable product size
|
40-200 mm*25-200 mm*0.2-2mm( L*W*H )
|
|
Suitable label size
|
10-250 mm (W)*10-130 mm (H)
|
|
Label Roll ID
|
φ76 mm
|
|
Label Roll OD
|
φ320 mm
|
|

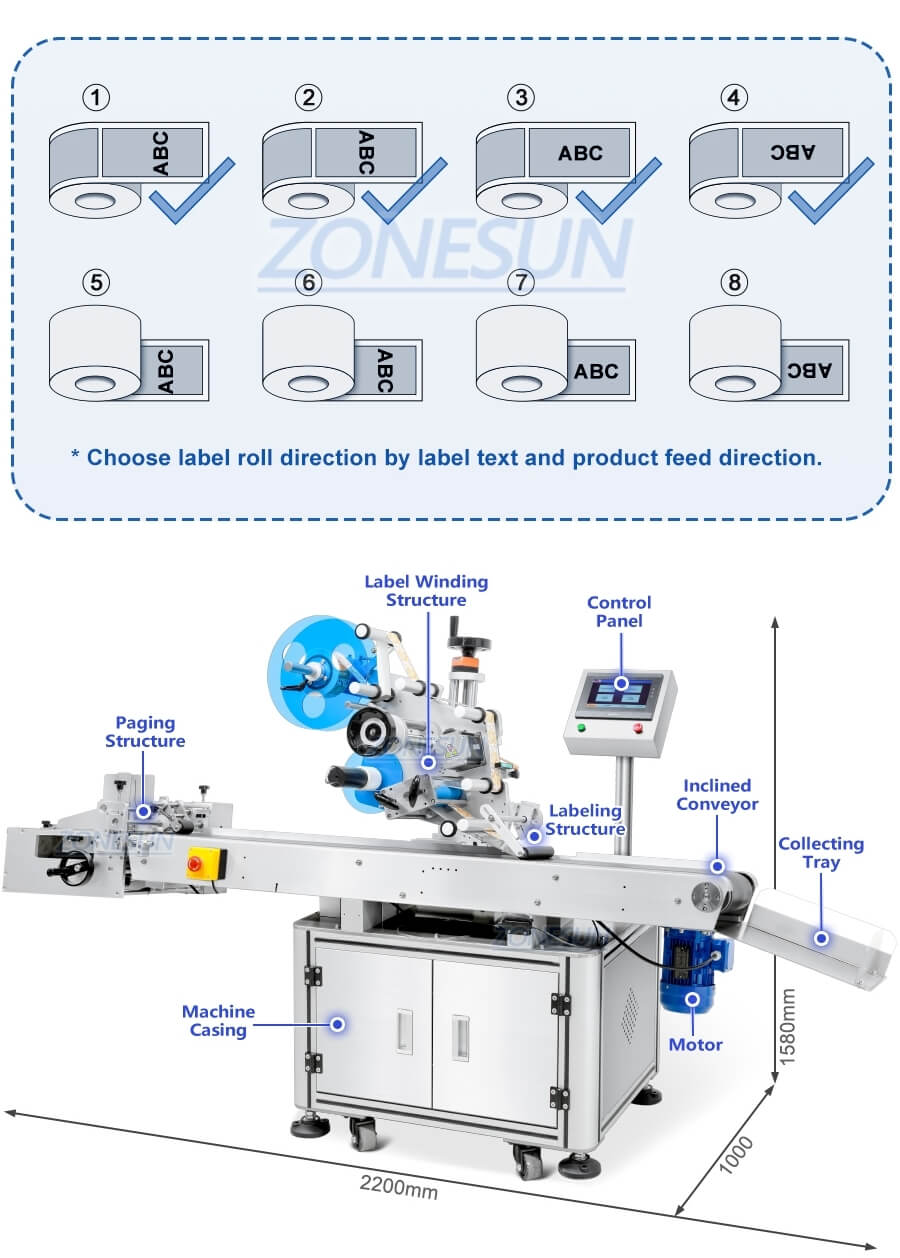

Machine size
|
About 2200*1000*1580mm ( L*W*H )
|
|
Machine weight
|
About 200kg
|
|
Package size
|
About 2145*900*1460mm ( L*W*H )
|
|
Package weight
|
About 325kg
|

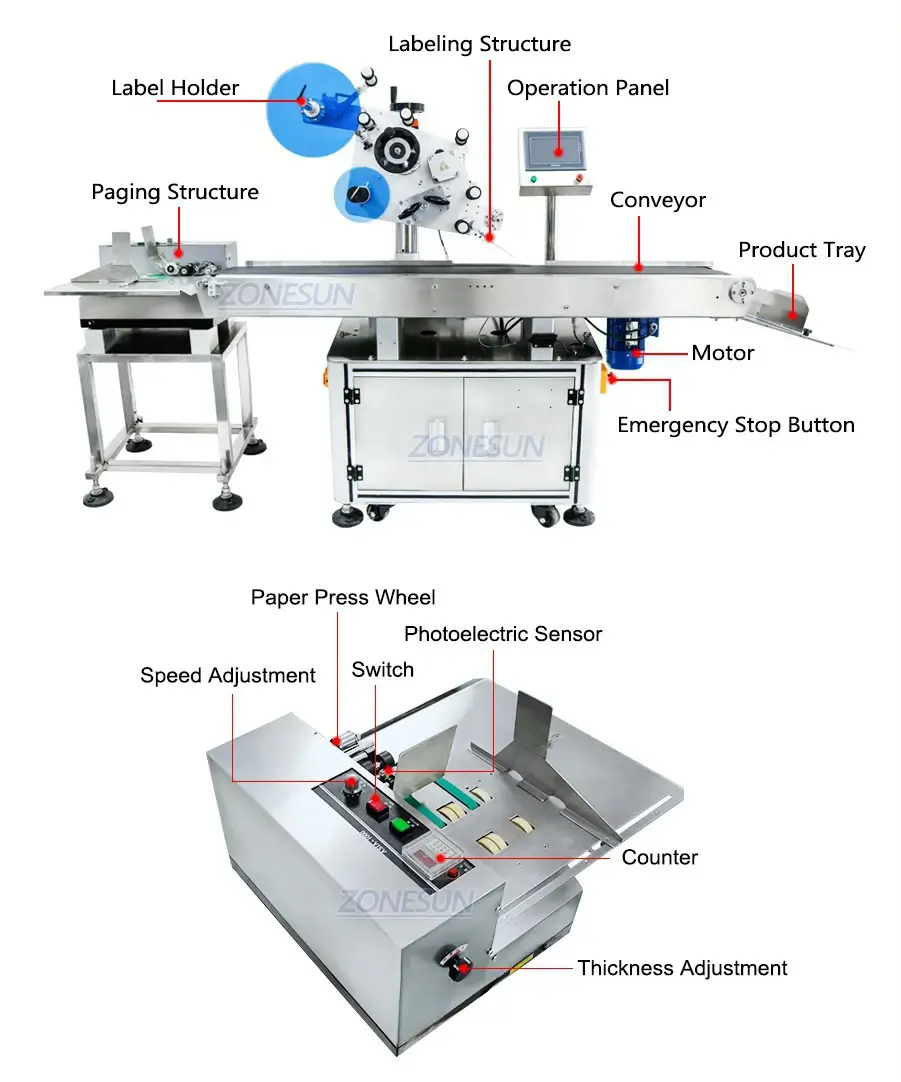

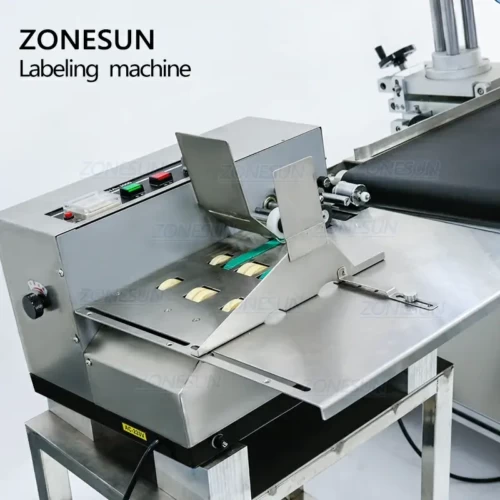

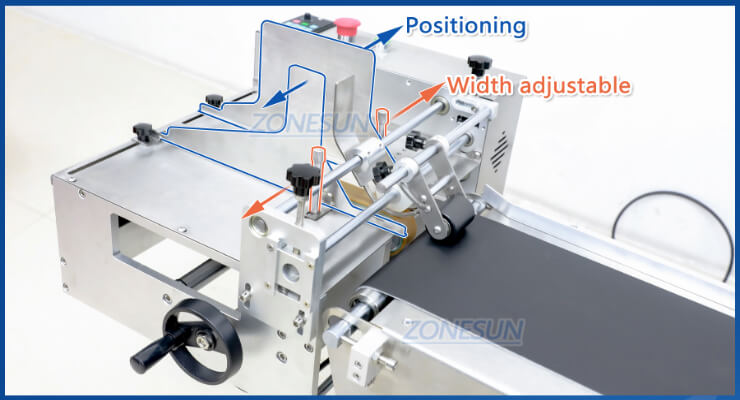

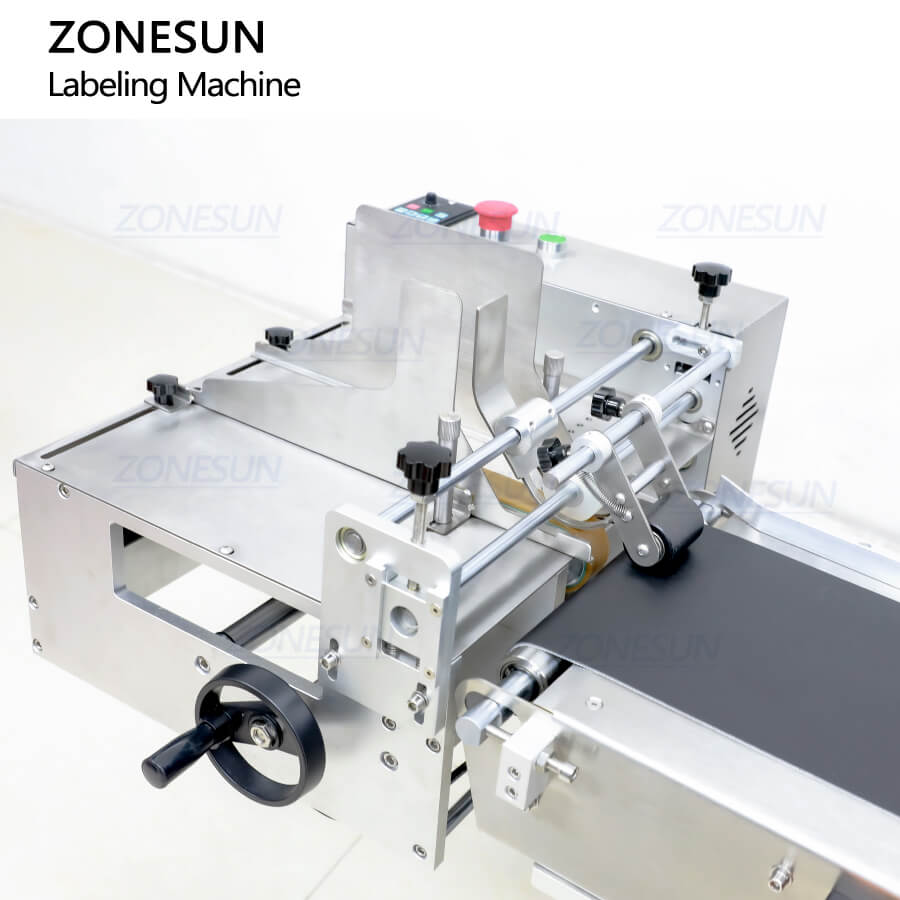

Paging System
Automatically feeds and separates stacked items to ensure smooth and consistent supply.

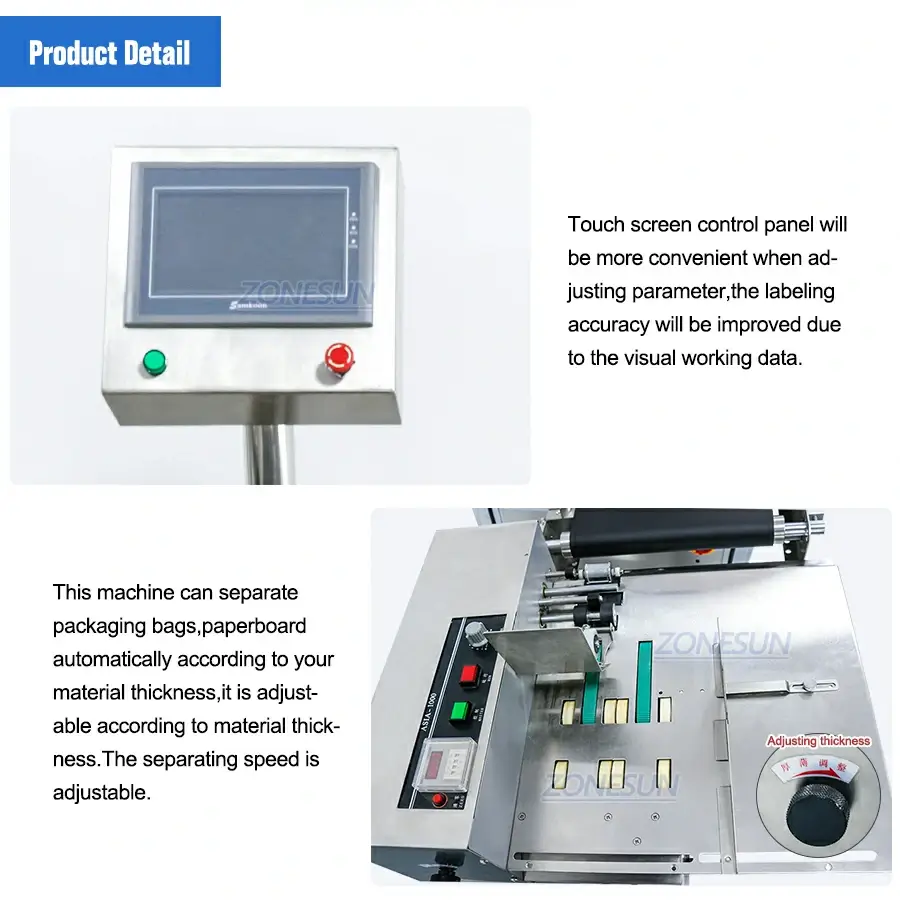

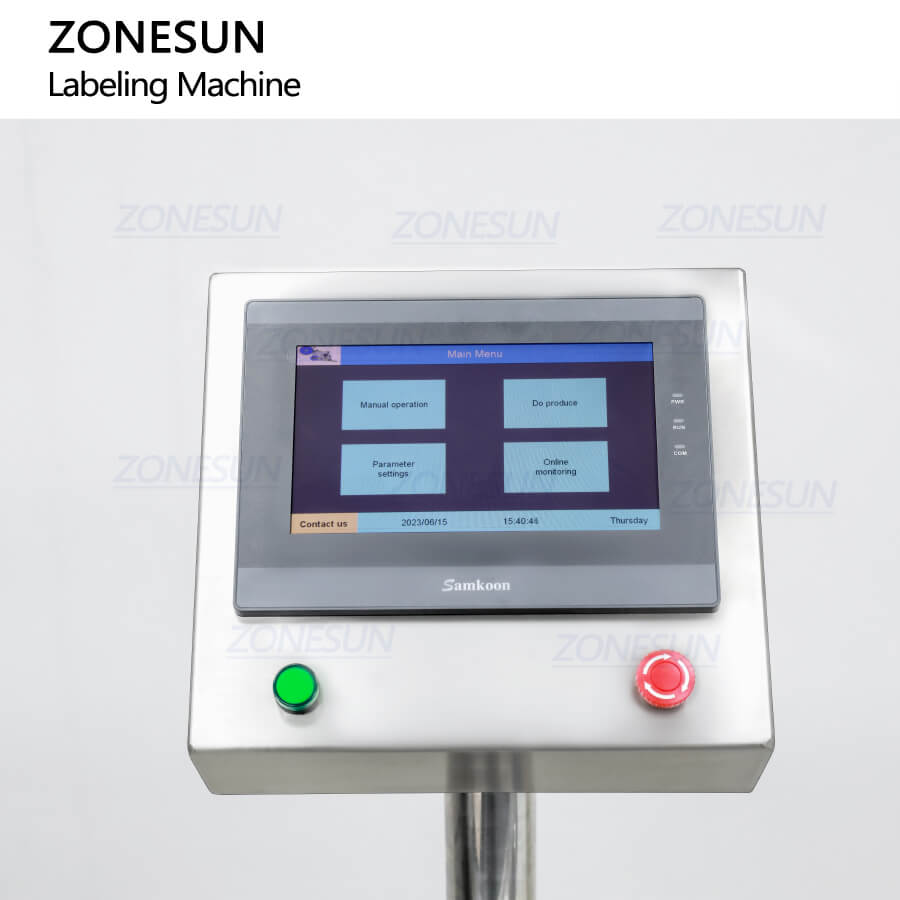

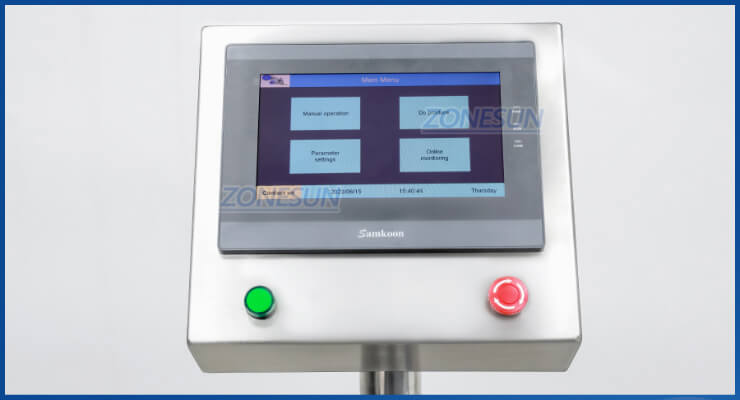

Control Panel
Provides intuitive operation with easy parameter settings for speed, improves working efficiency.

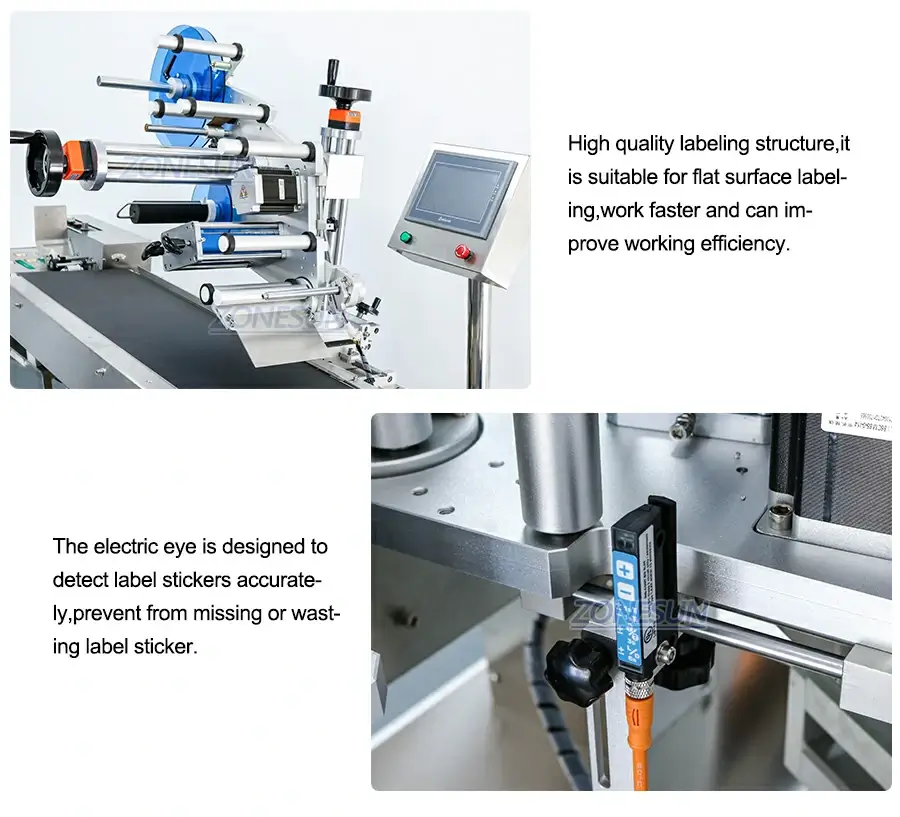

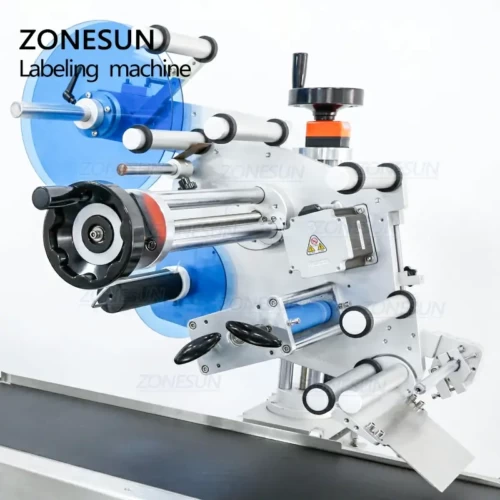

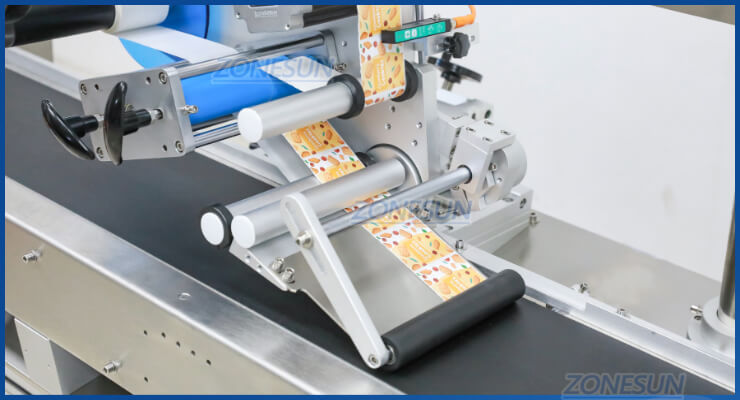

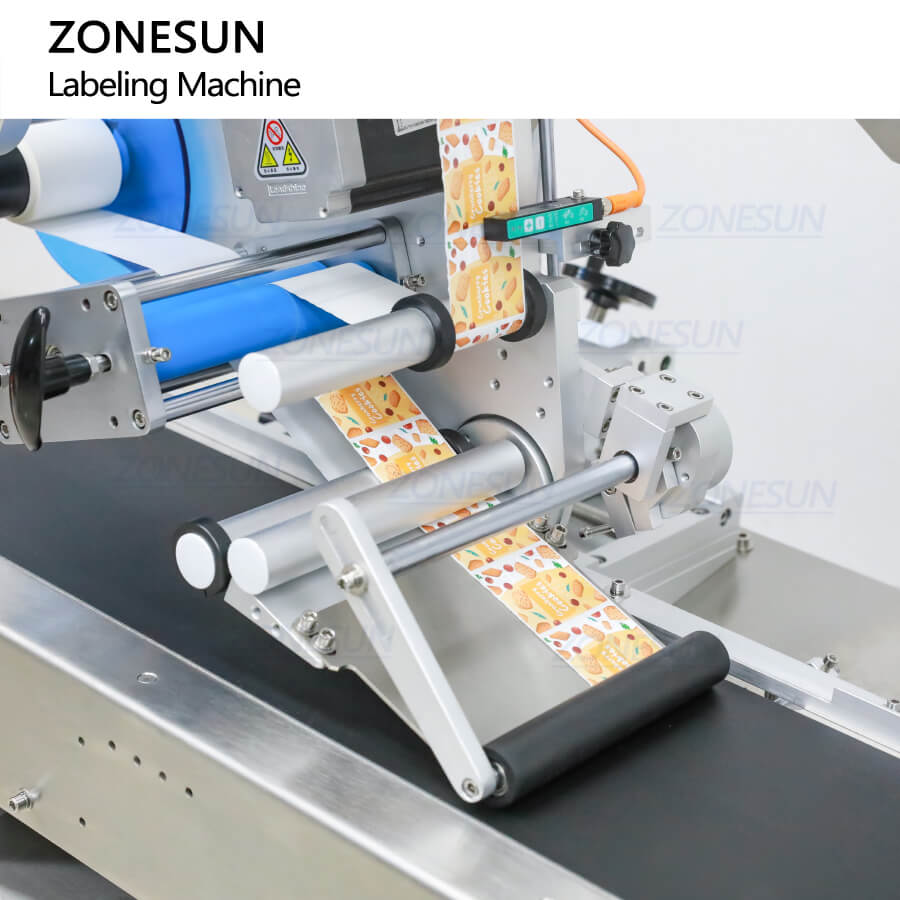

Labeling Structure
It delivers precise label application to flat product surfaces, has consistent adhesion at high speeds.

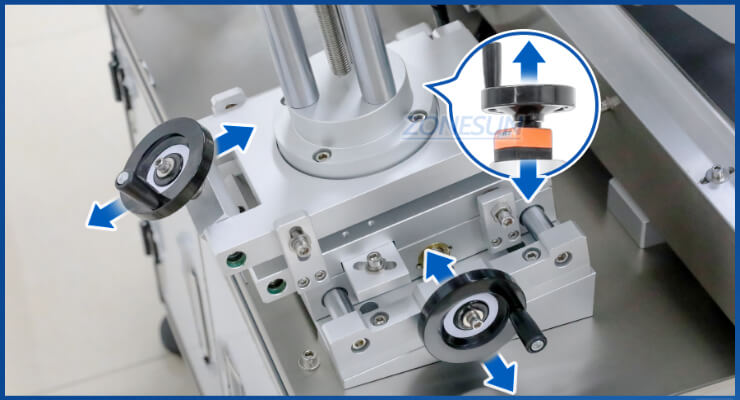

Adjustable Rotary Knob
Enable fine-tuning of the labeling assembly’s position in multiple directions, accommodating various product dimensions.

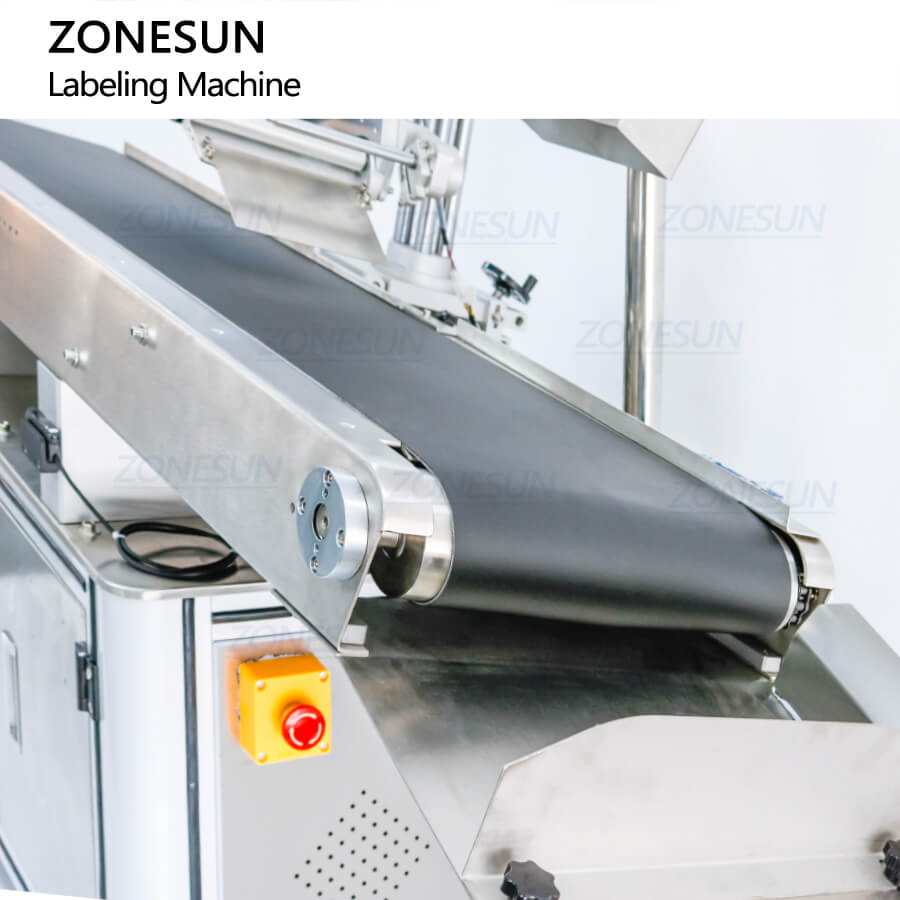

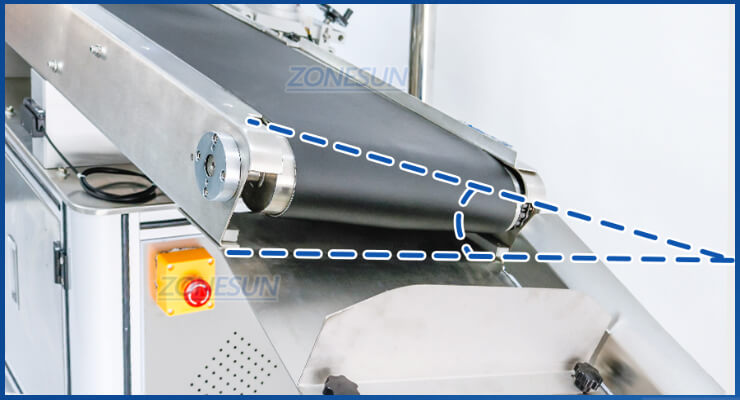

Inclined Conveyor
Products naturally lean inward during transport, increasing stability and improving label placement accuracy.
