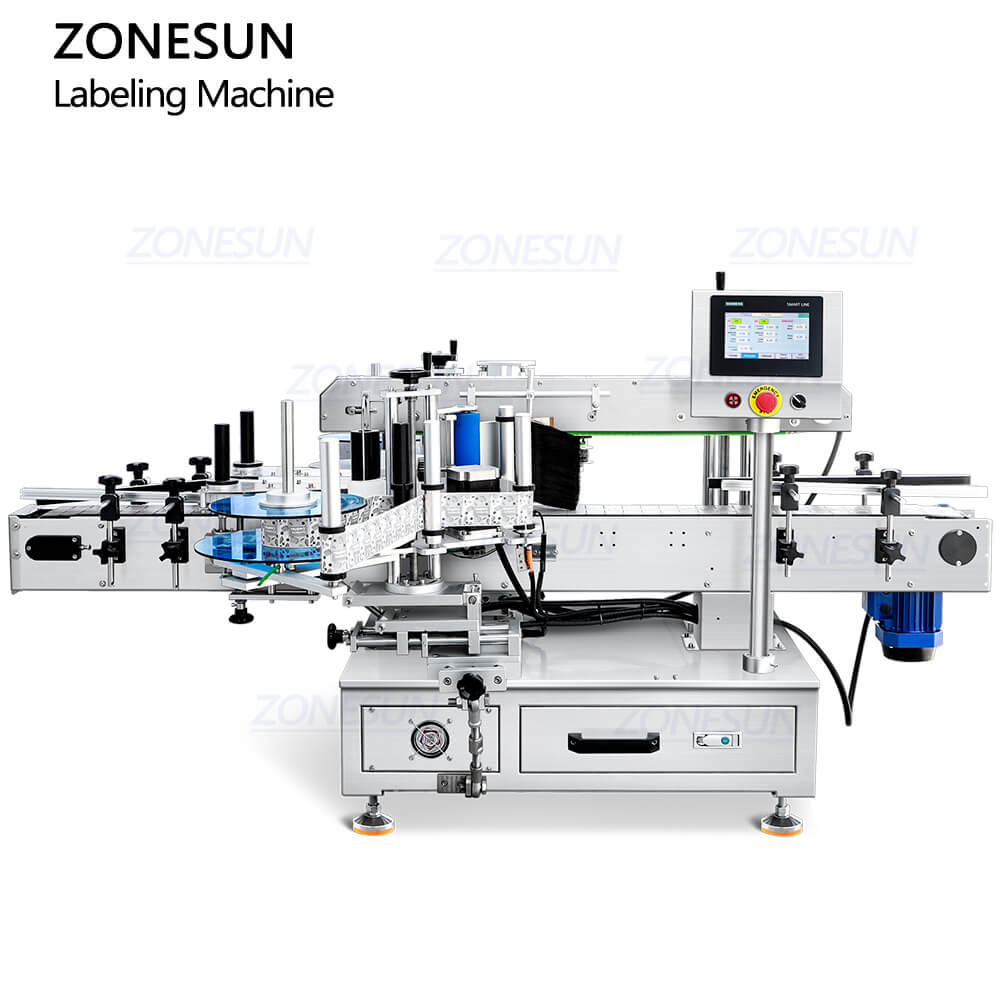

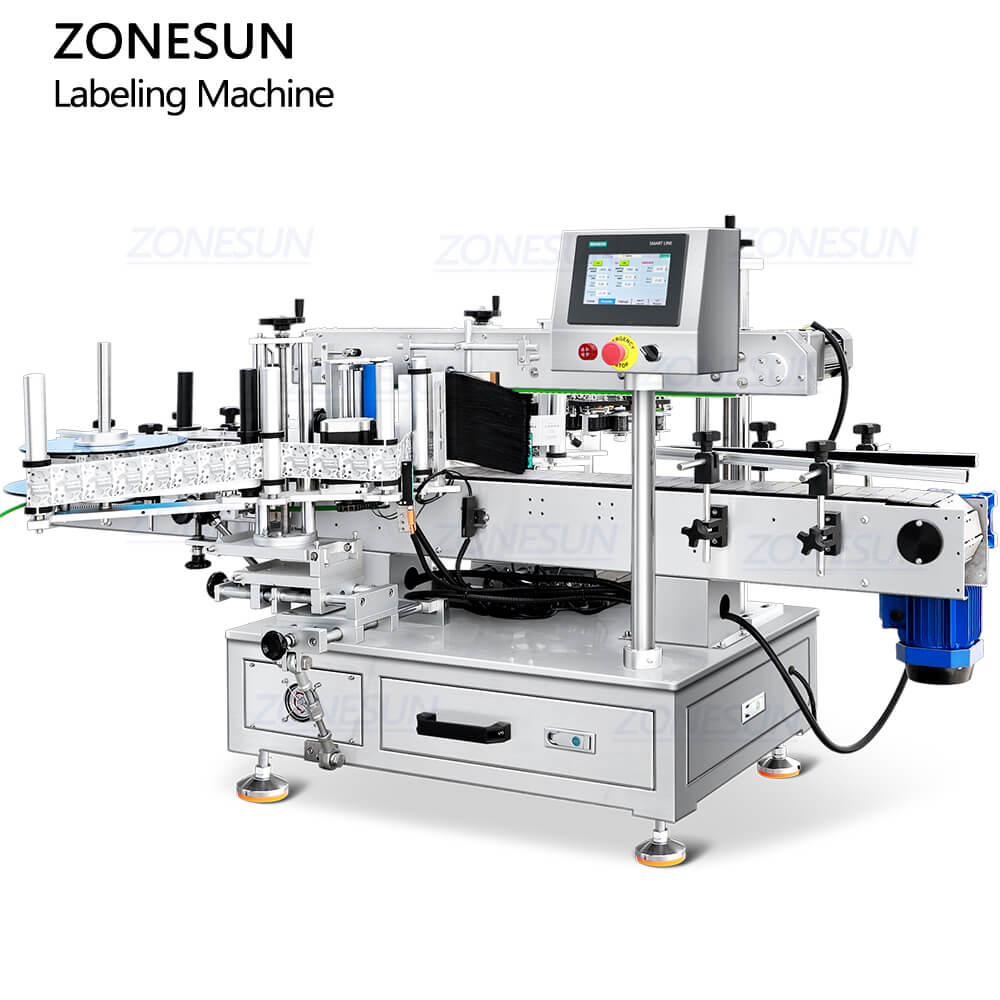

ZONESUN ZS-TB300M Automatic Flat Bottle Double Sided Labeling Machine
This desktop labeling machine is suitable for flat bottles,the reasonable design saves a lot of space during working.It is not only suitable for single side labeling but also suitable for double side labeling.It is widely used in daily chemical industry like laundry detergent,hand sanitizer etc.It is also suitable for cosmetics, food,drinks industries.
Price range: $6,299.00 through $6,349.00
Share to
|
Machine model
|
ZS-TB300M
|
|
Voltage
|
110V-60HZ/220V-50HZ
|
|
Power
|
3100W
|
|
Working speed
|
30-100 bottles/min
|
|
Labeling accuracy
|
2mm
|
|

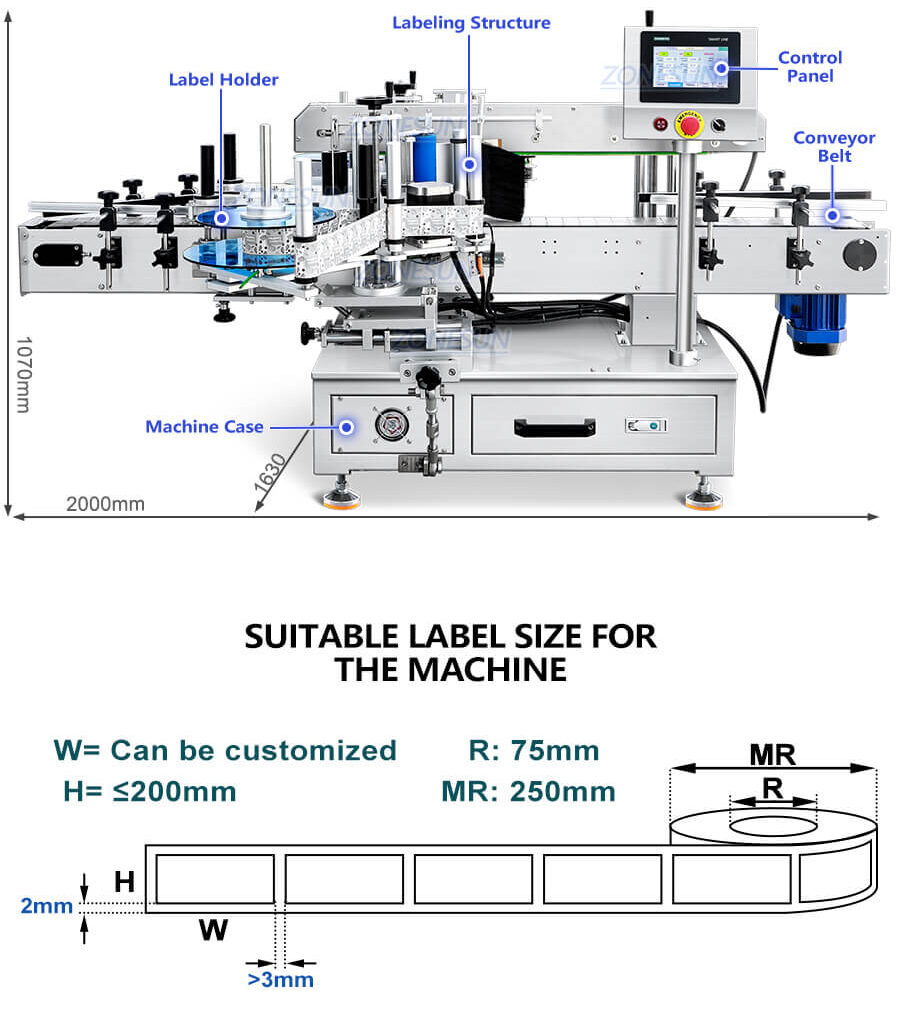

Suitable labeling Size
|
≤200mm(H)(Can be customized)
|
|
Roll inside diameter(mm)
|
Φ75mm
|
|
Roll outside diameter(mm)
|
Φ250mm
|
|
Suitable bottle diameter
|
φ≤100mm H≤350mm
|
|
Conveyor size
|
About 1800*100mm
|
|
Machine size
|
About 2000*1630*1070mm(L*H*W)
|
| *Specifications are for reference only and may vary by your product. Please confirm with us if required. | |
Control Panel
Parameter setting shows more intuitive, easy for machine debugging. Language of panel can be customized.
Bottle Guiding Structure
Can make bottles in order before labeling. Its width can be adjusted as production need.

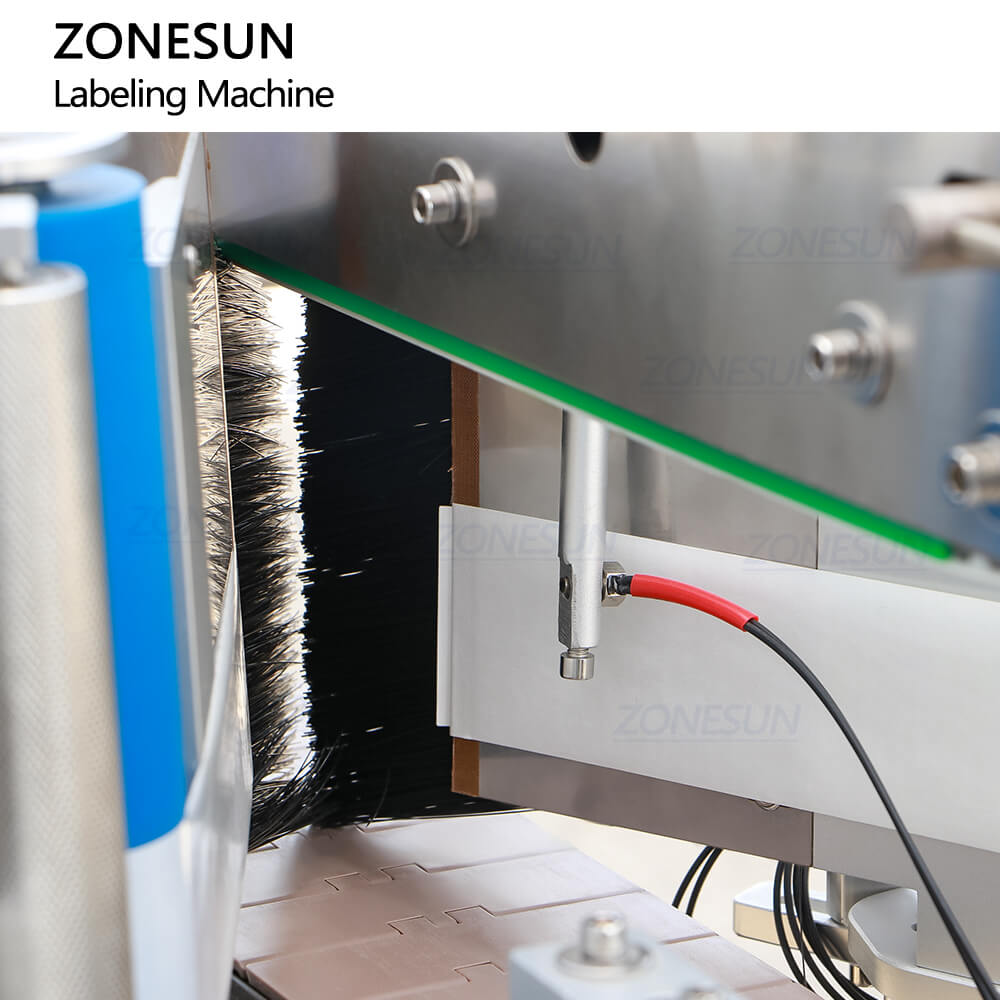

Labeling Structure
Suitable for single side or double sides labeling on flat bottles. The brush can ensure labeling effect.

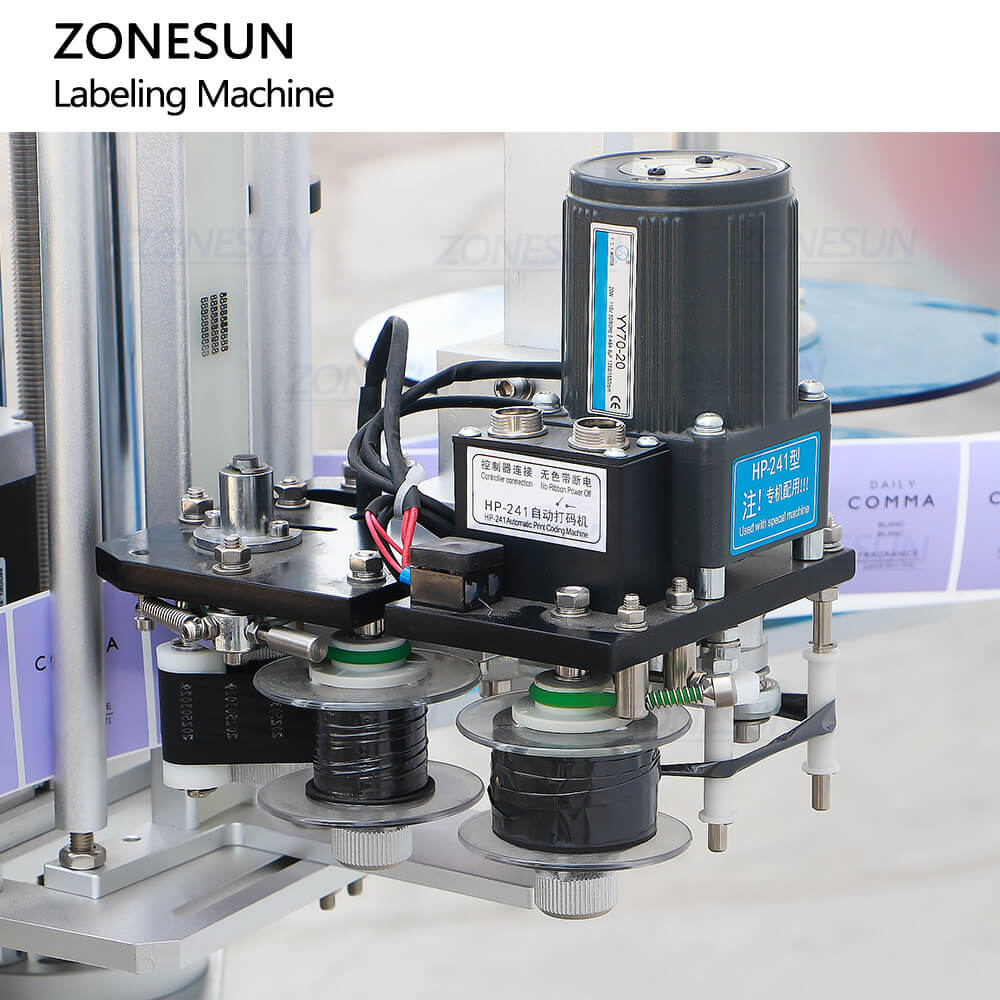

Date Coder
This machine can be equipped with date coder, which can print batch number on labels.

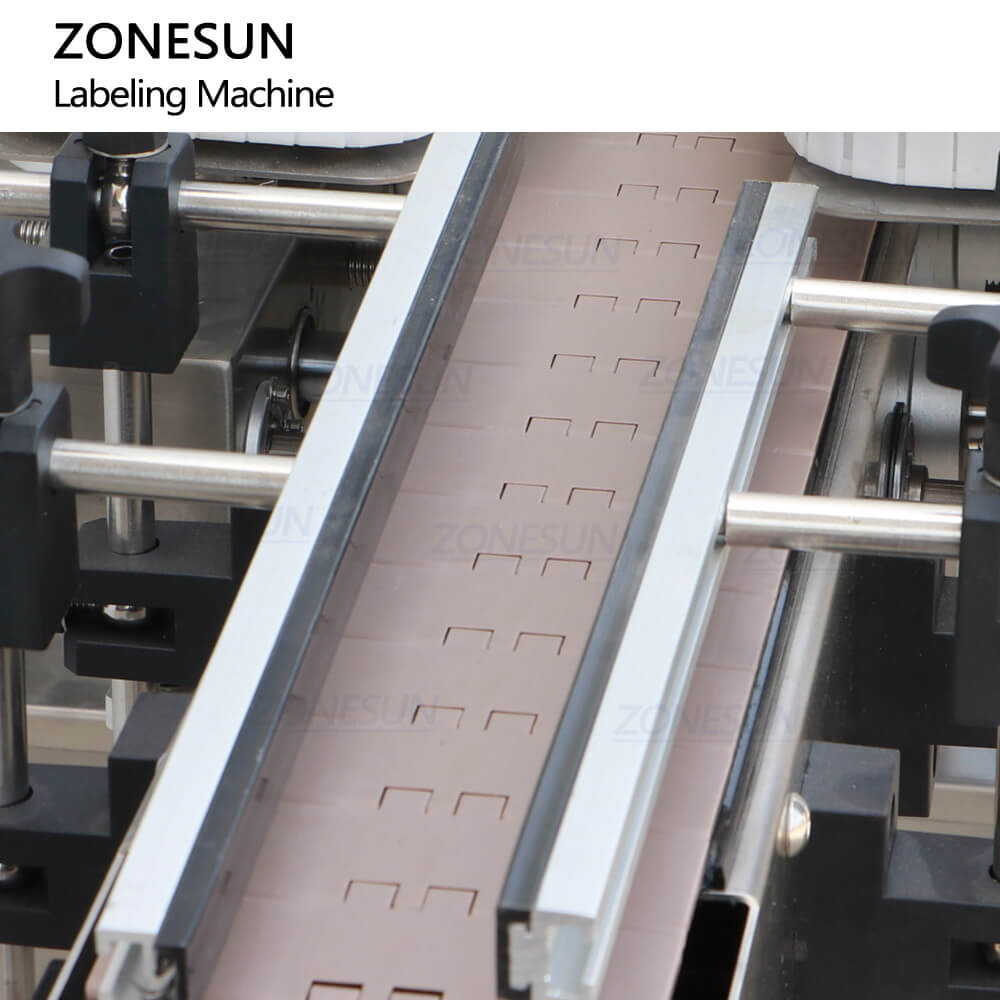

Conveyor Belt
Chain conveyor belt has high loading capacity. Its width and speed can be adjusted as production need.
Electric Box
The electric circuit is arranged orderly, ensuring stable production.
