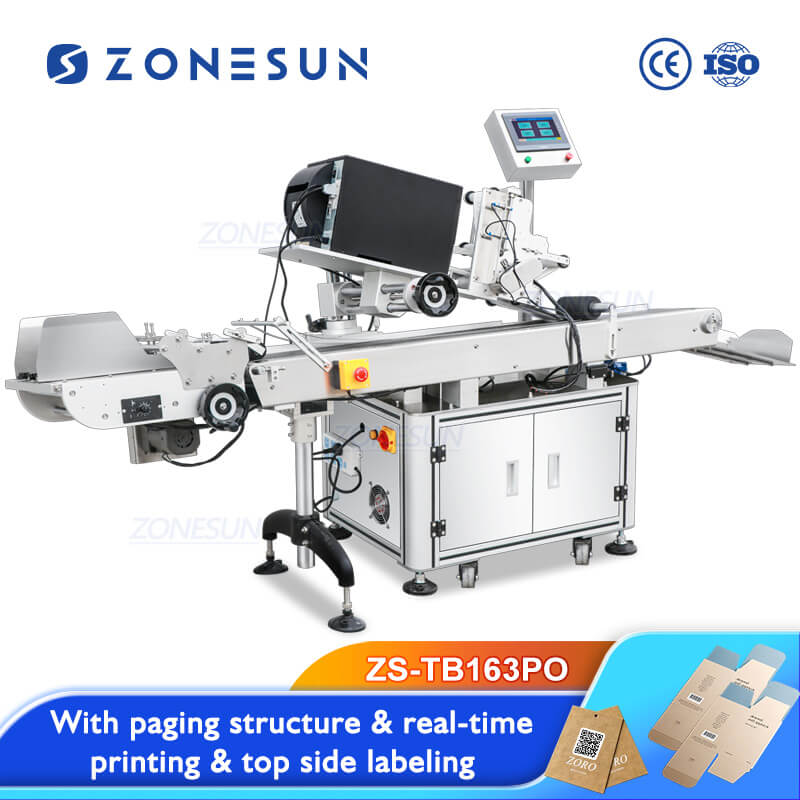

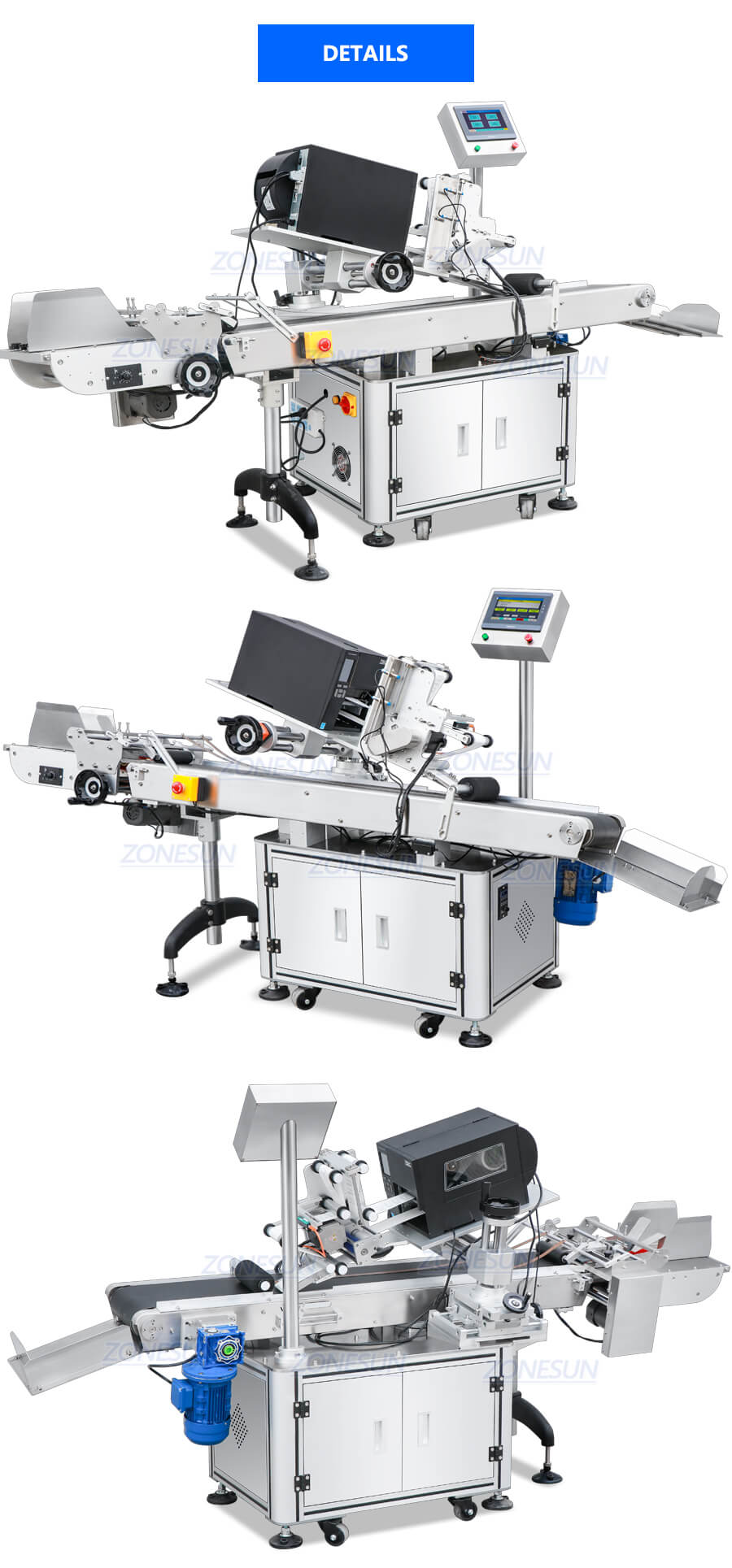

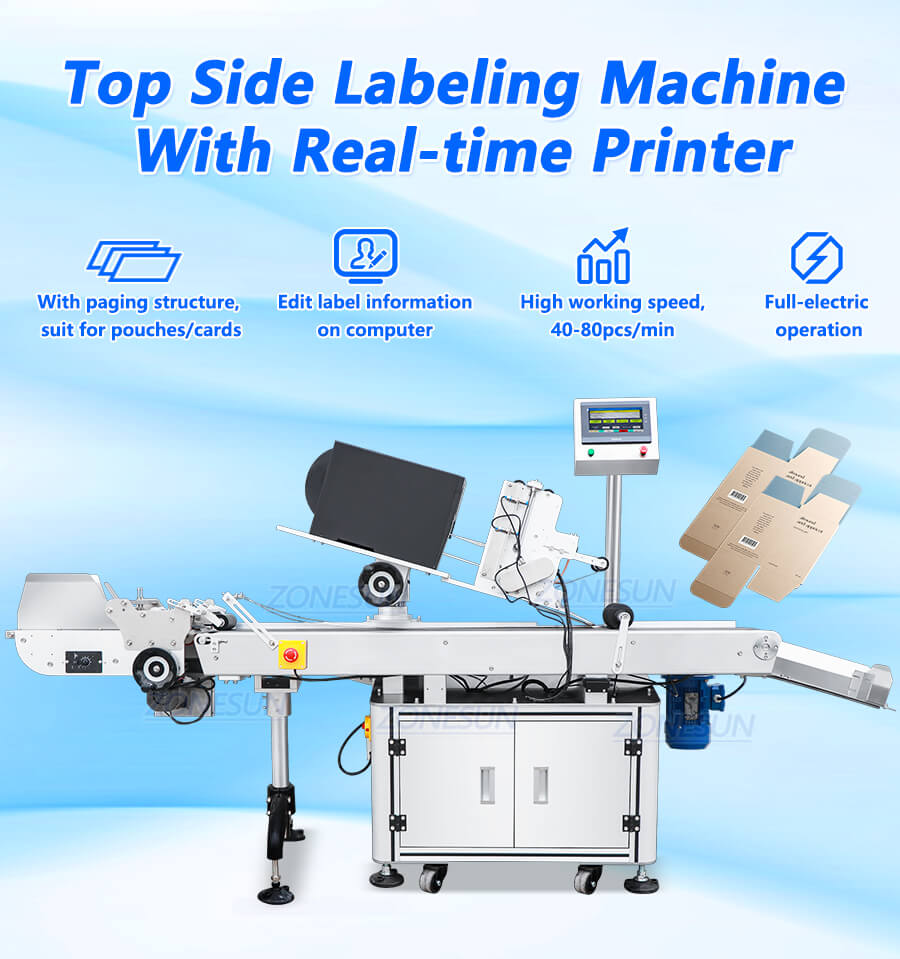

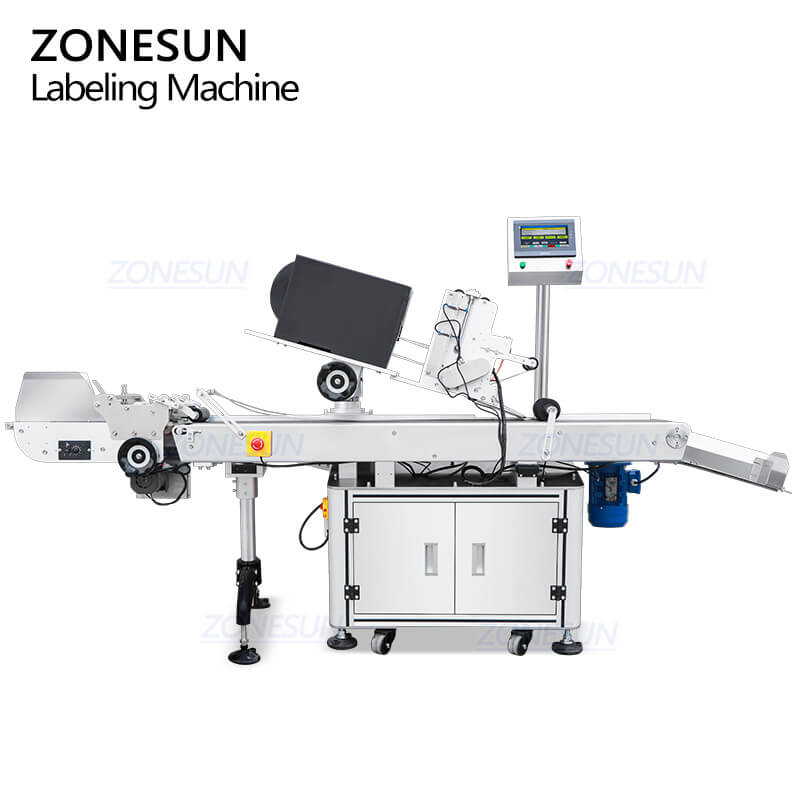

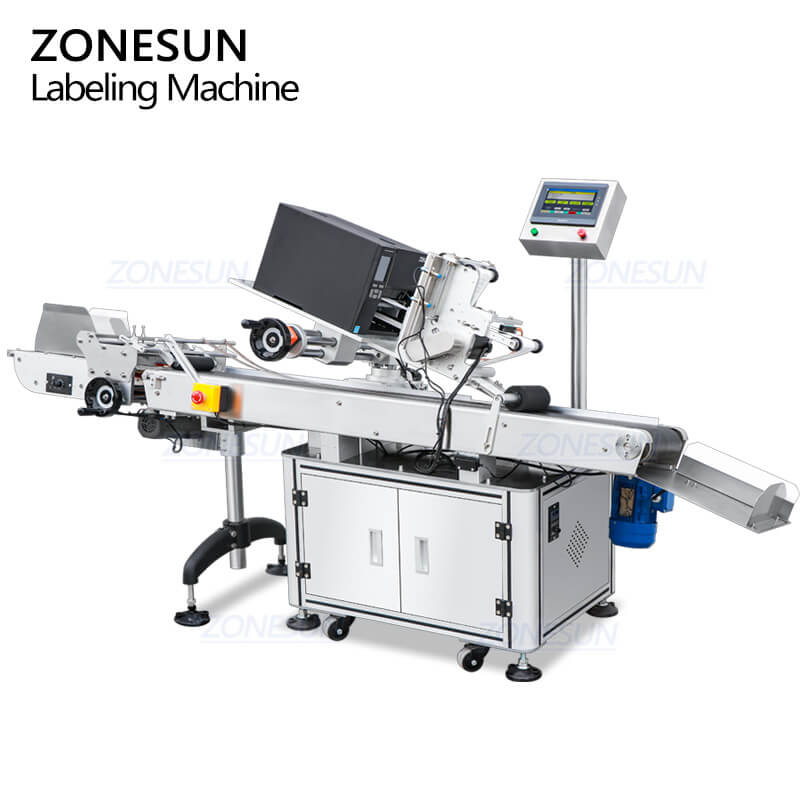

ZONESUN ZS-TB163PO Flat Thermal Transfer Online Print Labeling Machine
his label applicator is equipped with paging structure, which can separate stacked flat cardboard and convey them to the labeling structure, when electric eye detect flat cardboard, the stickers will be labeled onto it. This machine is suitable for food, daily chemical, cosmetics industries.
Original price was: $13,635.23.$11,199.00Current price is: $11,199.00.
Share to
his label applicator is equipped with paging structure, which can separate stacked flat cardboard and convey them to the labeling structure, when electric eye detect flat cardboard, the stickers will be labeled onto it. This machine is suitable for food, daily chemical, cosmetics industries.
| Machine model | ZS-TB163PO |
| Power supply | 110/220V 50-60HZ 1800W |
| Working speed | About 40-80pcs/min(depending on labeling object size) |
| Labeling accuracy | ±1mm(excluding product and label error) |
| Suitable labeling object | 40-400mm(L), 40-200mm(W), 0.5-150mm(H) |
| Suitable label size | 6-300mm(W)*15-130mm(H) |
| Label roll OD | φ300mm |
| Label roll ID | φ76mm |

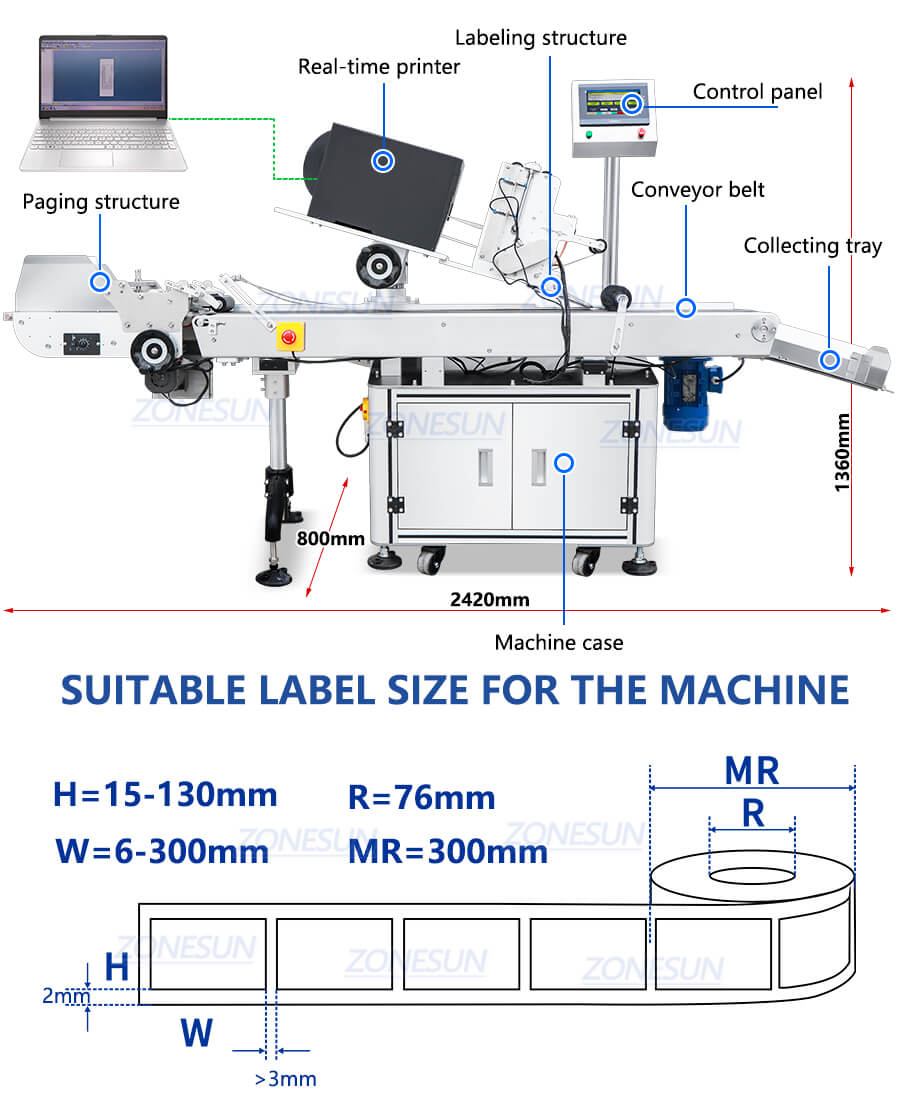

| Machine dimension | About 2420*800*1360mm(L*W*H) |
| Package size | About 2260*970*1550mm(L*W*H) |
| Package Weight | About 347kg |

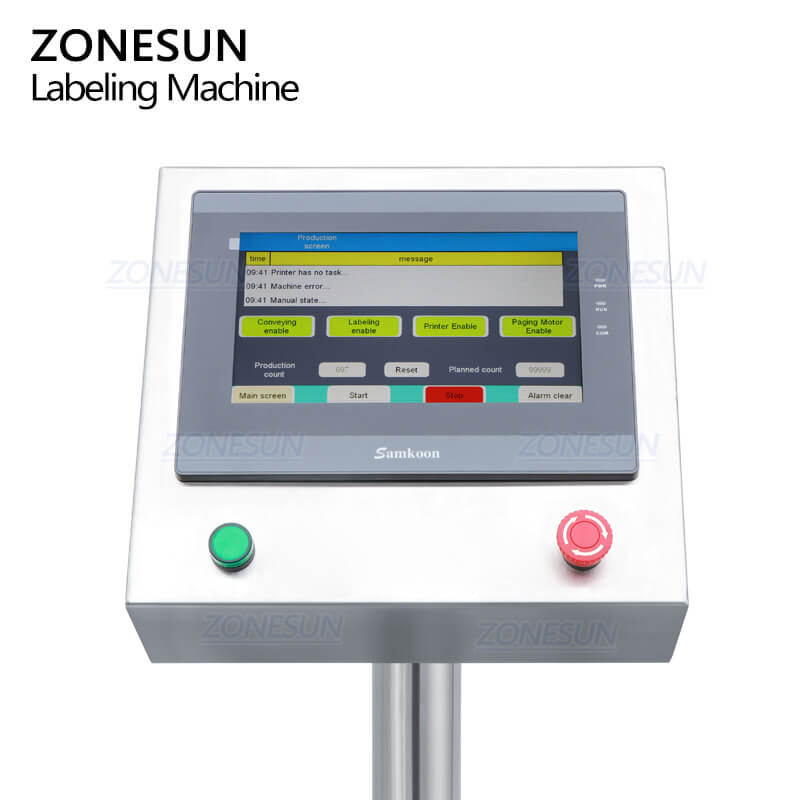

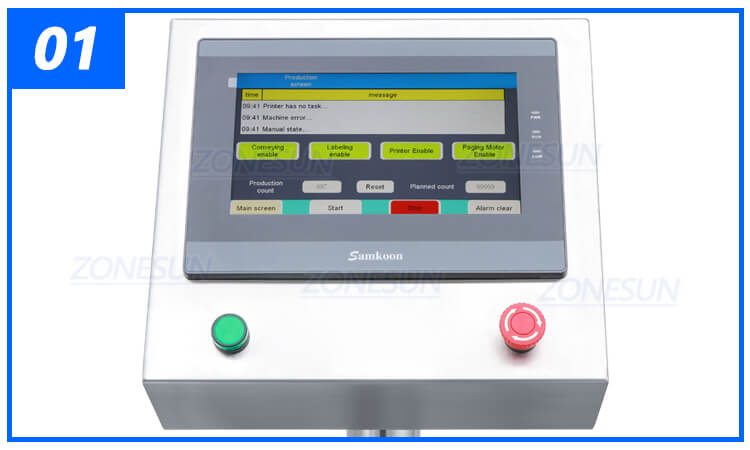

Control Panel
Touchscreen panel for easy operation and quick parameter adjustment.

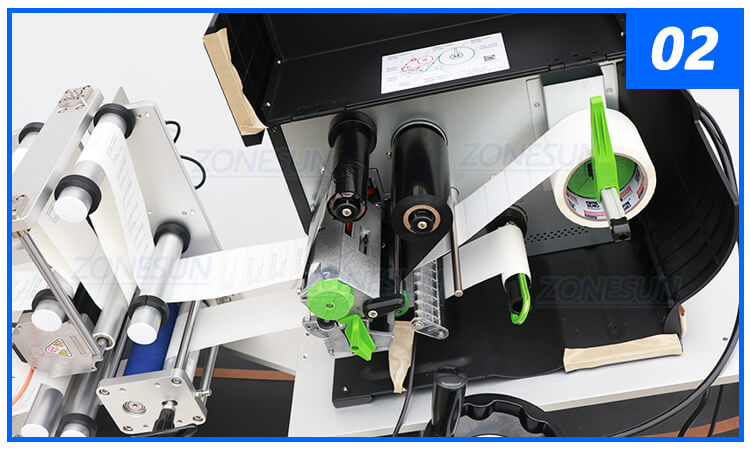

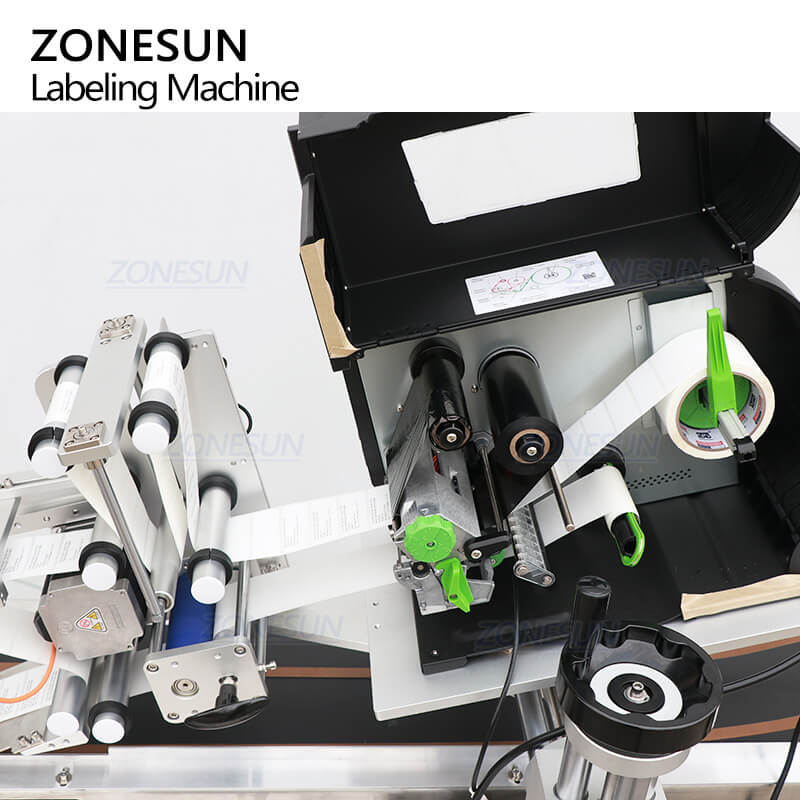

Real-time Printer
Capable of printing logos, QR codes, barcodes, patterns, numbers on labels.

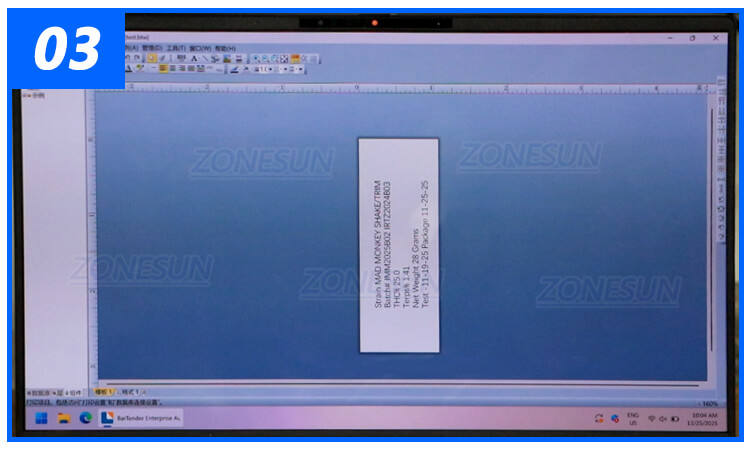

Computer Editing
Printed label information can be edited through computer easily(Computer is bought separately).

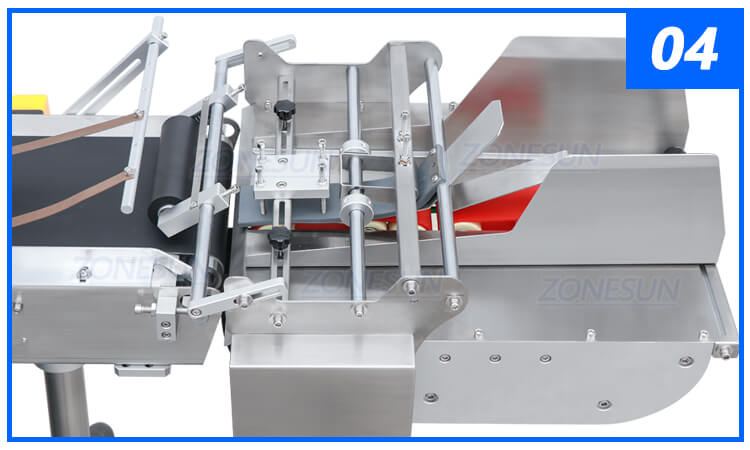

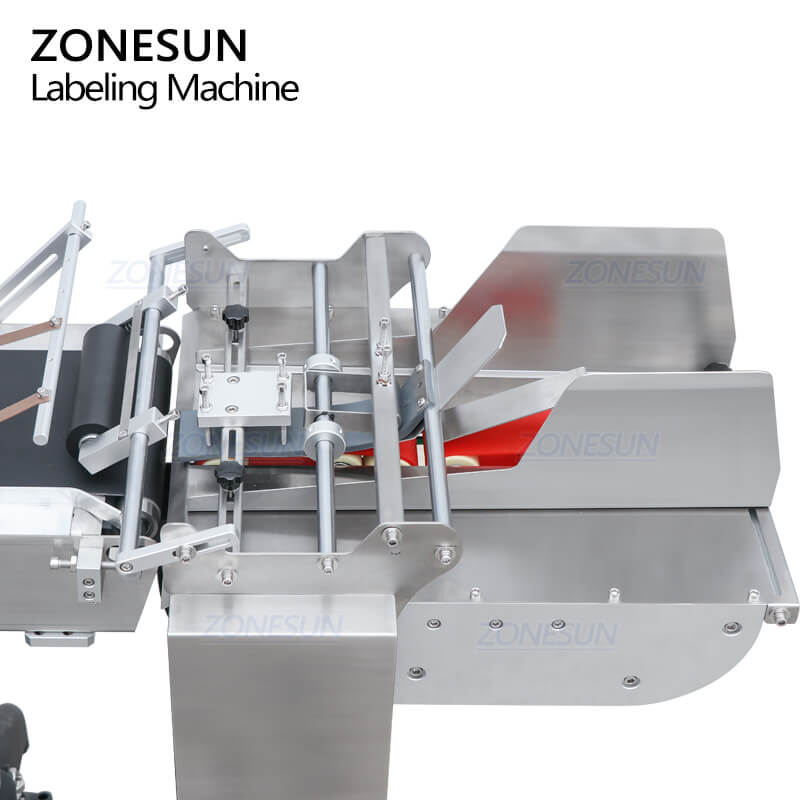

Paging Structure
Automatically feed thin products like pouches, paper cards. Can be adjusted as product size.

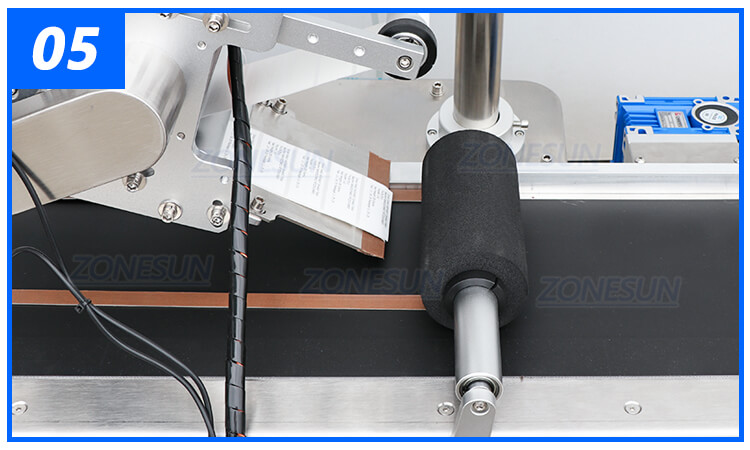

Labeling Structure
For top side labeling on flat surfaces. The roller makes sure there are no bubbles under stickers.

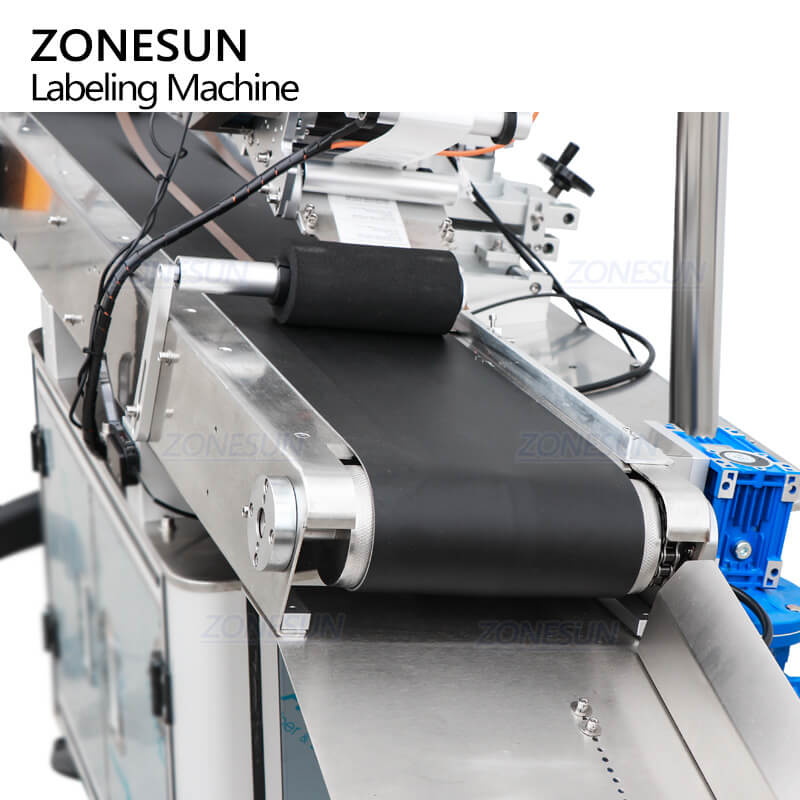

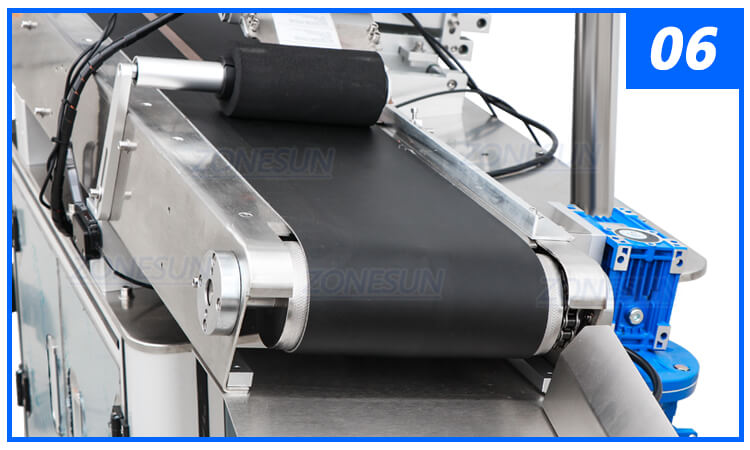

Angled Conveyor
Can ensure the products are on one side and improve labeling accuracy.

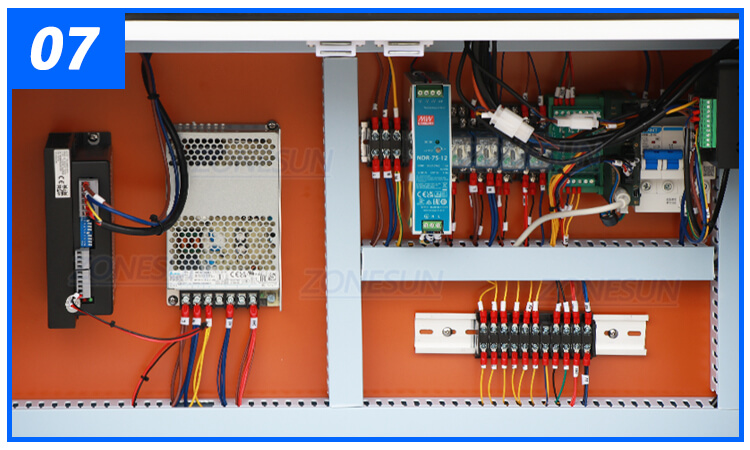

Electric Circuits
All circuits are well-arranged for safety, reliability, and easy maintenance.
