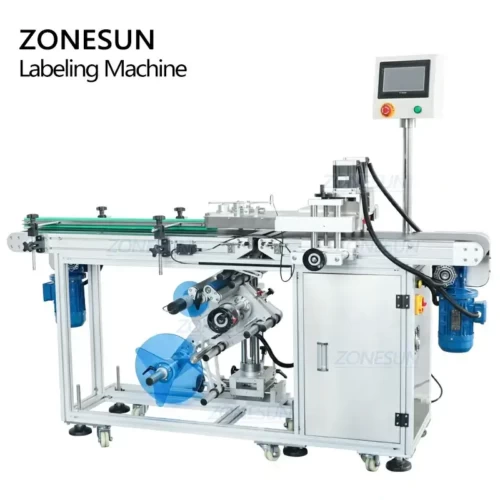

Bottom Surface Labeling Machine

Bottom Surface Labeling Machine

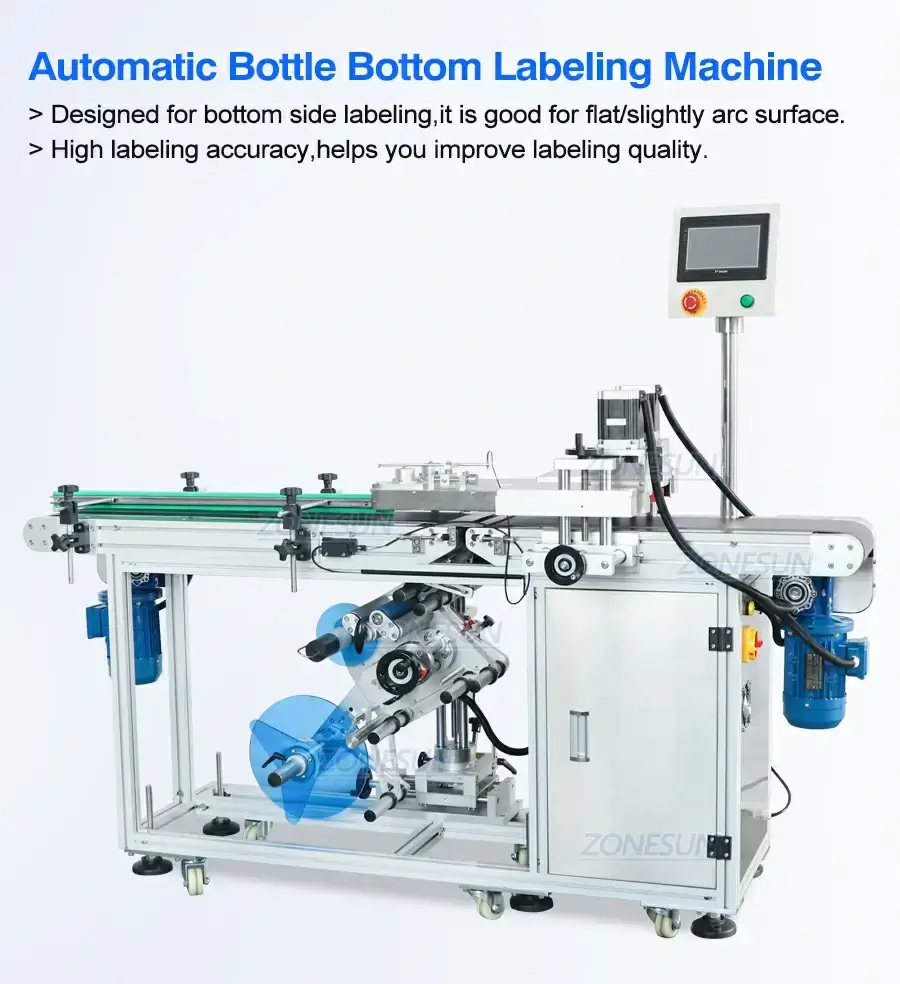

This automatic labeling machine is designed for labeling stickers on the bottom side of bottles.It is not only good for flat surface,but also the slightly arc surface.The high accuracy labeling makes it can be widely used in food,daily chemicals,cosmetics industries.

Product Detail

Product Tags


Bottom Surface Labeling Machine-ZONESUN TECHNOLOGY LIMITED

Description:

This automatic labeling machine is designed for labeling stickers on the bottom side of bottles.It is not only good for flat surface,but also the slightly arc surface.The high accuracy labeling makes it can be widely used in food,daily chemicals,cosmetics industries.

Bottom Surface Labeling Machine-ZONESUN TECHNOLOGY LIMITED

Bottom Surface Labeling Machine-ZONESUN TECHNOLOGY LIMITED

Bottom Surface Labeling Machine-ZONESUN TECHNOLOGY LIMITED

Parameter:

ModelZS-TB125 Labeling Machine
Power supplyAC220V 50Hz/60Hz (2000W)
Labeling capacity(bottles/min)25-150 pieces/min(depends on bottle size)
Labeling accuracy(mm)±1.0mm
Suitable product sizeAbout 40-400mm*40-100mm*30-100mm(L*W*H)
Label size(mm)(L)6-250mm* (W)20-160mm
Roll inside diameter(mm)φ76mm
Roll outside diameter(mm)φ280mm
Conveyor Size200*1900mm(W)
Machine sizeAbout (L)1900*(W)800*(H)1550(mm)
Machine weightAbout 217kg
Packing SizeAbout (L)2050*(W)950*(H)1715(mm)
Package weightAbout 315.5kg

Bottom Surface Labeling Machine-ZONESUN TECHNOLOGY LIMITEDBottom Surface Labeling Machine-ZONESUN TECHNOLOGY LIMITEDBottom Surface Labeling Machine-ZONESUN TECHNOLOGY LIMITED
