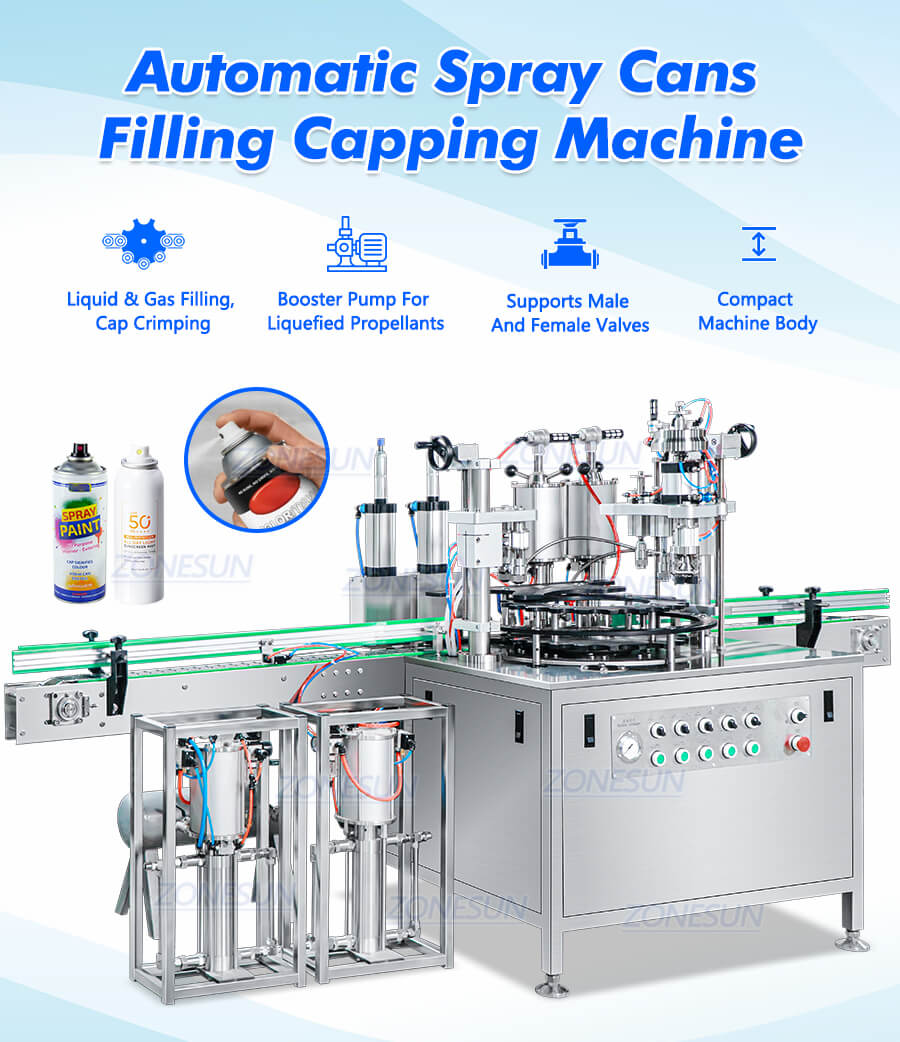

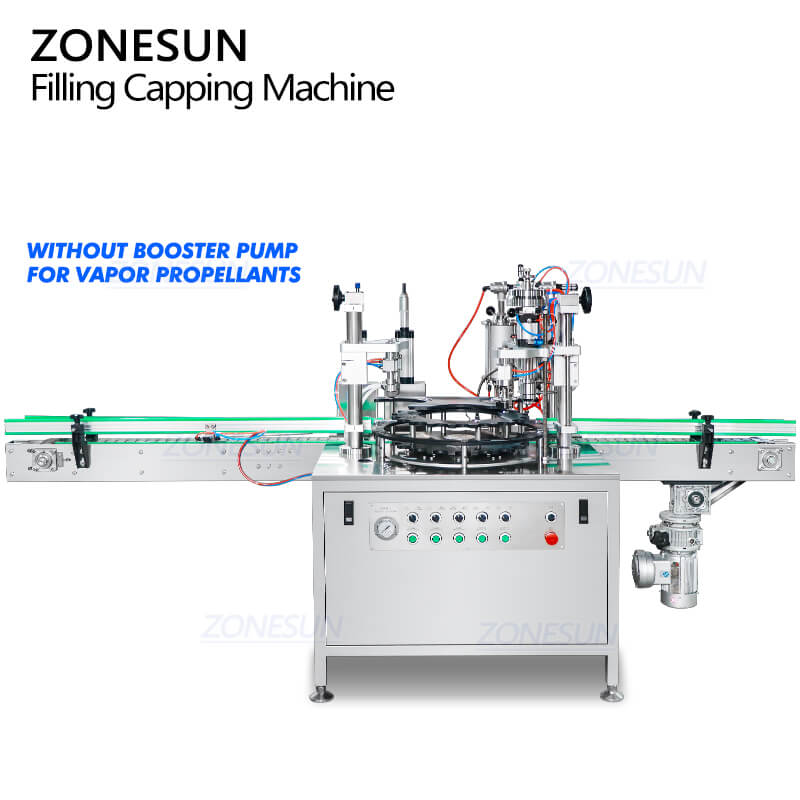

ZONESUN ZS-QW1600 Rotary Aerosol Spray Can Filling Capping Machine
This machine is designed for filling liquid into spray cans(without BOV bags) and crimp spray cans automatically.It is suitable for packaging sunscreen cans, glass spray cleaner, spray paint, spray lacquer,skin toner etc.
Price range: $9,299.00 through $16,499.00
Share to
This machine is designed for filling liquid into spray cans(without BOV bags) and crimp spray cans automatically.It is suitable for packaging sunscreen cans, glass spray cleaner, spray paint, spray lacquer,skin toner etc.
| Machine model | ZS-QW1600 |
| Valve size | Customized |
| Filling range | 50-500ml |
| Working capacity | About 20 bottles/min |
| Working air pressure | 0.5-0.8MPa |
| Suitable aerosol can diameter | 35-69mm |
| Suitable aerosol can height | 70-330mm |
| Machine size | About 3050*1100*1650mm |
| Package size | About 1160*1130*1640mm(Main Machine)
About 500*470*790mm(Booster Pump) About 2070*440*300mm(Conveyor) |
| Package weight | About 57kg(Conveyor)+58kg(Booster Pump)+475kg(Main Machine)=590kg |

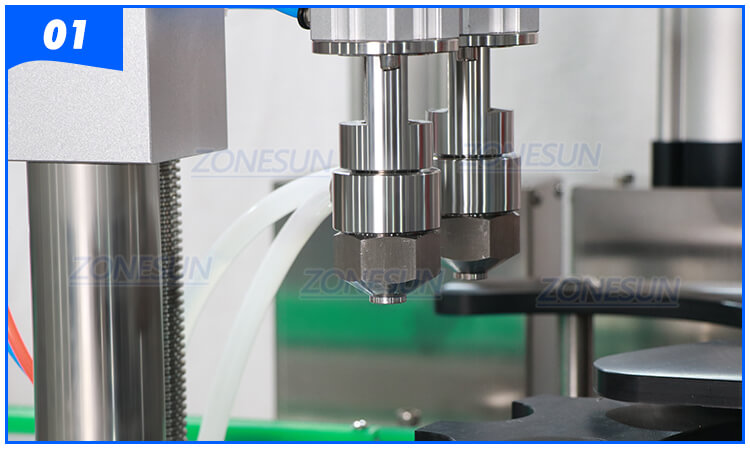

Piston Pump Liquid Filling
Piston pump filling system uses cylinder reciprocation to deliver stable filling, with adjustable filling nozzles height for different aerosol cans.

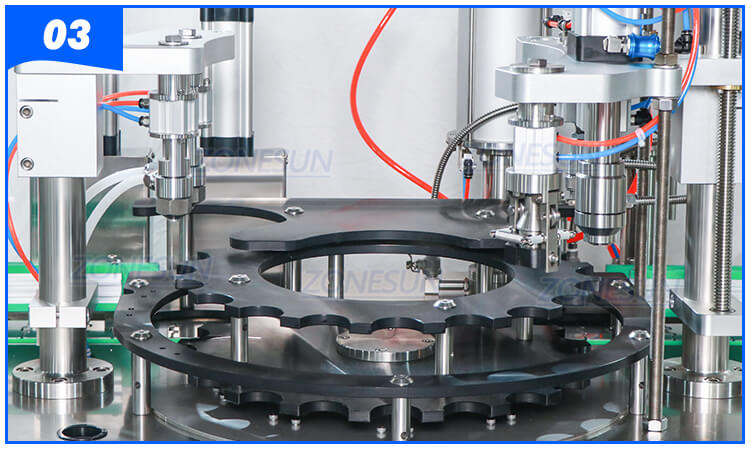

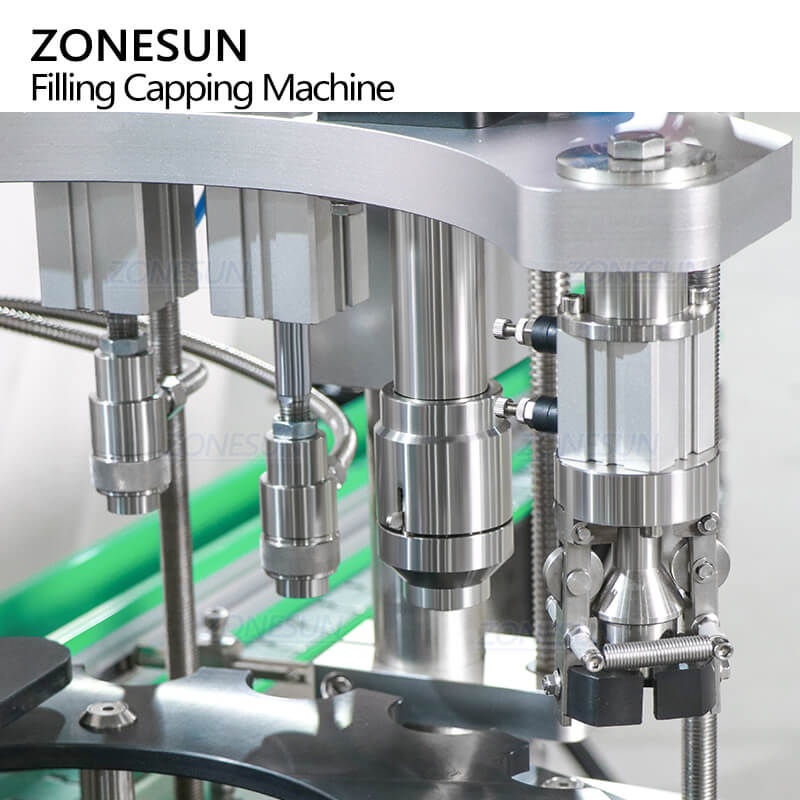

Two-Stage Crimping Structure
Using a two-stage crimping design, pre-crimping for valve positioning and final crimping for airtight sealing.
Compact Layout
This machine integrates filling and crimping on one workbench reduces floor space while maintaining stable can transfer.

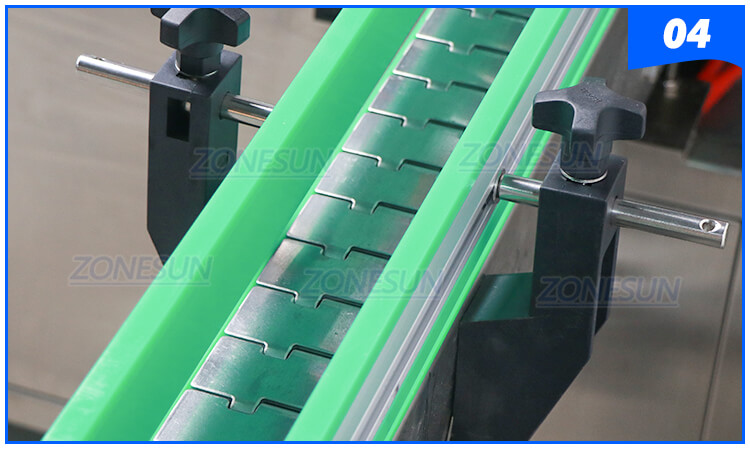

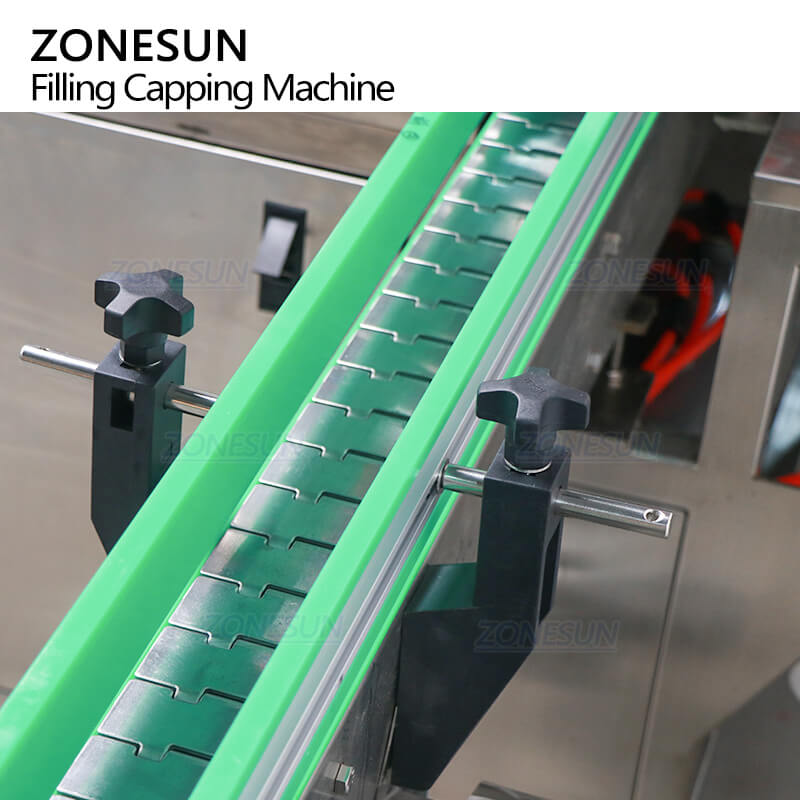

Stainless Steel Conveyor
Equipped with a stainless steel conveyor, it offers high load capacity and customizable width for aerosol cans.
