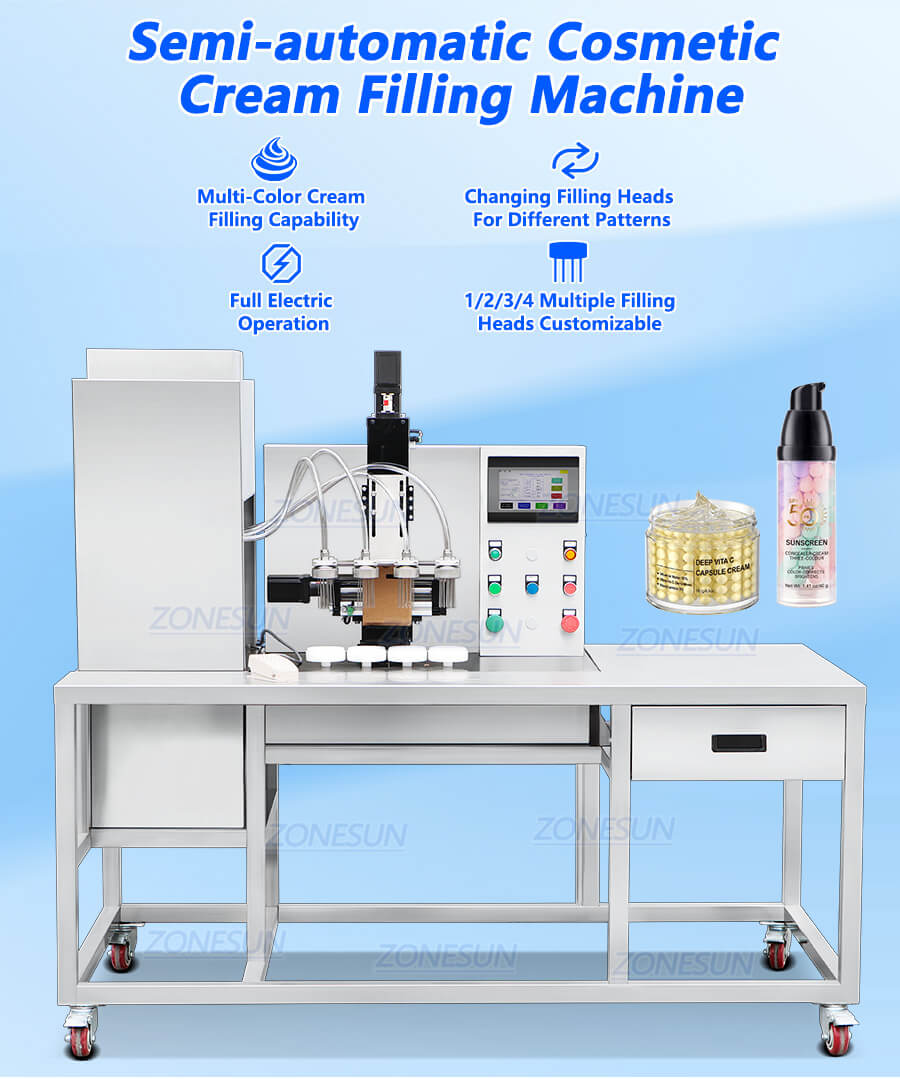

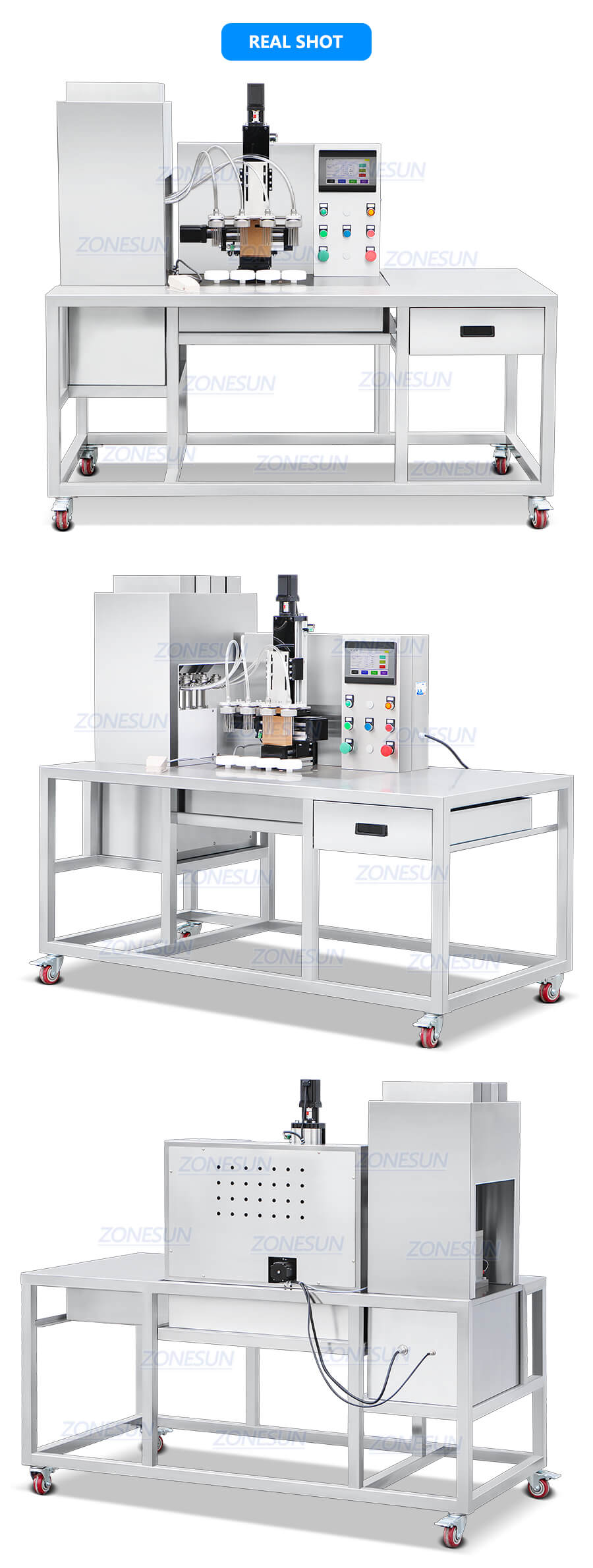

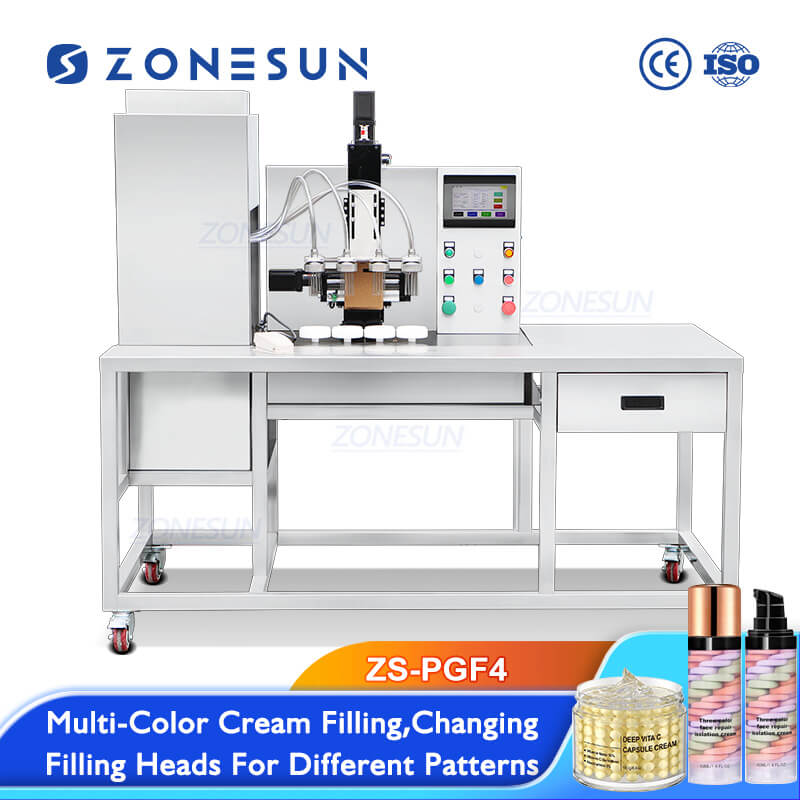

ZONESUN ZS-PGF4 Semi Automatic Cosmetic Swirl Filling Machine
The multi-color paste filling machine is specially designed for BB/CC cushion creams and other swirl-pattern cosmetic products. It supports single-color to four-color filling and delivers high-precision results with vibrant, layered visual effects. Each color channel operates independently, allowing flexible combinations of cream-based and oil-based formulas.
$30,499.00
Share to
The multi-color paste filling machine is specially designed for BB/CC cushion creams and other swirl-pattern cosmetic products. It supports single-color to four-color filling and delivers high-precision results with vibrant, layered visual effects. Each color channel operates independently, allowing flexible combinations of cream-based and oil-based formulas.
| Machine Model | ZS-PGF4 |
| Voltage | 220V/110V 50-60Hz |
| Power | 2.5kW |
| Filling Nozzles | 4 |
| Production Capacity | About 200-1000BPH |
| Filling Pump | Piston Pump |
| Machine Dimensions | About 1610*830*1580mm |
| Machine Weight | About 150kg |
| Package Size | About 1700*900*1560mm |
| Package Weight | About 252kg |

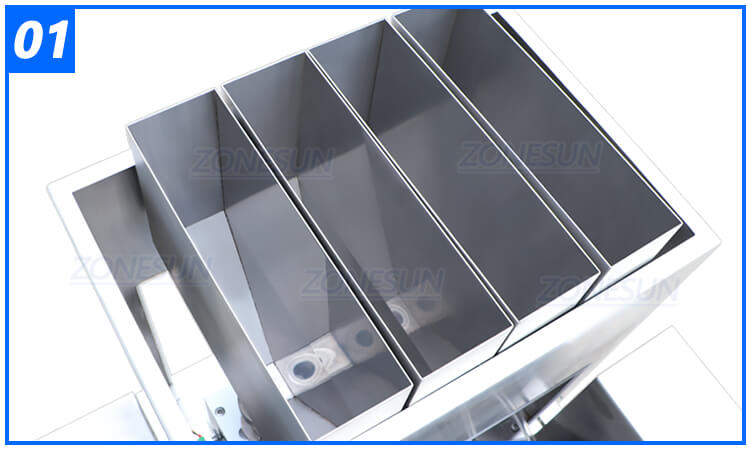

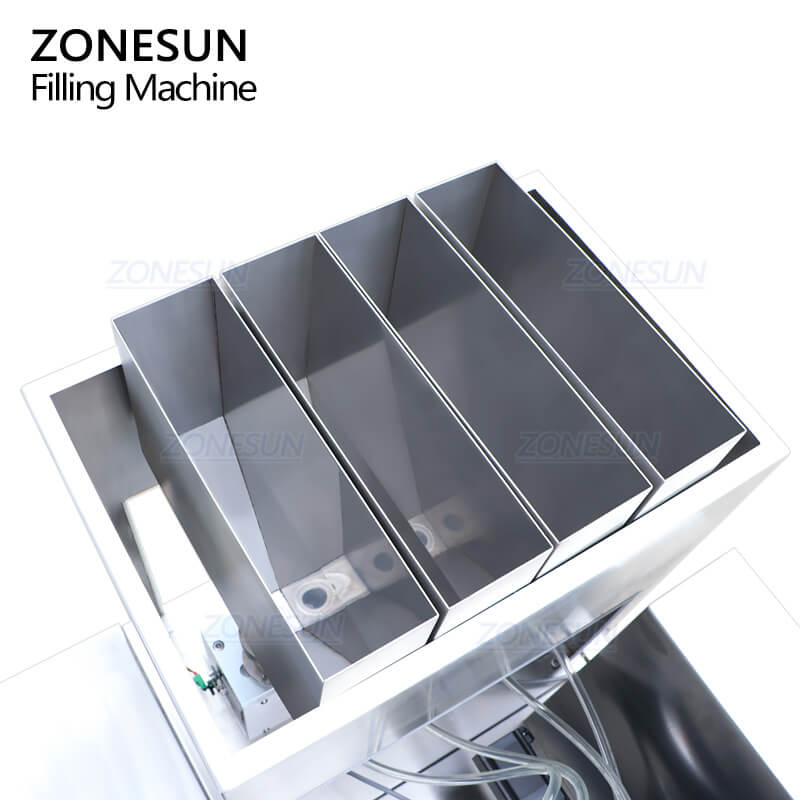

Feeding Hoppers
With four independent hoppers for multi-color filling. Suitable for filling 1/2/3/4-color creams.

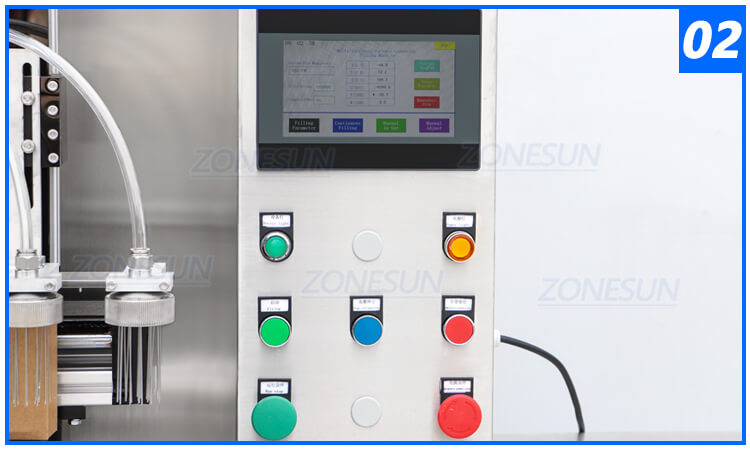

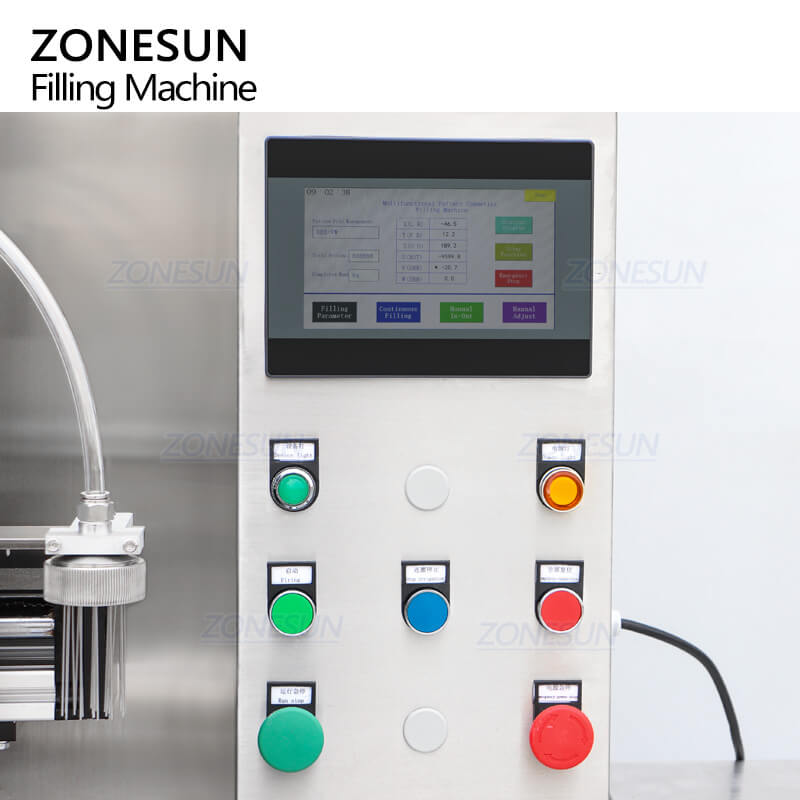

Control Panel
Enables easy operation, parameter setting, andmonitoring of the filling process.

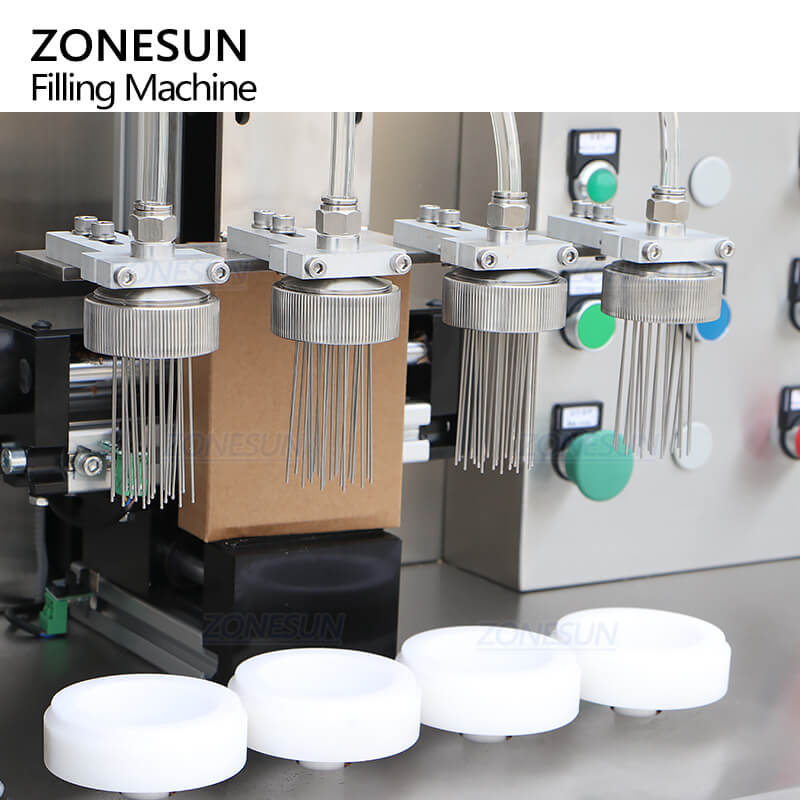

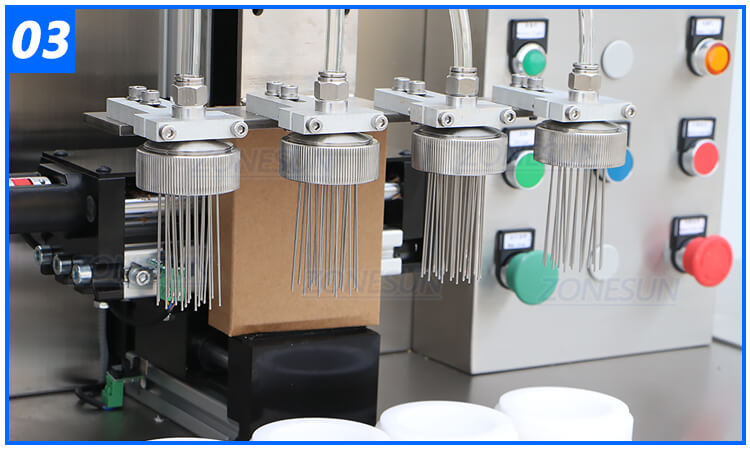

Filling Nozzles
Interchangeable nozzles allow different creampatterns, piston pump ensures higher filling accuracy.

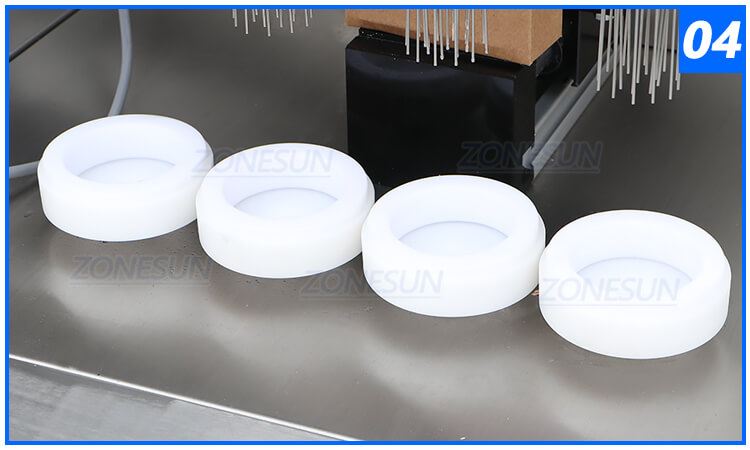

Bottle Molds
Securely positions bottles.The size of bottle moldscan be customized according to your need.

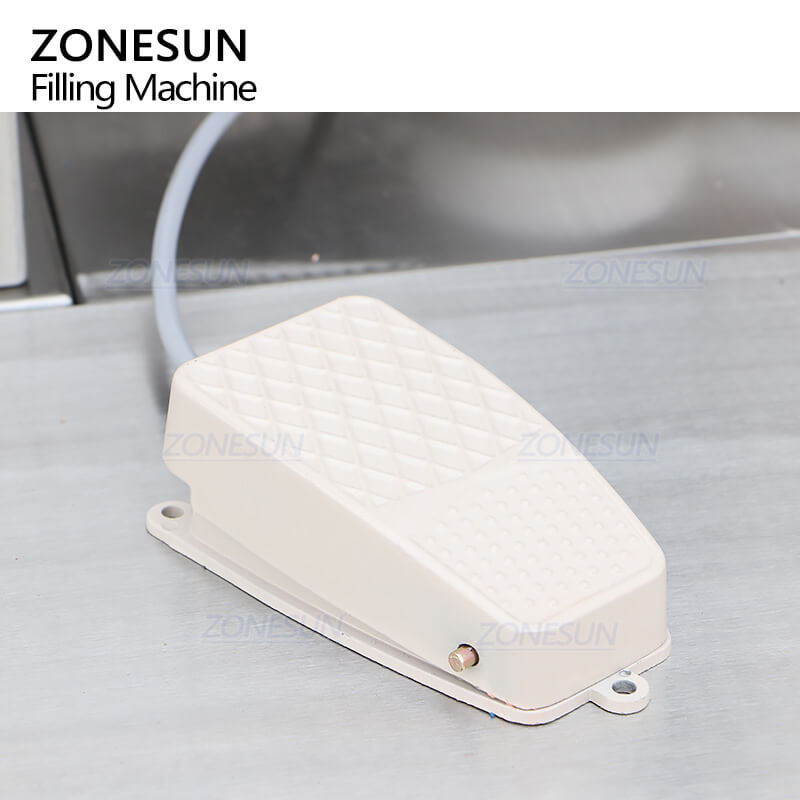

Pedal Switch
Activates the machine manually, freeing hands forprecise operation.
