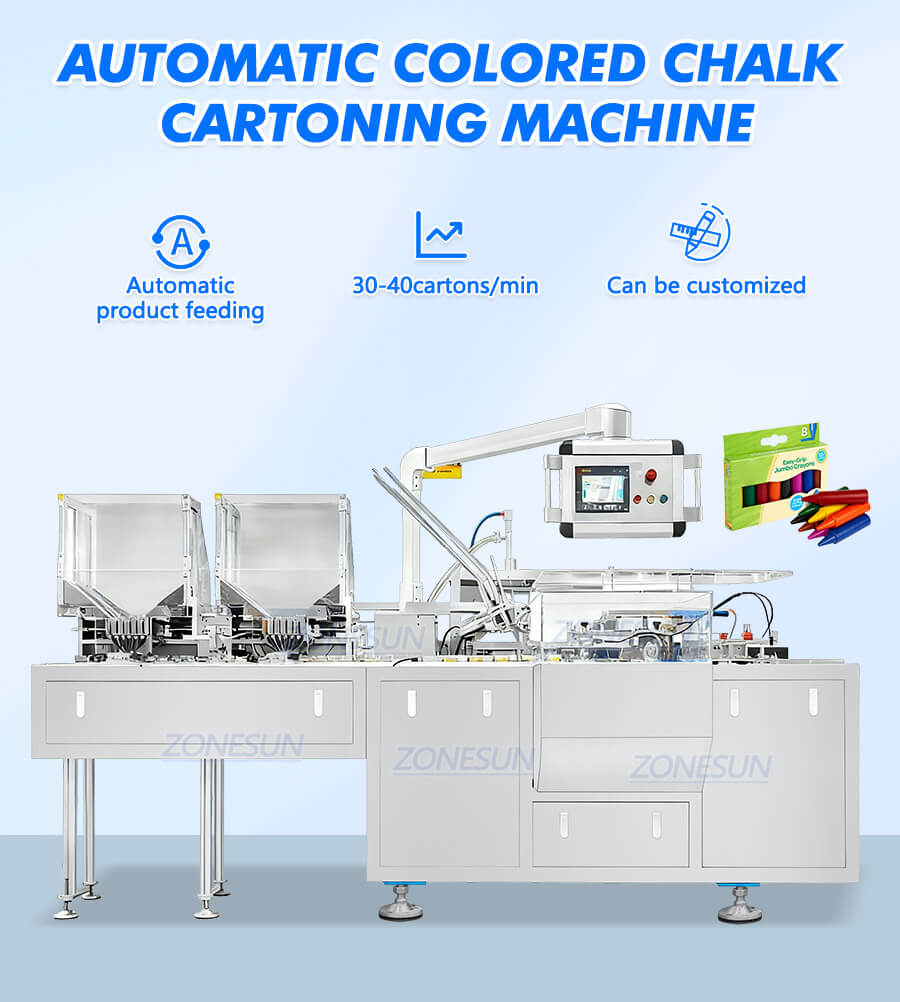

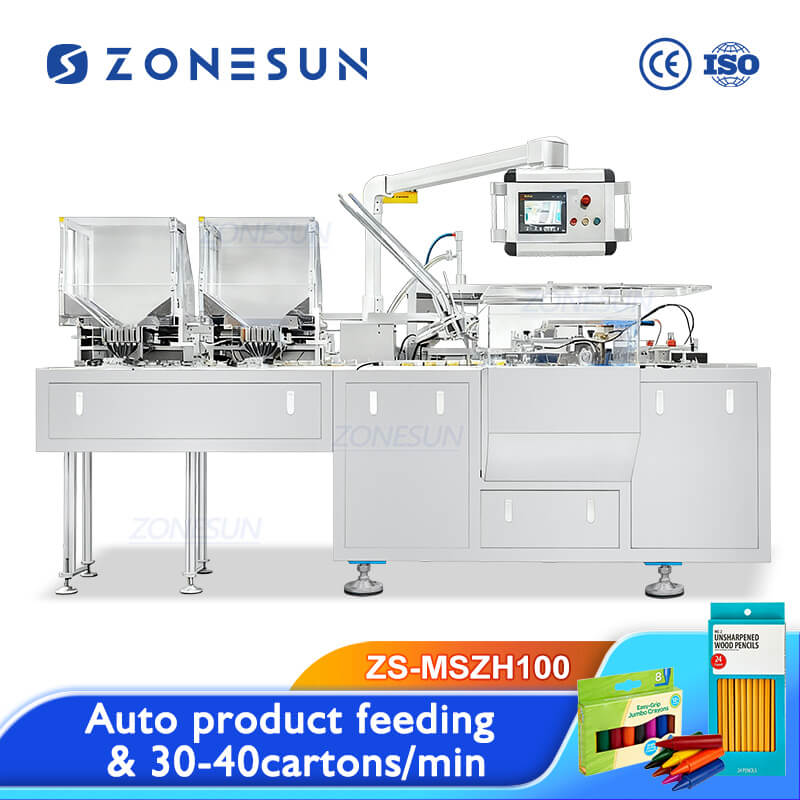

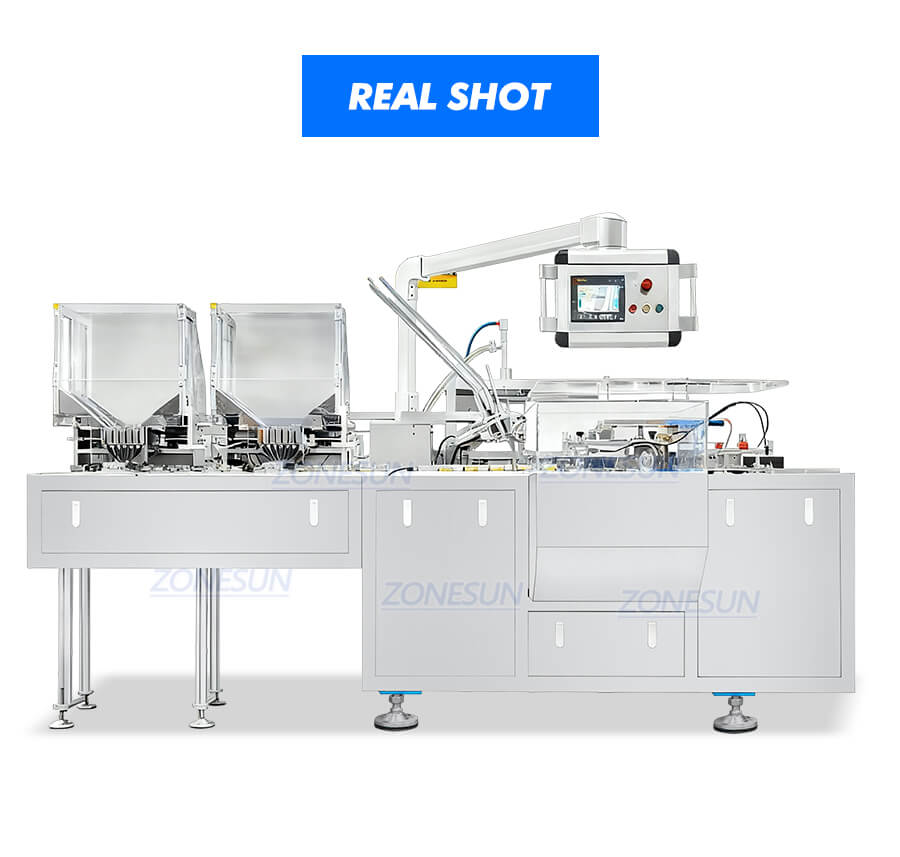

ZONESUN ZS-MSZH100 Colorful Chalk Horizontal Cartoning Machine
This is a fully automatic cartoning machine designed for efficient and precise packaging of colored school chalk or pencils. It operates at a rate of 30-40 cartons per minute, integrating automatic feeding, dual-hopper metering, box placing, flattening, pushing, folding, and sealing into one streamlined process. Equipped with a PLC color touch screen, it enables intuitive parameter adjustment and multi-set storage for enhanced efficiency. Ideal for stationery and educational product packaging, it ensures consistent output with minimal manual intervention.
$43,799.00
Share to
This is a fully automatic cartoning machine designed for efficient and precise packaging of colored school chalk or pencils. It operates at a rate of 30-40 cartons per minute, integrating automatic feeding, dual-hopper metering, box placing, flattening, pushing, folding, and sealing into one streamlined process. Equipped with a PLC color touch screen, it enables intuitive parameter adjustment and multi-set storage for enhanced efficiency. Ideal for stationery and educational product packaging, it ensures consistent output with minimal manual intervention.
| Machine Model | ZS-MSZH100 |
| Voltage | AC220V/380V 1.5kW |
| Working Speed | 30-40 boxes/min(depending on carton size) |
| Paper Quality of Box | 250-400g/㎡ |
| Box Size | (L)60-220mm*(W)20-125mm*(H)15-60mm |
| Air Pressure | 0.5-0.8MPa |

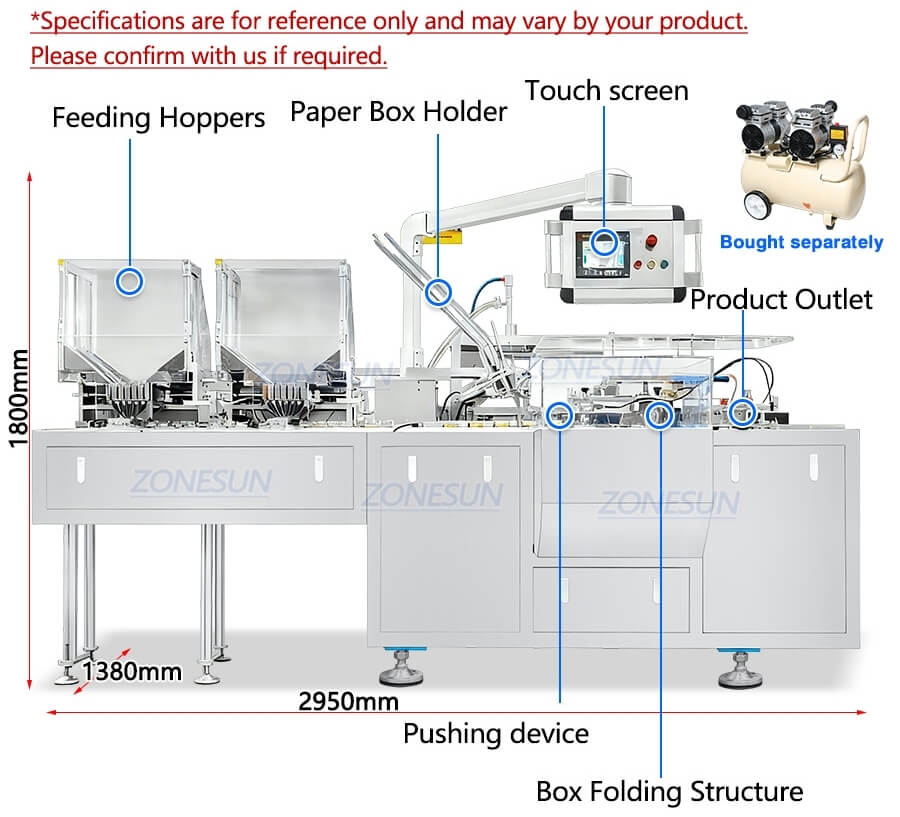

| Machine Size | About 2950*1380*1800mm(L*W*H) |
| Machine Weight | About 1200kg |
Control Panel
Touch screen panel shows parameters clearly and simplifies operation. Customizable interface improves efficiency.

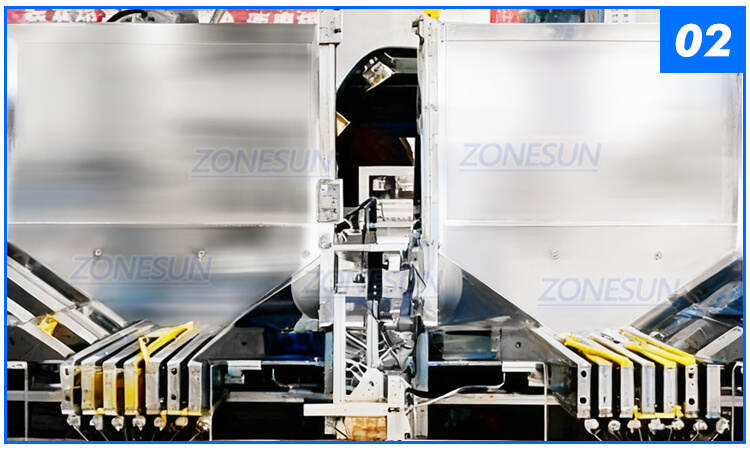

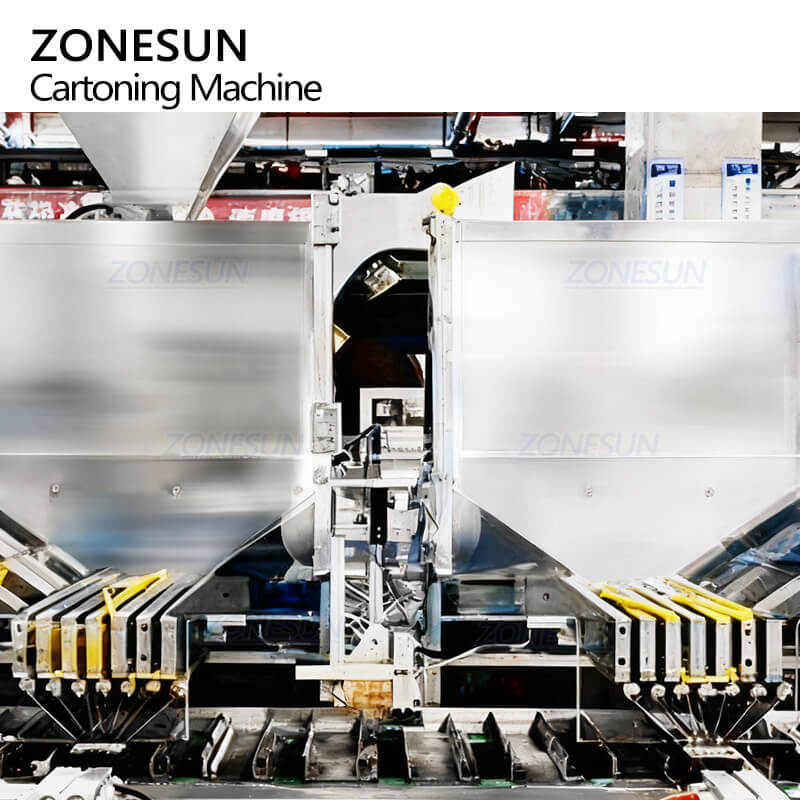

Feeding Hoppers
Can feed products to conveyor automatically. Hoppers can be customized as your production need.

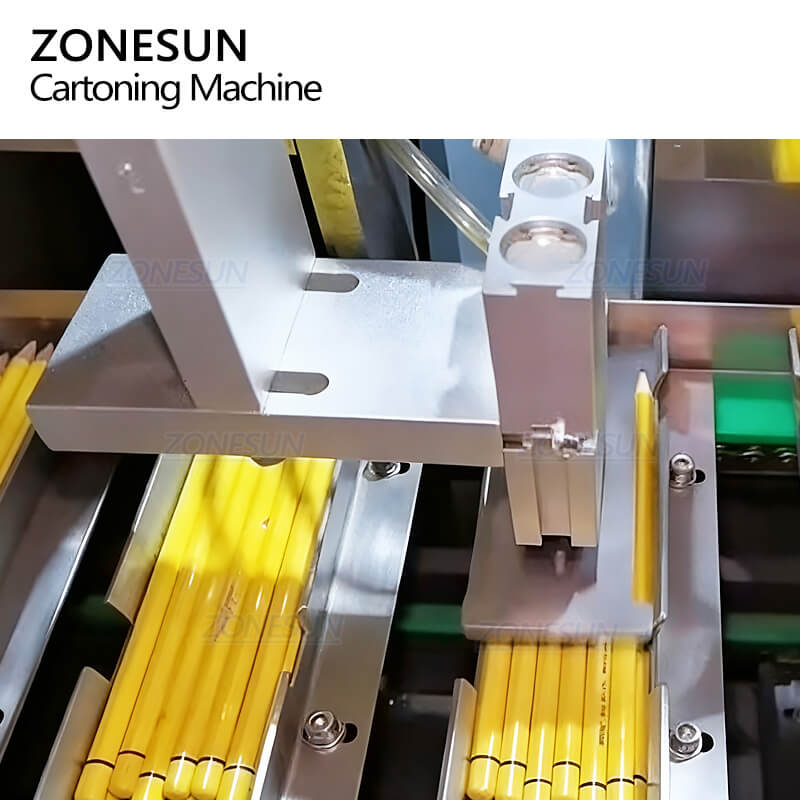

Pressing Structure
Ensure the flatness and fitness of products to improve packaging quality.

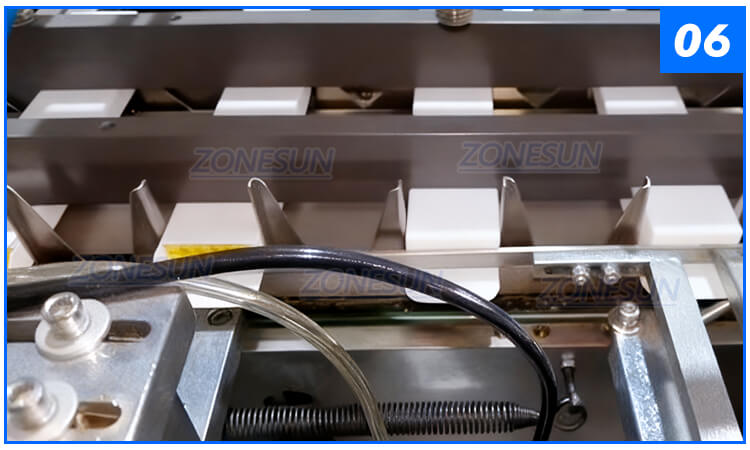

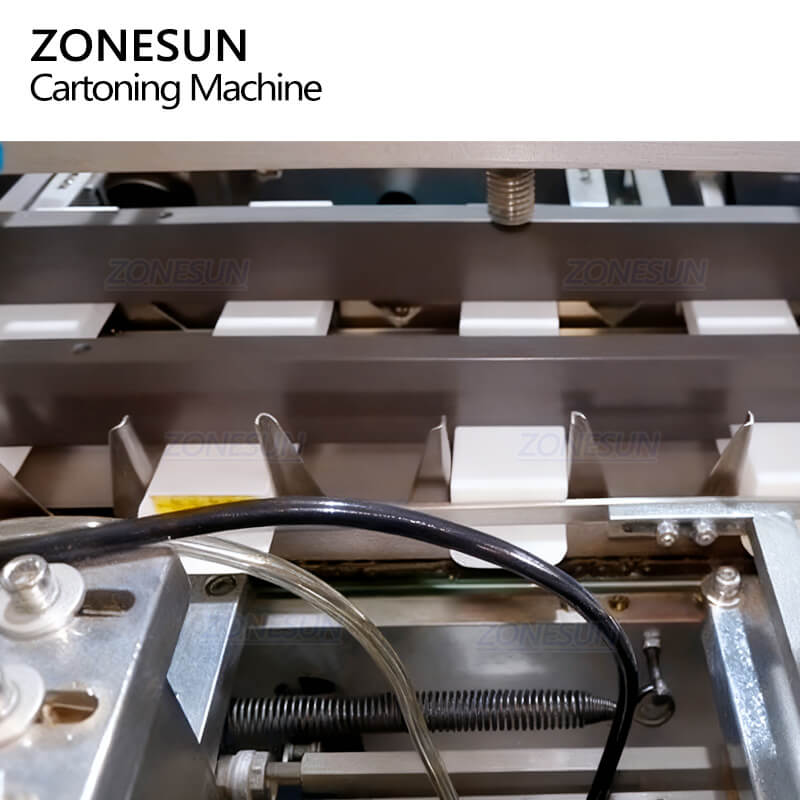

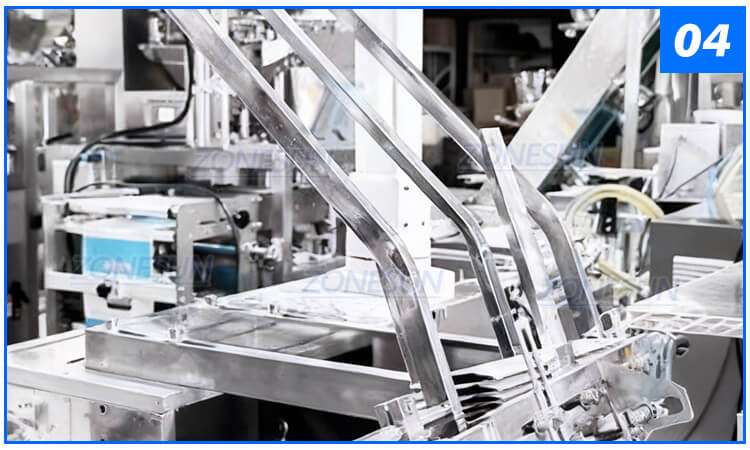

Box Holder
Can be adjusted according to box size. It can deliver boxes to the erecting station, ensuring smooth production.

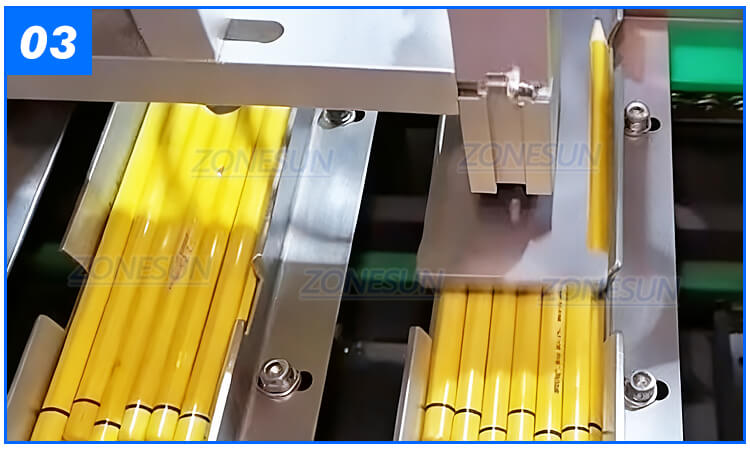

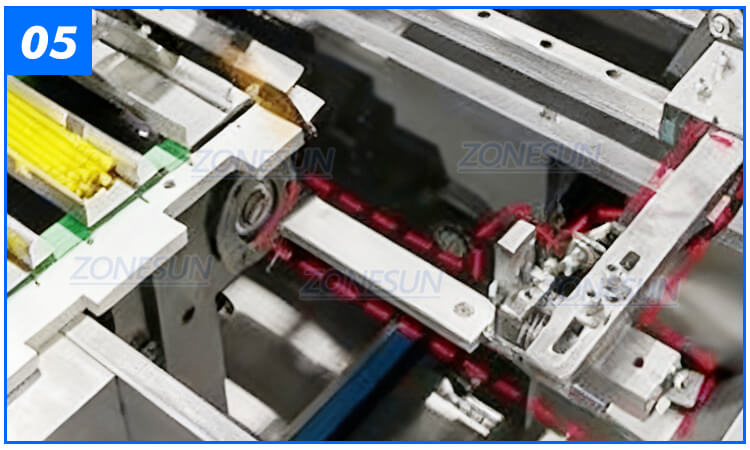

Pushing Structure
Can accurately push products into boxes. The structure is customizable according to your need.

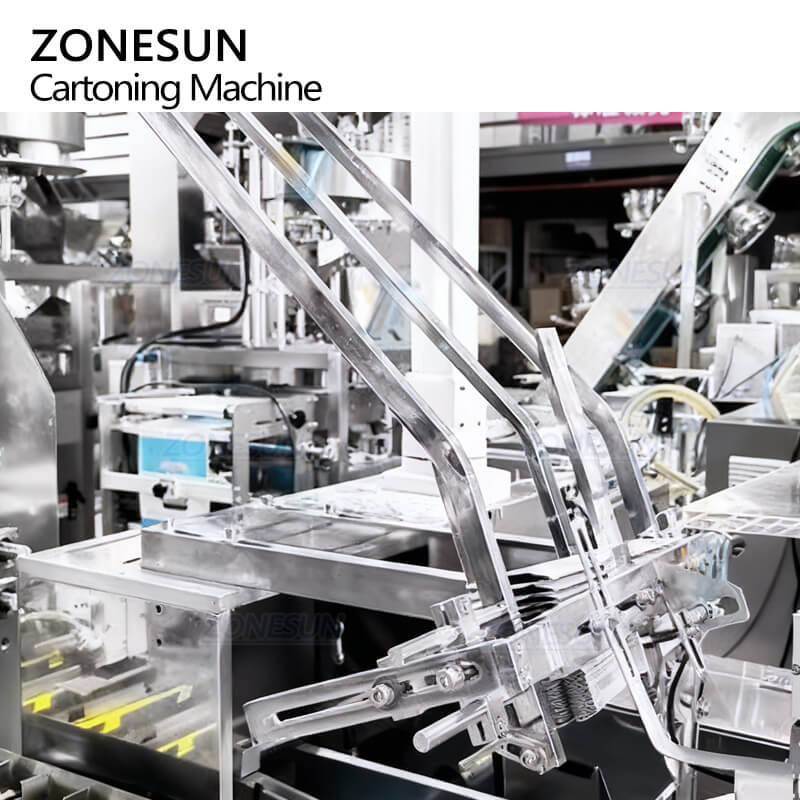

Folding & Sealing Structure
Equipped with fixing clamps, it can position boxes and ensure accurate folding of boxes.
