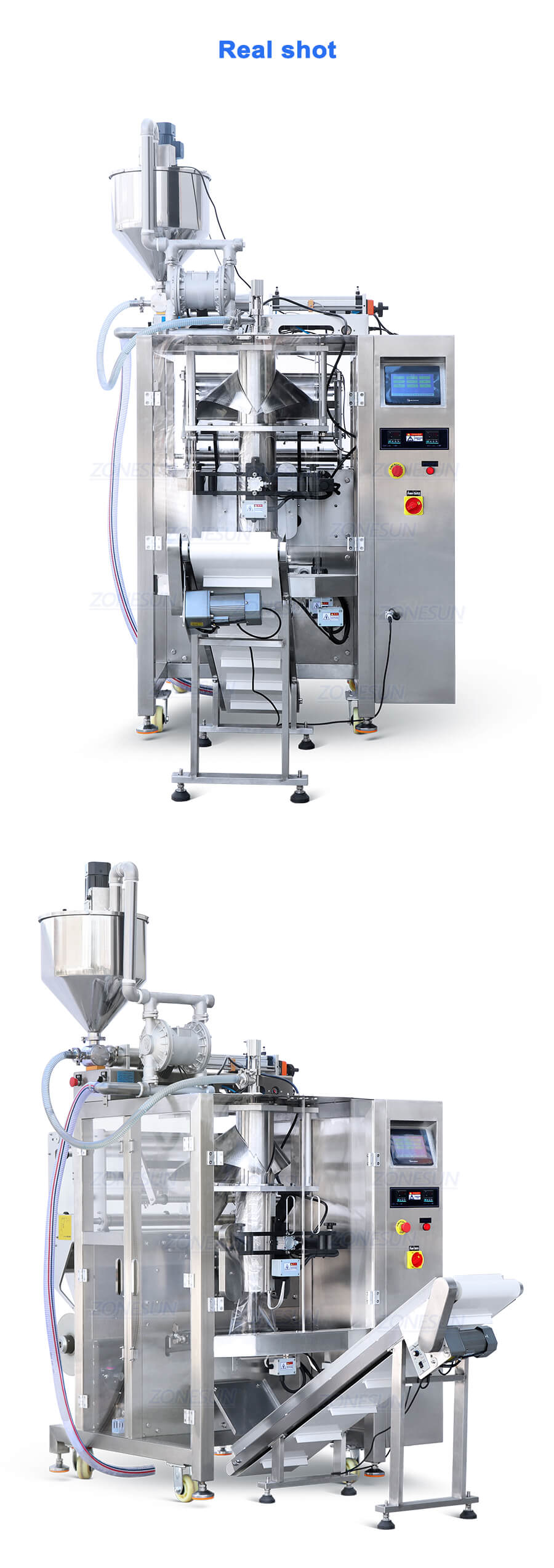

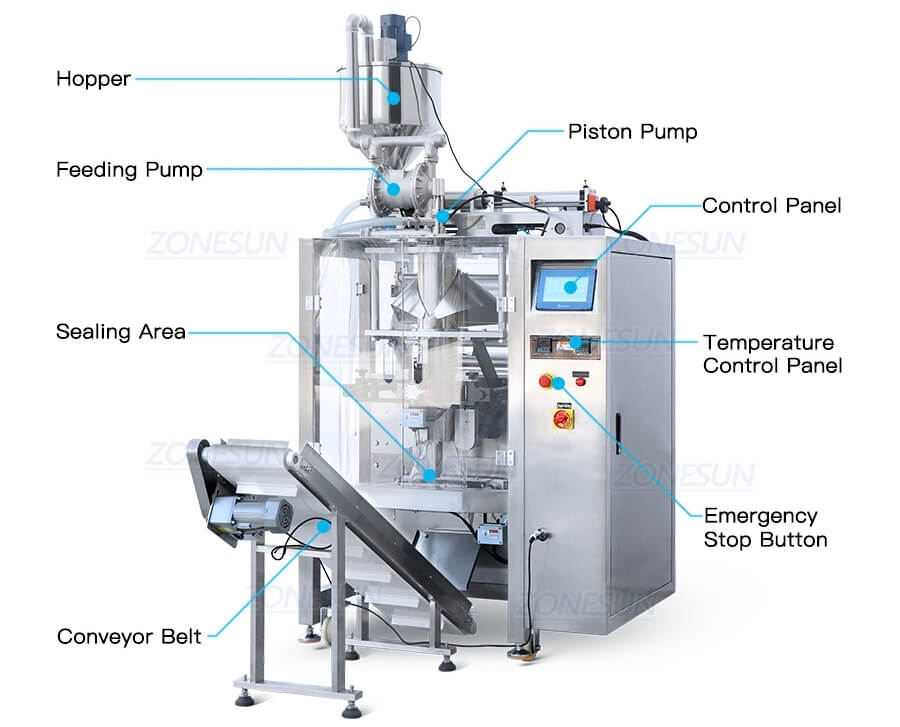

ZONESUN ZS-GFGT620 Paste Sachet Vertical Form Filling Sealing Machine
This machine is designed for filling and back side sealing paste.The filling volume and speed can be adjusted according to operation needs.And we can customize the sealing method according to operation needs.It is widely used in food,beverage and chemical industries.
Price range: $13,499.00 through $14,199.00
Share to
This machine is designed for filling and back side sealing paste.The filling volume and speed can be adjusted according to operation needs.And we can customize the sealing method according to operation needs.It is widely used in food,beverage and chemical industries.
| Machine Model | ZS-GFGT620 |
| Power Supply | 220V 50Hz 4kW |
| Filling Pump | Piston Pump |
| Filling Range | 100-1000ml(Can be customized) |
| Packaging Speed | About 5-50 bags/min(depending on filling materials and bag size) |
| Sealing Method | Back side/3 sides/4 sides sealing |
| Packaging Bag Size | (W)130-300mm*(L)400mm |
| Film Width | Max 620mm |
| Film Material | OPP/CPP OPP/PE NILO/PE PE |
| Air Pressure | 0.65Mpa |
| Air Consumption | 0.8m³/min |
| Machine Size | About 1880*1370*1800mm(L*W*H) |
| Machine Weight | About 600kg |
| Machine Configuration | ||
| Machine Component | Brand | Origin |
| Operation Panel | WEINVIEW | Taiwan,China |
| PLC | Mitsubishi | Japan |
| Servo Motor | Leadshine | Shenzhen, China |
| Intermediate Relay | Schneider | France |
| Pneumatic Components | AirTac | Taiwan,China |
| Photoelectric Sensor | Autonics | Korea |

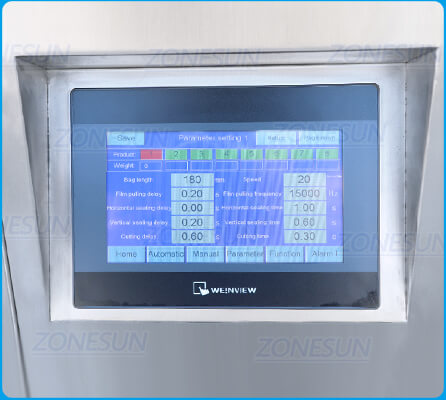

With PLC control panel, it is easy to set or adjust working parameters. Language of panel can be customized as needed. The used data can be stored in panel, which is convenient for next-time working.

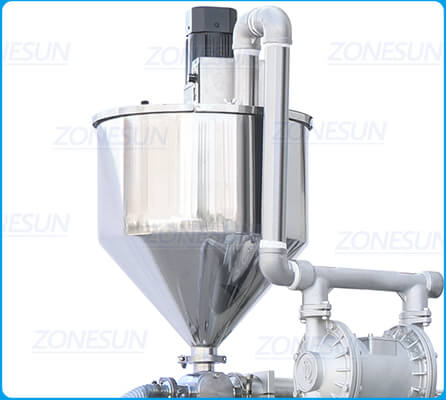

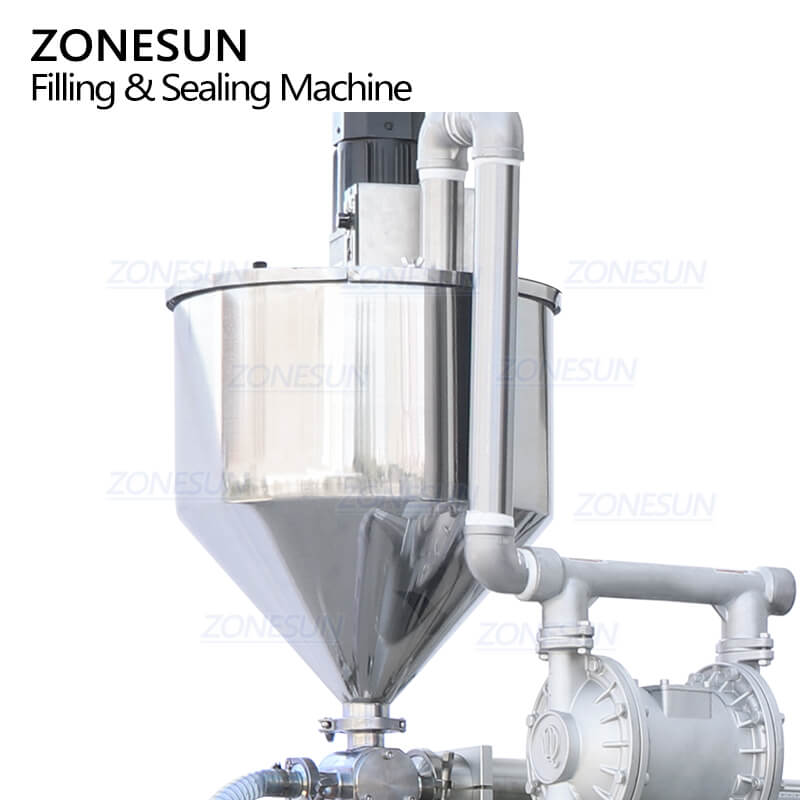

The hopper is with mixing function, and mixing speed can be adjusted as needed. It is equipped with liquid level sensor, which can control machine to feed materials in time. Improve efficiency.
Equipped with piston pump, the filling speed and waiting time can be controlled as need. Filling range can be customized as your need. We also offer other bag filling sealing machine for different kinds of materials like granule and powder.

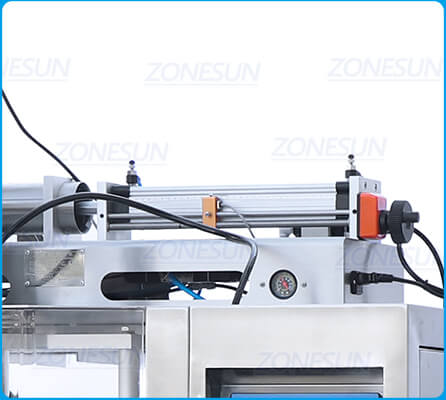

The sealing length and temperature can be set by touch screen control panel. High quality sealing component ensures the sealing effect. We can also customize the machine for different sealing method like three sides sealing, four sides sealing as well.

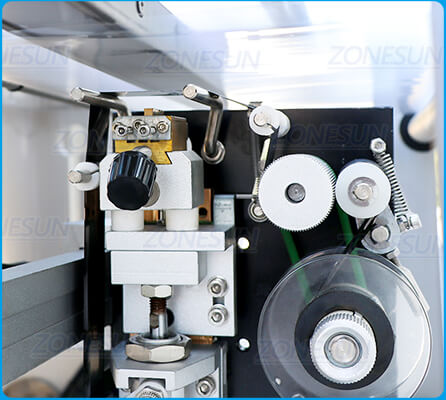

Equipped with date coder,it can print production date or batch number as operation need. We also offer multiple colors of ribbon, please contact us if you need this.
