ZONESUN ZS-FXMD2 Carton Sealing Palletizing Production Line

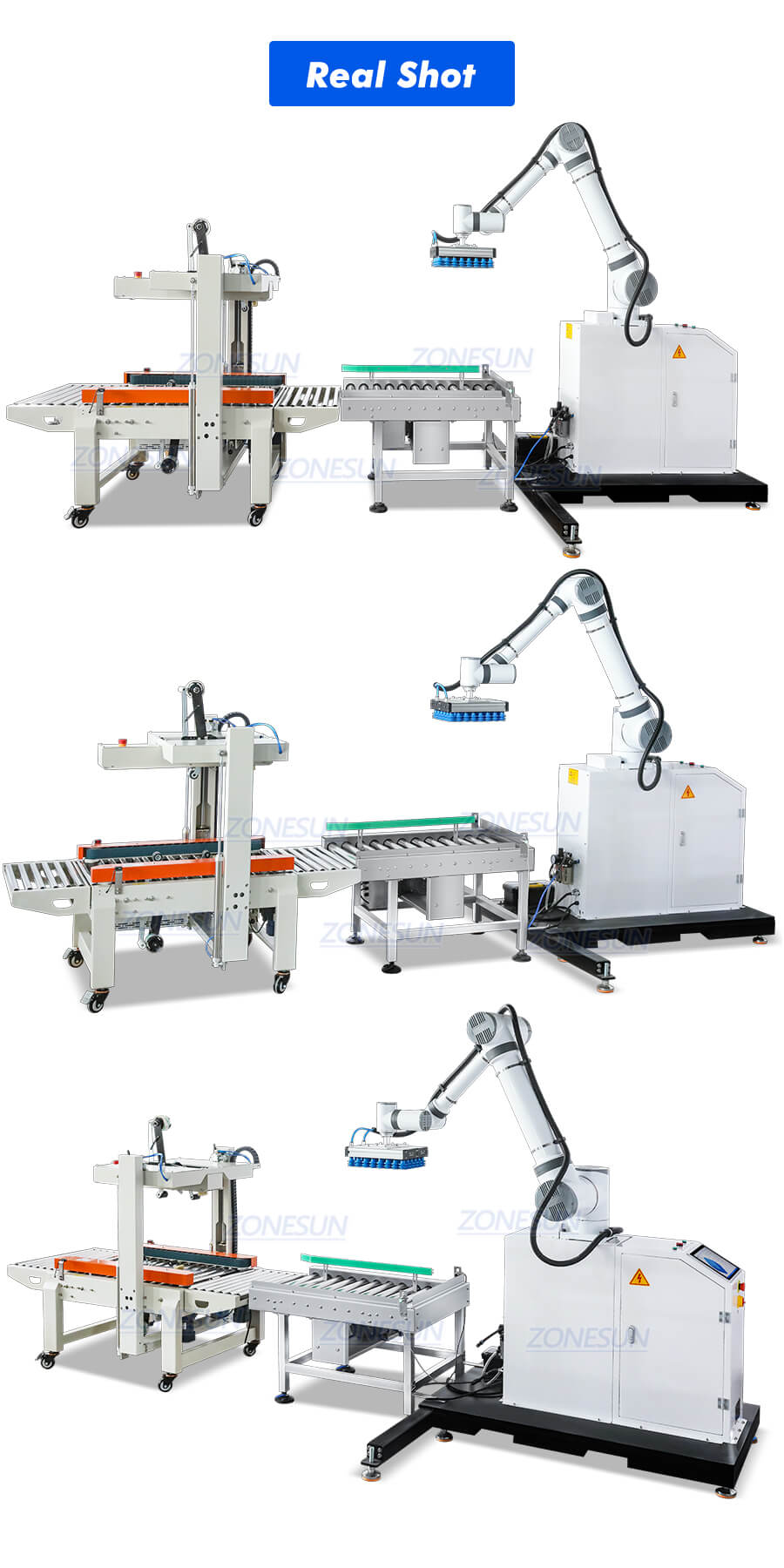

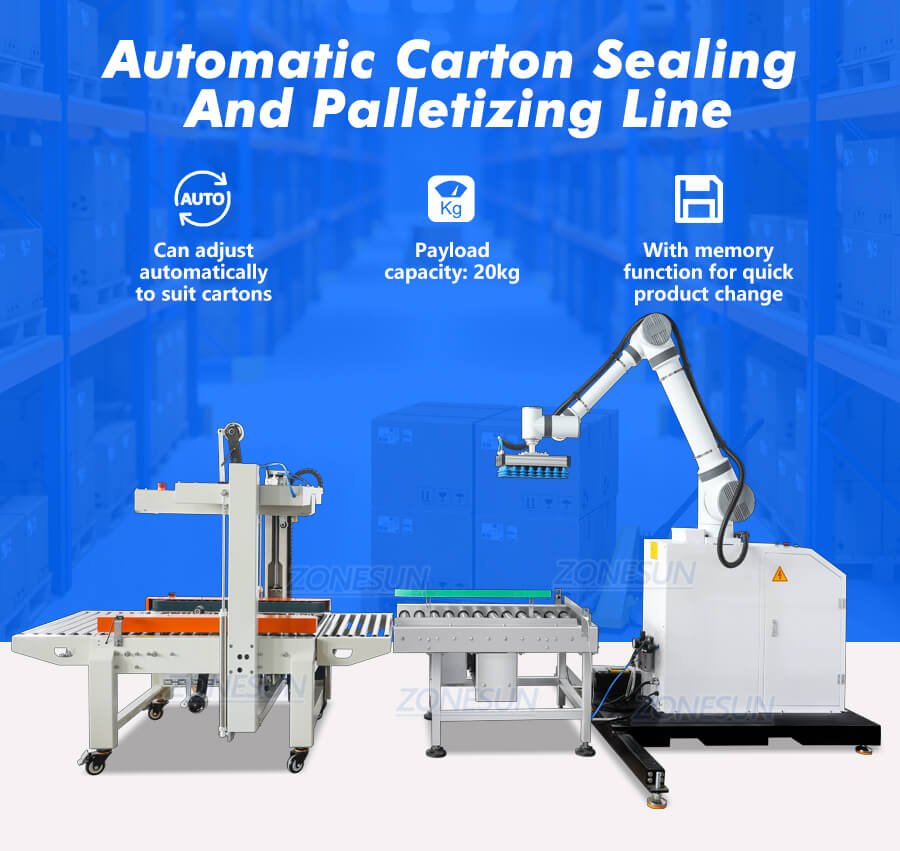

This production line integrates an automatic case sealing machine with a robotic palletizer, offering a fully automated end-of-line packaging solution. After products are packed into cartons, the case sealer automatically seals the carton flaps with high efficiency and consistency. The sealed cartons are then conveyed to the palletizer, which systematically stacks them onto pallets based on a preset pattern, ensuring stable and space-efficient loads.
$22,299.00
Share to
This production line integrates an automatic case sealing machine with a robotic palletizer, offering a fully automated end-of-line packaging solution. After products are packed into cartons, the case sealer automatically seals the carton flaps with high efficiency and consistency. The sealed cartons are then conveyed to the palletizer, which systematically stacks them onto pallets based on a preset pattern, ensuring stable and space-efficient loads.

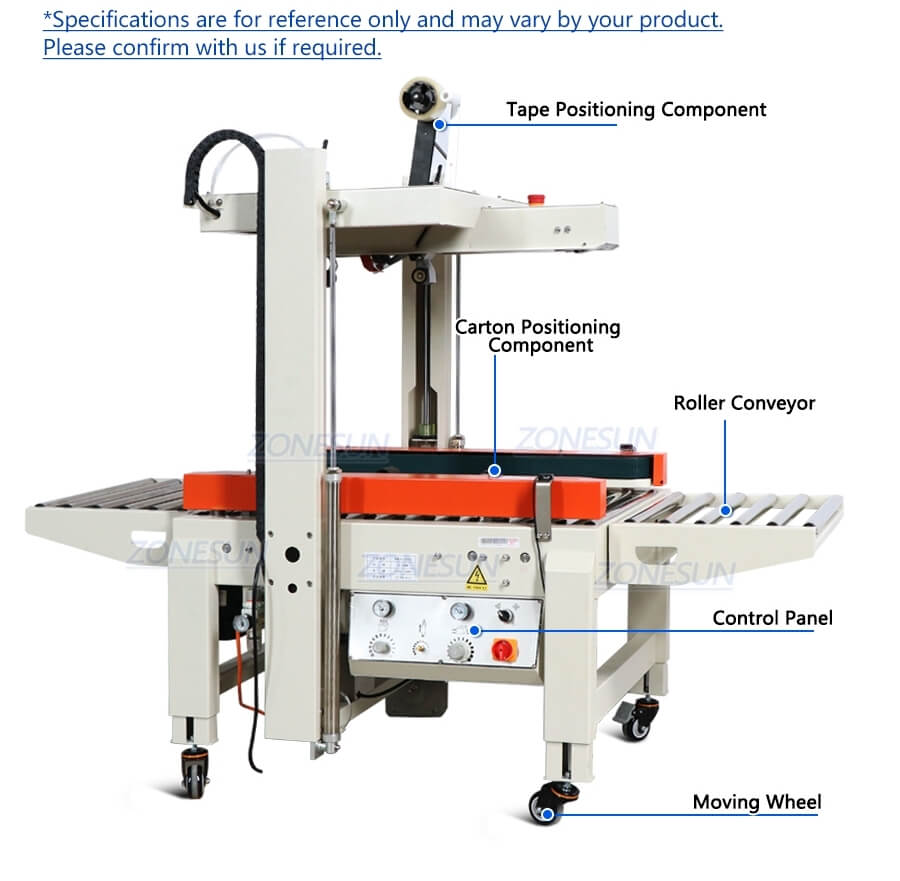

| Machine Model | ZS-FKC5040X |
| Machine Power | 110/220V 50-60HZ 240W |
| Conveyor Speed | 18m/min |
| Tape Width | ≤60mm Width |
| Transmission mode | Conveyor belt transmission on both sides |
| Max Carton Size | 813*432*508mm(L*W*H) |
| Min Carton Size | 355*305*127mm(L*W*H) |
| Package Size | About 1100*1000*1720mm |
| Package Weight | About 252kg |
| Machine Model | ZS-MD20A |
| Voltage | 110/220V 50-60HZ 4kW |
| Working Speed | ≤8 cartons/minute |
| Payload | 20kg |
| Working Radius | Max. 1460mm |
| Standard Palletizing Height | 1650mm |
| Carton Size | (L)200-500mm*(W)180-450mm*(H)150-400mm |
| IP | IP54 |
| Repeatability Accuracy | ±0.1mm |
| Memory Function | Available |

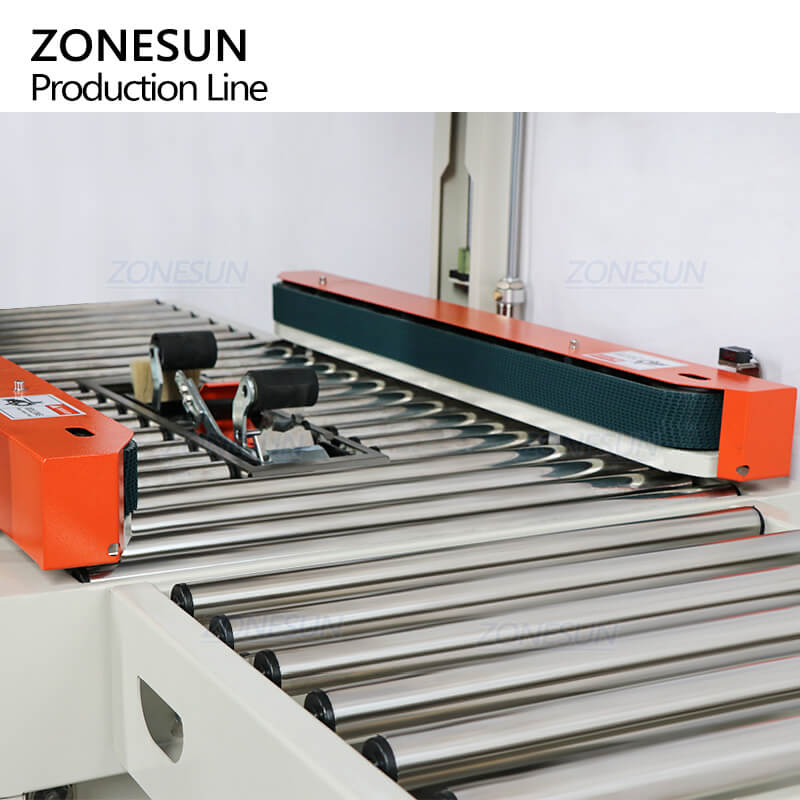

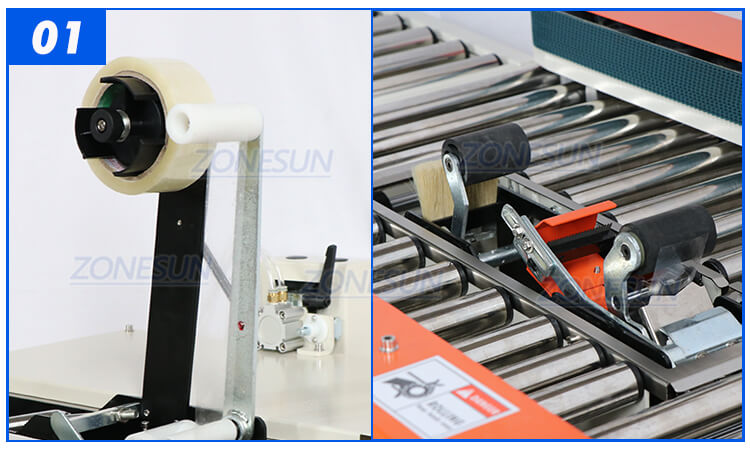

Sealing Structure
Can seal tapes to top and bottom of cartons automatically.

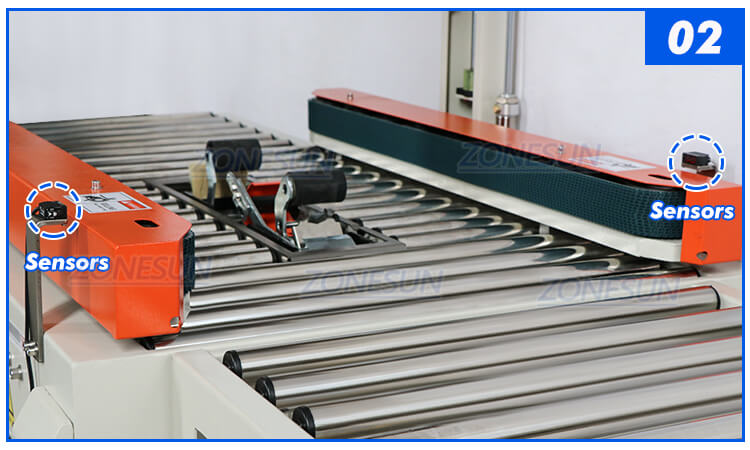

Flexible Production
The sensors can detect carton sizes and control the machine to adjust width and height automatically.

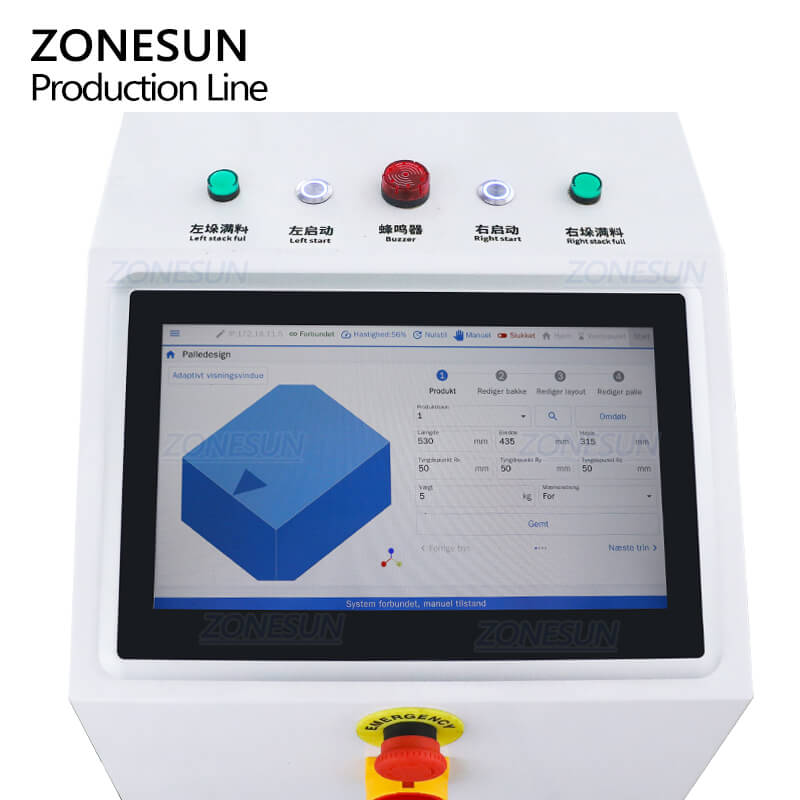

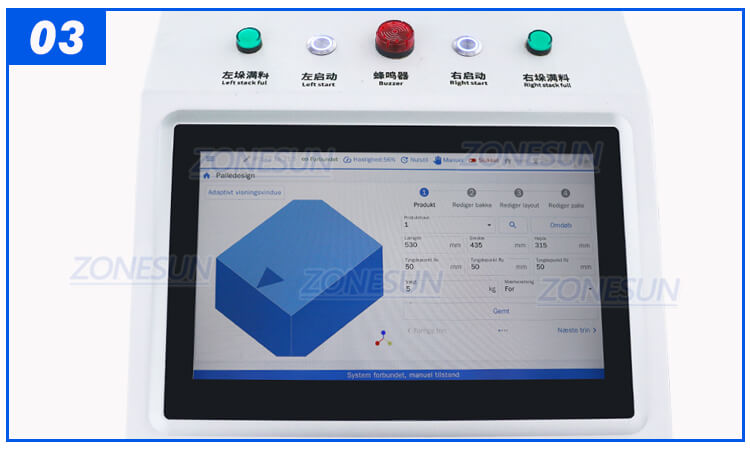

Touchscreen Control Panel
Allows for easy parameter setting and monitoring. Multiple languages can be customized.

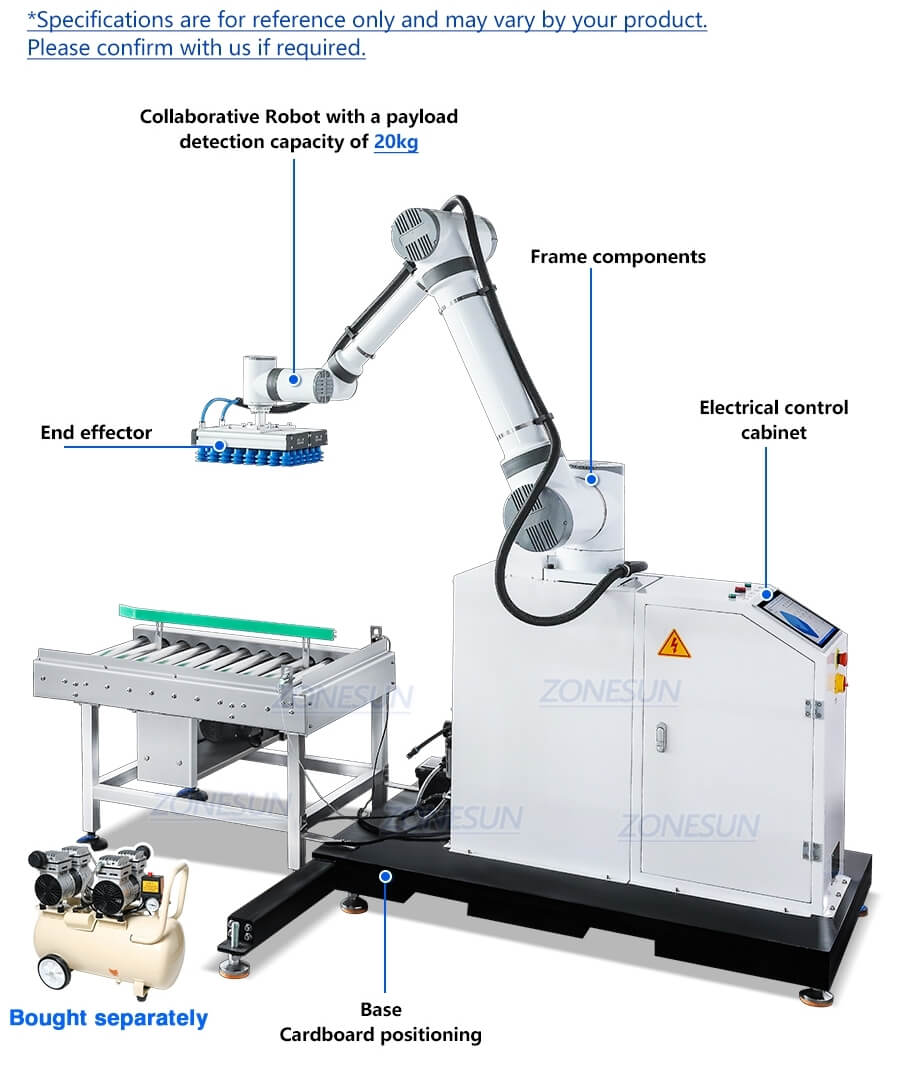

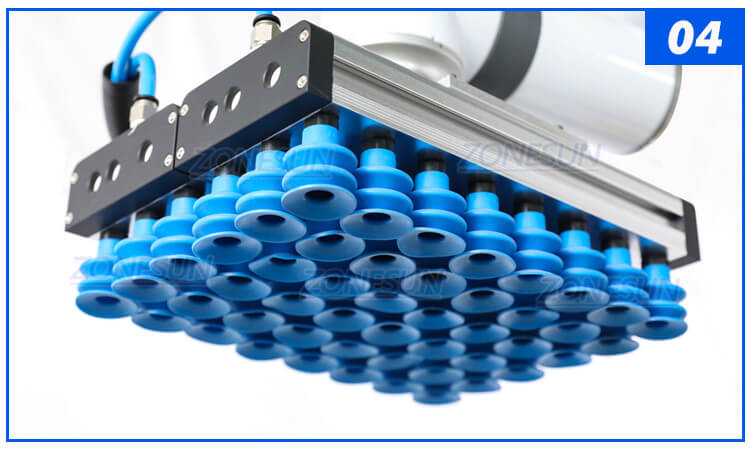

Palletizing Structure
Uses vacuum suction system to pick and stack cartons. The max payload capacity is 20kg.

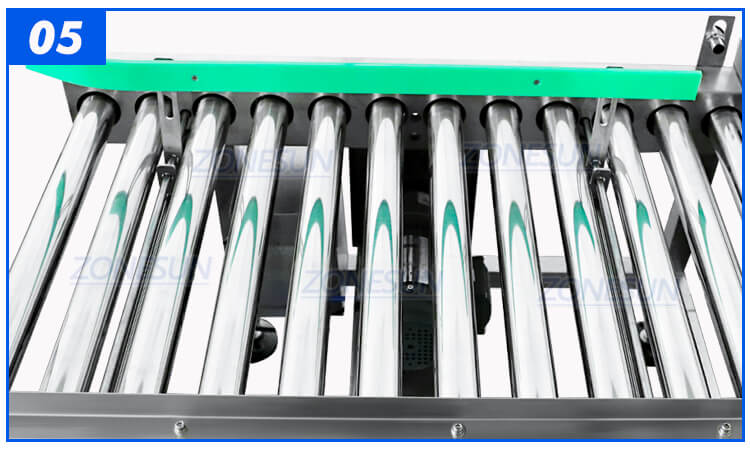

Roller Conveyor
With large weight capacity, conveyor size is customizable according to production need.
