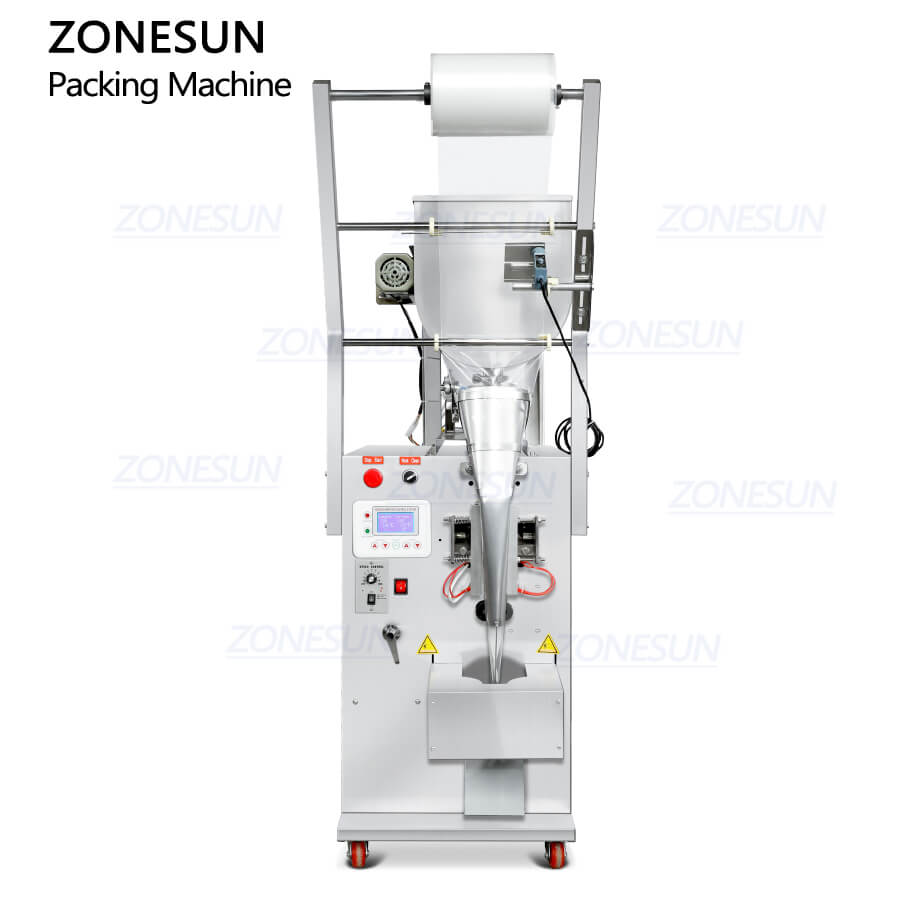

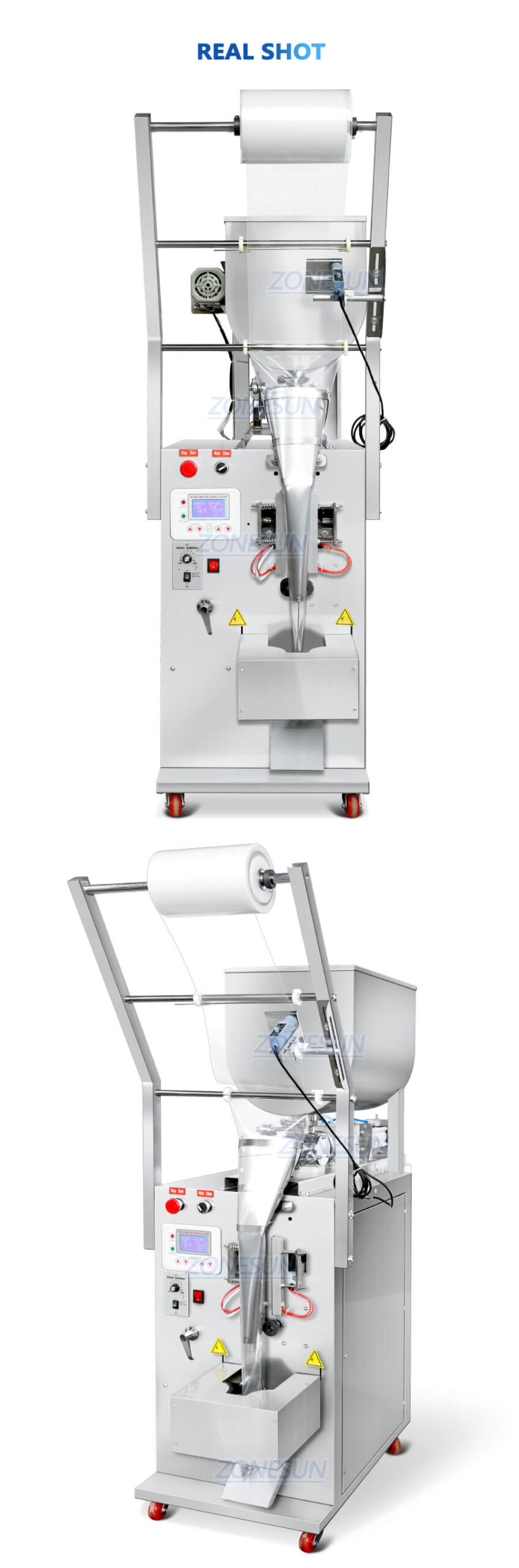

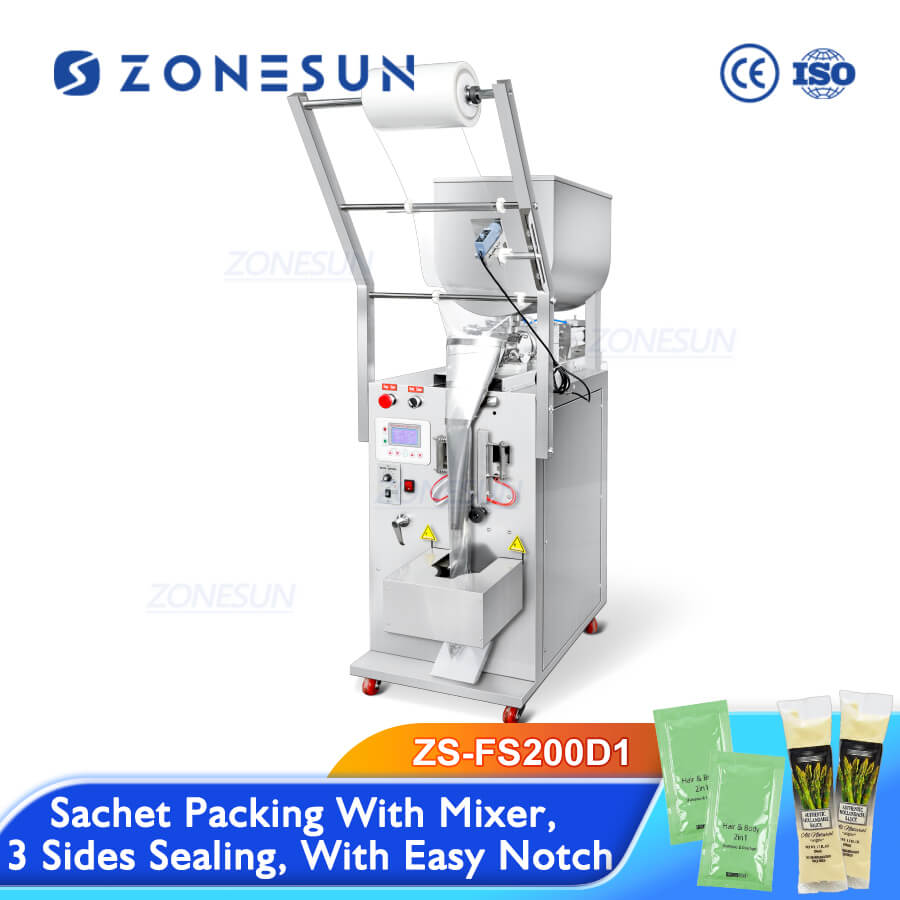

ZONESUN ZS-FS200D1 Sauce Sachet Filling Sealing Machine
This sachet packing machine is used to packing paste or liquid into sahcets like sauce, honeyetc. It has larger hopper with mixing function for pretreatment of filling material, extra heating function is customizable as needed. Sealing type like back side, three sides or four sides sealing are customizable.
$2,299.00
Share to
This sachet packing machine is used to packing paste or liquid into sahcets like sauce, honeyetc. It has larger hopper with mixing function for pretreatment of filling material, extra heating function is customizable as needed. Sealing type like back side, three sides or four sides sealing are customizable.
| Machine model | ZS-FS200D1 |
| Machine voltage | 110/220V 50-60HZ 650W |
| Recommend filling volume | 5-100ml (customizable) |
| Filling accuracy | ±1-2ml |
| Hopper size | 80L (with mixer, optional heater) |
| Machine size | 580*1100*1750mm |
| Machine weight | About 95kg |
| Package size | About 940*550*1150mm(Main Machine)
About 590*510*660mm(Hopper) |
| Package weight | About 82kg(Main Machine)+34kg(Hopper) |
| *Specifications are for reference only and may vary by your product.Please confirm with us if required. | |

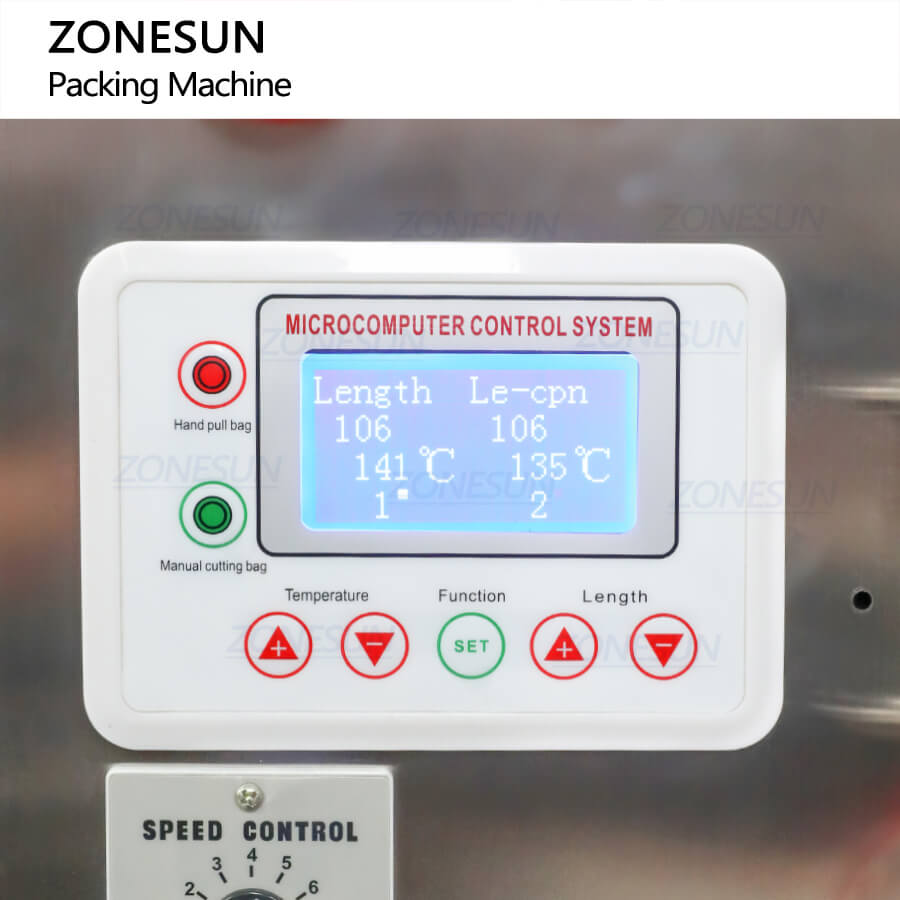

Simple Control Panel
Easy to operate and adjust parameters with an intuitive interface.

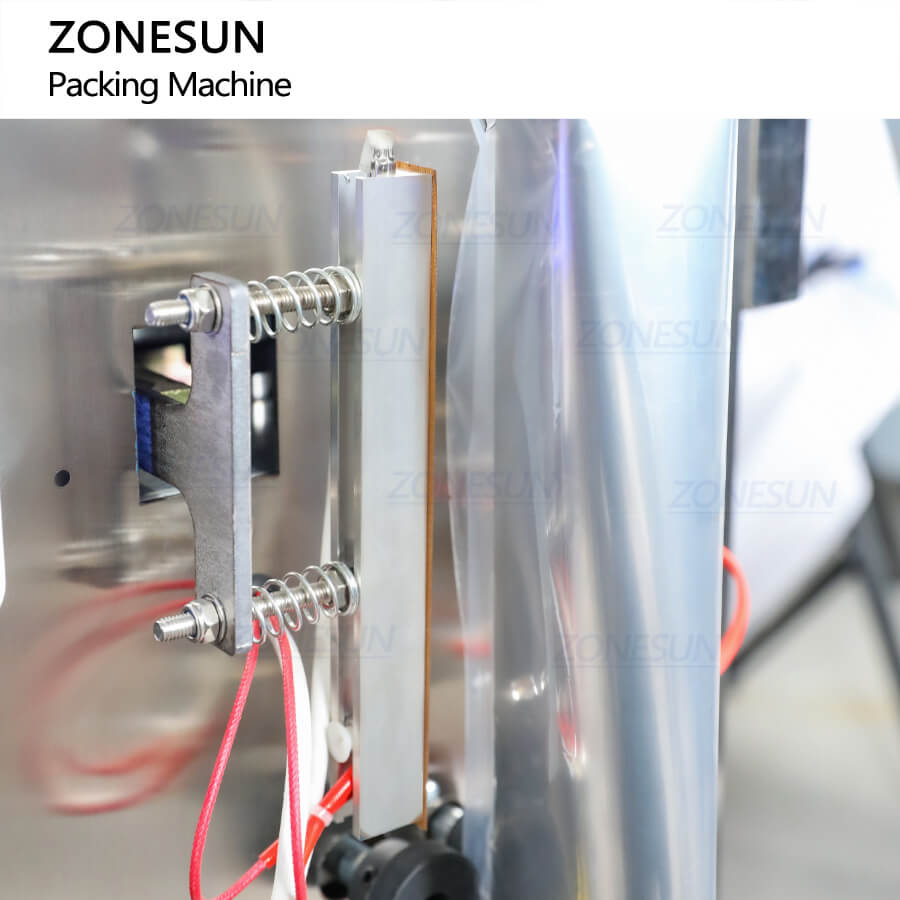

Sealing Structure
Compatible with PE/PP or laminated film. Sealing temperature is adjustable.

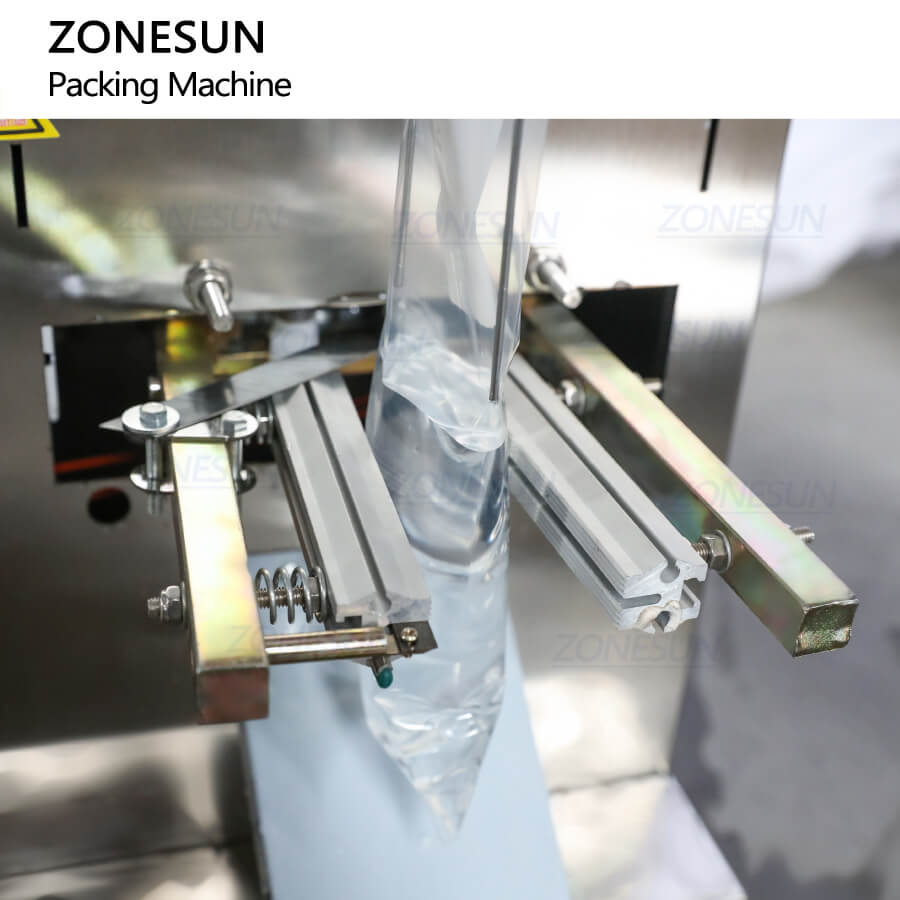

Bag Cutting Structure
Supports tear notch customization and flexible sealing options: back seal, three-side, or four-side.

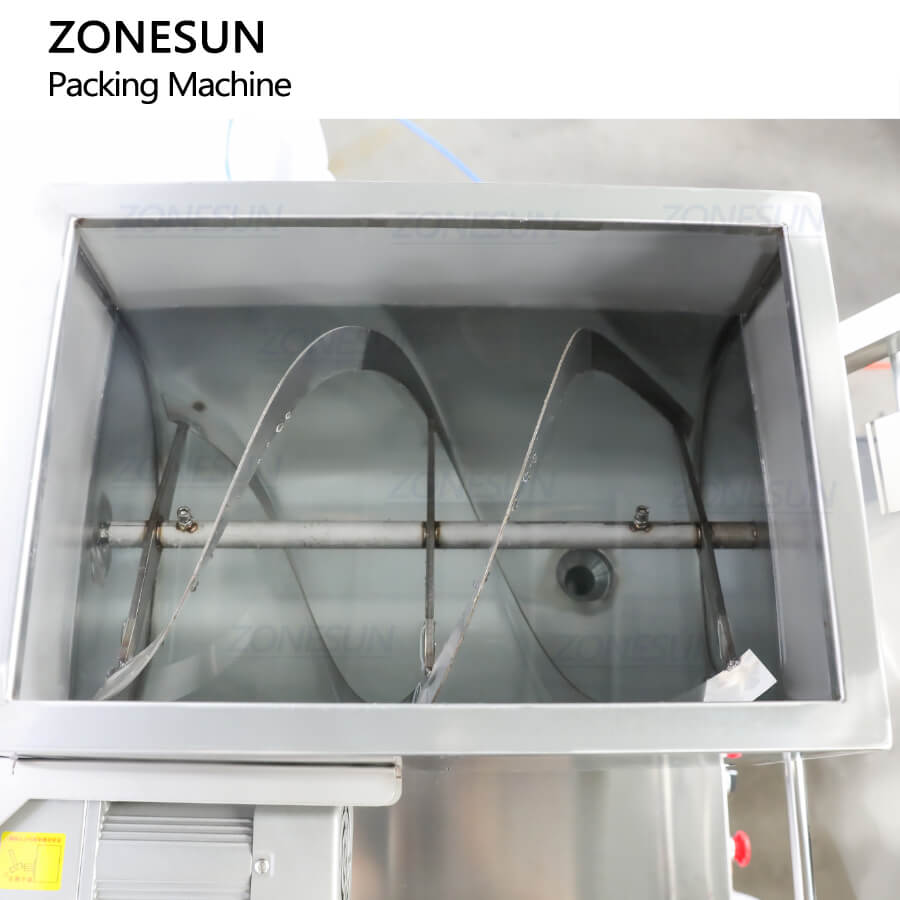

Hopper with Stirrer
80L hopper equipped with stirrer for material pre-processing. Optional heating available.

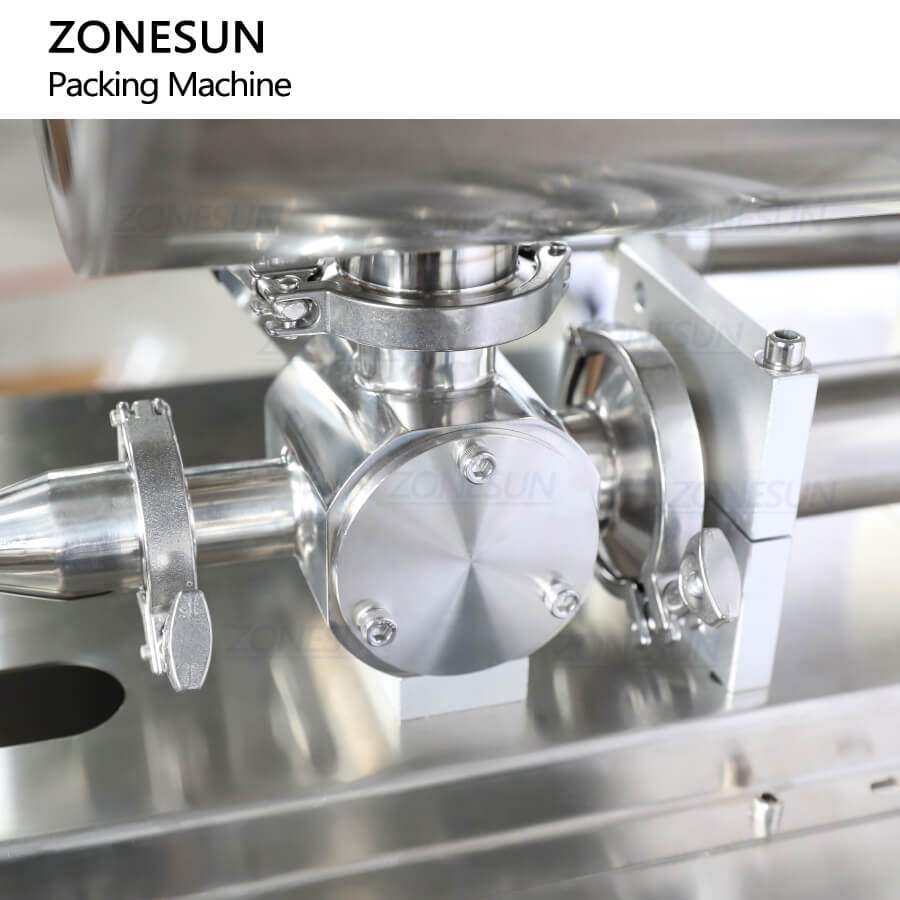

Piston Pump
Controls filling volume via cylinder stroke. Air inlet/outlet valves can control filling speed. Rotary valve customizable for viscous paste with soft particles.

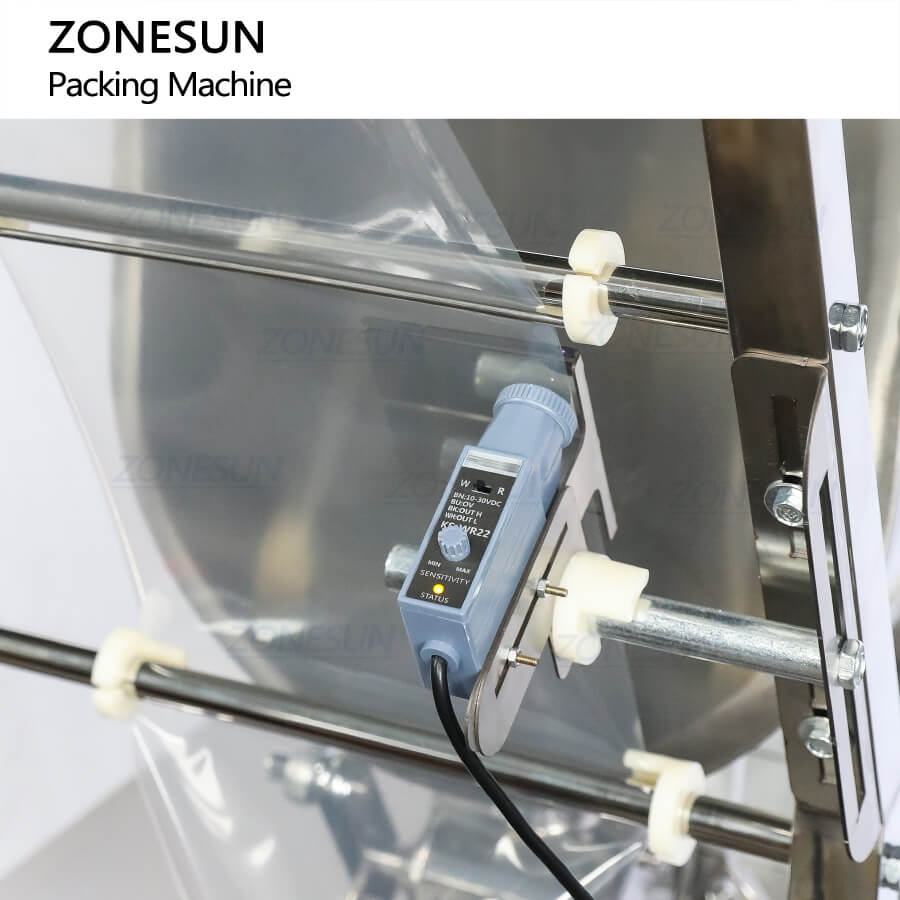

Color Mark Sensor
Detects printed marks on film to ensure accurate and consistent packaging.
