Servo system, it can fill liquids accurately. The heads are diving type, which can prevent liquid from spraying out.
ZONESUN ZS-FAL180V7 Air Freshener Cans Bottling Line

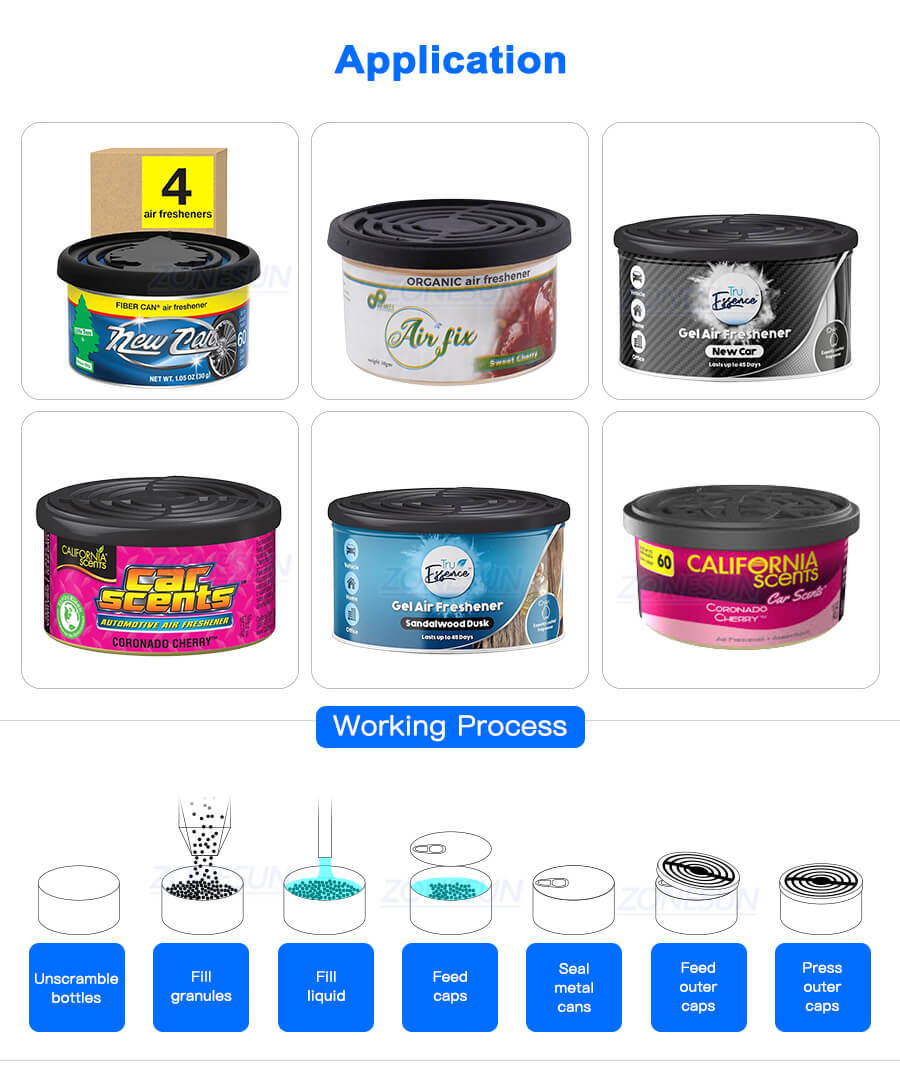

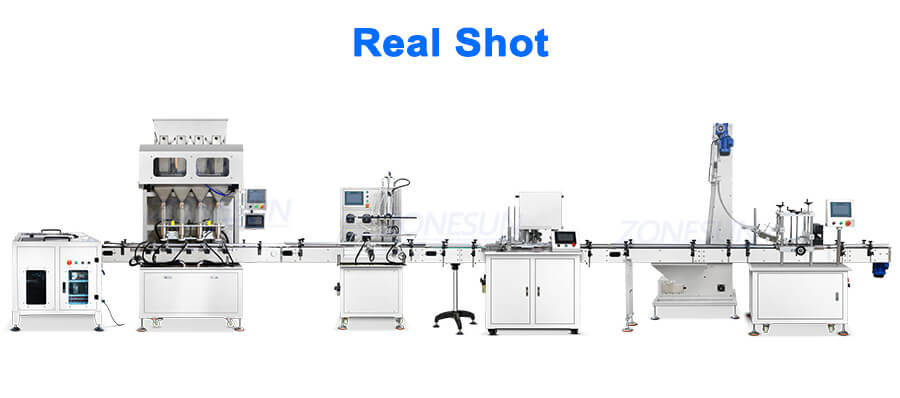

This fully automatic filling capping packaging line is designed for air freshener cans, integrating bottle unscrambling, granule filling, liquid filling, aluminum mesh inserting, can sealing, and outer cap pressing in one system. This line delivers high efficiency, consistency, and cost savings for large-scale production.
$52,799.00
Share to
This fully automatic filling capping packaging line is designed for air freshener cans, integrating bottle unscrambling, granule filling, liquid filling, aluminum mesh inserting, can sealing, and outer cap pressing in one system. This line delivers high efficiency, consistency, and cost savings for large-scale production.
|

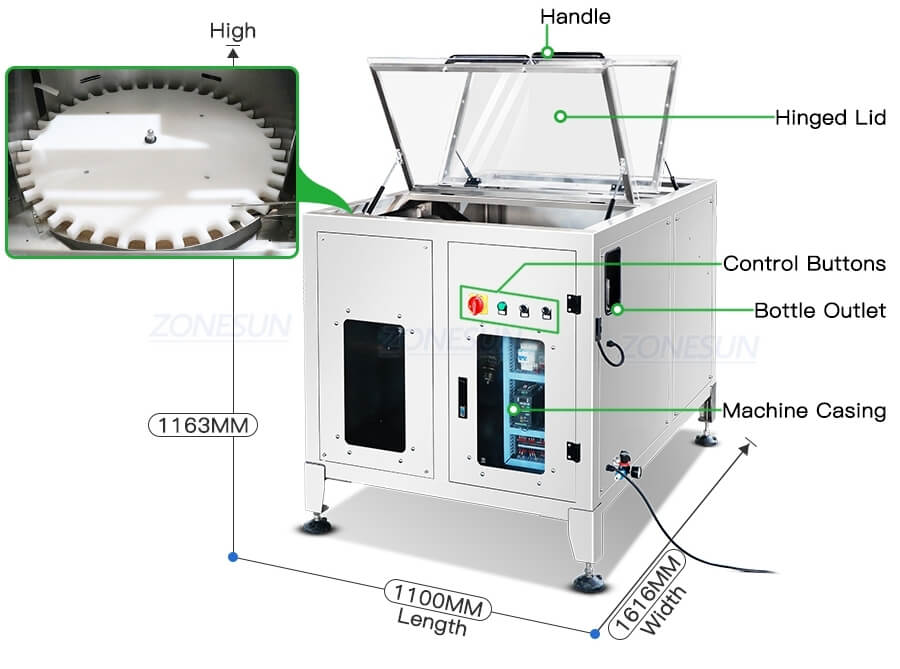

Machine model
|
ZS-LP150
|
|
Machine voltage
|
220V 50Hz
|
|
Machine power
|
1000W
|
|
Working speed
|
30-60 bottles/min
|
|
Suitable bottle size
|
(Φ)20-100mm*(H)20-150mm
|
|
Machine size
|
About 1100*1616*1163mm
|
|
Machine weight
|
About 260kg
|
| *Specifications are for reference only and may vary by your product.Please confirm with us if required. | |
|

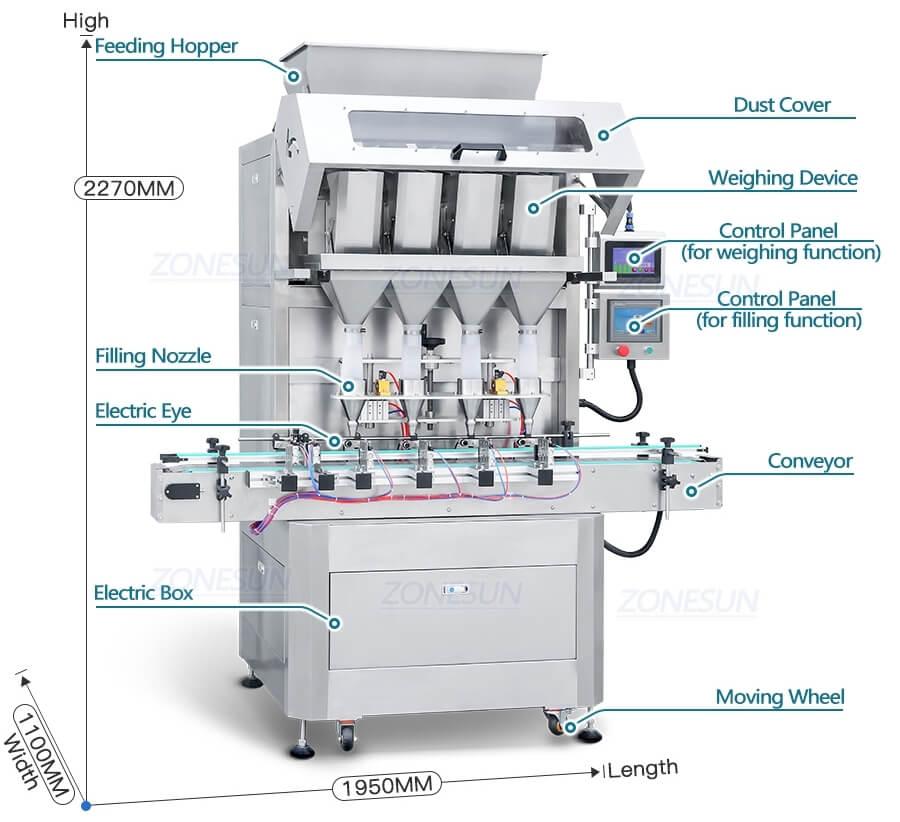

Machine Model
|
ZS-GW5
|
|
Voltage
|
110/220V 50-60Hz
|
|
Power About
|
3kW
|
|
Working Speed
|
About 20-30 bottles/min (depending on bottle size and filling material)
|
|
Weighing Range
|
2-50g/10-1000g/10-2000g/10-3000g/100-10000g (can choose other weighing range)
|
|
Weighing Error
|
±1-2g(depends on filling range)
|
|
Air Pressure
|
0.4-0.6MPa
|
|
Machine Size
|
About 1950mm*1100mm*2270mm
|
| *Specifications are for reference only and may vary by your product.Please confirm with us if required. | |
|

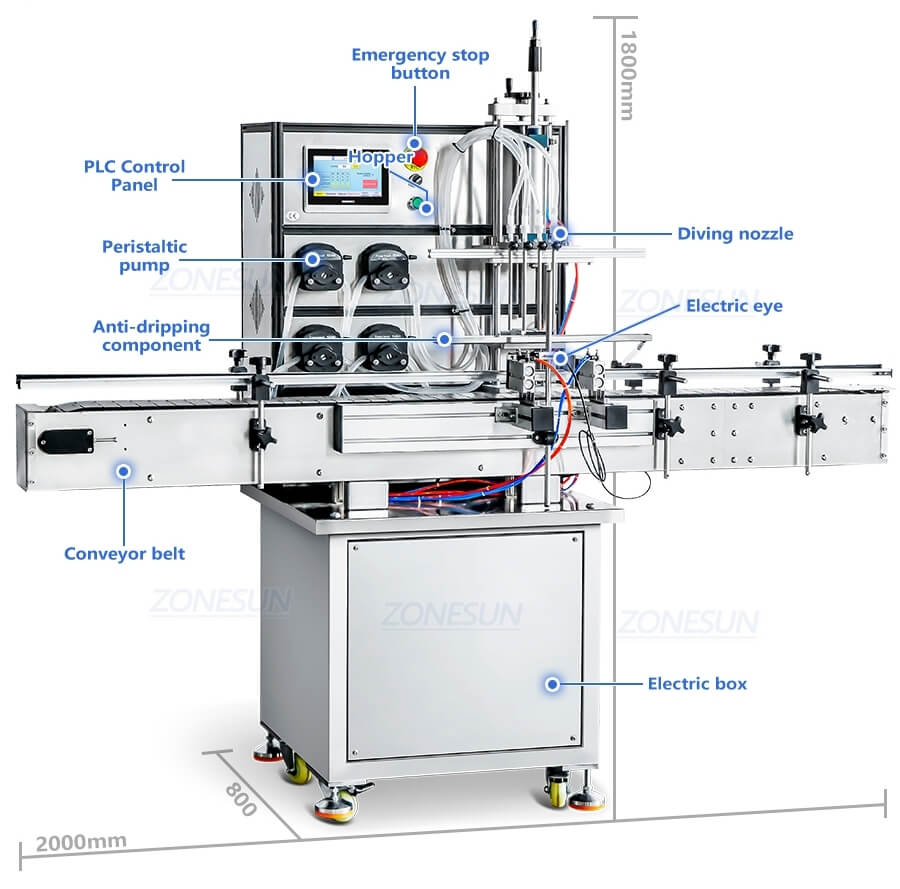

Machine model
|
ZS-SVPP80C
|
|
Voltage
|
110/220V 50-60HZ 2KW
|
|
Filling pump
|
Peristaltic pump
|
|
Max flow rate
|
2.4L/min*4
|
|
Container size
|
φ20-100mm H50-300mm
|
|
Recommend filling range
|
About 10-500ml (For filling capacities not within this range, we recommend customizing the machine.)
|
|
Working capacity
|
About 10-20BPM(based on 100ml water, this depends on filling range and filling material)
|
|
Size of air compressor connector
|
OD8mm
|
|
Machine size
|
About 2000*800*1800mm
|
|
Package size
|
About 207*800*1740mm
|
|
Package weight
|
About 251kg
|
| *Specifications are for reference only and may vary by your product.Please confirm with us if required. | |
|
Machine model
|
ZS-AFK300
|
|
Voltage
|
110/220V 50-60HZ 1.9KW
|
|
Can height
|
40-200mm(Can customize for other sizes)
|
|
Cam diameter
|
35-130mm
|
|
Working speed
|
30-50 bottles/minute (depending on bottle and caps)
|
|
Working pressure
|
0.4-0.8MPa
|
|
Machine size
|
About 3000* 900*1700mm
|
|
Machine weight
|
About 500KG
|
| *Specifications are for reference only and may vary by your product.Please confirm with us if required. | |
|
Machine model
|
ZS-VTYG01
|
|
Power supply
|
110/220V 50-60HZ 1KW
|
|
Working capacity
|
20-60BPM
|
|
Suitable bottle height
|
50-150mm(Customizable)
|
|
Suitable cap diameter
|
50-110mm(Customizable)
|
|
Working air pressure
|
0.5-0.8MPa
|
|
Machine size
|
About 3000*1300*2200mm(L*W*H)
|
|
Machine weight
|
About 300kg
|
|
Package size
|
About 2150*850*1500mm(Main Machine)
About 1100*1050*2300mm(Cap Elevator)
|
|
Package weight
|
About 260kg+230kg=490kg
|
|
*Specifications are for reference only and may vary by your product.Please confirm with us if required.
|
|

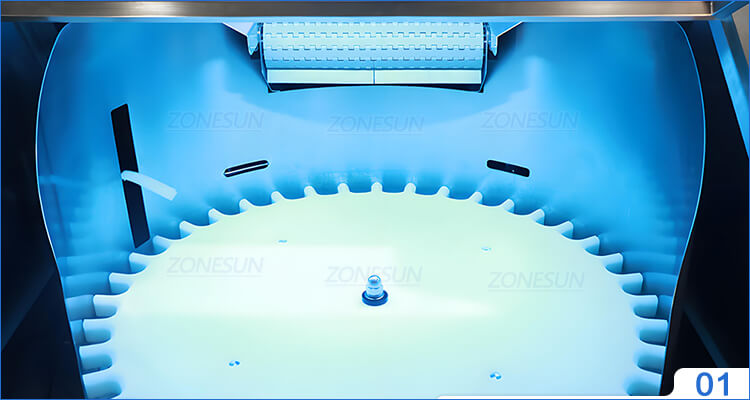

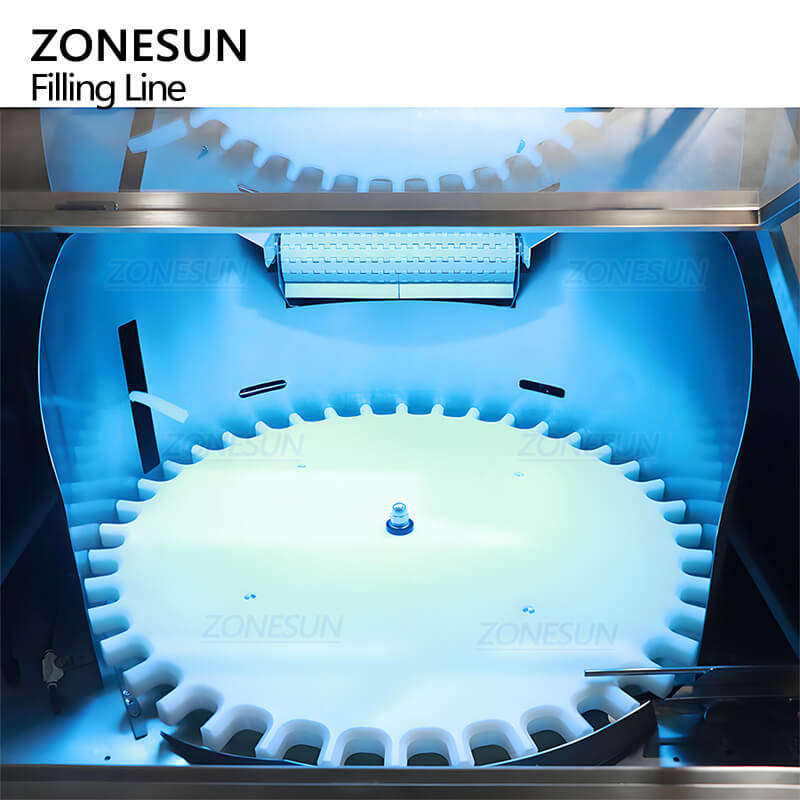

Bottle Unscrambling Structure
It can arrange bottles in order before filling. The starwheel is customized as bottle size.

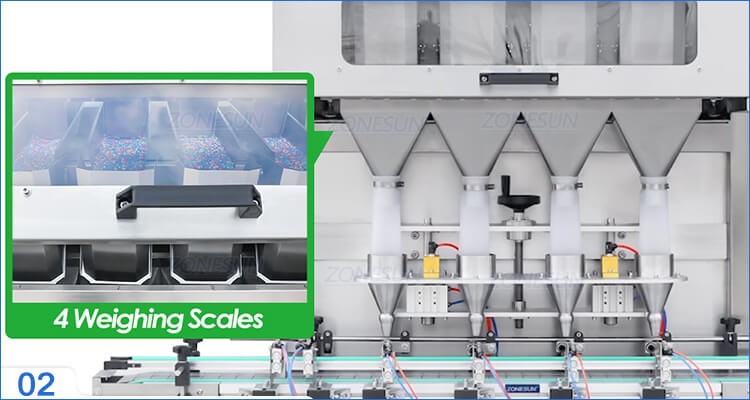

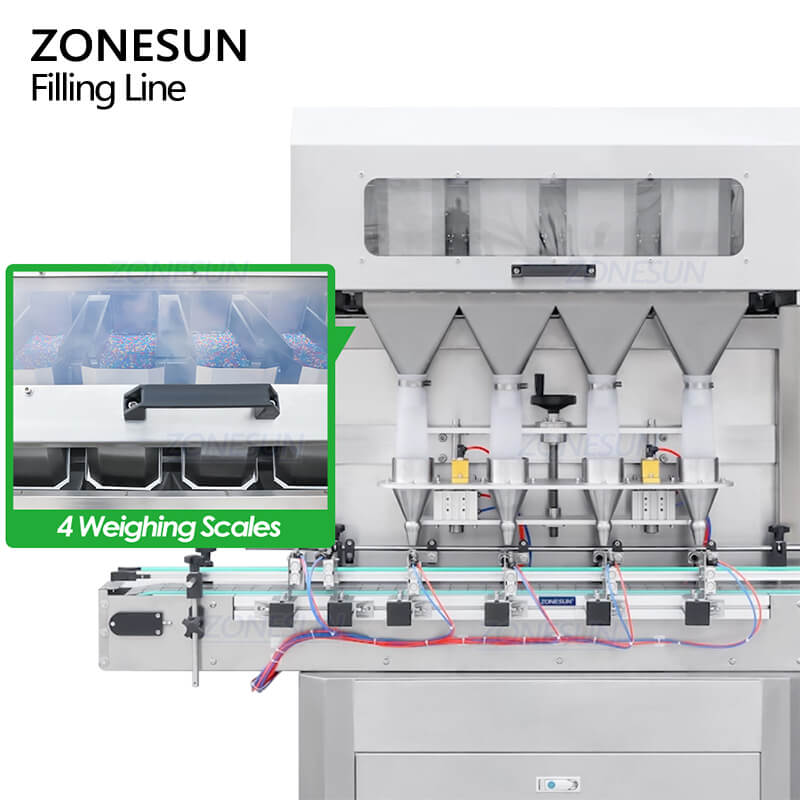

Granule Filling Heads
With weighing scales, it can fill granules accurately. Filling weight can be set directly on panel.

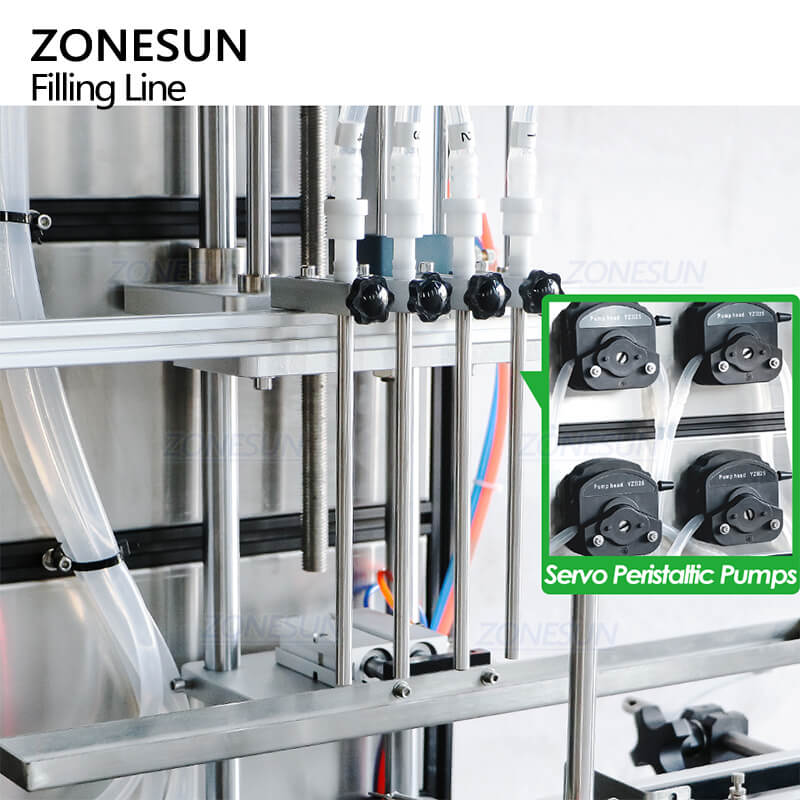

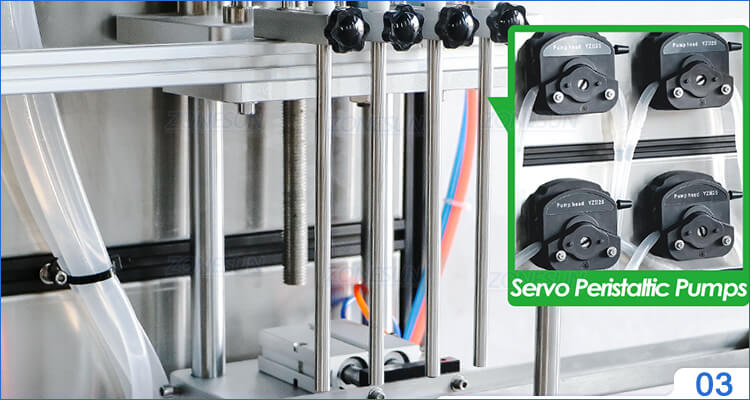

Liquid Filling Heads

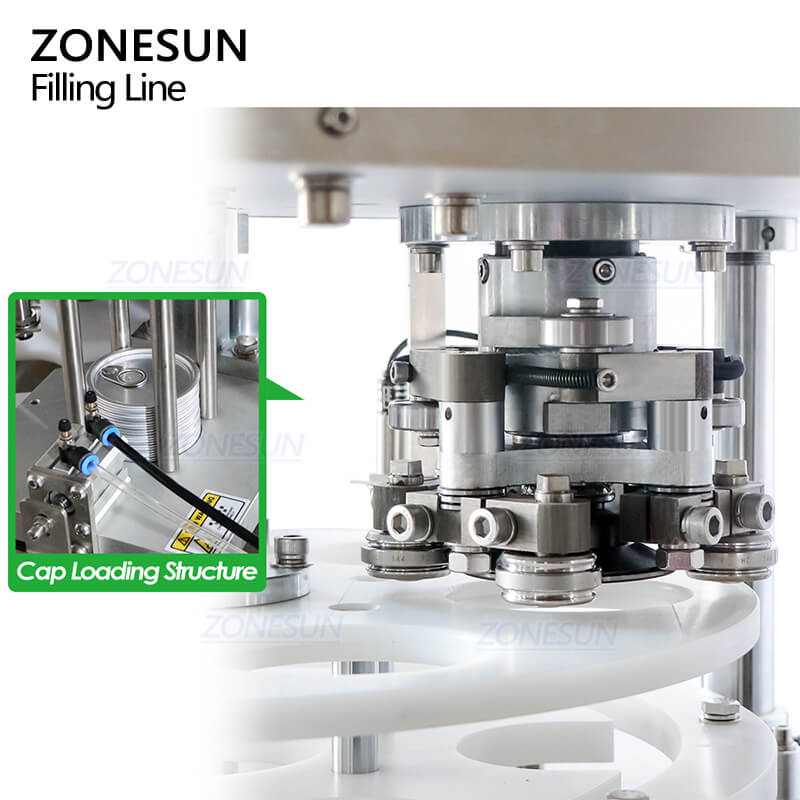

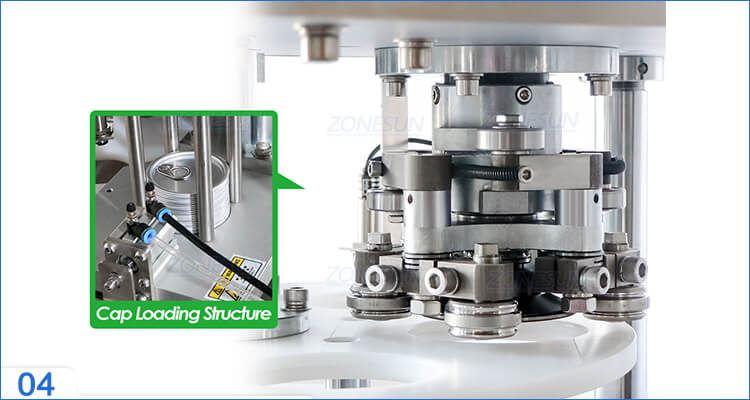

Can Sealing Structure
Can load and seal caps to metal cans automatically. The structure is customized according to can cap size.

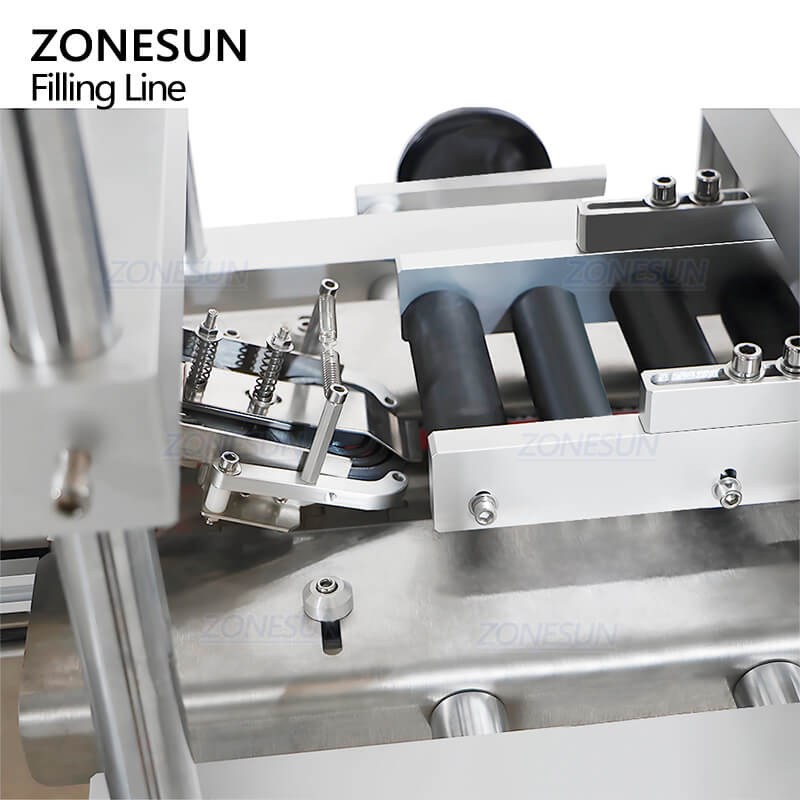

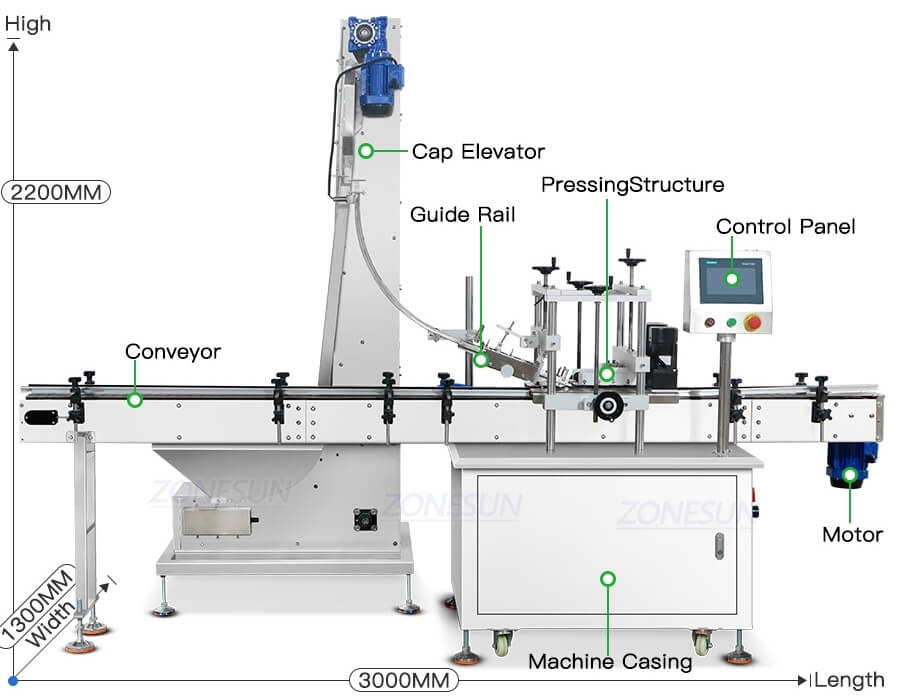

Outer Cap Pressing Structure
Can feed and press outer caps to bottles. It uses multiple rollers to apply even pressure and ensure secure seal.
