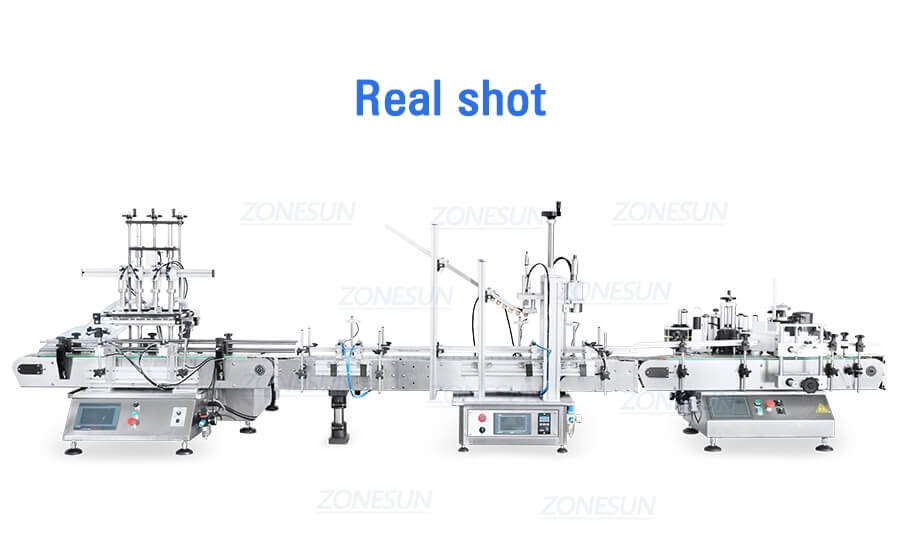

ZONESUN ZS-FAL180D5 Tabletop Wine Bottling Line
This production line is suitable for small scale production,can fill liquid,cap bottles and label stickers automatically.These desktop type machines can save working space and help you improve working efficiency greatly.It is widely used in food,beverage,cosmetics,daily chemical and pharmaceutical industries.
$8,549.00
Share to
This production line is suitable for small scale production,can fill liquid,cap bottles and label stickers automatically.These desktop type machines can save working space and help you improve working efficiency greatly.It is widely used in food,beverage,cosmetics,daily chemical and pharmaceutical industries.
|
Machine Model
|
ZS-DTHSP4
|
|||
|
Voltage
|
220V/110V 50-60Hz
|
|||
|
Power
|
500W
|
|||
|
Filling Head
|
4 Heads(Can be customized)
|
|||
|
Filling Range
|
5-100ml/10-300ml/50-500ml/100-1000ml/500-3000ml/1000-5000ml
|
|||
|
Filling Speed
|
20-60 bottles/min(depending on bottle size and liquid)
|
|||
|
Filling Heads Diameter
|
OD 10mm(Can choose other sizes)
|
|||
|
Filling Accuracy
|
≤1%（for water）
|
|||
|
Air Pressure
|
0.4-0.6Mpa
|
|||
|
Packaging Size
|
About 1530*1400*1350mm
|
|||
|
Gross Weight
|
About 234kg
|
|||
|
Machine Model
|
ZS-XG1870D1
|
|||
|
Working voltage
|
AC220V/110V 50-60HZ
|
|||
|
Bottle height
|
60-270mm
|
|||
|
Bottle caps diameter
|
Customize(≤130mm)
|
|||
|
Working speed
|
20-40 bottles/minute(depending on bottle and caps)
|
|||
|
Working pressure
|
0.4-0.6 MPa
|
|||
|
Size of Air Compressor Connector
|
OD 8mm
|
|||
|
Conveyor length
|
115mm(W)*1020mm(L)
|
|||
|
Package size
|
About 1150*650*820mm
|
|||
|
Package weight
|
About 95kg
|
|||
|
Machine model
|
ZS-TB500
|
|||
|
Voltage
|
110V- 60HZ / 220V-50HZ
|
|||
|
Working Speed
|
About 20-50bottles/min
|
|||
|
Suitable Labeling Size
|
15-140mm (W) X 25-300mm (L)
|
|||
|
Roll inside diameter (mm)
|
φ76mm
|
|||
|
Roll outside diameter (mm)
|
φ350mm
|
|||
|
Suitable Bottle Diameter
|
≤100mm
|
|||
|
Package Size
|
About 1290*860*900mm
|
|||
|
Package Weight
|
About 130kg
|
|||
This machine is designed with 4 filling nozzles,the filling speed and time of each nozzle can be controlled separately.We can customize 6 filling nozzle of this machine to achieve efficient production if you need this please contact us.
Simple control panel,the working speed and working data can be adjusted easily, help you control the machine faster and easier.
The capping chuck will start to work automatically once it detect the bottle,it should be customized according to bottle cap size.This is suitable for cap pressing,it can help you save labor.

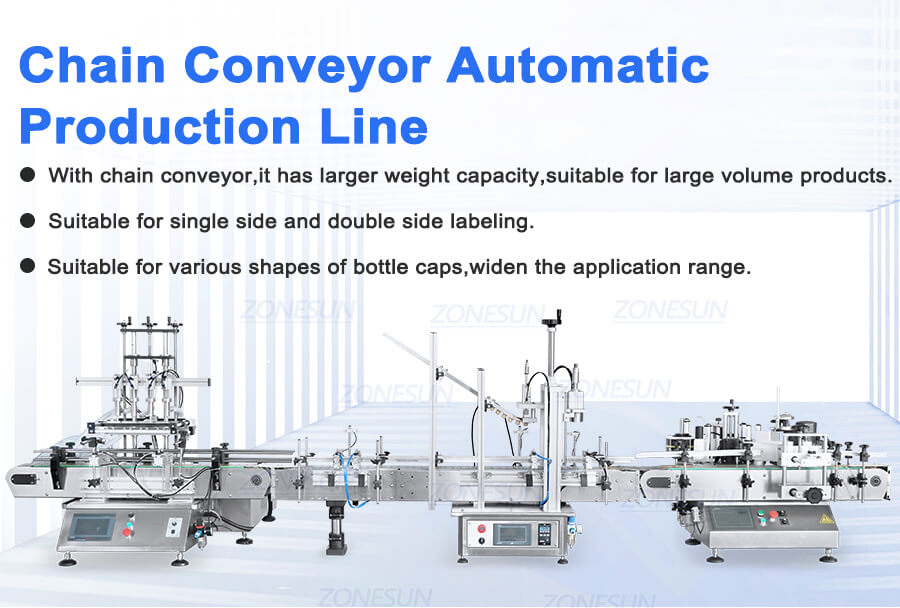

The chain conveyor has larger weight capacity which is good for transport heavier products.Compared with belt conveyor,it is more suitable for large volume products.The conveyor speed can be controlled separately by the below operation panel.

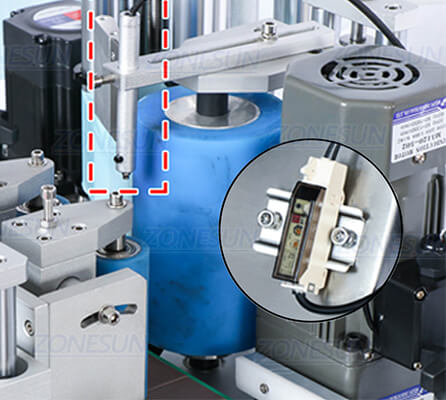

The electric eye can detect bottles once they pass through.The sensitivity regulator is designed to adjust the sensitivity of the electric eyes, prevent from missing bottles.
