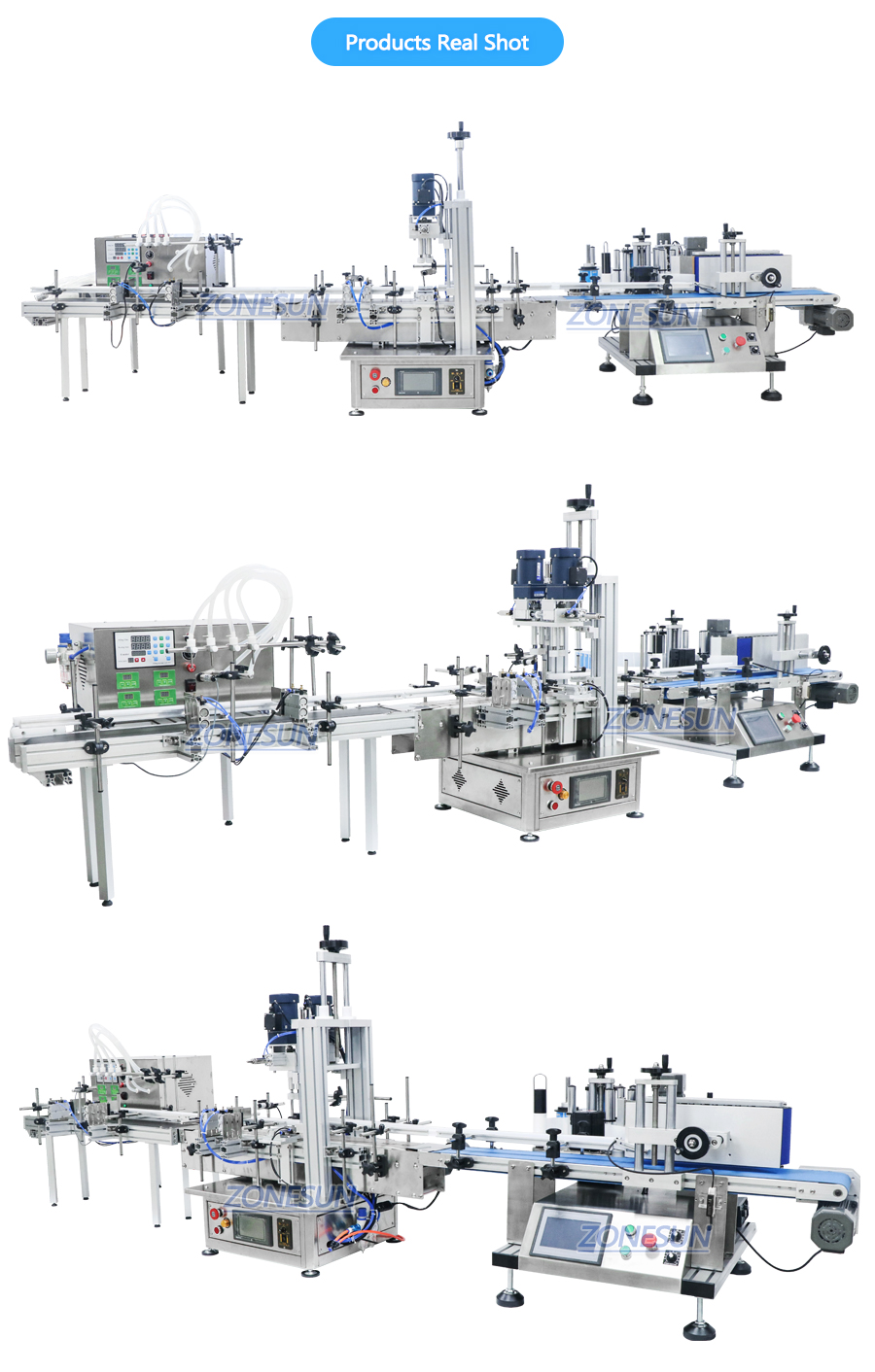

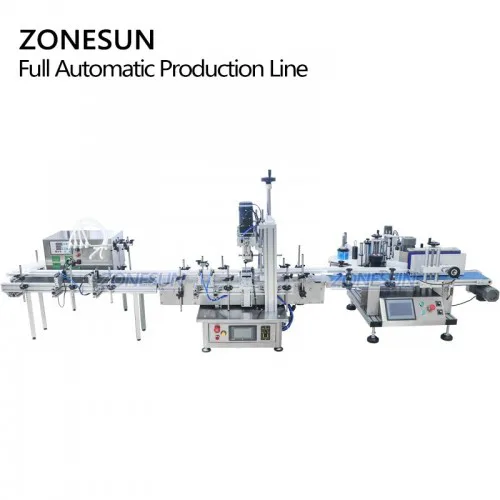

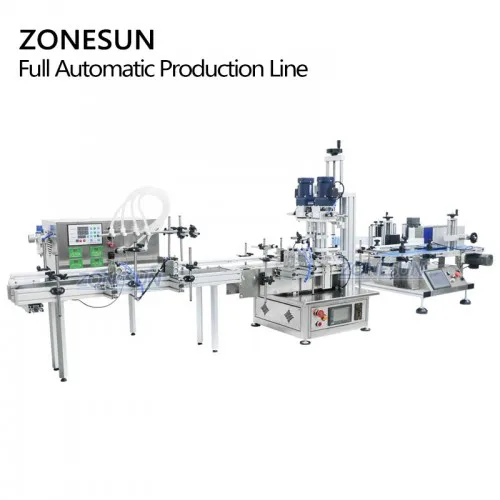

ZONESUN ZS-FAL180 Automatic Desktop Production Line
This production line is suitable for small scale production,can fill liquid,cap bottles and label stickers automatically.These desktop type machines can save working space and help you improve working efficiency greatly.It is widely used in food,beverage,cosmetics,daily chemical industries.
Description:
This production line is suitable for small scale production,can fill liquid,cap bottles and label stickers automatically.These desktop type machines can save working space and help you improve working efficiency greatly.It is widely used in food,beverage,cosmetics,daily chemical industries.

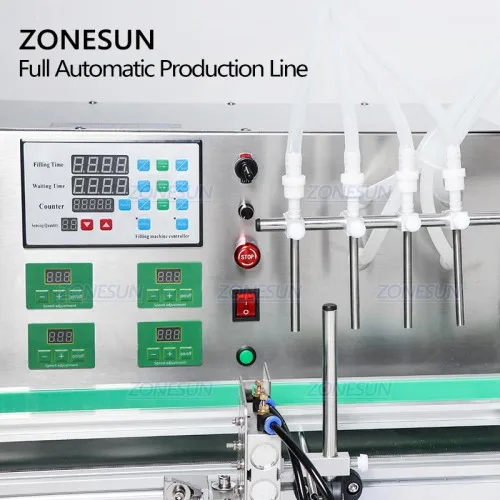

Filling Parameter:
| Power Supply Voltage | 110/220V 50-60HZ |
| Power | 250W |
| Maximum flow velocity | 4000m/min(Each nozle and base on water) |
| Working speed | 1500-3000 botles/hour(depends on botle size and liquid) |
| Air pressure | 0.3-0.4MPa |
| Filling accuracy | ≤1% (For water) |
| Diameter of Filling Nozzle | 6/8mm |
| Delay Range | 0.01-999.9s |
| Count Range | 1-99999 Times |

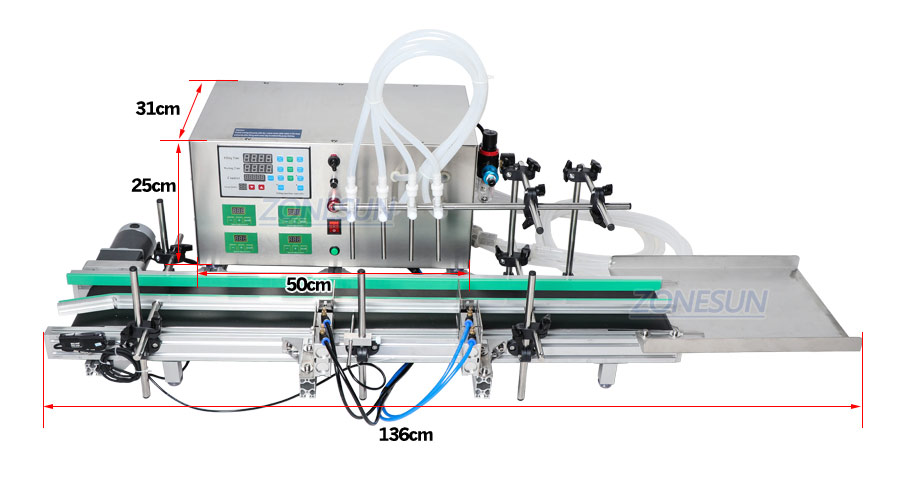

| Package size | 1110*650*420mm |
| Gross weight | 46.5kg |
| Filling Volume | 3-1000ml(220V)3- 500ml(110V)sice the power of 110v machine is not large, so we recommend 3-500ml for each nozzle |
| Size of air compressor connector | OD 8mm |

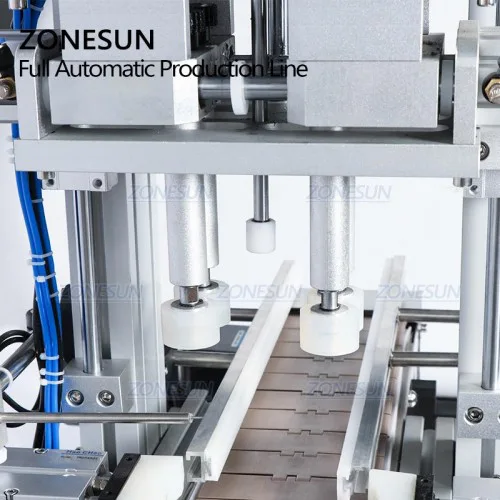

Capping Parameter:
| Bottle Height | 60- 270mm |
| Bottle Caps Diameter | 18-70mm |
| Working Speed | 20-40 bottles/minute (depending on bottle and caps) |
| Working Voltage | AC220V/110V 50-60HZ |
| Working Pressure | 0.4-0.6 MPa |

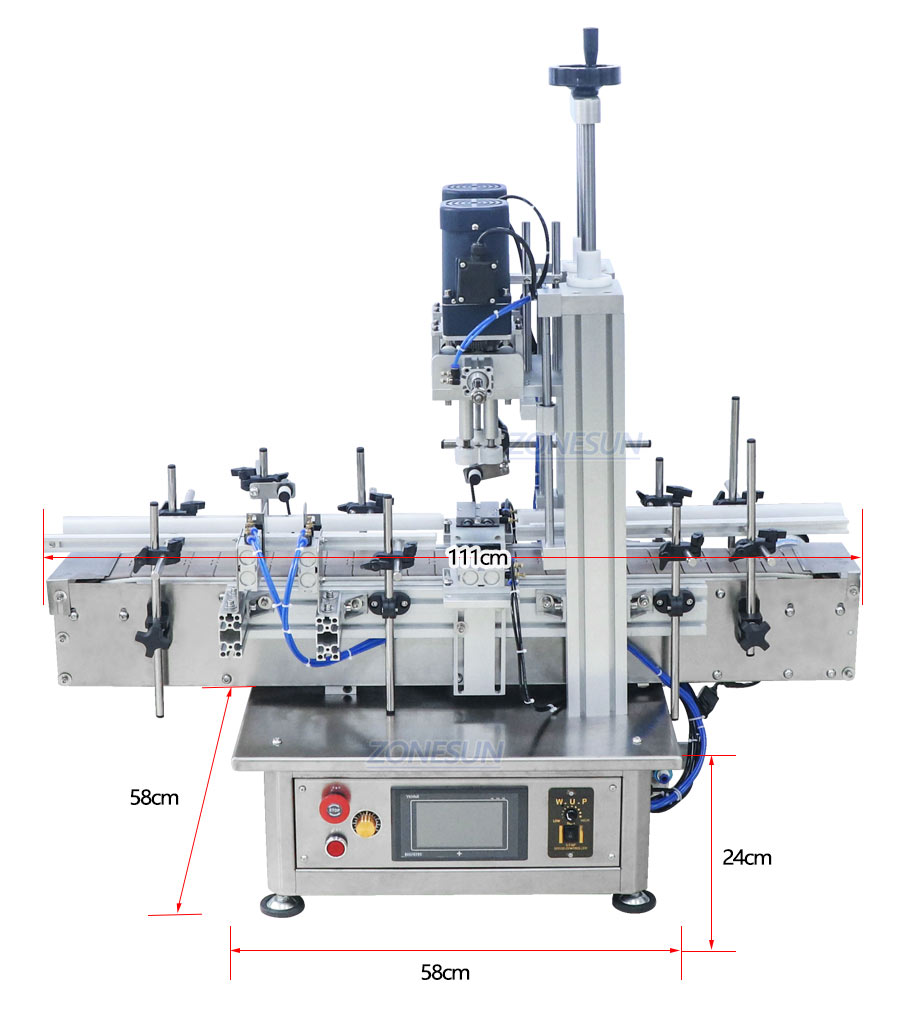

| Machine Size | 1120* 580* 1110mm |
| Conveyor Length | 1117mm |
| Package Weight | 97.5kg |
| Package Size | 1160*610*1140mm |
| Size of air compressor connector | OD 8mm |

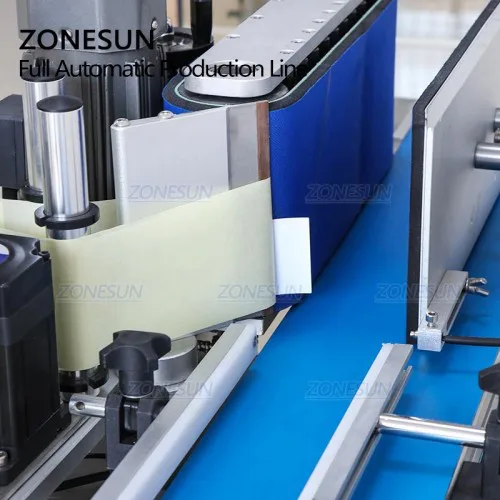

Lapping Parameter:

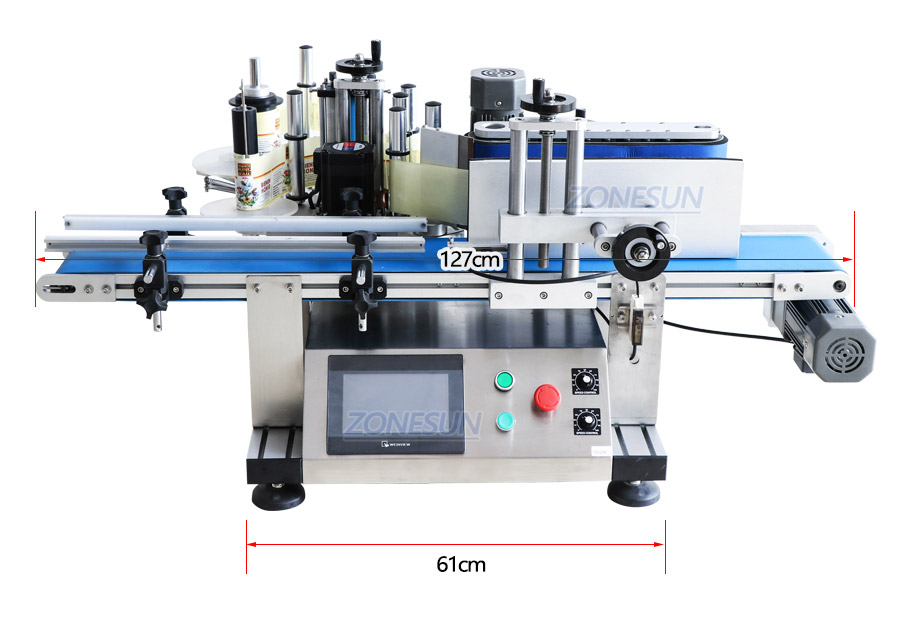

| Machine size | 127*100*78cm(L*W* H) |
| Power | 220V / 50Hz |
| Package weight | 120kg/125kg (with date coder) |
| Packing size | 131 *80.5*78cm |
| Labeling accuracy | ±1mm (excluding product and label errors) |
| Labeling speed | 25 ~ 50 pieces / minute |
| Applicable product size | φ30 ~ 120mm/ height 25 ~ 350mm |
| Applicable label size | length 25 ~ 300mm/ width 15 ~ 140mm |
FAQ
Q:Is it possible to customize the L configuration conveyor for this production line?
A:Yes,please contact us if you need this.
Q:Is it possible to replace one machine of them?
A:Yes,you can choose the suitable machine according to your needs.
