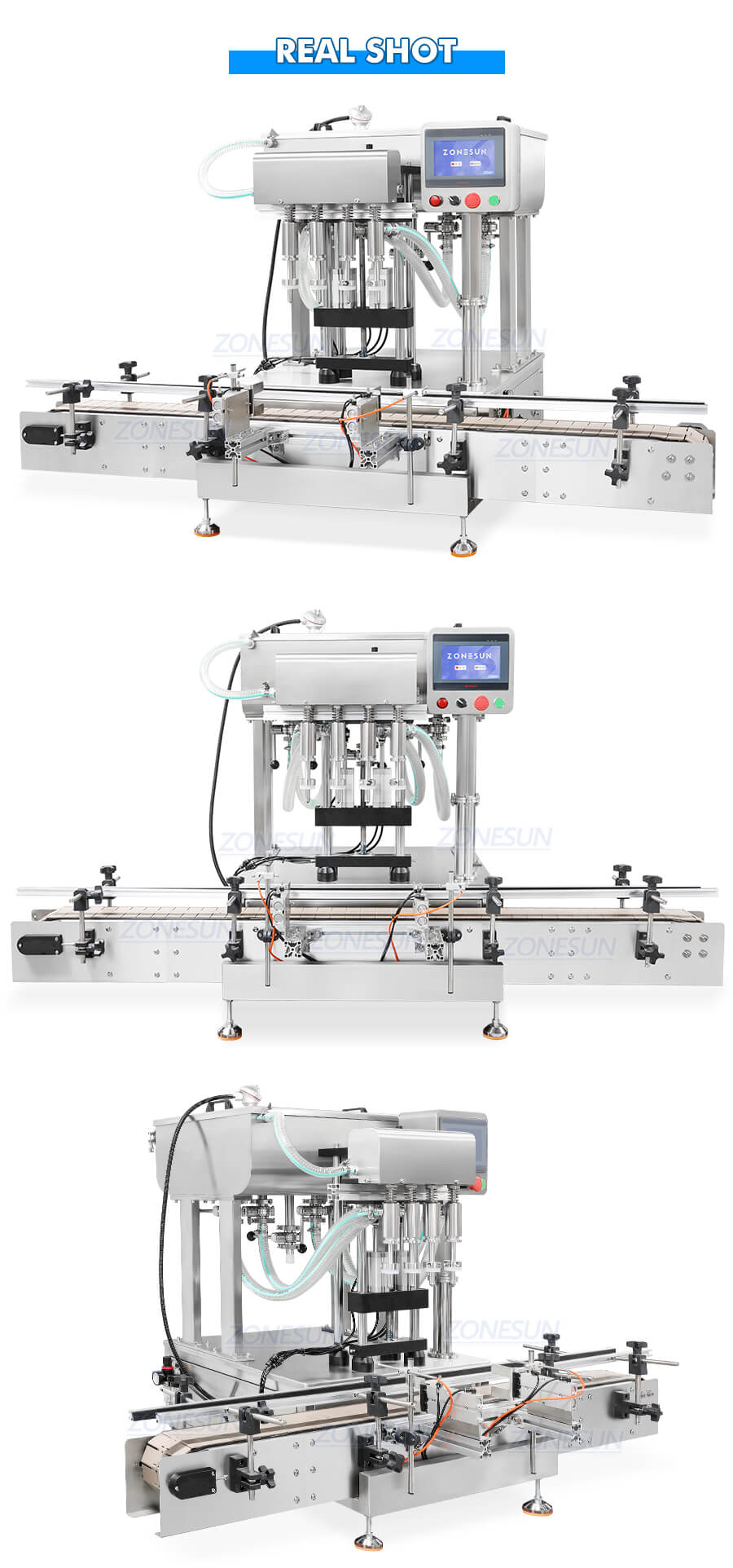

ZONESUN ZS-DTGZ400 Tabletop Wine Overflow Filling Machine
The tabletop machine body is designed to save working space. This overflow filling machine can fill liquid slightly above the intended fill line, allowing excess liquid to overflow, ensuring consistent filling levels. It is ideal for whiskey, vodka, rum, and other alcoholic beverages.
$5,449.00
Share to
The tabletop machine body is designed to save working space. This overflow filling machine can fill liquid slightly above the intended fill line, allowing excess liquid to overflow, ensuring consistent filling levels. It is ideal for whiskey, vodka, rum, and other alcoholic beverages.
| Machine model | ZS-DTGZ400 |
| Machine voltage | 110/220V 50-60HZ 150W |
| Quantity of filling nozzle | 4 |
| Working capacity | About 12-20BPM(based on filling volume) |
| Hopper size | 70L |
| Air pressure | 0.4-0.6MPA |
| Suitable filling volume | ≤1500ml/bottle |
| Suitable bottle diameter | Φ=50-80mm |
| Conveyor height from ground | About 236mm+100mm |
| Suitable bottle height | 200-300mm |
| Suitable bottle opening mouth | 20-35mm |
| Machine size | About1810*1040*1000mm(L*W*H) |
Touch Screen Control Panel
Makes parameter setting more intuitively, simplifies machine debugging and operating.
Filling Nozzle
Filling nozzles allows the excess liquid to flow out of the bottle neck and back into the reservoir.
Electric Eye
Detect passing by bottles and realize automated filling work
Liquid Level Sensor
It can monitor liquid level and allows for immediate filling material supplying adjustments.
Chain Conveyor
Can integrate with capping, labeling machine and has large weight capacity.
