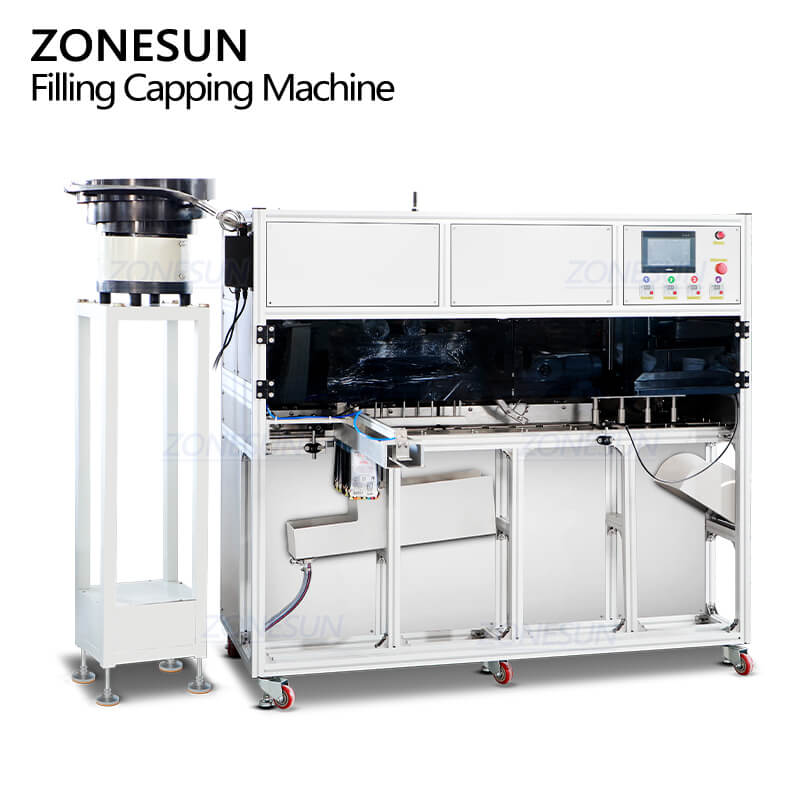

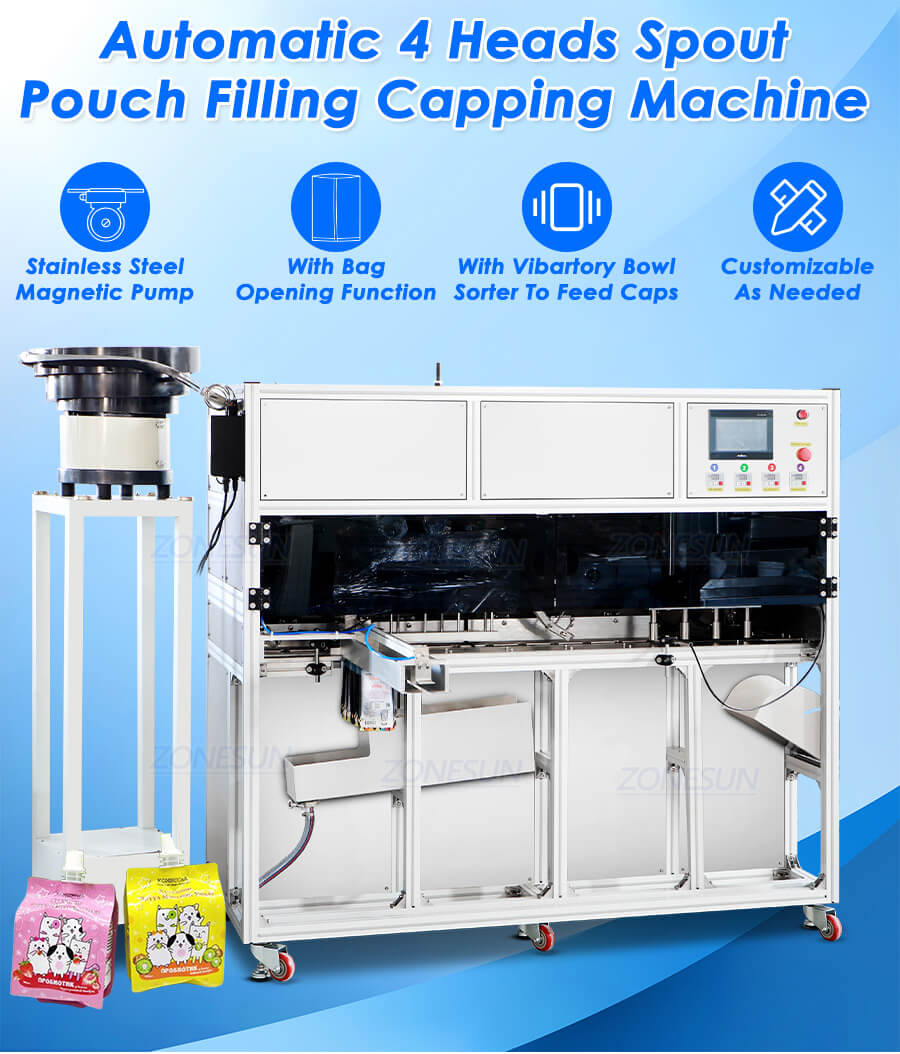

ZONESUN ZS-ASPM4 Spout Pouch Filling Capping Machine
This fully automatic spout pouch filling and capping machine completes bag feeding, pouch opening by air blow, liquid filling, cap feeding, and capping in one continuous process. it is ideal for filling spout pouches with non-particulate liquids such as juice, cocktails, coffee concentrate, energy gel and nutritional supplements, providing stable and efficient production.
Price range: $14,399.00 through $14,799.00
Share to
This fully automatic spout pouch filling and capping machine completes bag feeding, pouch opening by air blow, liquid filling, cap feeding, and capping in one continuous process. it is ideal for filling spout pouches with non-particulate liquids such as juice, cocktails, coffee concentrate, energy gel and nutritional supplements, providing stable and efficient production.
| Machine Model | ZS-ASPM4 |
| Machine Voltage | 110/220V 50-60HZ |
| Machine Power | 1200W |
| Filling Volume | 10-300ml(Customizable) |
| Filling Pump | Stainless Steel 316 Magnetic Pump ( 6L/min ) |
| Filling Accuracy | ±1% |
| Filling Nozzle Quantity | 4(Customizable) |
| Working Capacity | 1600-1800BPH |
| Suitable Spout Size | Customizable |
| Suitable Cap Size | Customizable |
| Air Pressure | 0.4-0.6MPa |

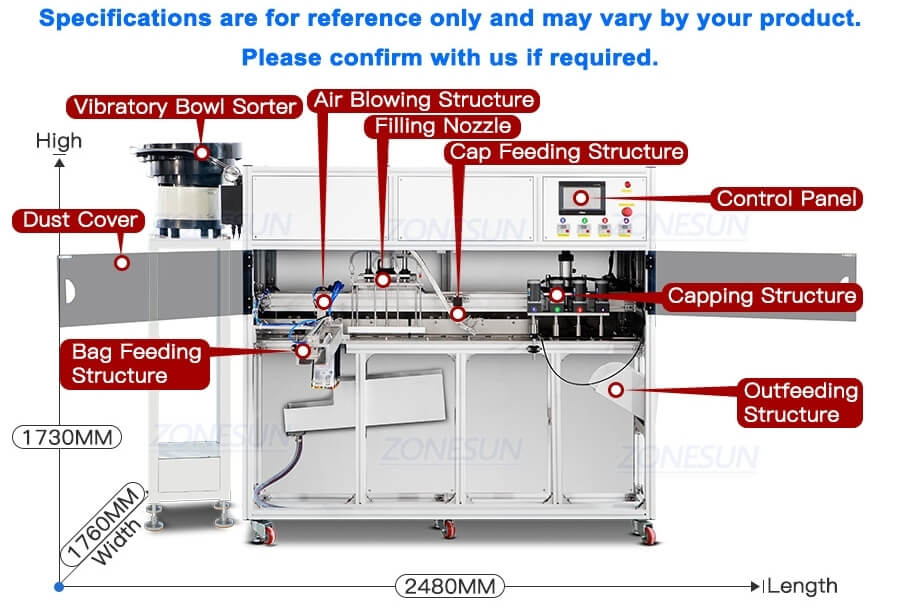

| Machine Size | About 2480*1760*1730mm |
| Package Size | About 1950*1570*1810mm |
| Package Weight | About 434kg |

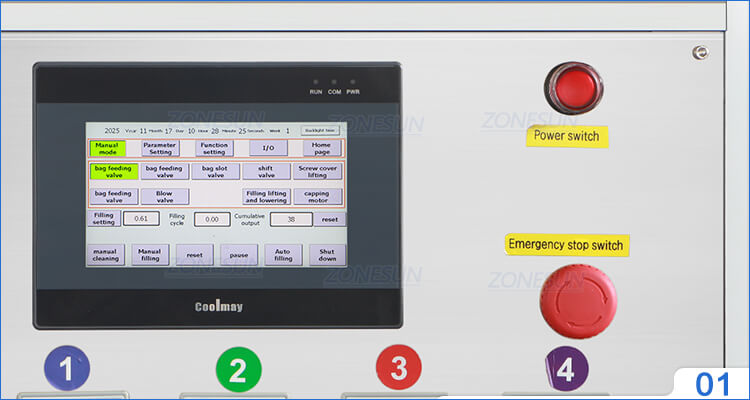

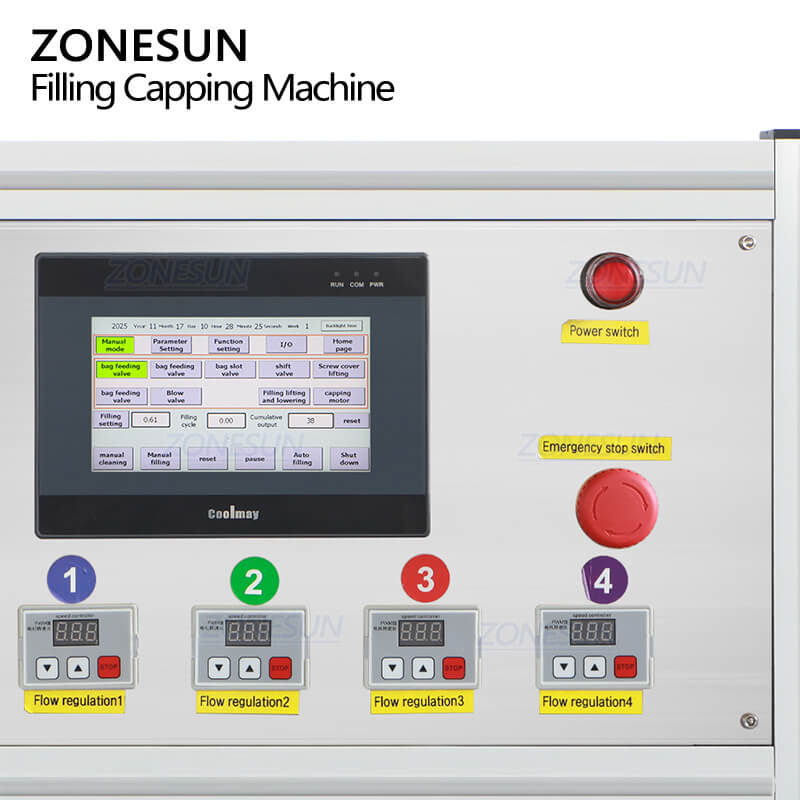

Touchscreen Control Panel
Offers easy parameter setup and real-time operation status monitoring.

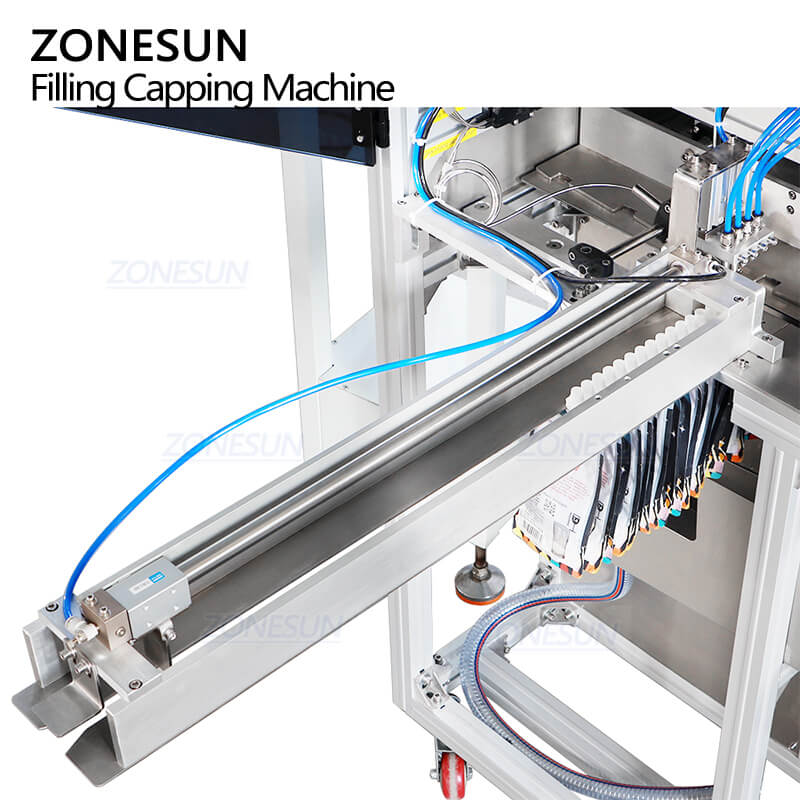

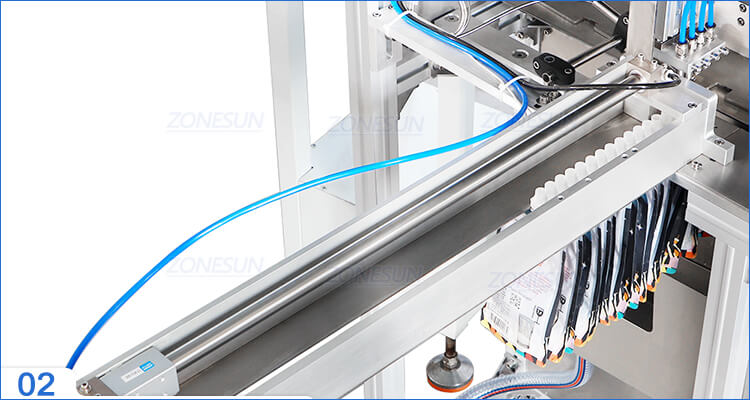

Bag Infeed Mechanism
Automatically feeds and positions spout pouches for continuous processing.

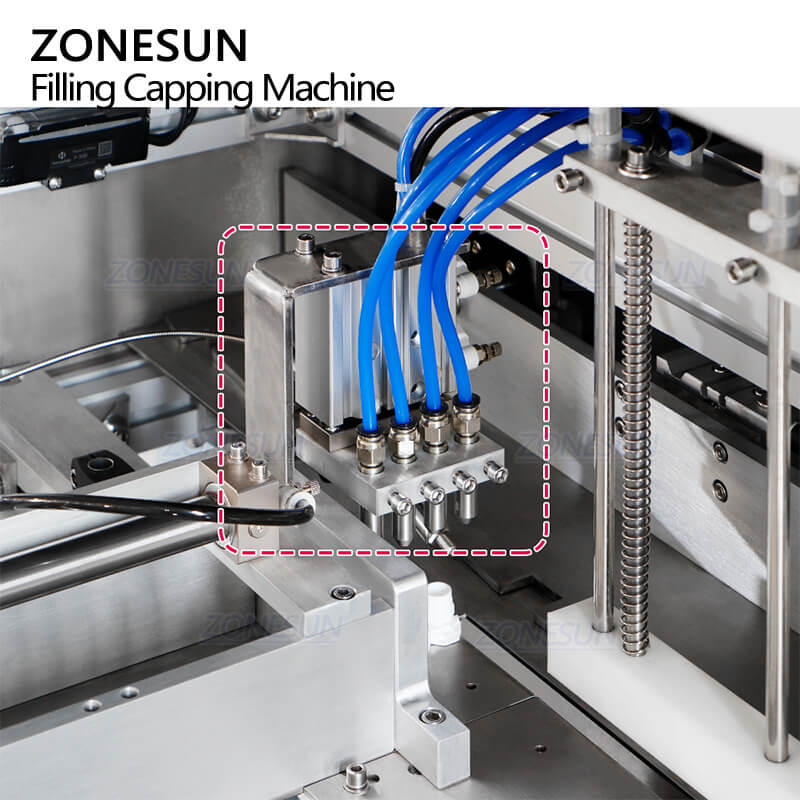

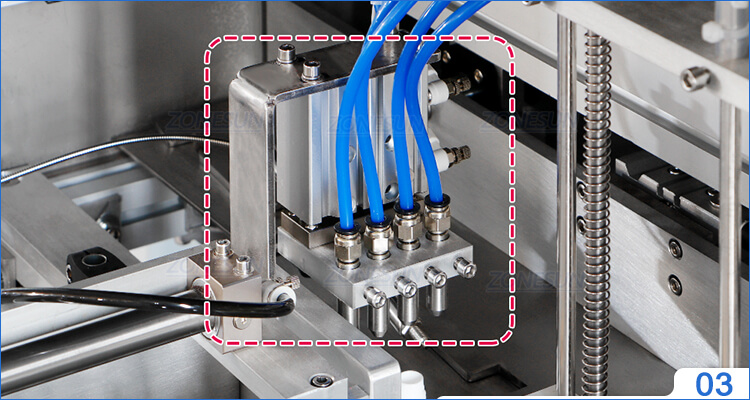

Air-Blow Pouch Opening System
Uses controlled airflow to open and stabilize the pouch before filling.

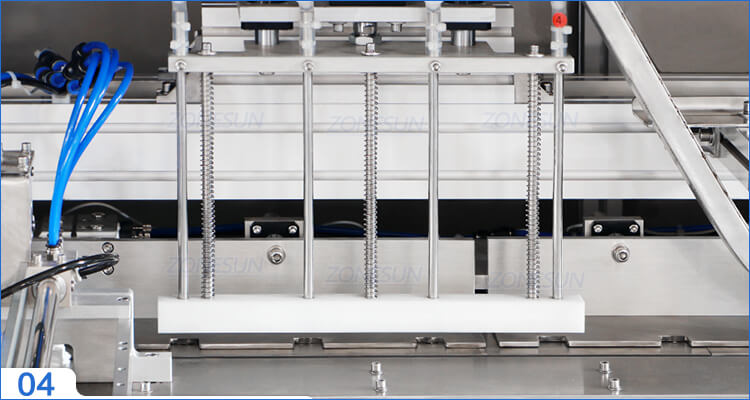

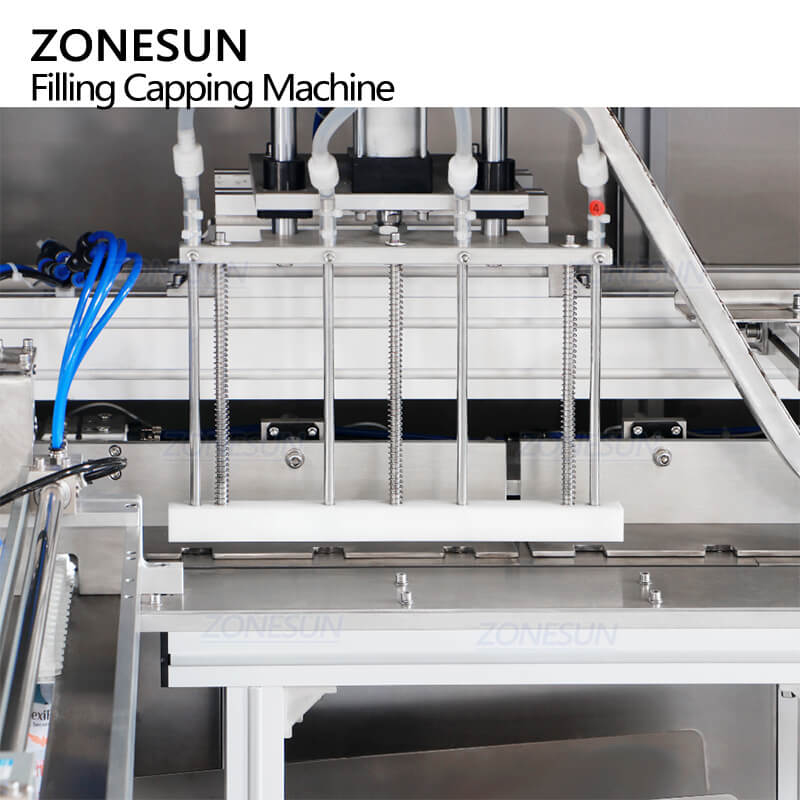

Magnetic Pump Filling Structure
Multi filling heads are customizable, it provides accurate, clean, and repeatable liquid dosing for non-particulate products.

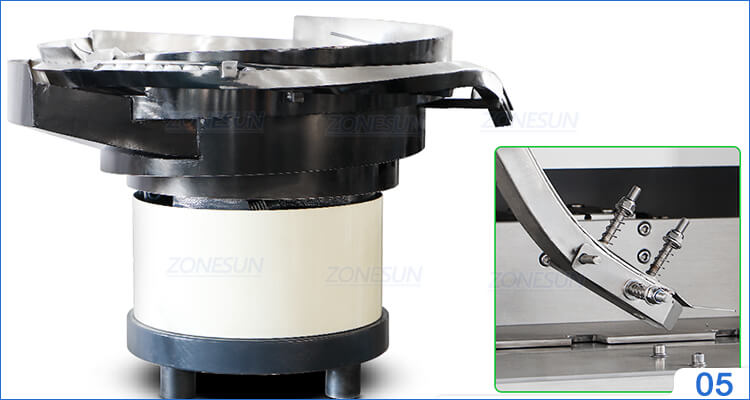

Vibratory Cap Feeding System
Sorts and orients caps to ensure smooth and uninterrupted caps supply.

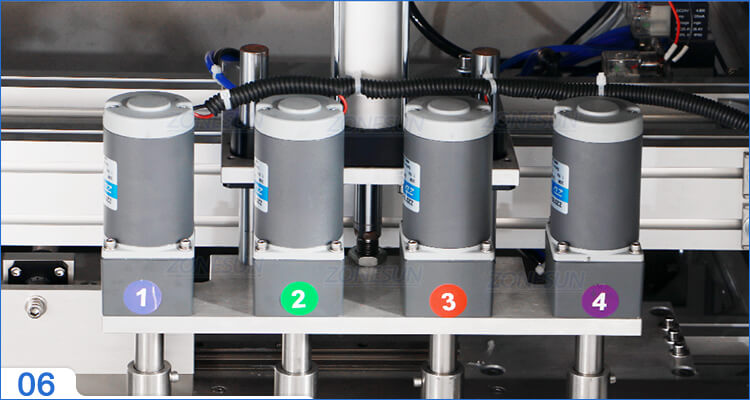

Capping Station
Multi capping heads improves capping efficiency, the capping structure tightens caps with consistent torque for leak-proof sealing.
