| Machine Model | ZS-FSHS20 |
| Power Supply | 110V/220V 50-60Hz 3.5kW |
| Production Speed | About 1000-1800pcs/hour(depending on filling range) |
| Filling Range | 5-300ml(can be customized) |
| Filling Accuracy | ±1% |
| Filling Pump | Piston pump |
| Hopper Capacity | 30L |
| Sealing Temperature | 0-400℃ |
| Suitable Product Size | Can be customized |
| Air Pressure | 0.5-0.8MPa |
| Machine Size | About 1806*1117*1722mm(L*W*H) |
| Package size | About 1750*1120*1610mm |
| Package weight | About 520kg |

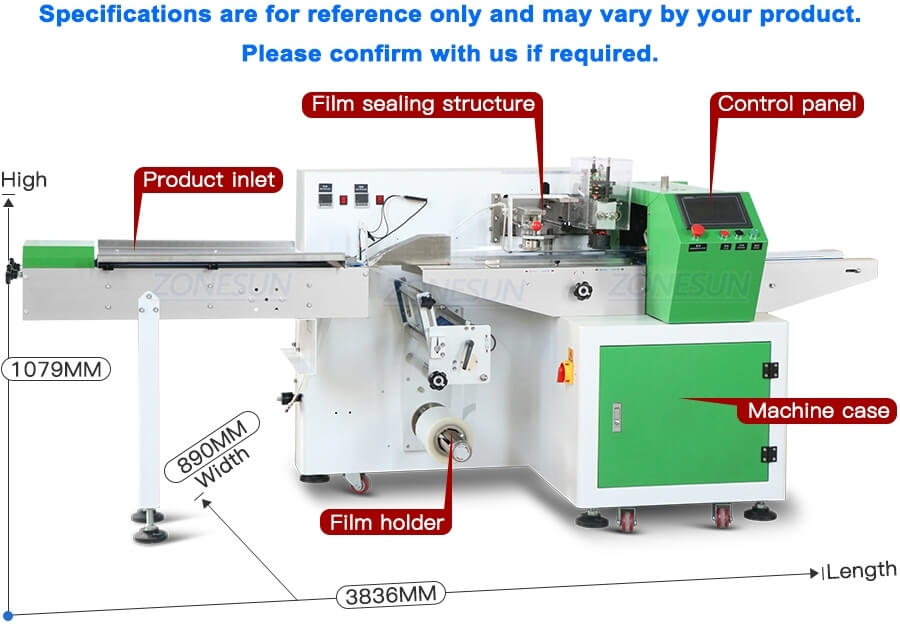

| Machine model | ZS-ZB350X |
| Power | 110/220/380V, 50/60Hz,2.4KW |
| Film width | Max:350mm(can be customized) |
| Bag length | 90-6000mm(can be customized) |
| Bag width | 30-160mm(can be customized) |
| Product height | Max: 55mm(can be customized) |
| Film roll diameter | Max: 320mm |
| Middle side sealing | Top side sealing |
| Packaging speed | 30-120bags/min |
| Packaging materials | OPP,OPP/CPP,KOP/CPP,ALU-FILM |
| Machine size | About 3836*890*1079mm |
| Machine weight | About 350kg |
| Package size | About 1950*1220*1220mm+2610*670*450mm |
| Package weight | About 415+83kg |

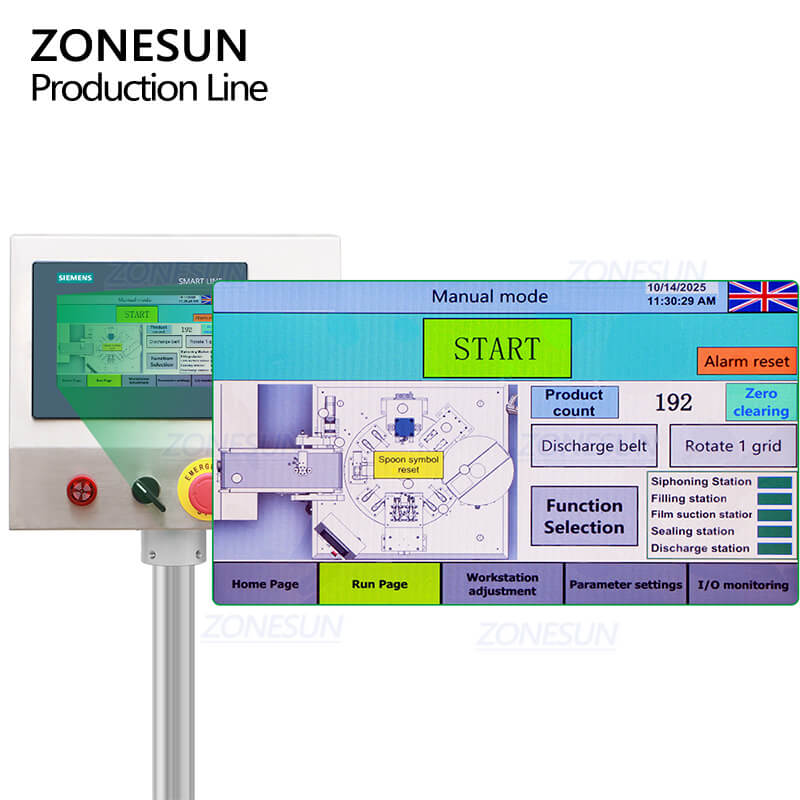

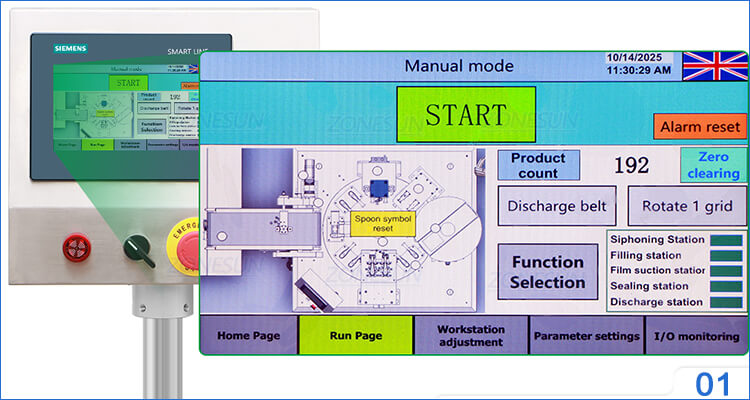

Touchscreen Control Panel
Provides intuitive parameter setting and real-time operation monitoring.

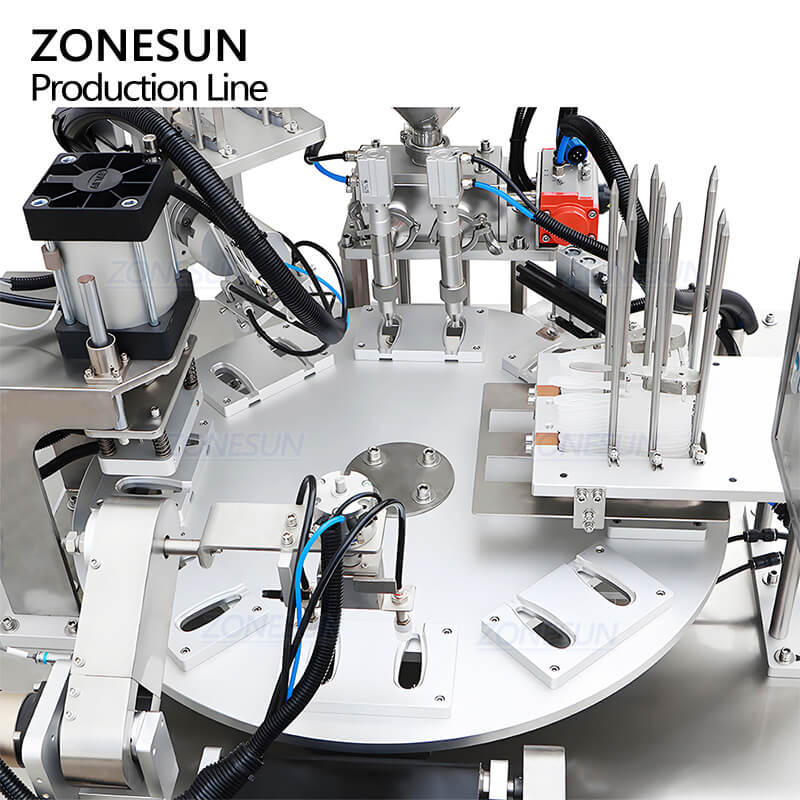

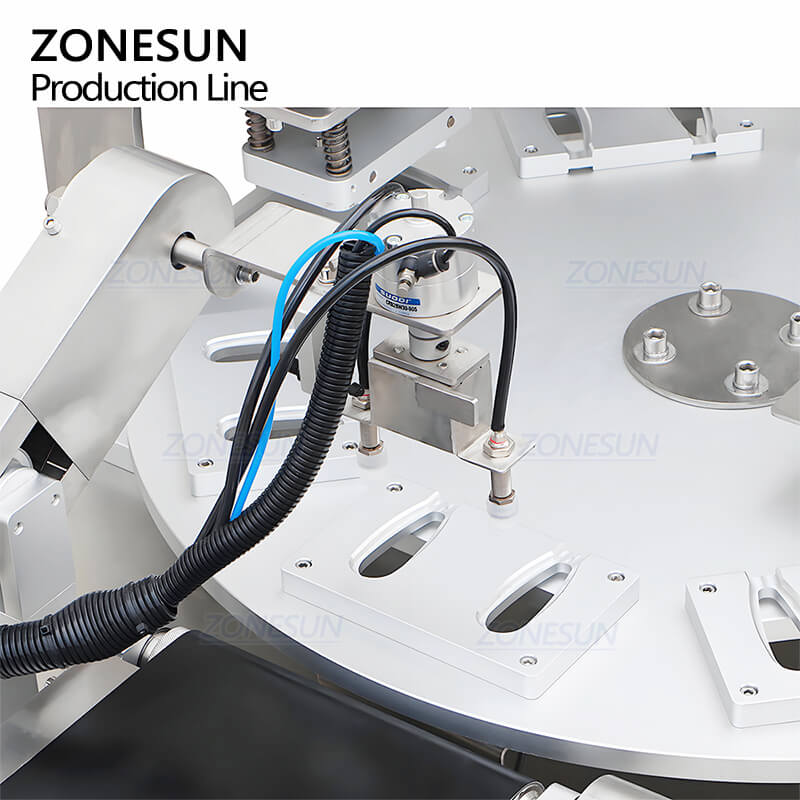

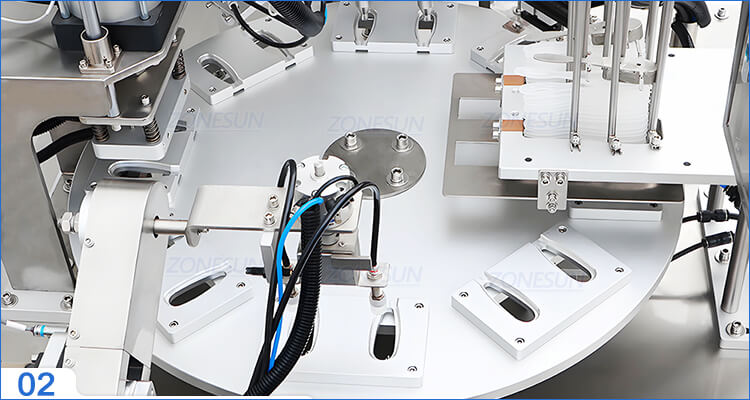

Integrated Working System
Combine spoon and film feeding, filling and sealing in to a compact rotary system.

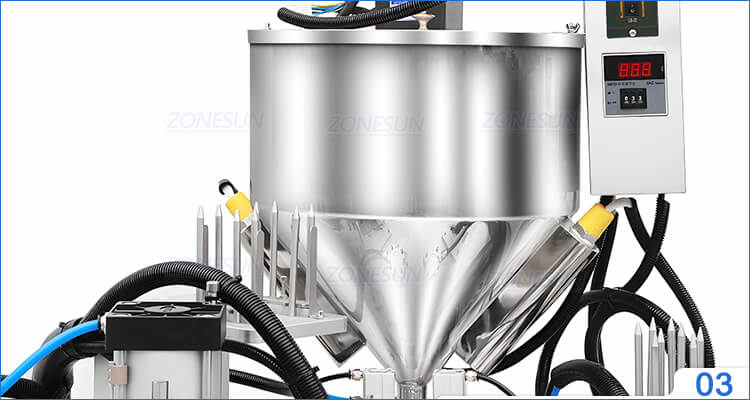

Feeding Hopper
The hopper has mixing and heating function, which can ensure smooth filling.

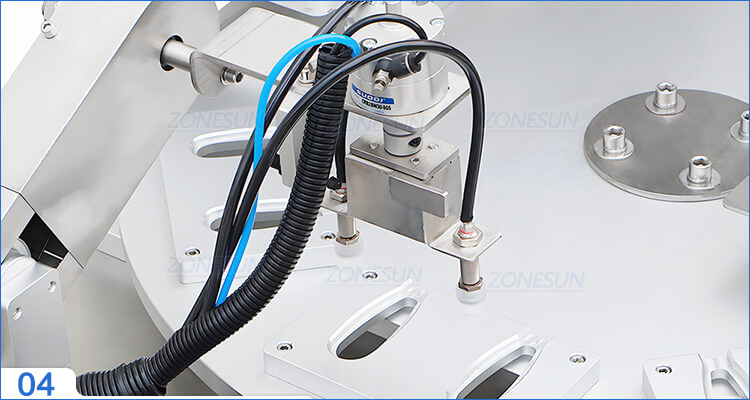

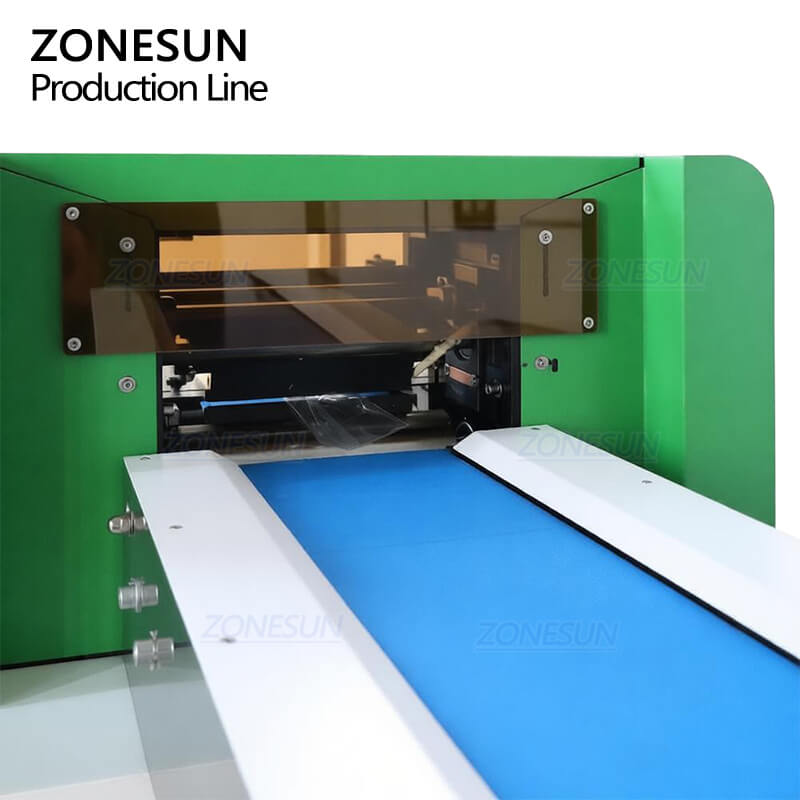

Product Outlet
Suction cups can pick up and place spoons onto conveyor, convenient for downstream packaging.

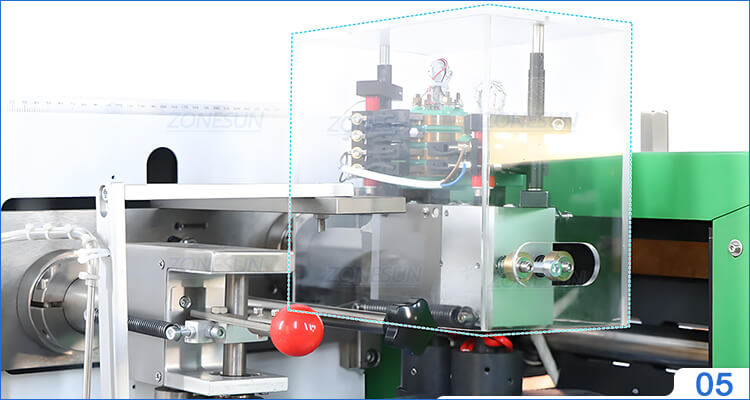

Sealing Structure
Servo motor controls sealing work. The sealing temperature and time can be adjusted.

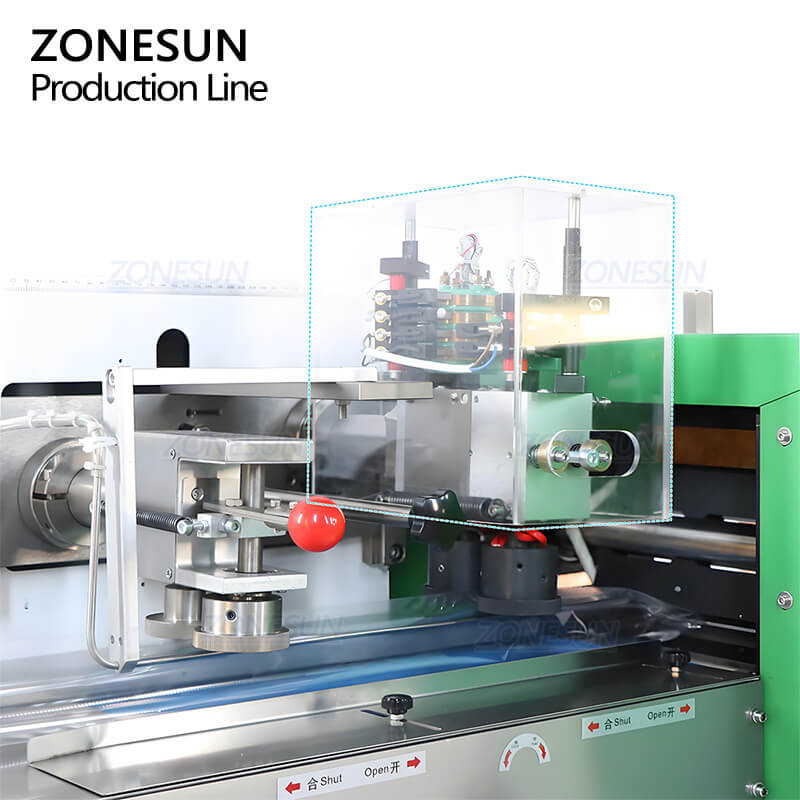

Cutting Structure
Sharp cutting blades can make the cutting edge neatly. Number of blades is customizable.
