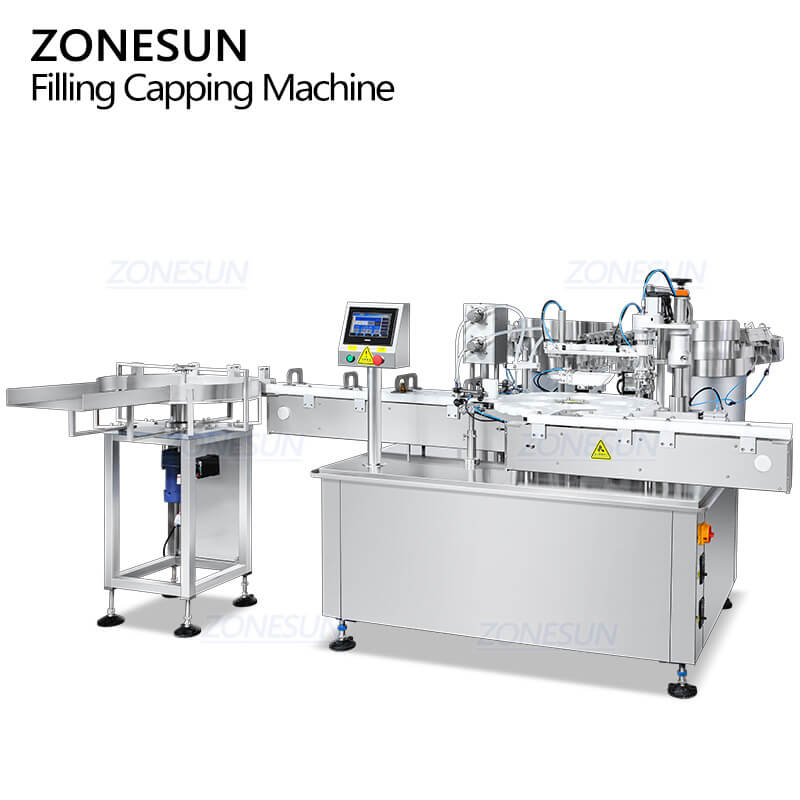

ZONESUN ZS-AFC27YT Dropper Bottles Liquid Filling Capping Machine
This cam-driven monoblock machine integrates filling, dropper cap placing, and screw capping in one compact system. It can run independently or connect with bottle washing and turntable machines to form a complete line. Built to GMP standards, the electrical system can be upgraded to meet customer requirements.It is suitable for packaging essential oil, cosmetic serum, ampoule essence, scalp treatment solution widely used in cosmetic, and chemical industries.
Original price was: $25,799.00.$25,099.00Current price is: $25,099.00.
Share to
This cam-driven monoblock machine integrates filling, dropper cap placing, and screw capping in one compact system. It can run independently or connect with bottle washing and turntable machines to form a complete line. Built to GMP standards, the electrical system can be upgraded to meet customer requirements.It is suitable for packaging essential oil, cosmetic serum, ampoule essence, scalp treatment solution widely used in cosmetic, and chemical industries.
| Machine model | ZS-AFC27YT |
| Machine voltage | 220V/50HZ/5A (110V is customizable) |
| Recommend filling volume | 1-100ml(customizable) |
| Filling pump type | 316 Magnetic Pump |
| Max flow rate | 3L/min(based on water) |
| Working capacity | About 60-70BPM(based on filling volume & filling material) |
| Suitable bottle size | Customizable |
| Bottle cap size | Customizable |
| Air Pressure | 0.6-0.8 MPa |
| Machine size | About 2100 * 1460 * 1240 mm |
| Machine weight | About 1500kg |
| Package size | About 2370 × 1230 × 1770 mm |
| Package weight | About 1600kg |
Touchscreen Control Panel
HMI with PLC control enables easy parameter setting, speed adjustment, and real-time monitoring.

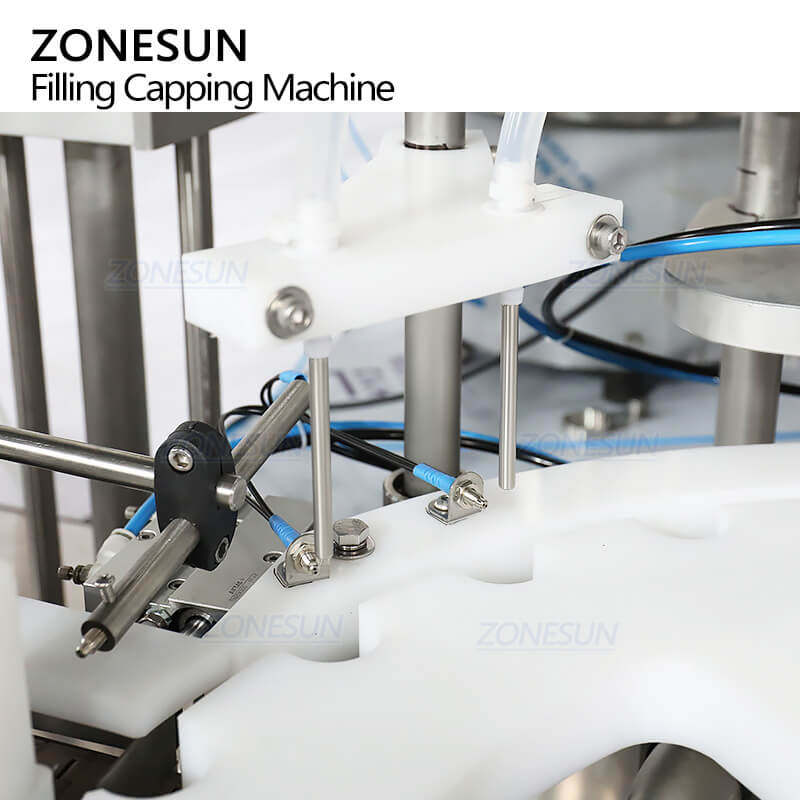

Double Filling Heads
High-precision 316 magnetic pumps ensure stable, clean, and accurate liquid dosing.

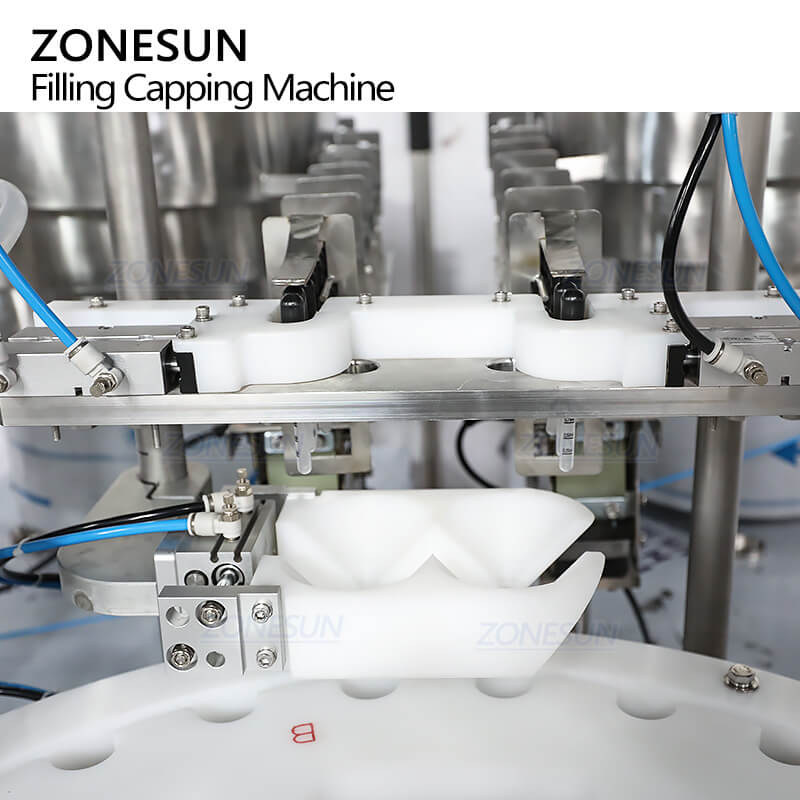

Dual-rail Cap Feeding Unit
Vibratory bowl with dual guide rails delivers caps smoothly and continuously.
Cap Guide Housing
Guided chute accurately drops caps onto bottles to prevent misalignment.

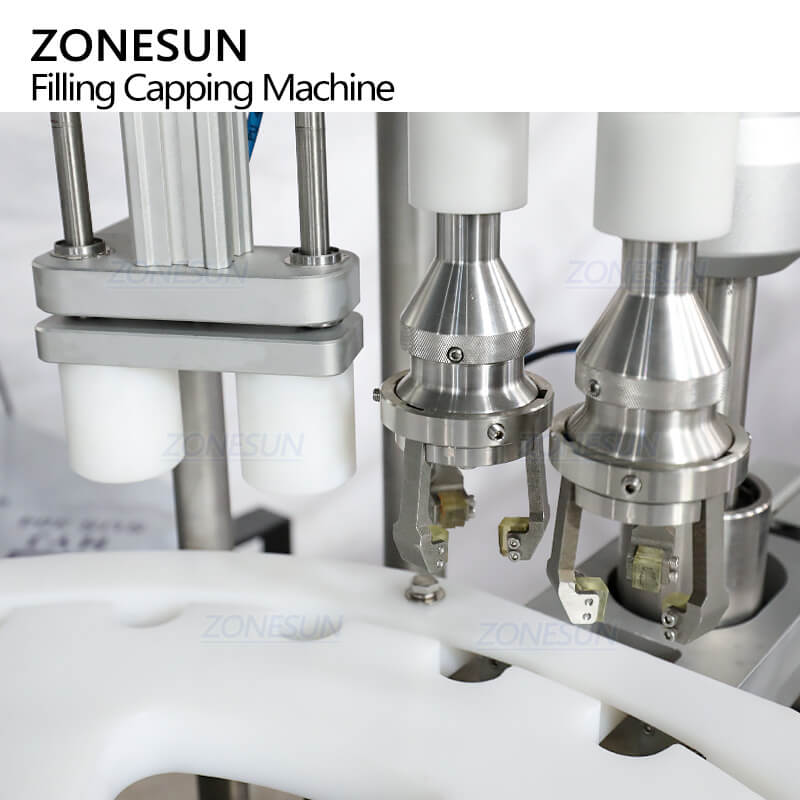

Positioning&Capping Structure
Combines cap alignment and torque-controlled tightening to reduce mis-capping and improve capping accuracy.

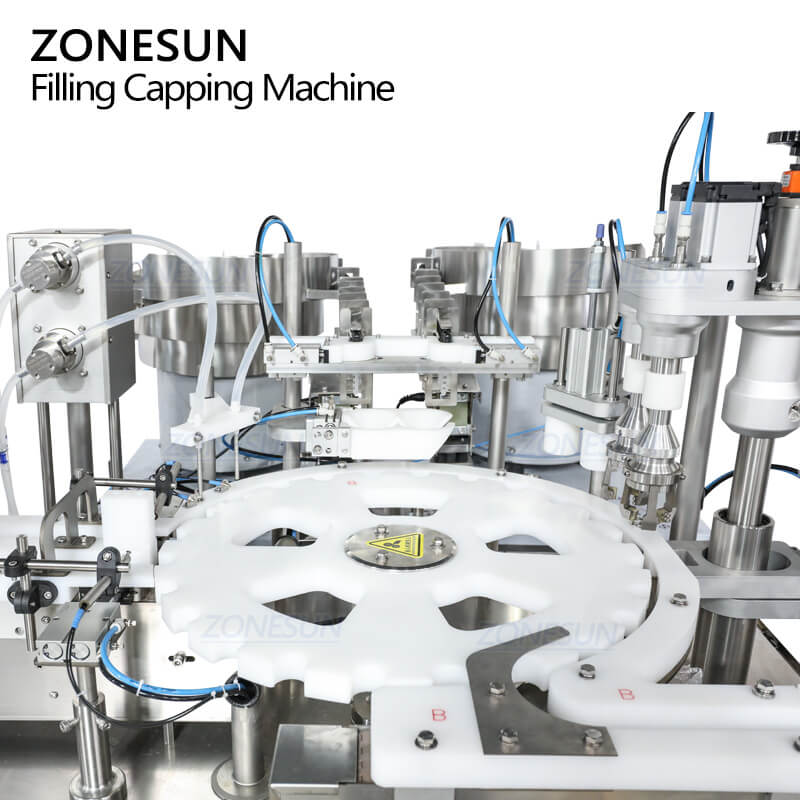

Star Wheel Indexing System
Cam-driven star wheel positions bottles precisely for synchronized filling and capping.
