ZONESUN ZS-180P Automatic Product Production Line

Mode of transport：Express、Air transportation、Ocean shipping、Land transportation

Payment Options：Credit card、Paypal、Western Union、TT、Alipay、WeChat

Product Detail

Product Tags

Description

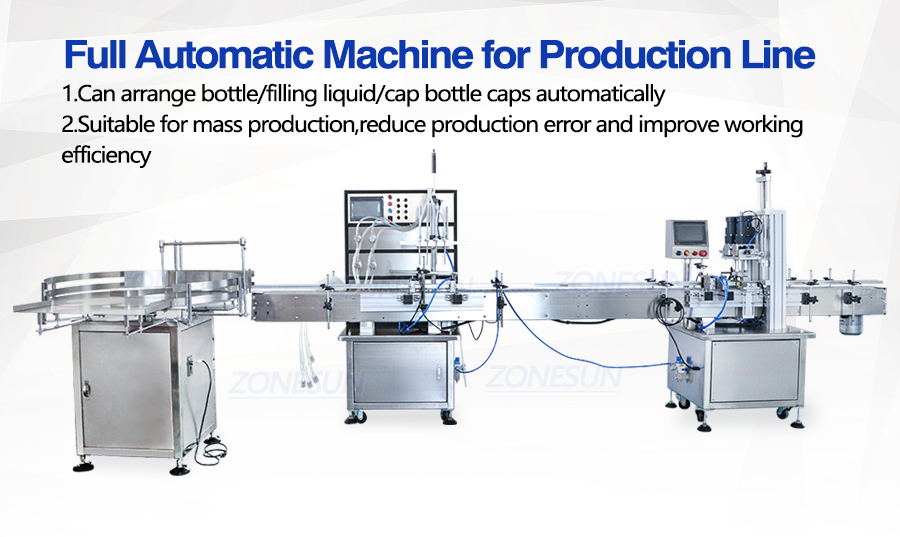

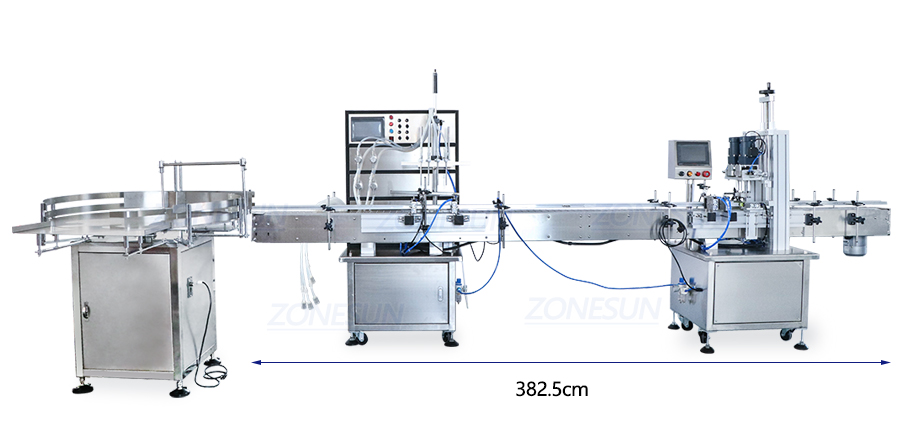

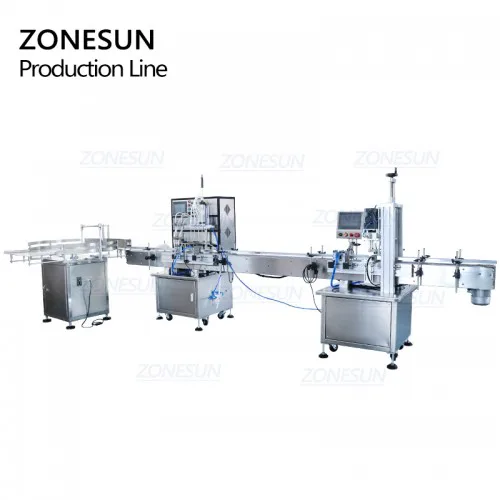

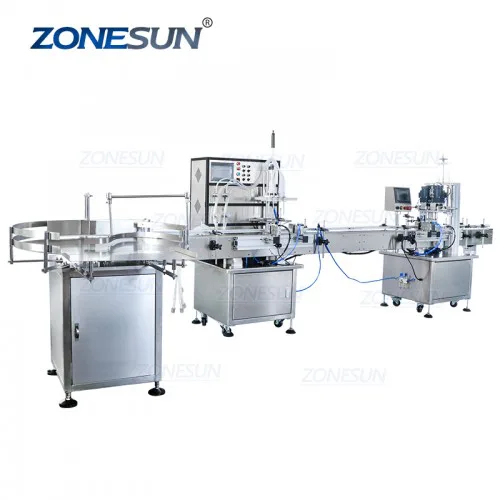

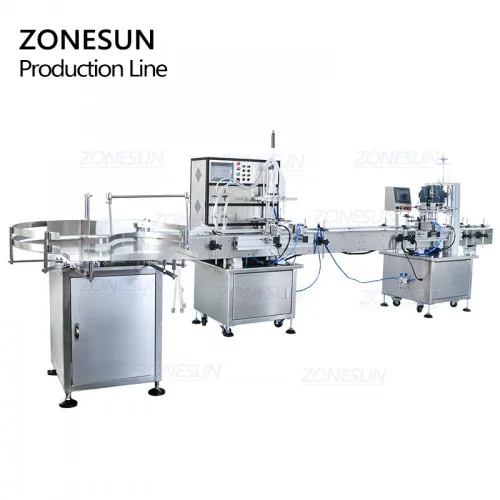

This production line can automatically arrange bottles,fill liquid and cap bottle,it helps to save production process and improve working efficiency.We can offer custom service for different kinds of materials,make these machines can match your material better. It is widely used in food,beverage,cosmetics and pharmaceutical industries

ZONESUN ZS-180P Automatic Product Production Line-ZONESUN TECHNOLOGY LIMITED

Parameter:

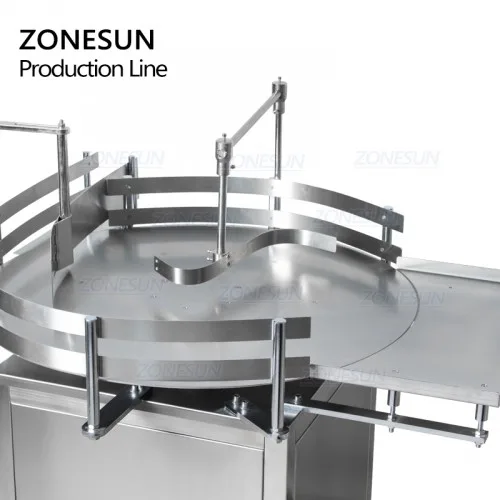

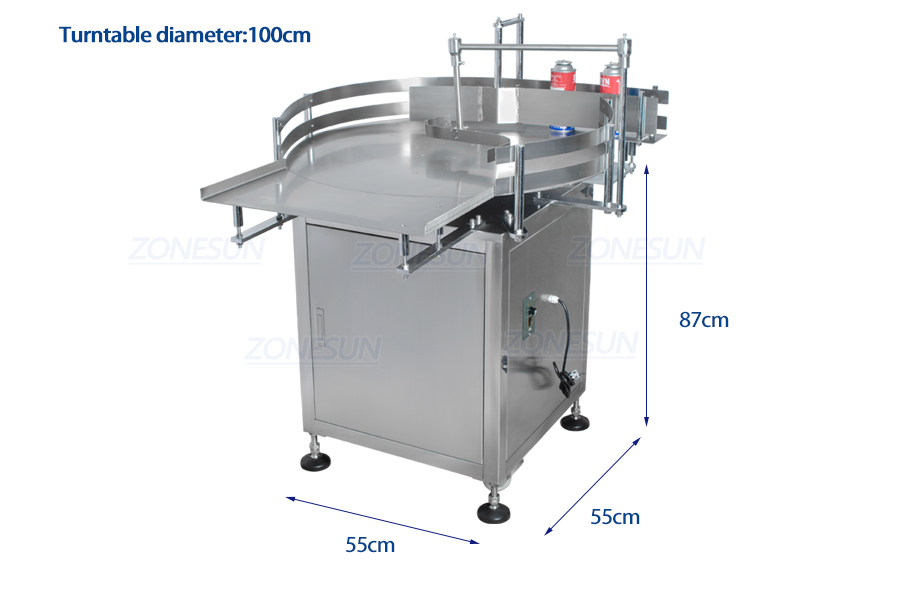

> > Bottle Unscrambler

Suitable Bottle Diameter	20-100mm
Suitable Bottle height	30-120mm
Working Speed	40-60 bottles/min(depends on bottle size)
Motor Power	0.2kw
Power Supply	220V/50-60HZ
Net weight/Gross weight	About 135kg/180kg
Package size	About 1350131.50123.50mm

ZONESUN ZS-180P Automatic Product Production Line-ZONESUN TECHNOLOGY LIMITED

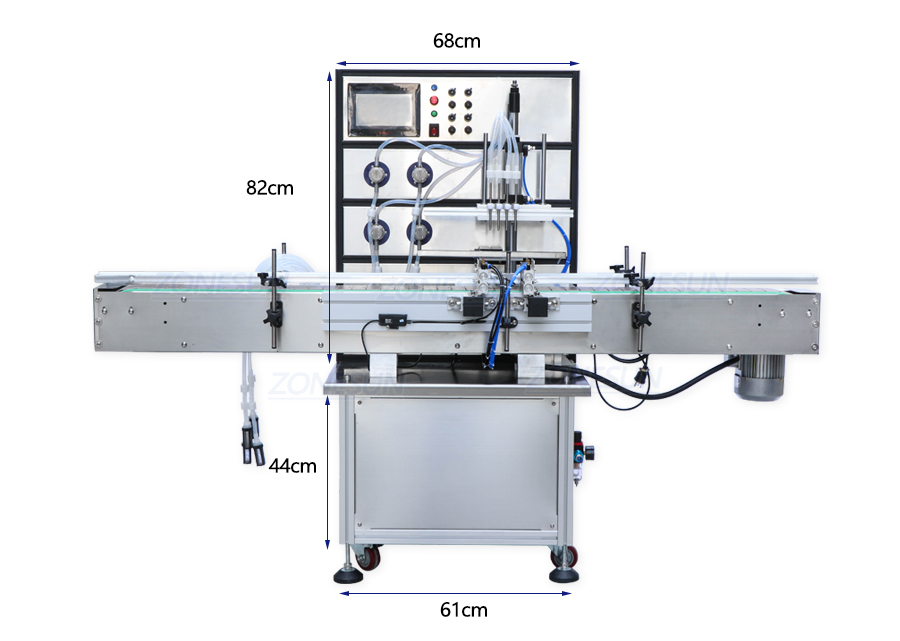

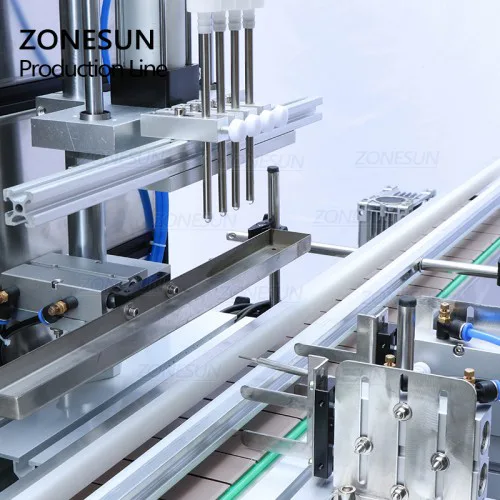

>> Full Automatic Liquid Filling Machine

Container size	φ20-160mm H30-300mm
Max flow rate	3000ml/min	5500ml/min	5500ml/min	7500ml/min
Material of pump	Plastic	304stainlss steel	316stainlss steel	316stainlss steel
Filling accuracy	≤100ml deviations±1ml > 100ml deviation≤±1% ( based on water)
Filling speed	20-40pcs/min	20-50 pcs/ min	20-50pcs/ min	25-60pcs/ min
	(depending on bottles and filling liquid)
Power supply	220V-50HZ/110V- 60HZ
The whole machine power	2kw
Packing weight	About 150kg
Packing size	About 20008201580mm

ZONESUN ZS-180P Automatic Product Production Line-ZONESUN TECHNOLOGY LIMITED

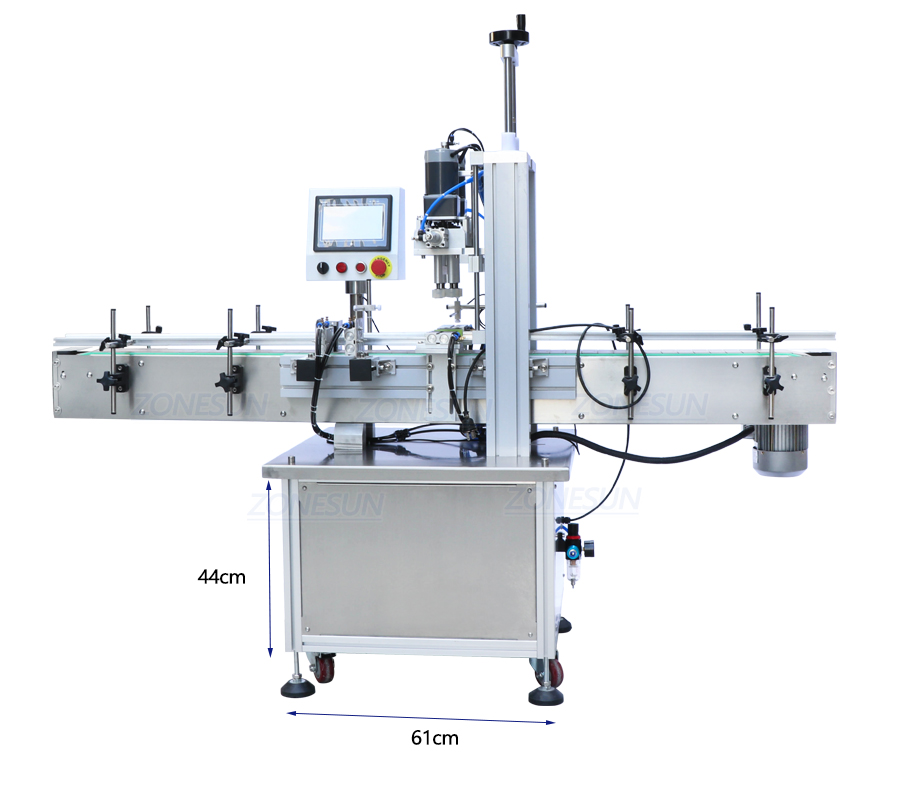

>> Full Automatic Capping Machine

Bottle height	30-300mm
Bottle diameter	18-70mm
Working speed	20-60 bottles / minute (depending on bottle and cap size and shape)
Working voltage	AC220V/110V 50-60HZ
Working pressure	0.4-0.6Mpa
Dimensiom	About 19307401600mm
Packing size	About 20008201760mm
Weight	About 150kg
