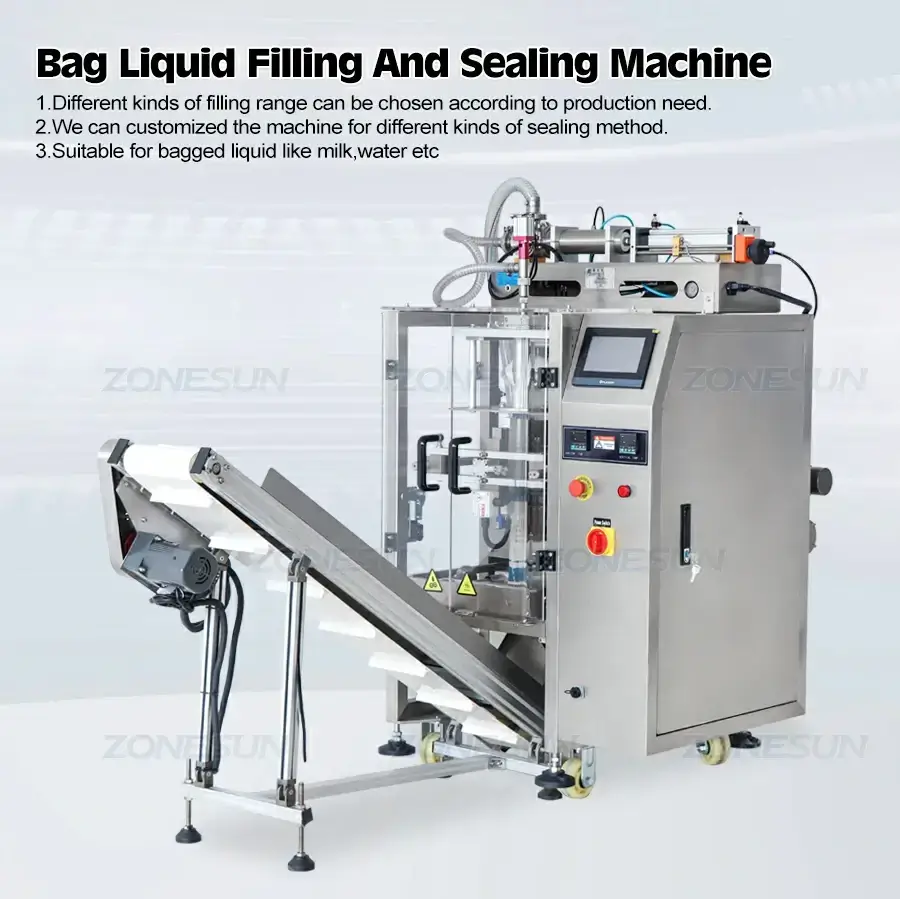

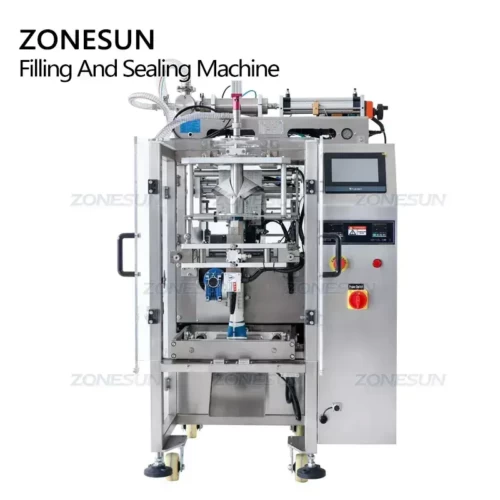

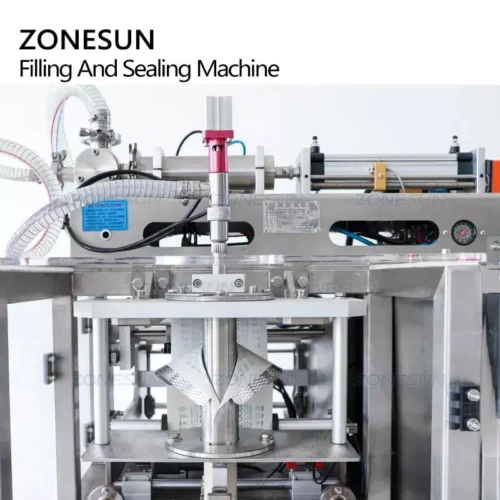

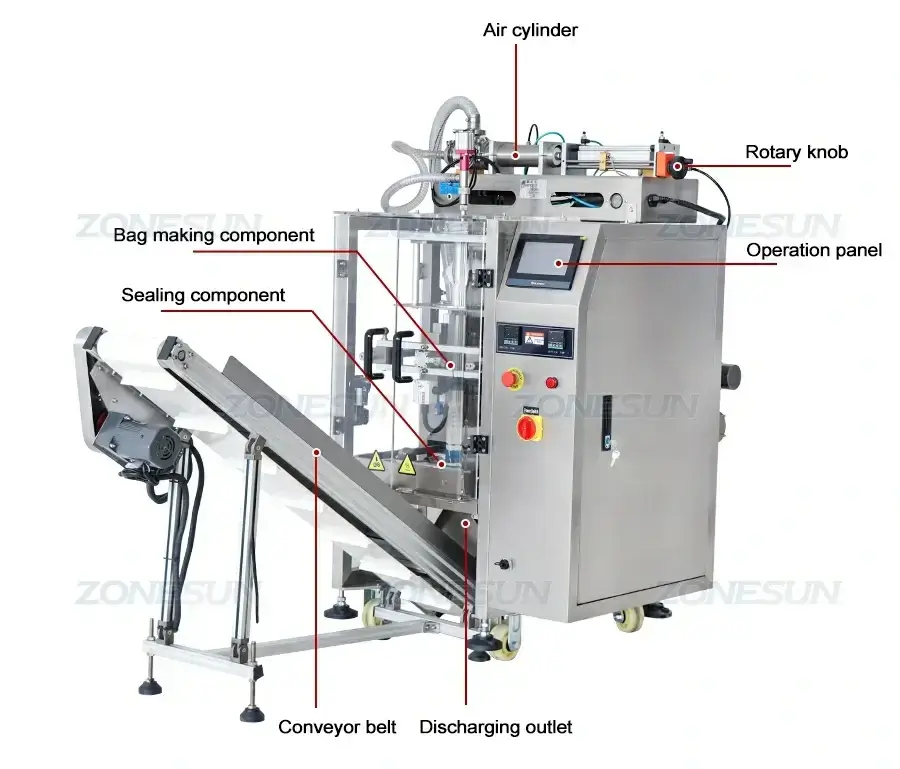

Liquid Bag Back Sealing Packing Machine

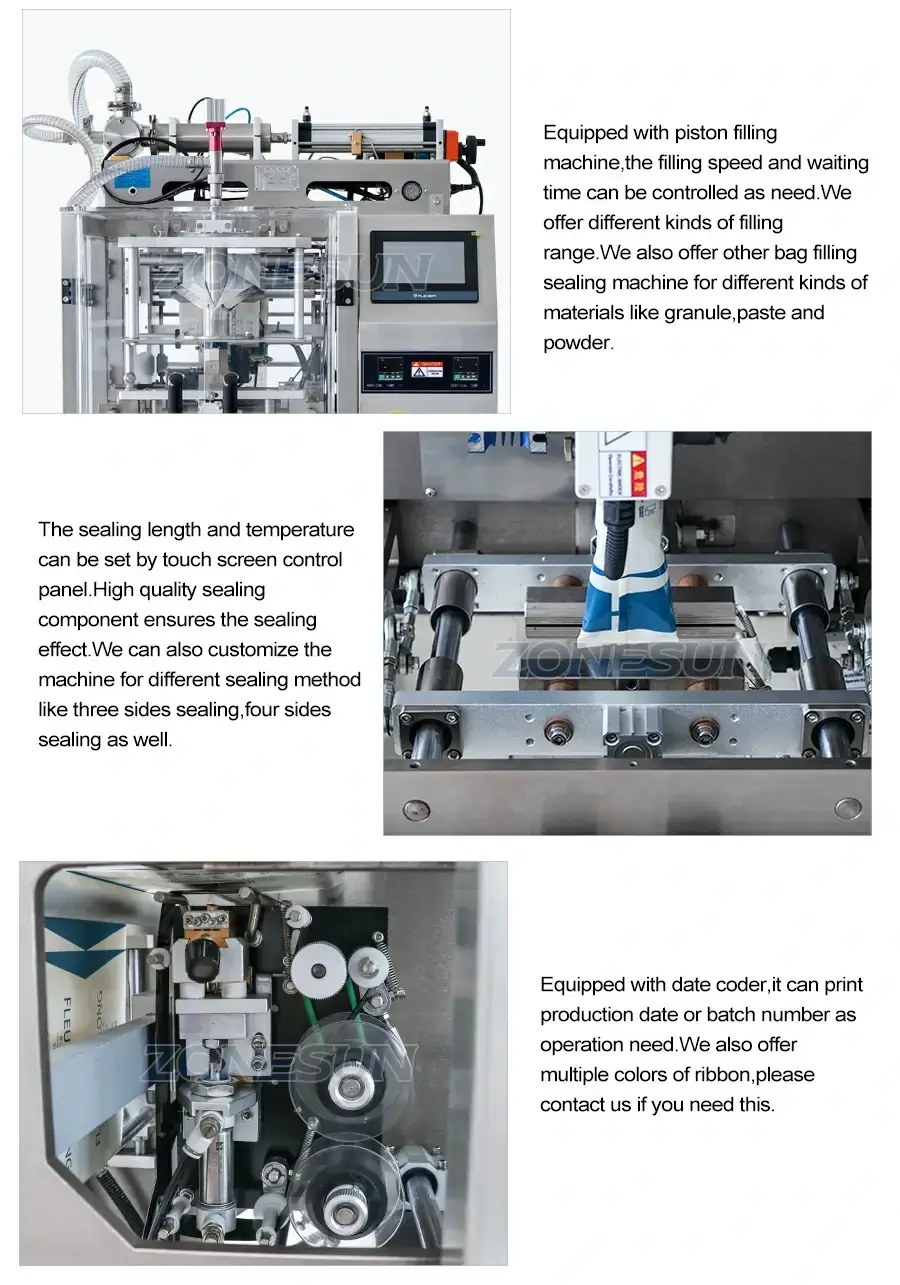

This machine is designed for filling and back side sealing liquid which is packed in bags like bagged milk,bagged water.The filling volume and speed can be adjusted according to operation needs.And we can customize the sealing method according to operation needs.It is widely used in food,beverage and chemical industries.
Parameter:
This machine is designed for filling and back side sealing liquid which is packed in bags like bagged milk,bagged water.The filling volume and speed can be adjusted according to operation needs.And we can customize the sealing method according to operation needs.It is widely used in food,beverage and chemical industries.
Parameter:
| Machine model | ZS-GFYT320 |
| Machine voltage | 110V/220V/380V 50-60HZ |
| Machine power | 4000W |

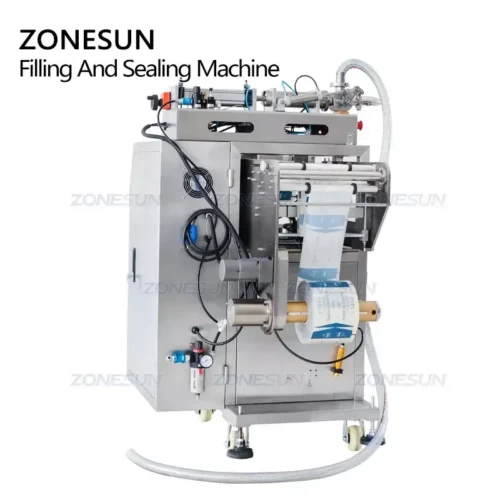

| Suitable film | OPP/CPP OPP/PE NILO PE |
| Weighing method | Auger weighing |
| Filling range | 50-500ml(offer different filling range) |
| Package speed | 5-60bags/min |

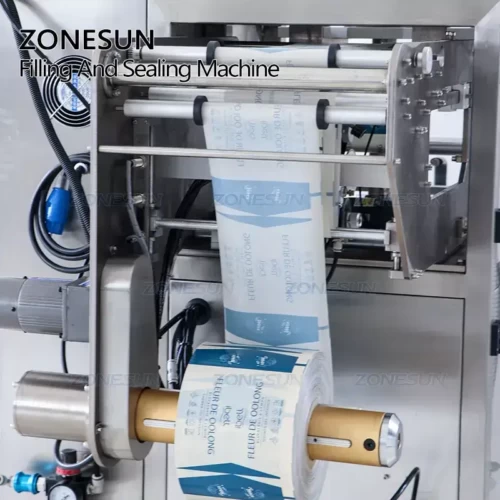

| Width of film | Max 320mm |
| Size of package bags | (W)50-150mm*(L)50-400mm |

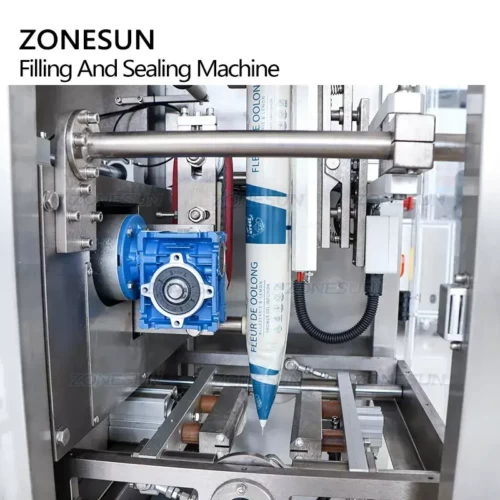

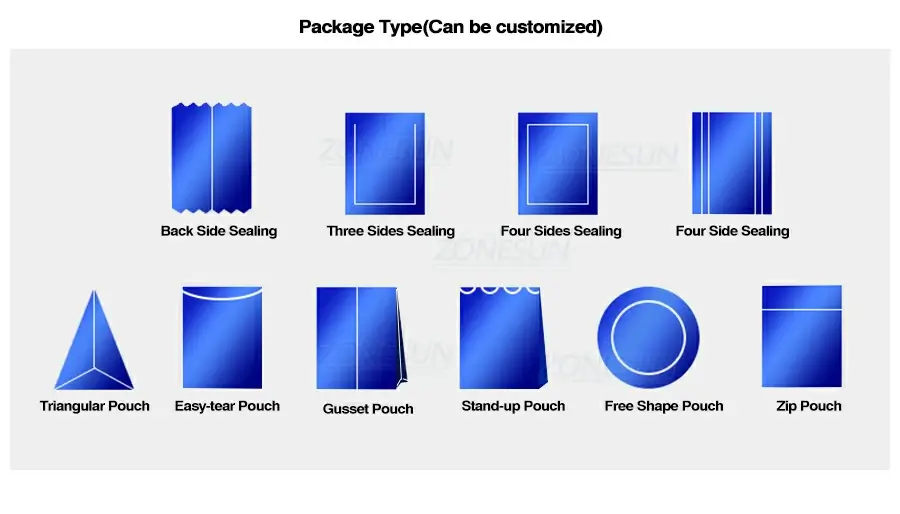

| Sealing method | Back side/Three sides/Four sides(Customize) |
| Filling accuracy | ≤0.3-1% |
| Film thickness | 0.06-0.12mm |
| Air Pressure | 0.65Mpa 0.7m³/min |
| Lifting height | About 1200mm |
| Conveying speed | 50-300mm/s(adjustable) |
| Machine size | About 830*1080*1450mm(Machine) |
| Package size | About 1265*945*1665mm(Machine) About 1740*500*450mm(Conveyor belt) |
| Machine weight | About 289kg(Machine) |
| Package weight | About 333kg(Machine)+About 51kg(Conveyor belt) |
Send your message to us:
Products categories
-
Servo Tracking Capping Machine
-
Liquid Filling Machine
-
10 Heads Corrosive Liquid Filling Machine
-
Bottom Surface Labeling Machine
-
Capping Machine With Cap Vibratory Feeder
-
Irregular Bottle Capping Machine
-
Semi Automatic Granular Weighing Filling Machine
-
Desktop Powder Filling Machine
-
Honey Spoon Filling Sealing Machine
-

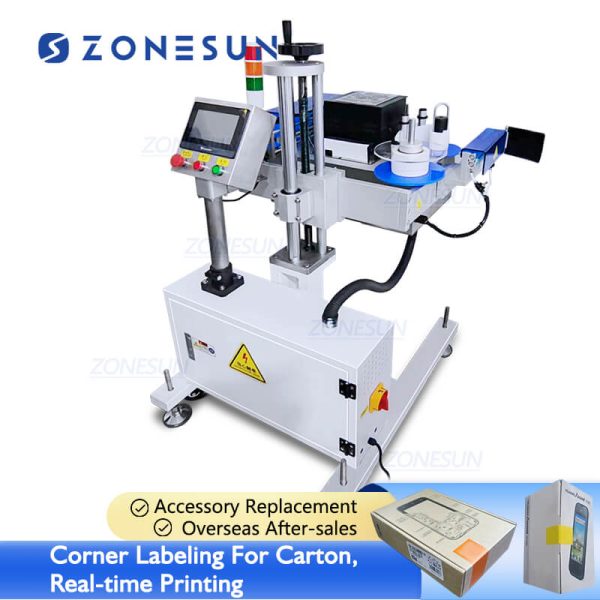

Online Print Label Corner Labeling Machine
