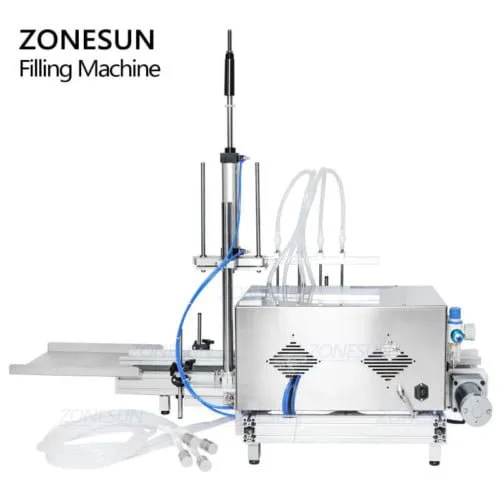

ZONESUN Automatic Desktop Magnetic Pump Diving Filling Machine

Description

This automatic filling machine is with small machine body,and it is with diving nozzles,designed for filling liquid with bubble like sparkling wine,sparkling water,soda water.The pump is magnetic pumps,it can fill liquid accurately.It is also suitable for small laboratories.

Main Advantage

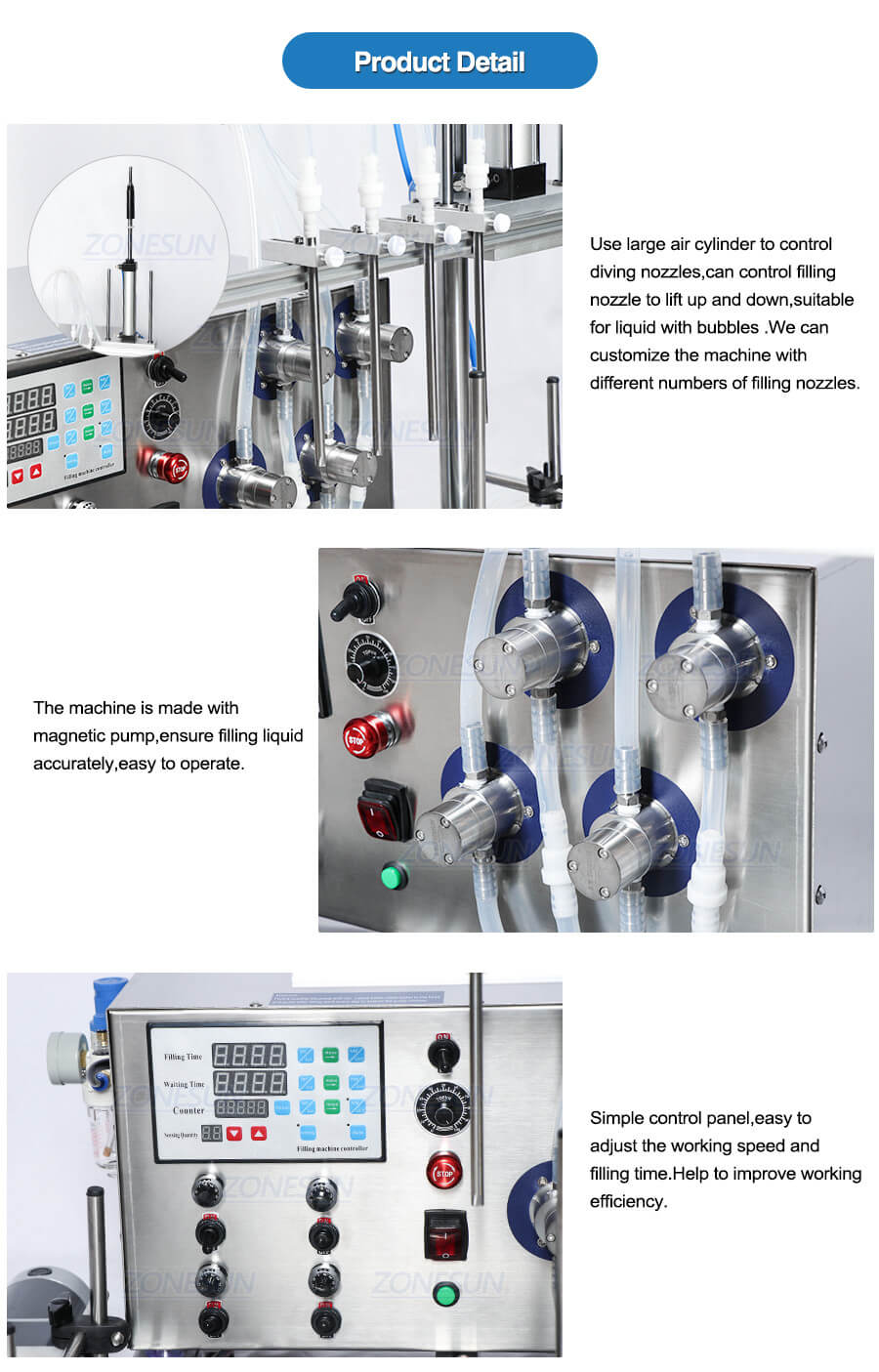

Use large air cylinder to control diving nozzles,can control filling nozzle to lift up and down,suitable for liquid with bubbles .We can customize the machine with different numbers of filling nozzles.

ZONESUN Automatic Desktop Magnetic Pump Diving Filling Machine-ZONESUN TECHNOLOGY LIMITED

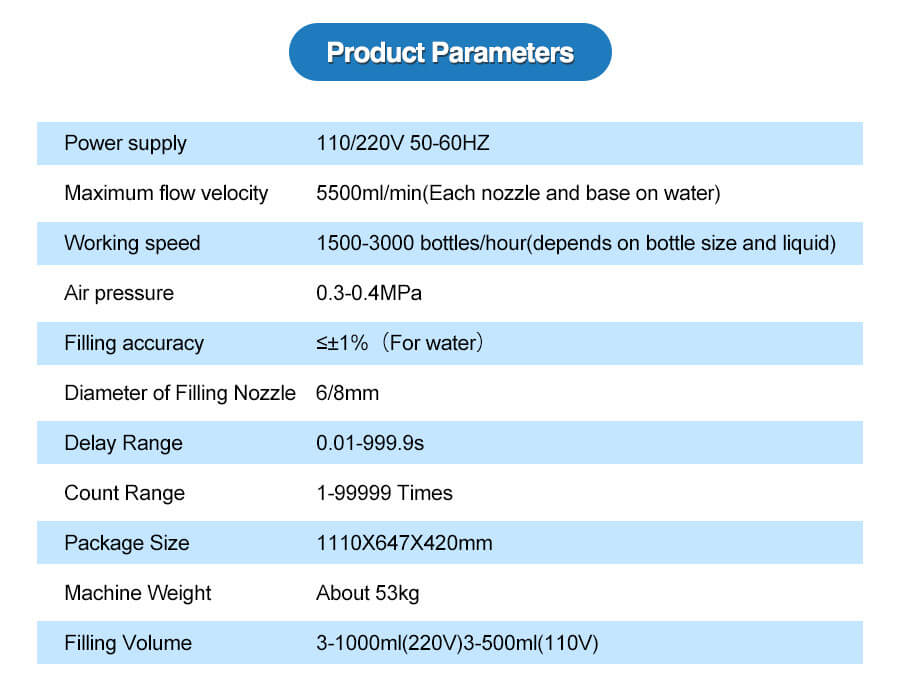

Product parameters:

ZONESUN Automatic Desktop Magnetic Pump Diving Filling Machine-ZONESUN TECHNOLOGY LIMITED

Power supply	110/220V 50-60HZ
Maximum flow velocity	5500m/min(Each nozzle and base on water)
Working speed	1500-3000 bottles/hour(depends on bottle size and liquid)
Air pressure	0.3-0 4MPa
Filing accuracy	≤+1% (For water)
Diameter of Filling Nozzle	6/8mm
Delay Range	0.01-999.9s
Count Range	1-99999 Times

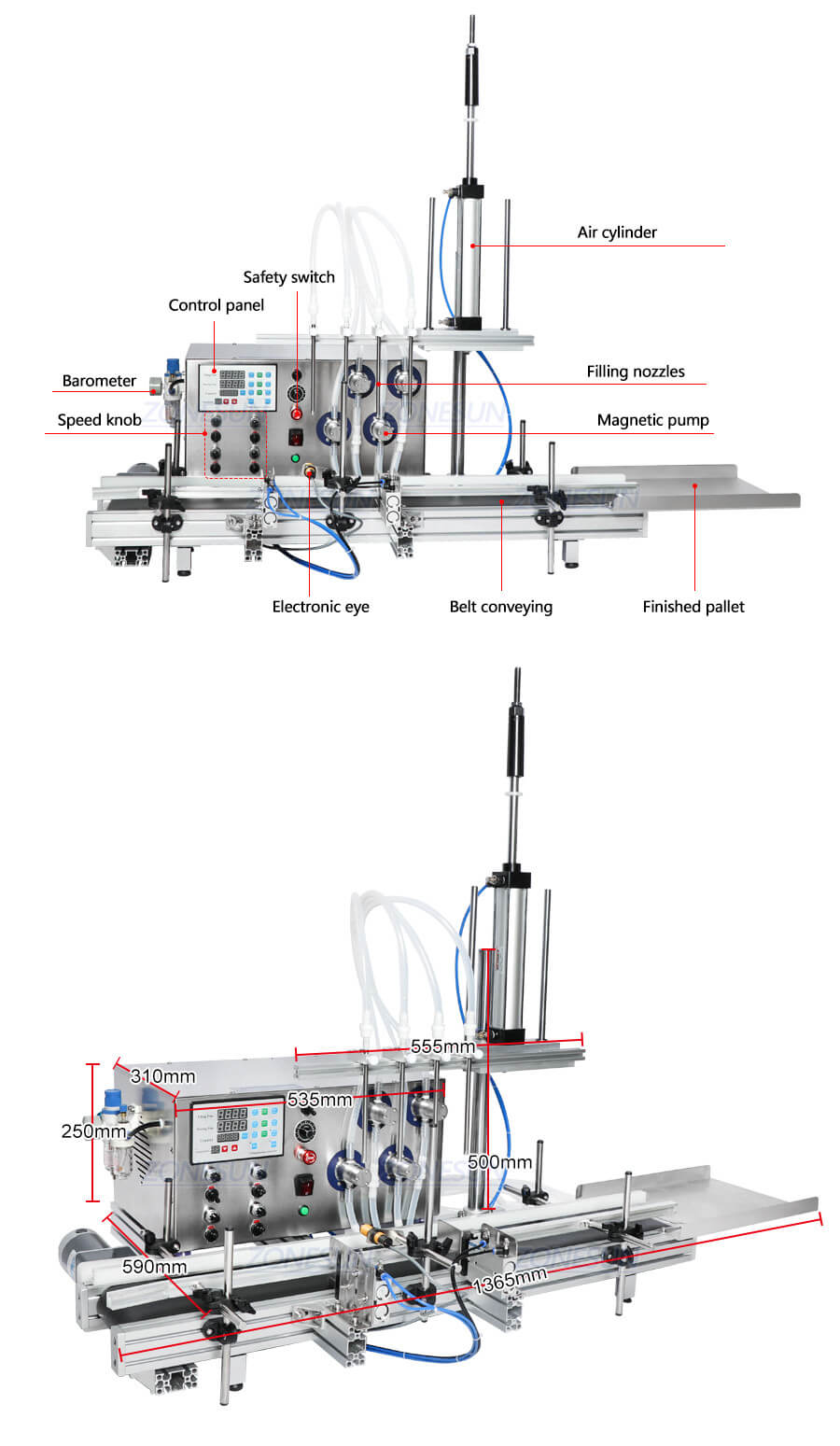

Machine Size	1350x710x600mm
Machine Weight	About 50kg
Filling Volume	3-1000ml(220V)3 -500ml(110V)

ZONESUN Automatic Desktop Magnetic Pump Diving Filling Machine-ZONESUN TECHNOLOGY LIMITED

FAQ:

Q:Do you offer double nozzle filling machine instead of four nozzle filling machine?
A:Yes.We can offer double nozzle desktop filling machine.The number of nozzle can be customized as customers’need

Q:If I use this machine to fill my foamy liquid,will it influence the filling accuracy?
A:No.This machine is designed for foamy liquid,and diving nozzle can help to reduce foam.And this machine is made with magnetic pump,the advantage of magnetic pump is filling liquid accurately.
