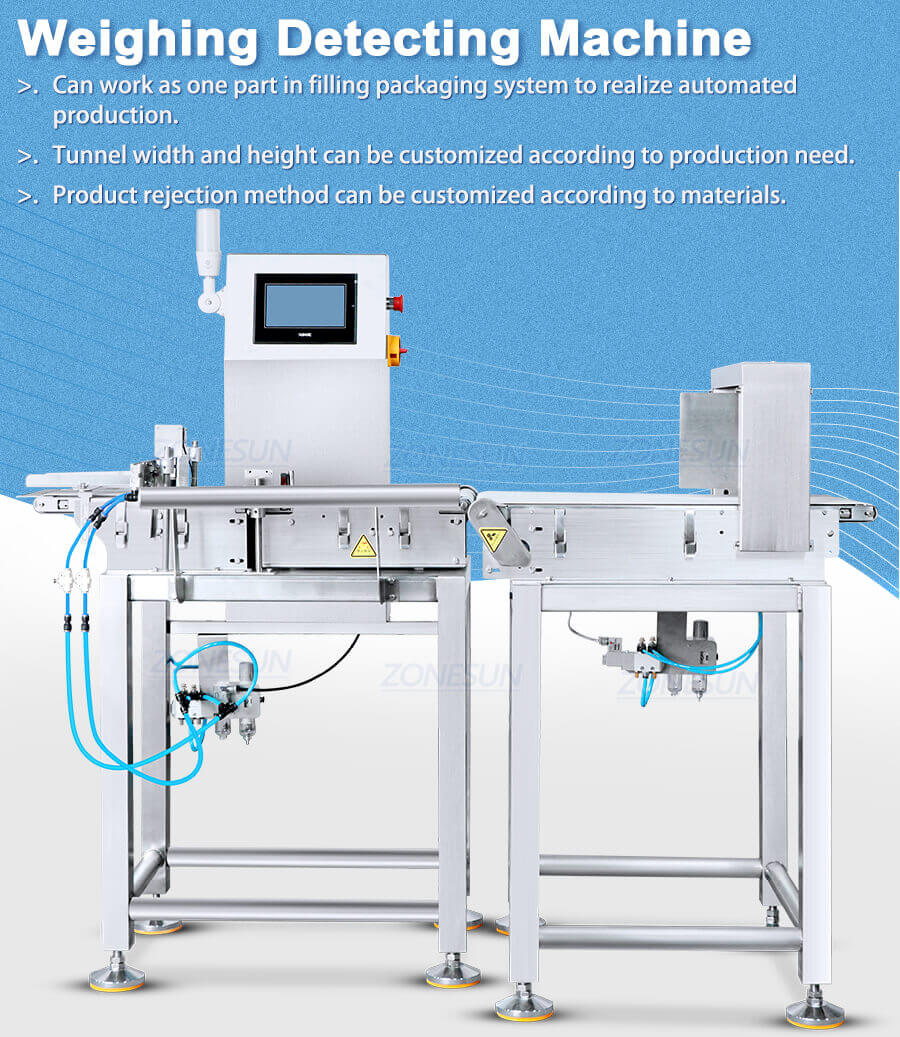

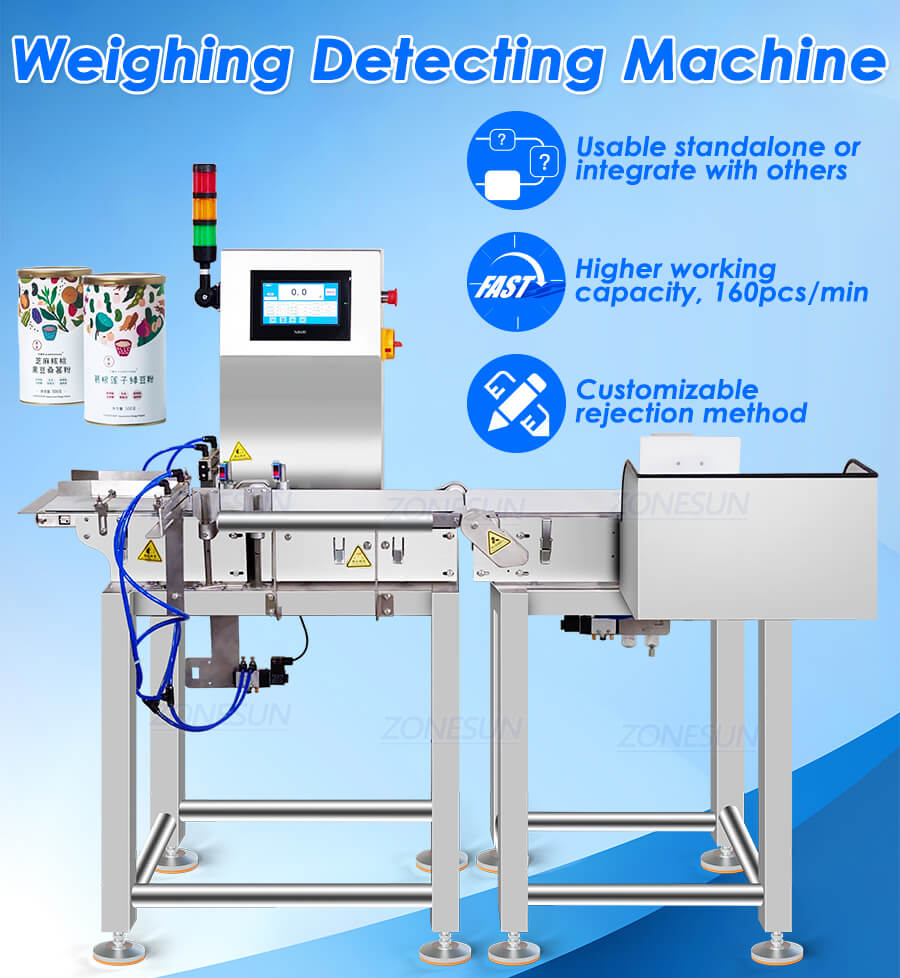

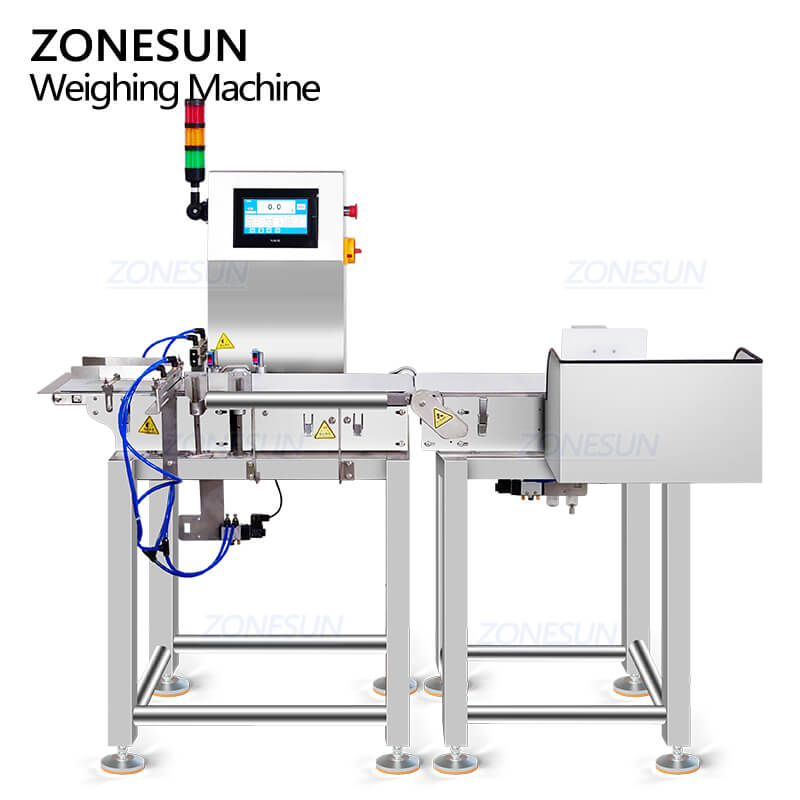

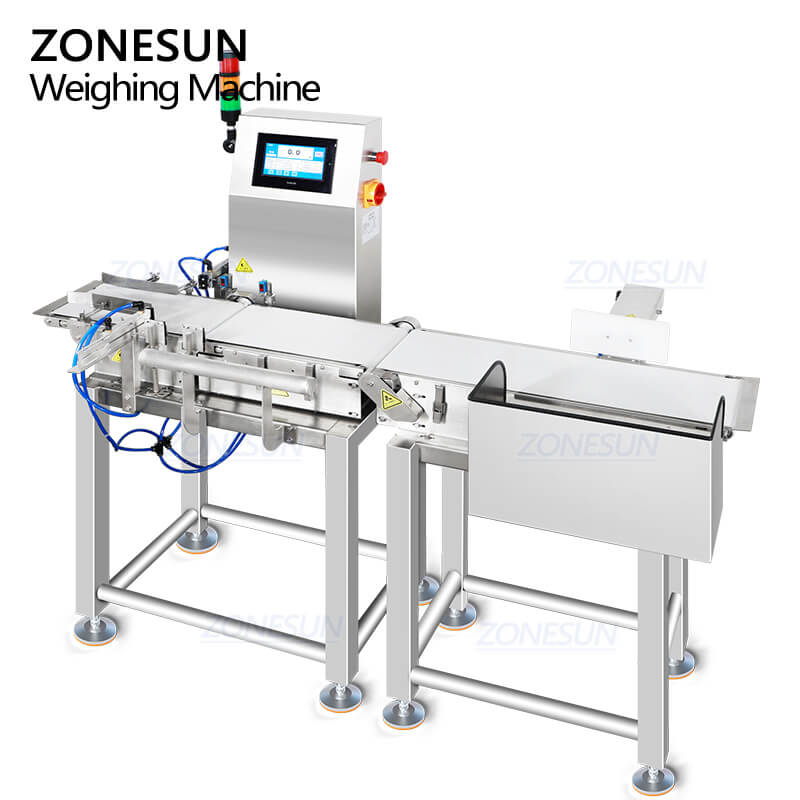

Weighing Detecting Machine
A weighing detecting machine r is a specialized weighing machine used in various industries to ensure that the weight of a product falls within specified limits. These devices are commonly employed in manufacturing and packaging processes to maintain quality control. It is commonly used in industries such as food,cosmetics and beverage industries.
Price range: $3,899.00 through $3,999.00
Share to
A weighing detecting machine r is a specialized weighing machine used in various industries to ensure that the weight of a product falls within specified limits. These devices are commonly employed in manufacturing and packaging processes to maintain quality control. It is commonly used in industries such as food,cosmetics and beverage industries.
| Machine model | ZS-MD210 |
| Power supply | AC220V±10% 50HZ (60HZ) |
| Rated power | 0.15KW |
| Single weighing range | 1500g |
| Weighing accuracy range | ±0.2g-±0.5g |
| Minimum scale | 0.1g |
| Conveying speed | 30-100m/min |
| Maximum speed | 160pcs/min |
| Weighed material size | 300mm (L)*200mm (W) |
| Weighing platform conveyor belt size | 400mm (L)*210mm (W) |
| Product size | 1522mm(L)*560mm (W)*1222mm(H) |
| Rejection method | Push rod type/swing arm type/flip plate type/air blowing type/belt sinking type |
| Control system | high-speed A/D sampling controller |
| External air source | 0.6-1Mpa |
| Air pressure interface | 8mm |
| Body material | SUS304 stainless steel |
| Package size | About 1350*920*1540mm |
| Package weight | About 287kg |
| *Specifications are for reference only and may vary by your product. Please confirm with us if required. | |

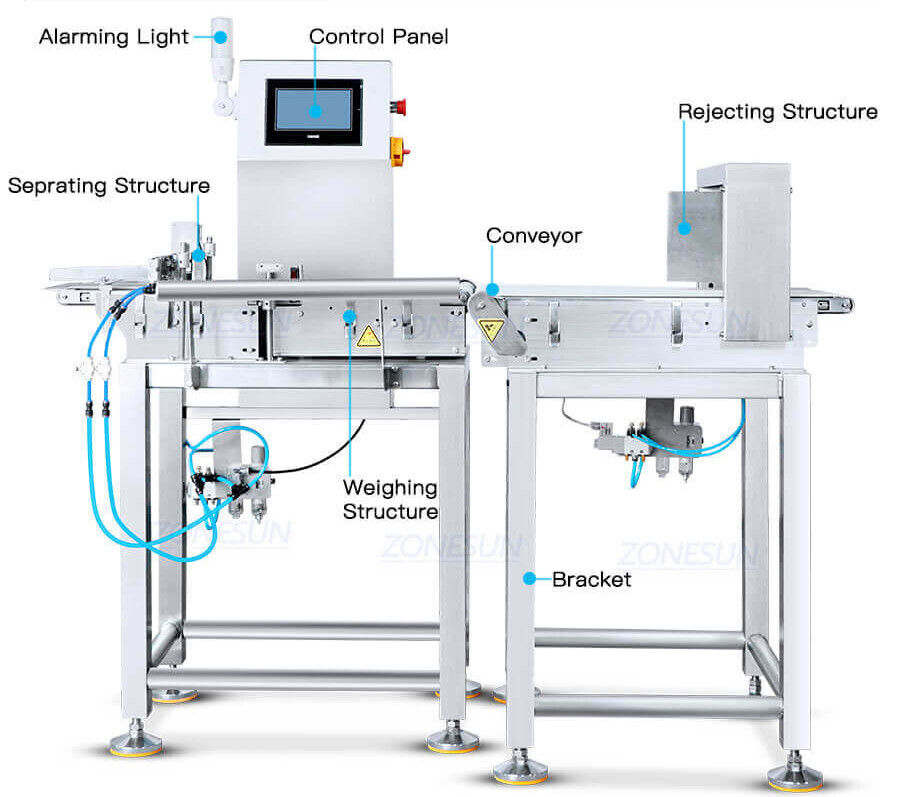

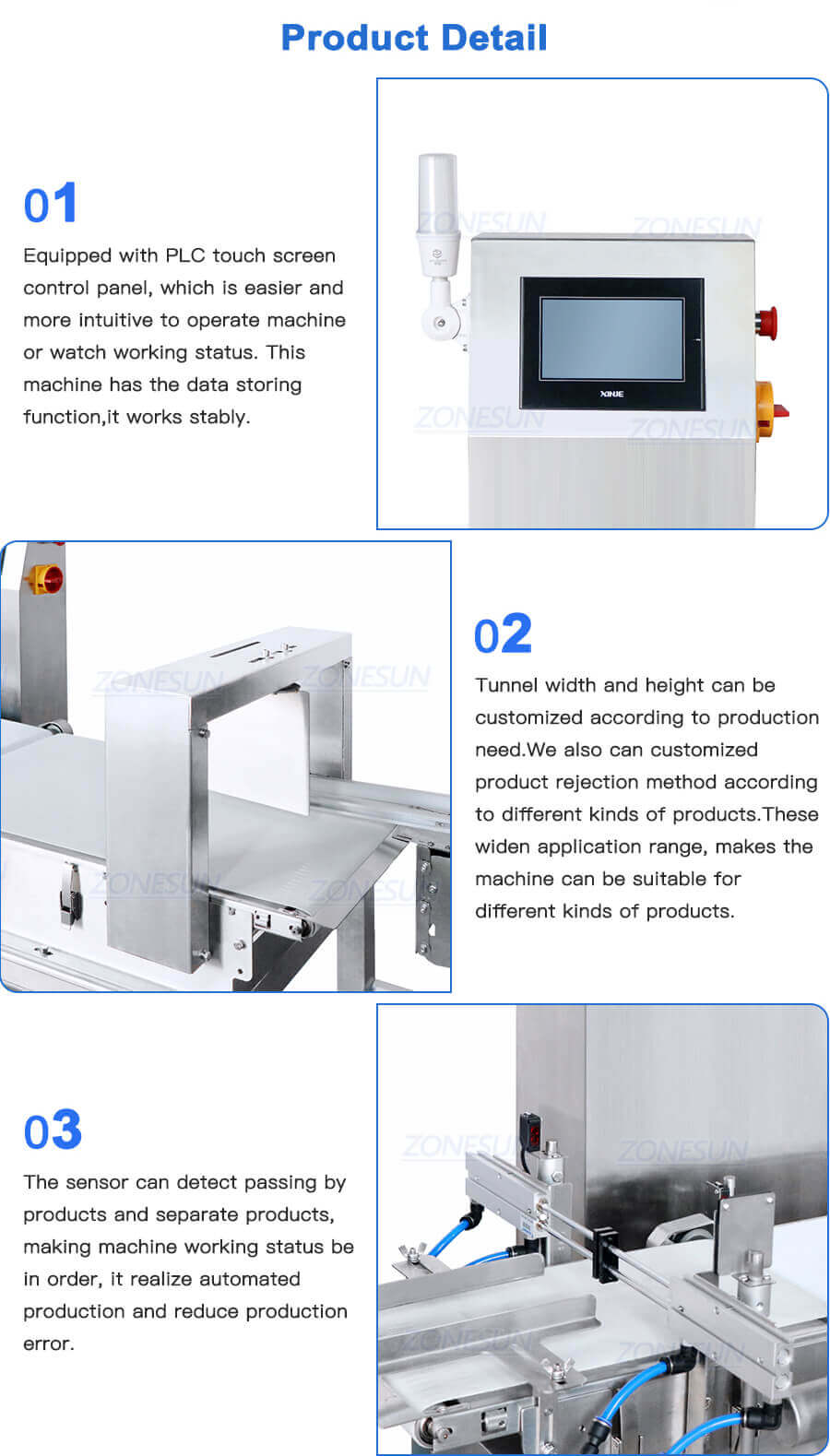

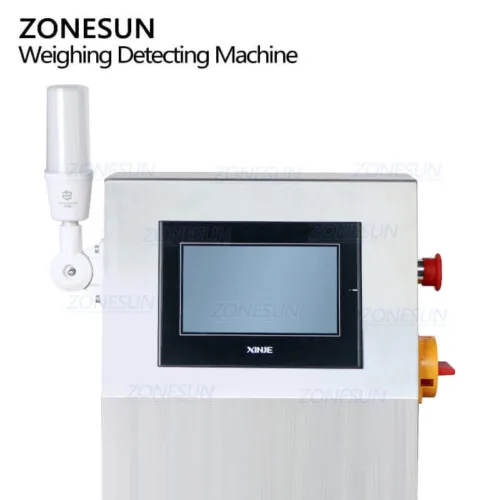

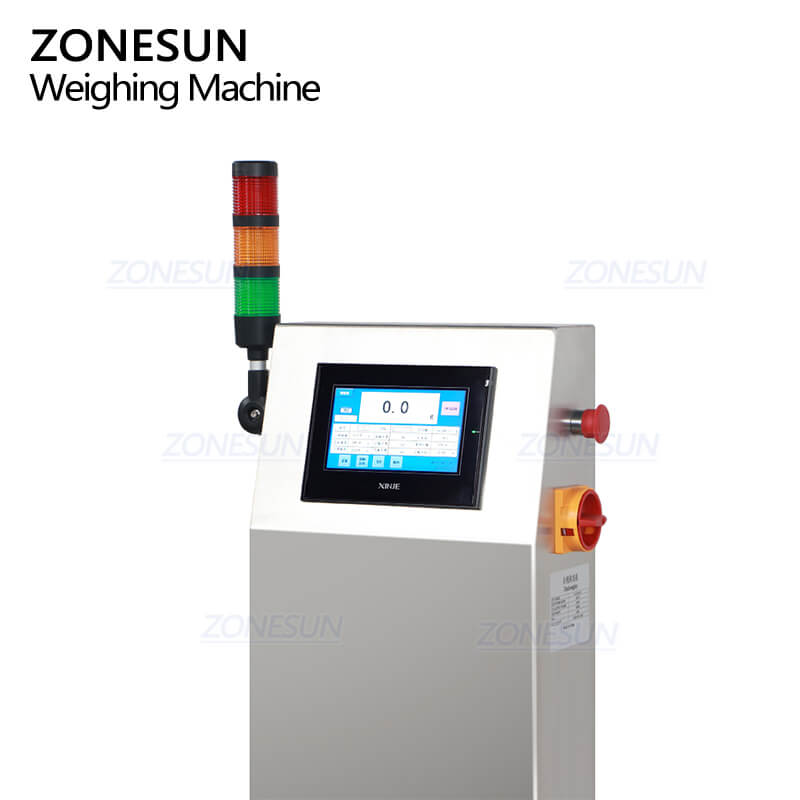

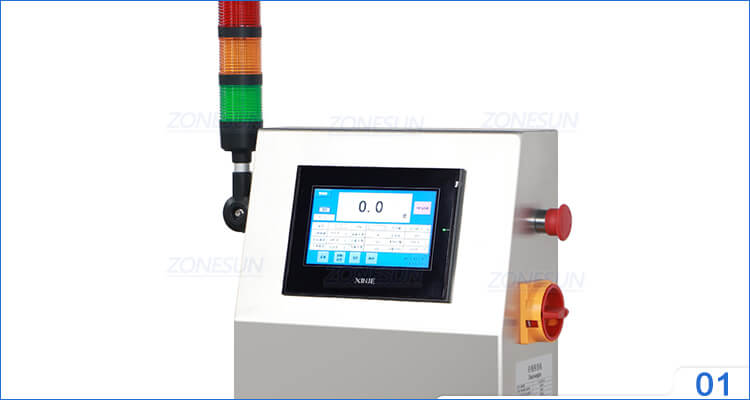

Control Panel
Touch screen control panel for more intuitive operation, it also has the data storing function.

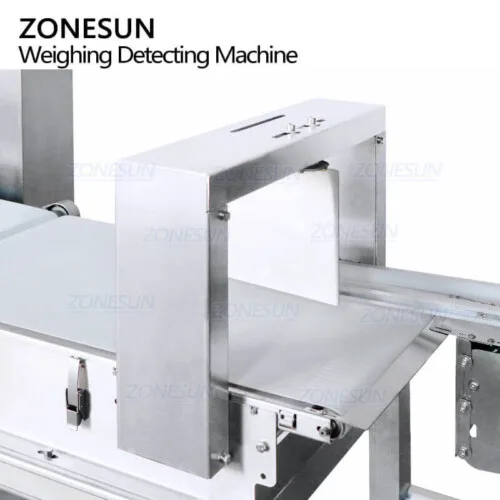

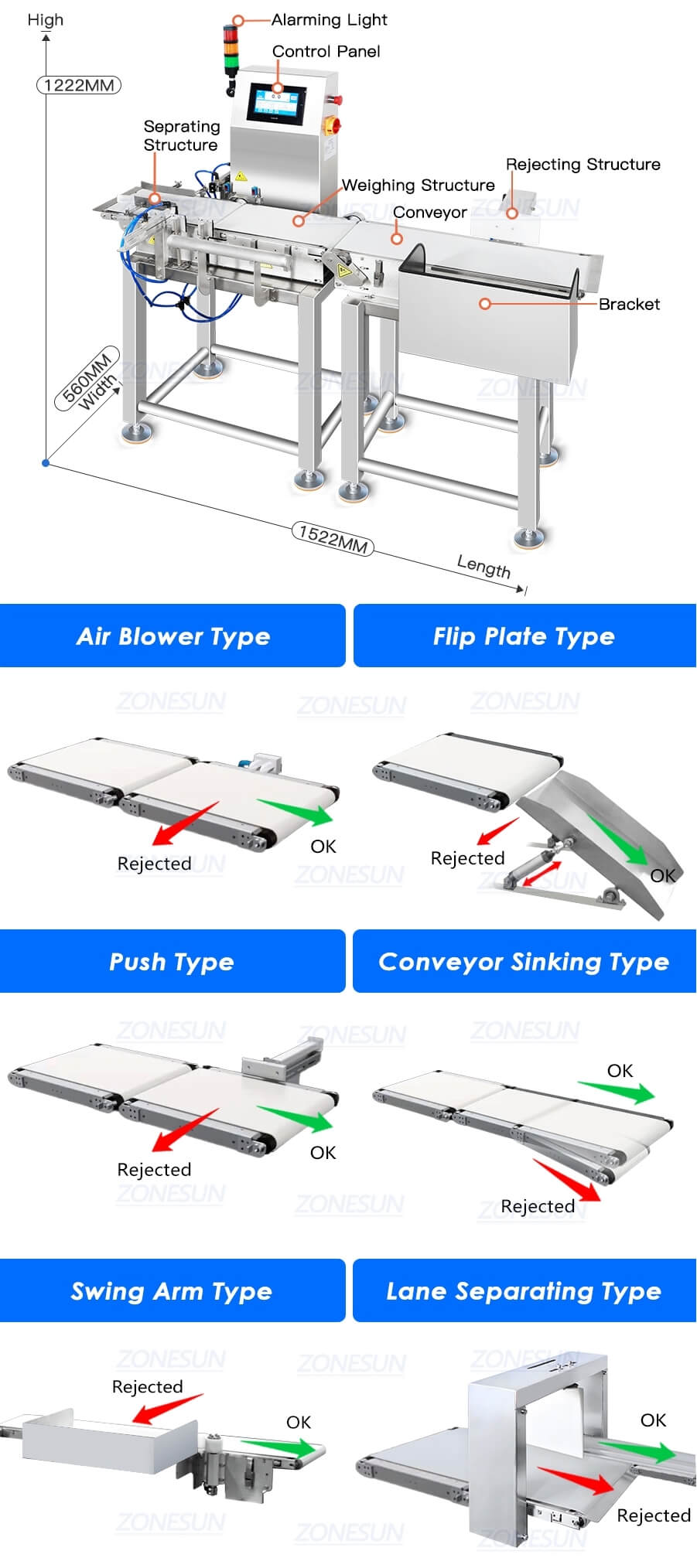

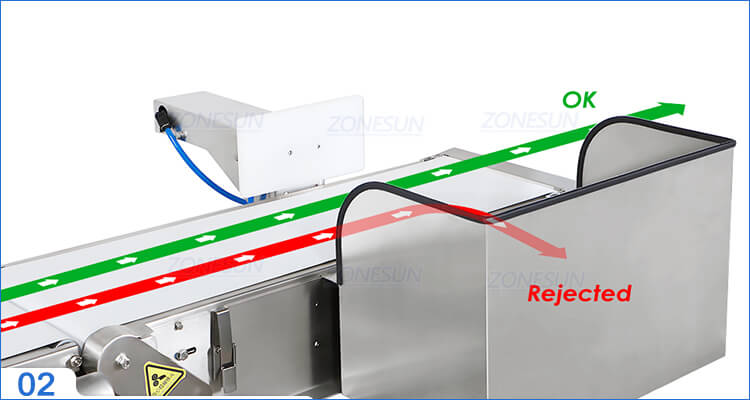

Rejecting Structure
Customizable rejection method according to different kinds of products includes push rod type, swing arm type, flip plate type, air blowing type and belt sinking type.

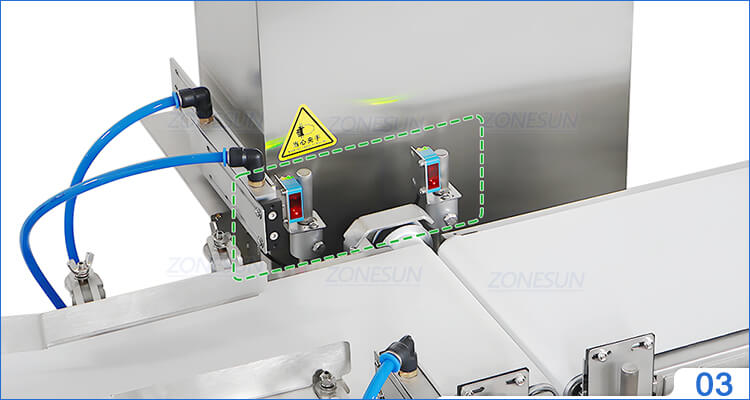

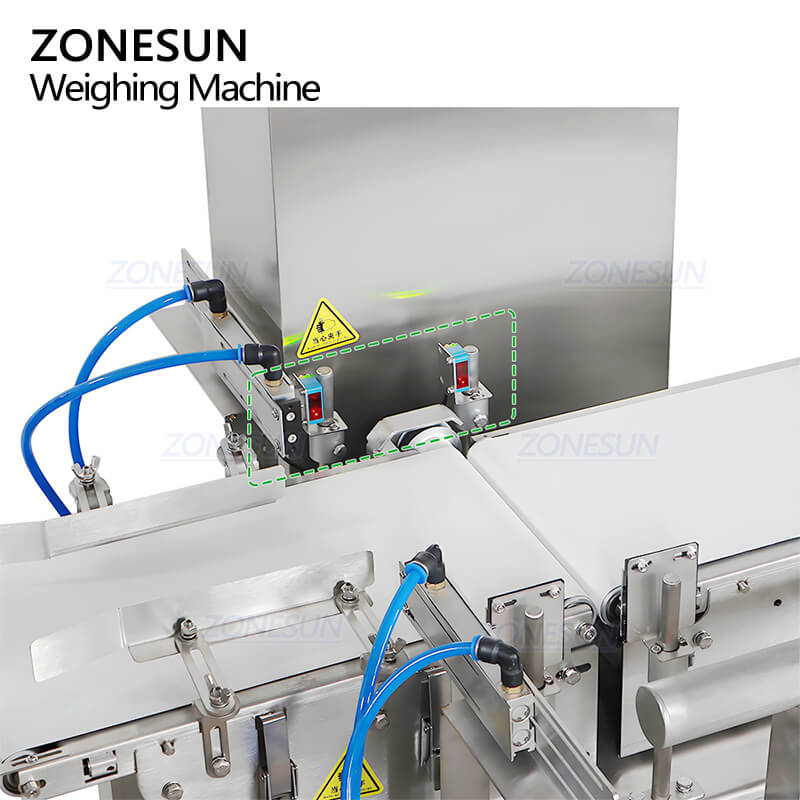

Sensor
The sensor can detect passing by products and separate products, it realizes automated production.

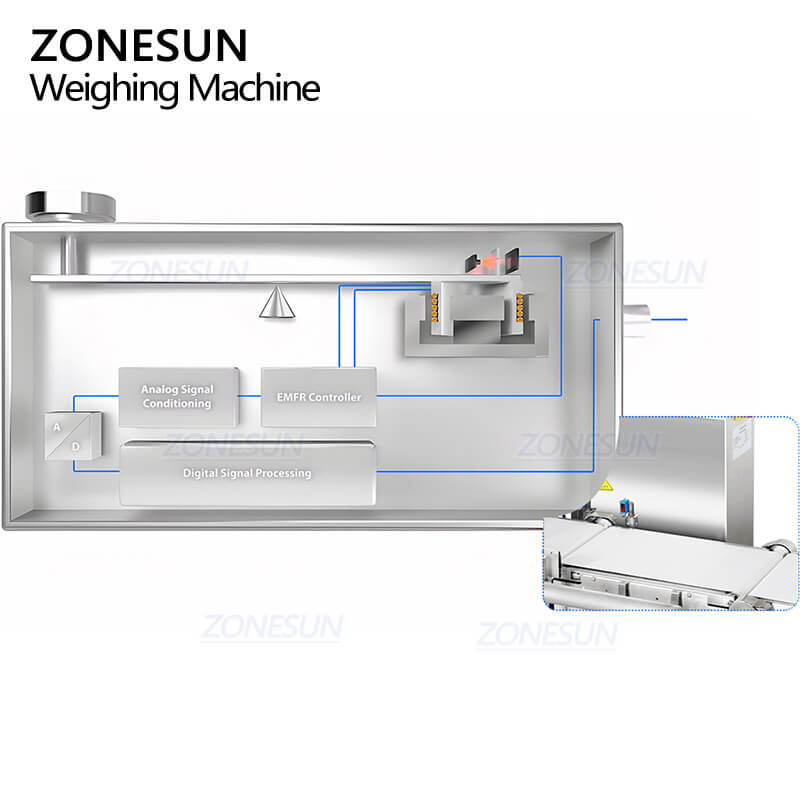

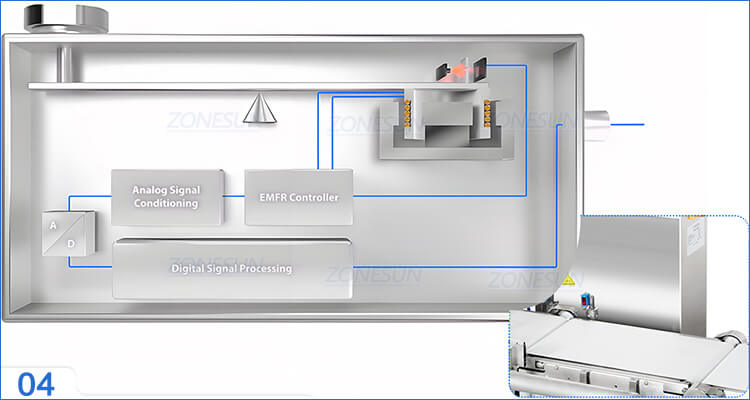

Weighing Structure
With 0.2-0.5g weighing error, this weighing checking machine is suitable for ≤1500g products.
