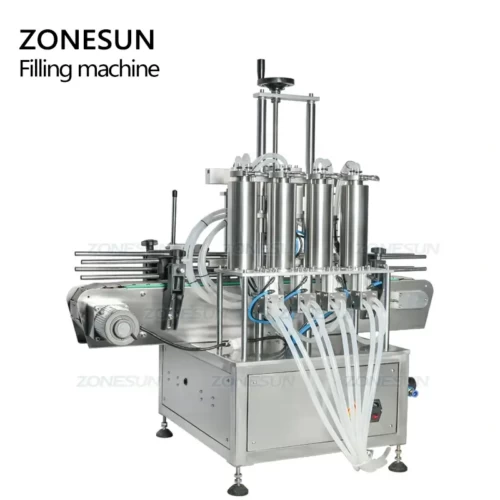

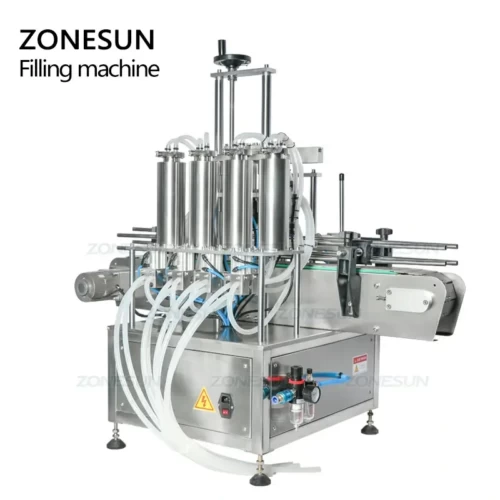

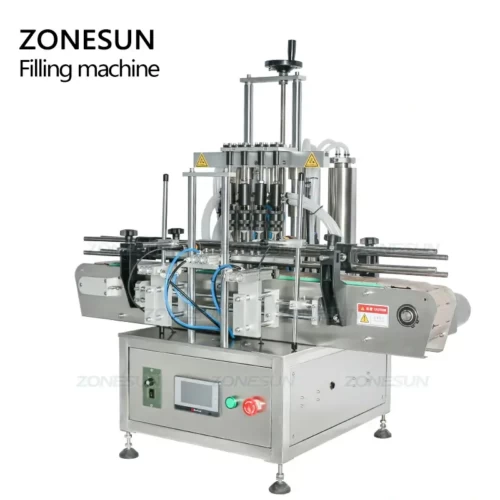

Desktop Vacuum Perfume Filling Machine
Description:

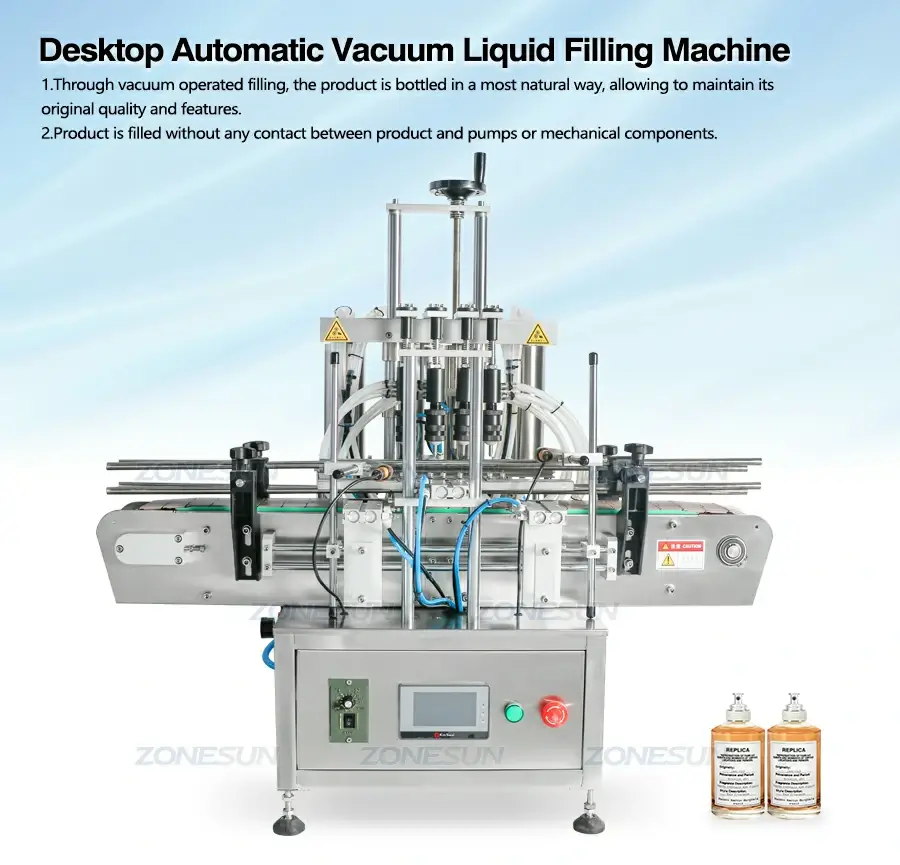

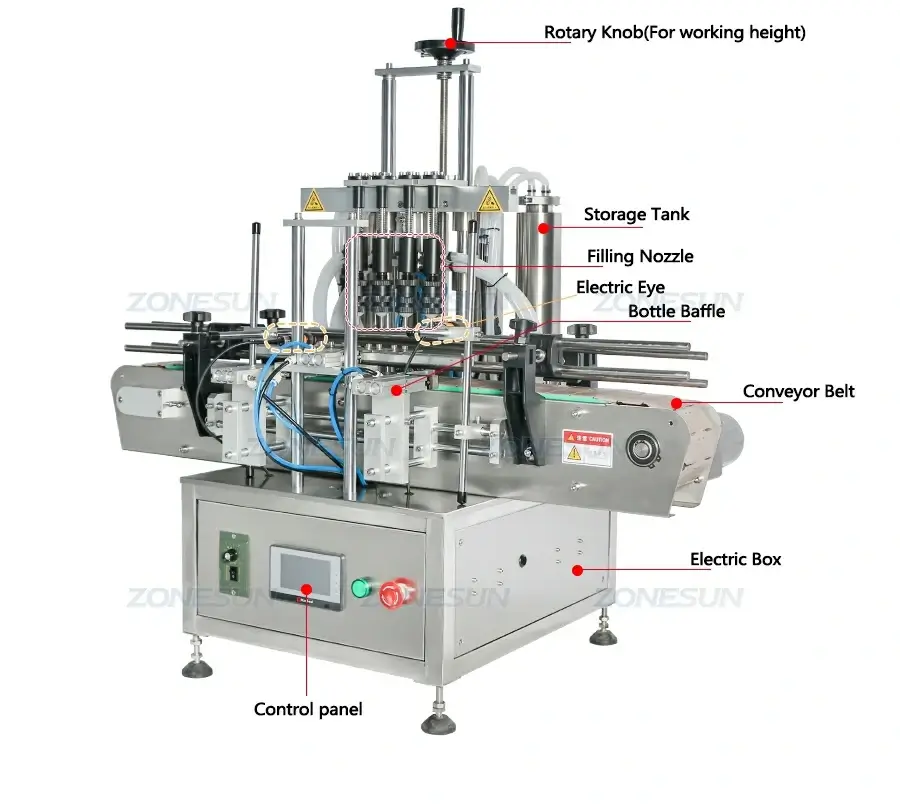

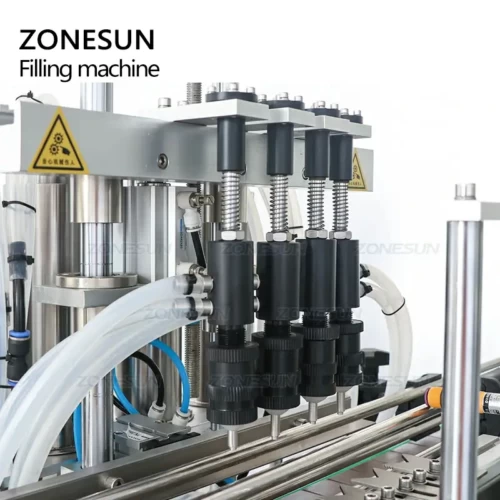

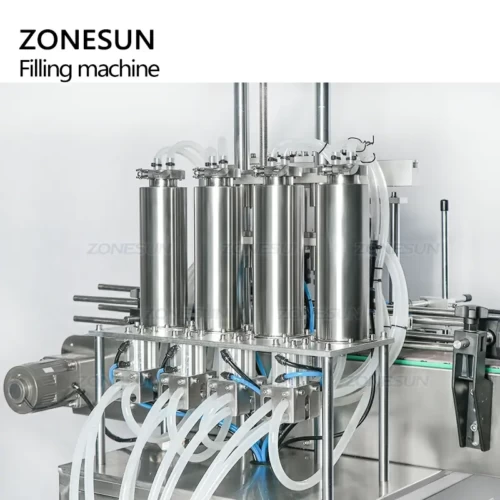

When filling nozzle inserted into an empty bottle,the seal rings will help to seal bottle and the air in the bottle will be pulled out by vacuum pump.The vacuum in the bottle then sucks liquid into the bottle. When the bottle is full and reaches the preset filling level,the extra liquid will be transferred back to the storage tank,and the bottle will keep full.
Parameter:
| Machine model | ZS-DTZL500 |
| Machine power | About 80W |
| Filling range | About 5-500ml |
| Filling speed | 20-40 bottles/min (4 nozzles) |
| Machine air pressure | 0.4-0.8MPa |
| Applicable bottle height | <200mm |
| Applicable bottle mouth diameter | <22mm |
| Adjustable liquid surface distance | 5-20mm |
| Suitable bottle diameter | <100mm |
| Machine size | About 1170*690*1180mm |
| Machine weight | About 71kg |
| Package size | About 1100*580*1090mm |
| Package weight | About 107kg |
