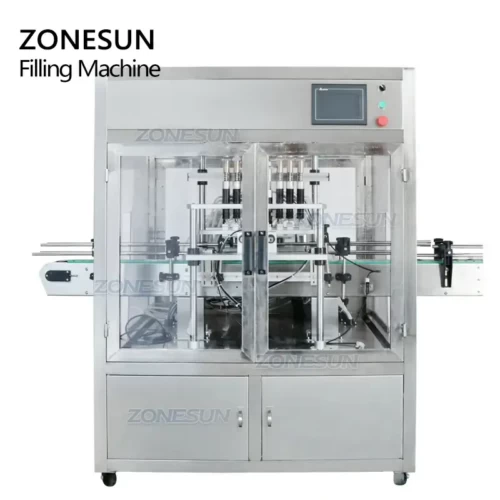

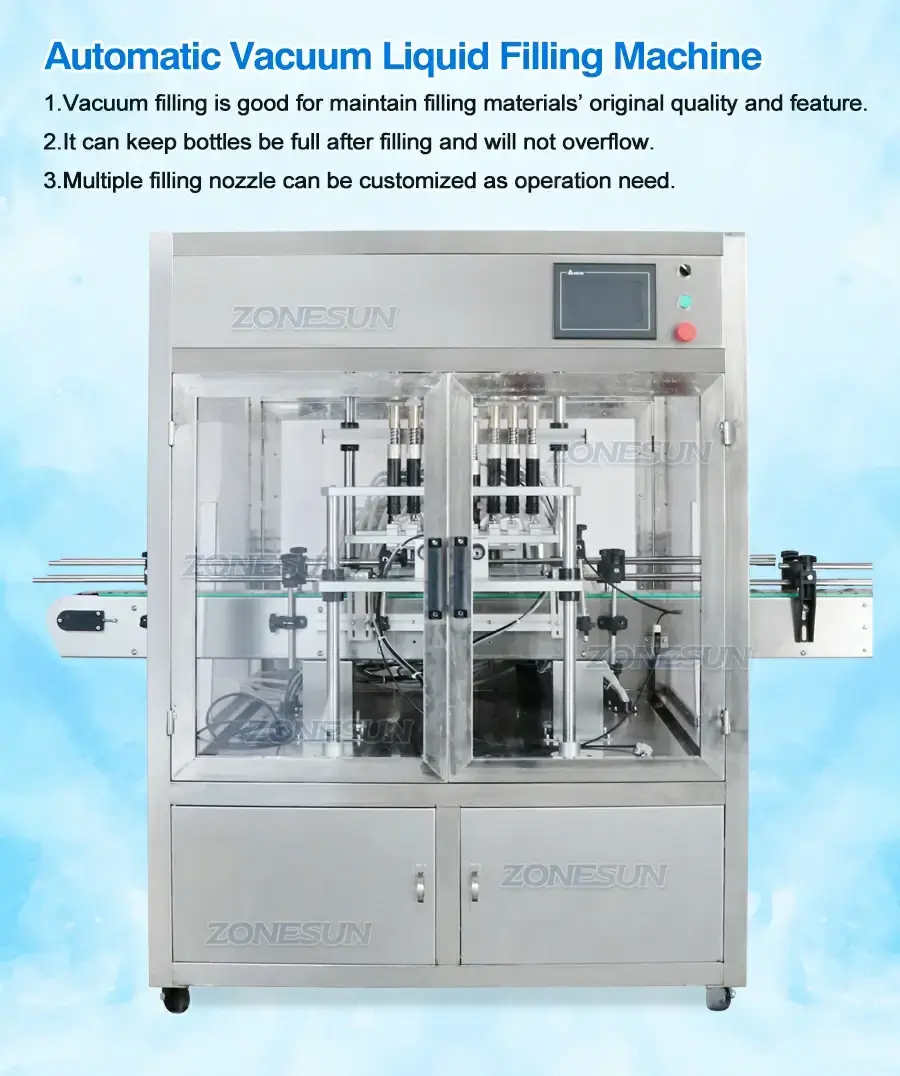

Vacuum Perfume Filling Machine
Description:
This automatic filling machine fill liquid in a most natural way,which allows to maintain filling materials’original quality and feature.This is an ideal choice for perfume,fresh juice,wine etc.It is widely used in beverage,cosmetics,and daily chemical industries.
Parameter:
| Model | ZS-YTZL8A |

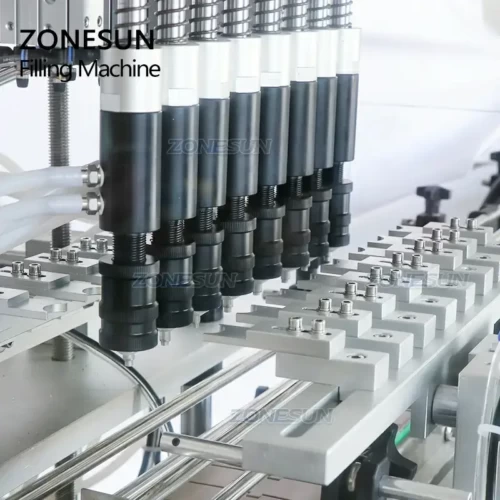

| Filling head | 8 Head |
| Air pressure | 0.5-0.8MPa |
| Liquid level accuracy | ±1mm |
| Viscosity range | The maximum applicable viscosity is 20Cps (static viscosity) |
| Working speed | 20-60 Bottles/Minute |
| Bottle height | ≤250mm |
| Bottle opening size | ≤φ4.5mm-φ28mm |
| Adjustable liquid level (from the bottle mouth) | ＜27mm |
| Air pumping rate | 5.5L/S |
| Machine size | About 2000*1395*1715mm |
| Machine weight | About 480kg |
| Package size | About 2095*1560*1850mm |
| Package weight | About 550kg |
Send your message to us:
Products categories
-
4 Nozzles Diaphragm Pump Filling Machine
-

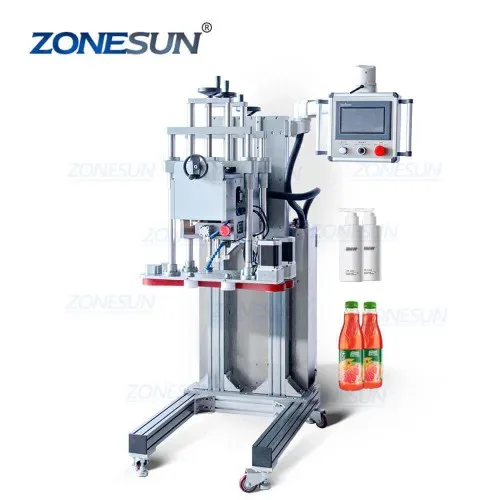

Automatic Capping Machine
-
