Can integrate with conveyor belt and detect passing by lasering object to work automatically.
UV Laser Marking Machine
A UV laser marking machine is a device that uses ultraviolet (UV) laser beams to mark or engrave various materials. they has high precision, and they are widely used in surface marking of glass, metal, plastic, wood, leather, acrylic, nano, cloth, ceramic, purple sand, and coated film (Actual testing is required due to different ingredients)
Share to
Product Description:
A UV laser marking machine is a device that uses ultraviolet (UV) laser beams to mark or engrave various materials. they has high precision, and they are widely used in surface marking of glass, metal, plastic, wood, leather, acrylic, nano, cloth, ceramic, purple sand, and coated film (Actual testing is required due to different ingredients)
Product Parameters:
| Machine model | ZS-UVC1 |
| Actual output power | ≥5.5KW |
| Machine power | 800w |
| Laser wavelength | 355nm |
| Control system | 10.2-inch touch screen (Linux system) |
| Production speed | 0-130m/min (depending on the material) |
| Minimum line width | 0.0012mm |
| Marking range | 110X110mm (optional) |
| Marking speed | ≥12000mm/s |
| Cooling method | water cooling |
| Multi-language | English, French, Spanish, German, Chinese, Russian, Korean, Arabic, etc( can be added) |
| Suitable material | Glass, metal, plastic, wood, leather, acrylic, nano, cloth, ceramic, purple sand, and coated film (Actual testing is required due to different ingredients) |

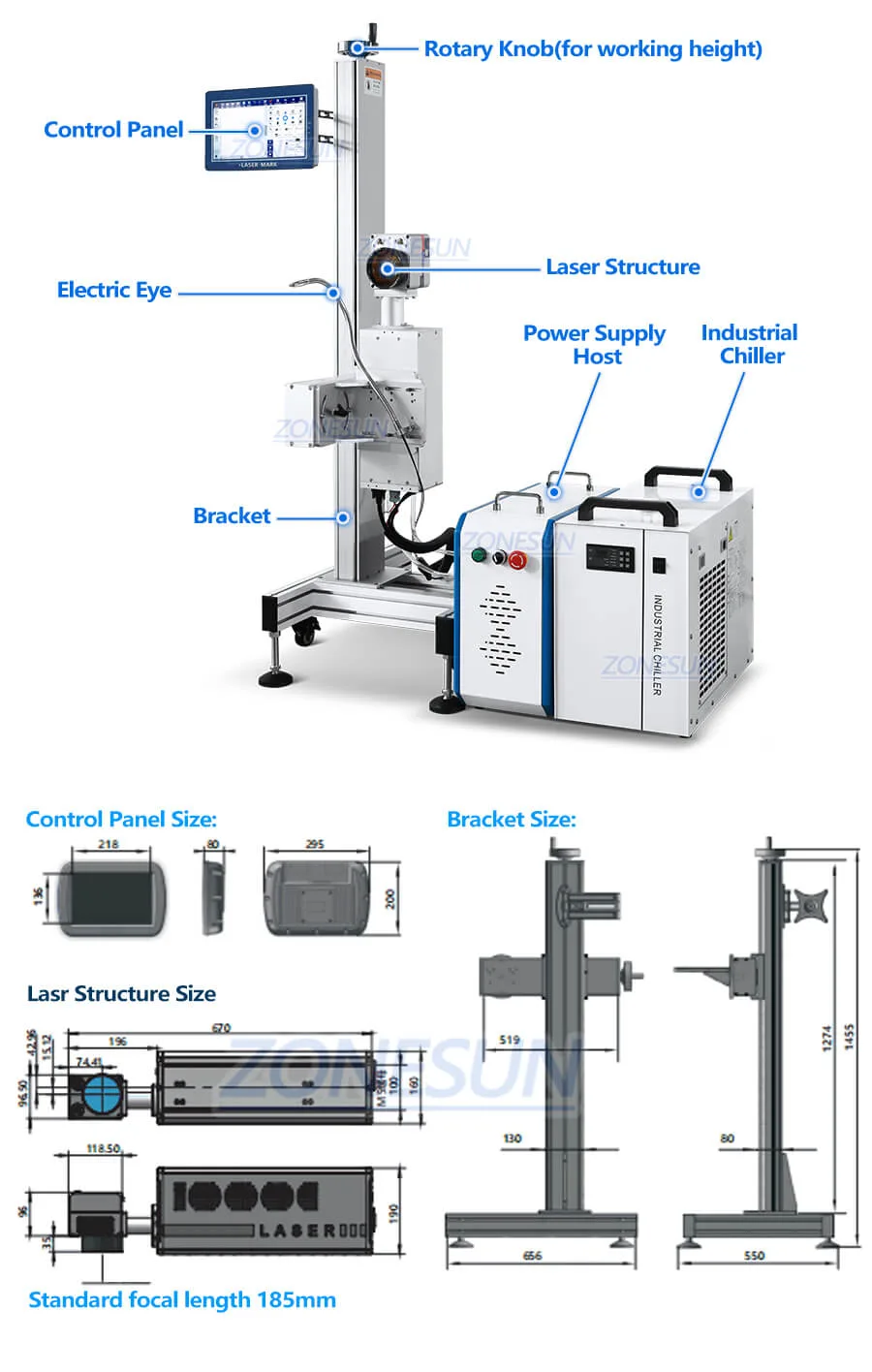

| Package size |
About 630*430*210mm(Lens)
About 680*410*560mm(Industrial Chiller)
About 670*410*560mm(Power Supply Host)
|
| Package weight |
About 13kg(Lens)
About 24kg(Industrial Chiller)
About 13kg(Power Supply Host)
|
Product Details:

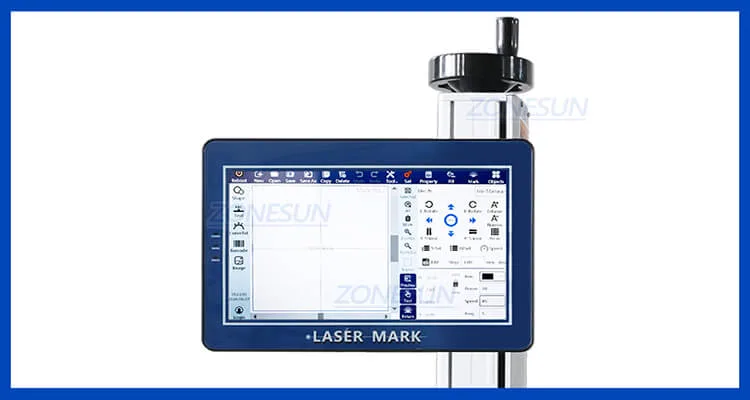

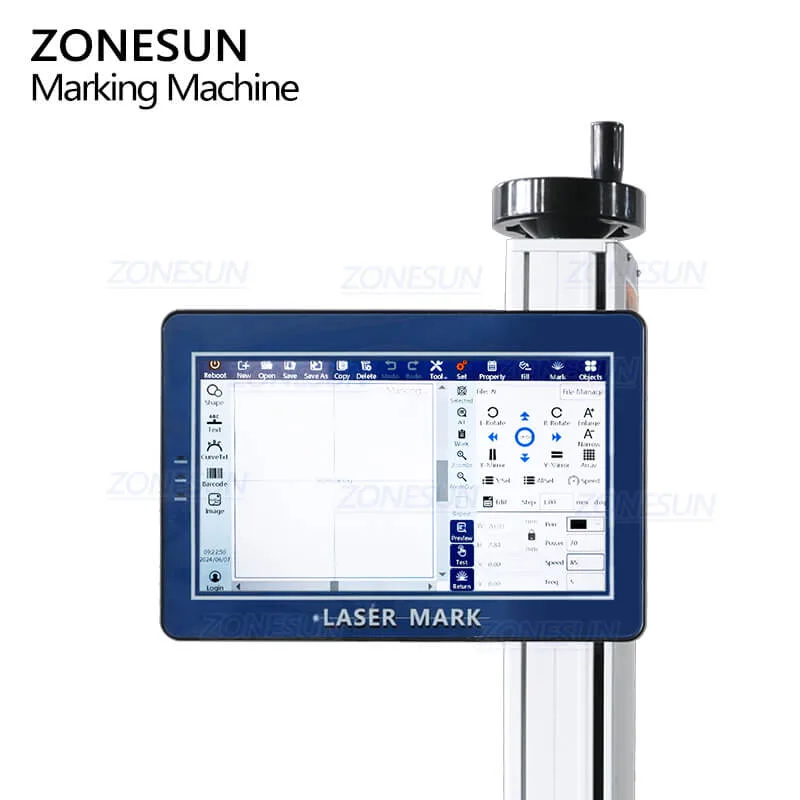

Touch Screen Control Panel
Adjust parameter conveniently, can laser multi kinds of language.
High Quality Lens
Focus the UV laser beam to a very small spot size to improve laser accuracy.

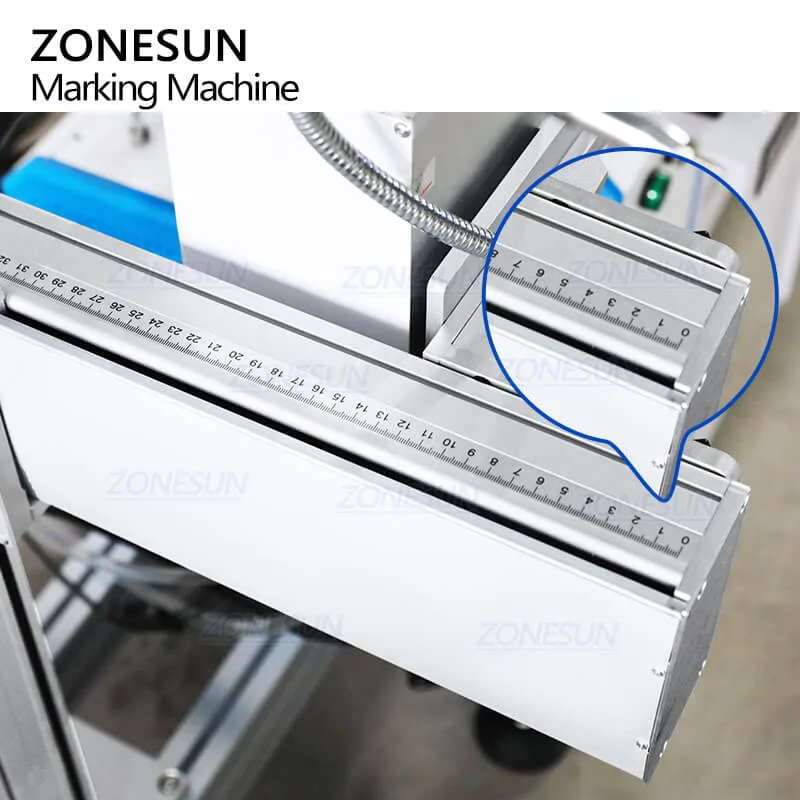

Precise Scale Marking
More convenient to adjust machine and position the lasering object.
Electric Eye

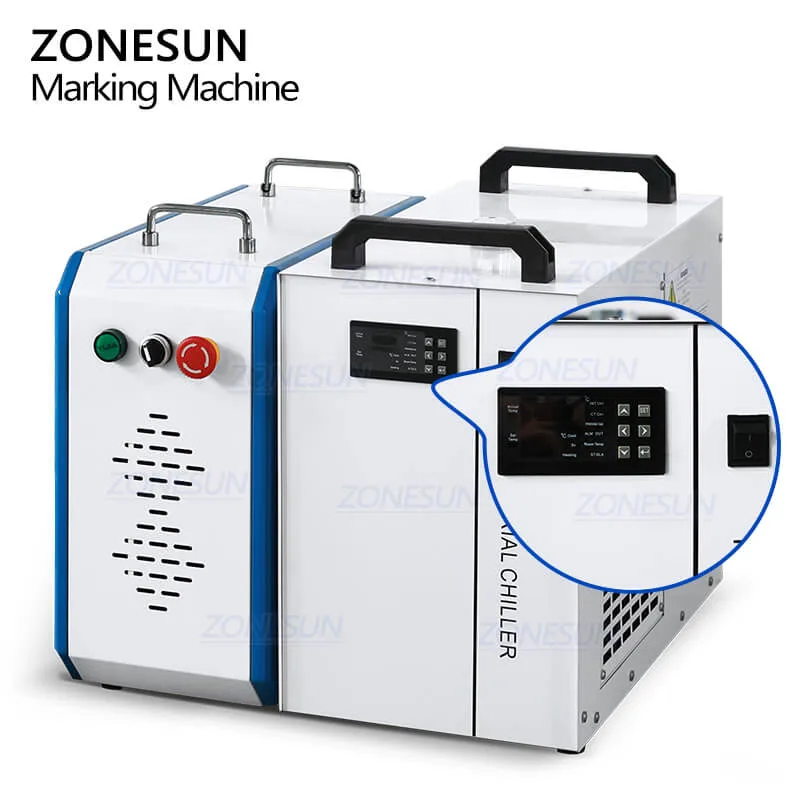

Industrial Chiller
Maintain a consistent and optimal temperature for the laser,preventing overheating.
