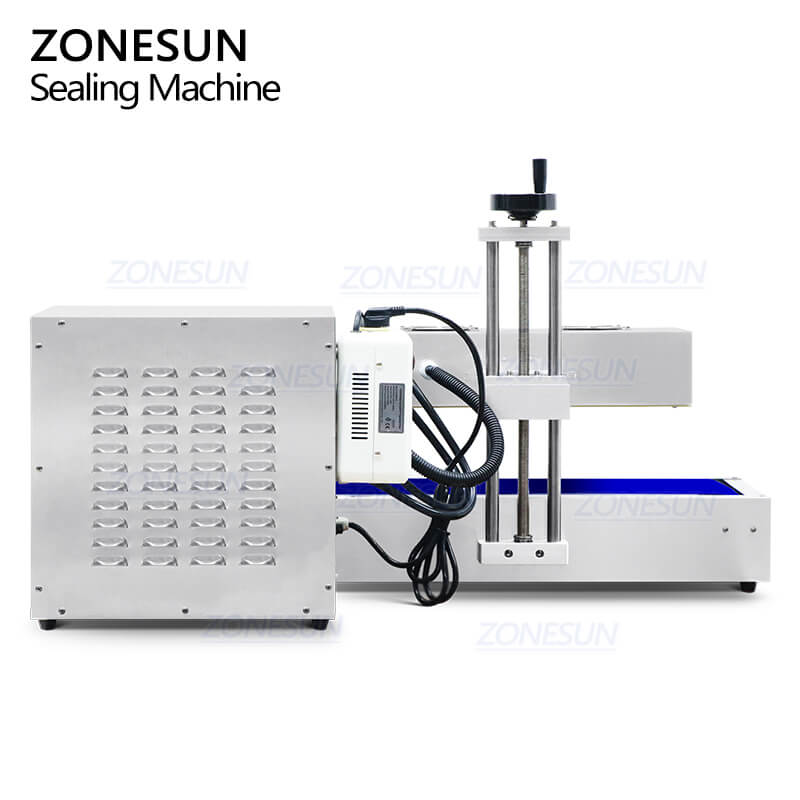

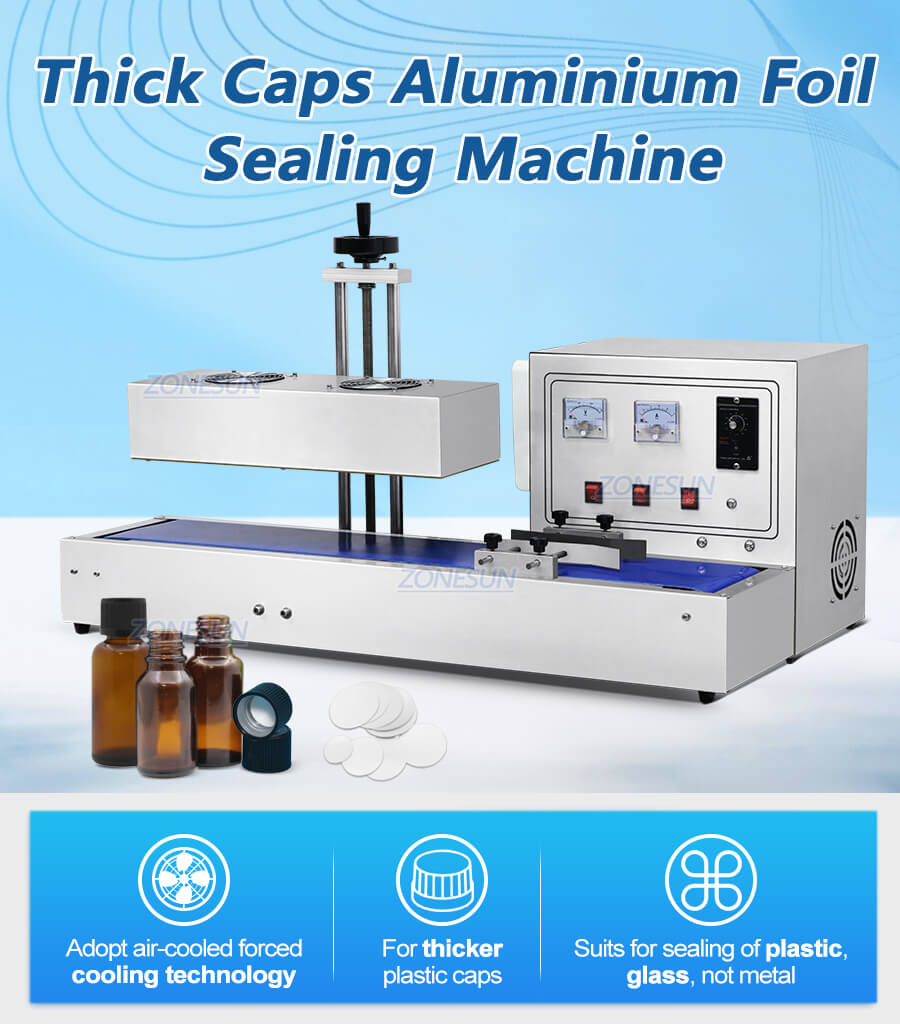

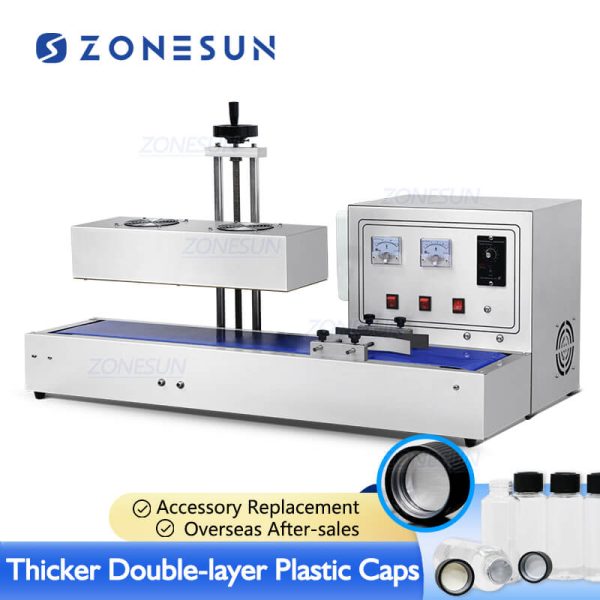

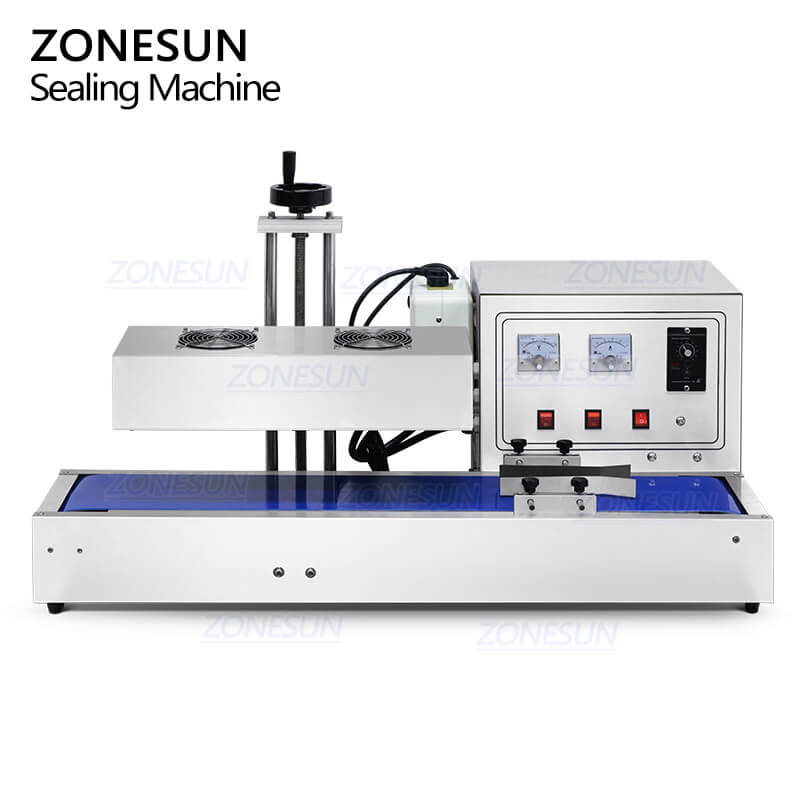

Thick Caps Aluminium Foil Sealing Machine

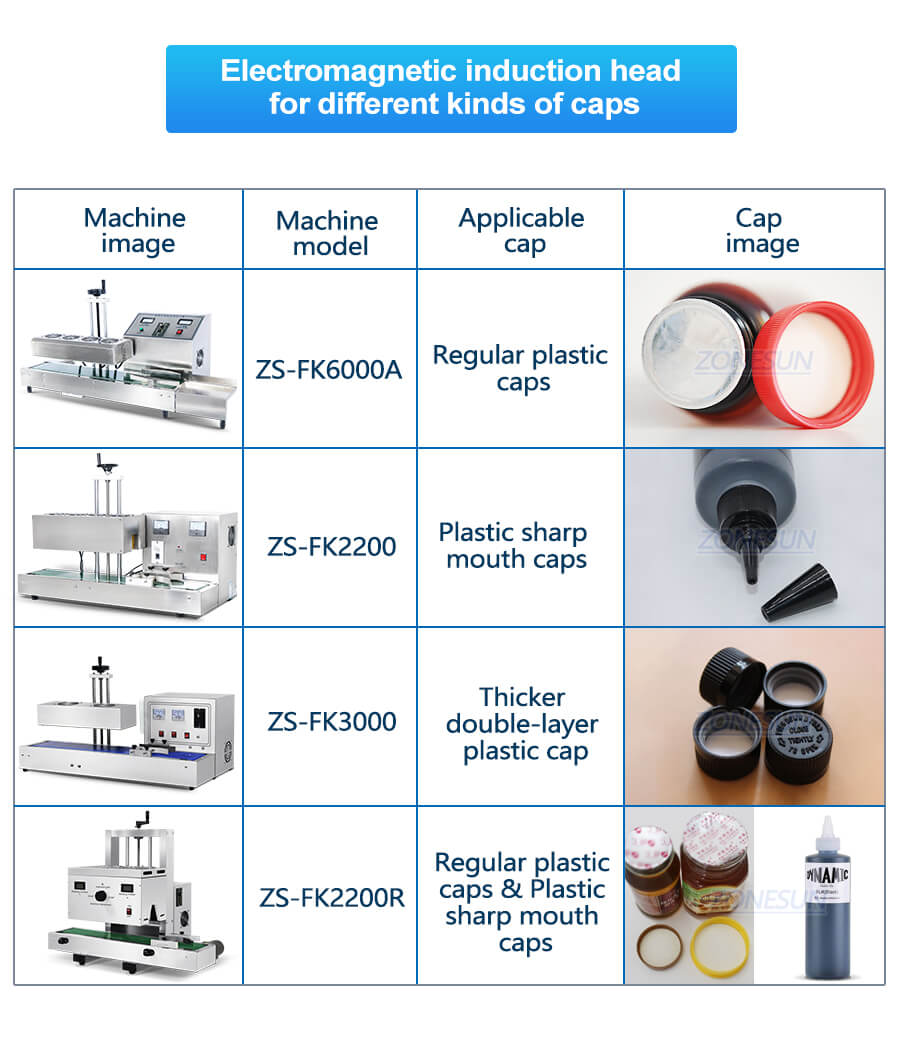

This machine utilizes non-contact sealing technology through electromagnetic induction heating. It is widely used in various industries such as beverages, cosmetics, and chemicals for sealing plastic, glass, and other non-metallic bottles. Specifically, it is designed for thicker double-layer plastic caps.
Share to
Product Description:
This machine utilizes non-contact sealing technology through electromagnetic induction heating. It is widely used in various industries such as beverages, cosmetics, and chemicals for sealing plastic, glass, and other non-metallic bottles. Specifically, it is designed for thicker double-layer plastic caps.
Product Parameters:
|
Machine model
|
ZS-FK3000
|
|
Input power
|
AC220V, 50/60Hz
|
|
Input current
|
<10A
|
|
Output current
|
static <2A, dynamic <10A
|
|
Operating frequency
|
75~85KHZ
|
|
Output power
|
500-3000W
|
|
Sealing diameter
|
20-95mm
|
|
Bottle height
|
20-280MM
|
|
Sealing speed
|
0-20 m/min
|
|
Conveying platform bearing load
|
4.5KG
|
|

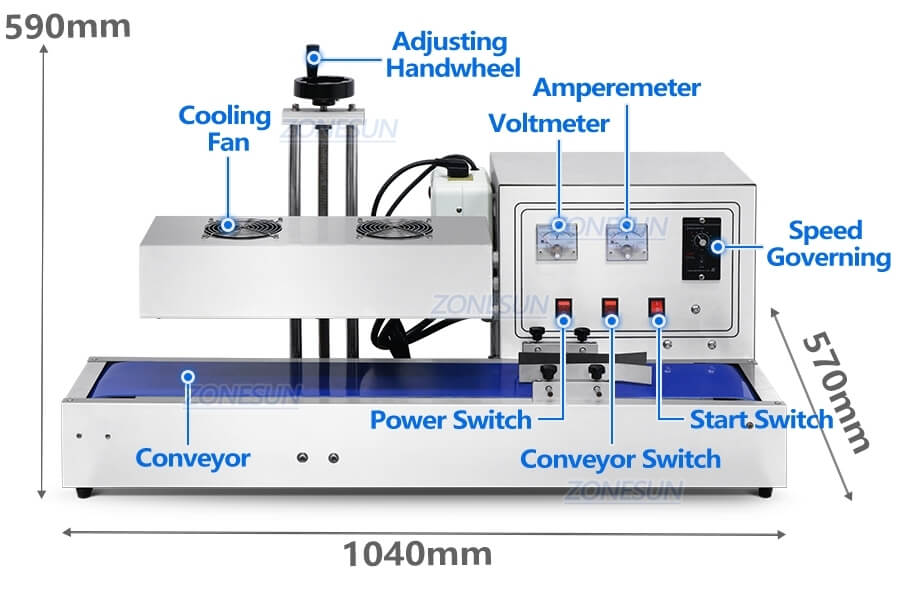

Machine size
|
About 1040*570*590mm
|
|
Package size
|
About 1150*680*780mm
|
|
Net weight/Gross weight
|
About 31/60KG
|
Product Details:

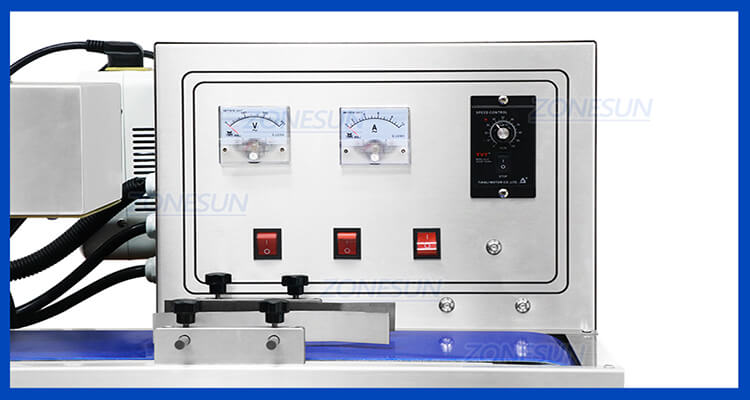

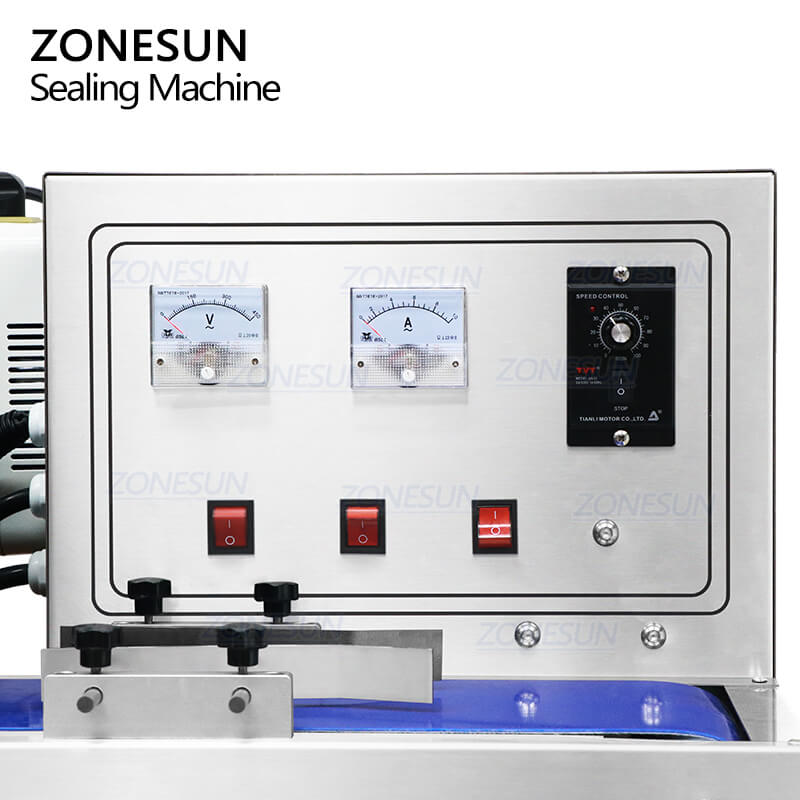

Operation Panel
Display of voltage and current,the conveyor speed is adjustable.

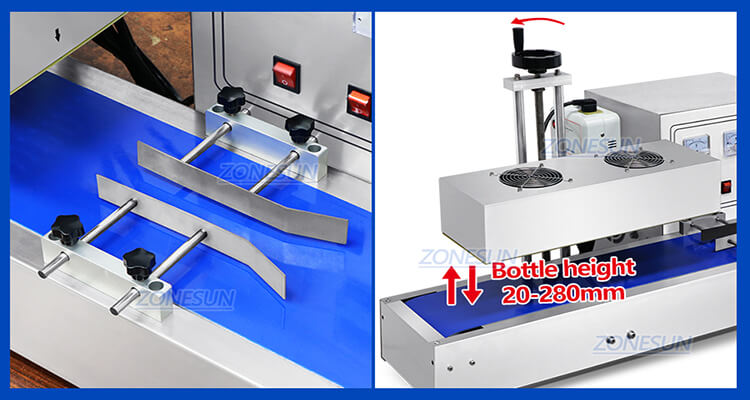

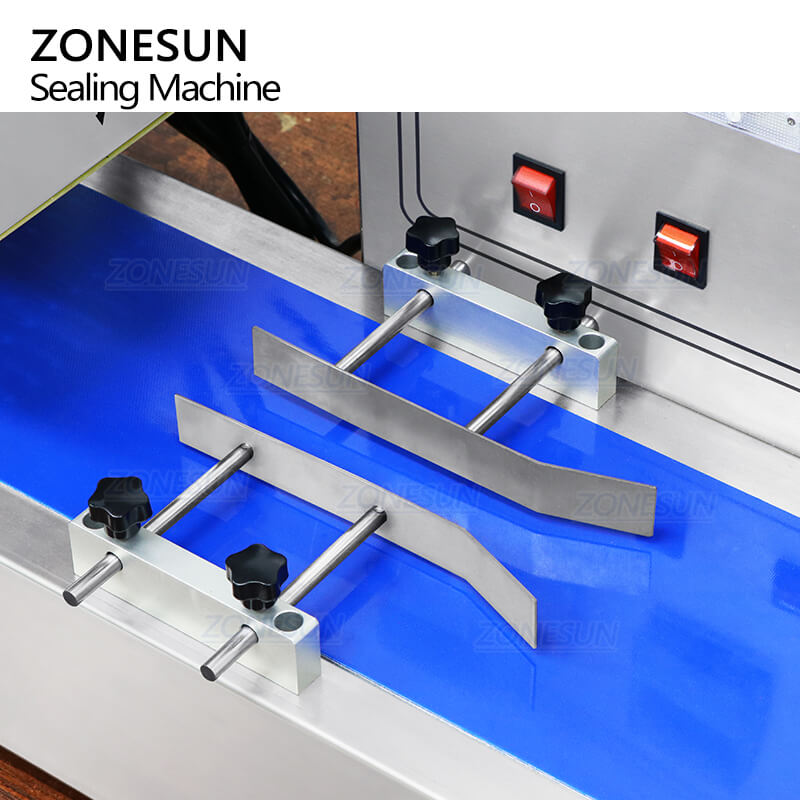

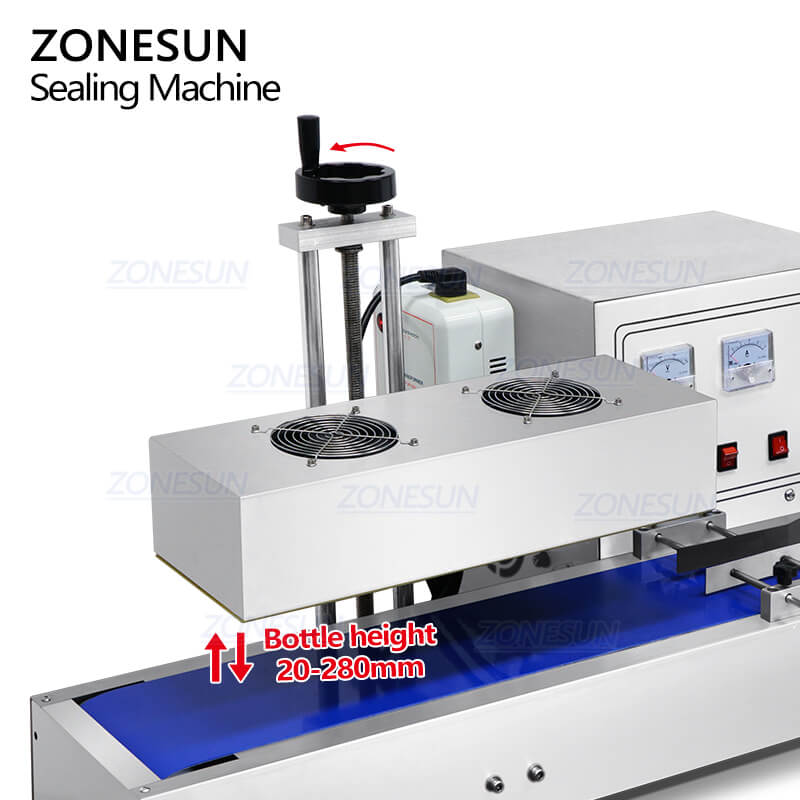

Bottle Guide Device & Adjusting Handwheel
The working width and height can be adjusted according to your bottles.

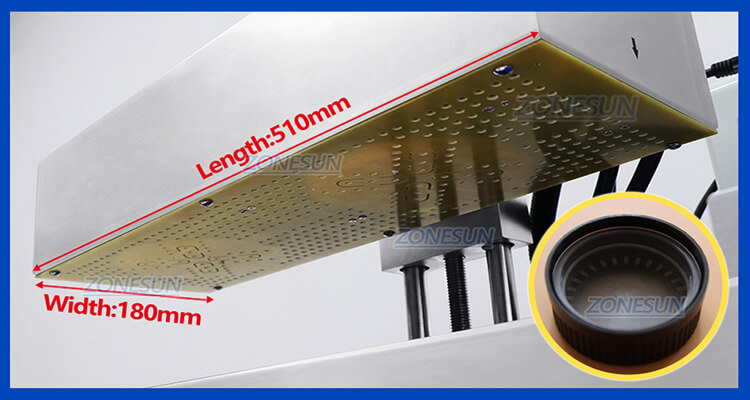

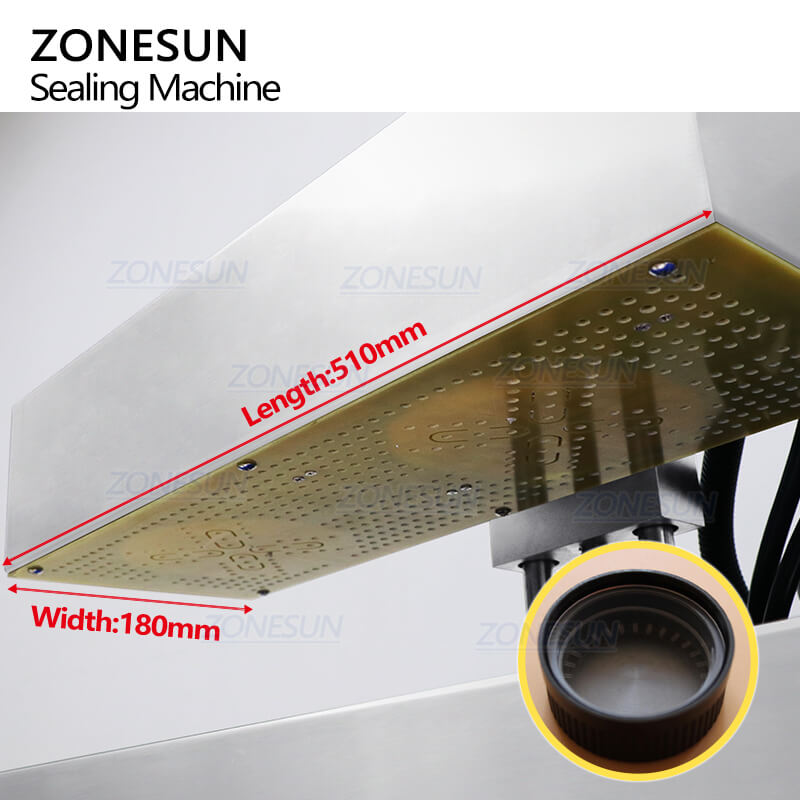

Electromagnetic Induction Head
Heated by electromagnetic induction,achieving continuous sealing.

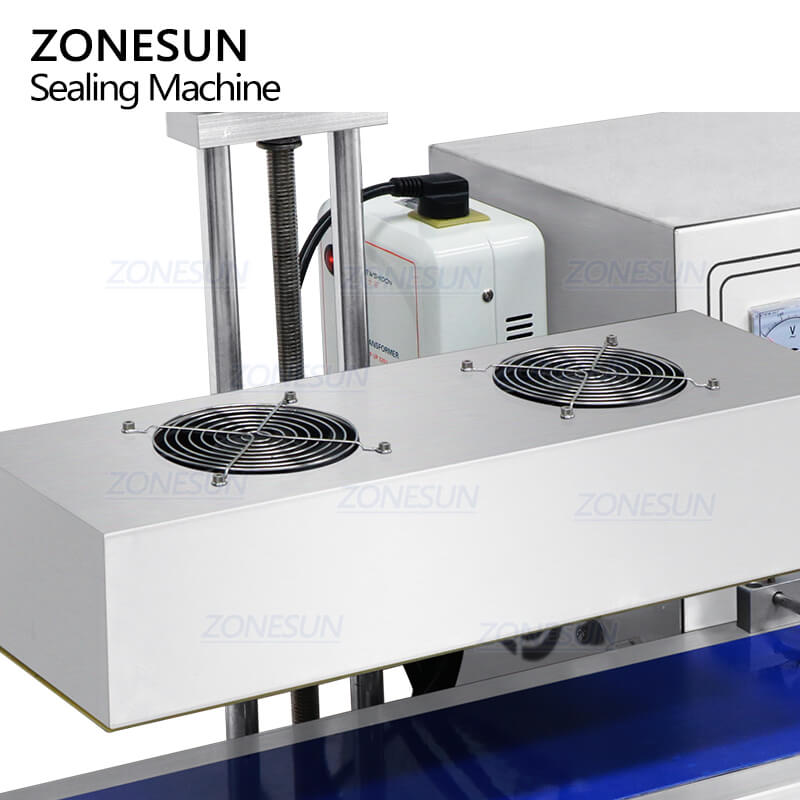

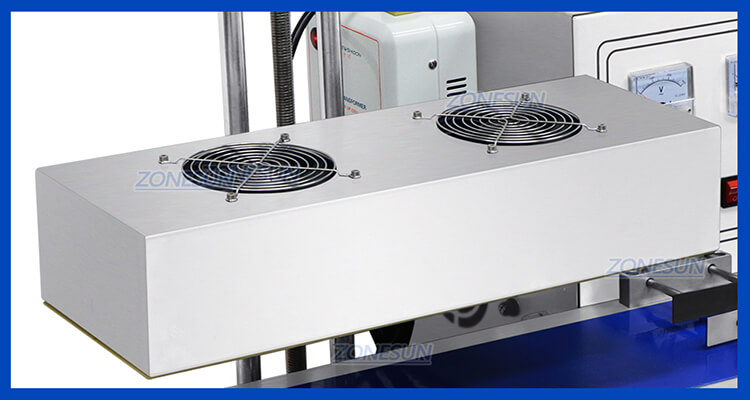

Cooling Fan
Adopt air-cooled forced cooling technology to enhance the stability of the sealing.
