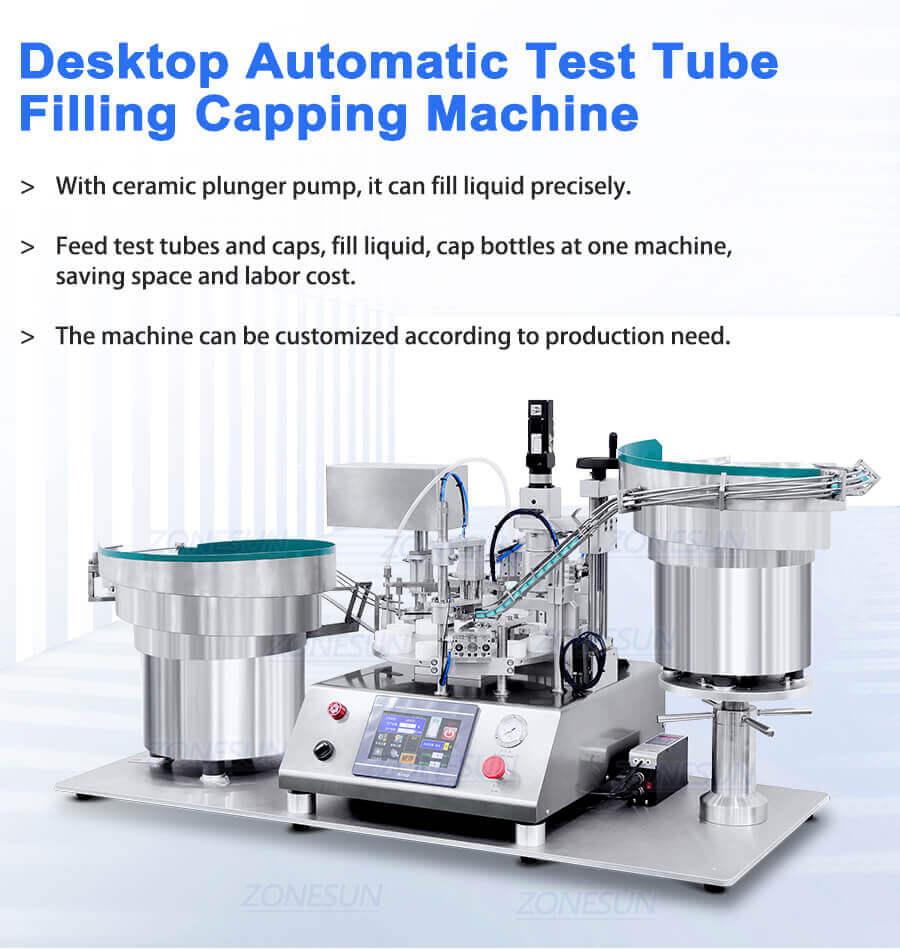

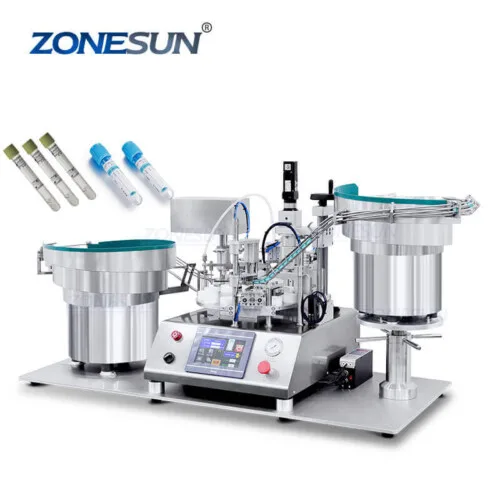

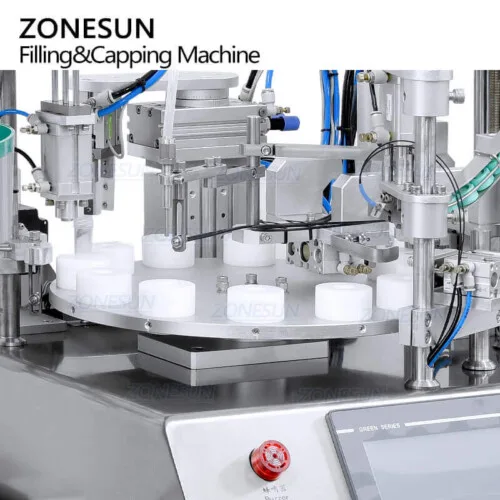

Test Tube Filling Capping Machine

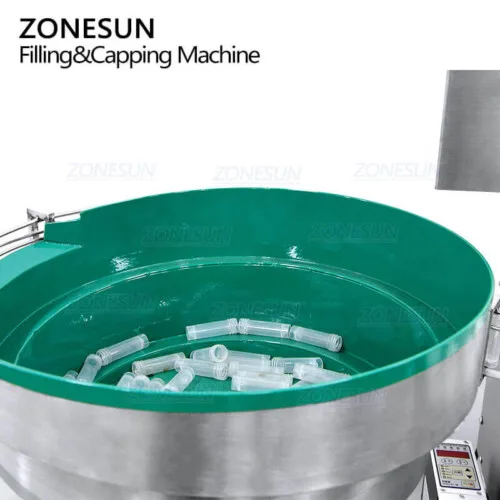

This is a 3-in-1 machine.It integrates bottle feeding,filling,and capping into one machine,which is precise,efficient,and compact.With a ceramic plunger pump,it applies to a variety of corrosion liquids and fluids.
Description:
This is a 3-in-1 machine.It integrates bottle feeding,filling,and capping into one machine,which is precise,efficient,and compact.With a ceramic plunger pump,it applies to a variety of corrosion liquids and fluids.
Parameter:
| Machine Model | ZS-AFC16 |
| Voltage | 220V 50-60Hz |
| Power | About 300W |

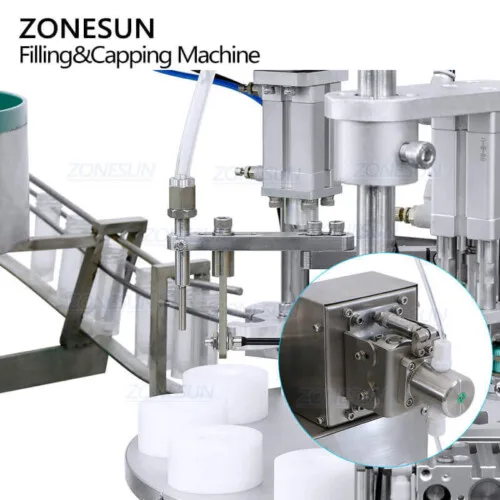

| Filling Pump | Ceramic Plunger Pump |
| Production Capacity | About 22-28pcs/min(depending on liquid and bottle size) |
| Filling Range | Can be customized |
| Filling Accuracy | ±≤0.5% |
| Suitable Bottle Size | Can be customized |
| Air Pressure | 0.4-0.6MPa |
| Machine Size | About 1460*630*720mm |
| Machine Weight | About 200kg |

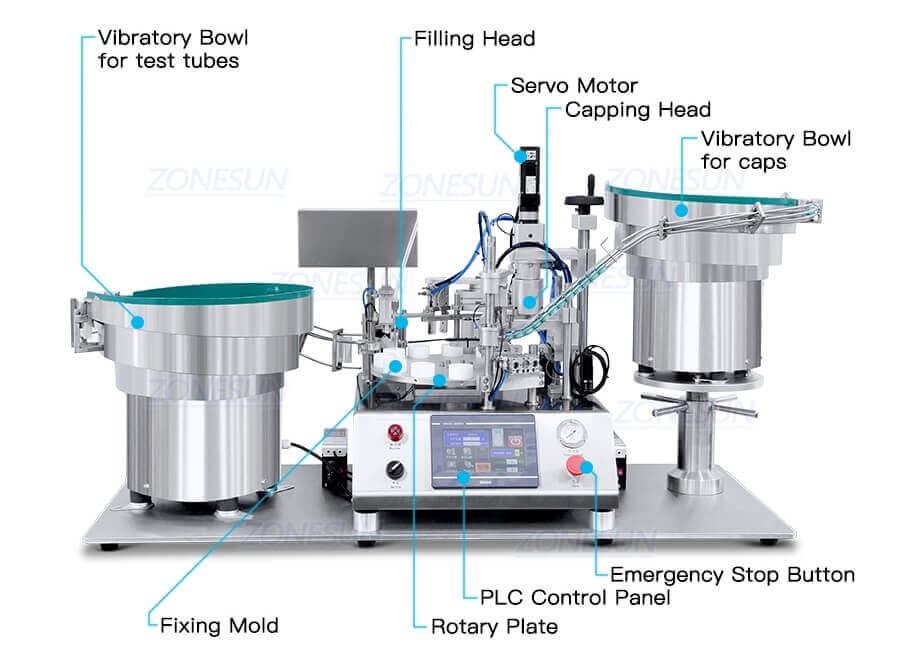

| Machine Component | Brand | Origin |
| PLC | Delta | Taiwan,China |
| Servo Driver | Schneider | France |
| Servo Motor | Schneider | France |
| Fiber Optic Sensor | Panasonic | Japan |
| Sensor | Panasonic | Japan |
| Stepper Driver | YAKO | Shenzhen,China |
| Power Supply | MEAN WELL | Guangzhou,China |
