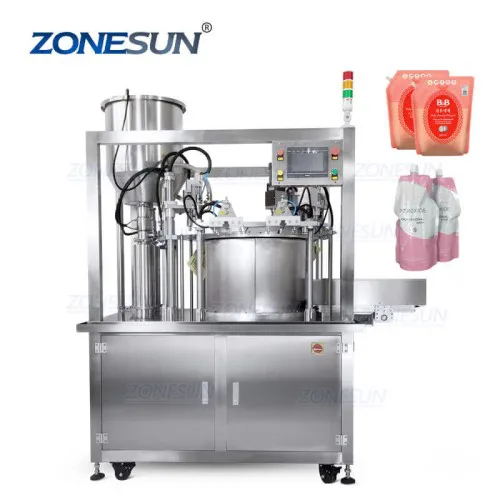

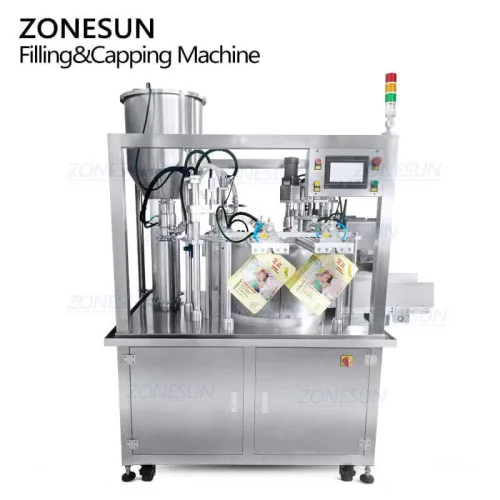

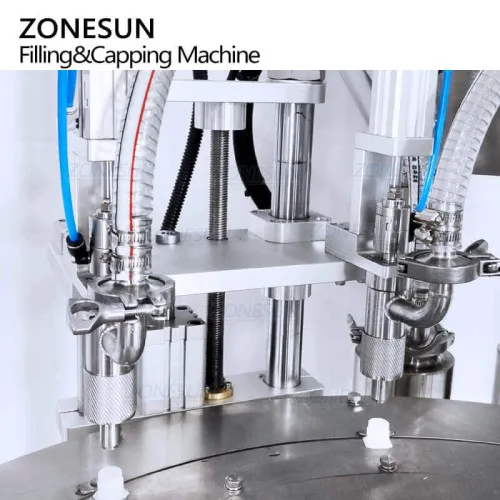

Spout Pouch Filling Capping Machine
Description:

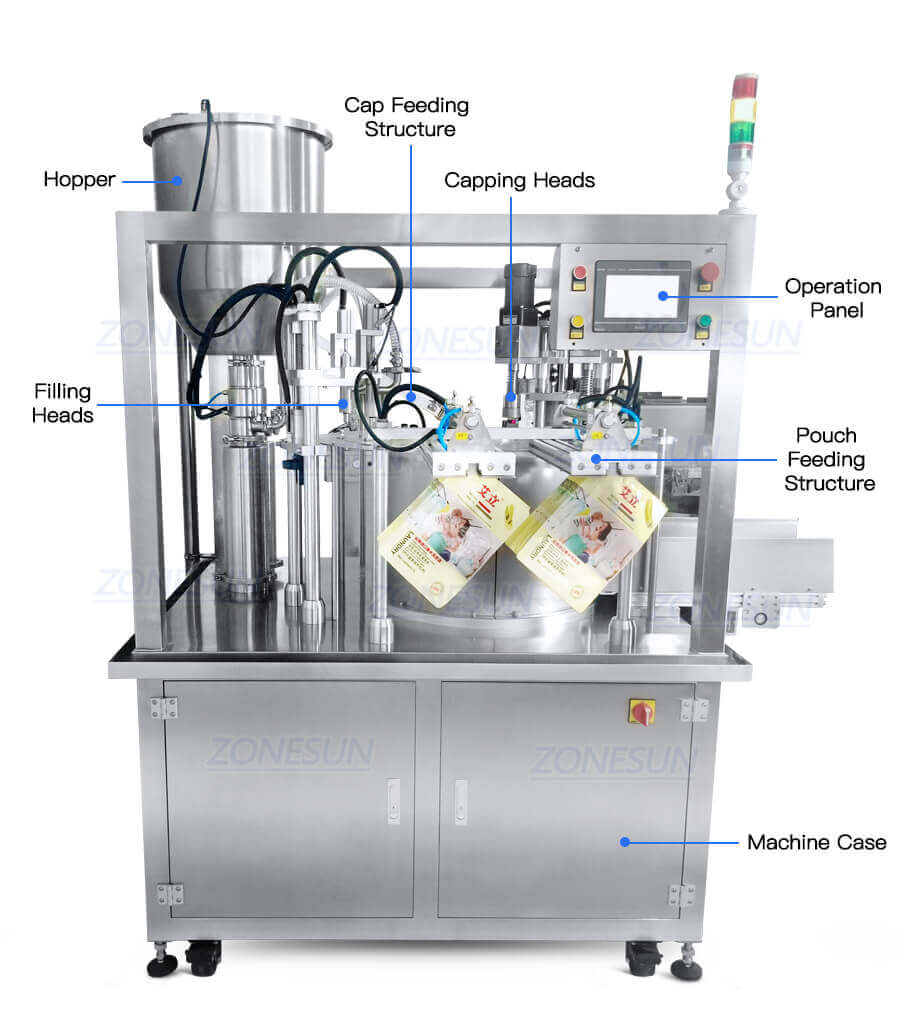

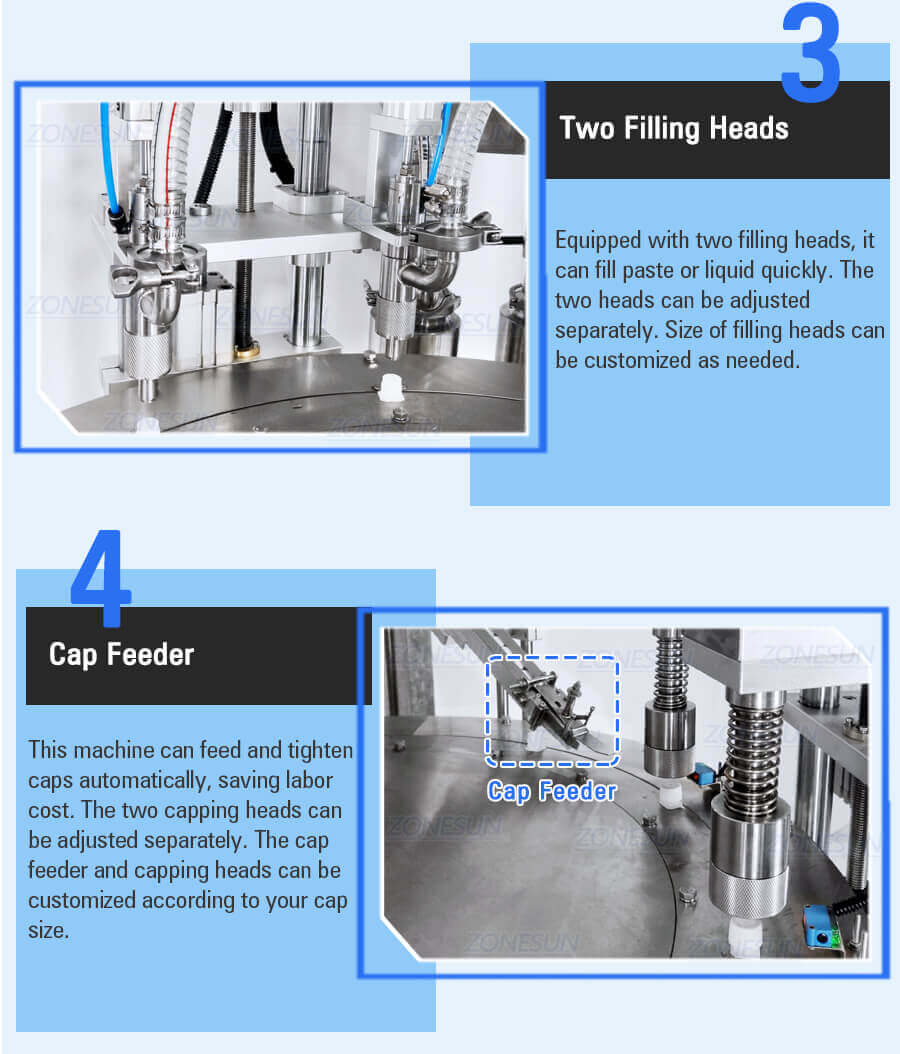

This is a spout pouch packaging machine.It can automatically fill and seal.It is designed with 2 heads for filling.The components,which are in contact with the material,are made of food-grade 316L stainless steel.It adopts a rotary worktable,so it is compact and space-saving.It is commonly used for packaging ready-to-drink beverages,such as juice,jam,and liquid jelly.
Parameter:
| Machine Model | ZS-AFC12 |
| Voltage | 220V/110V 50-60Hz |
| Power | 1.5kW |
| Filling Range | 200-3000ml(Can be customized) |
| Production Capacity | About 22-36pcs/min(depending on materials and pouch size) |
| Filling Accuracy | ±0.5% |
| Hopper Capacity | 50L(Can be customized) |
| Suitable Cap Diameter | Can be customized |
| Suitable Pouch Size | Can be customized |
| Air Pressure | 0.5-0.8MPa |
| Air Consumption | 0.1m³/min |
| Memory Function | Available |
| Machine Weight | About 800kg |

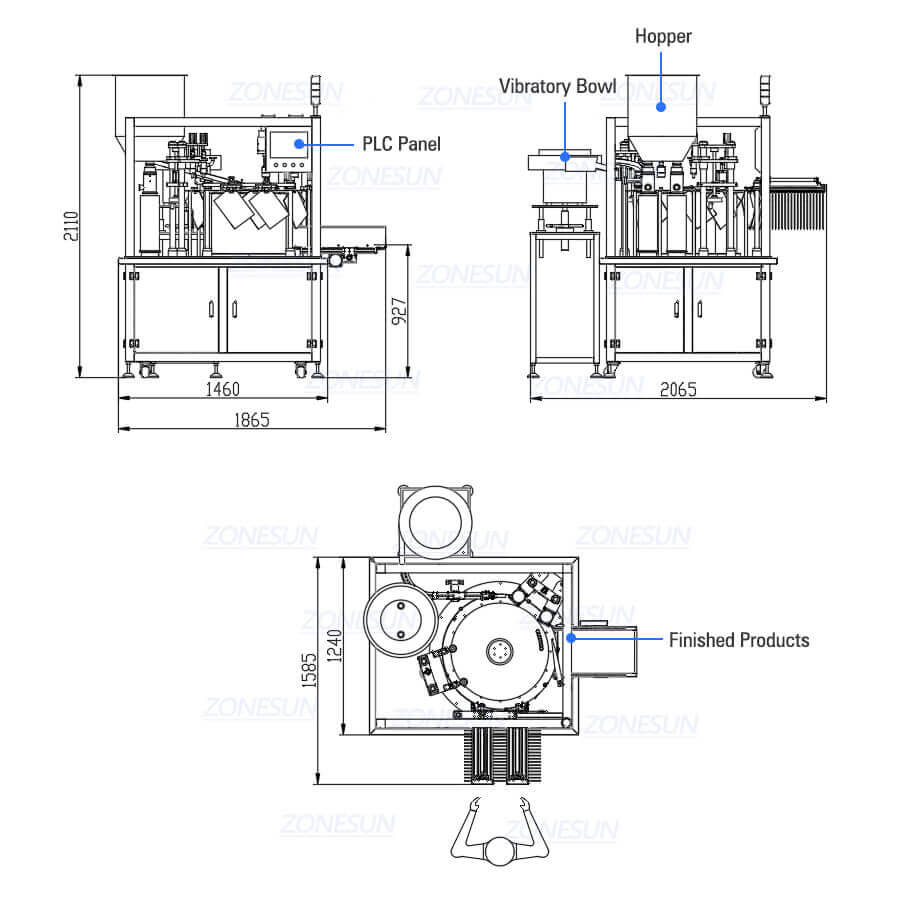

| Machine Size | About 1865*2060*2200mm |
| Machine Configuration | ||
| Component | Brand | Origin |

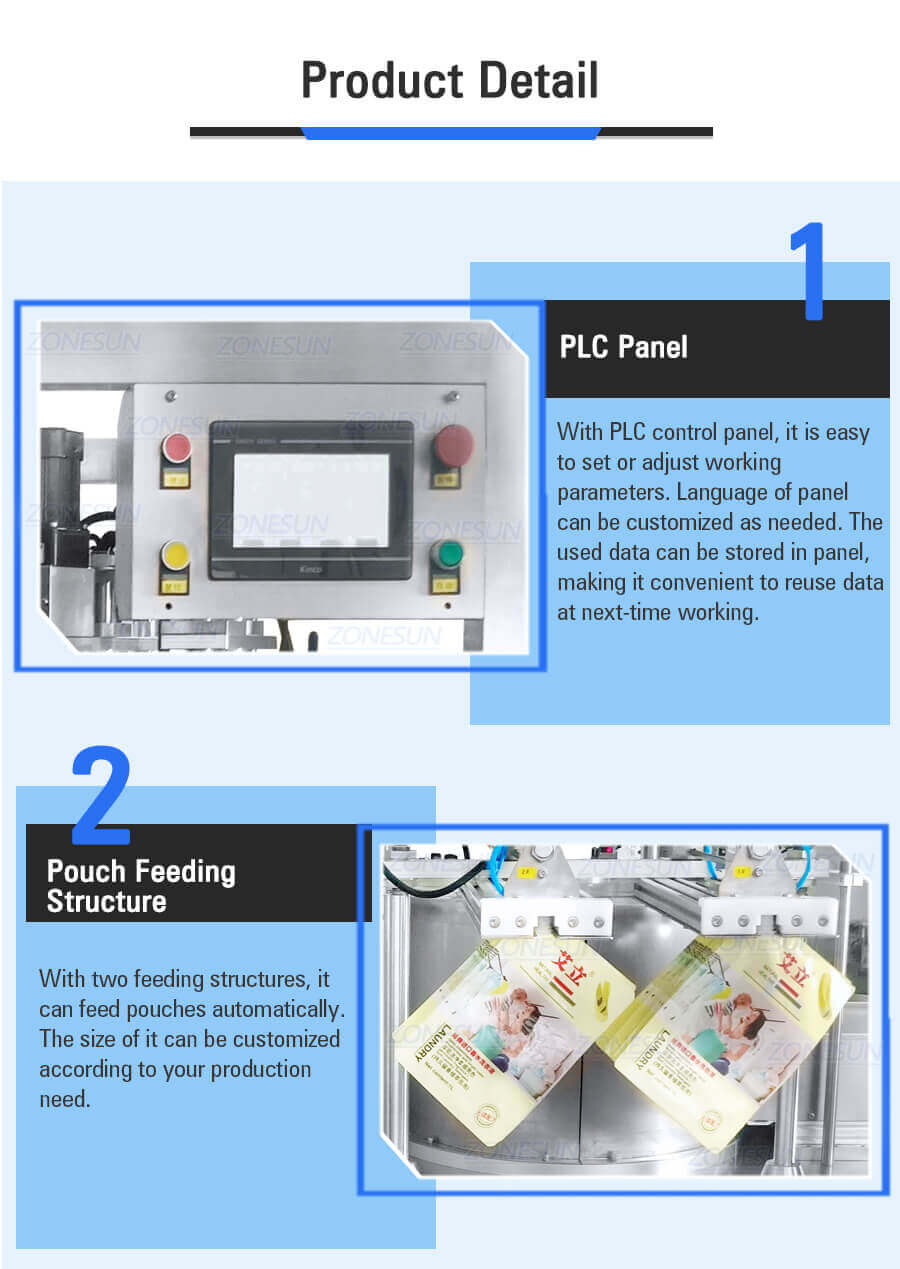

| PLC | Omron | Japan |

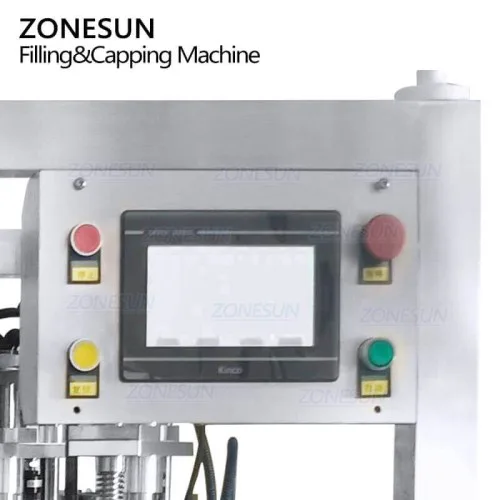

| Operation Panel | Kinco | Shanghai, China |
| Switch Electronics | Schneider | France |
| Servo Motor | Delta | Taiwan,China |
| Gear Motor | GPG/WANSHSIN | Taiwan,China |
| Micro Motor | GPG/WANSHSIN | Taiwan,China |
| Pneumatic Components | Schneider | France |
| Detection Switch | Sick | Germany |
