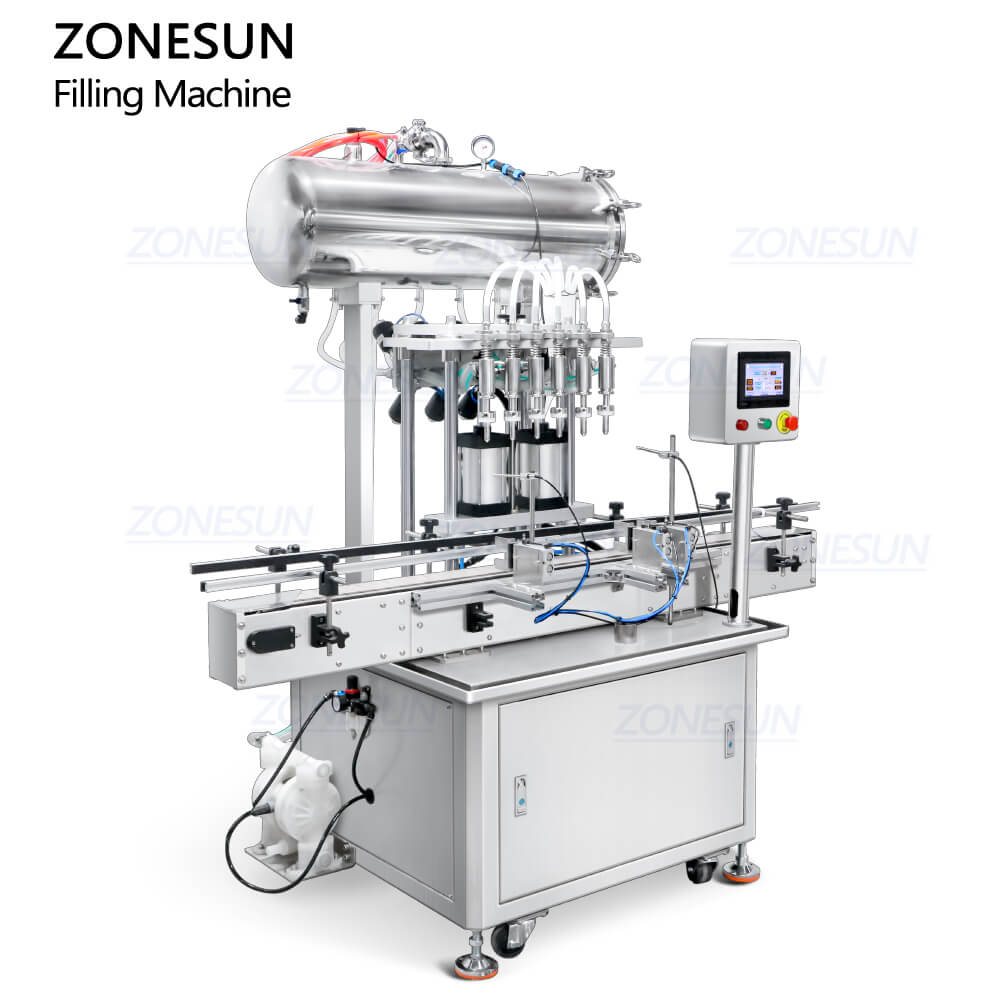

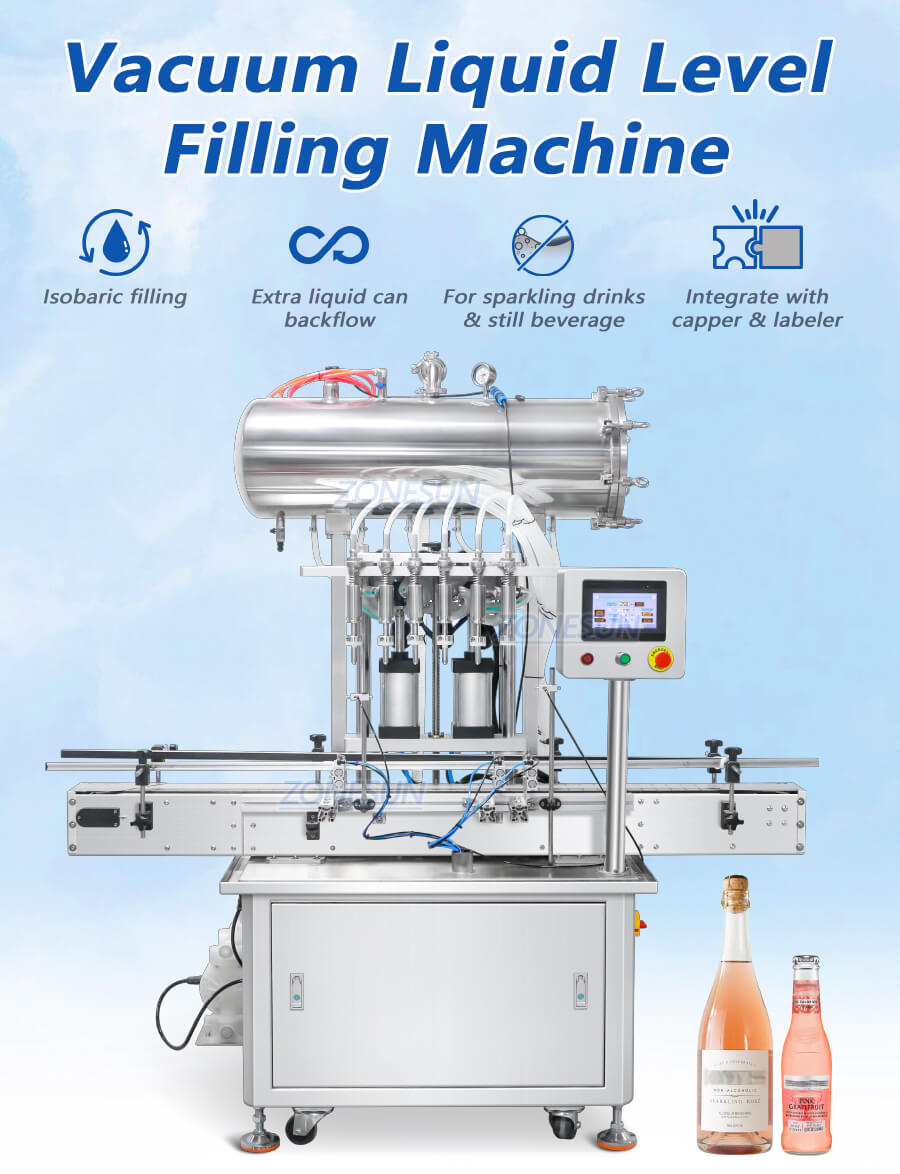

Sparkling Wine Overflow Filling Machine
This isobaric filling machine is suitable for filling sparkling drinks like sparkling wine, soda water, beer,kombucha etc. It is also suitable for still beverage. Extra liquid can flow back to storage tank during filling to ensure consistent filling. It usually integrates with the mixing system, capping, labeling machine to realize complete packaging work.
Price range: $13,899.00 through $16,699.00
Share to
This isobaric filling machine is suitable for filling sparkling drinks like sparkling wine, soda water, beer,kombucha etc. It is also suitable for still beverage. Extra liquid can flow back to storage tank during filling to ensure consistent filling. It usually integrates with the mixing system, capping, labeling machine to realize complete packaging work.
|
Machine model
|
ZS-ACF6-A
|
ZS-ACF6-B(With Mixing Machine)
|
|
Machine voltage
|
110/220V 50-60HZ
|
|
|
Machine power
|
800W(Only Filling Part)
|
|
|
Filling range
|
100-1500ml
|
|
|
Bottle diameter
|
φ30-110mm
|
|
|
Bottle height
|
100-310mm
|
|
|
Bottle opening mouth size
|
25-40mm
|
|
|
Working capacity
|
About 10-20BPM
(based onfilling volume)
|
About 25-40BPM
(based onfilling volume)
|
|
Filling accuracy
|
3ml(based on the filling material & eliminating bottle deviation)
|
|
|

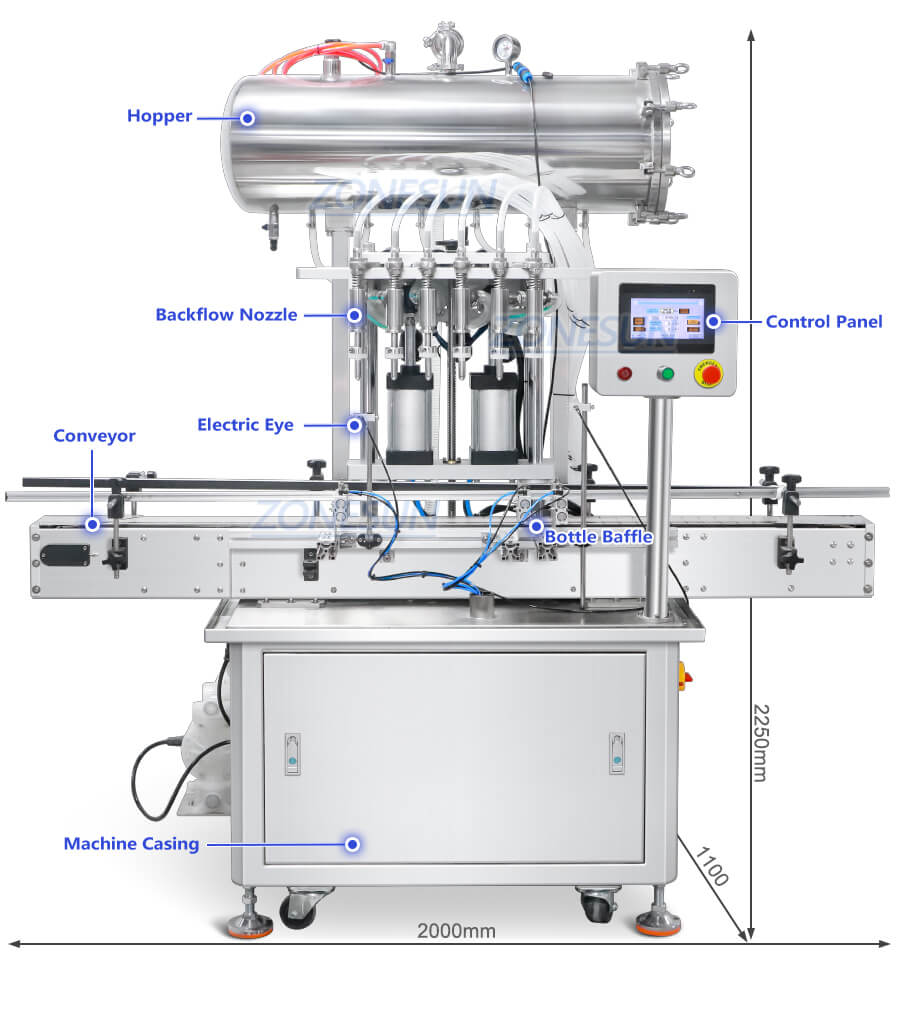

Machine size
|
About 2000*1050*2060mm
|
–
|
|
Package size
|
About 2080*110*2250mm
|
–
|
|
Package weight
|
About 522kg
|
–
|
|
*Specifications are for reference only and may vary by your product. Please confirm with us if required.
|
||

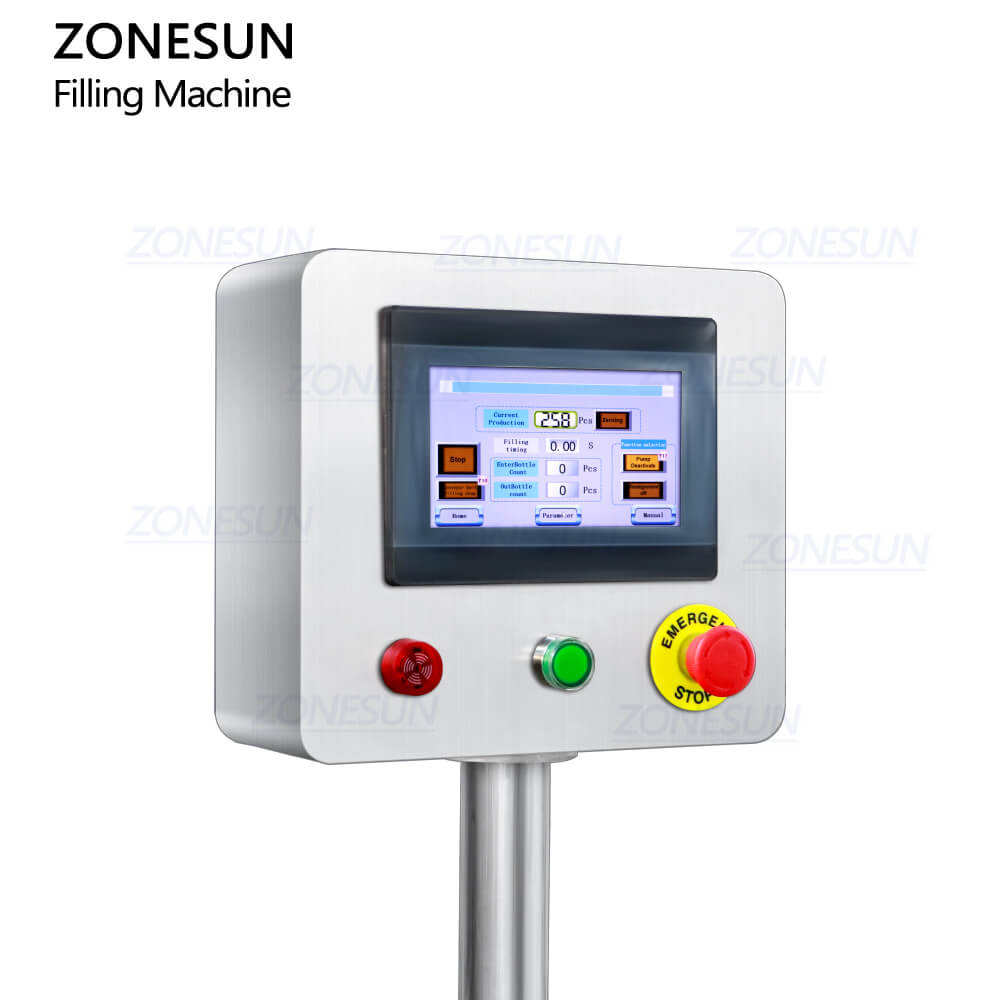

Control Panel
Touch screen control panel makes parameter setting more intuitively, multi kinds of language is customizable.

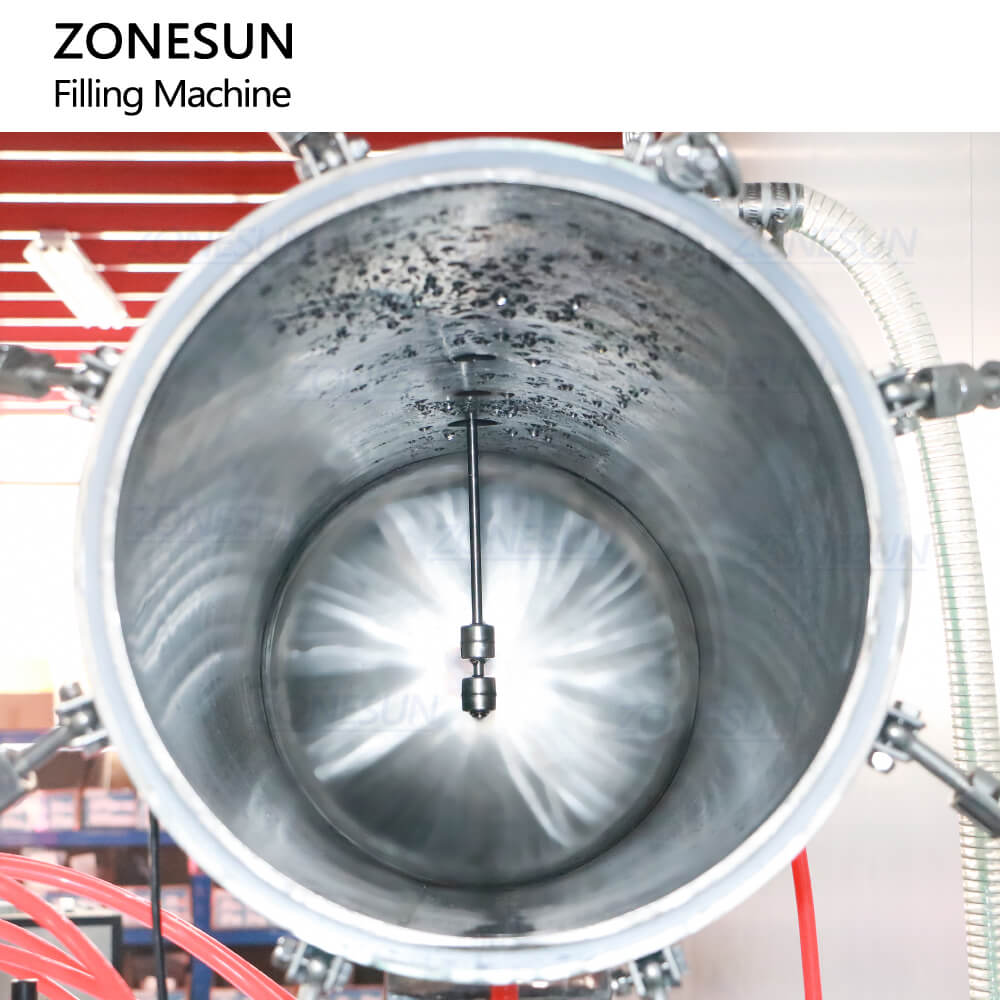

Storage Hopper
With a float ball, if liquid level drops below it, material will automatically be pumped (only for still beverage filling)

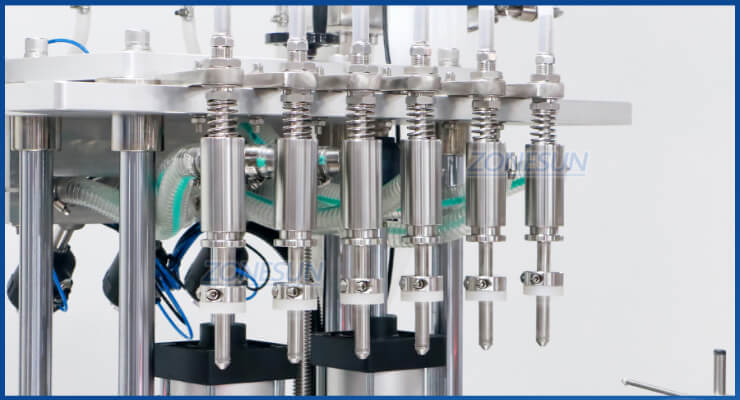

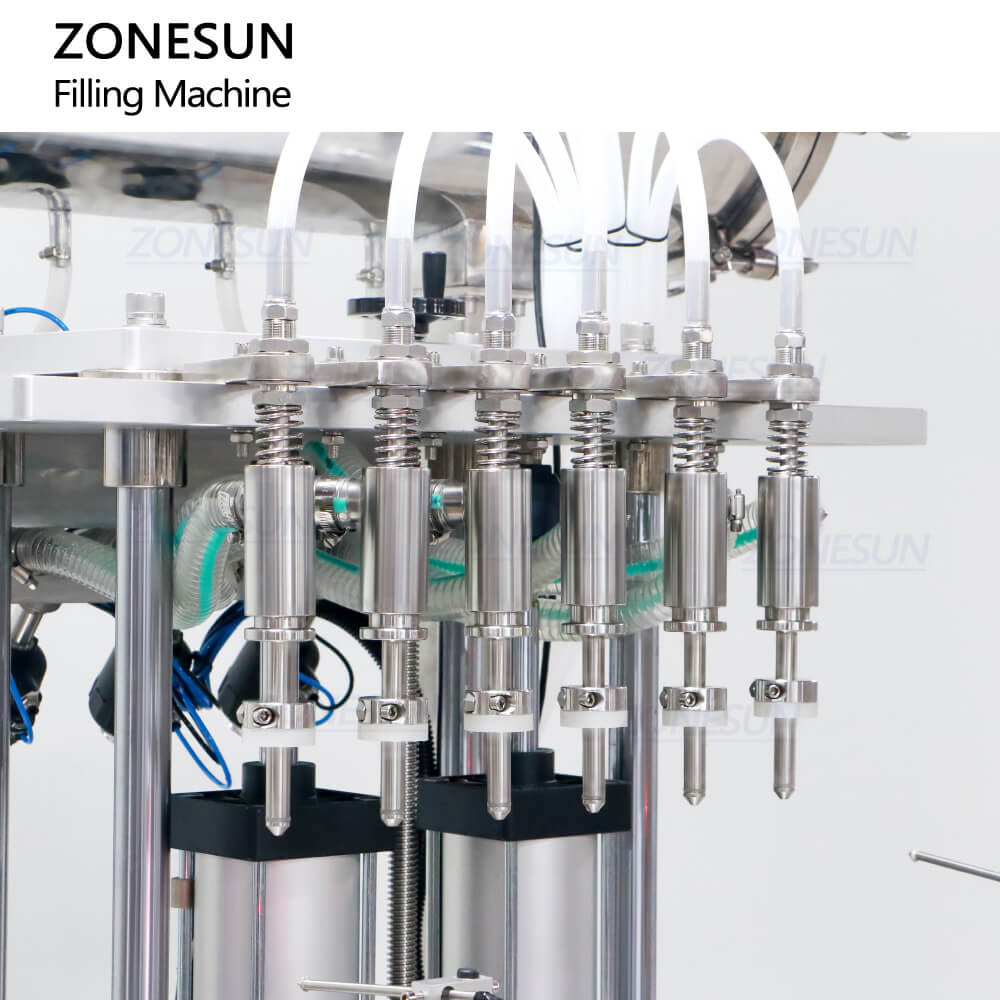

Backflow Filing Nozzle
Extra liquid can flow back to storage tank to realize equal level filling.Multi filling heads are customizable.

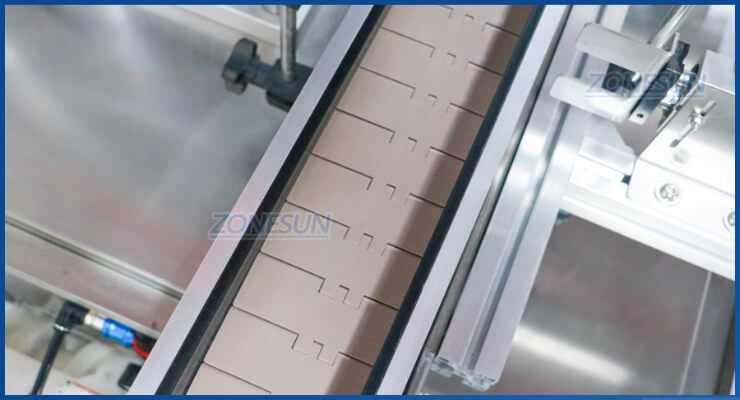

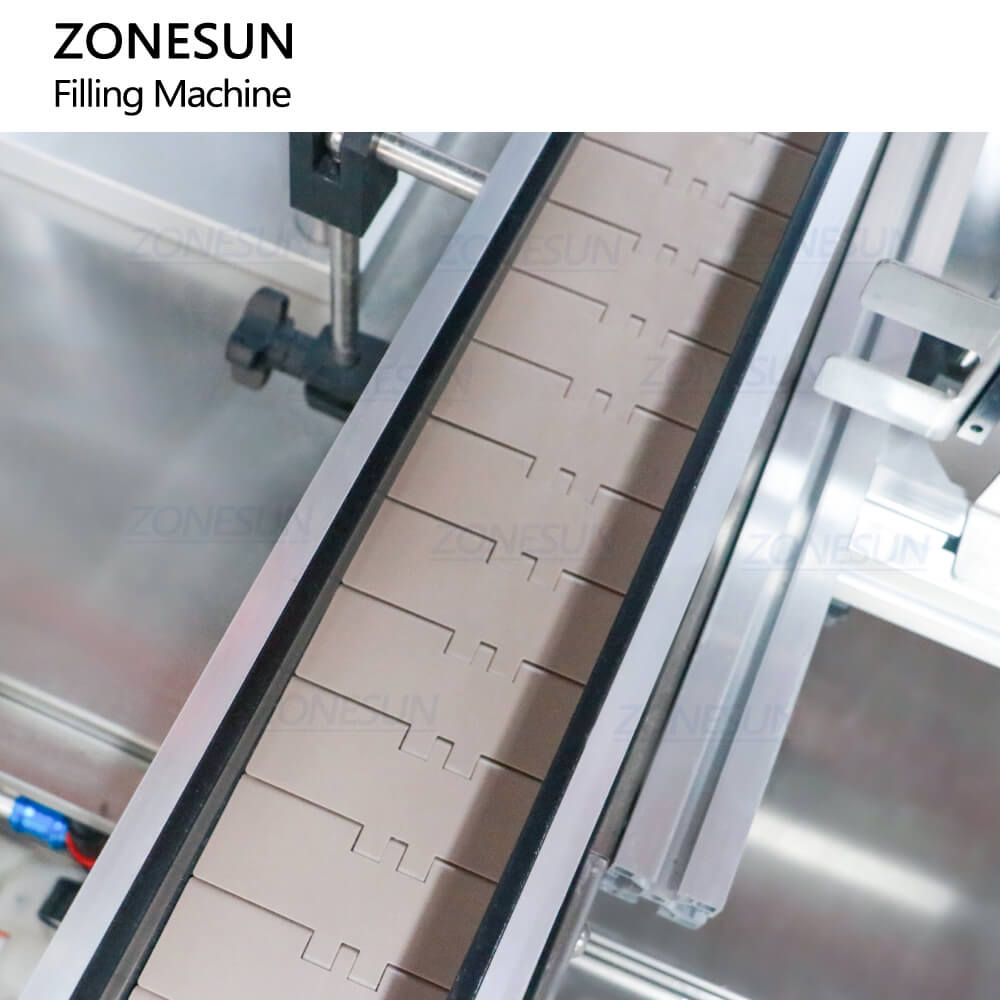

Chain Conveyor
Length and width can be customized as production need, chain conveyor has larger weight capacity.

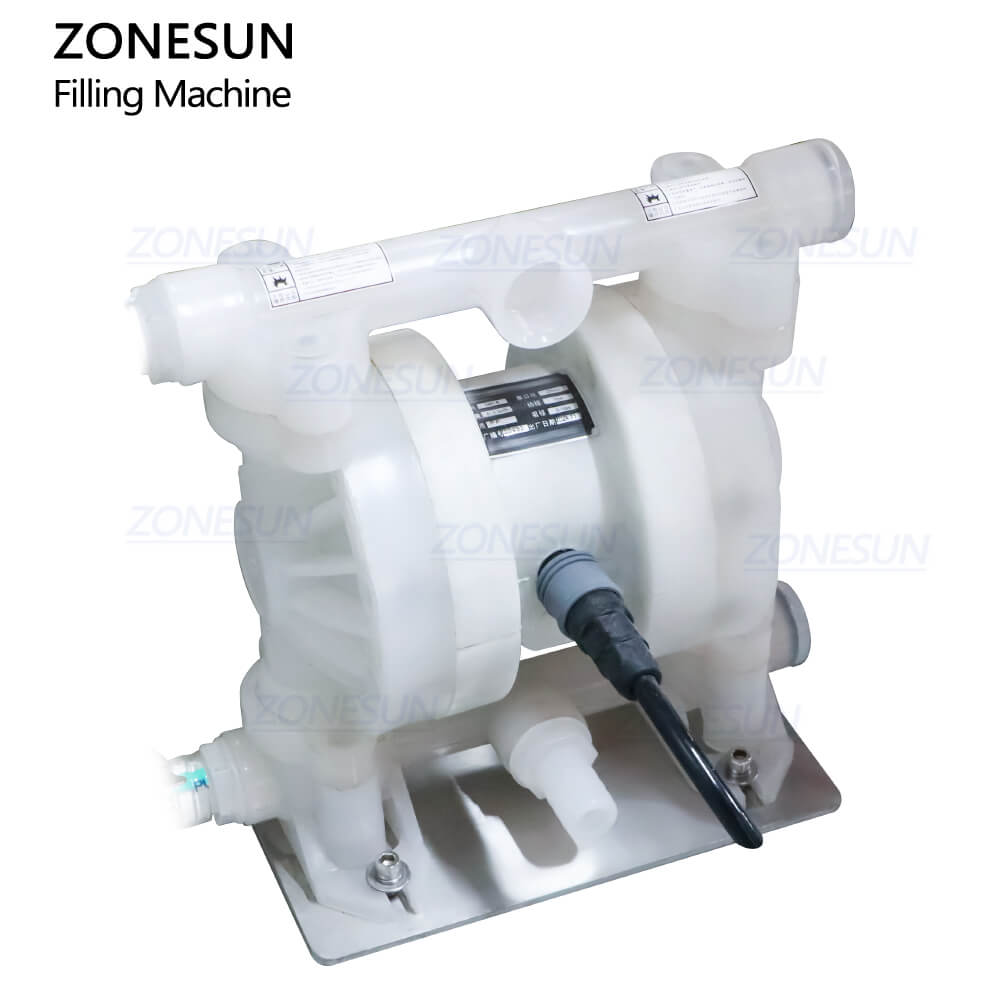

Diaphragm Feeding Pump
Designed for supply still beverage to storage tank in time.
