Product Parameters:

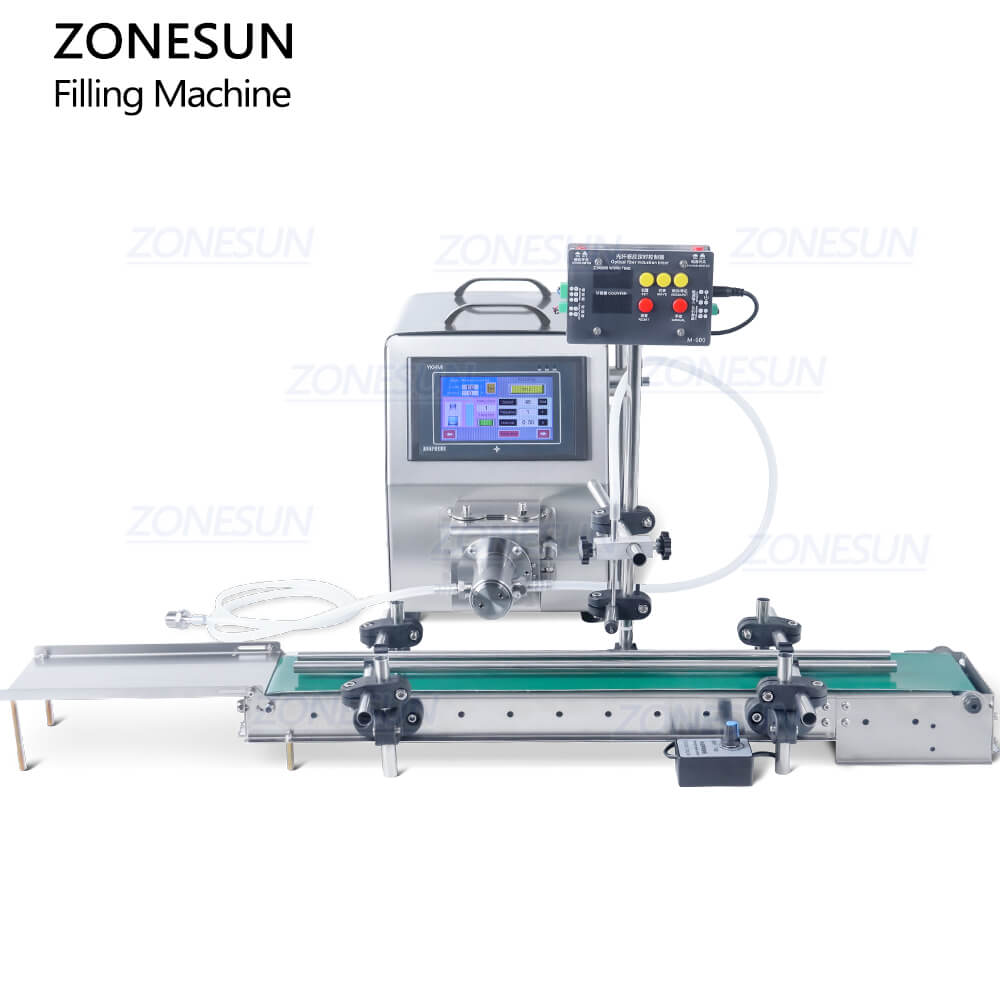

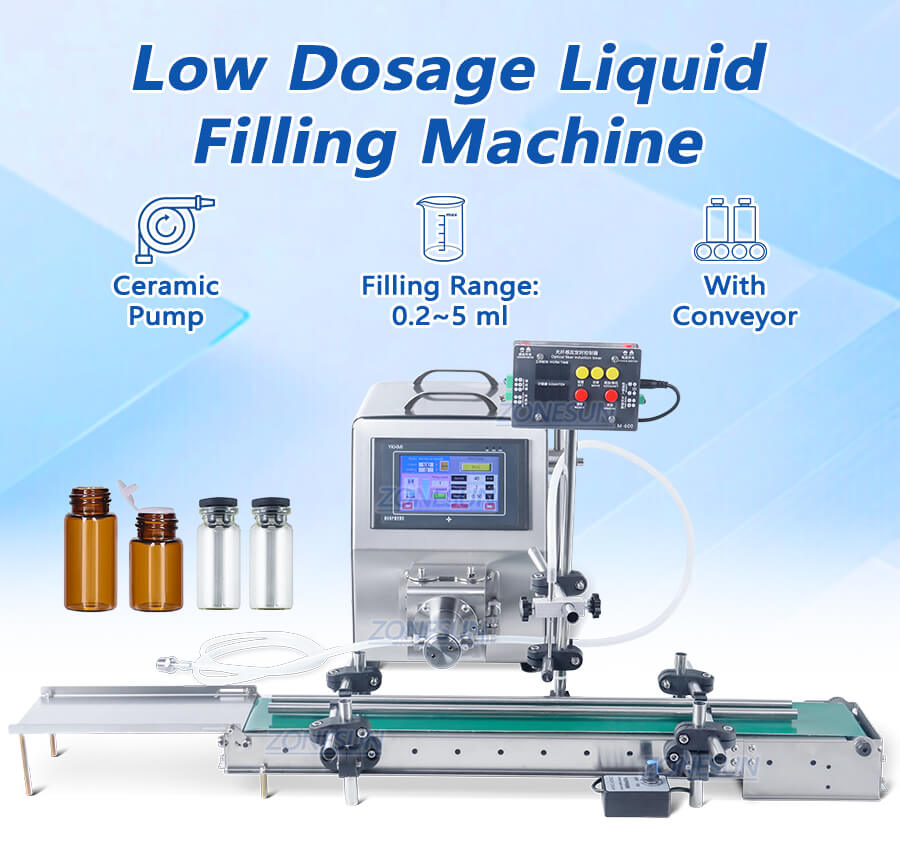

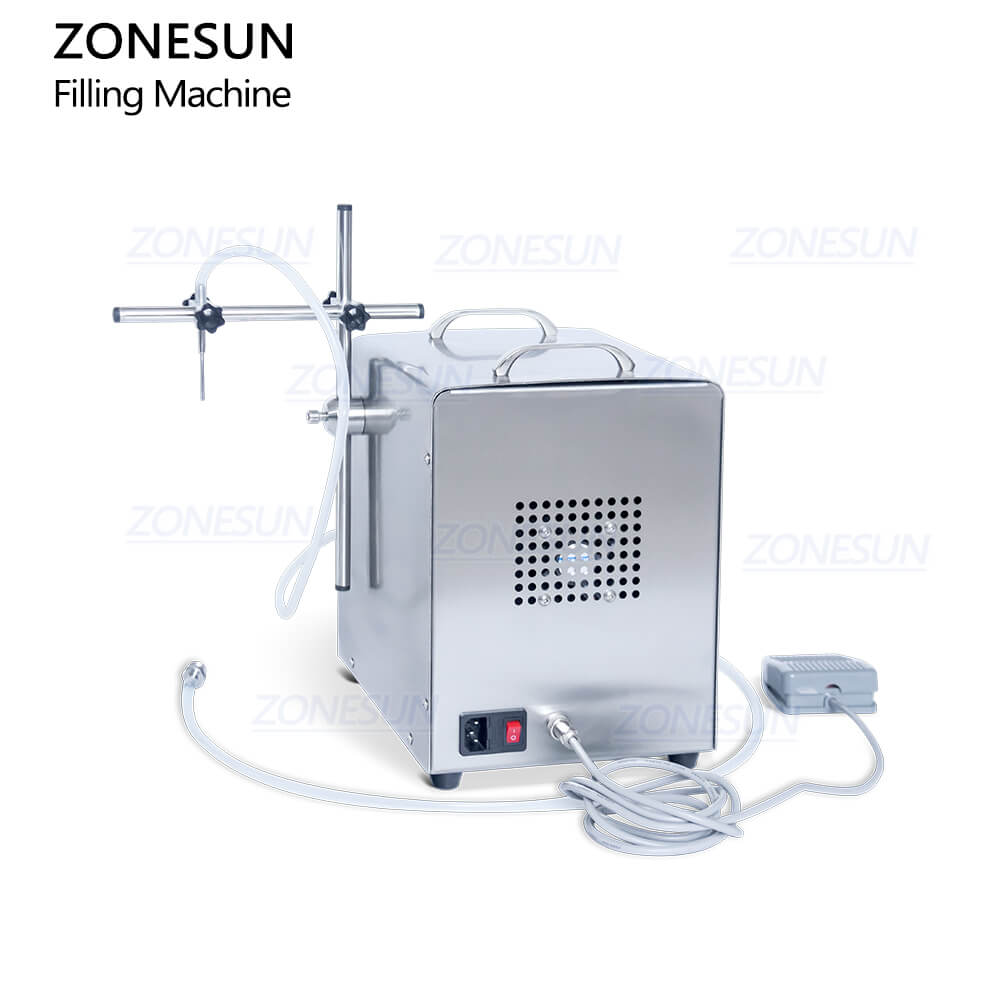

Filling Machine
| Model | ZS-CPYT1S |
| Voltage | 110V/220V |
| Power | 120W |
| Pump | Ceramic pump |
| Pump output every time | 0.2-2.8ml |
| Recommended filling range | 0.5-5ml |
| Margin of error | ±1% |

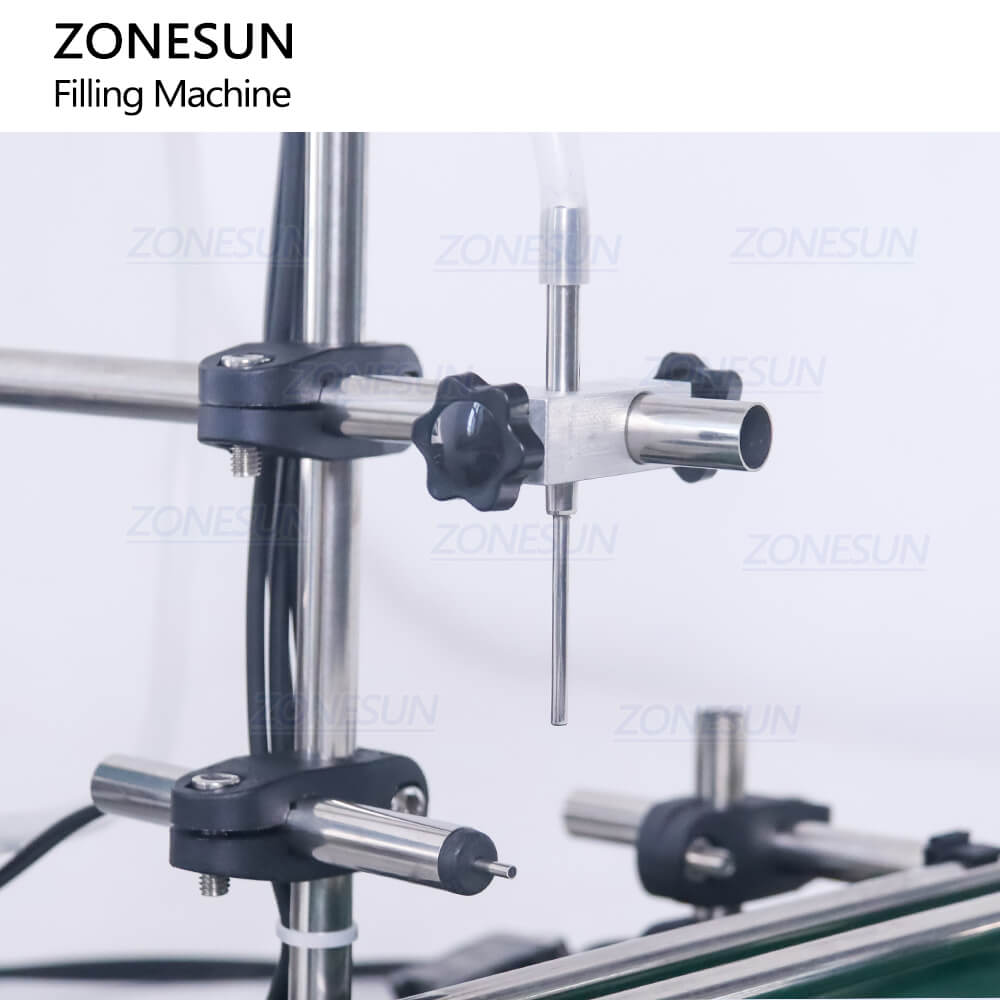

| Nozzle | 2mm, anti-dripping |
| Memory function | √ |
| Machine size | About 225*450*300mm |
| Machine weight | About 10kg |
Conveyor Belt
| Model | ZS-CBG600 |
| Voltage | 110V/220V |
| Power supply | 15V5A 75W |
| Conveying speed | 10cm/s |
| Size of conveyor belt | 60*10cm |
| Size of collecting tray | 20*10cm |
| Height of bracket | 40cm |
| Net weight | About 2.9kg |
| Product Size | About 800*100*400mm |
| Gross weight | About 3.5kg |
| Package size | About 650*150*100mm |

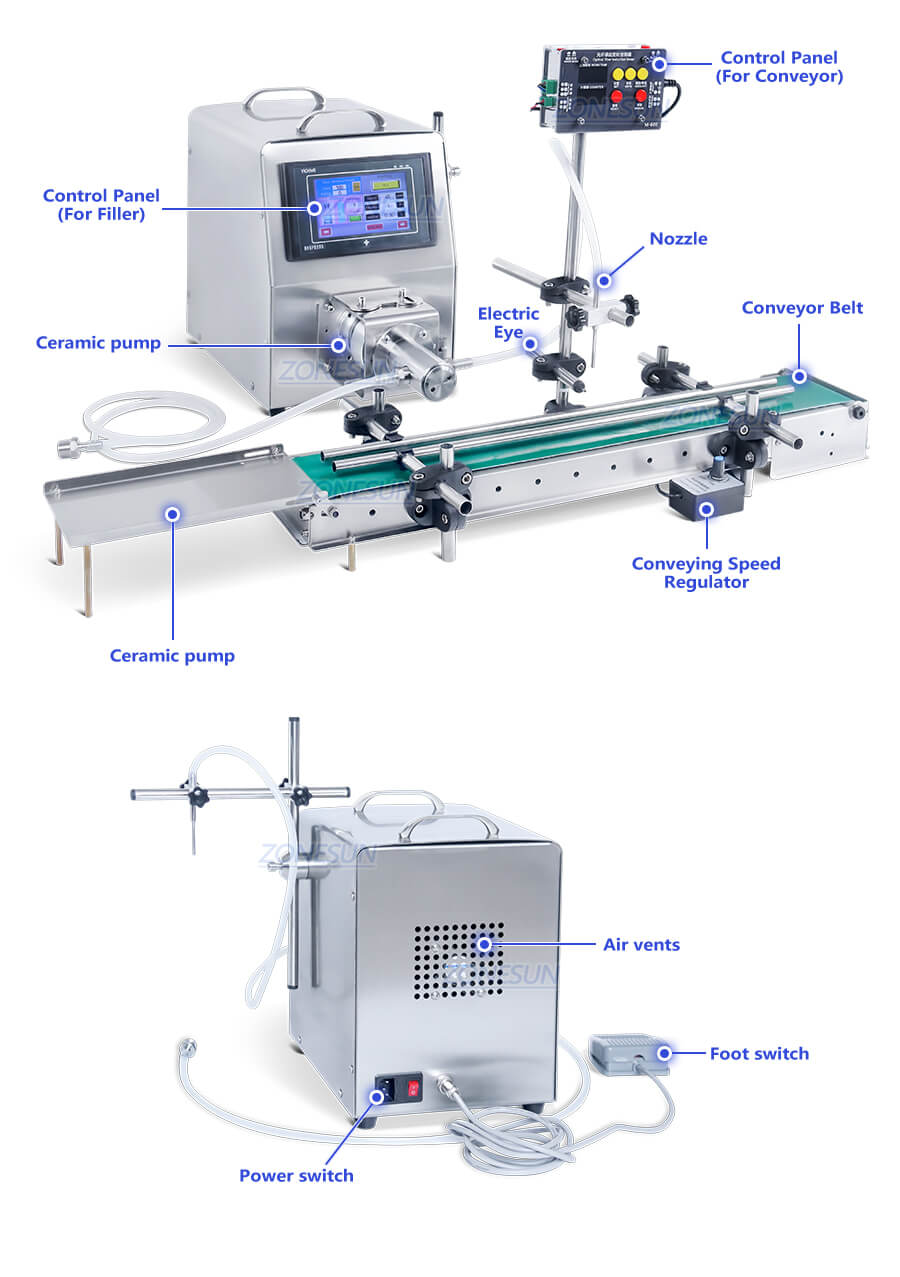

Product Details:
Pump
Ceramic pump, 0.2-2.8ml every time, high accuracy.

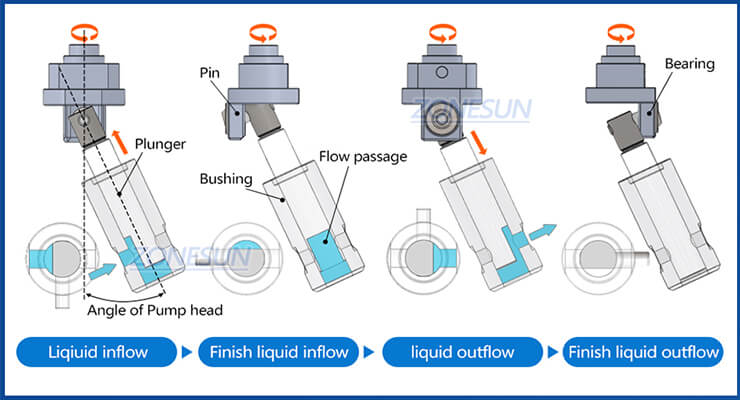

Working Principle
··No mechanical wear.
··Extremely precise and accurate metering and dosing.
··No clogging.
··Drift-free operation.
··Applicable for a wide range of fluids including acids, bases, and solvents.

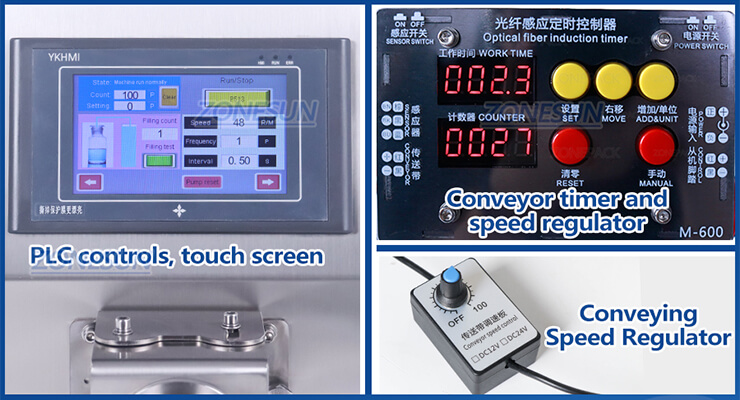

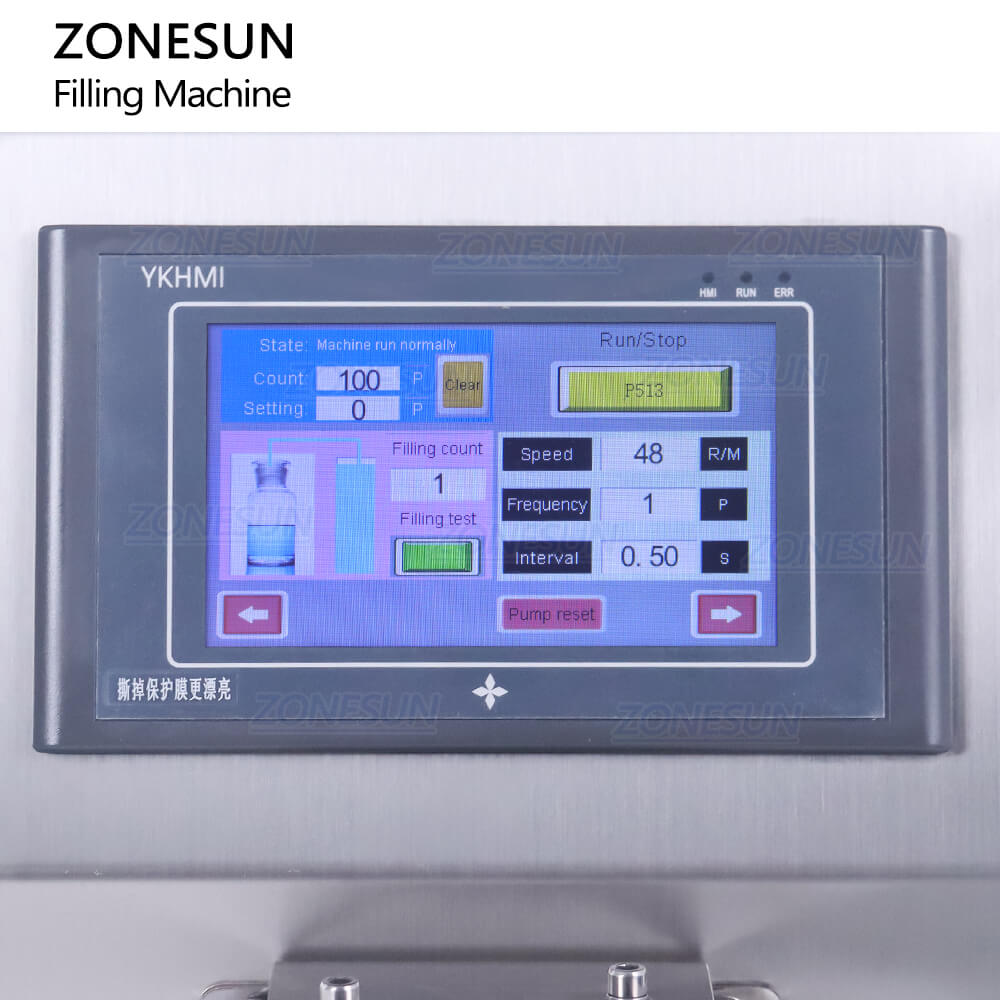

Control Panel
PLC controls, touch screen, color display, easy to use, in Englich.
