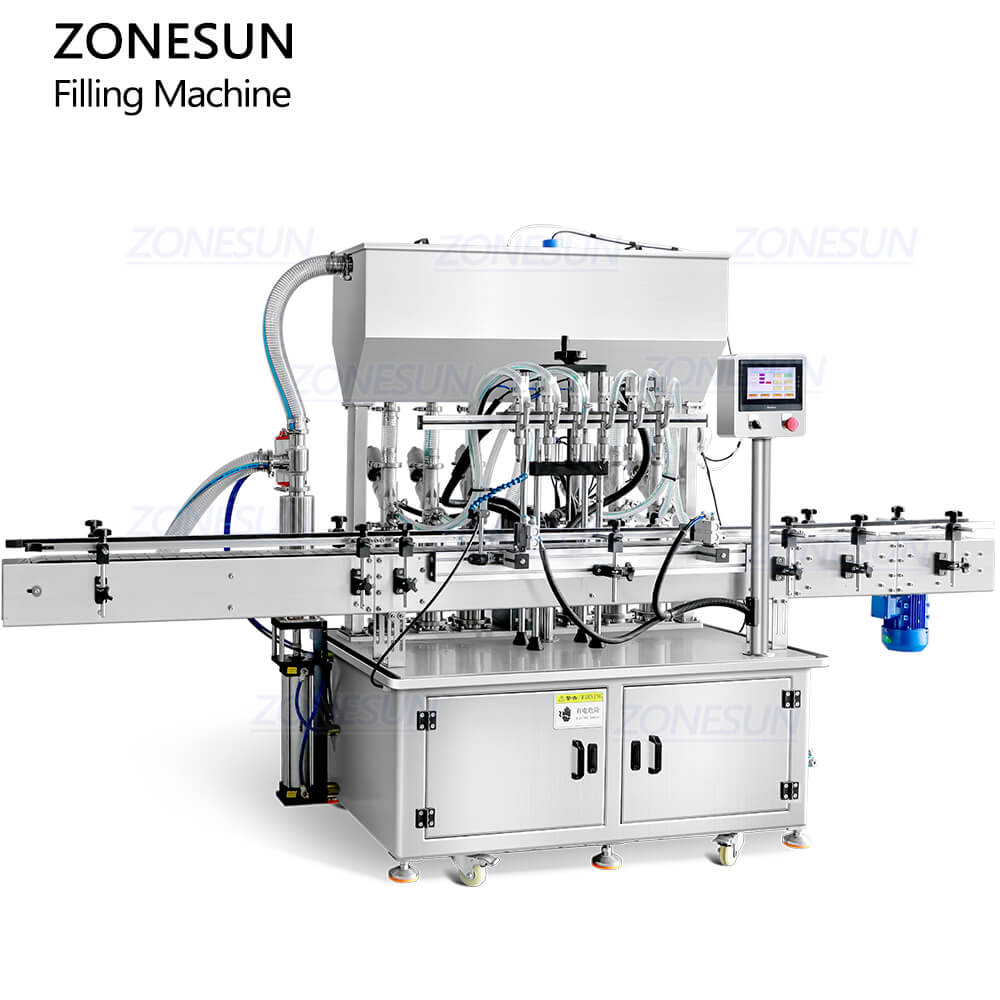

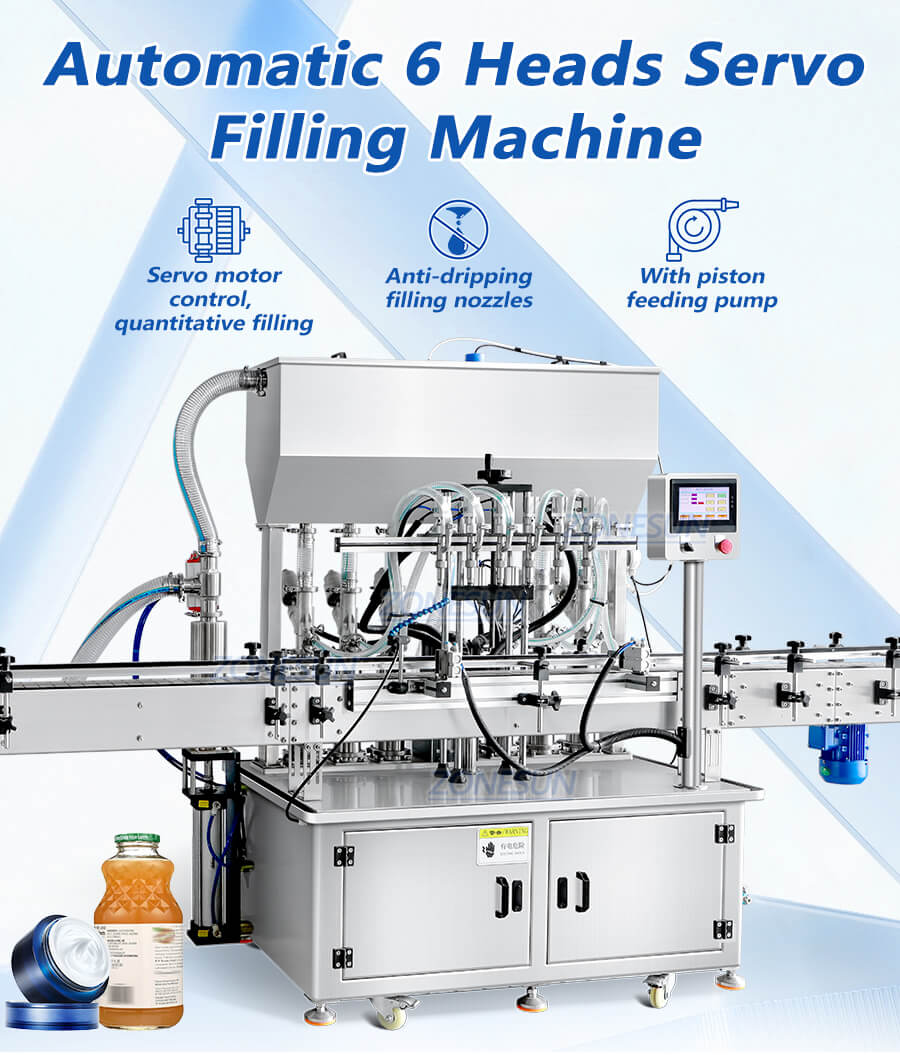

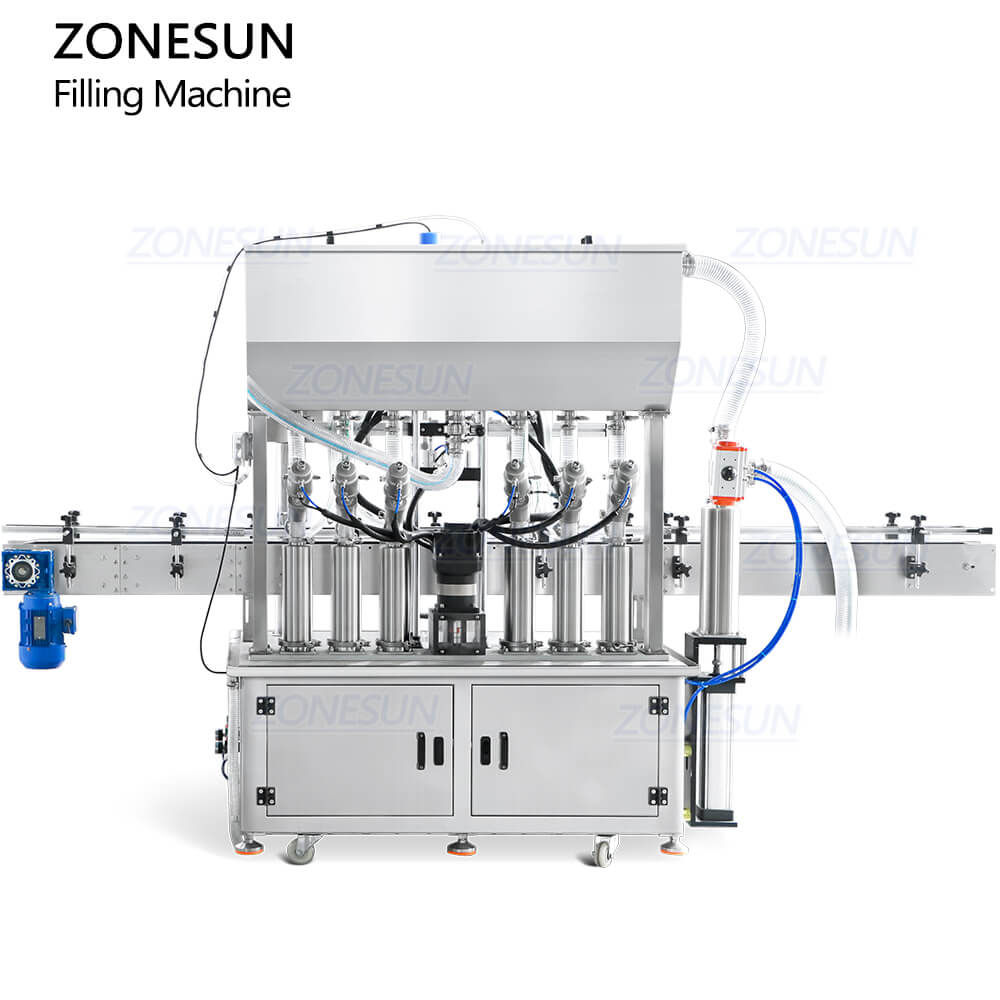

Product Description:
The servo filling machine can be used to fill liquid or paste by entering certain filling range.It will be more accurate and easier to operate,it also has the feeding pump which can transport filling material automatically.This machine is widely used in various industries such as daily chemical, food, cosmetics and so on.

Product Parameters:

Machine Model	ZS-YT6T-6PX
Voltage	220V/110V 50-60Hz
Power	2KW
Filling Heads	6 Heads(Can be customized)
Filling Range	100-1000ml(Can be customized)
Filling Speed	About 30-70bottles/min(depending on materials and bottle size)
Filling Pump	Servo Piston Pump
Filling Accuracy	±1%
Air Pressure	0.5-0.8MPa
Memory Function	Available
Machine Size	About 3020*900*1980mm
Package Size	About 2030*900*1980mm
Gross Weight	About 401kg

Filling Machine Configuration
Name	Origin	Brand
Low-voltage electrical appliances	Zhejiang, China	Delixi
Intermediate relay	France	Schneider
Electromagnetic valve	Taiwan,China	AirTac
PLC	China	HCFA/Lichuan
Servo Motor	China	HCFA/Lichuan
Operation Panel	China	Samkoon/WEINVIEW

Product Details:

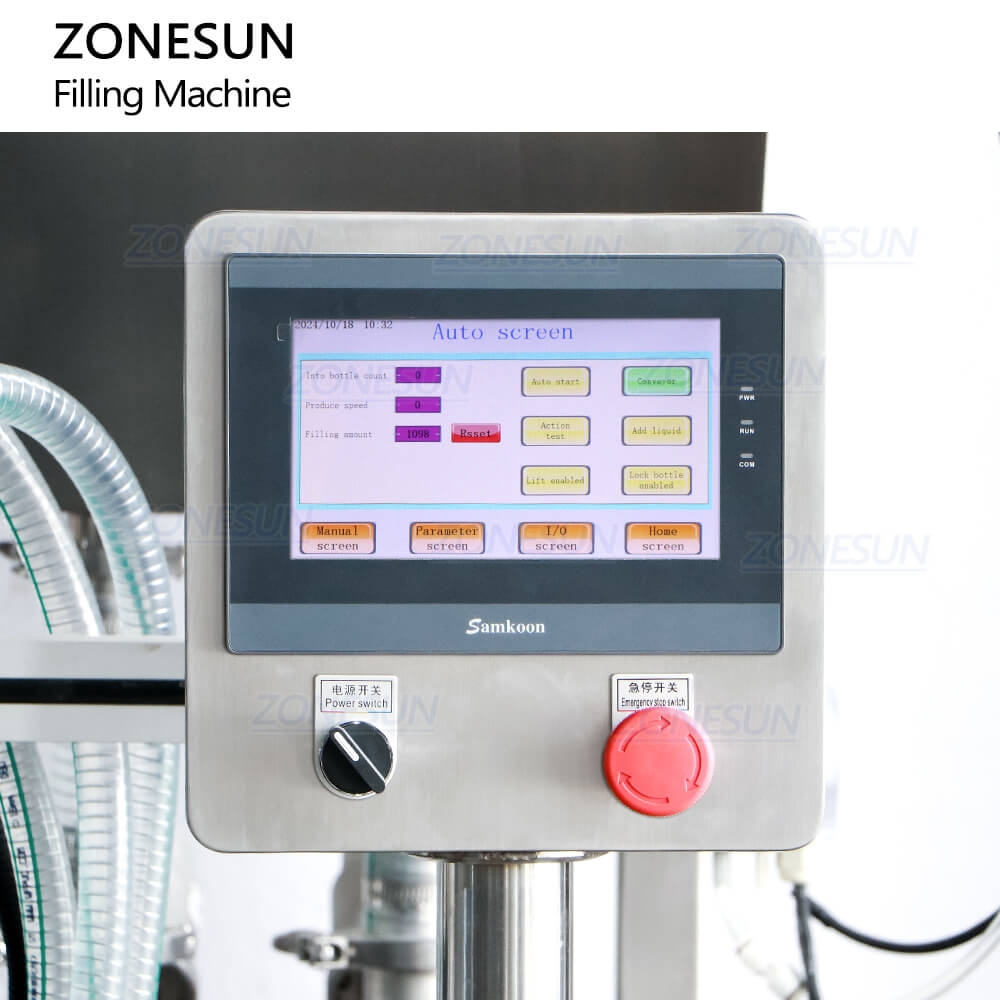

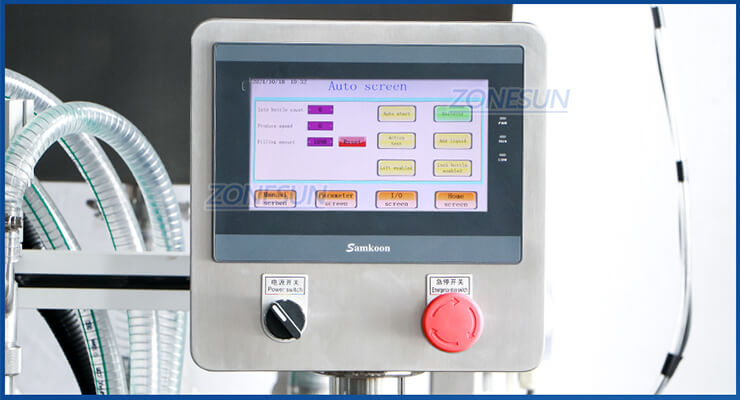

Control Panel
Set filling volume through control panel directly, parameter setting more intuitively, it has data storage function.

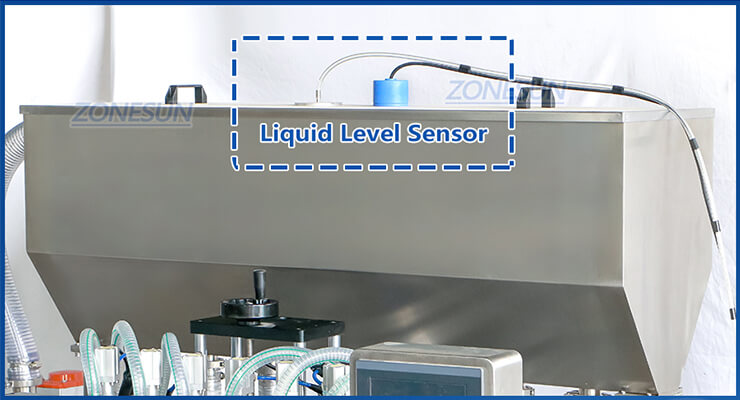

Hopper
Capacity of hopper is customizable, mixing & heating function are available for raw material pretreatment.

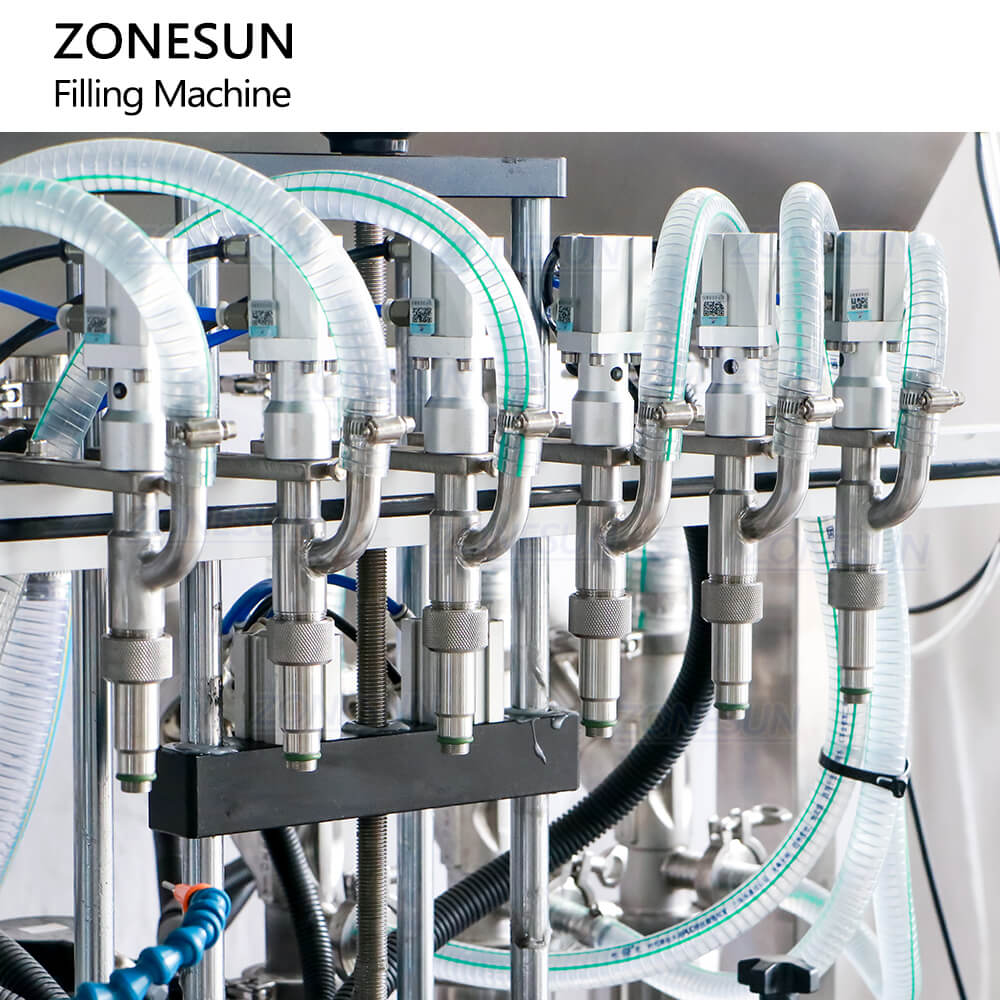

Anti Dripping Filling Nozzles
Quantity of filling nozzles is customizable, anti-dripping nozzles can effectively improves filling accuracy.

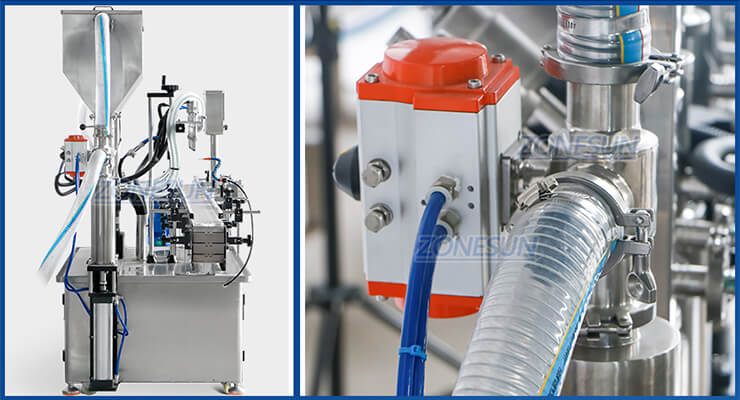

Feeding Pump
Feeding pump can transport filling material in time, final controlling element can improve filling accuracy of thick paste with granule.

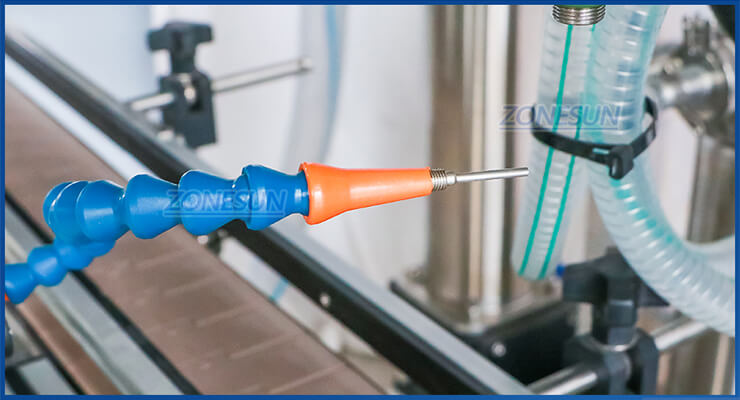

Electric Eye
It can detect passing by bottles and control machine to run automatically.

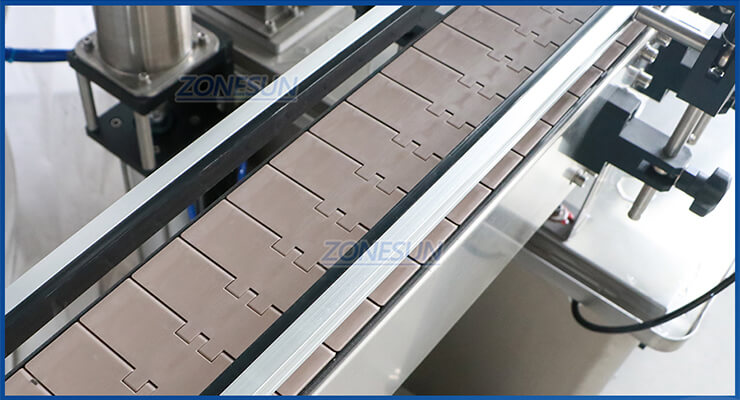

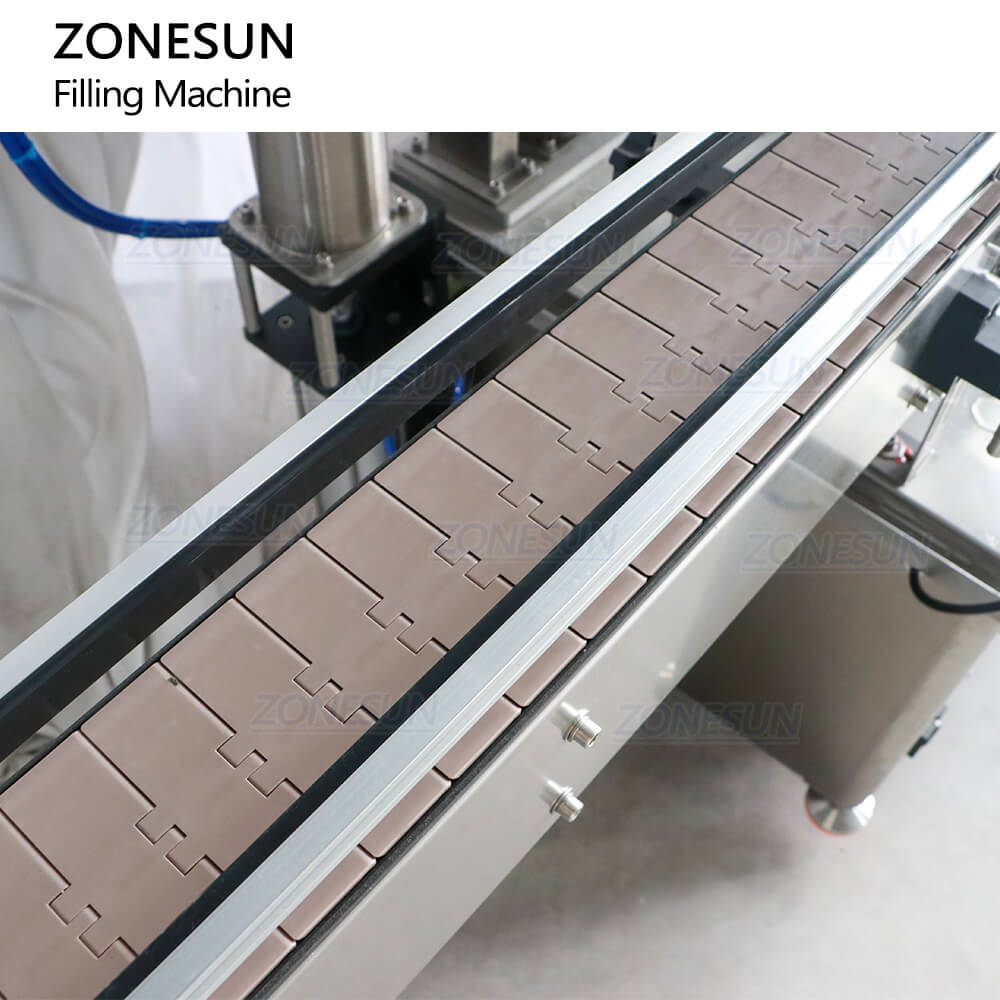

Chain Conveyor
Length and width are customizable based on production need. It has larger weight capacity.
