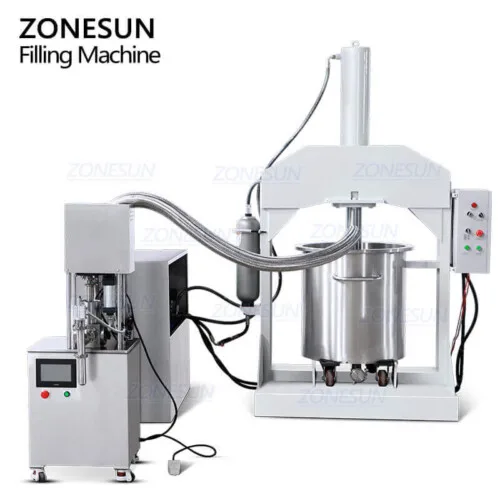

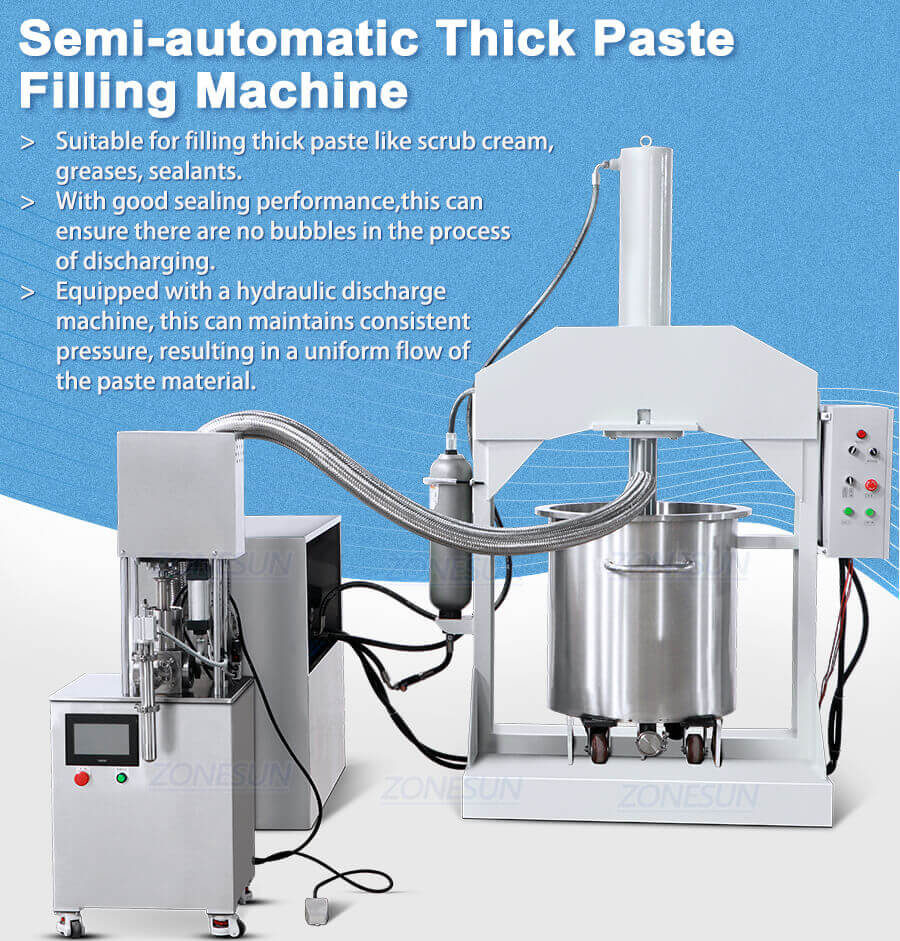

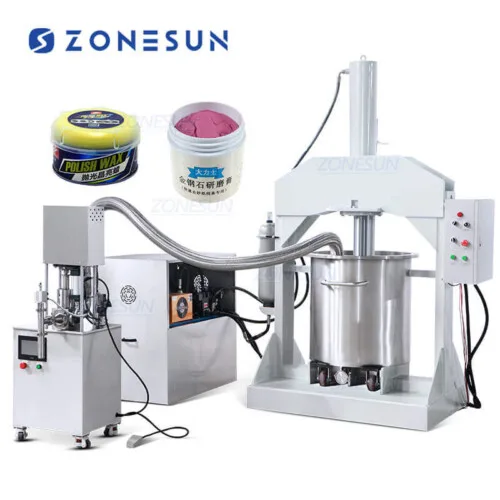

Scrubs Filling Machine
Designed for filling various pastes,greases,sealants,this filling machine is controlled by servo motor and usually work with the hydraulic discharge machine,which can supply filling material in time.It is widely used in chemical,food industries.
$12,499.00
Share to
Designed for filling various pastes,greases,sealants,this filling machine is controlled by servo motor and usually work with the hydraulic discharge machine,which can supply filling material in time.It is widely used in chemical,food industries.
Filling Machine
| Machine Model | ZS-VGT1 |
| Power Supply | 220V/50HZ |
| Air Supply | 0.5-0.8MPa |
| Air Consume | <0.3m³/min |
| Filling Volume | Max 350ml (Can be customized) |
| Volume Precision | ≤±0.5℅ |
| Working speed | 15-45pcs/min |
| Bottle Diameters | φ30-50mm (Can be customized) |
| Machine Size | About 650×600*1400mm(L×W×H) |
| Machine Weight(kg) | About 150KG |
| Package Size | About 660*740*1600mm(L*W*H) |
| Package Weight | About 174kg |
| *Specifications are for reference only and may vary by your product.Please confirm with us if required. | |
Hydraulic Discharge Machine
| Machine Model | ZS-PJ15T |
| Power Supply | 380V/220V |
| Extruding Pressure | 15T(45T/60T are available) |
| Material Tank Size | 20L(φ=284mm*H=880mm) |
| Discharging Outlet Size | DN38 |
| Oil Tank Capacity | 40L |
| Machine Size | About 800*600*1380(L*W*H) |
| Machine Weight | About 360kg |
| Package Size | About 950*720*1640mm |
| Package Weight | About 410kg |
| *Specifications are for reference only and may vary by your product.Please confirm with us if required. | |

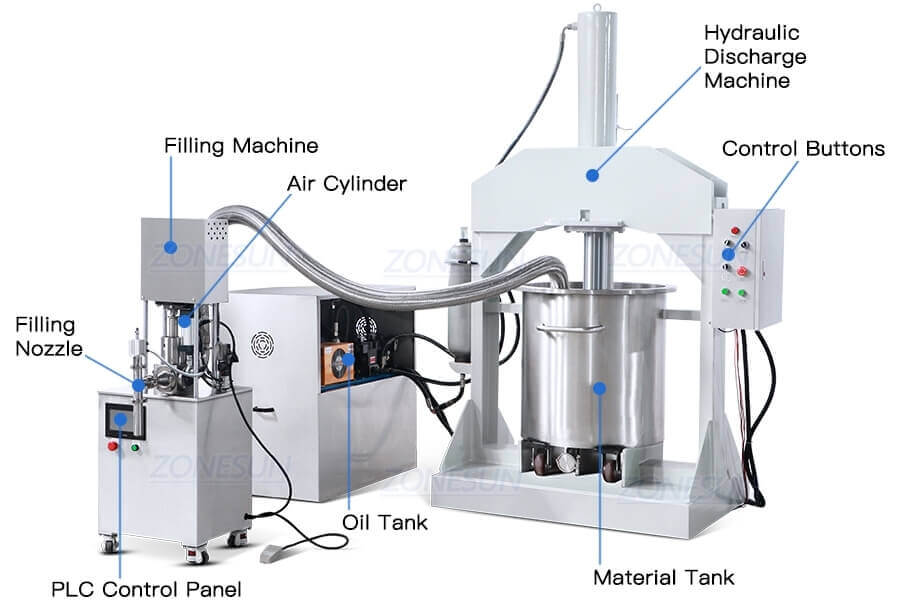

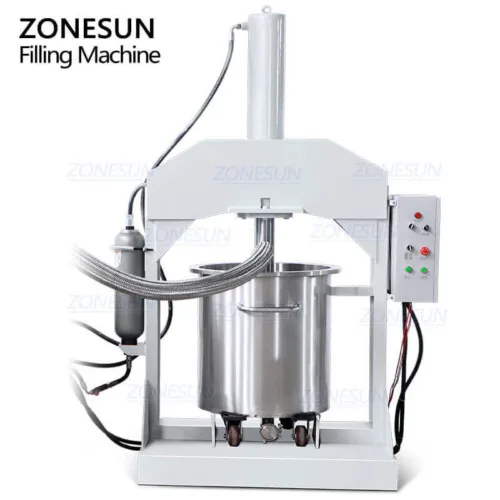

Hydraulic Extruder Module
The follower-plate press delivers steady, high force to push dense pastes directly to the filler without air pockets.

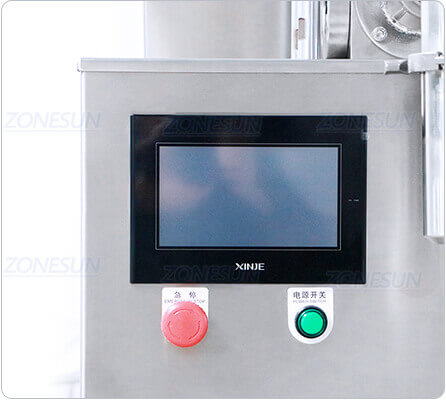

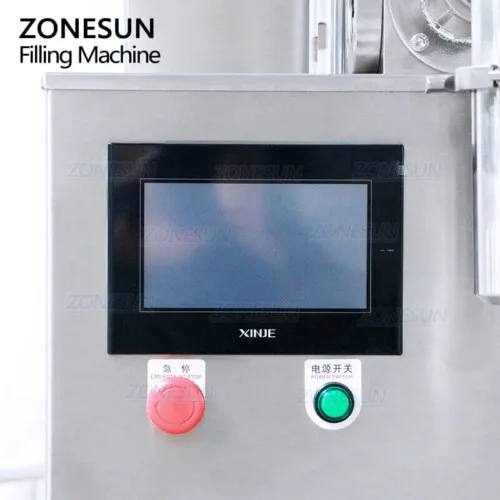

Control Panel
PLC touch screen control panel makes working parameter easier. Servo motor controls filling to ensures high filling accuracy.

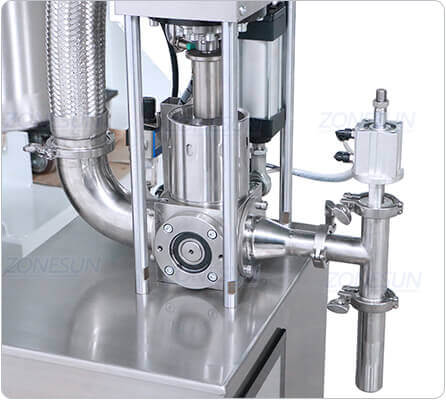

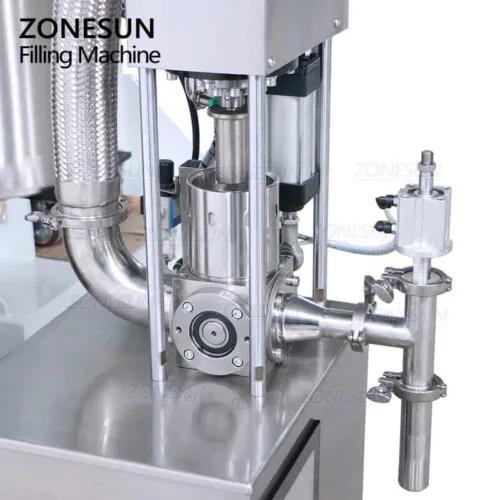

Filling Nozzle
Pneumatic filling nozzle is more powerful when filling thicker paste.

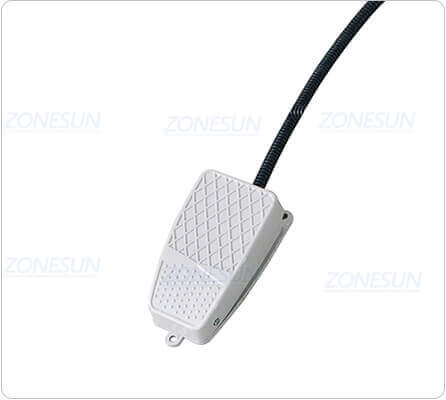

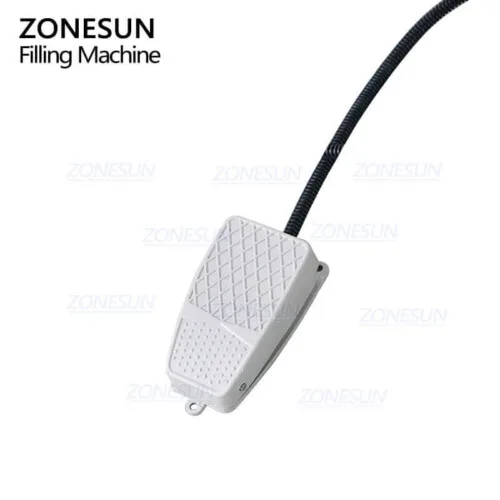

Pedal Switch
Machine can be controlled by pedal switch, this can free your hands and improve working efficiency.
