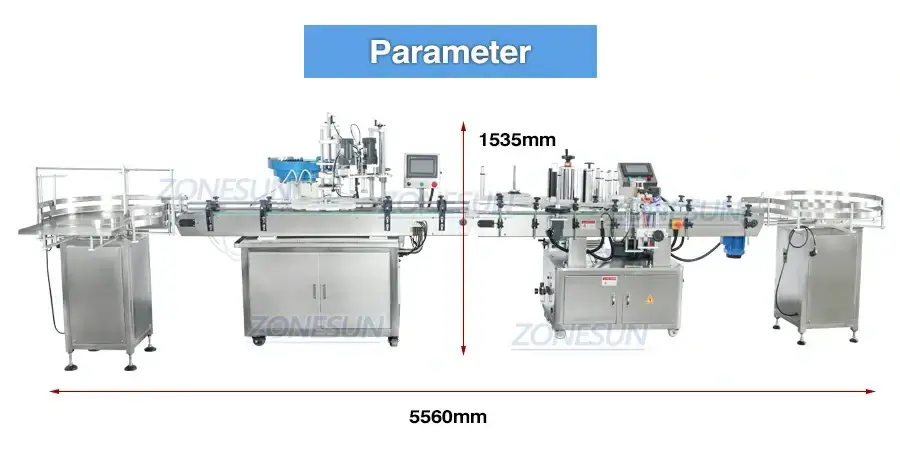

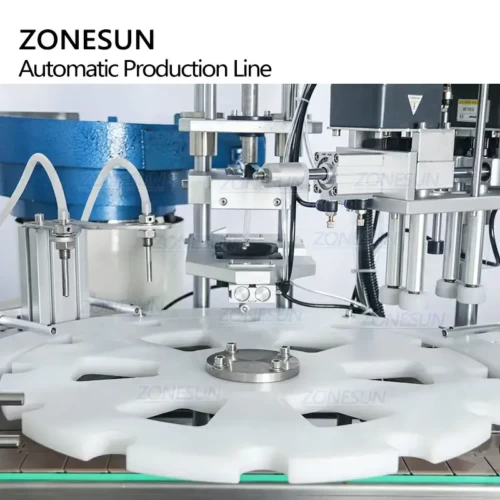

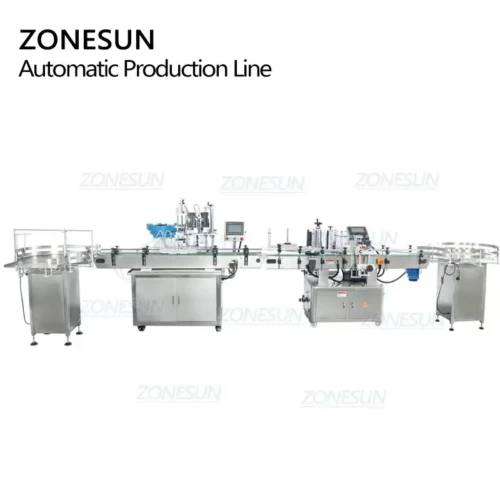

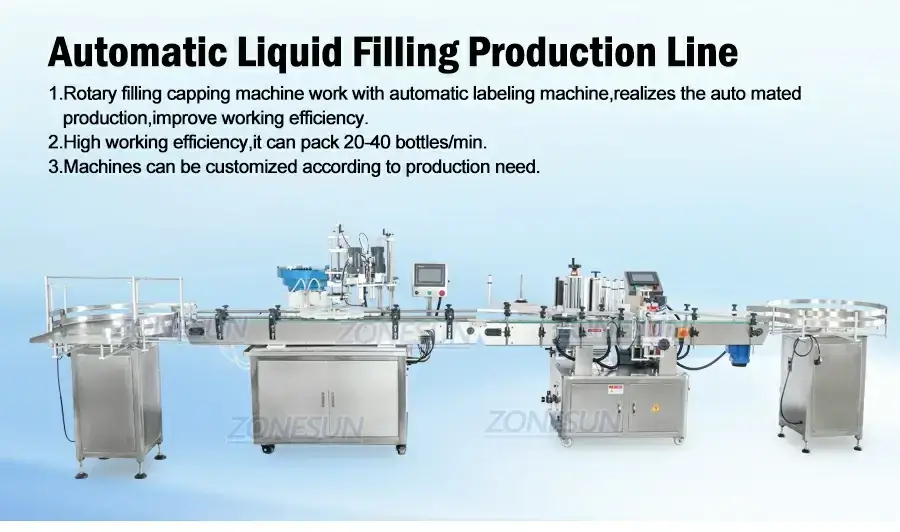

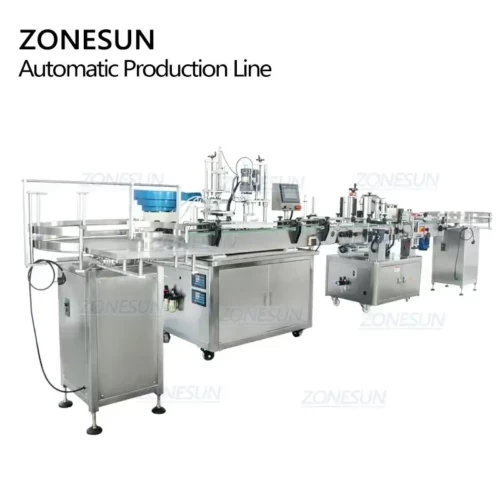

3 IN 1 Filling Production Line
This automatic production line is designed with multiple function,it can arrange bottles,fill liquid,feed bottle plugs and caps,cap bottles and sort finished products automatically.It can help you improve working efficiency.This is suitable for essential oil,water,juice etc.We can customize the machine and make it can work for different sizes of containers at the same time.
Description:
This automatic production line is designed with multiple function,it can arrange bottles,fill liquid,feed bottle plugs and caps,cap bottles and sort finished products automatically.It can help you improve working efficiency.This is suitable for essential oil,water,juice etc.We can customize the machine and make it can work for different sizes of containers at the same time.
| Model | ZS-LP800Z | ZS-LP1000Z |
| Turntable Diameter | 800mm | 1000mm |
| Suitable Bottle Diameter | 20-100mm | |
| Suitable Bottle height | 30-320mm | |
| Working Speed | 40-60 bottles/min(depends on bottle size) | |
| Power Supply | 220/110v 50-60Hz 50W | |
| Package Size | About 115*100*132cm | About 135*131.5*123.5cm |
| Net Weight/Gross Weight | About 50kg/65kg | About 135kg/180kg |

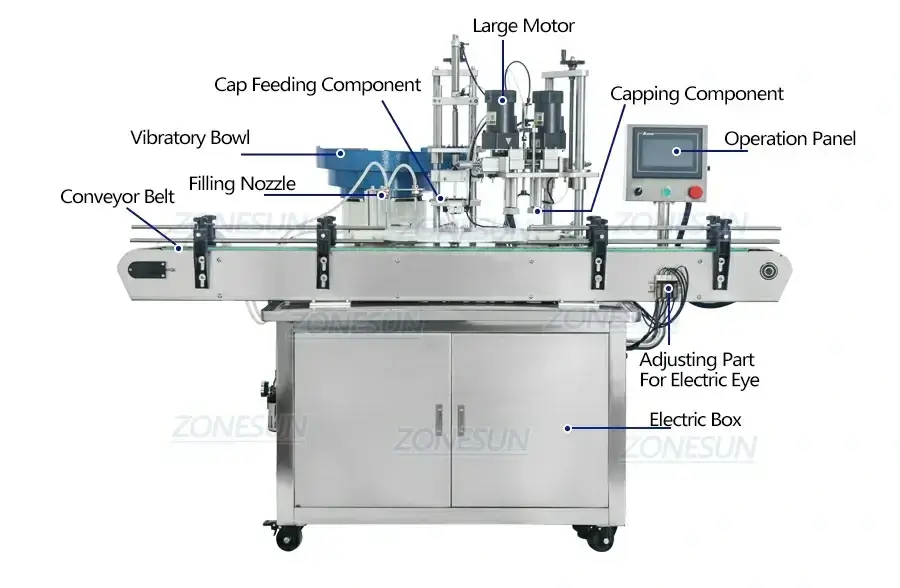

| Machine model | ZS-AFC1 |
| Machine voltage | AC220V/110V 50-60HZ |
| Bottle diameter | 25-50mm(Can Customize) |
| Bottle height | 50-350mm |
| Working speed | 0-40 bottles/min.(depending on liquid,bottle and caps) |
| Max power | 300W |
| Air pressure | 0.4-0.6MPa |
| Capping torsion | 4-9kgf/cm |
| Conveyor size | About 2000*100mm(L*W) |
| Machine size | About 1015*800*1560mm |
| Machine weight | About 341kg |
| Package size | About 2210*980*1740mm |
| Package weight | About 411kg |

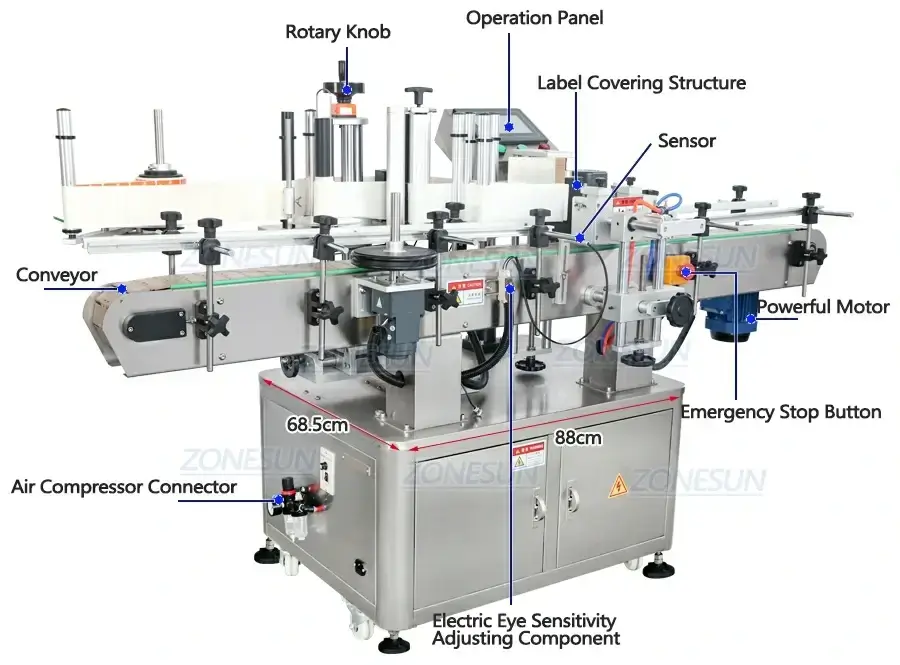

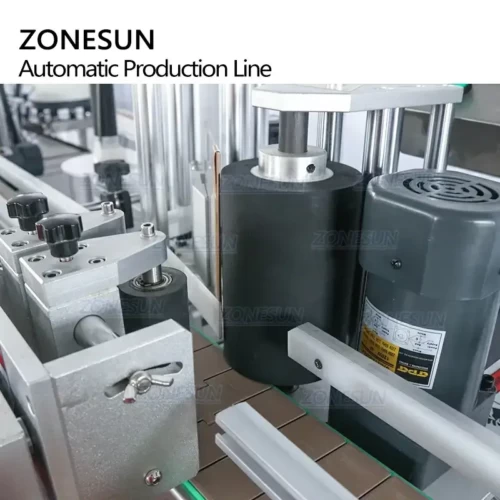

| Model | ZS-TB260 Labeling Machine |
| Power supply | AC220V 50Hz/60Hz 1500W |
| Labeling capacity | 25- 50PCS /min(depends on bottle size) |
| Labeling accuracy | ±1.0mm |
| Suitable Botle Diameter | φ30-100mm |
| Label size | (L)15-200mm (H)15-150mm |
| Roll inside diameter | φ76mm |
| Roll outside diameter | φ350mm |
| Conveyor Size | 1950(L)*100mm(W) |
| Machine size | About 2000*1400*1300mm |
| Packing Size | About 2120*940*1500mm |
| Net Weight/Gross Weight | About 226kg/290kg |

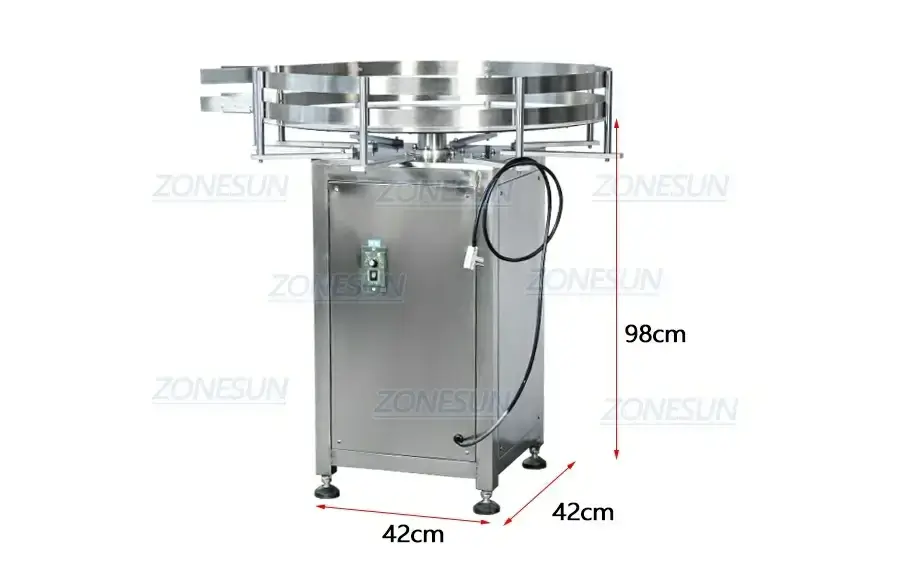

| Bottle specifications | Square bottle/round bottle |
| Conveying speed | 0-20 revolutions per minute(adjustable) |
| Voltage | 200V 50Hz (110V can be customized) |
| Power supply | 50W |

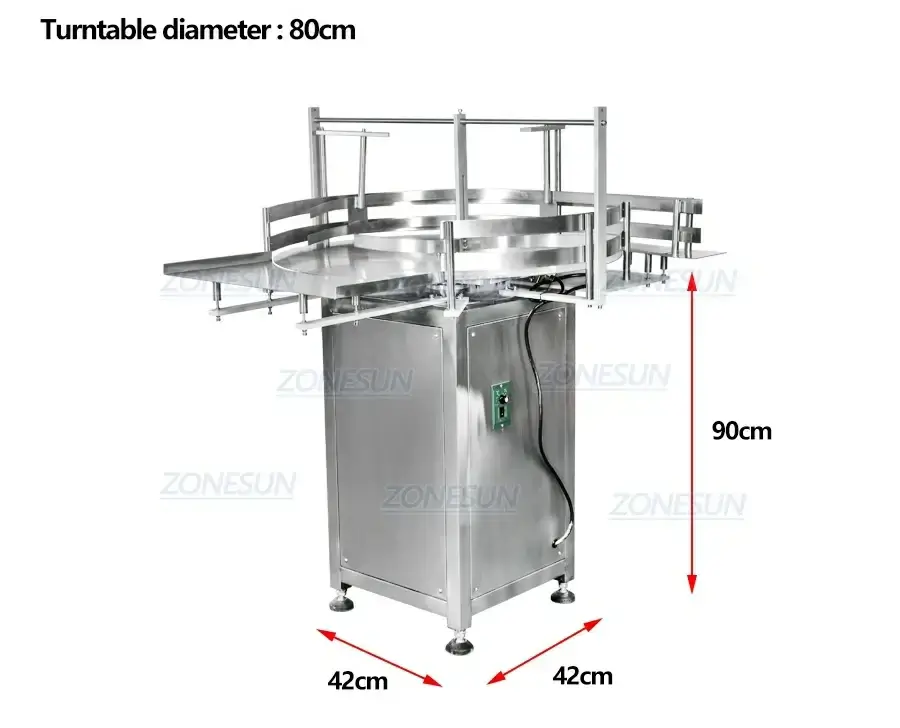

| Turntable diameter | 800 mm Available |
| Package size | About 855*855*1020mm |
| Net weight/Gross weight | About 63kg/88kg |
