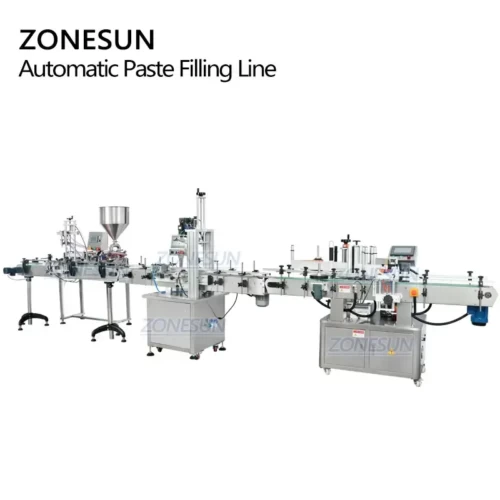

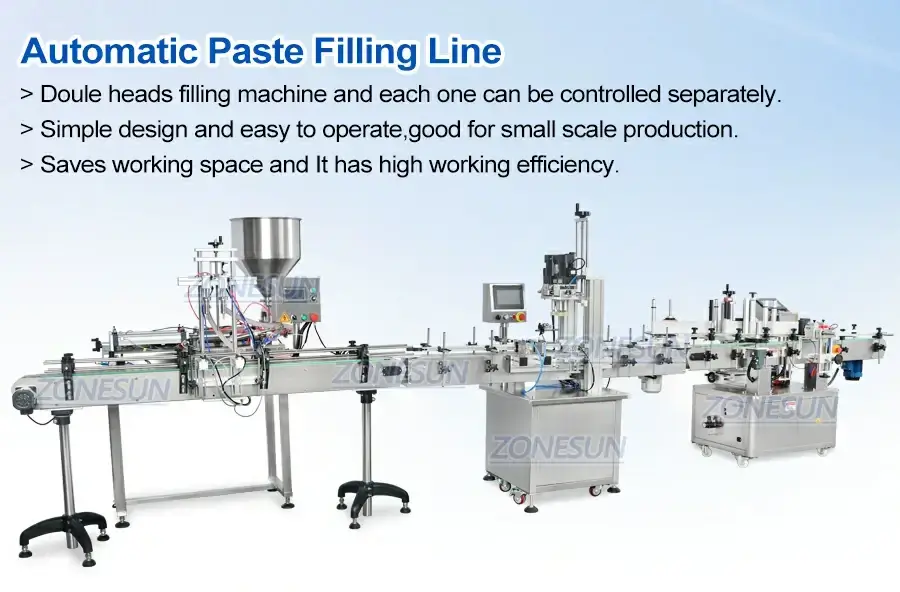

Double Head Paste Production Line

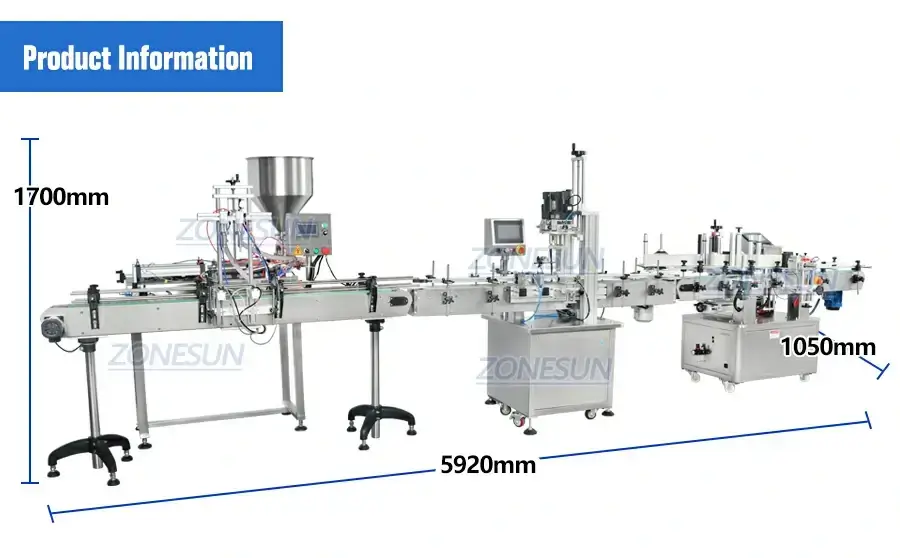

This automatic production line is consist of filling machine,capping machine and round bottle labeling machine.It has a high degree of automation,good stability,and convenient adjustment.This automatic filling line helps you save production line and it is suitable for food,daily chemical,agriculture and cosmetics industries.
Description:
This automatic production line is consist of filling machine,capping machine and round bottle labeling machine.It has a high degree of automation,good stability,and convenient adjustment.This automatic filling line helps you save production line and it is suitable for food,daily chemical,agriculture and cosmetics industries.

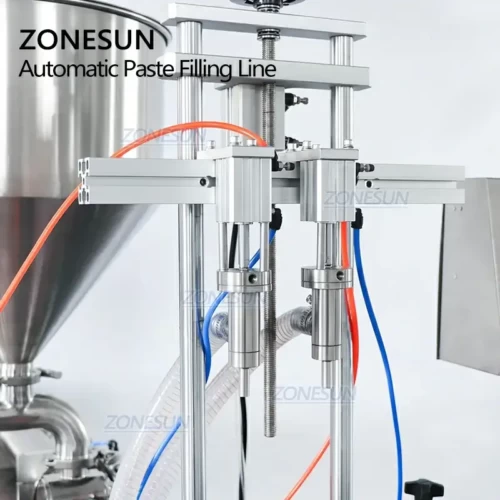

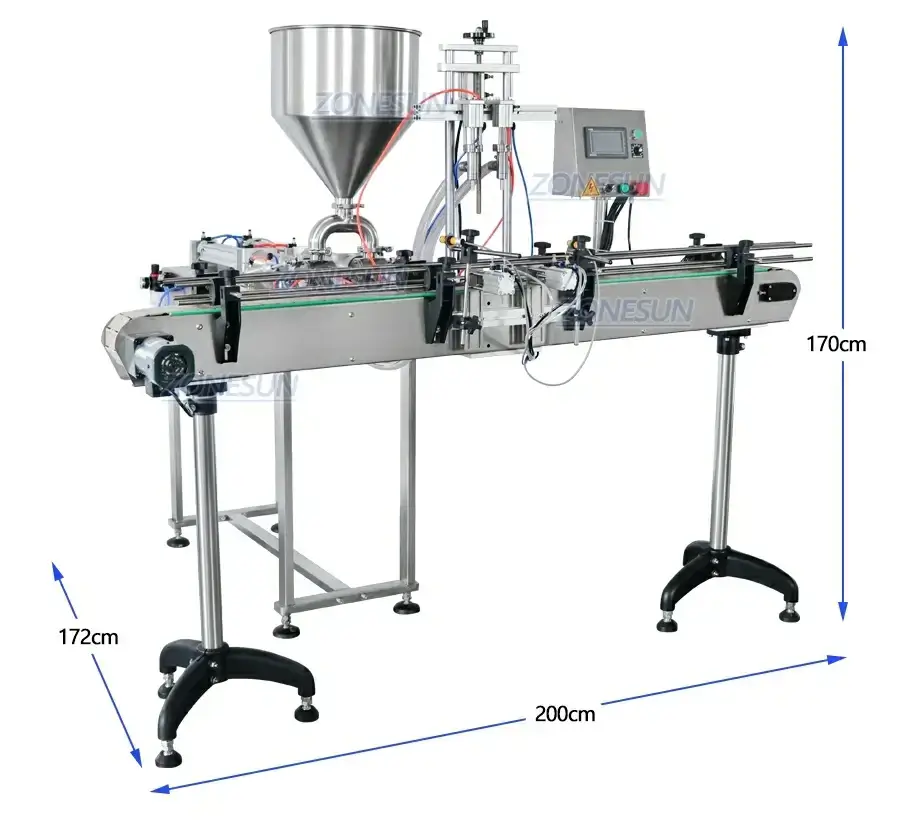

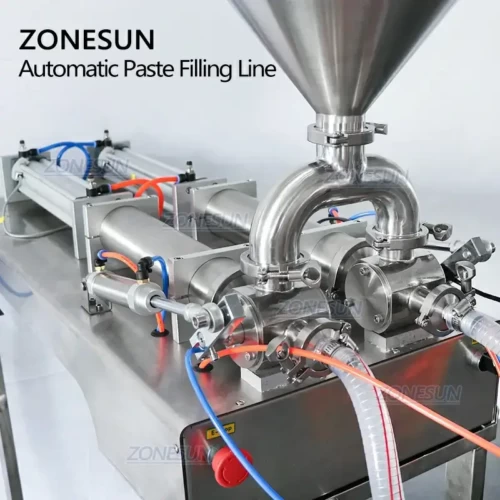

| Model | ZS-GY2C |
| Voltage supply | 220/110V 50/60Hz |
| Power | 130W |
| Filling accuracy | ≤±0.5% |
| Filling speed | 10-20bottles / min |
| Filling volume |
5-100/10-300/50-500/100-1000/500-3000/1000-5000ML(choose based on your requirement)
|
| Conveyor size | 2m*10cm(L*W) |
| Filling nozzle size | φ10mm |
| Equipped with air pressure | 0.4-0.6 MPa |
| Size of air compressor connector | OD 8mm |
| Air consumption | ≥0.1m³/min |

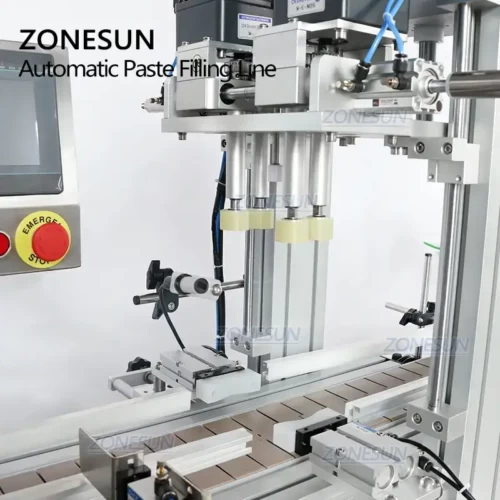

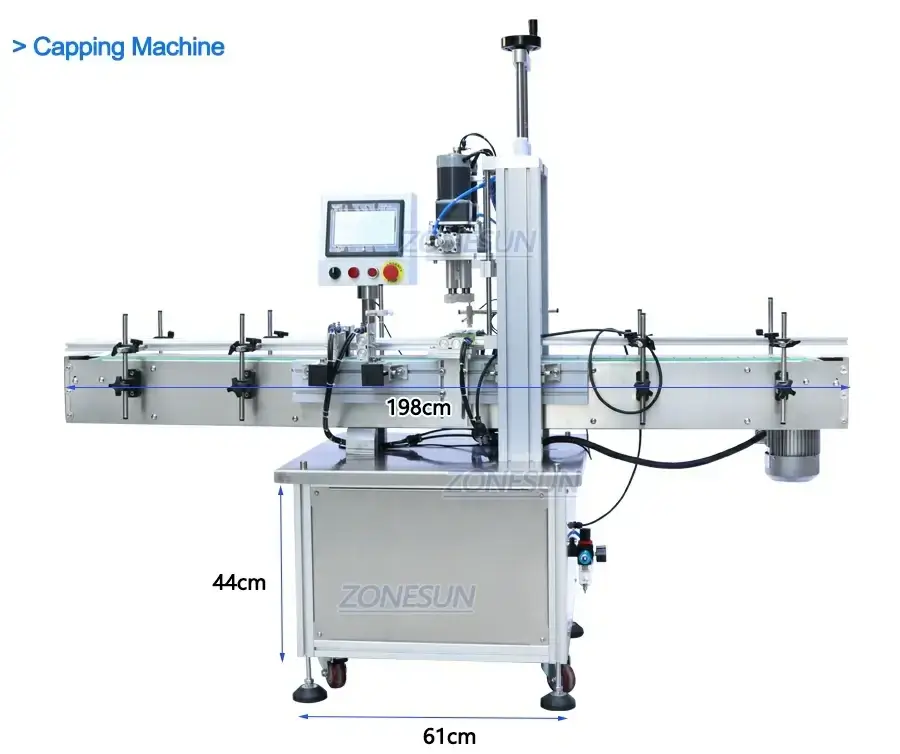

| Model | ZS-XG16 |
| Bottle height | 30-300mm |
| Cap Diameter | 18-70mm |
| Botle Diameter | 20-160mm |
| Working speed |
20-60 bottles/minute(depending on bottle and cap size and shape)
|
| Working voltage | AC220V/110V 50-60HZ |
| Wokingn pressure | 0.4-0.6MPa |
| Size of air compressor connector | OD 8mm |
| Machine Size | About 1930*740*1600mm |
| Package Size | About 2000*820*1760mm |
| Net weight/Gross weight | About 113kg/192.5kg |

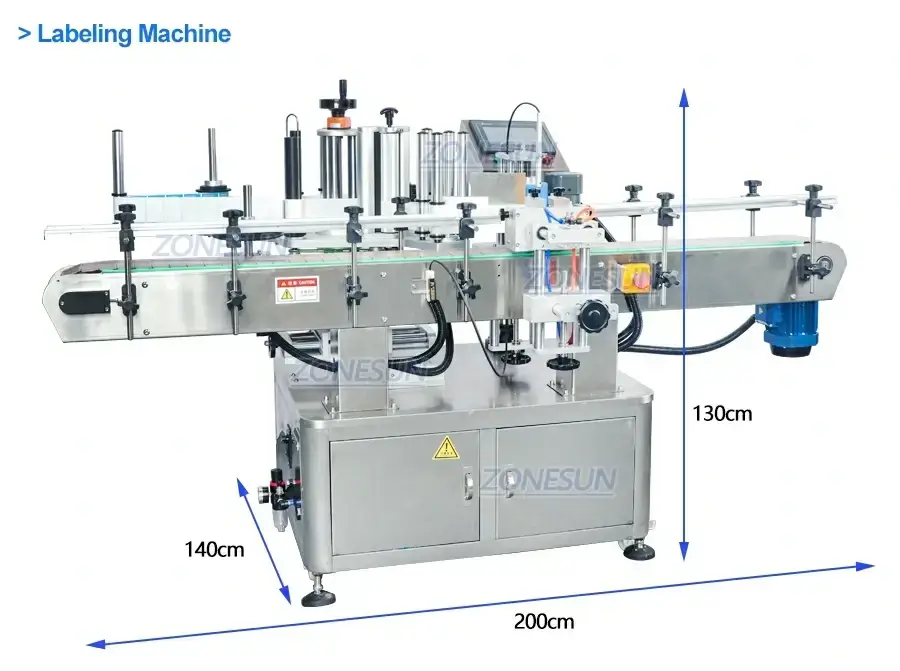

| Model | ZS-TB260 |
| Power supply | AC220V 50Hz/60Hz 1500W |
| Labeling capacity | 25- 50PCS/min(depends on bottle size) |
| Labeling accuracy | ±1.0mm |
| Suitable Botle Diameter | φ30-100mm |
| Label size | (L)15-200mm (H)15-150mm |
| Roll inside diameter | φ76mm |
| Roll outside diameter | φ350mm |
| Conveyor Size | 1950(L)*100mm(W) |
| Machine size | About (L)2000*(W)1400*(H)1300(mm) |
| Packing Size | About 2120*940*1500mm |
| Net weight/Gross weight | About 226kg/290kg |
Send your message to us:
Products categories
-
Desktop Cosmetic Powder Filling Machine
-
Semi Automatic Weighing Filling Machine
-
Diaphragm Pump Weighing Fillinng Machine
-
ZONESUN ZS-TB600 Full Automatic Flat Surface Labeling Machine
-
Double Side Round Bottle Labeling Machine
-
ZONESUN ZS-XG440A Full Automatic Bottle Capping Machine
-

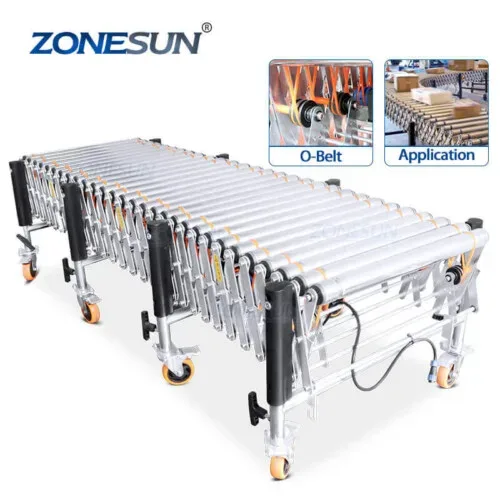

O-Belt Flexible Conveyor
-
