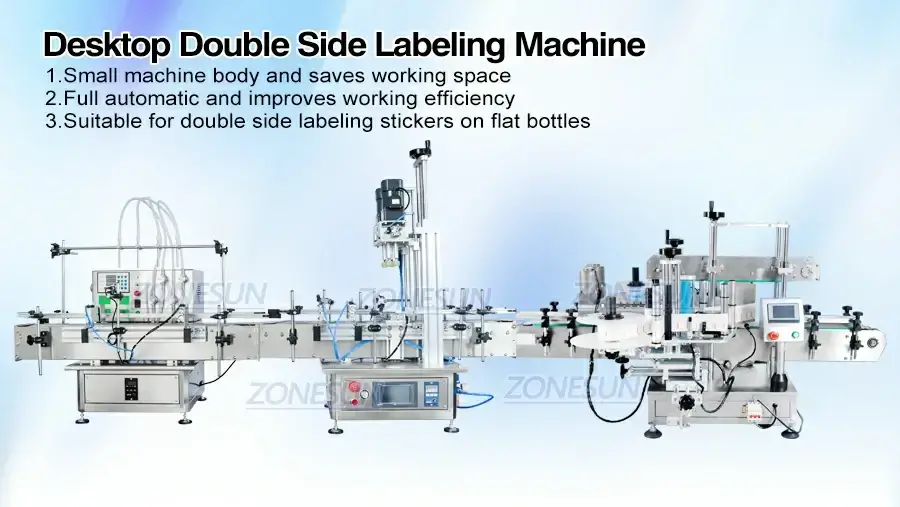

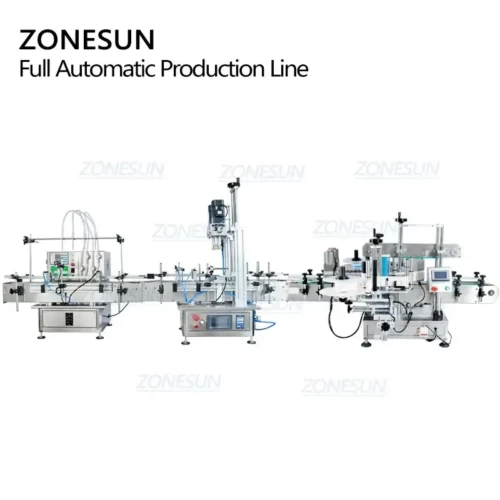

Double-sided Labeling Production Line
This production line is suitable for small scale production, can fill liquid,cap bottles and label stickers automatically.These desktop type machines can save working space and help you improve working efficiency greatly. It is widely used in food, beverage, cosmetics, daily chemical and pharmaceutical industries.
Description:
This production line is suitable for small scale production,can fill liquid,cap bottles and label stickers automatically.These desktop type machines can save working space and help you improve working efficiency greatly.It is widely used in food,beverage,cosmetics,daily chemical and pharmaceutical industries.

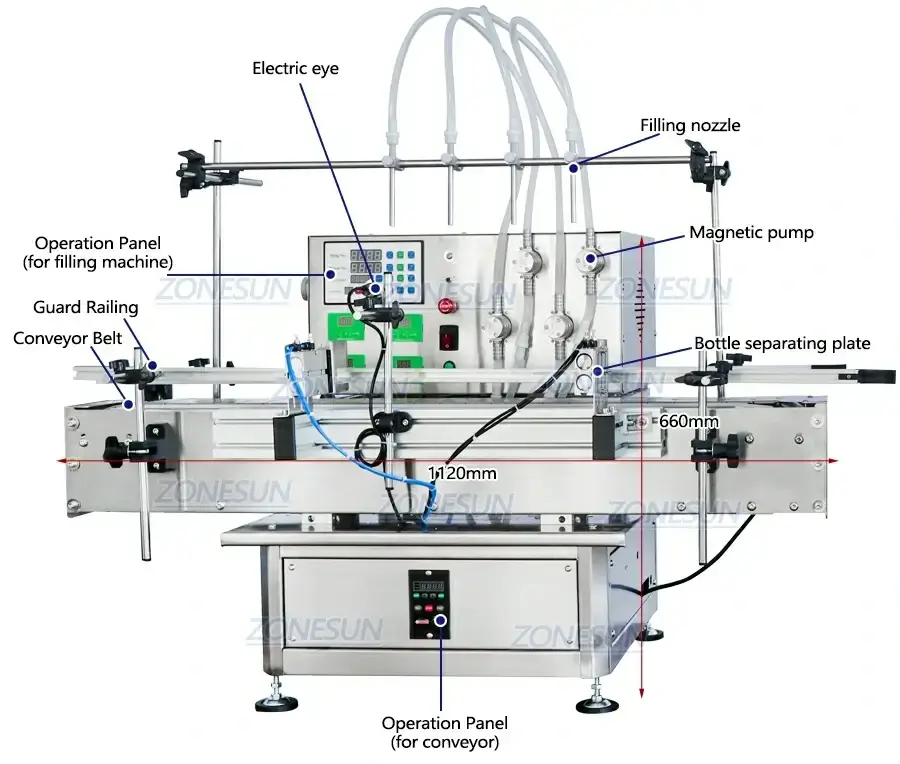

| Machine model | ZS-DTMP4Y |
| Power supply | 110/220V 50-60HZ 300W |

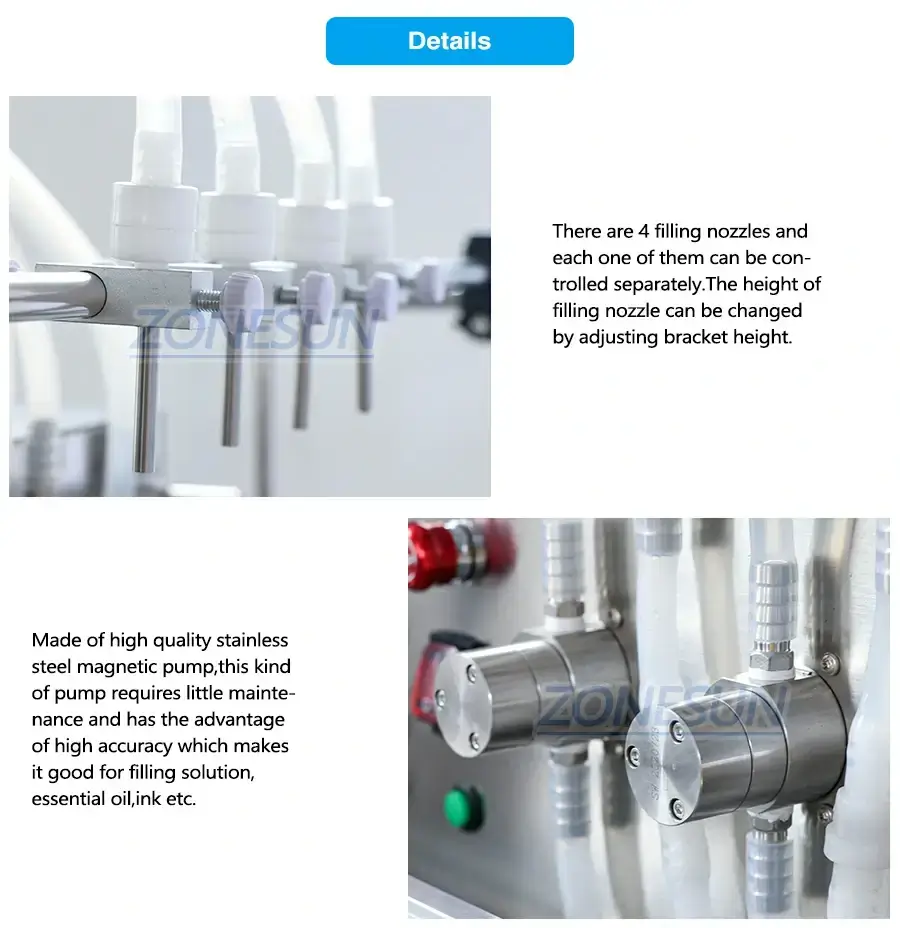

| Maximum flow velocity | 6000ml/min (Each nozzle and based on water ) |
| Working speed | 20-30 bottles/min |
| Air pressure | 0.3-0.4mpa |
| Filling accuracy | ≤±1%( for water) |
| Delay range | 0.01s-999.9s |
| Count range | 1-99999 times |
| Size of air compressor connector | OD 6/8mm |
| Package size | About 1150*650*820mm |
| Net weight/Gross weight | About 59kg/89kg |

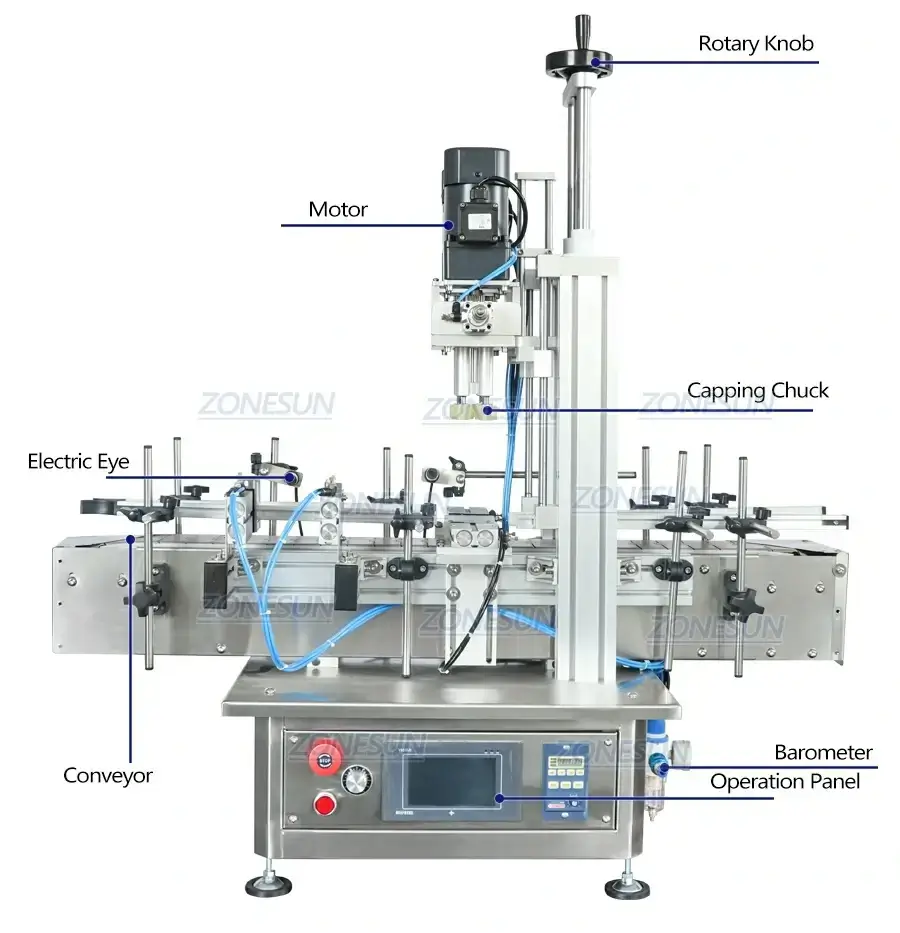

| Bottle height | 60-270mm |
| Bottle Caps Diameter | 18-70mm |
| Working speed | 20-40 bottles/minute(depending on bottle and caps) |
| Working voltage | AC220V/110V 50-60HZ |
| Working pressure | 0.4-0.6 MPa |

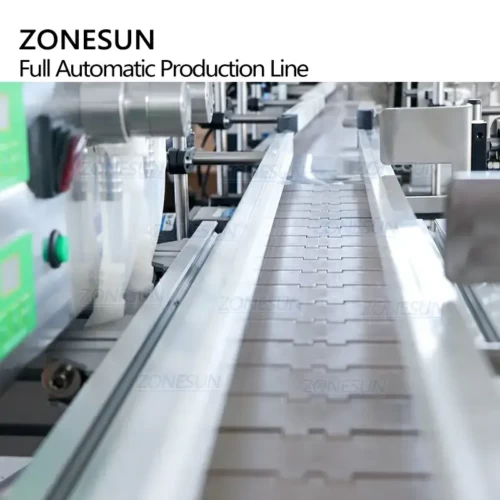

| Conveyor length | 1117mm |
| Size of air compressor connector | OD 8mm |
| Machine size | About 1120*580*1110mm |
| Package size | About 1160*610*1140mm |
| Net weight/Gross weight | About 69kg/97.5kg |

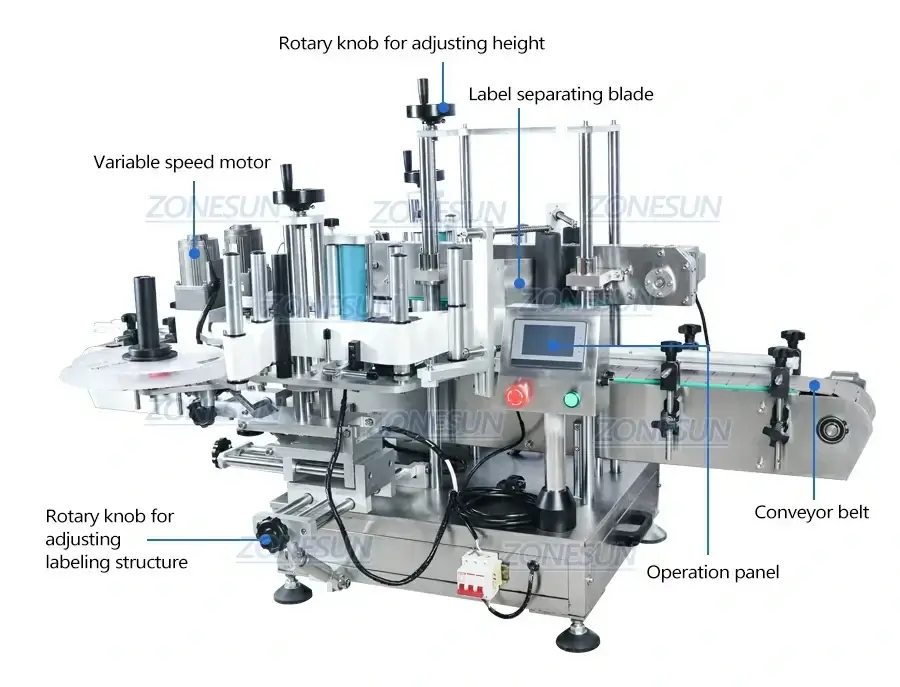

| Machine model | ZS-TB300M |
| Voltage | 110V-60HZ/220V-50HZ |
| Power | 3100W |
| Working speed | 30-100 bottles/min |
| Labeling accuracy | ±0.5mm |
| Suitable labeling Size | ≤200mm(W)(Can be customized ) |
| Roll inside diameter(mm) | φ75mm |
| Roll outside diameter(mm) | φ250mm |
| Suitable bottle diameter | φ≤100mm H≤350mm |
| Conveyor size | About 1800*100mm |
| Machine size | About 1800*1130*1300mm(L*H*W) |
| Machine weight | About 208kg |
