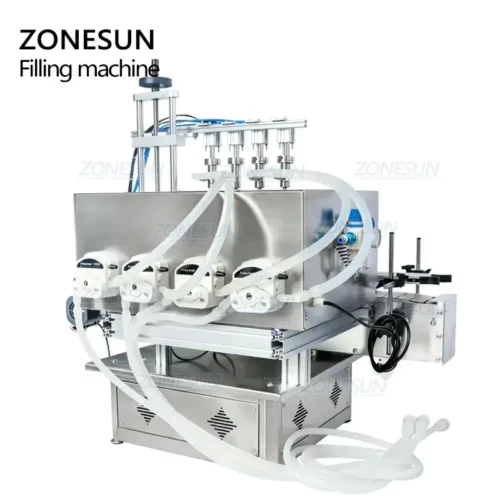

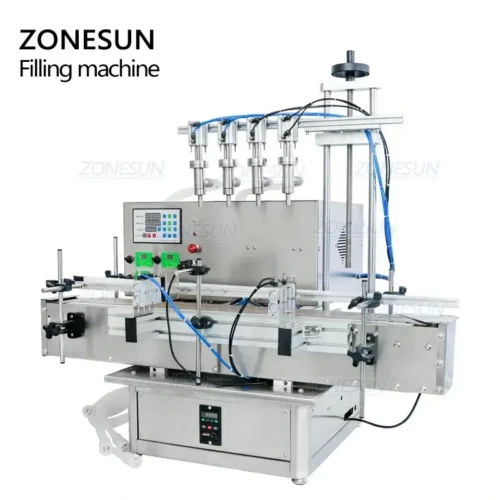

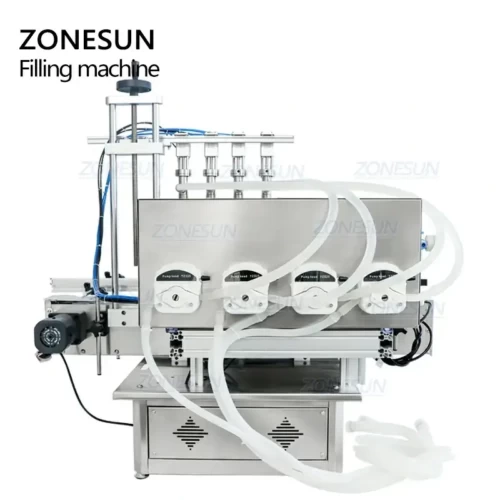

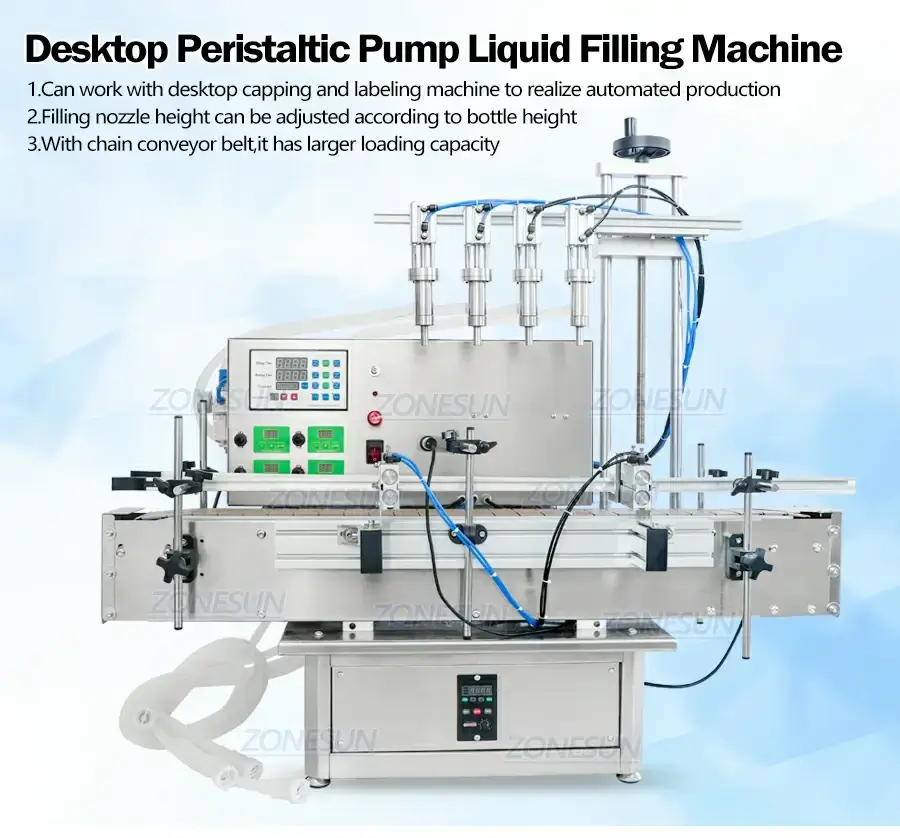

Desktop Peristaltic Pump Filling Machine
Description:

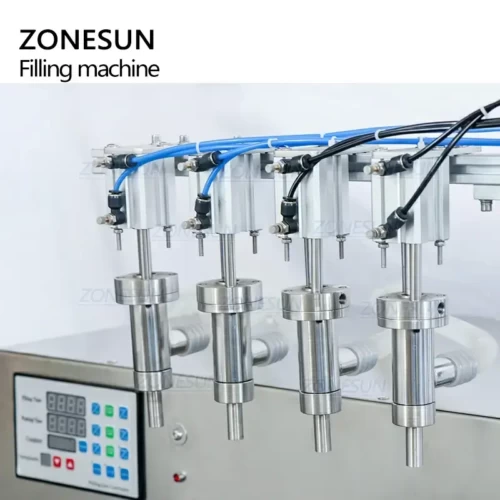

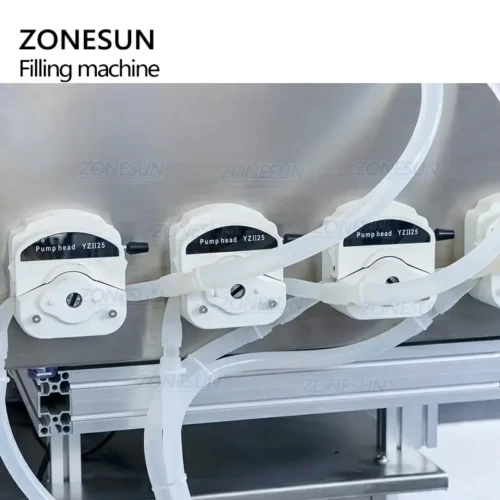

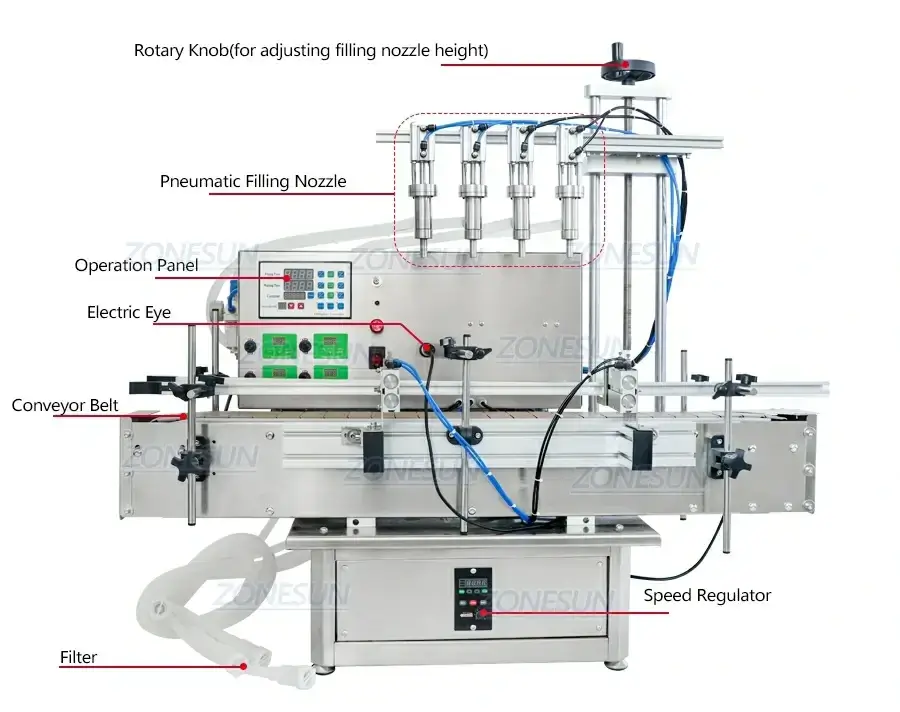

Equipped high quality peristaltic pump,it is suitable for filling gel,essential oils,juice,water etc.The material will not pass through pump during filling,this can ensures the production quality.The working height of the filling nozzle can be adjusted according to bottle height.This machine is widely used in food,beverage cosmetics and daily chemical industries.
Parameter:
| Machine model | ZS-DTPP4E |
| Voltage | AC110V/220V 50Hz-60Hz |
| Power | 60W(Each Pump) |
| Recommended filling volume | 10-1000ml(Gel is better ≤100ml) |
| Maximum flow | 4000ml/min for each nozzle (based on water ) |
| Filling nozzles | 4(we can customize the nozzles based on your demands) |
| Working speed | 30-50 bottles/min(based on bottles and liquids) |
| Air pressure | 0.3-0.4mpa |
| Filling accuracy | ≤±1%( for water) |
| Delay range | 0.01s – 999.9s |
| Belt length | 1.0 m |
| Size of air compressor connector | OD8mm |
| Suitable bottle height | <220mm(Can be customized,max height 300mm) |
