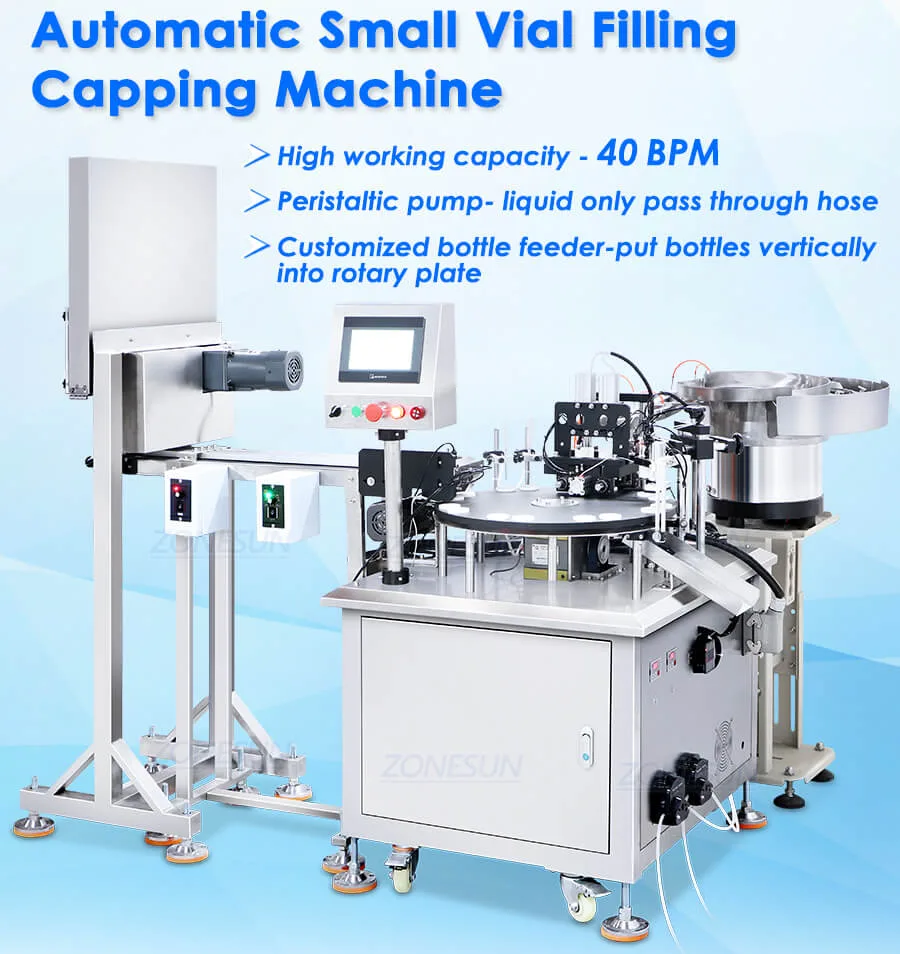

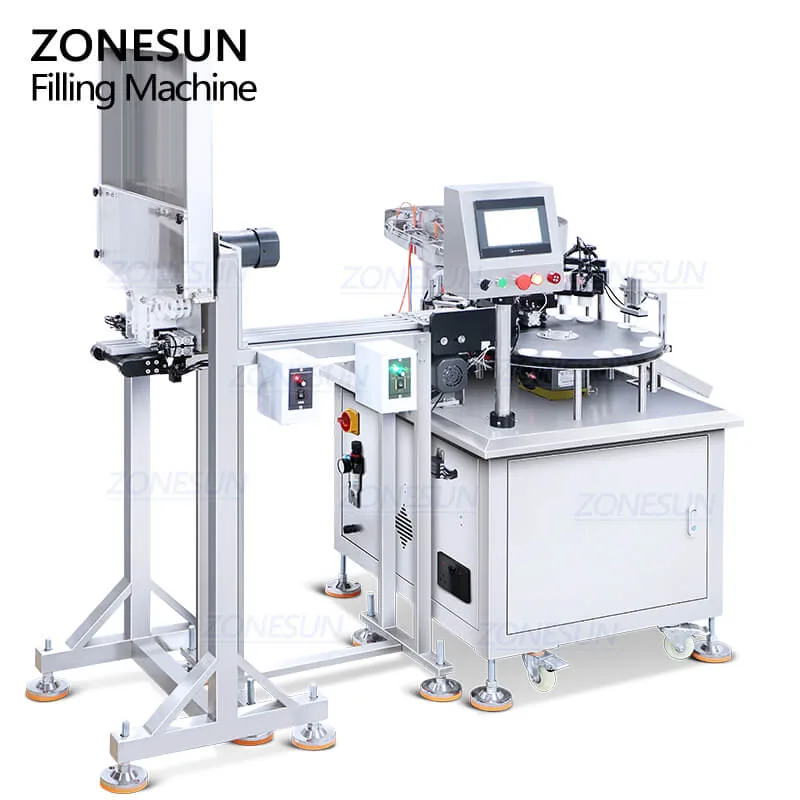

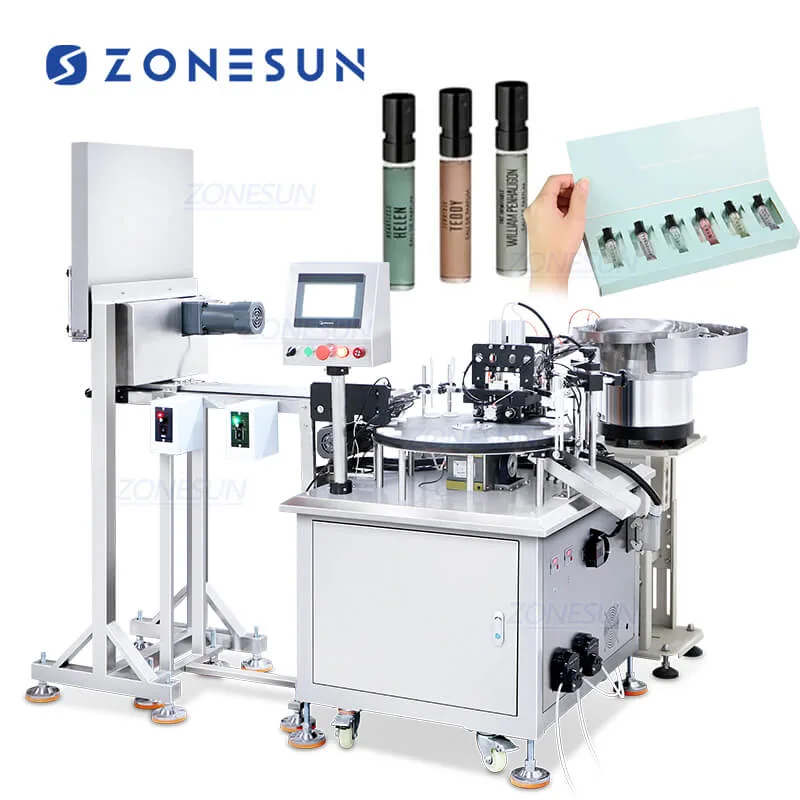

Perfume Vial Filling Capping Machine
This filling capping machine is equipped with a peristaltic pump, ideal for small volume liquid filling with high accuracy. It also features a bottle unscrambling structure, allowing for vertical bottle placement and automated production. This machine is suitable for perfume vials.
$15,199.00
Share to
This filling capping machine is equipped with a peristaltic pump, ideal for small volume liquid filling with high accuracy. It also features a bottle unscrambling structure, allowing for vertical bottle placement and automated production. This machine is suitable for perfume vials.
|
Machine model
|
ZS-AFC17
|
|
Voltage
|
AC110/220V 50-60Hz
|
|
Power about
|
1.5KW
|
|
Filling pump
|
Peristaltic Pump
|
|
Number of filling heads
|
2
|
|
Working speed
|
About 40BPM
|
|
Recommended filling volume
|
15-150ml
|
|
Filling accuracy
|
±1%
|
|
Air pressure
|
0.4-0.8MPa
|
|

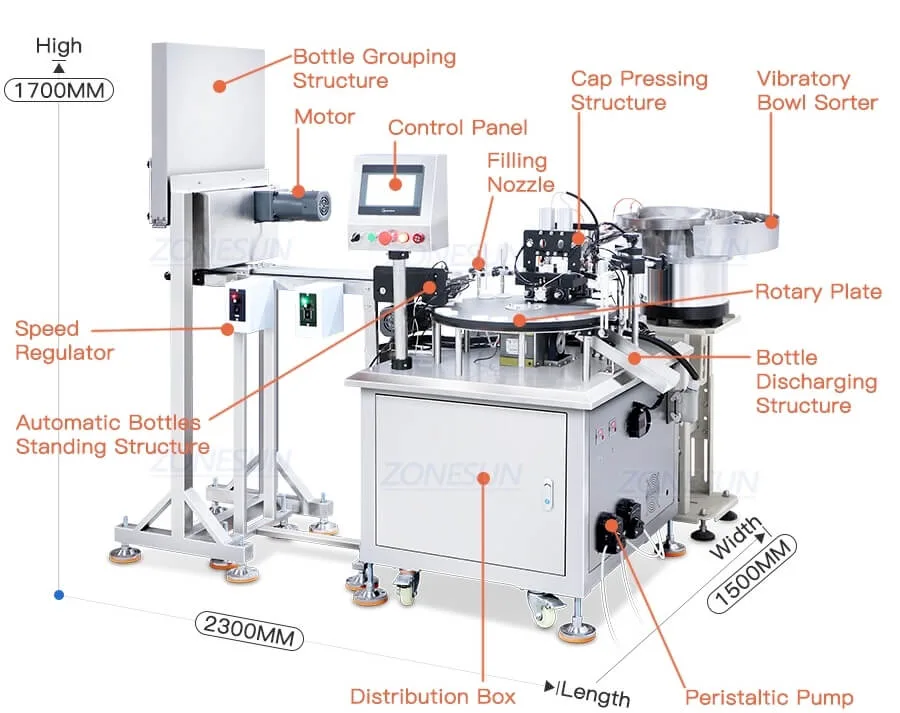

Machine size
|
About 2300*1500*1700mm
|

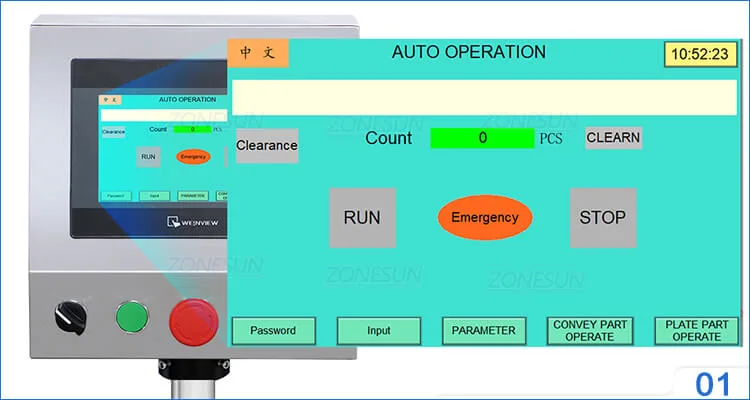

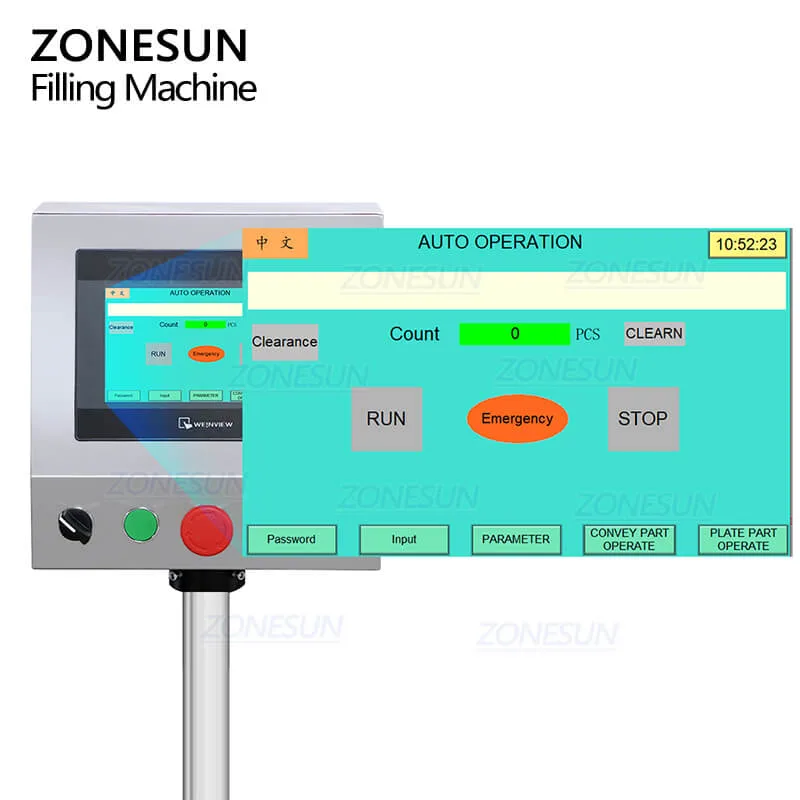

PLC Control Panel
Shows parameter setting more intuitively,easier to operate.

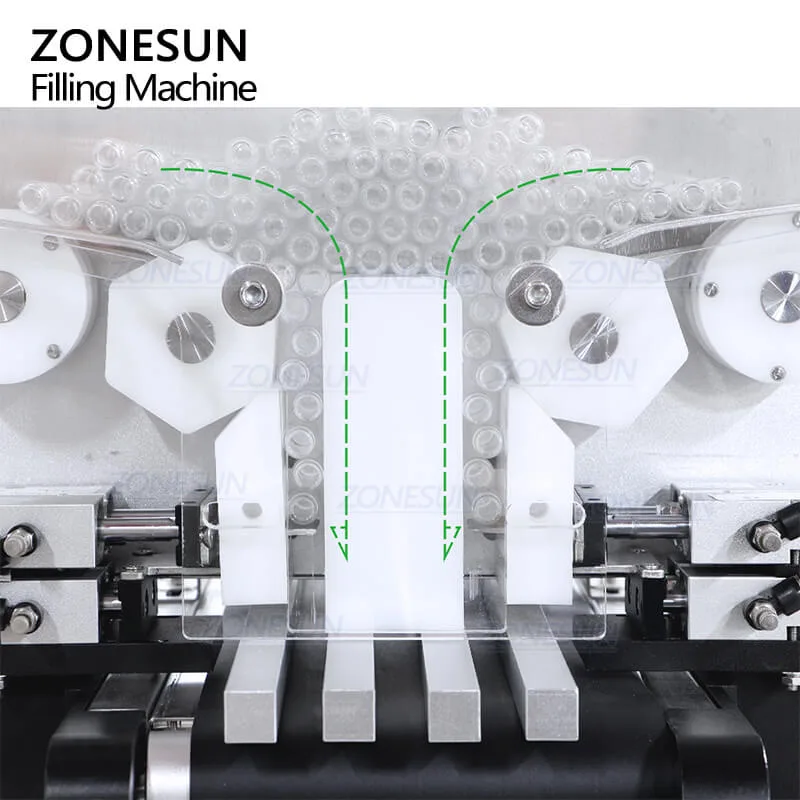

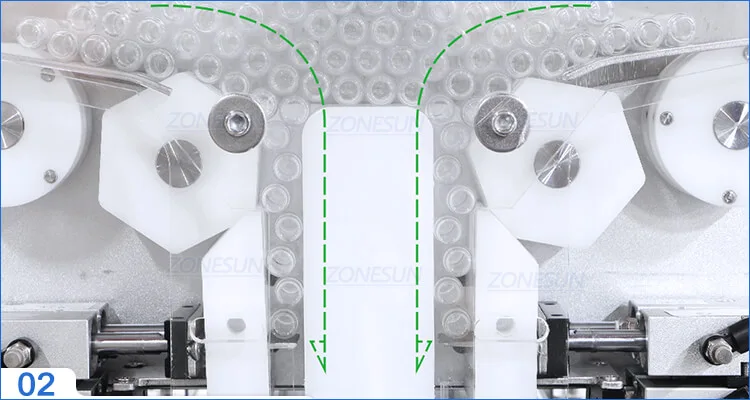

Bottle Grouping Structure
Convey bottles in time and orderly.

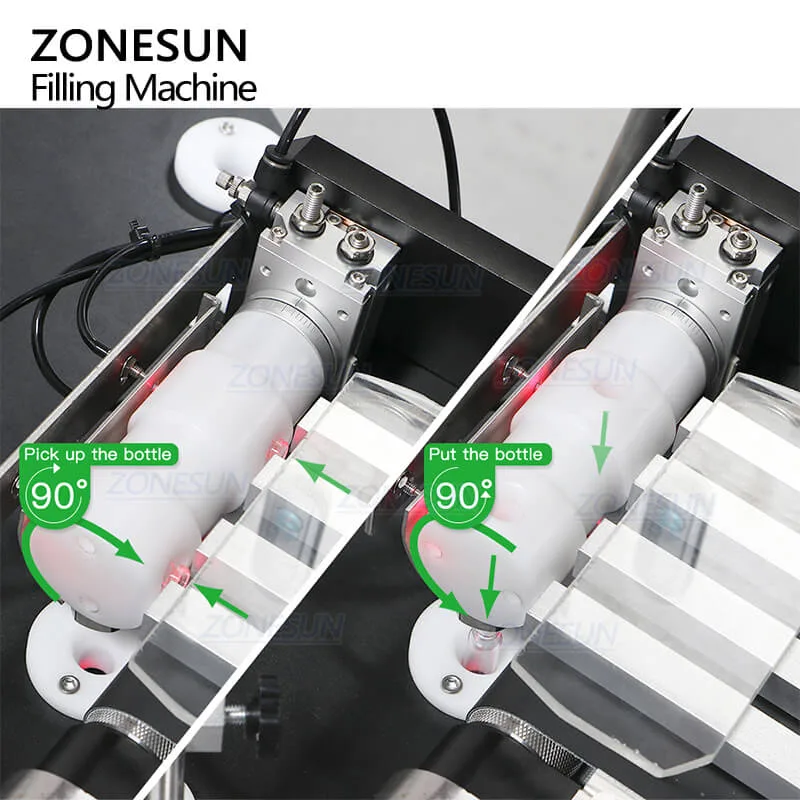

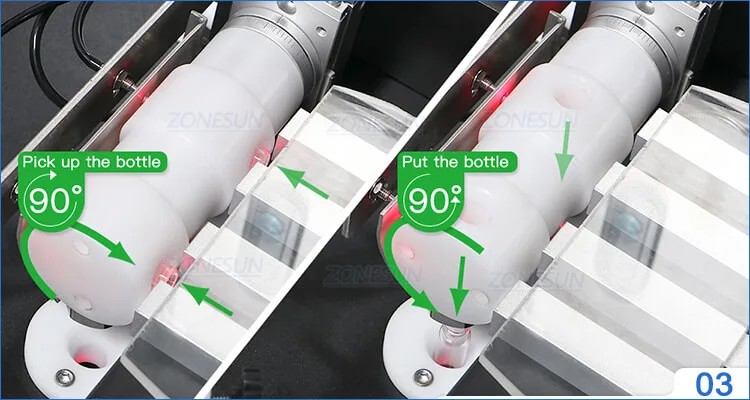

Bottle Standing Structure
Ensures bottles can be put vertically into rotary plate.

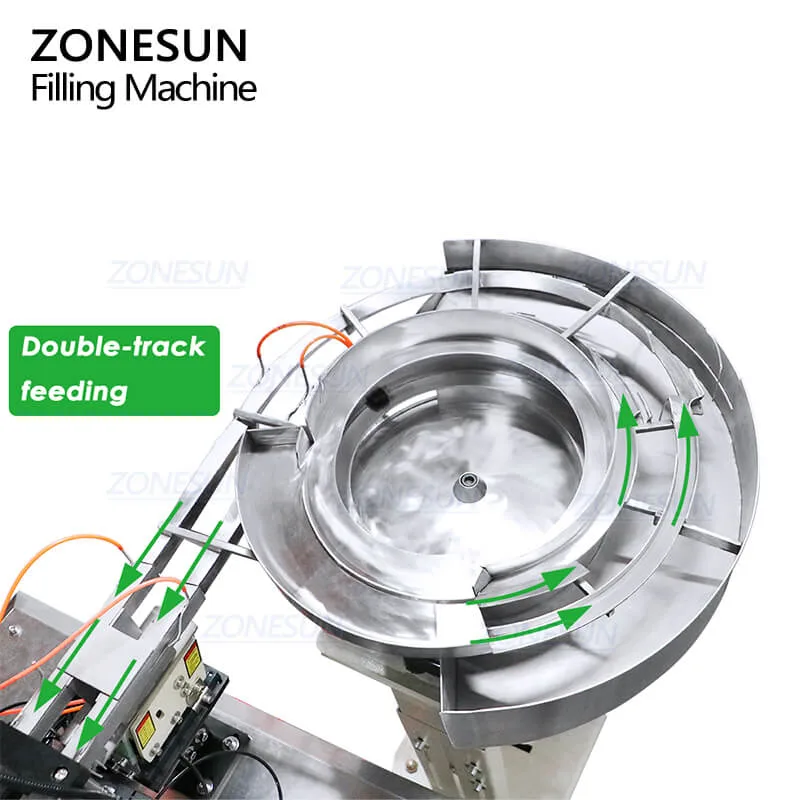

Vibratory Bowl Sorter
Can be customized based on production needs.It conveys caps orderly.

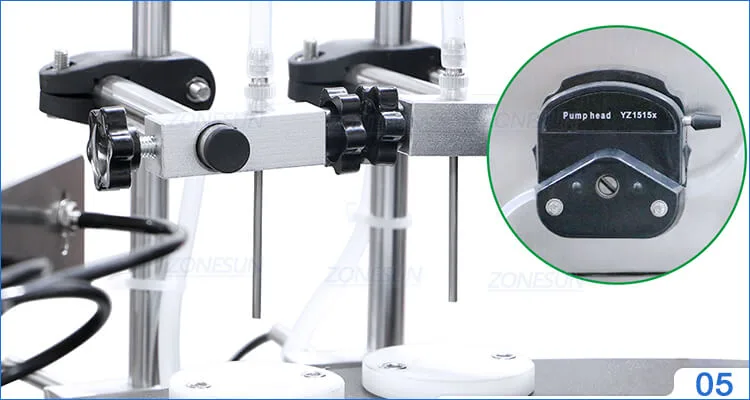

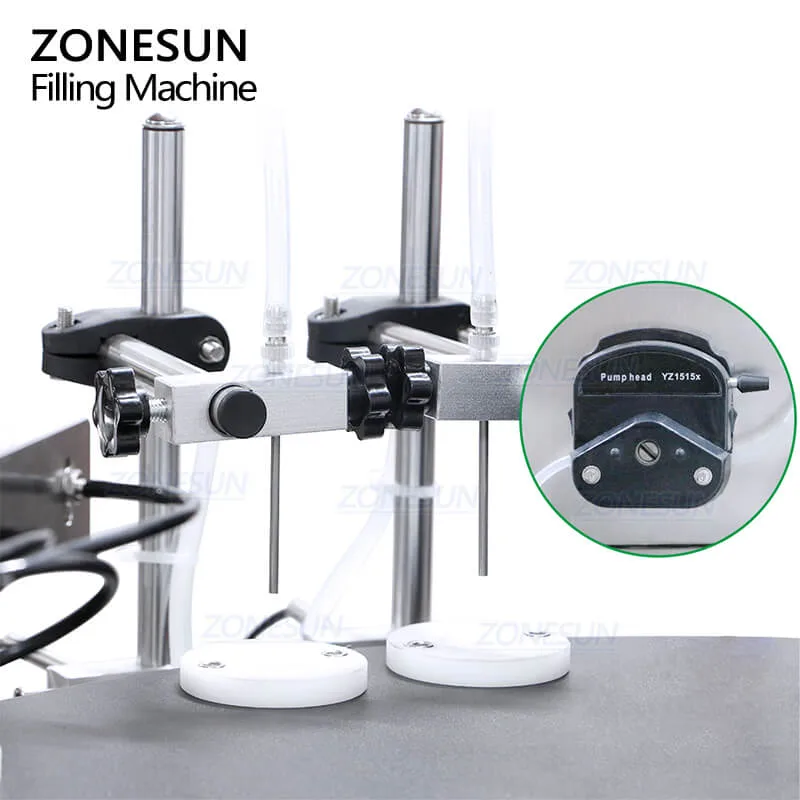

Double Filling Nozzles
Equipped with peristaltic pump,nozzle size can be customized according to bottle size to prevent from splashing.

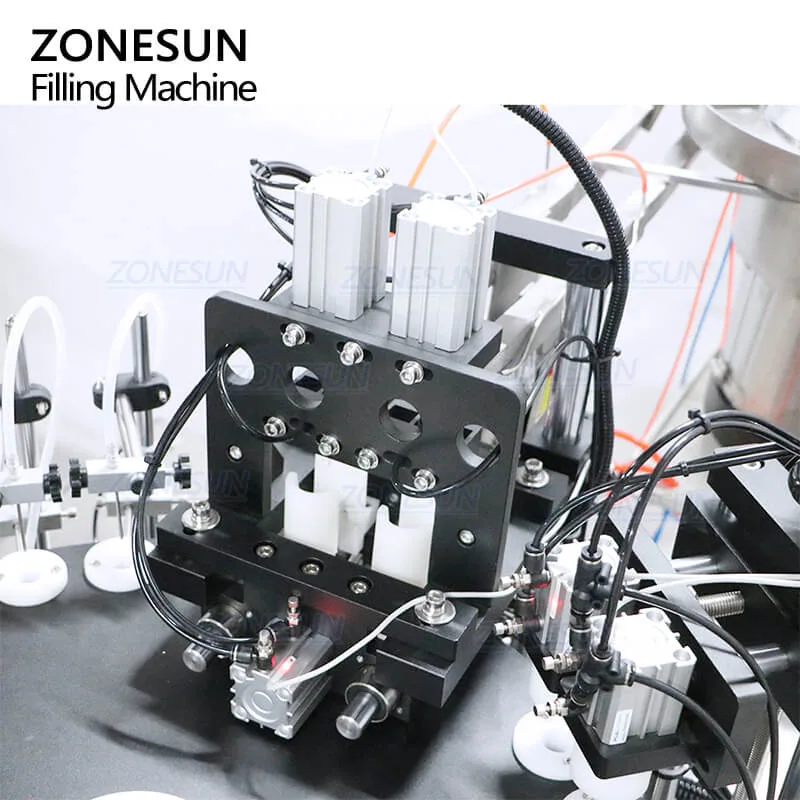

Cap Feeding Structure
Put caps onto bottles when the electric eye detect bottles.

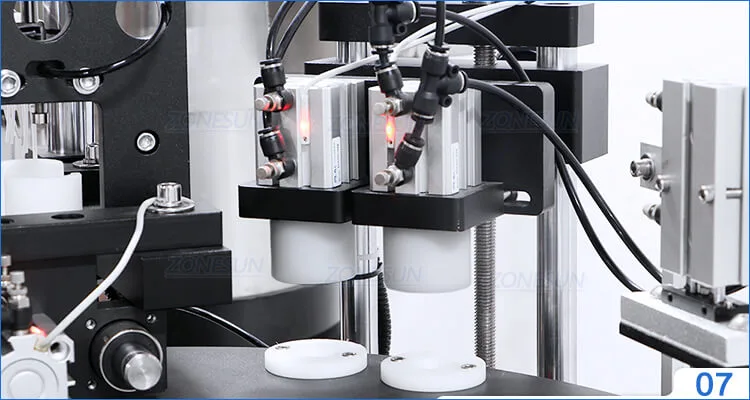

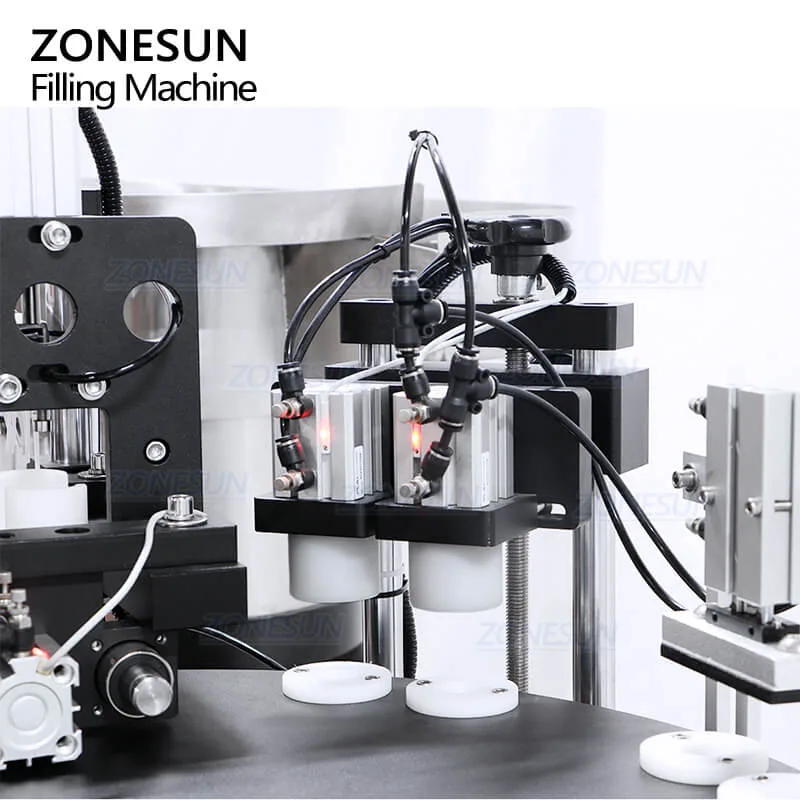

Capping Pressing Structure
Compressing bottle caps.This can be customized according to caps type.
Bottle Pressing Structure
Can insert to the fixing molds and prevent bottles from getting stuck.
