Heating Mixing Filling Machine

Heating Mixing Filling Machine

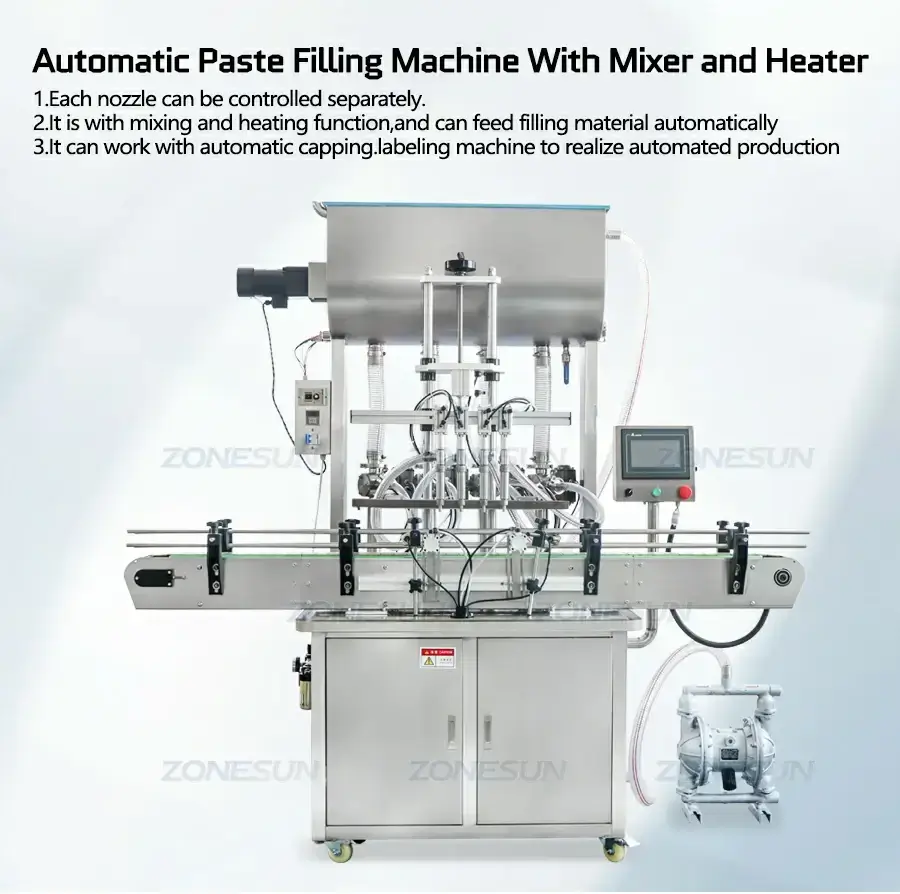

This machine is designed with mixing and heating function,and it can feed filling material automatically.This machine is good for filling pepper sauce,chocolate etc.Each nozzle can be controlled separately.It is widely used in food,beverage,daily chemical industries.

Product Detail

Product Tags


Heating Mixing Filling Machine-ZONESUN TECHNOLOGY LIMITED

Description:

This machine is designed with mixing and heating function,and it can feed filling material automatically.This machine is good for filling pepper sauce,chocolate etc.Each nozzle can be controlled separately.It is widely used in food,beverage,daily chemical industries.

Heating Mixing Filling Machine-ZONESUN TECHNOLOGY LIMITED

Parameter:

ModelZS-YT4T-4PM
Voltage110/220v 50-60HZ 600W
Filling Range5-100m/10-300ml/50-500ml/100-1000ml/500-3000m/1000-5000ml
Working Speed(Based On Water)
20- 50bottles/Min
Heating TemperatureAbout 0-300℃
Mixing SpeedAbout 1200r/min
Filling Accuracy≤±1%
Air Pressure0.5-0.7mpa
Conveyor SizeAbout 2000*100mm(l*w)
Size Of Filling Nozzleφ10mm
Size Of Air Compressor Connectorφ10mm
Machine WeightAbout 329kg
Machine SizeAbout 975*1020*2010mm
Package WeightAbout 392kg
Package SizeAbout 1660*1130*2130mm

Heating Mixing Filling Machine-ZONESUN TECHNOLOGY LIMITED

Heating Mixing Filling Machine-ZONESUN TECHNOLOGY LIMITEDHeating Mixing Filling Machine-ZONESUN TECHNOLOGY LIMITEDHeating Mixing Filling Machine-ZONESUN TECHNOLOGY LIMITED
