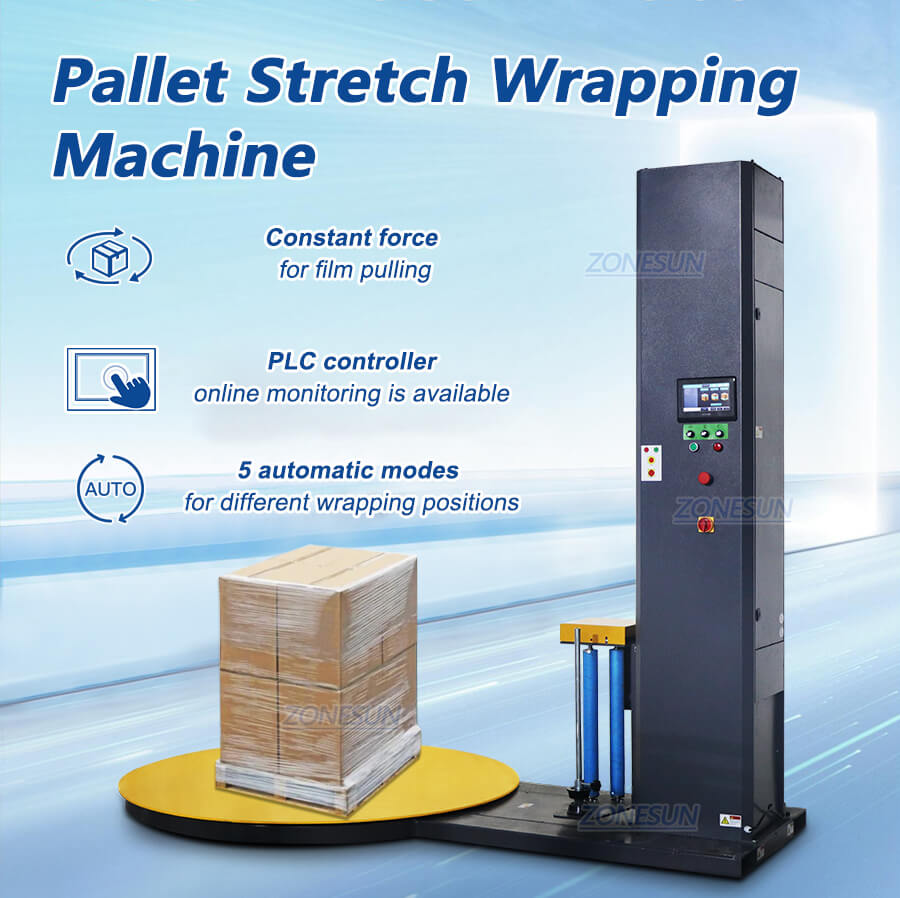

Product Description:
This pallet stretch wrapping machine is a semi-automated device used to wrap a stretchable plastic film around a palletized load, securing and stabilizing the items on the pallet for transportation or storage.

Product Parameters:

Machine model	ZS-PWM1
Machine voltage	110V/220V/380V 50-60HZ
Turntable size (maximum load diagonal size)	1500mm  (can be customized)
Maximum load wrap height	2000mm
Pallet wrapping turntable speed	0-12r/min
Maximum load weight capacity	3T（can be customized）
Film inner diameter	φ50-φ75mm
Film outer diameter	≤φ250mm
Film height	100-500mm
Film thickness	17-25µm
Film stretching	100%-300%
Machine size	About 2600*1650*2200mm(L*W*H)
Machine weight	About 600kg

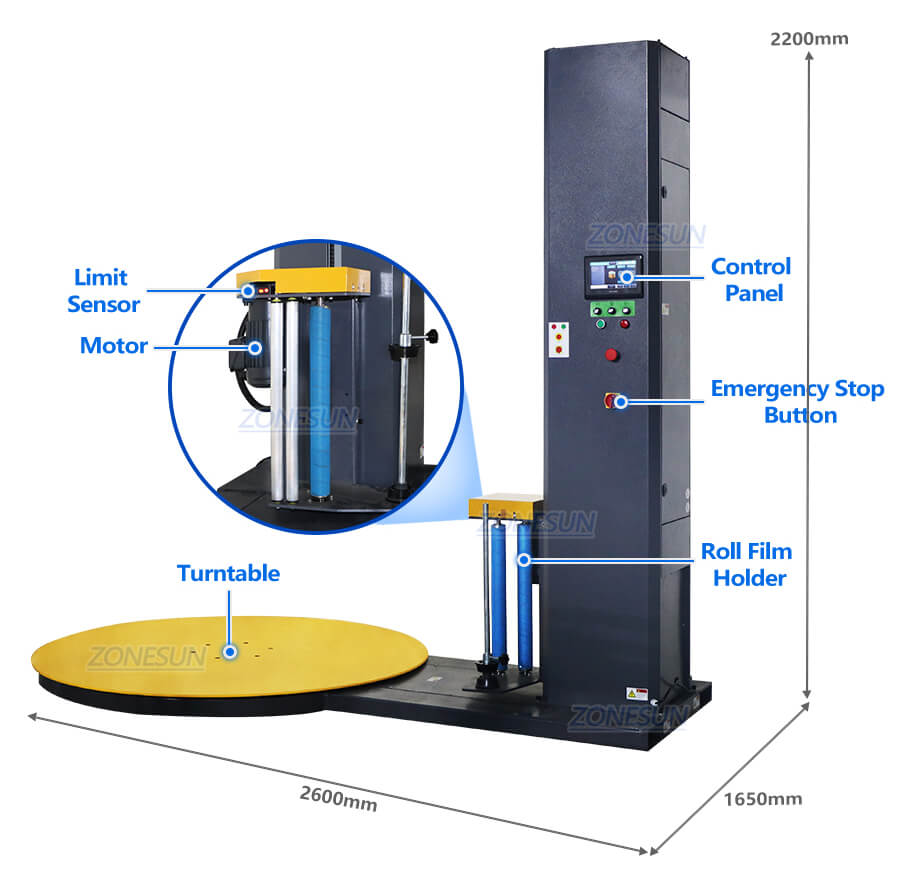

Product Details:

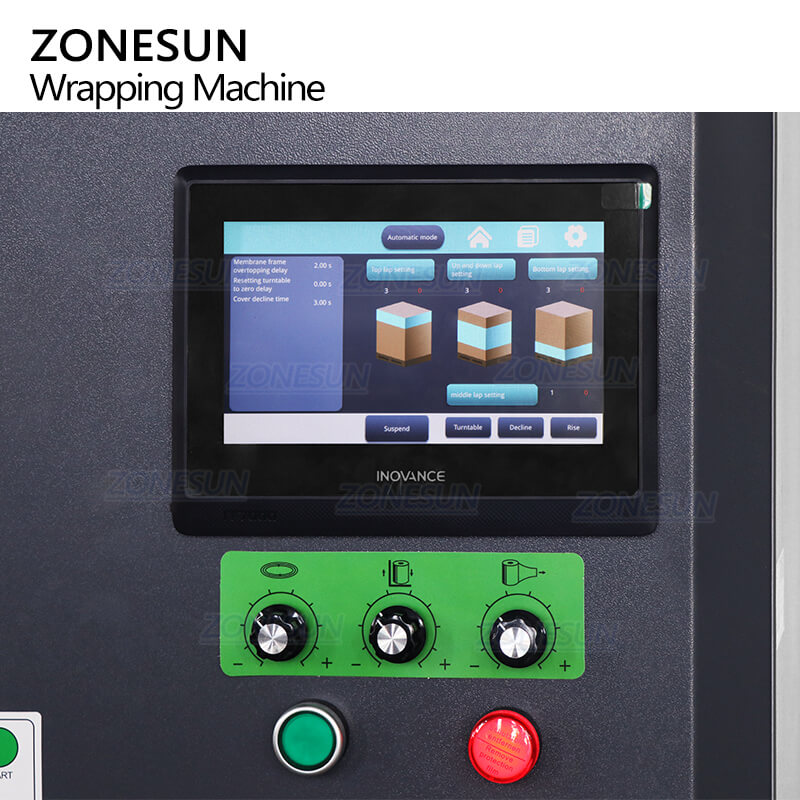

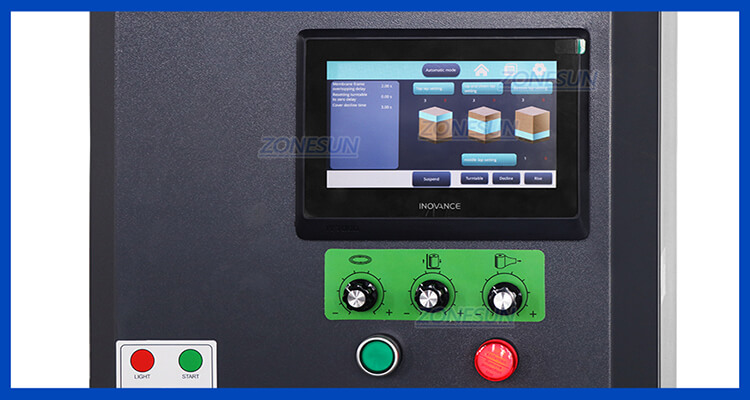

Smart Control System
Adopting artificial intelligence programming, the protection system has complete system operation indication and fault diagnosis.

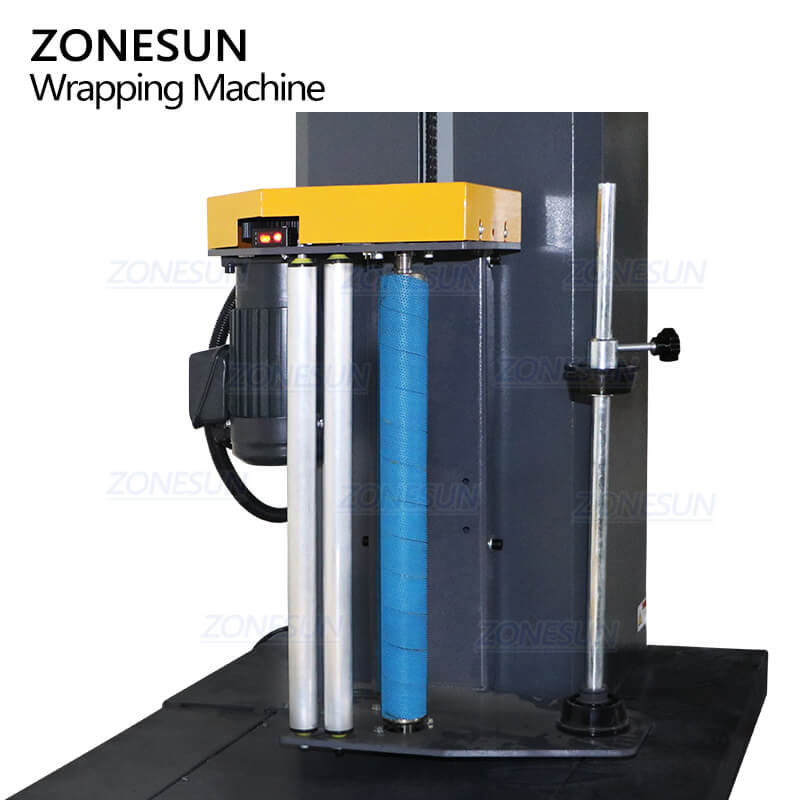

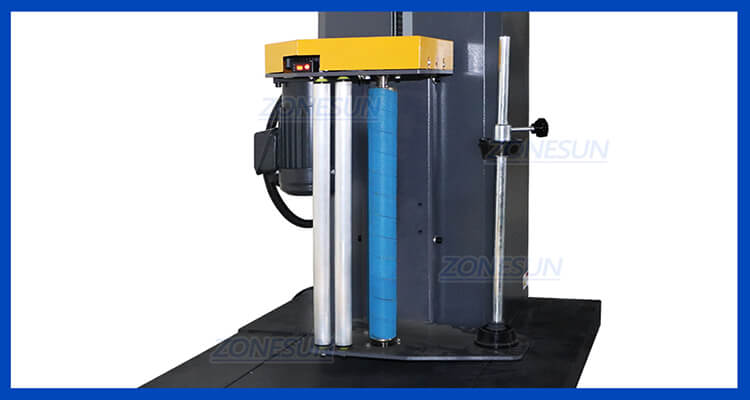

Film Pulling Structure
Using variable frequency drive (VFD) technology for speed control, constant force for film pulling.

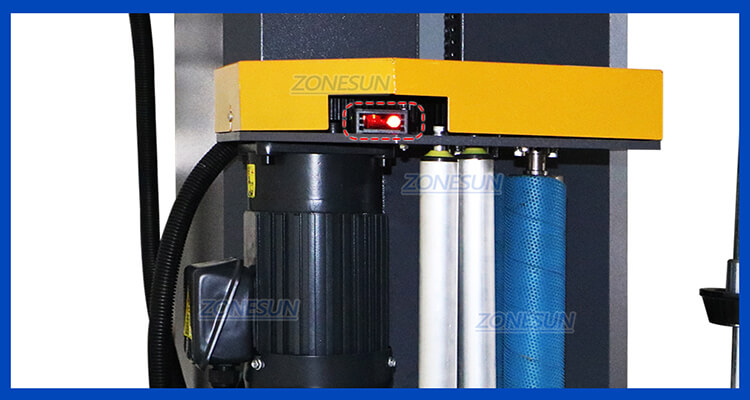

Limit Sensor
Detect loads height and control the wrap height of. The machine automatically.

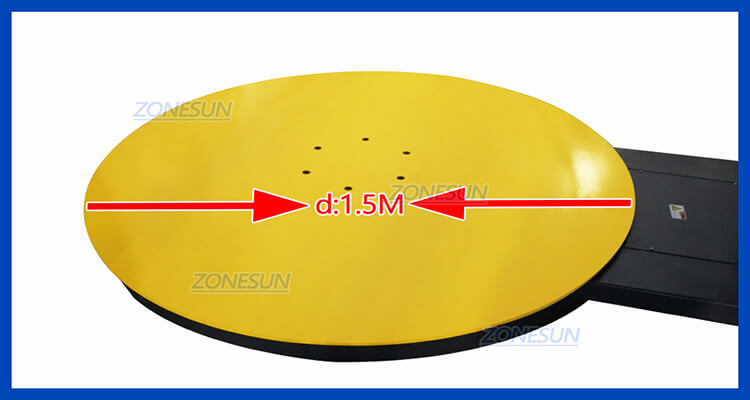

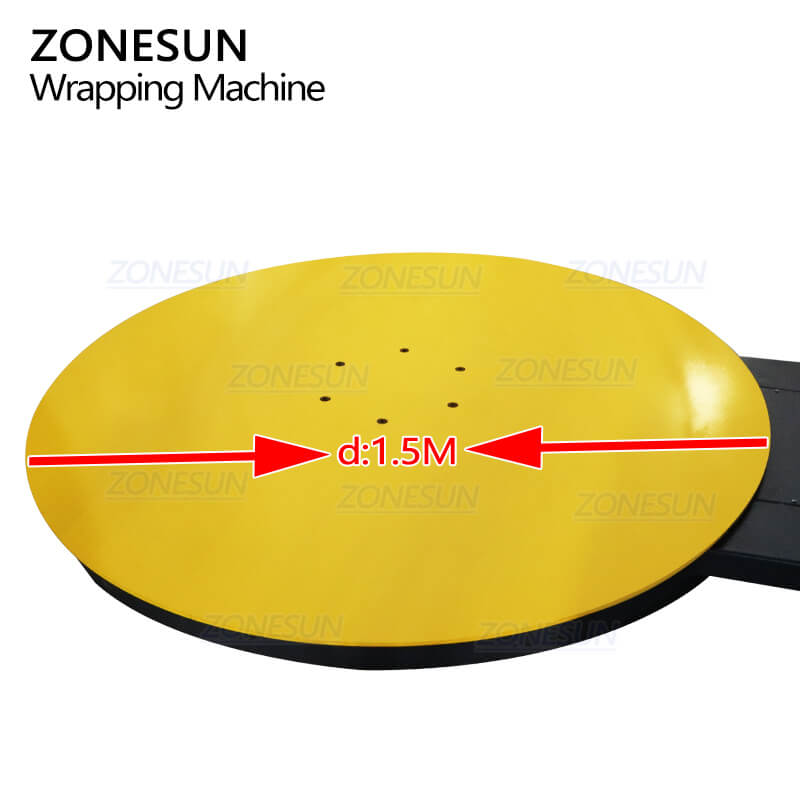

Turntable
Diameter of turntable can be customized according to loads size. Load wrap height and weight capacity can be customized as needed.
