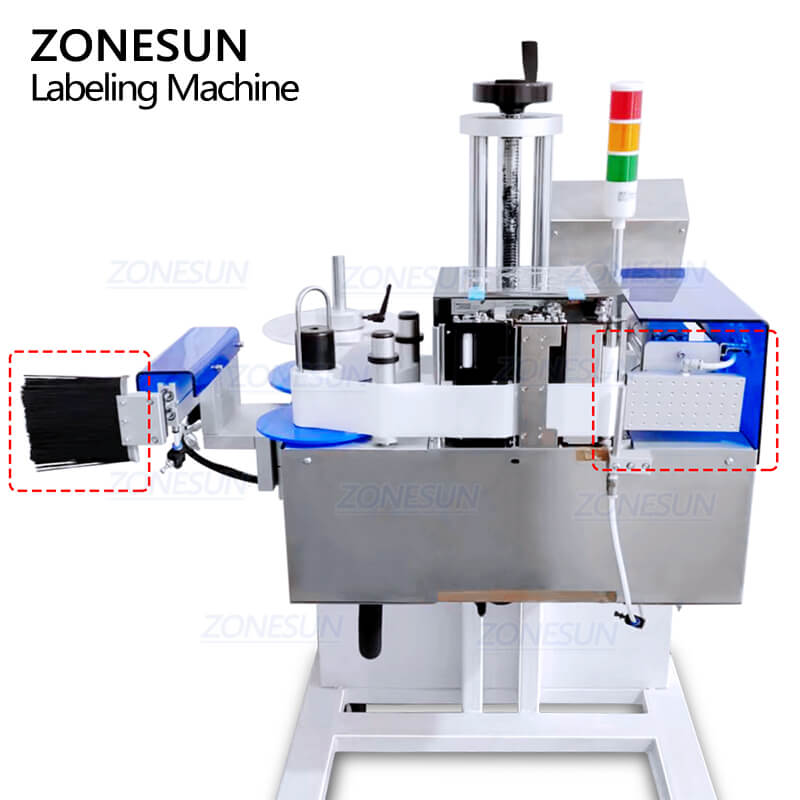

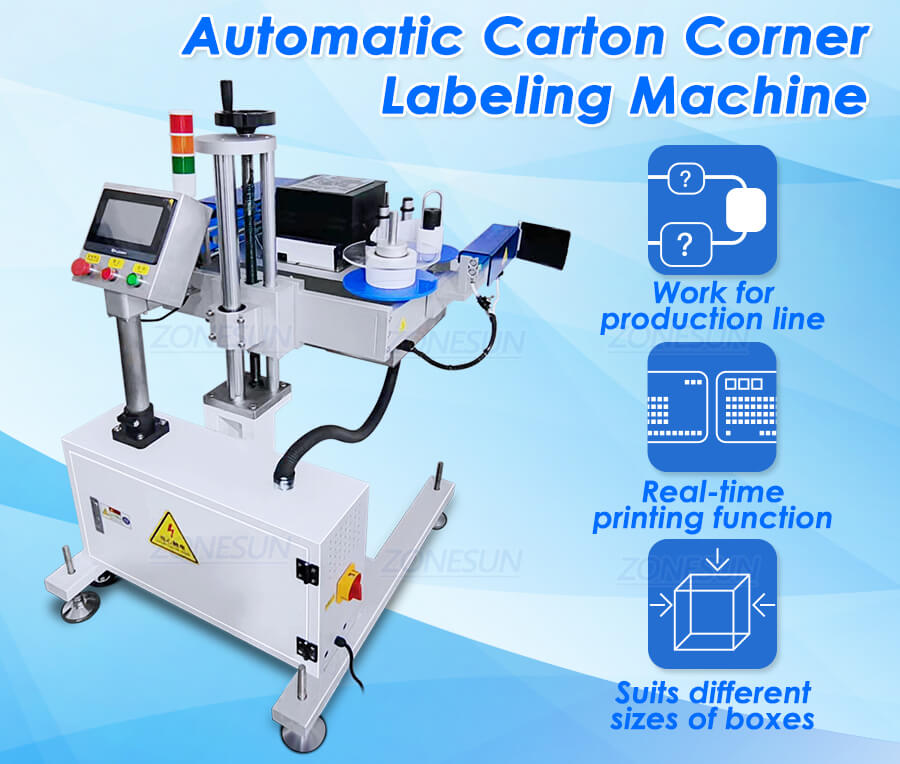

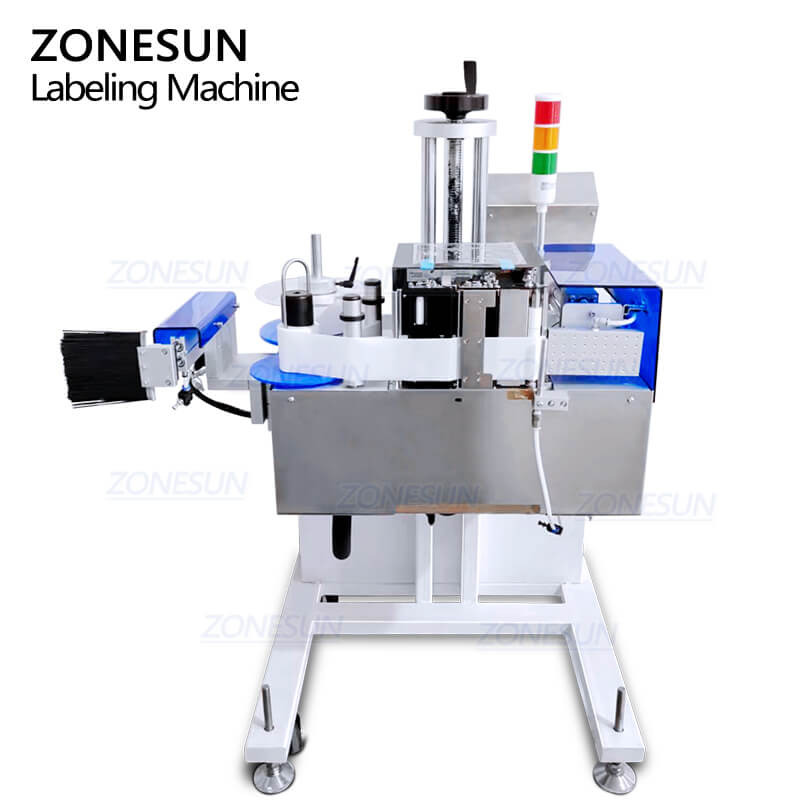

Product Description:
This labeling machine is designed for corner labeling of paper boxes. It can also integrate with ERP/MES/SAP systems for real-time printing. It is versatile and can adapt to different label sizes and specifications for cardboard boxes.

Product Parameters:

Machine model	ZS-TB852C
Machine voltage	110/220V 50-60HZ 500W
Suitable boxes size	Customized
Working capacity	1-20 pieces/min
Labeling accuracy	±1mm
Print width	<104mm
Print length	<3810mm
Label base paper width	16mm-114mm
Resolution	300dpi (200dpi/600dpi are available)
Ribbon width	25.4mm-107mm
Label roll inner diameter	76mm (3 inches)
Ribbon roll inner diameter	25.4mm (1 inch)
Paper thickness	0.135mm0.254mm
Print type	Thermal printing/thermal transfer
300dpi print speed	300mm/s (maximum)
Air pressure	0.6-0.8MPa(≥120L/min)
Machine size	About 950*900*1500mm (About 37.4*35.4*59inch)

Labeling Machine Configuration
Machine Components	Brand	Origin
Cylinder	SMC/AirTac	Japan
Solenoid valve	CKD	Japan
24V power supply	Meanwell	Taiwan,China
PLC	Panasonic	Japan
Stepper motor	JSCC	China
Leakage switch	Chint	China
Pressure regulating valve	AirTac	Taiwan,China
Vacuum generator	AirTac	Taiwan,China
Human-machine interface	Weinview	China
Measurement photoelectricity	Sick	Germany
Magnetic switch	SMC	Japan
Head sensor	Panasonic	Japan

Product Details:

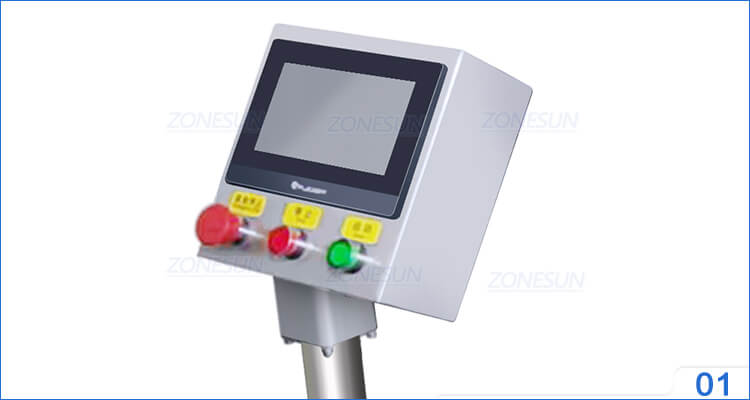

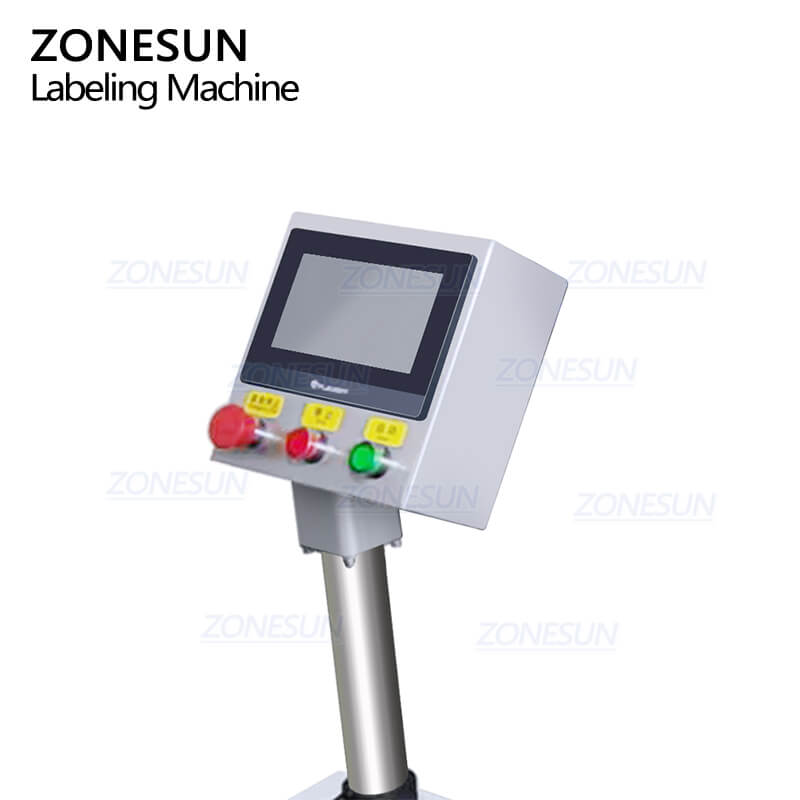

Touch Screen Control Panel
The working status can be displayed in real time, and the parameter data setting is more intuitive.

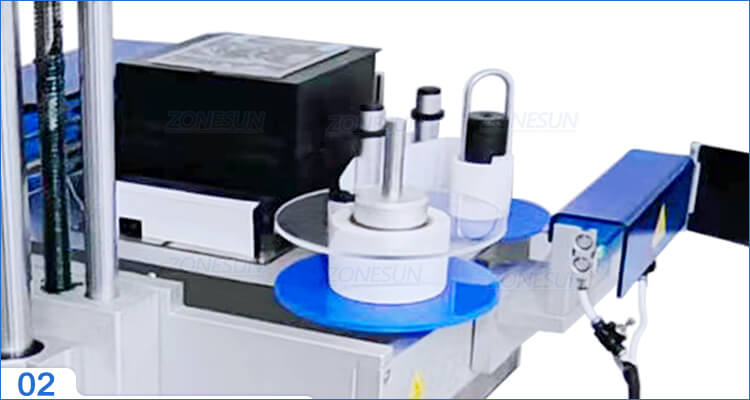

Printing Structure
Can realize real-time printing, connect to ERP, MES, SAP and other systems to improve production efficiency.

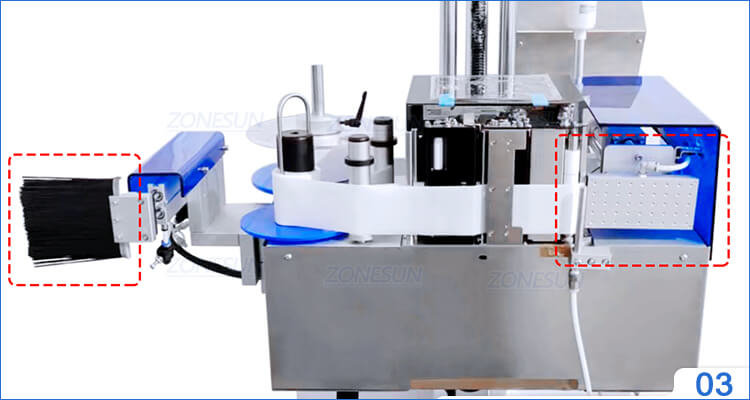

Labeling Structure
Can flexibly adapt to label different specifications and sizes of cardboard boxes.

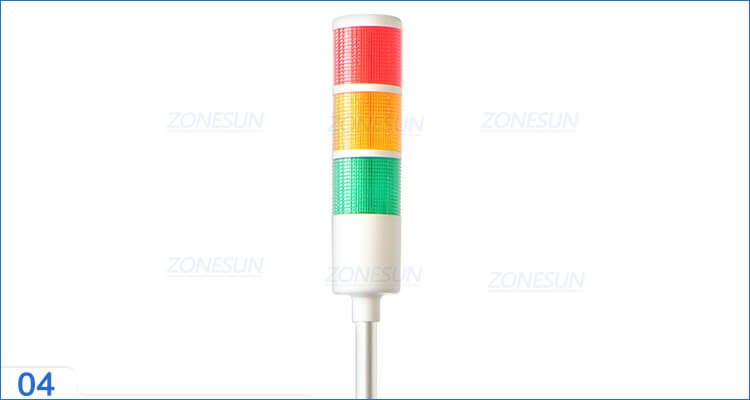

Warning Light
With fault alarm function, the machine fault, material shortage and other conditions can be reminded to the operator through the warning light.
