Nail Polish Production Line

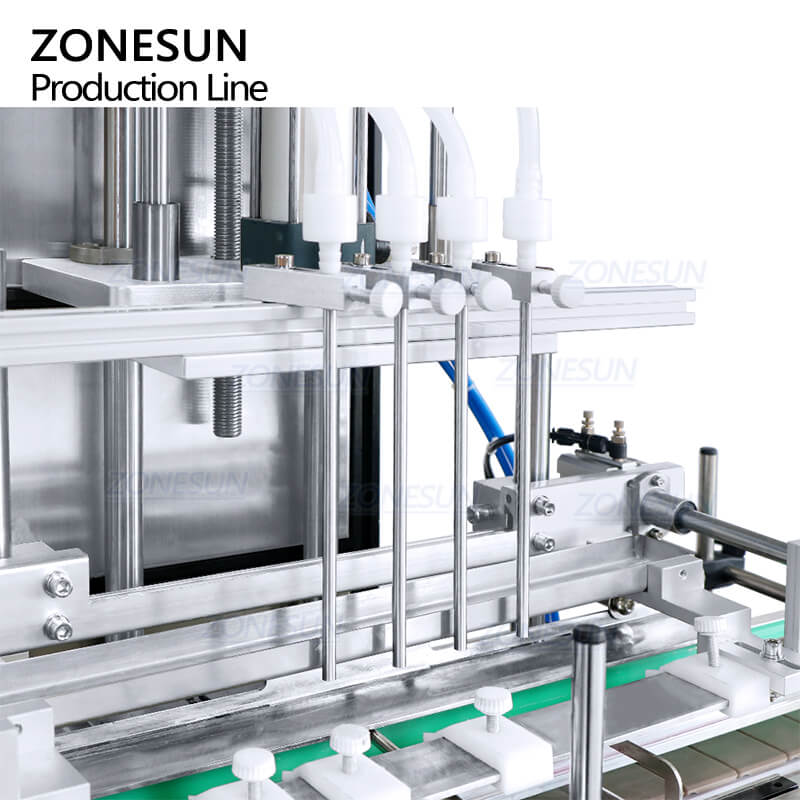

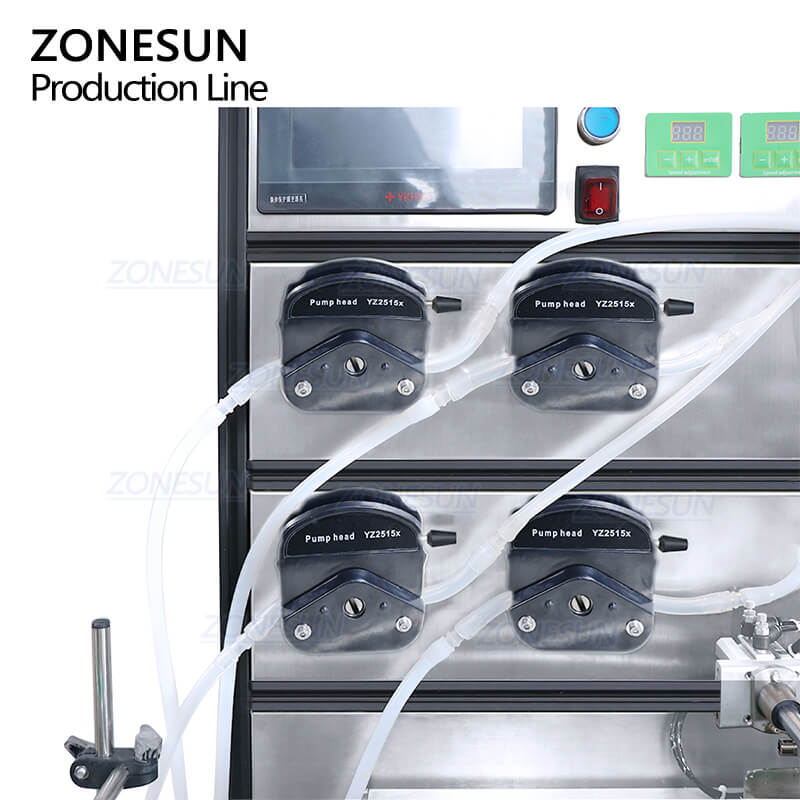

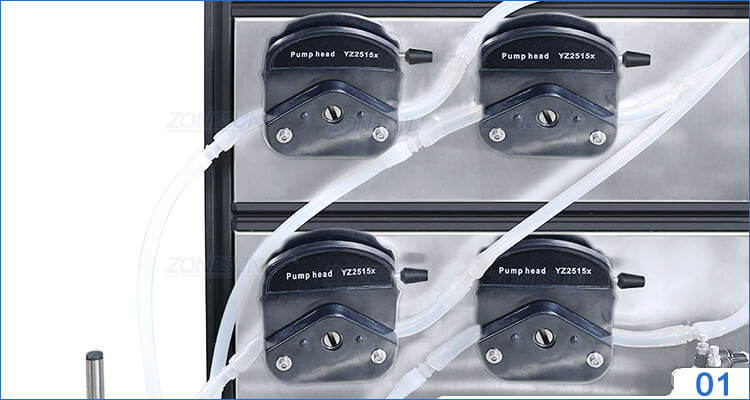

This filling line is consist of peristaltic pump filling machine,cap feeder and capping machine.The peristaltic pump is easy to change hose,which is good for filling multiple color or fragrance liquid.It is widely used in daily chemical industries.

Machine Video Click Here:

Send email to us

Product Detail

Product Tags

Description:

Parameter:

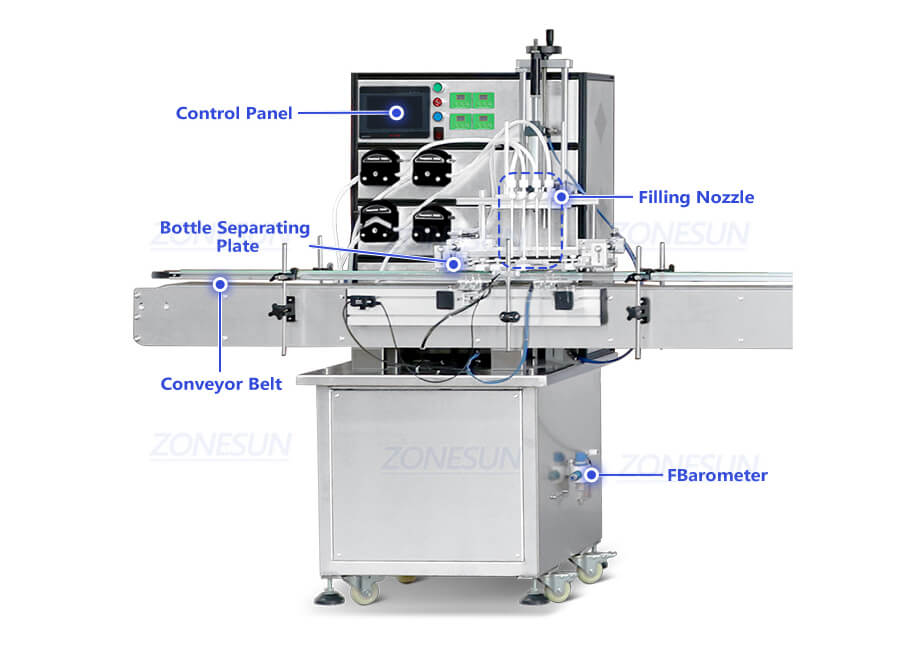

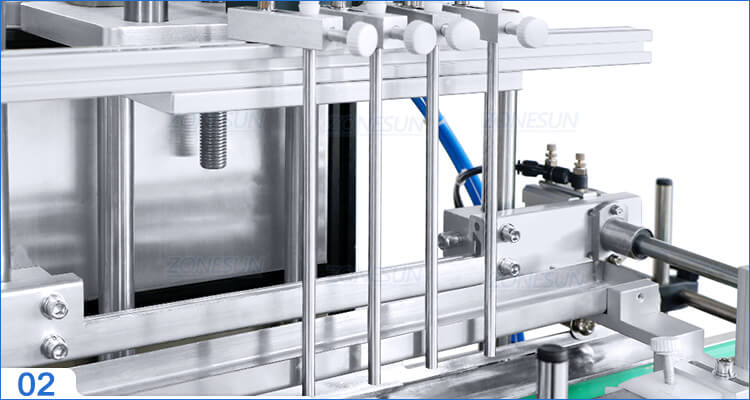

>Filling Machine

Model	ZS-VTPP80C
Container size	φ20-160mm H30-300mm
Power supply	110V-60HZ/220V-50HZ
The pump power	60W(For Each Nozzle)
Recommend Filling Volume	50-500ml
Max flow rate	4000m/min for each nozzle(based on water)
Filling accuracy	≤±1%( for water)
Filling speed	40 pcs/ min(depending on bottles and filling liquid)
Net weight/Gross weight	About 128Kg/150Kg
Packing size	About 20008201570mm

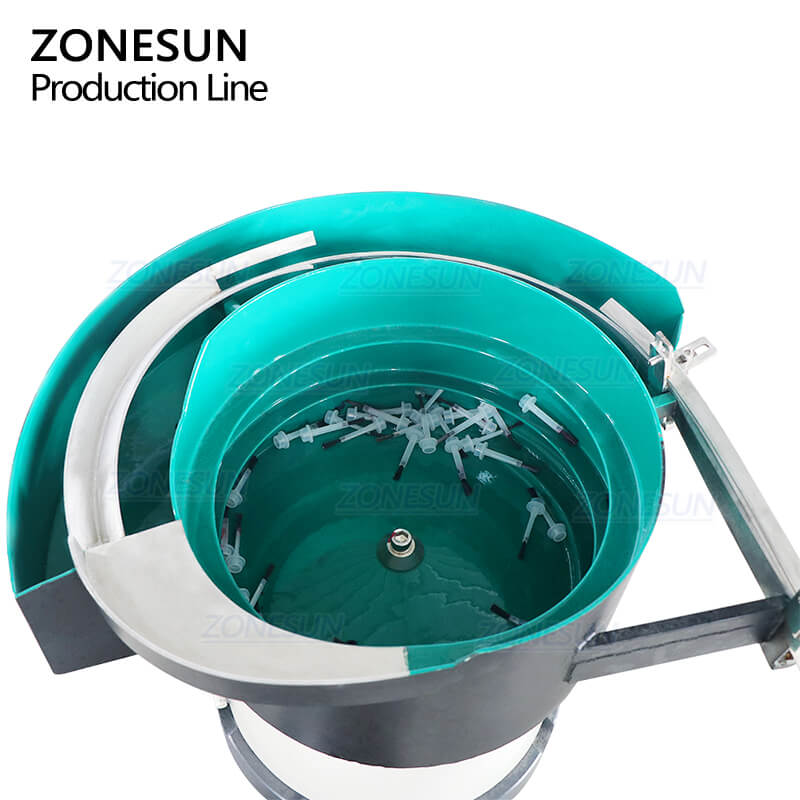

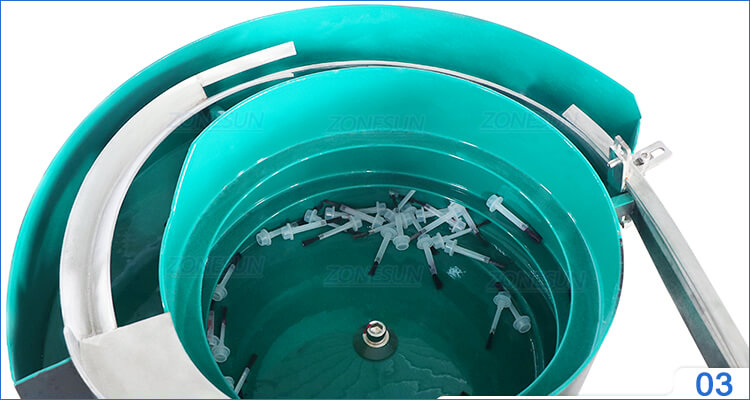

>Vibratory Feeder

Model	ZS-CVP1
Machine power	110/220V 50-60HZ
Material	Stainless Steel
Suitable caps diameter	Customized
Working speed
Machine size

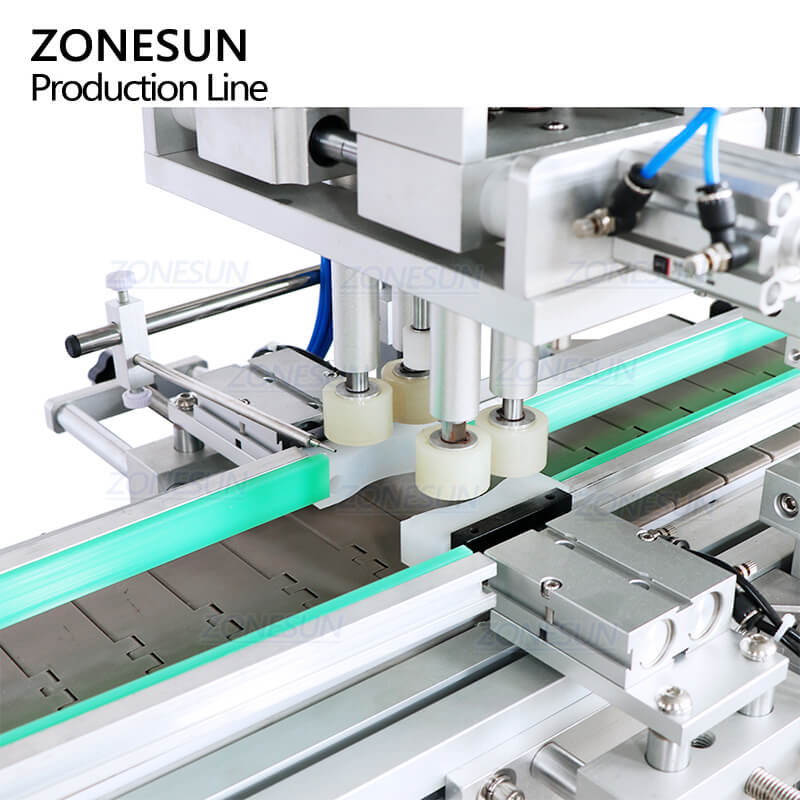

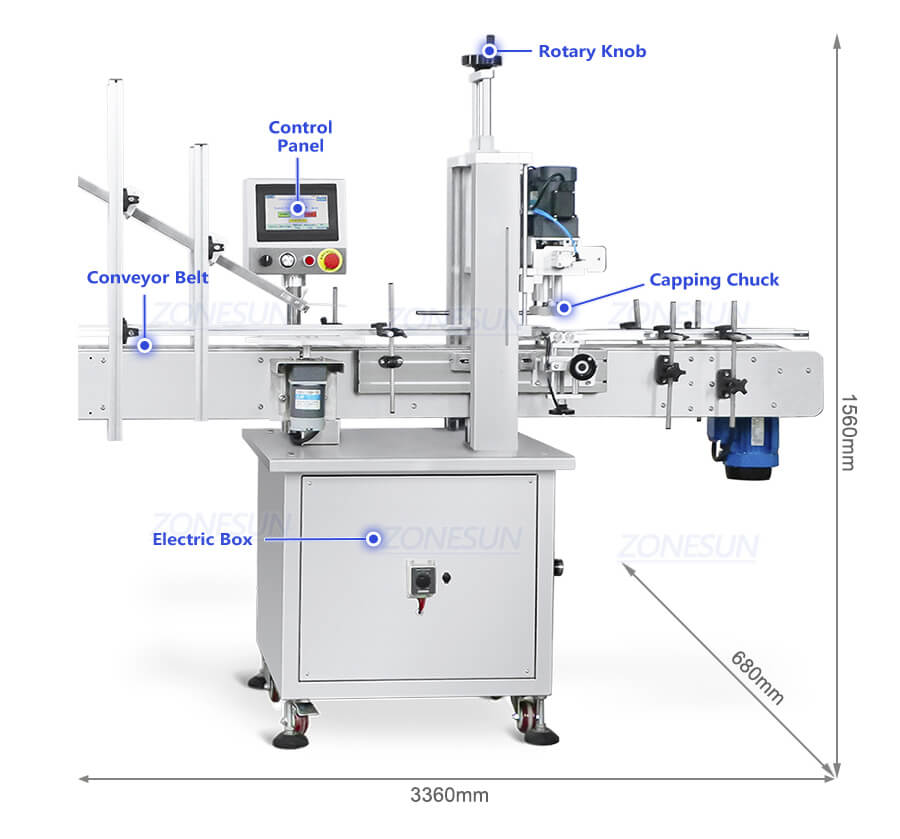

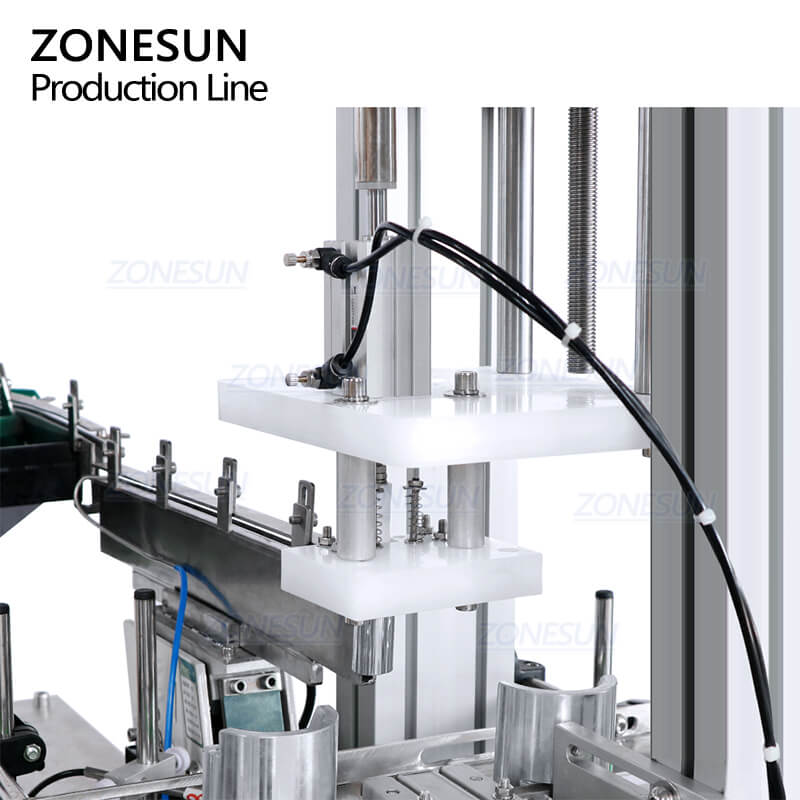

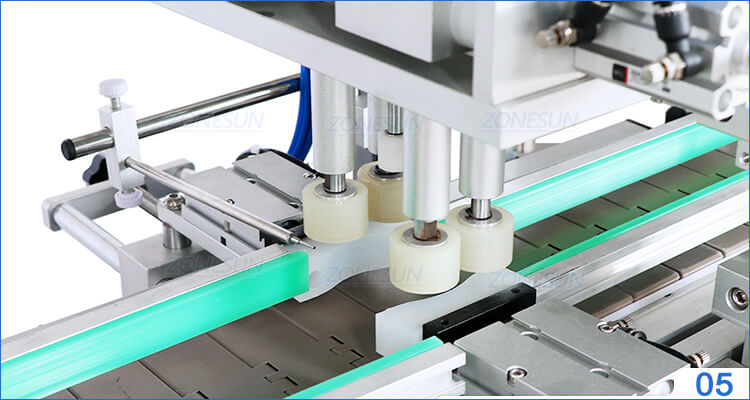

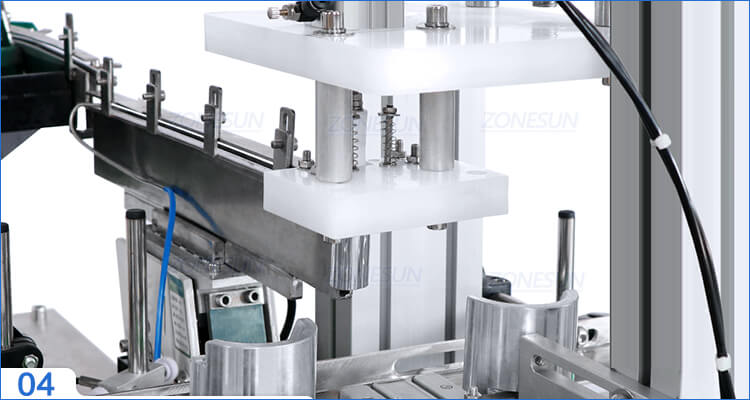

>Capping Machine

Working voltage	AC220V/110V 50- 60HZ
Working pressure	0.4-0.6MPa
Bottle height	30-300mm
Cap diameter	18-70mm
Bottle diameter	20-160mm
Working speed	About 25 BPM
Machine size	About 33606801560mm
Package size	About 197011701735mm
Net weight/Gross weight	About 157kg /257kg

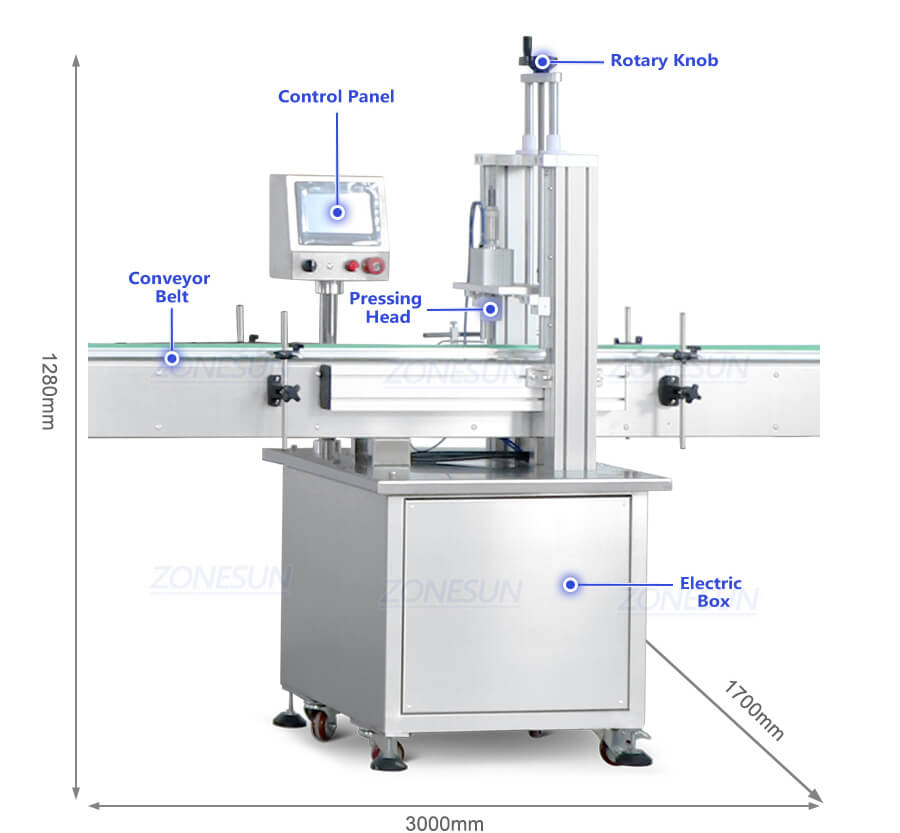

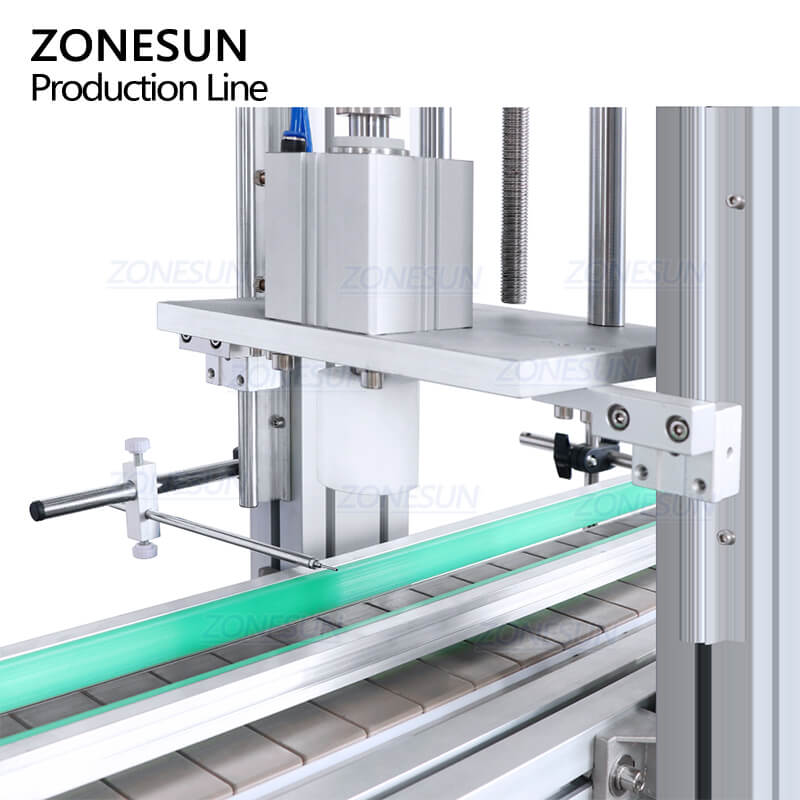

>Pressing Machine

Machine model	ZS-XG440G
Working voltage	AC220V/110V 50-60HZ
Power	About 1100W
Working speed	20-40 bottles/minute (depending on bottle and caps)
Bottle height	60-270mm
Bottle cap diameter	Can be customized
Working pressure	0.4-0.6 MPa
Machine size	About 300017001280mm
Package size	About 20208201730mm
Gross weight	About 307kg
